Threshold Amplifier - Overview and Schematic Collection of all Models

A friend of me will start a collection of all exist Threshold models - at least of all exist power amplifiers.
This brings me to the idea, to start this thread with an information collection with a listing of (first only all me known) models and miscelaneous parts/PCB's.

please help me to complete this list - there are probably missing a few models, especially the universal PCB names of various modules and special/custom made parts used in various amp models (eg front-end, VU-Meter PCB).Thank you therefore.
In the next time I will also redrawn those circuit diagrams, where the original schematic documents are difficult to read.

Most listed models I have found about
Threshold-Audio.com

First Series:
800A 200 Watt/Channel STASIS Stereo Power Amplifier (1975-77)
800S ???? unknown
400A 100 Watt/Channel STASIS Stereo Power Amplifier (1976-79)
4000 200 Watt/Channel STASIS Stereo Power Amplifier (1977-79, successor 400A)
800A Schematic
Threshold 800A and 800S
Threshold 800A Help!
http://www.diyaudio.com/forums/pass...els-mospec-2n5876-2n5878-mj21193-mj21194.html
Threshold 800A assistance
400A or Stasis 3?
Threshold 400 a
Threshold 400 A
Buying a 400A
http://www.diyaudio.com/forums/pass-labs/131030-would-work-400a.html
Threshold 400A HELP !!
Threshold 4000
Threshold! (4000 vs 800A)
Threshold (4000 400A CAS1)
Elettronica audio - (a cura di Piercarlo Boletti): QUAD 405 - 2 - Seconda parte (800A - high resolution schema, scroll down)
http://www.diyaudio.com/forums/pass-labs/55055-threshold-400a-parts-substitution-mods.html
Threshold 400A Power supply help
AudiogoN Reviews: Threshold 400a Amplifier (photo)

Cascode Amplifier (CAS) Series (Emitter Cascode Follower as Power Buffer)
CAS-1 75 Watt/Channel STASIS Stereo Power Amplifier (1979-81)
CAS-2 125 Watt/Channel STASIS Stereo Power Amplifier (1979-81)
THRESHOLD CAS-2 poweramp.
Threshold CAS 1
Threshold (4000 400A CAS1)

Stasis-Series:
STASIS-1 200 Watt STASIS MonoBlock Power Amplifier (1979-81)
STASIS-2 200 Watt/Channel STASIS Stereo Power Amplifier (1979-81)
STASIS-3 125 Watt/Channel STASIS Stereo Power Amplifier (1979-81)
SA-1 160 Watt STASIS MonoBlock Power Amplifier (1984-88)
SA-2 100 Watt STASIS MonoBlock Power Amplifier (1984-88)
SA-3 50 Watt/Channel STASIS Stereo Power Amplifier (1984-88)
S/150 (two series) 75 Watt/Channel STASIS Stereo Power Amplifier (1982-84)
S/200 (two series) 100 Watt/Channel STASIS Stereo Power Amplifier (1984-86)
S/300 (two series) 150 Watt/Channel STASIS Stereo Power Amplifier (1983-88)
S/500 (two series) 250 Watt/Channel STASIS Stereo Power Amplifier (1983-88)
S/1000 (two series) 500 Watt STASIS MonoBlock Power Amplifier (1984-88)
SA/3.9e 60 Watt/Channel STASIS Stereo Power Amplifier (1990-94)
SA/4e 100 Watt/Channel STASIS Stereo Power Amplifier (1989-95)

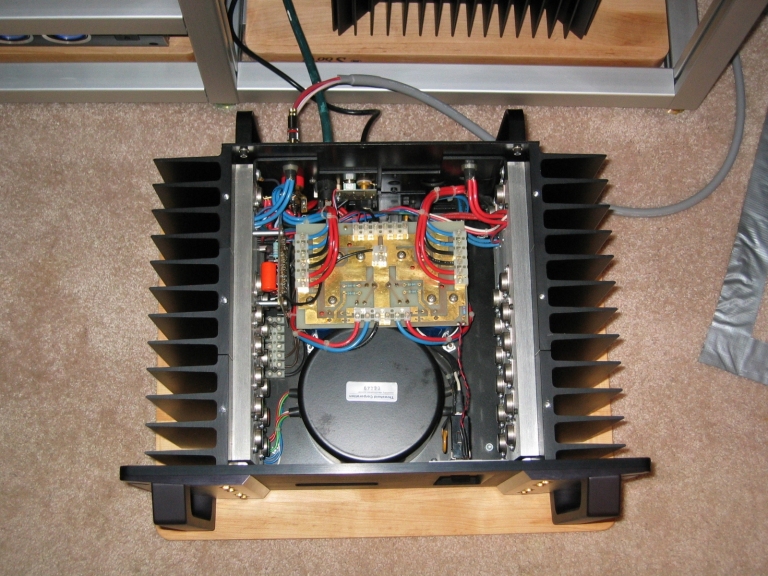

SA/6e 125 Watt STASIS MonoBlock Power Amplifier (1990-94)
SA/10e 175 Watt STASIS MonoBlock Power Amplifier (1990-94)
SA/12e 250 Watt STASIS MonoBlock Power Amplifier (1989-95)
stasis 2 and 3 schematics
http://www.diyaudio.com/forums/pass-labs/64795-stasis-2-problem.html
http://www.diyaudio.com/forums/pass-labs/92677-stasis-one-meter.html
Threshold Stasis 2.
Threshold Stasis 2.
threshold stasis 2
Threshold Stasis Model 3
http://www.diyaudio.com/forums/pass-labs/92618-another-threshold-stasis-2-rebuild.html
http://www.diyaudio.com/forums/pass-labs/34288-threshold-stasis-3-too.html
Stasis 3 Power Transistors
http://www.diyaudio.com/forums/pass-labs/112339-threshold-s-200-a.html
http://www.diyaudio.com/forums/pass-labs/158093-threshold-sa-sa-e-series-monoblocks.html
Stereophile: Threshold SA-1 monoblock power amplifier (SA-1)
Schematic and help with Threshold SA/4 (post #34: Instruction for bias adjust)

Threshold's New-Owner Series:
T 50 50 Watt/Channel Stereo Power Amplifier (1994-98)
T 100 60 Watt/Channel Stereo Power Amplifier (1994-98)
T 200 100 Watt/Channel Stereo Power Amplifier (1994-98)
T 400 150 Watt/Channel Stereo Power Amplifier (1994-98)
T 800 and T 800D 200 Watt/Channel Stereo Power Amplifier (1996-98)
TA-300 150 Watt/Channel Stereo Power Amplifier (1993)
S/160 80 Watt/Channel STASIS Stereo Power Amplifier (1992-94)
S/250 125 Watt/Channel STASIS Stereo Power Amplifier (1992-94)
S/350e 150 Watt/Channel STASIS Stereo Power Amplifier (1990-94)
S/450e 200 Watt/Channel STASIS Stereo Power Amplifier (1990-94)
S/550e 250 Watt/Channel STASIS Stereo Power Amplifier (1990-94)
S/1600 750 Watt STASIS MonoBlock Power Amplifier (1989-1994)
Threshold SA/2 SA/3 Soderburg site?
http://www.diyaudio.com/forums/pass-labs/144136-biasproblems-threshold-sa-1-a.html
http://www.diyaudio.com/forums/pass-labs/146232-schematics-threshold-series-i-ii.html
http://www.diyaudio.com/forums/pass-labs/142576-threshold-s-1000-series-ii.html
http://www.diyaudio.com/forums/pass-labs/140152-help-schematic-threshold-s-1000-series-ii.html
http://www.diyaudio.com/forums/pass-labs/136361-threshold-sa-50-a.html#post1953481
diyAudio

Unknown models:
500 ???
500/II ???
Threshold 500II
maybe SA-500 and Stasis 500 MK-II ??

not mentioned power amplifier models
about Threshold-Audio.com
but mentioned about http://www.audiopathways.com/Threshold.htm
preamp Stasis R 3.0 and 5.0
integrated Amp: Dragon V
5ch Power Amp: S-3500-E
Stereo Power Amp: Stasis 7.0 - Stasis 8.0 - S-5000-E
MonoBlock S-7000-E

Upgrade Kits:
???? ........................please let me know more, whether there are such kits or not.

PCBs and special parts for various models:

various protection unit's: PCB part No 254-6000
Front end modules (FE-89, FE90), Universal FEB, Universal Error Correction PCB
Universal LED Driver PCB for VU Light Band Displays (multi element bar graph array) e. g.
Electronics-Lab.com Blog VU meter
PCB for VU Light Band LED Display (multi element bar graph array)
VU Light Band VFD (Vakuum Fluoreszenz)-PCB
Analogue VU Moving Coil Panel Peak Indicator Meter
....................please let me know all the existing things - I have only found that from the attachement

Stereo Line + RIAA Preamplifier
NS-10 Stereo Preamplifier (1977-79)
http://www.diyaudio.com/forums/pass-labs/26003-threshold-ns-10-m1-info-wanted.html
http://www.diyaudio.com/forums/pass-labs/76557-threshold-ns10-lineamp-pcb-21.html?postid=1634684
SL-10 Stereo Preamplifier (1979-81)
Threshold sl-10?
threshold sl10
http://www.diyaudio.com/forums/pass-labs/151645-threshold-sl-10-a.html#post1937332
FET-1 (two series) Stereo Preamplifier (1981-85)
Threshold FET1
FET-2 (two series) Stereo Preamplifier (1981-85)
FET-9 Stereo Preamplifier with Phone Stage (1986-89)
FET-10Pc Stereo Phone Gain Stage (1986-89)
FET-10HL Stereo High Level Preamplifier (1986-89)
FET-9e Stereo Preamplifier with Phone Stage (1990-94)
FET-10Pe Stereo Phone Gain Stage (1990-98)
FET-10He Stereo High Level Preamplifier (1990-94)
http://www.diyaudio.com/forums/pass-labs/113706-threshold-fet-10-he-service-manual.html
Threshold Fet 10/hl Opinion ?
Threshold fet ten/pc schematics
T 2 Remote Control Stereo Preamplifier (1994-98)
T 3/T 3i Remote Control Stereo Preamplifier (1994-98)

crossover/DAC
PCX (-X10) Stereo Electronic Crossover (1987-89)
DAC1e Digital to Analog Convertor (1992-96)
DAC2 Digital to Analog Convertor (1995-98)

various URL's concerning Threshold devices:
Threshold Lovers - Threshold - Product line history
archiveamps
Stammtisch für HiFi- und Musik-Freunde | PASS LABS | Threshold
By Threshold history site not mentioned models: e.g. Stasis R-3.0 - Stasis R-5.0 - T Zero
Threshold Audo from AudioPathic


Attachments

  • ZZZ-Threshold univ. gain modul.pdf
    90.6 KB · Views: 782
  • ZZZ-Threshold E-Line Output Stage.pdf
    82.4 KB · Views: 687
  • ZZZ-Threshold univ. FEB.pdf
    65.3 KB · Views: 511
  • ZZZ-Thresholdpeakdisplay.pdf
    37.6 KB · Views: 453

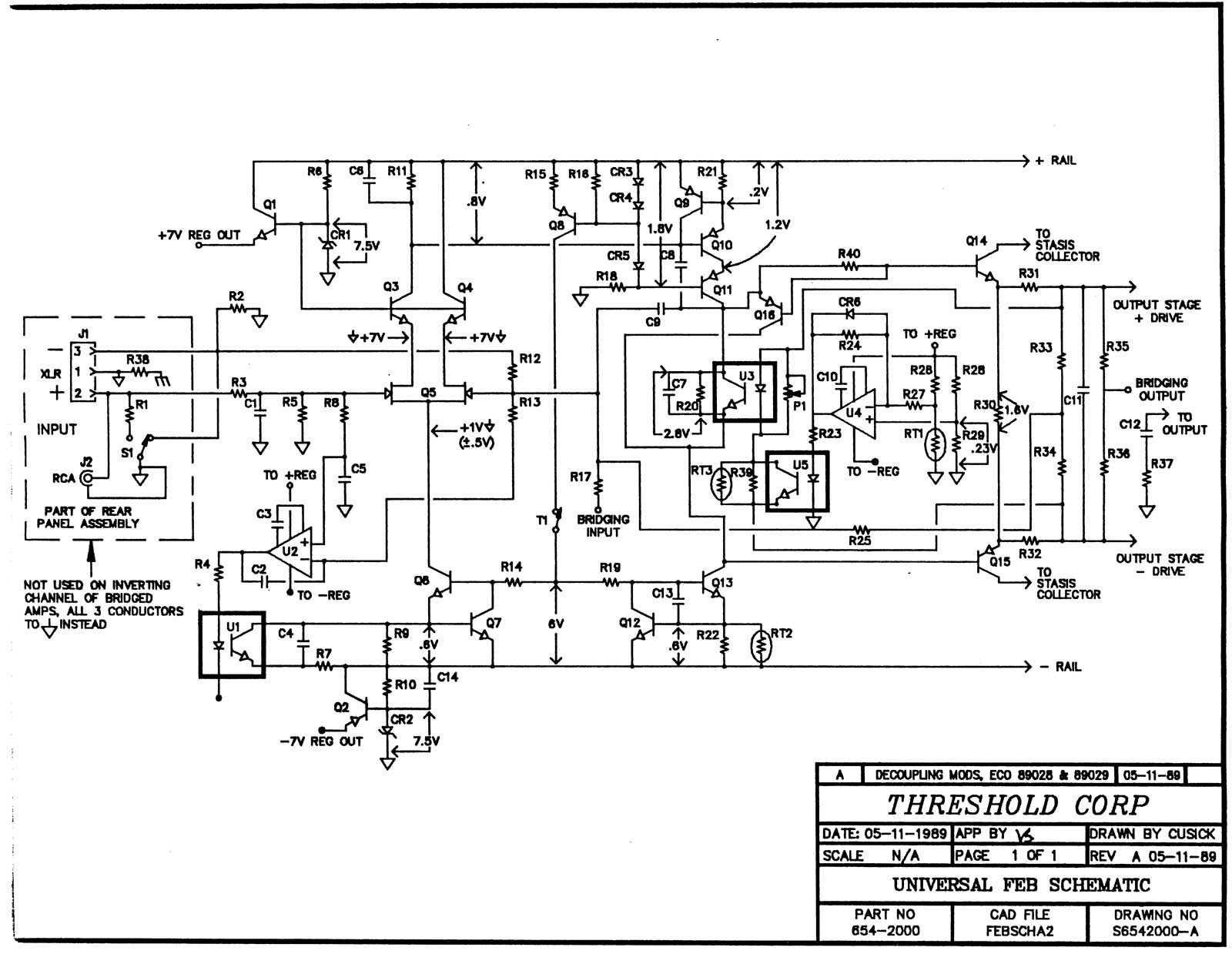

  • ZZZ-Threshold_fe89.jpg
    178.9 KB · Views: 6,612
  • ZZZ-Threshold universal peak display.pdf
    32.3 KB · Views: 485
Last edited:

Attachments

  • Threshold 800A 1975.pdf
    104.8 KB · Views: 368

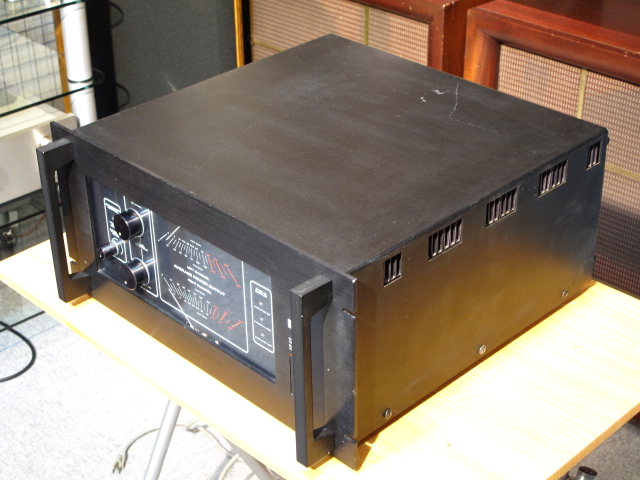

  • Threshold 800A front left.jpg
    Threshold 800A front left.jpg
    158.4 KB · Views: 6,185

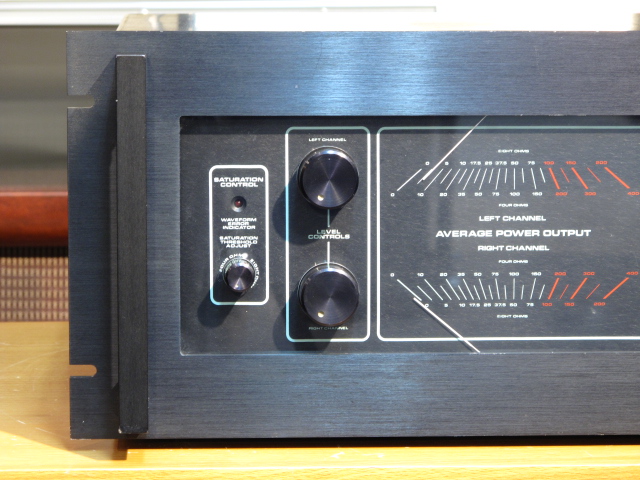

  • Threshold 800A front right.jpg
    Threshold 800A front right.jpg
    170.1 KB · Views: 6,028
  • Threshold 800A rear left.jpg
    Threshold 800A rear left.jpg
    198.4 KB · Views: 379

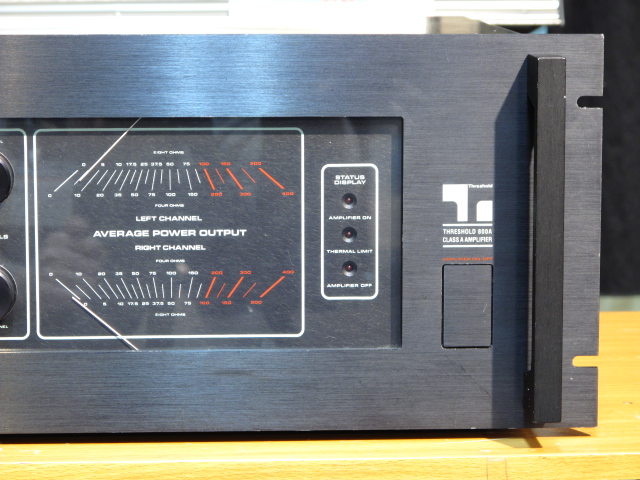

  • Threshold 800A power meter.jpg
    Threshold 800A power meter.jpg
    177.3 KB · Views: 5,998

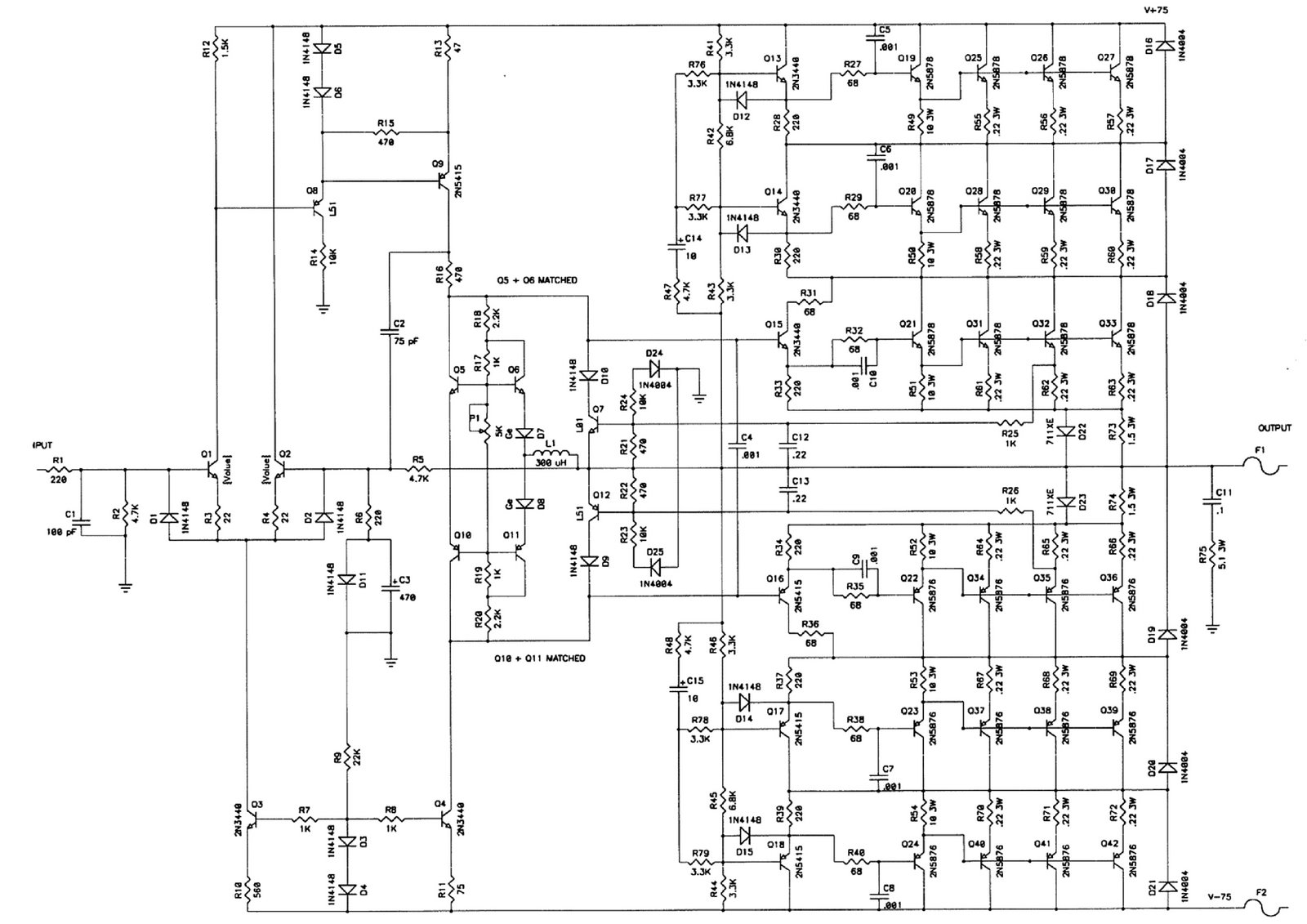

  • Threshold 800A no adv. about PCB version.jpg
    Threshold 800A no adv. about PCB version.jpg
    204 KB · Views: 6,120

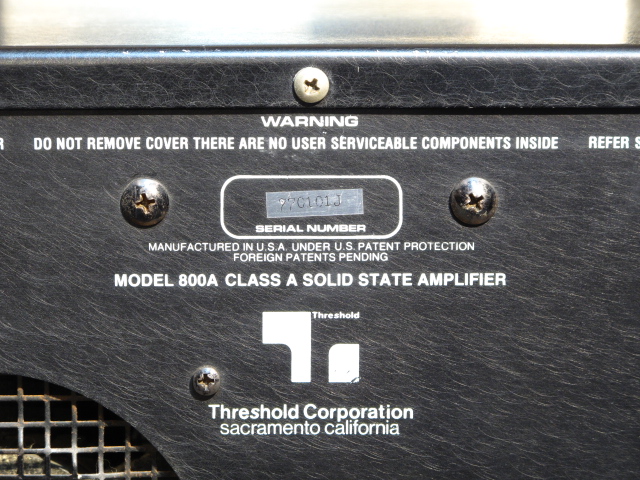

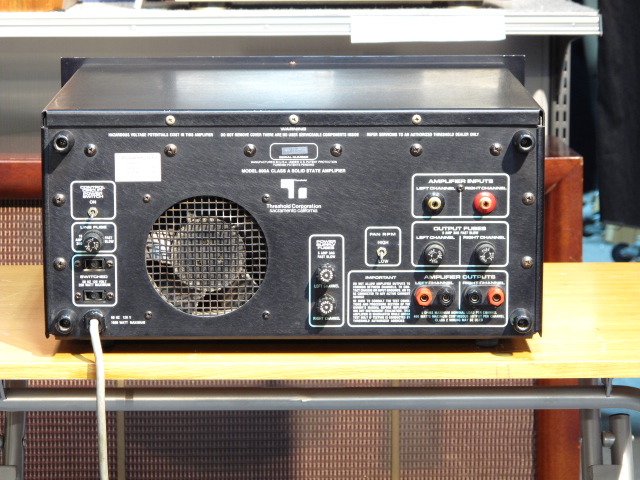

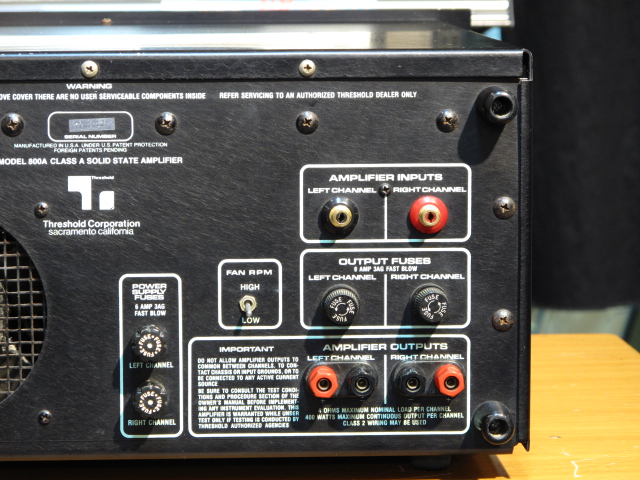

  • Threshold 800A rear.jpg
    Threshold 800A rear.jpg
    199.3 KB · Views: 436
  • Threshold 800A rear+front.jpg
    Threshold 800A rear+front.jpg
    217 KB · Views: 377
Last edited:

Attachments

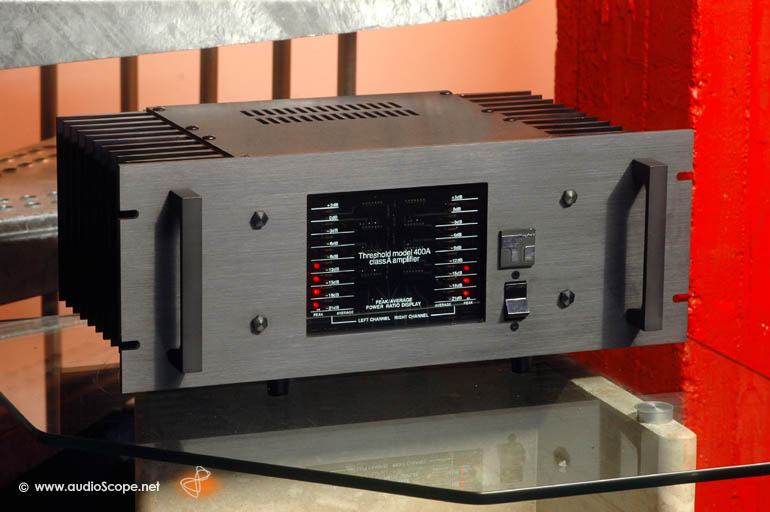

  • Threshold 400A -1.jpg
    Threshold 400A -1.jpg
    62.6 KB · Views: 417

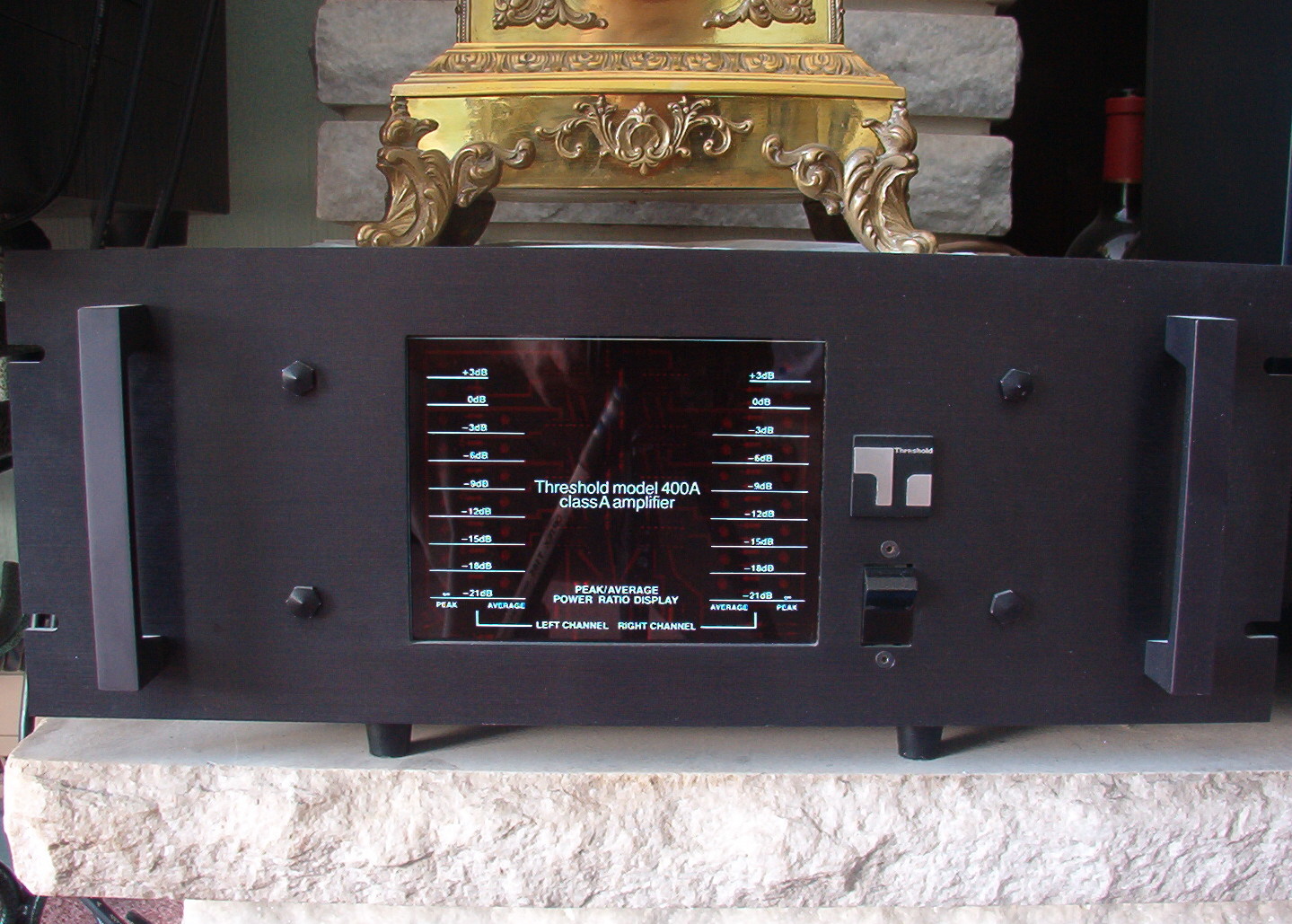

  • Threshold 400A high res..JPG
    Threshold 400A high res..JPG
    405.3 KB · Views: 389
  • Threshold 400A no adv. about PCB version.pdf
    51 KB · Views: 578
  • Threshold 400A PC-400A 11-77 14B-5400.pdf
    40.6 KB · Views: 481
  • Threshold 400A-800A-4000 adjust3.pdf
    56.9 KB · Views: 304
  • Threshold 400A-800A-4000 adjust2.pdf
    59.8 KB · Views: 312
  • Threshold 400A-800A-4000 adjust1.pdf
    13.4 KB · Views: 403
  • Threshold 400A-800A-4000 adjust4.pdf
    29.4 KB · Views: 275
  • Threshold 400A-800A-4000 adjust5.pdf
    24 KB · Views: 285
  • Threshold 400A-800A-4000-CAS1-3-stasis 1-3 adjust6.pdf
    45.6 KB · Views: 427
Last edited:

Attachments

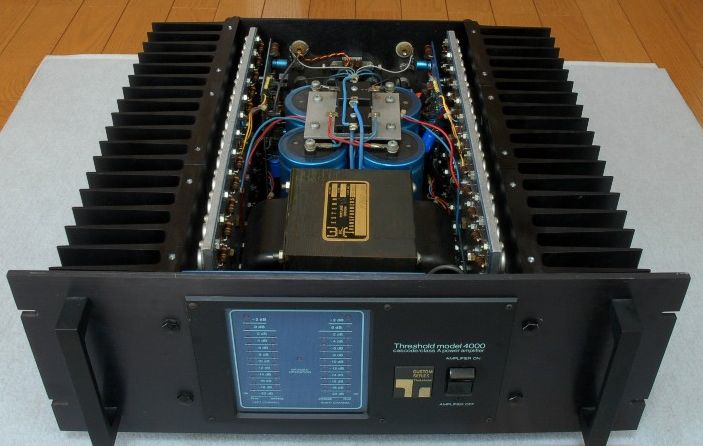

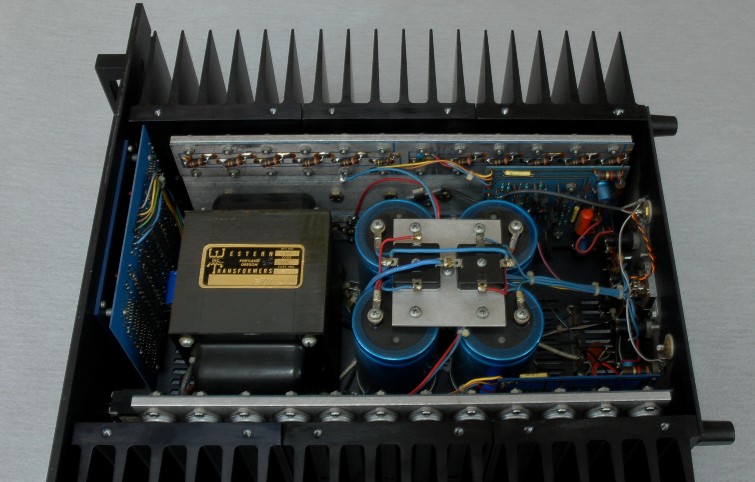

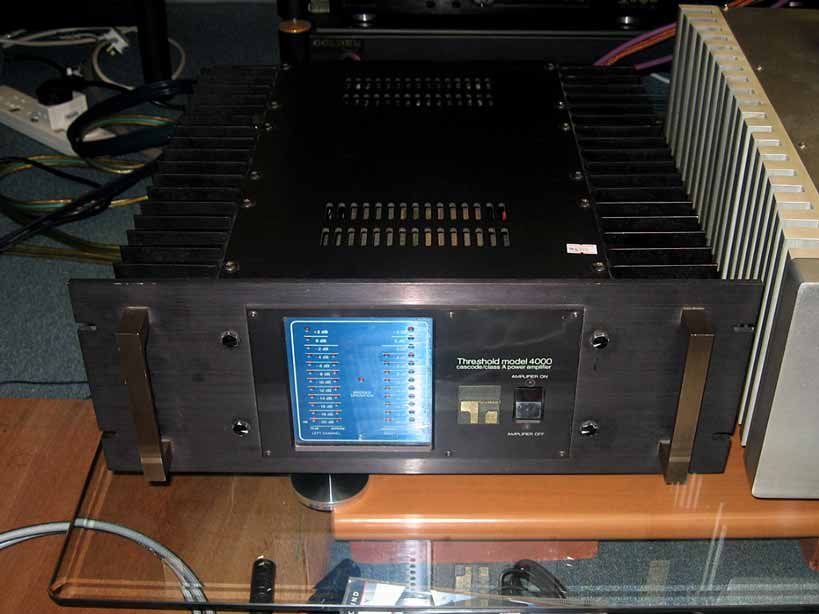

  • Threshold 4000 top view.jpg
    Threshold 4000 top view.jpg
    87.9 KB · Views: 716
  • Threshold 4000 front+top.jpg
    Threshold 4000 front+top.jpg
    50.1 KB · Views: 587
  • Threshold 4000 and 400A PCB NO 053-0308.pdf
    45 KB · Views: 513

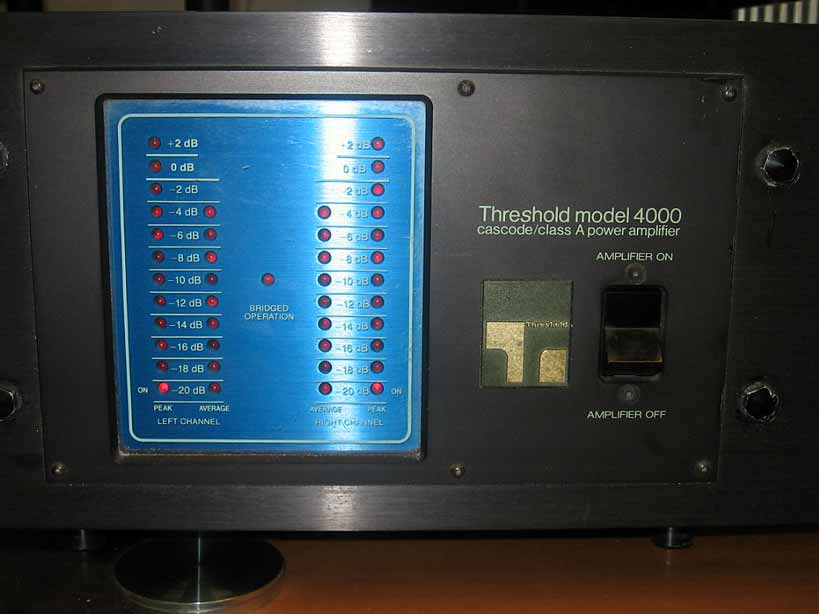

  • Threshold 4000 VU Meter LED.jpg
    Threshold 4000 VU Meter LED.jpg
    34.6 KB · Views: 630
  • Threshold 4000.jpg
    Threshold 4000.jpg
    40.9 KB · Views: 390
  • Threshold 4000powersupply2.pdf
    24.7 KB · Views: 347
  • Threshold 4000transformer.pdf
    30.9 KB · Views: 279
  • Threshold 4000powersupply.pdf
    21.6 KB · Views: 291
Last edited:
  • Like
Reactions: 1 user
Mooved Schematic Archive from www_passlabs_com

This website was several time updated in the last ten years.

Where are presently to find follow archive sites:
Index of /np
Index of /np
Index of /np
time overview:
Internet Archive Wayback Machine

Thank you for your advices.

In the attachement the pdf file from previous post "Threshold 4000 and 400A PCB NO 053-0308.pdf" as tif-download and follow new pdf create - a bit better resolution


Attachments

  • Ganzseitiger Faxausdruck.pdf
    172.4 KB · Views: 552
Last edited:
Threshold CAS Series - various schemas and pics

Threshold "CAS" series - various schemas and pics

CAS1 (CAS-1): schematics here:
http://www.diyaudio.com/forums/pass-labs/152646-threshold-cas-1-a.html (post #10)
http://www.diyaudio.com/forums/pass-labs/160310-threshold-cas-2-poweramp.html (post #4 and #6)
CAS2 (CAS-2): no schematics I have found, also not from the LED VU-Peak Level meter therefore.
AudiogoN Forums: Review: Threshold CAS-2 Amplifier

I don't find complete detailled schematics about the CAS2 (CAS-2) online. Who can post that?


Attachments

  • Threshold CAS2 front.pdf
    51.2 KB · Views: 219
  • Threshold CAS2 open.pdf
    135.9 KB · Views: 197
  • Threshold CAS2 open-II.pdf
    152.6 KB · Views: 187

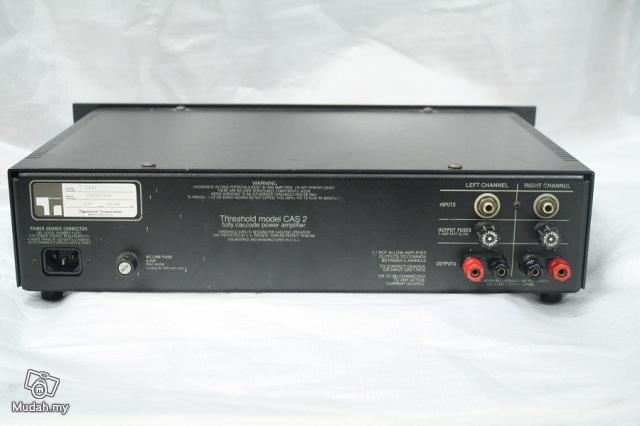

  • Threshold CAS 2 front rear.jpg
    Threshold CAS 2 front rear.jpg
    24.7 KB · Views: 332

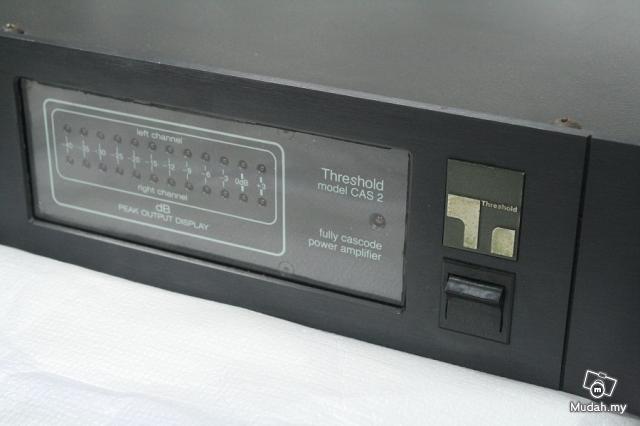

  • Threshold CAS 2 front.jpg
    Threshold CAS 2 front.jpg
    25.2 KB · Views: 246

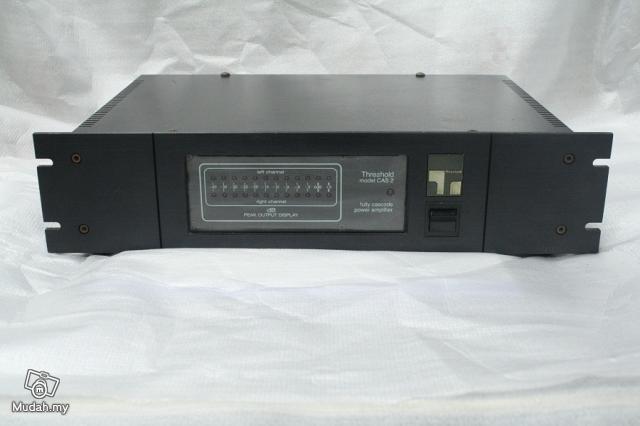

  • Threshold CAS 2 front-II.jpg
    Threshold CAS 2 front-II.jpg
    24.3 KB · Views: 234
  • CAS2 The Audio Journal Aug.1980-3.pdf
    175.1 KB · Views: 232
  • CAS2 The Audio Journal Aug.1980-2.pdf
    189.4 KB · Views: 234
  • CAS2 The Audio Journal Aug.1980-1.pdf
    178 KB · Views: 329
Last edited:

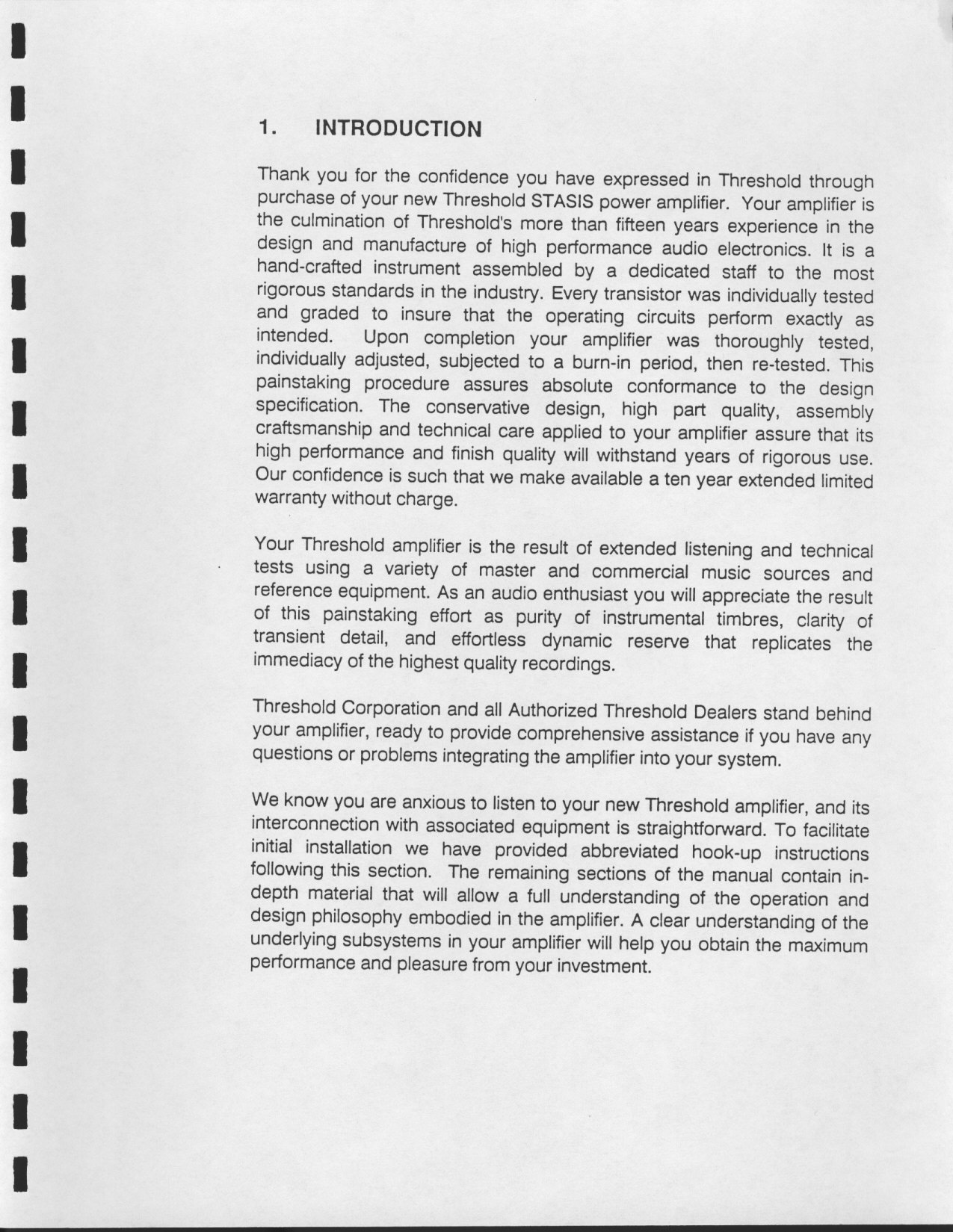

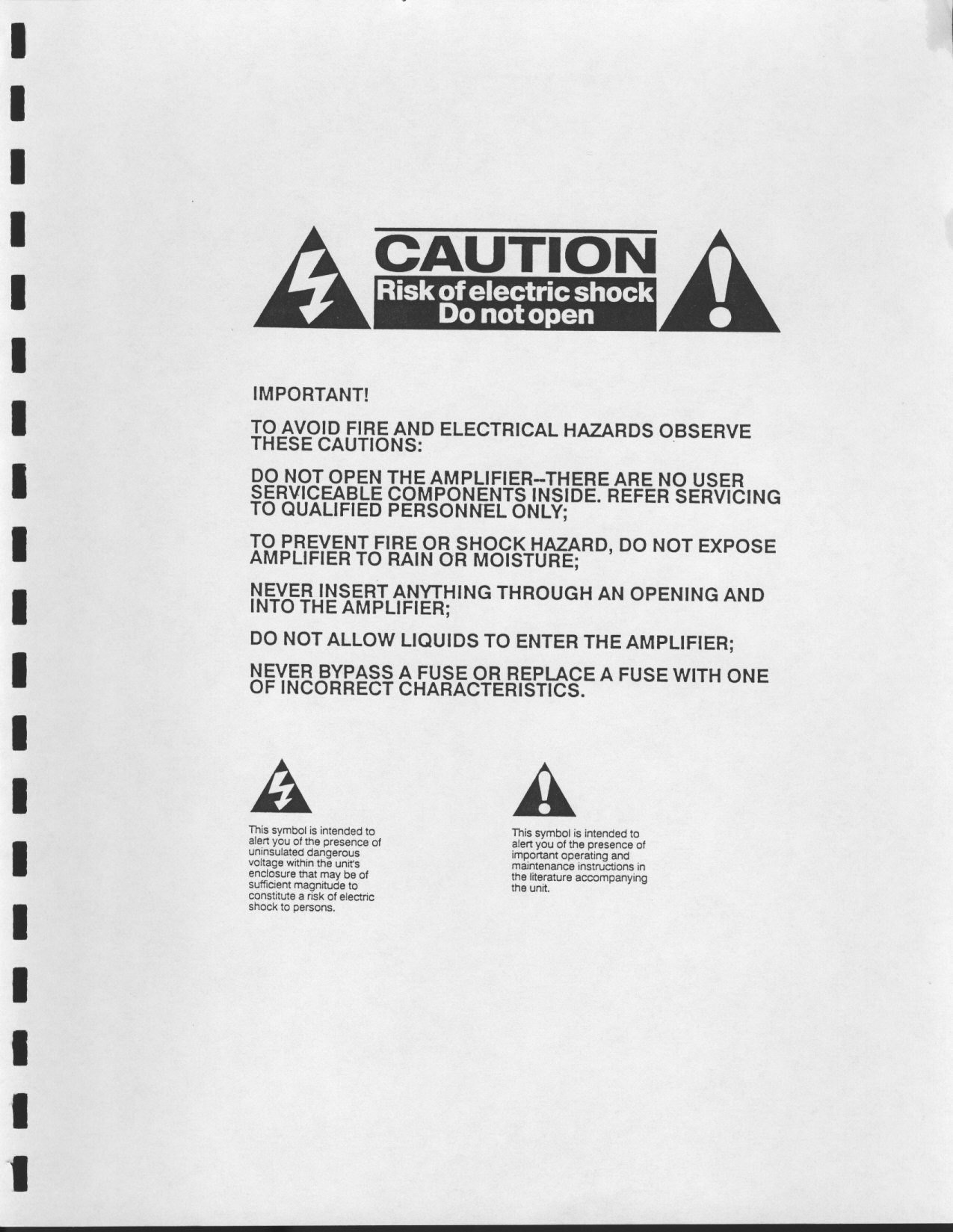

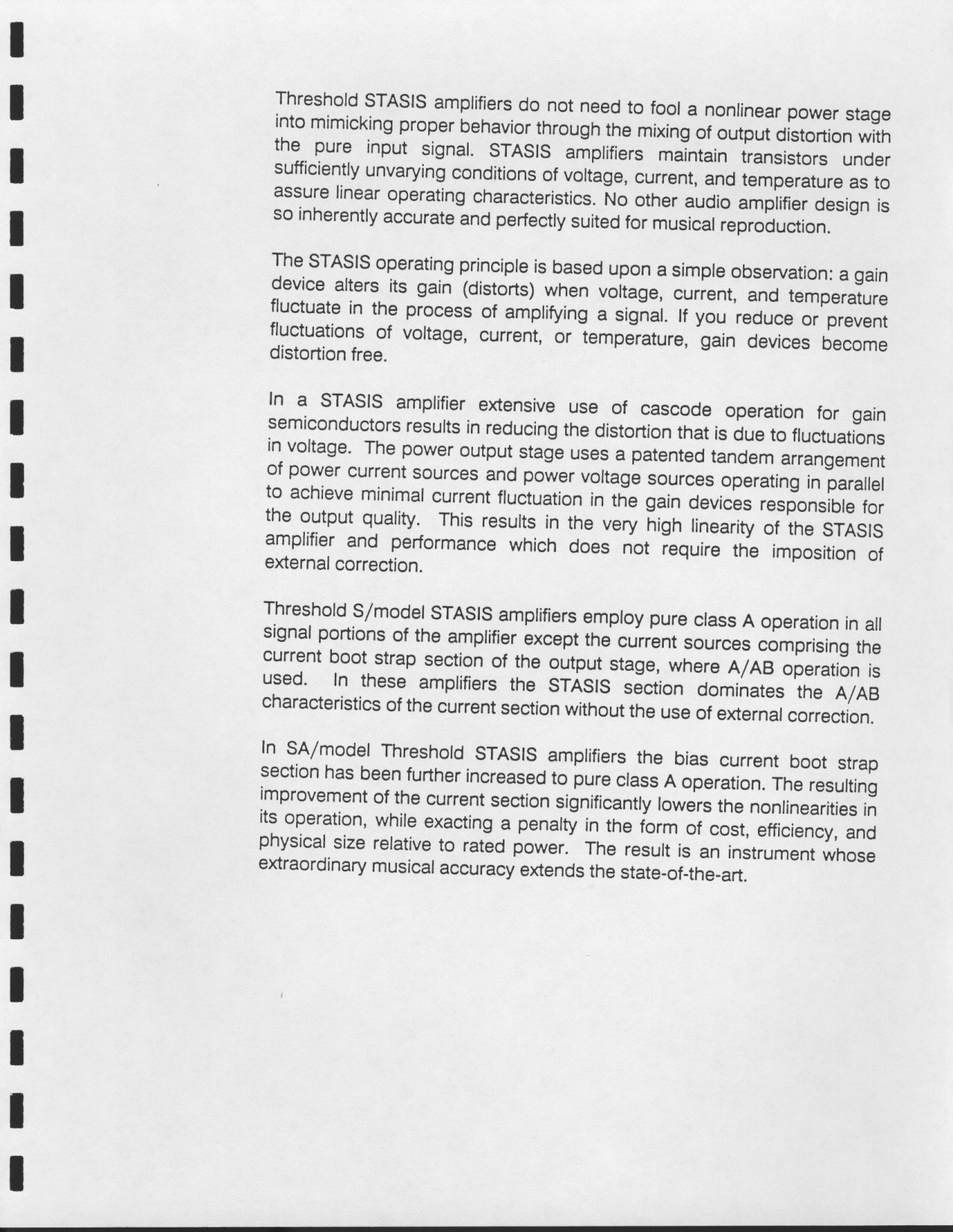

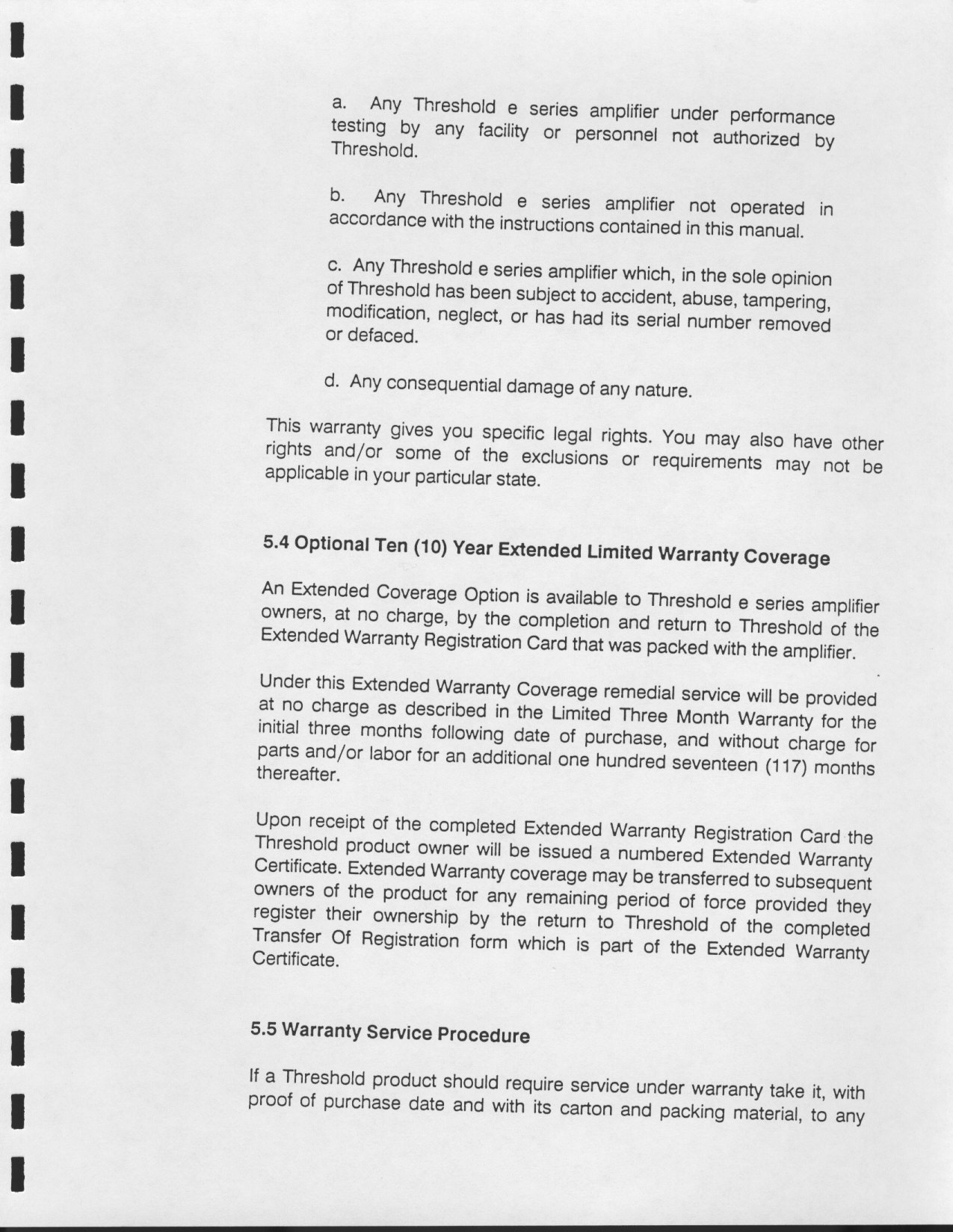

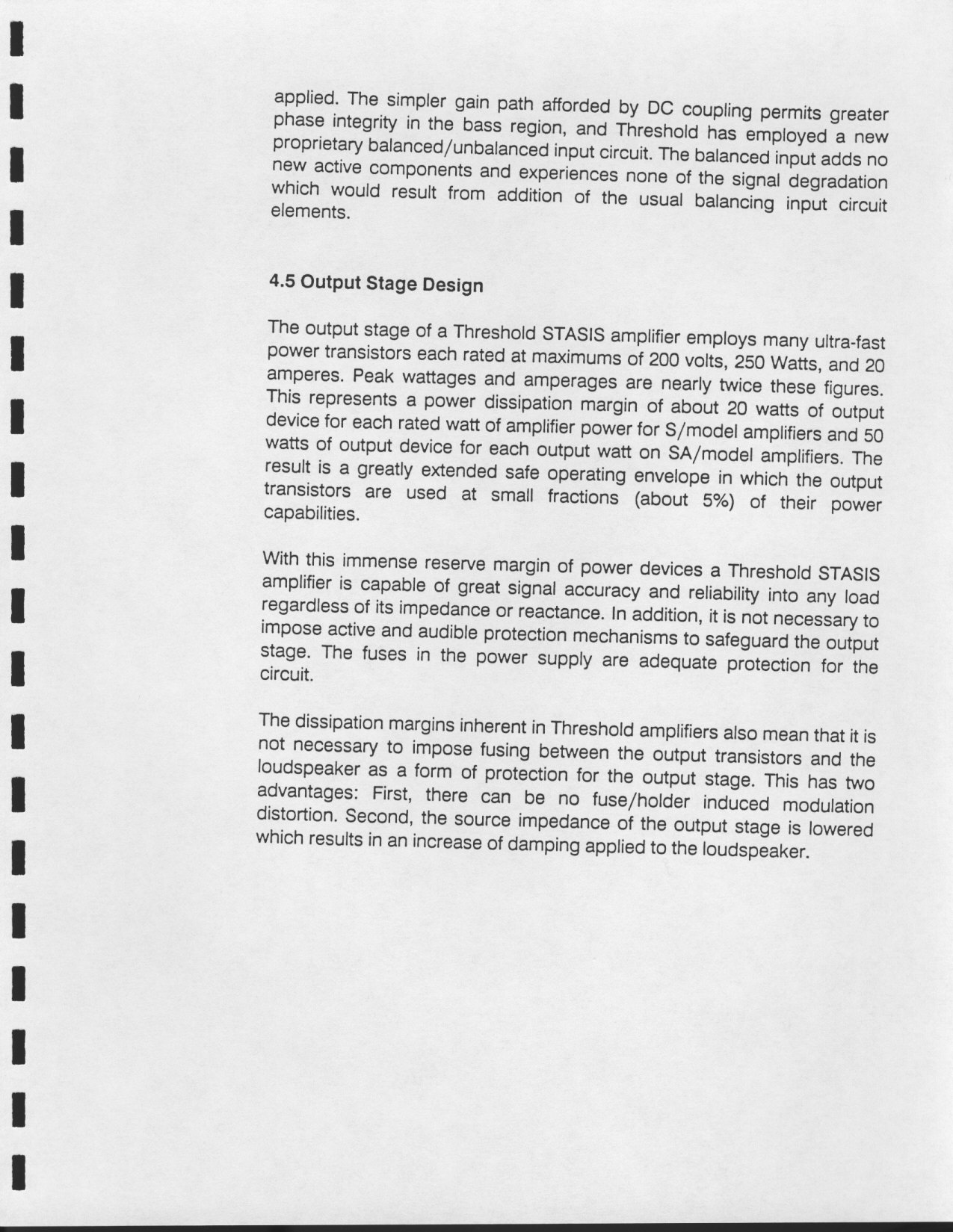

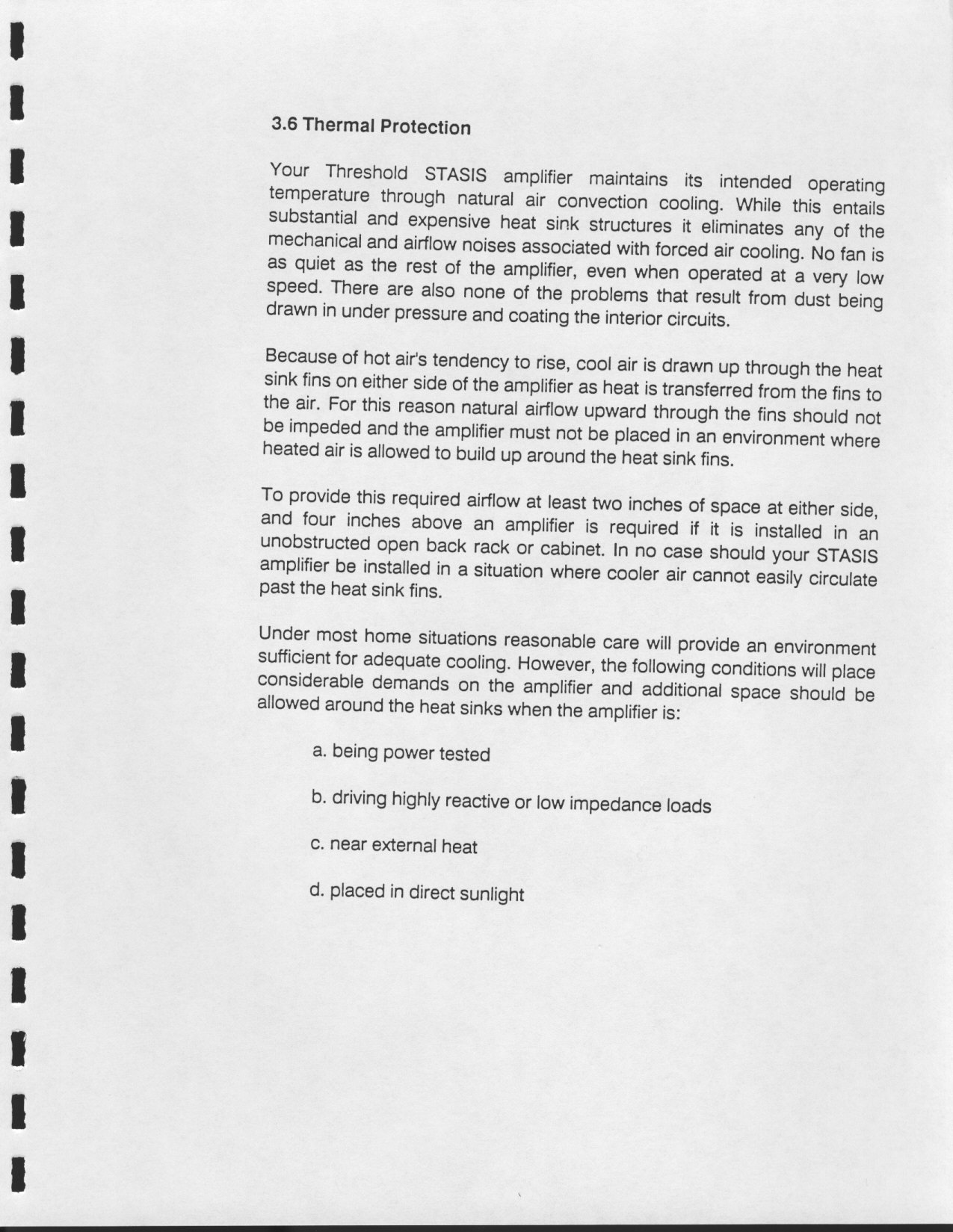

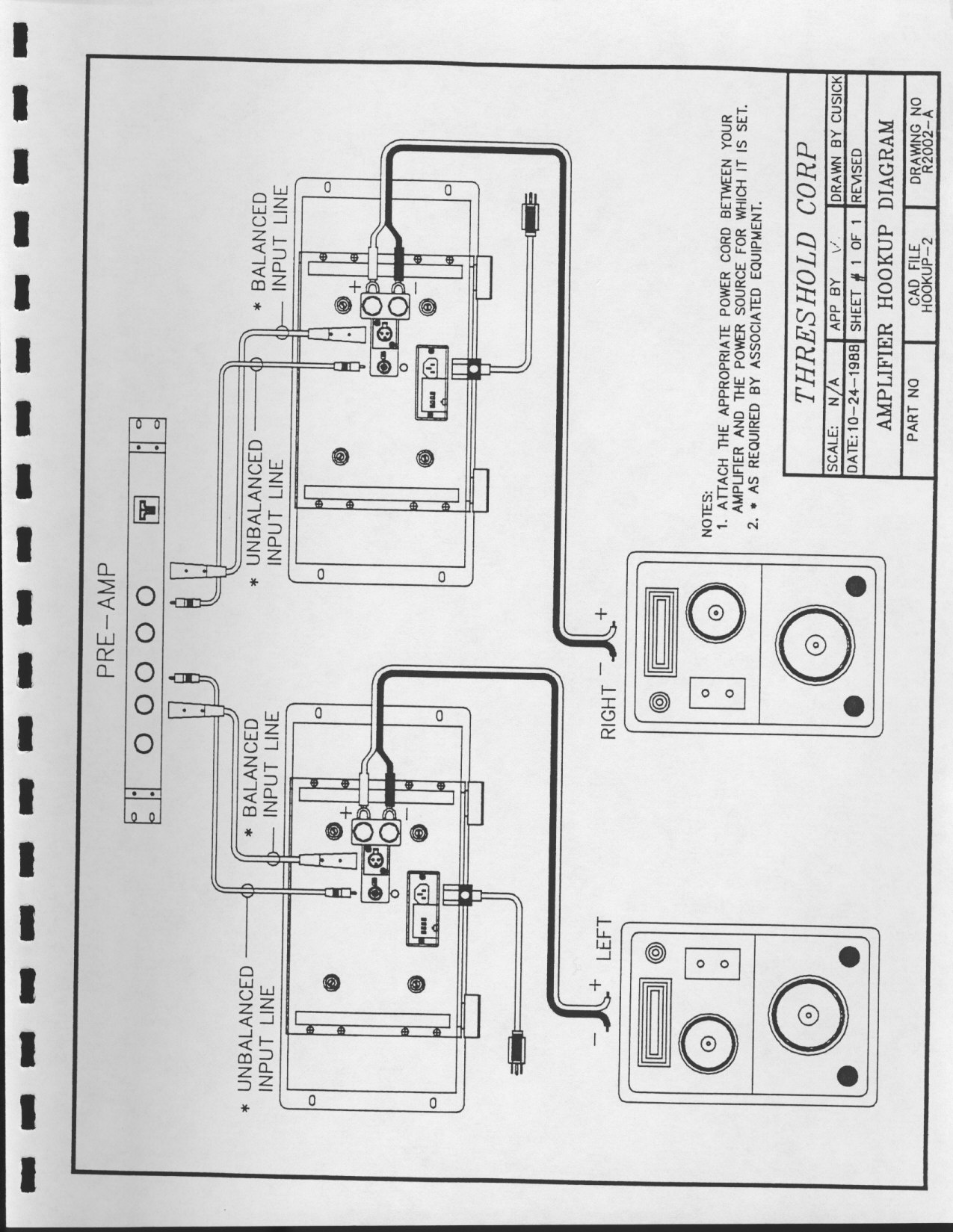

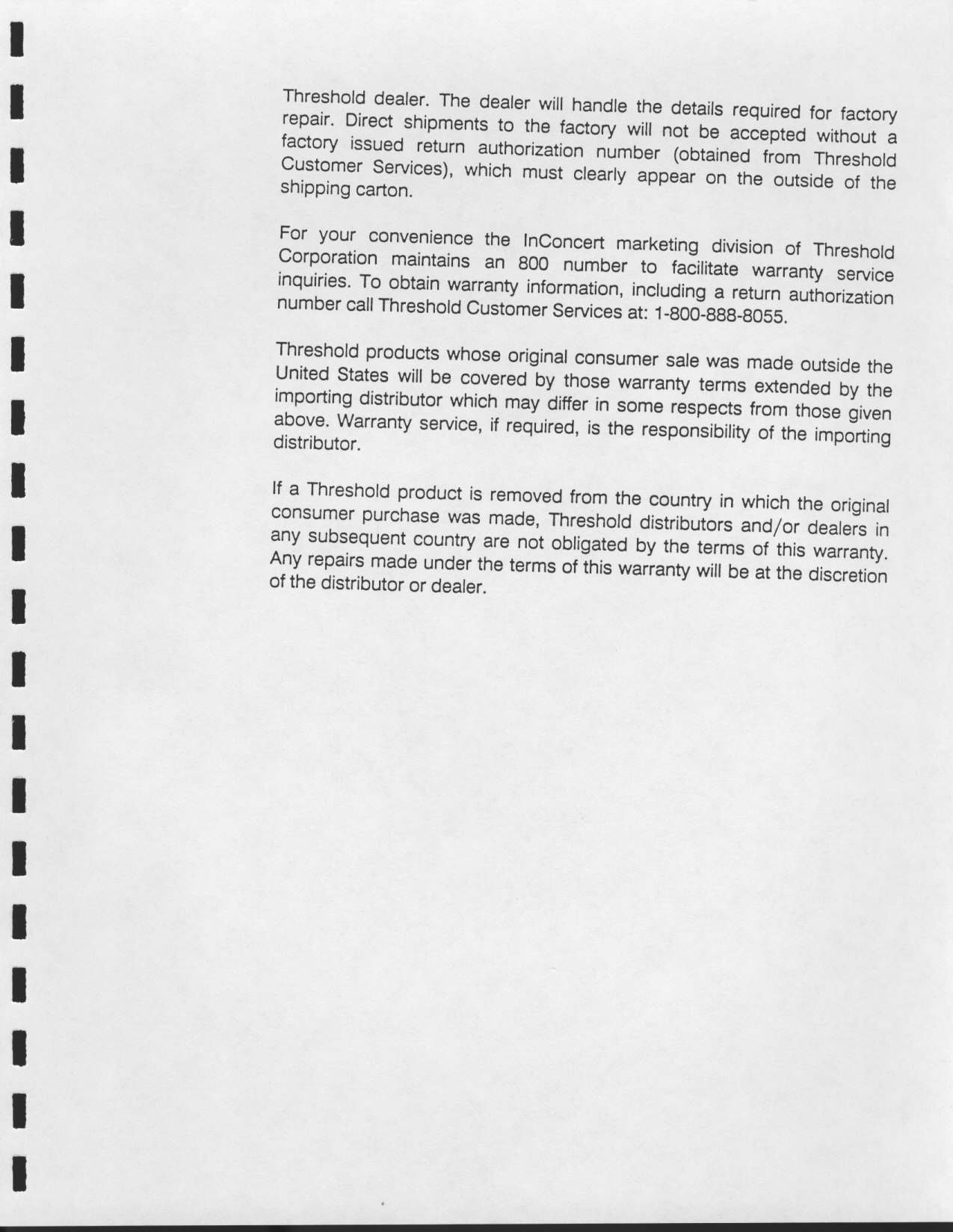

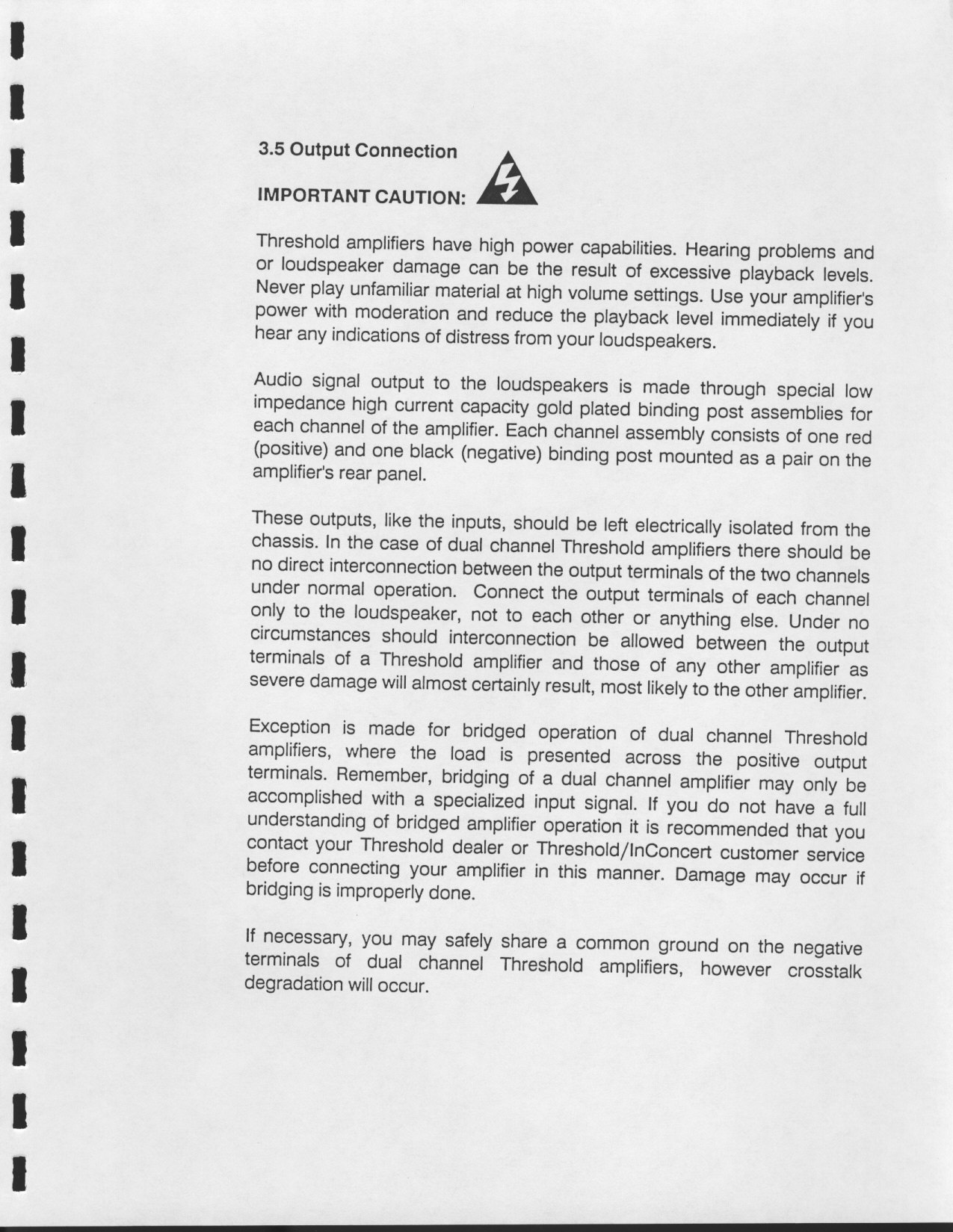

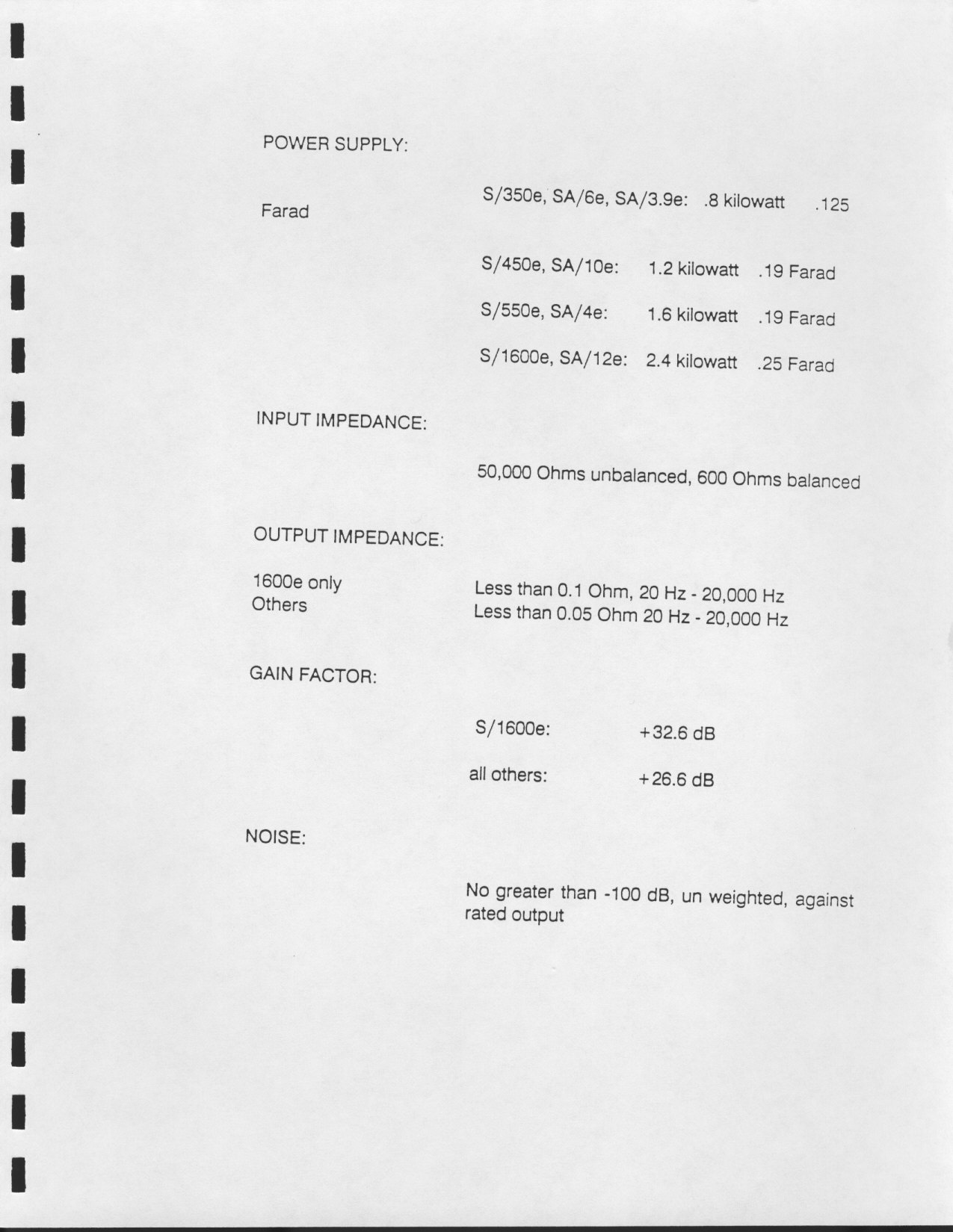

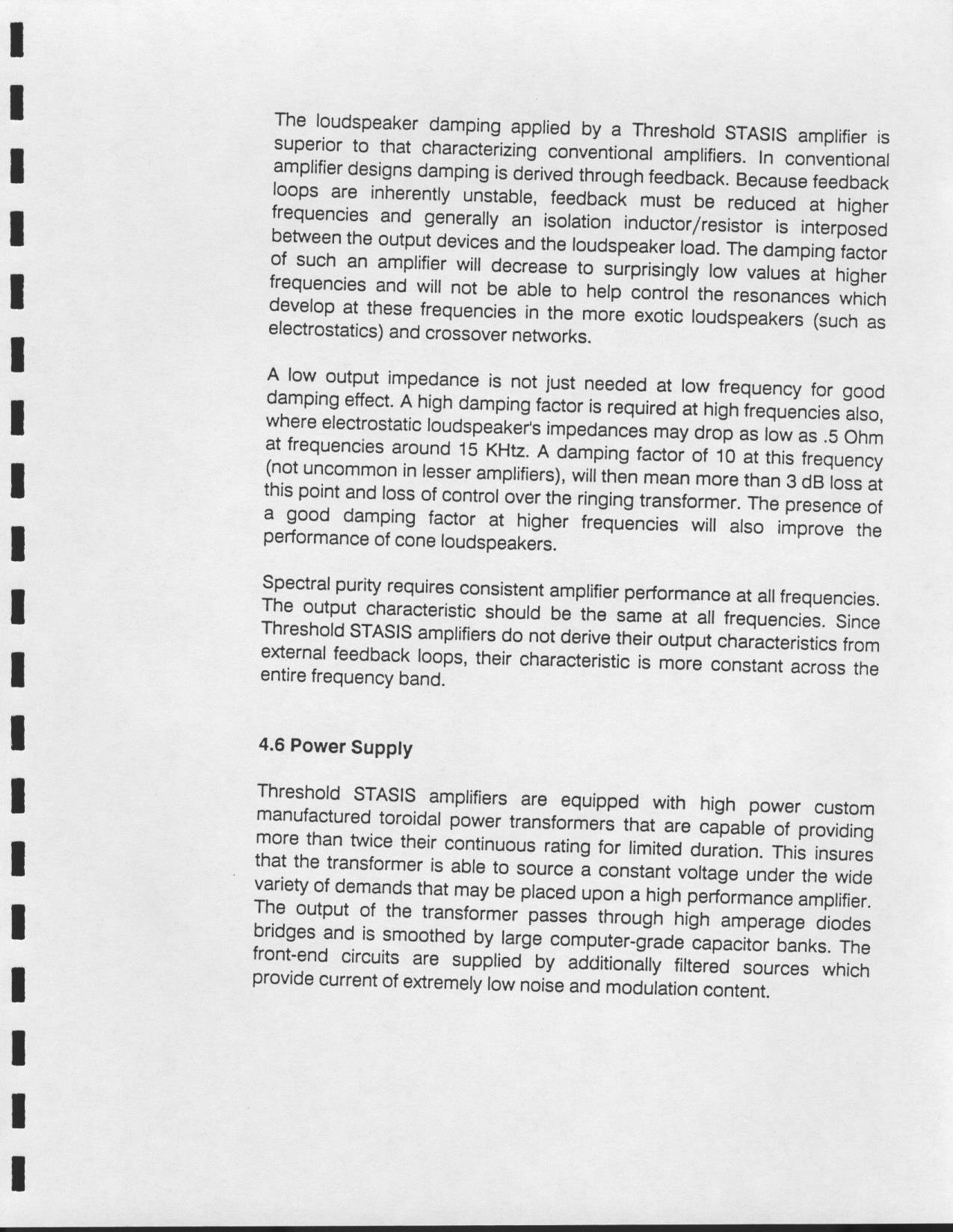

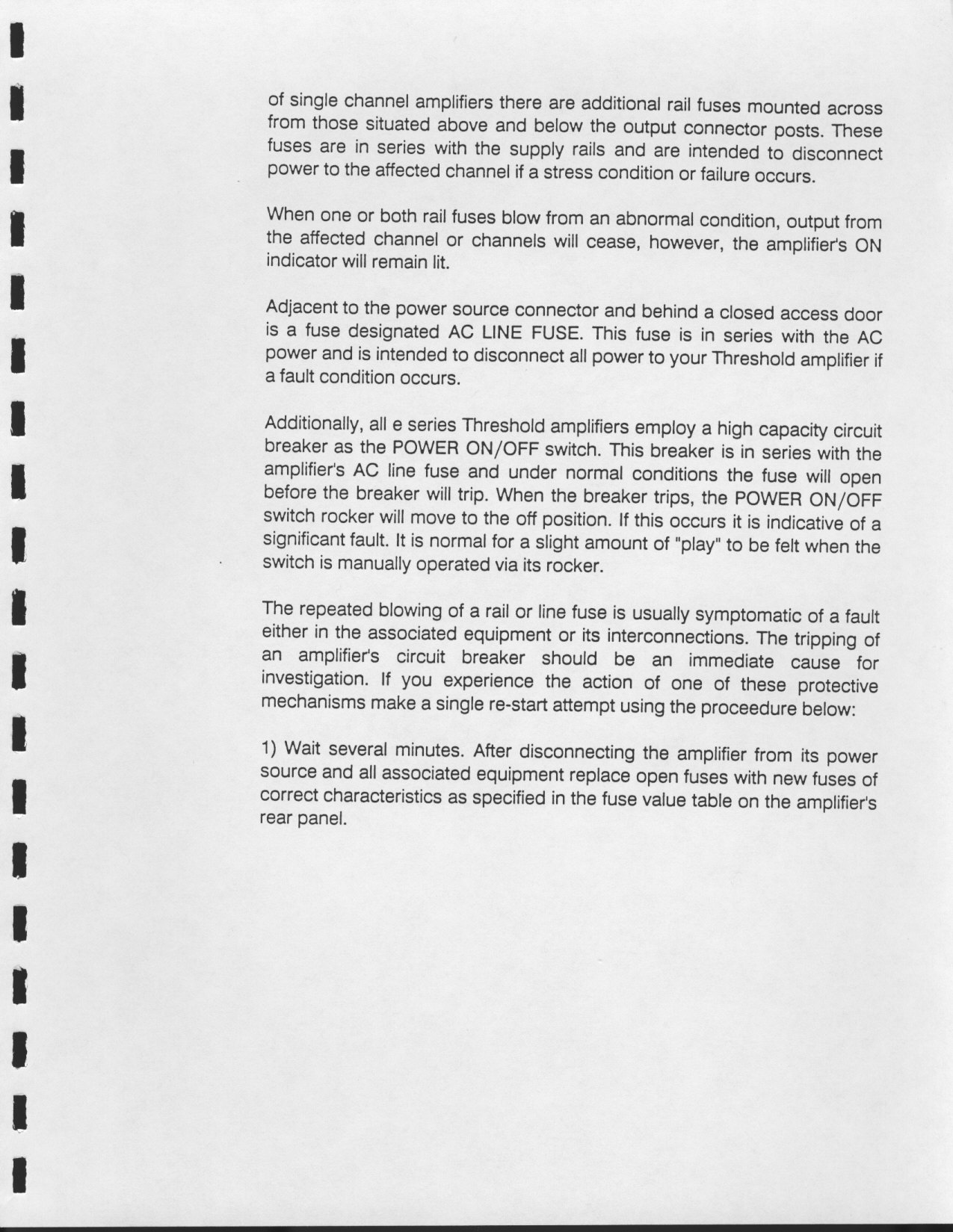

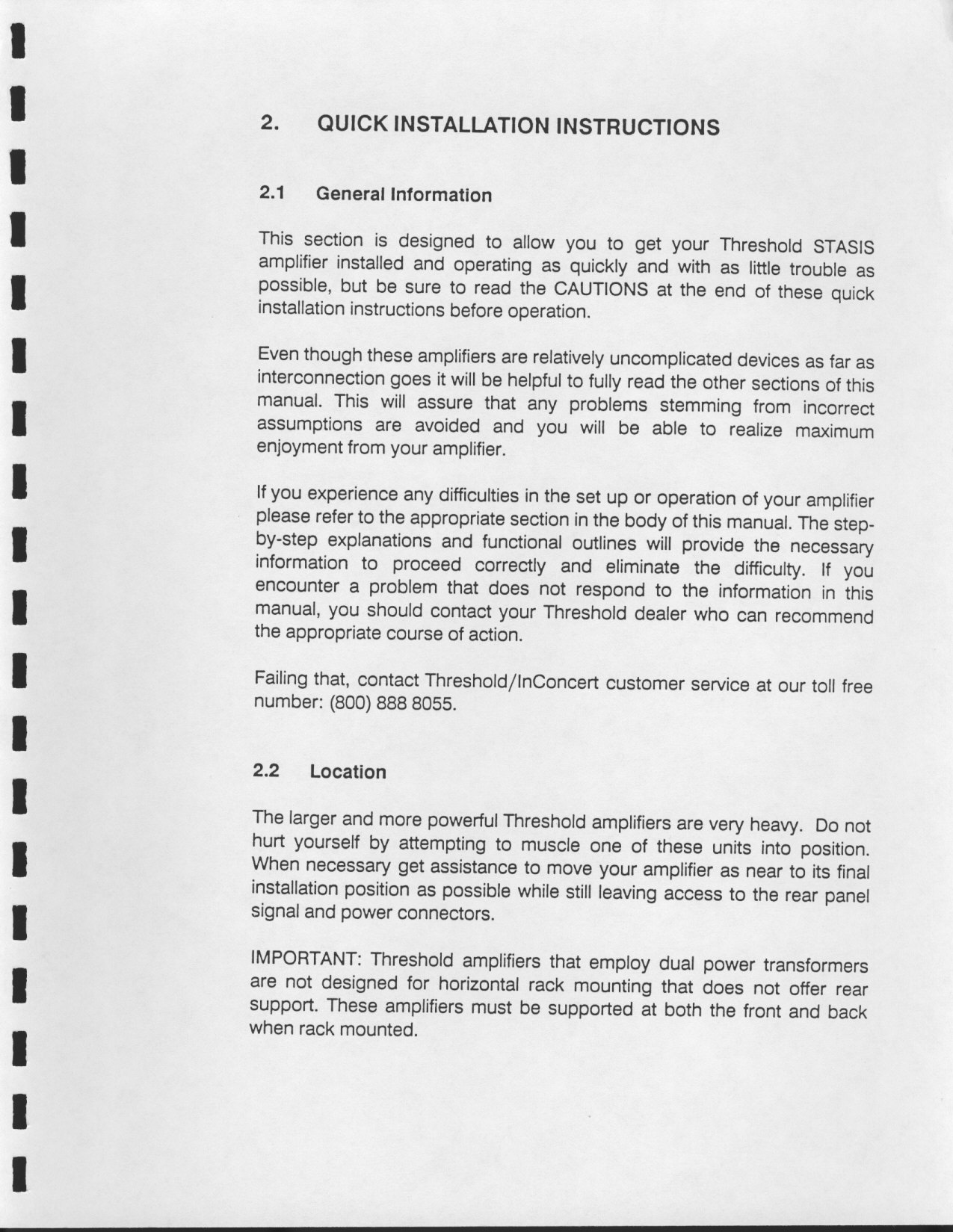

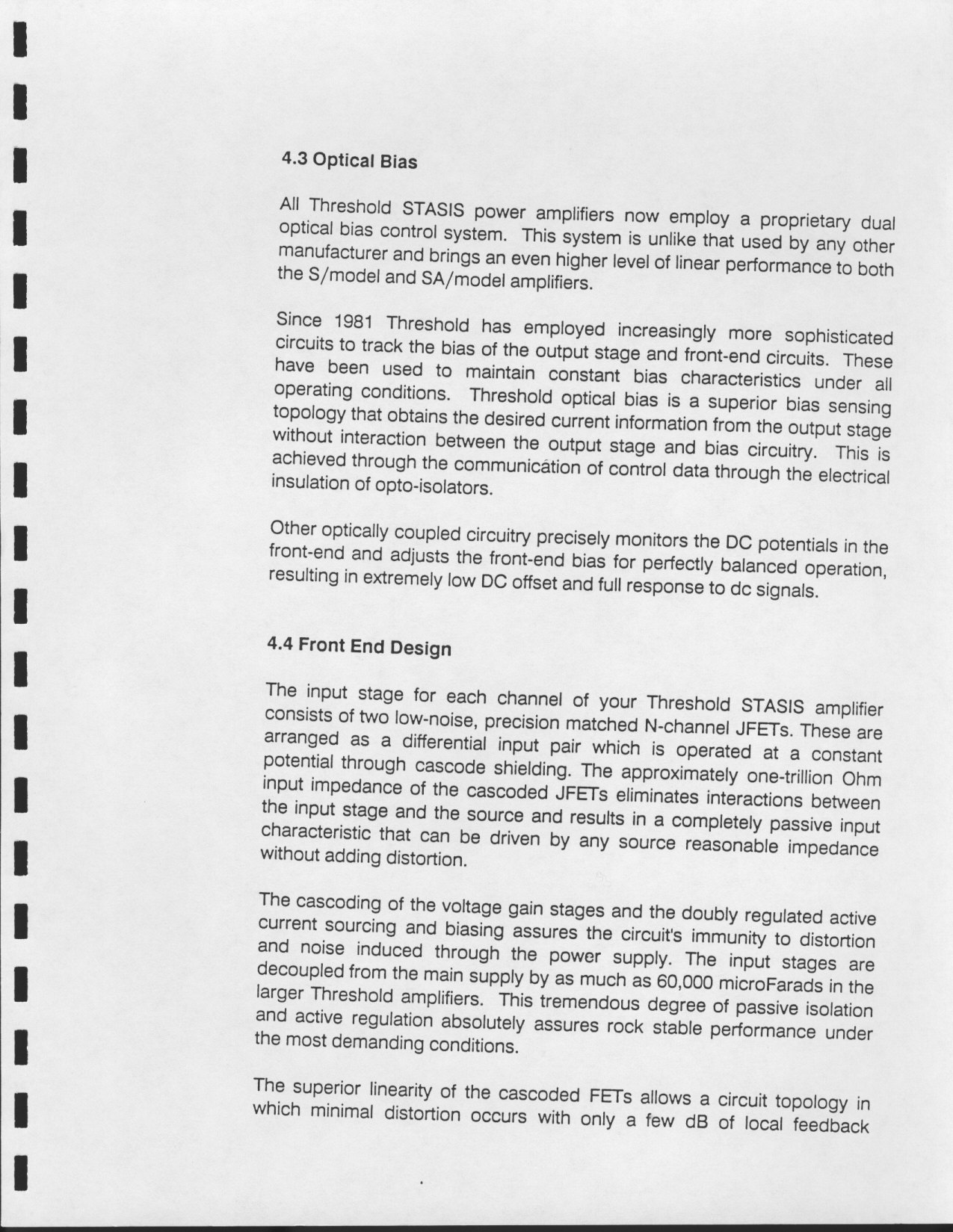

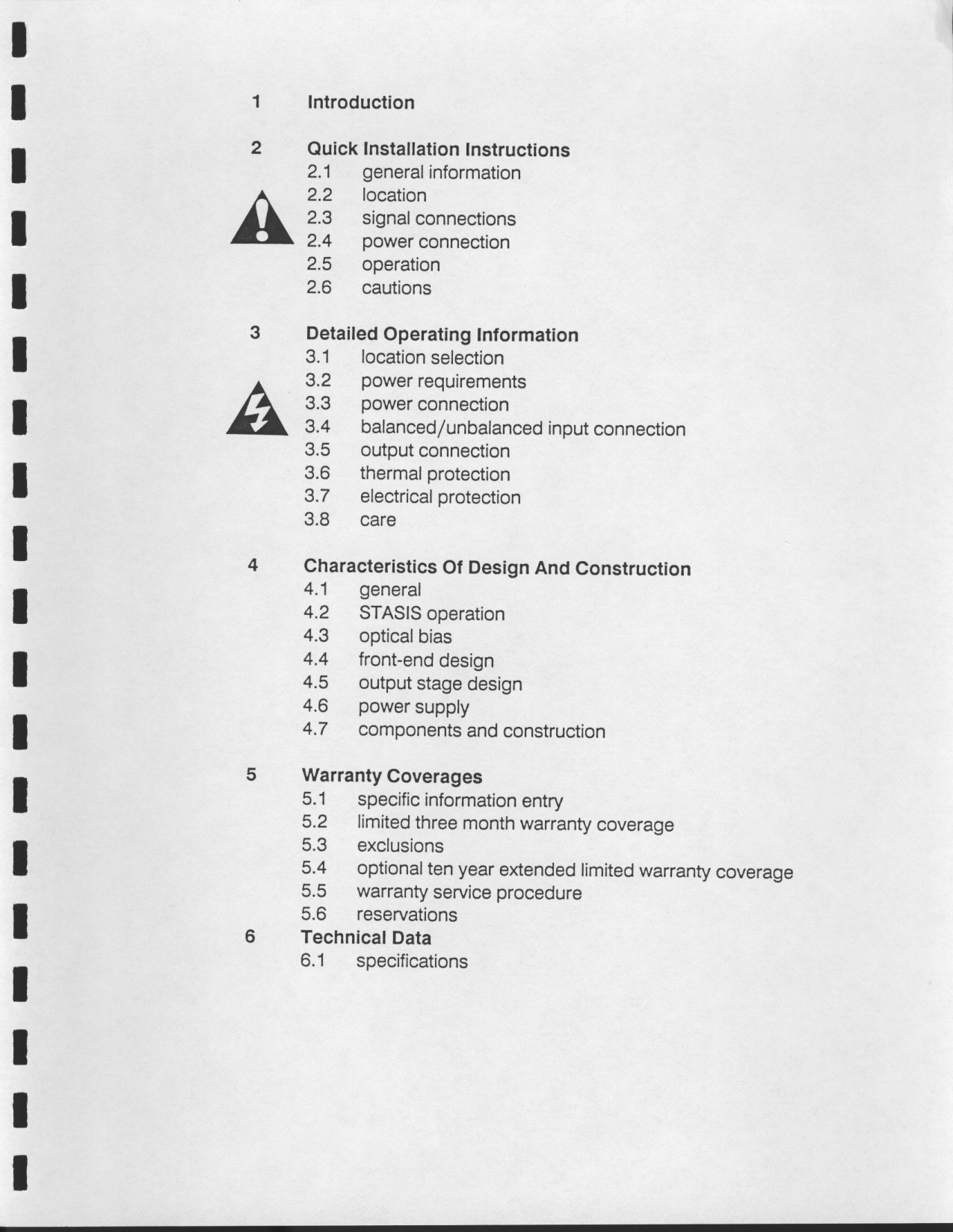

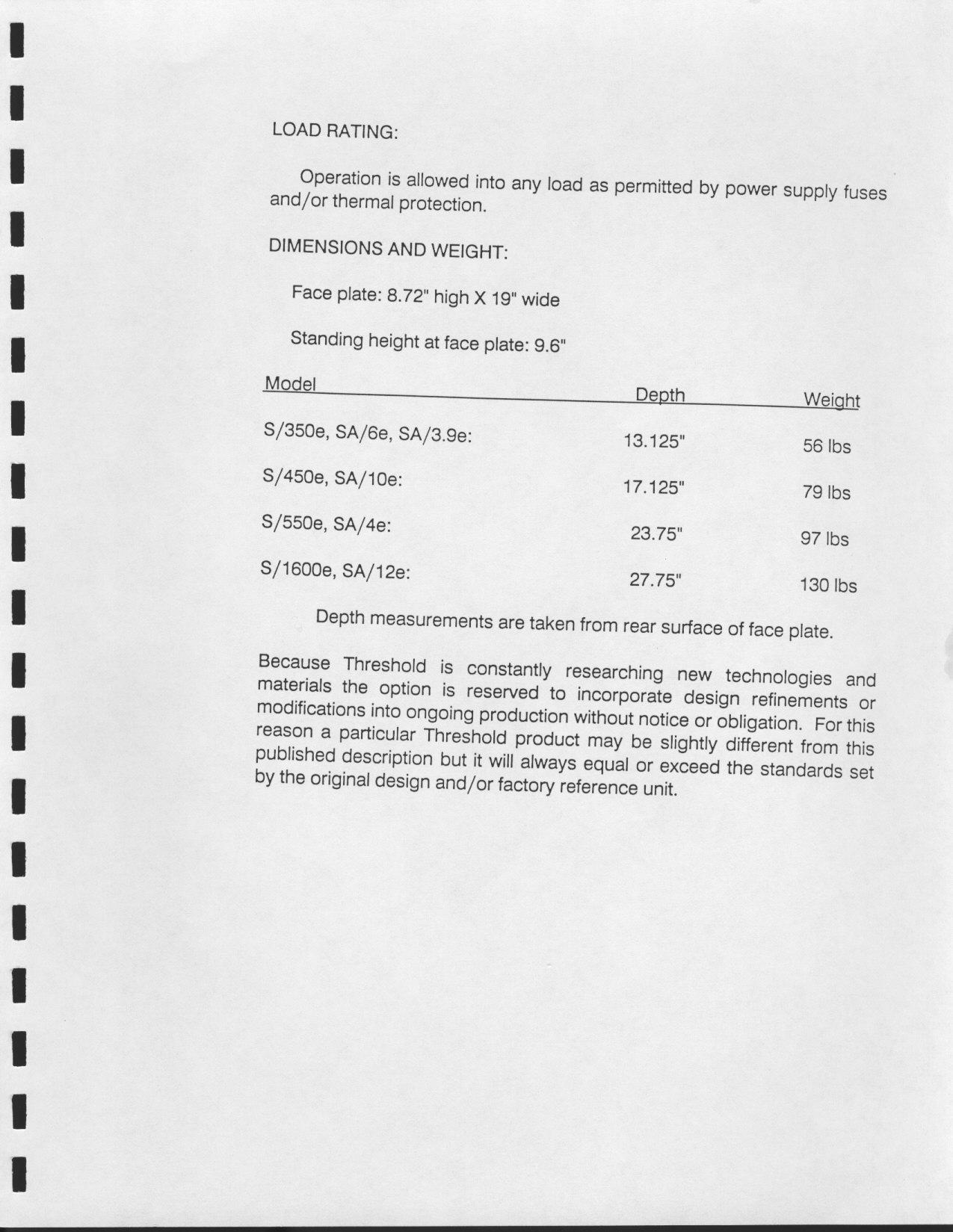

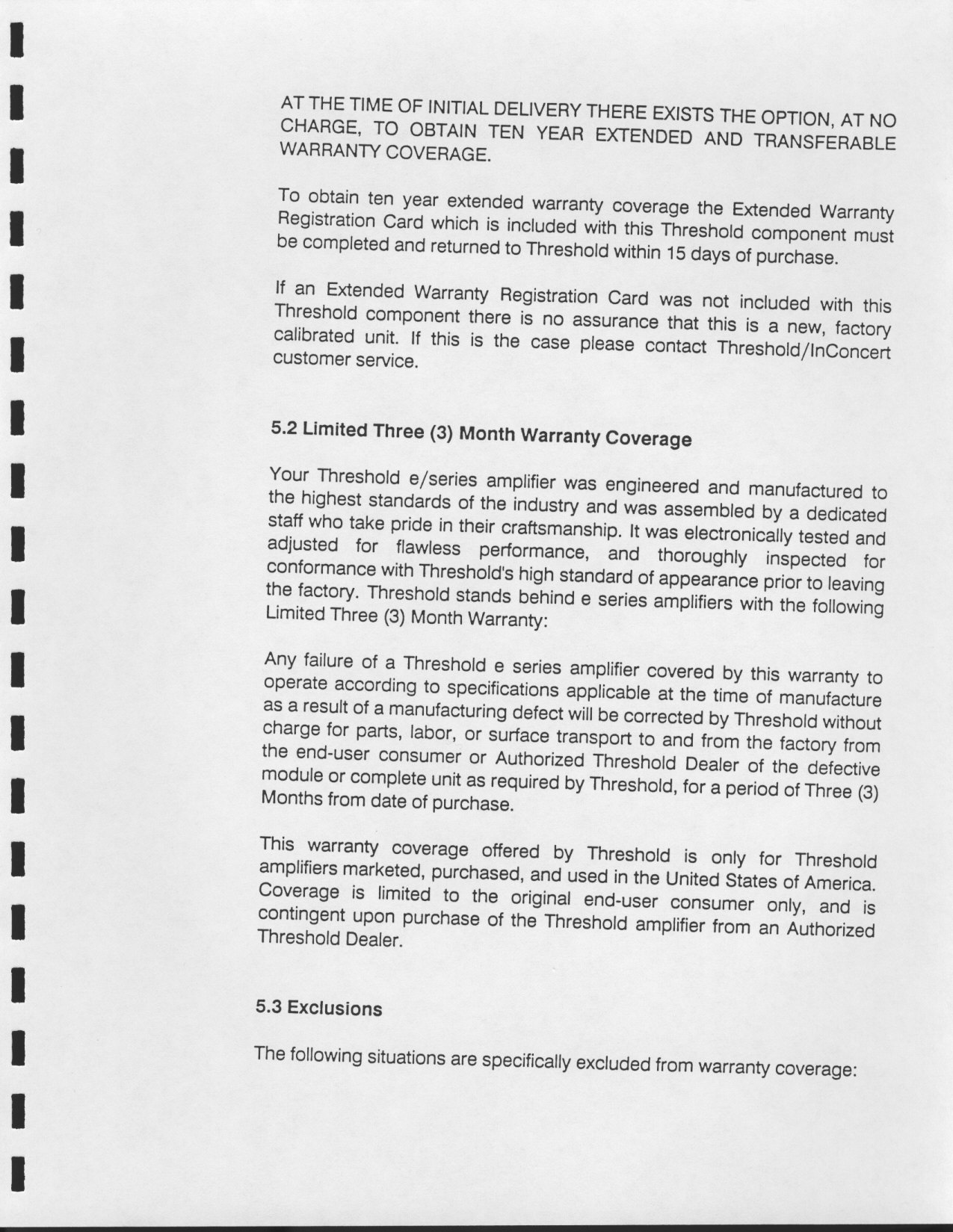

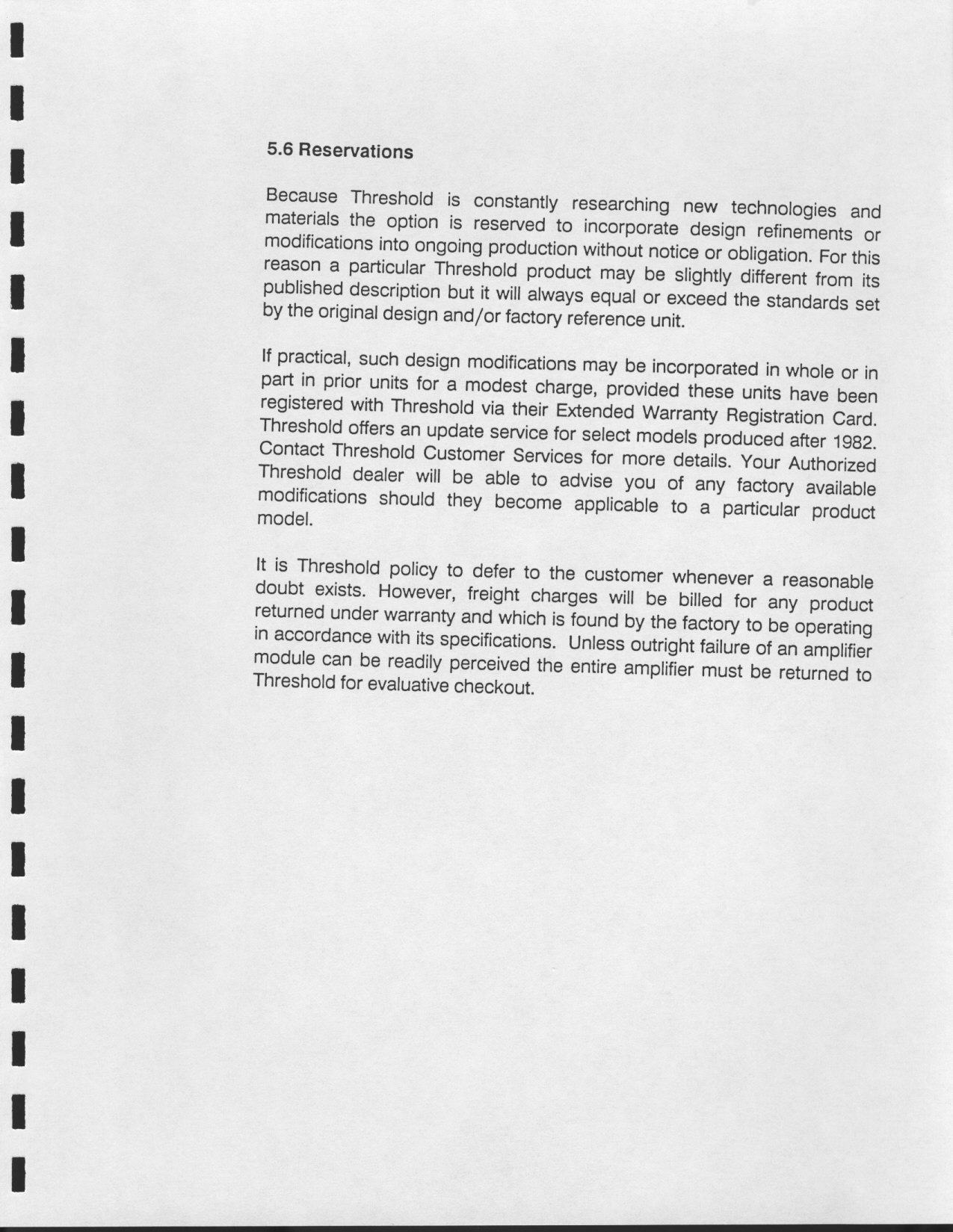

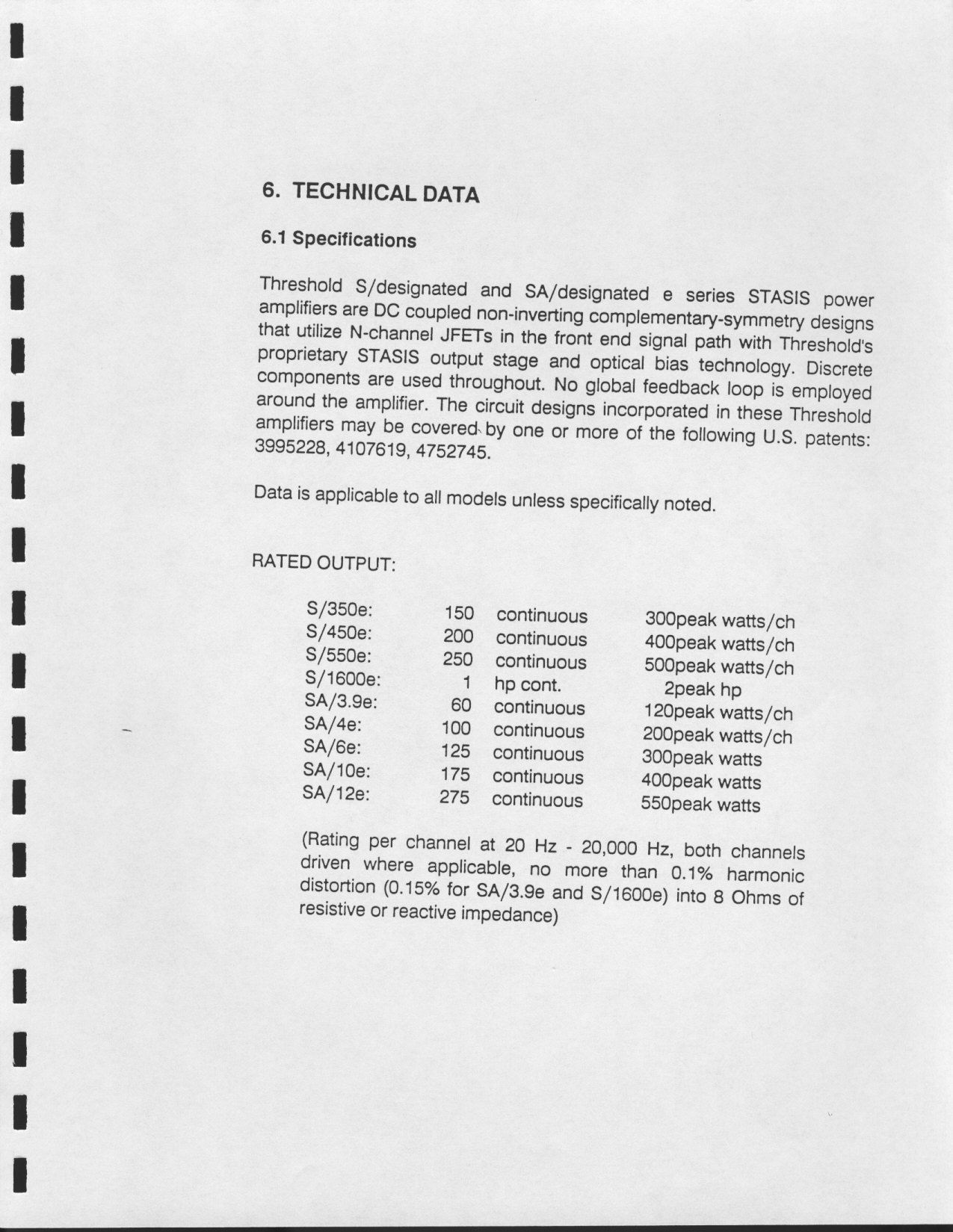

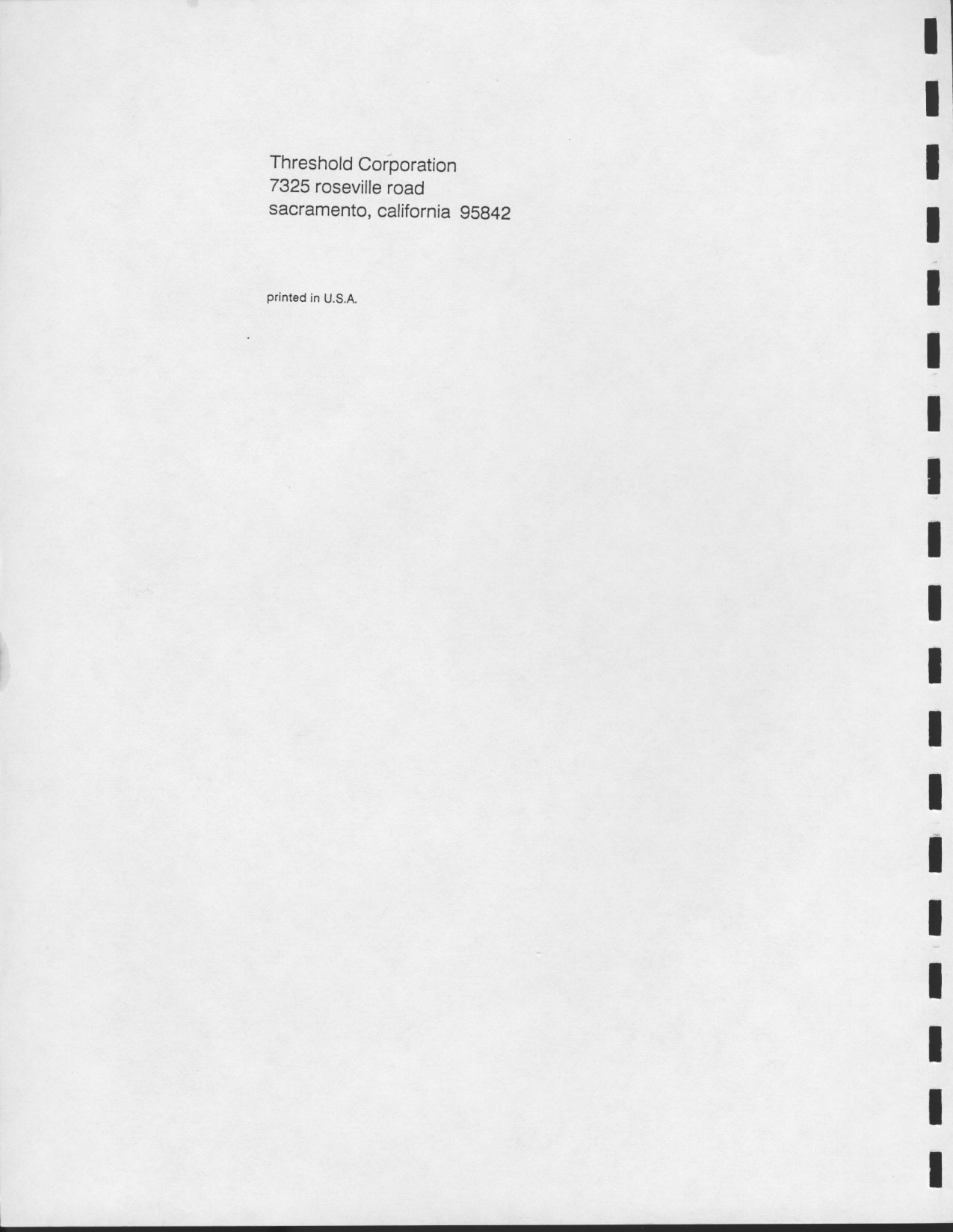

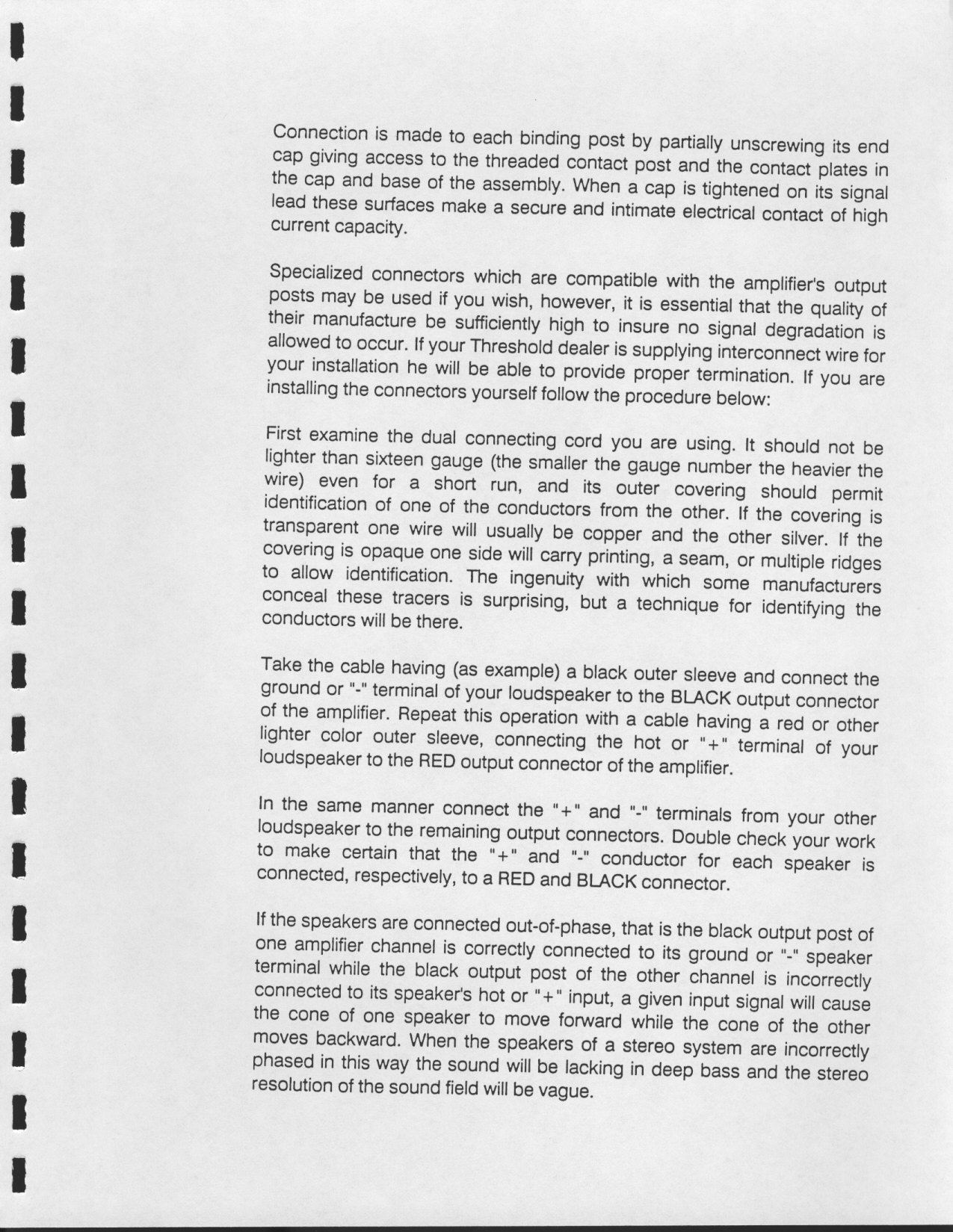

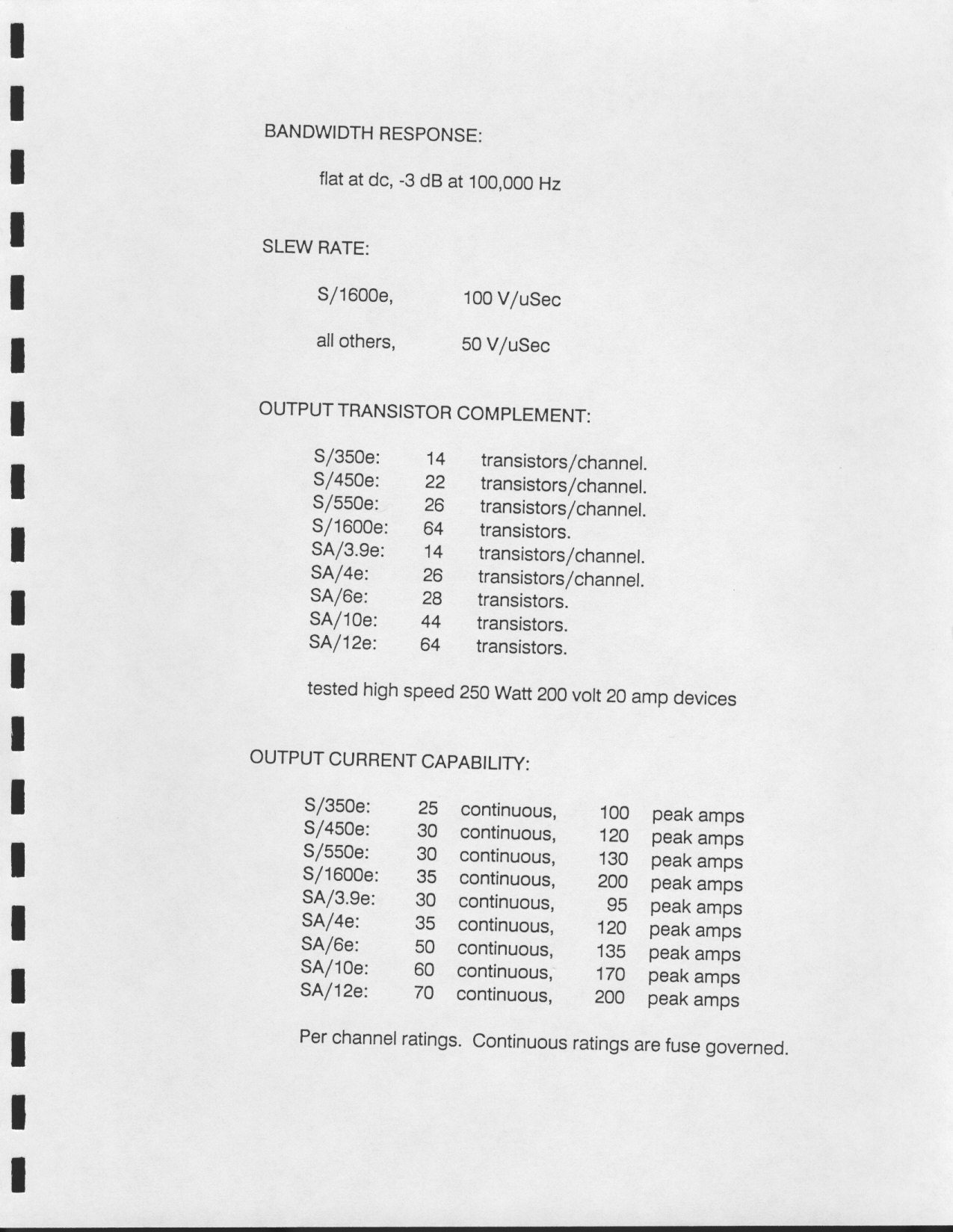

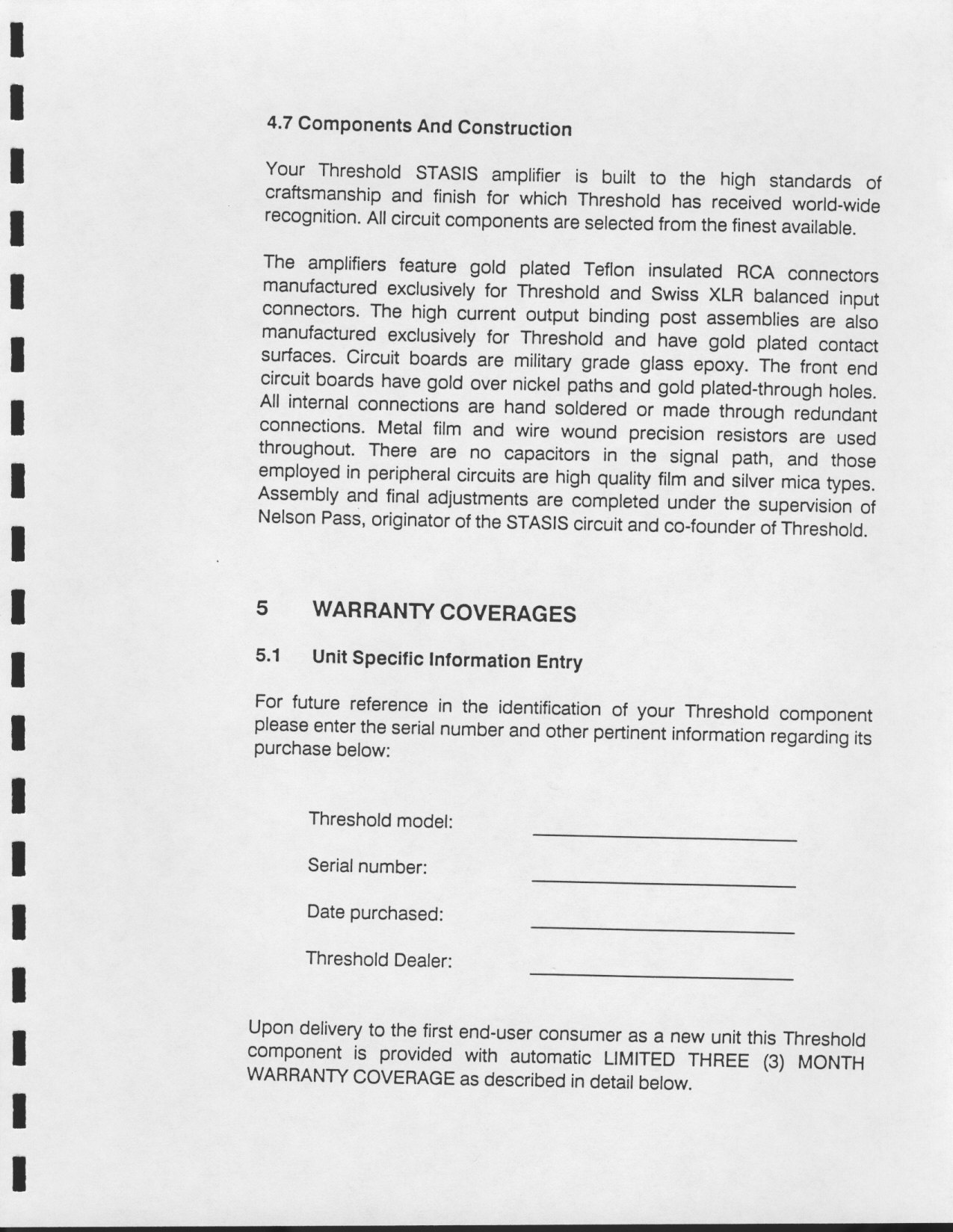

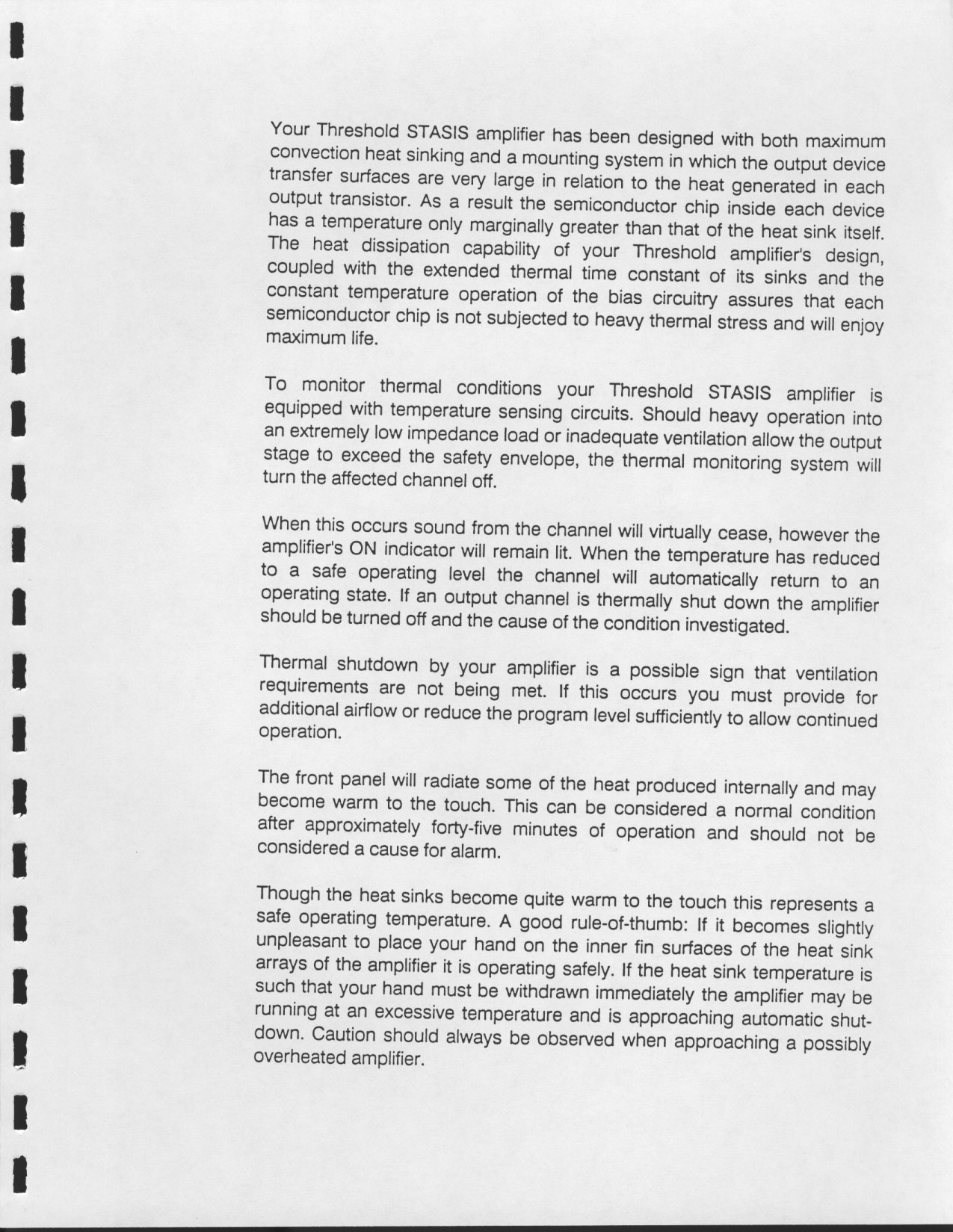

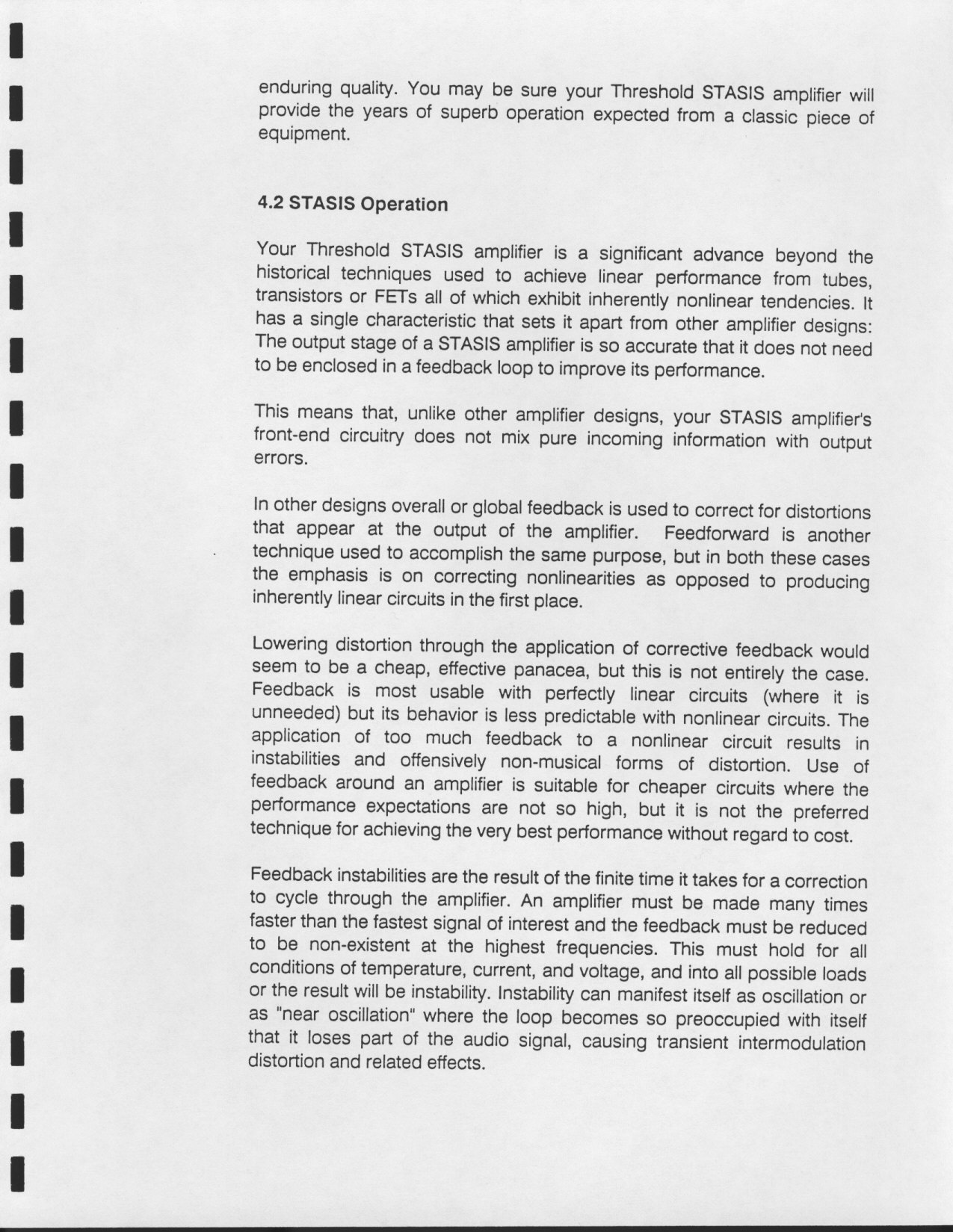

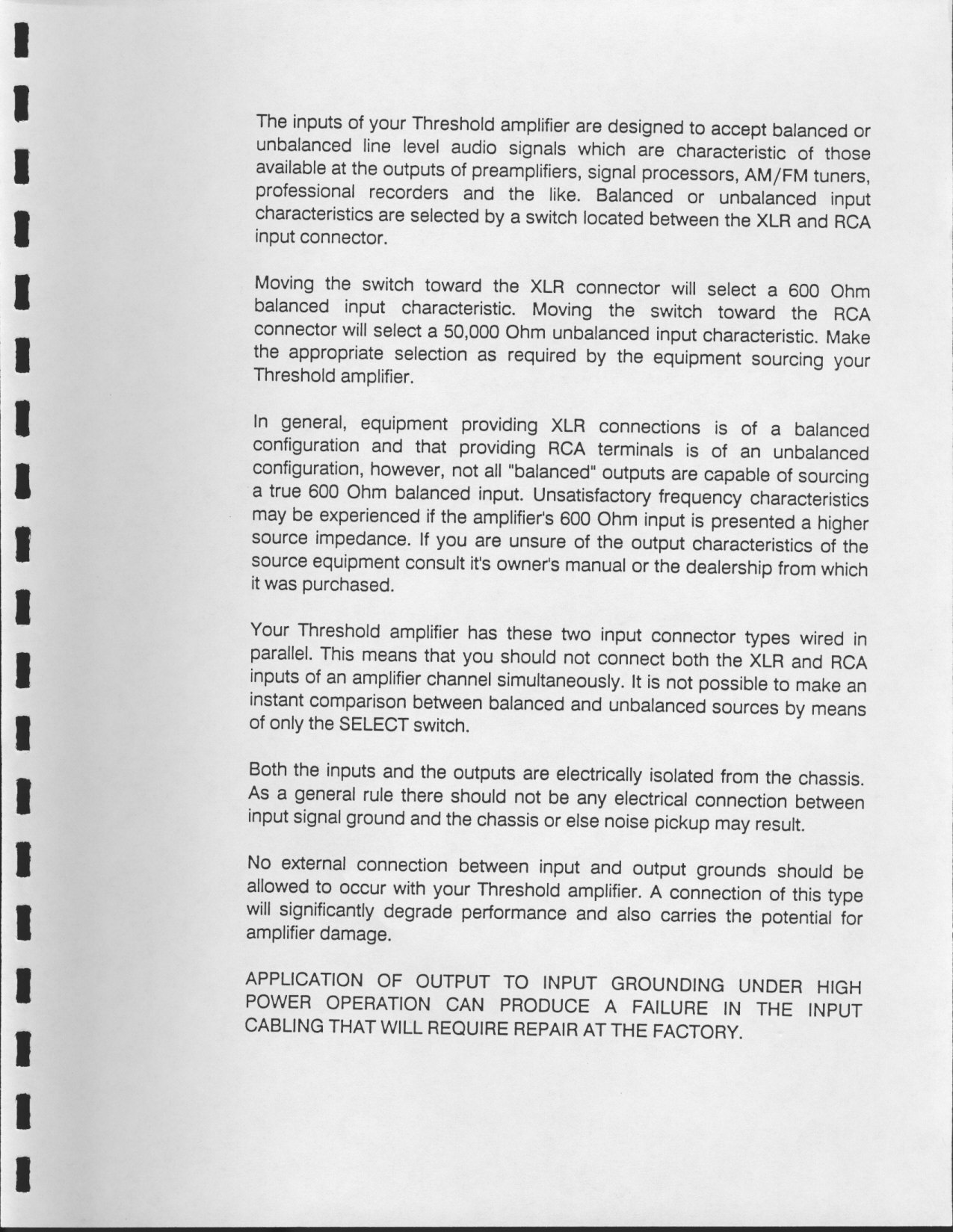

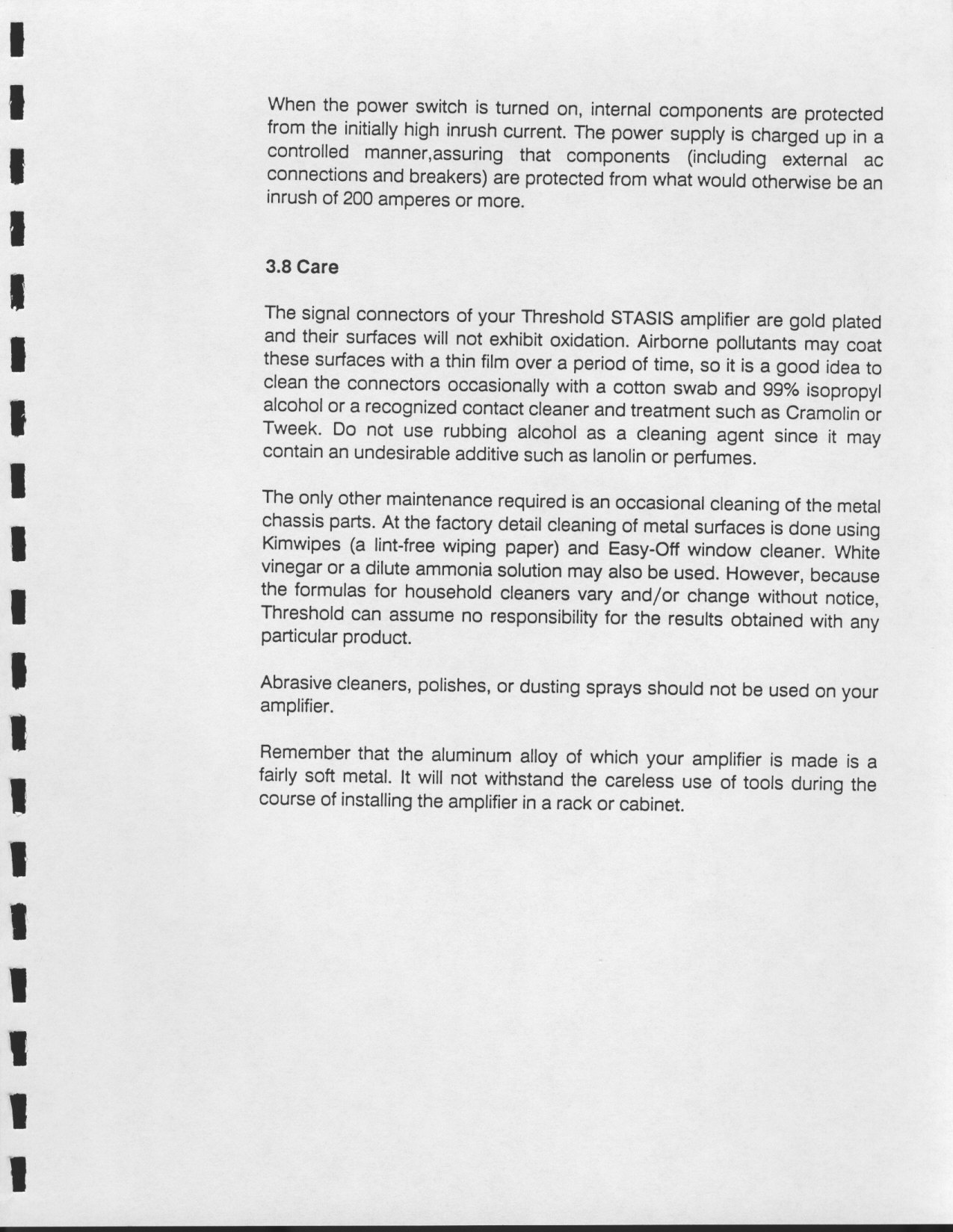

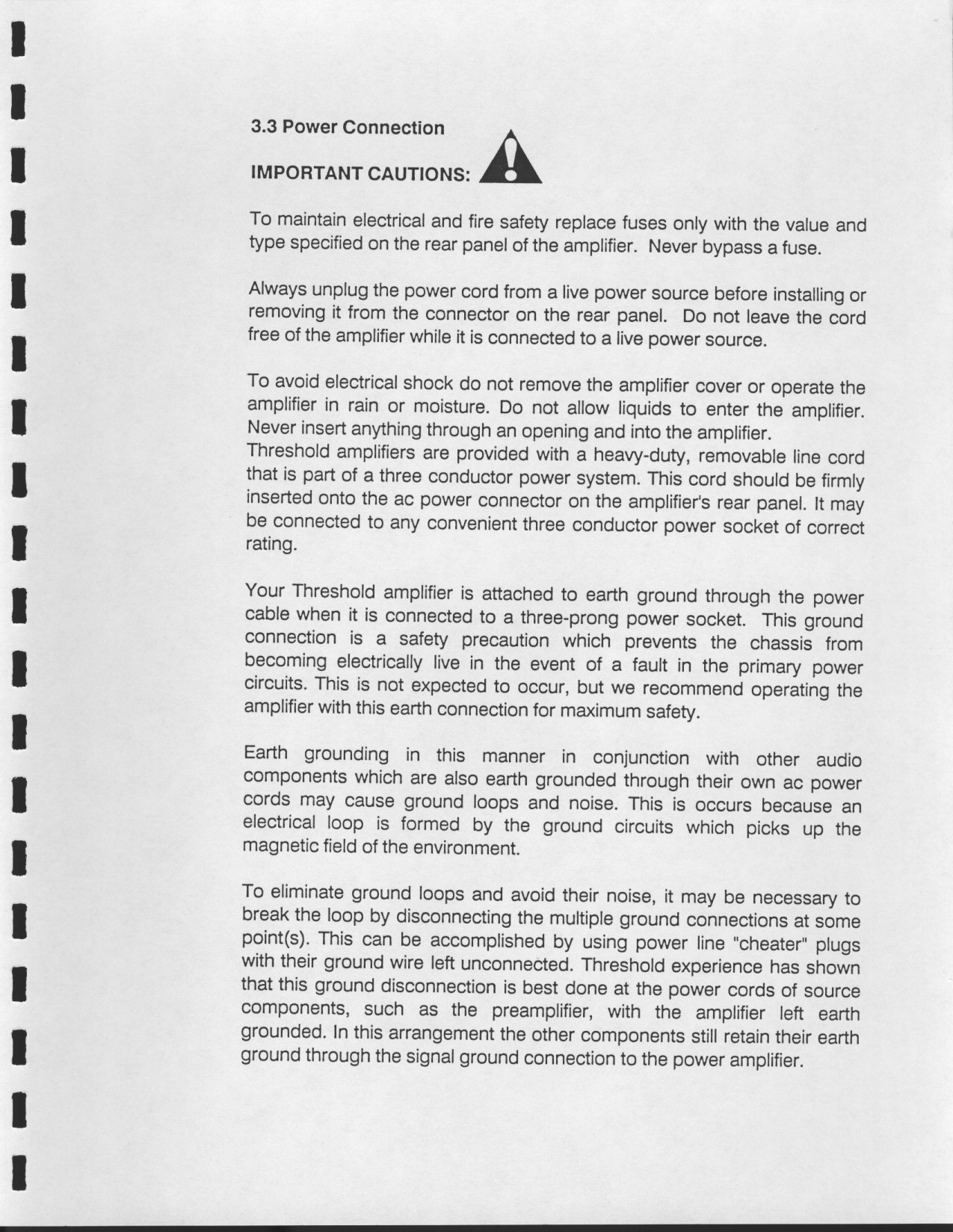

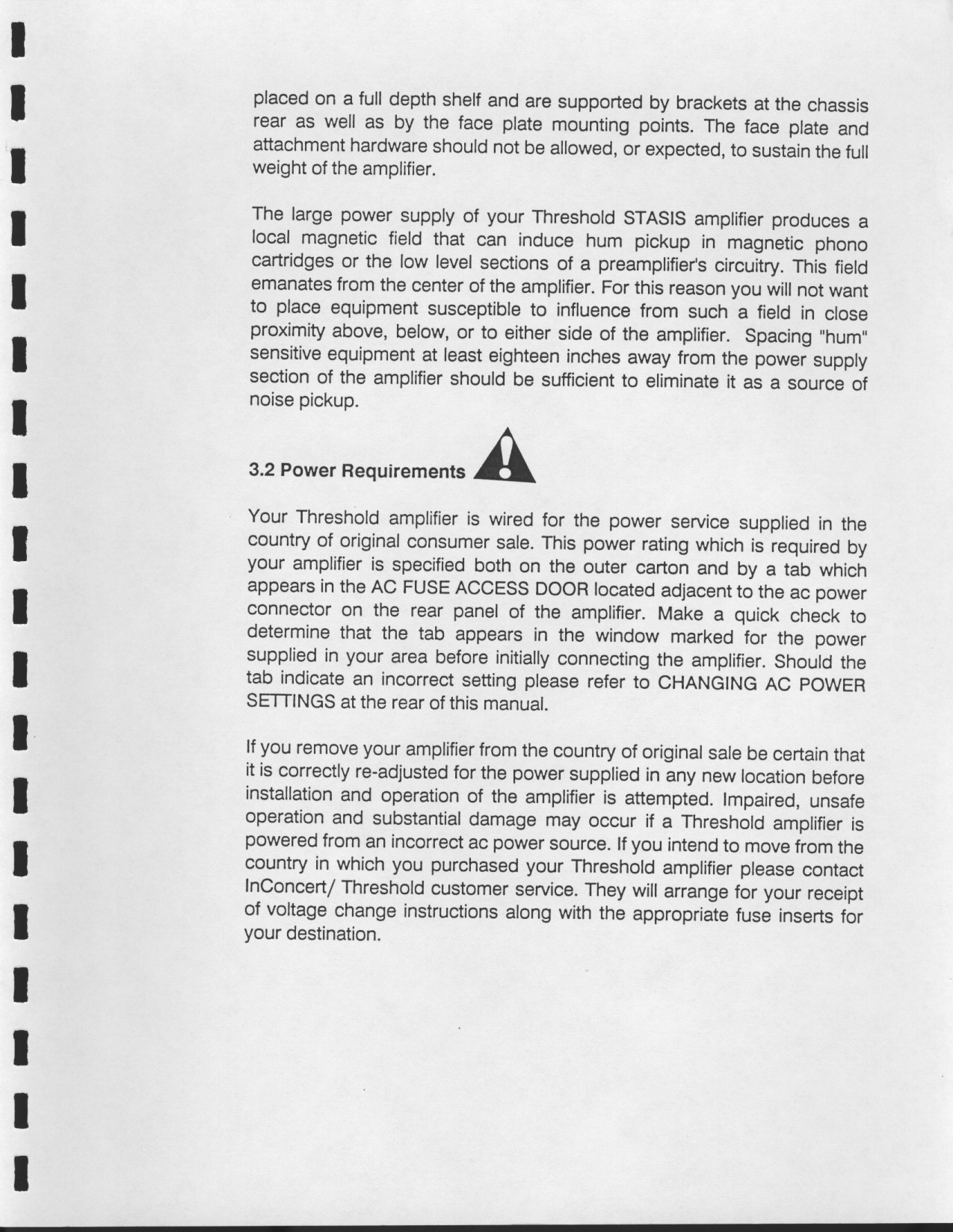

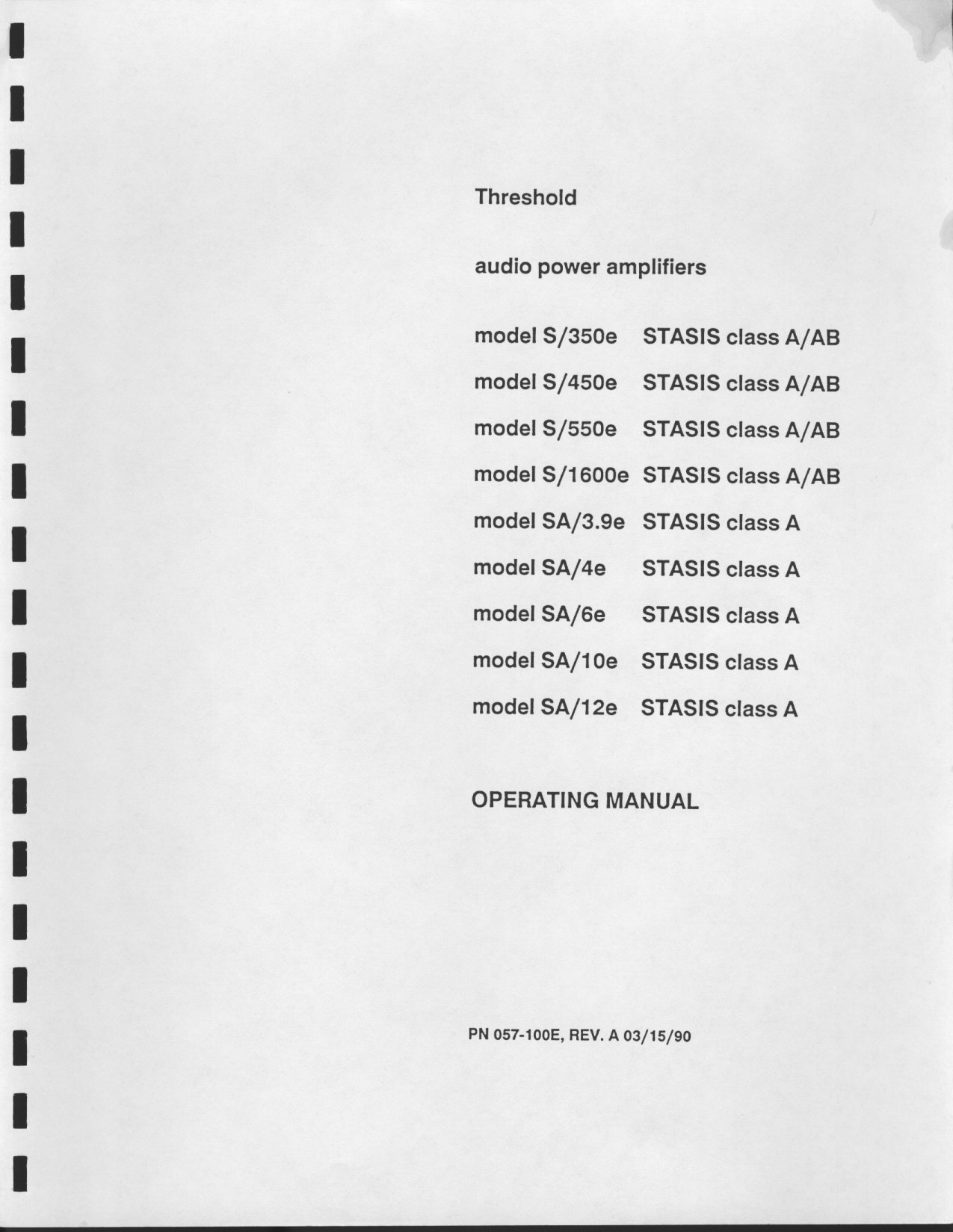

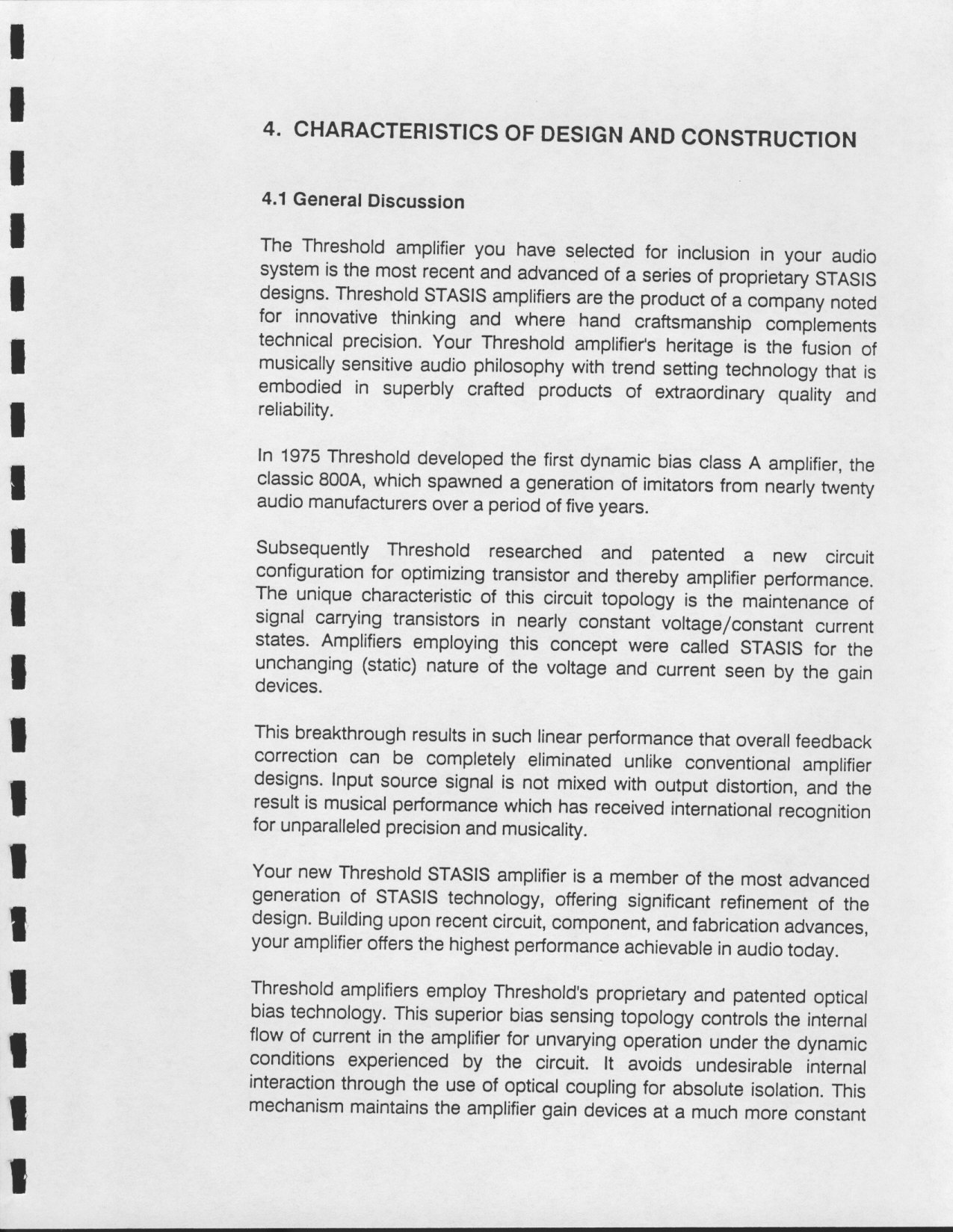

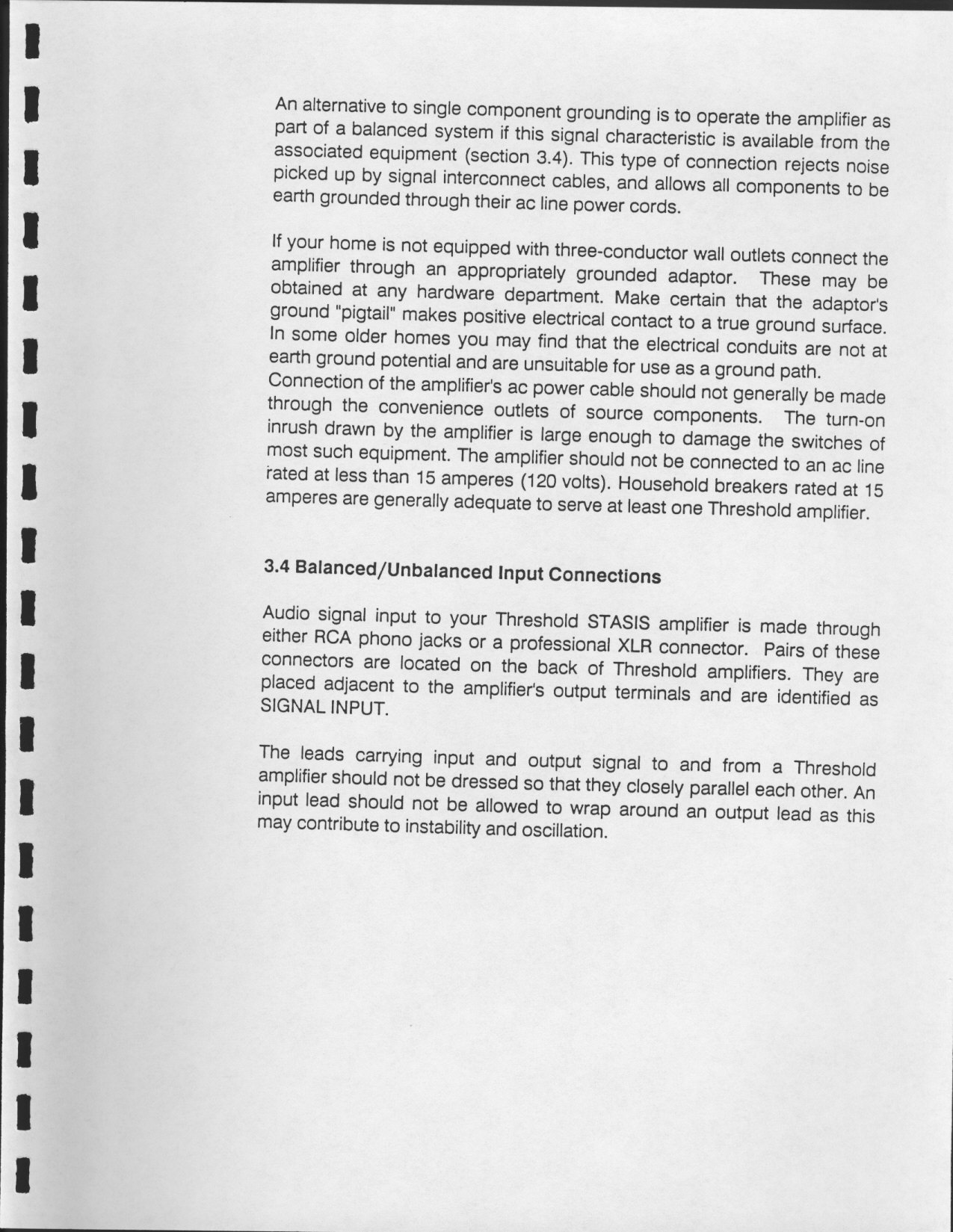

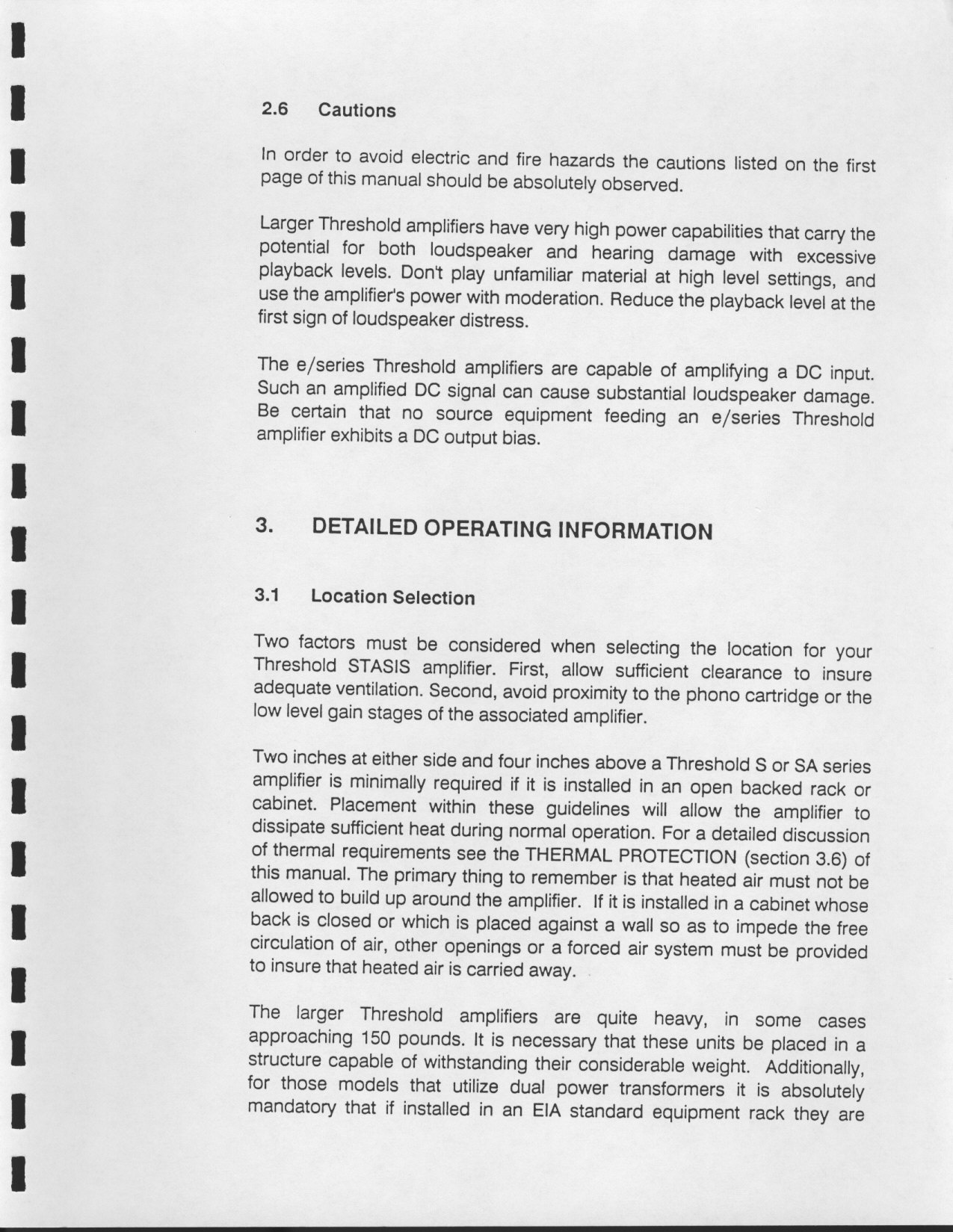

E-Series Operations Manual (1 of 4)...


Attachments

  • IMG_0001.jpg
    215.1 KB · Views: 1,788
  • IMG_0002.jpg
    262.6 KB · Views: 1,706
  • IMG_0003.jpg
    260.2 KB · Views: 1,643

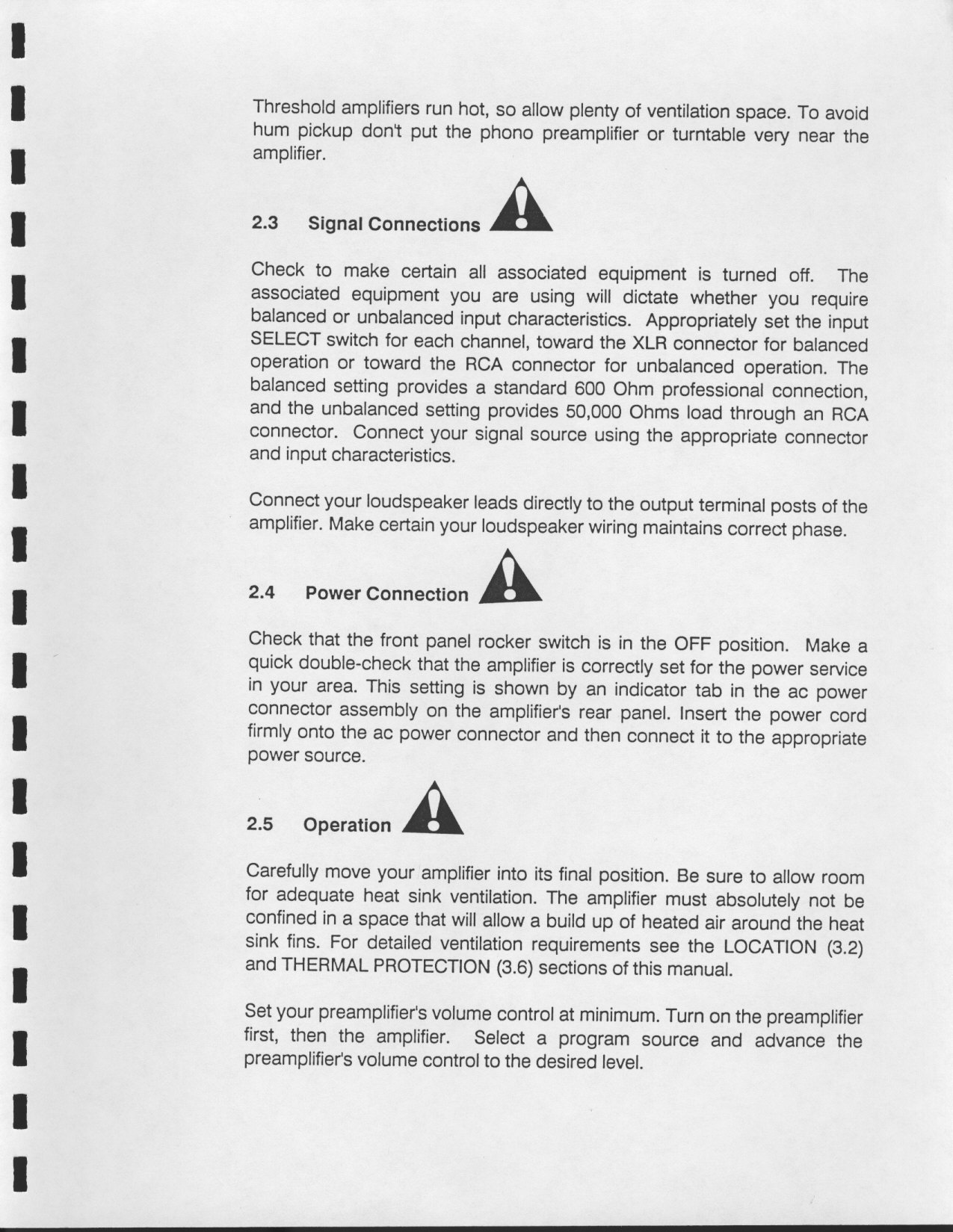

  • IMG_0006.jpg
    341.9 KB · Views: 146
  • IMG_0005.jpg
    330.4 KB · Views: 1,549
  • IMG_0004.jpg
    376.3 KB · Views: 1,602
  • IMG_0007.jpg
    359.8 KB · Views: 136
  • IMG_0008.jpg
    358.4 KB · Views: 131
  • IMG_0009.jpg
    376.5 KB · Views: 132
  • IMG_0010.jpg
    346 KB · Views: 163
E-Series Operations Manual (2 of 4)...


Attachments

  • IMG_0013.jpg
    321.4 KB · Views: 335

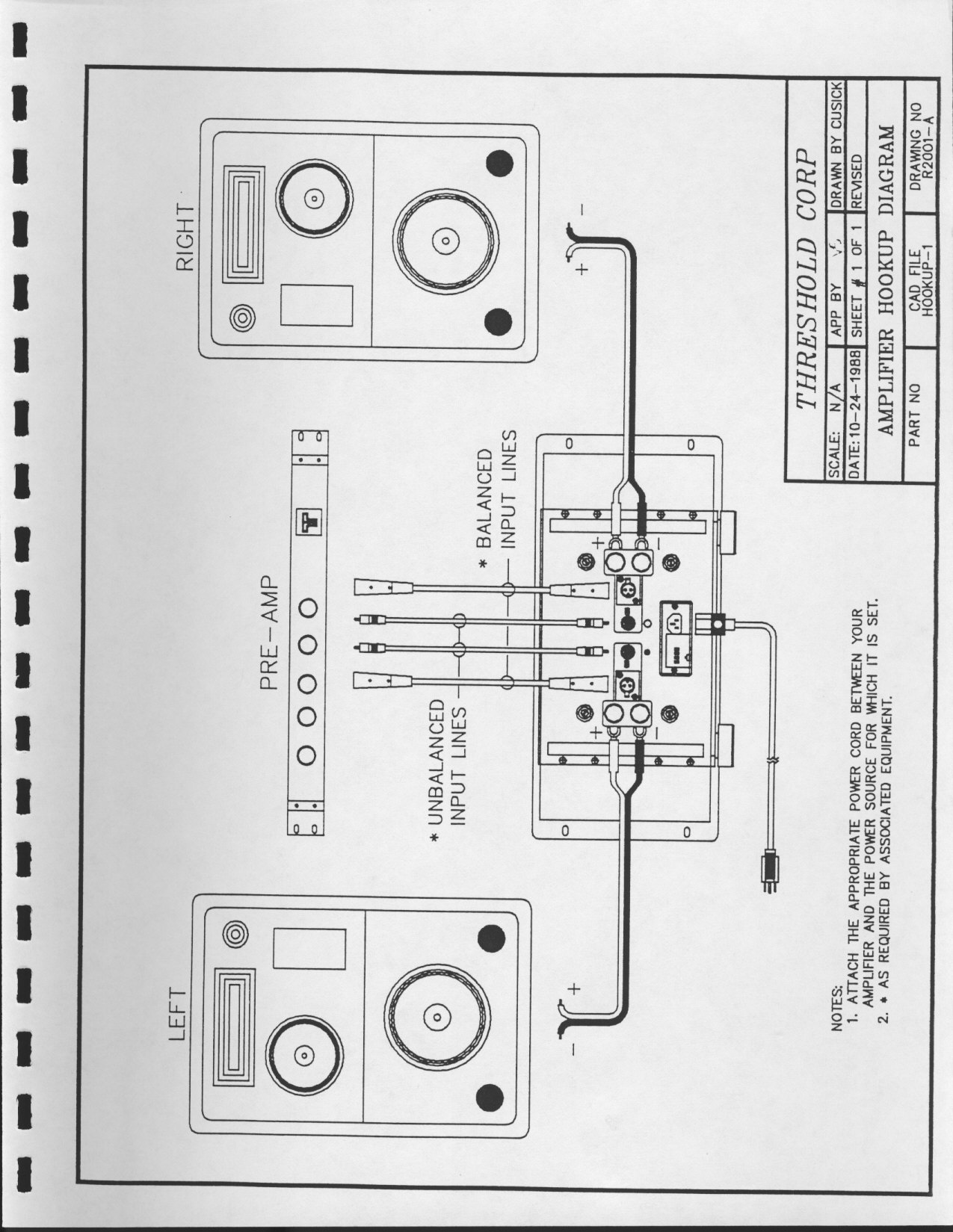

  • IMG_0012.jpg
    302 KB · Views: 269
  • IMG_0011.jpg
    364.9 KB · Views: 157
  • IMG_0014.jpg
    351.3 KB · Views: 226
  • IMG_0015.jpg
    402.7 KB · Views: 112
  • IMG_0016.jpg
    322.8 KB · Views: 95
  • IMG_0017.jpg
    379.8 KB · Views: 95
  • IMG_0018.jpg
    353.6 KB · Views: 103
  • IMG_0019.jpg
    329.8 KB · Views: 115
  • IMG_0020.jpg
    363.5 KB · Views: 99
E-Series Operating Manual (3 of 4)...


Attachments

  • IMG_0023.jpg
    412.7 KB · Views: 115
  • IMG_0022.jpg
    389.5 KB · Views: 168
  • IMG_0021.jpg
    323.5 KB · Views: 101
  • IMG_0024.jpg
    375.7 KB · Views: 89
  • IMG_0025.jpg
    353 KB · Views: 81
  • IMG_0026.jpg
    368.1 KB · Views: 80
  • IMG_0027.jpg
    342.9 KB · Views: 79
  • IMG_0028.jpg
    379.4 KB · Views: 83
  • IMG_0029.jpg
    317.6 KB · Views: 91
  • IMG_0030.jpg
    349.1 KB · Views: 131
E-Series Operating Manual (4 of 4)...


Attachments

  • IMG_0033.jpg
    304.3 KB · Views: 108
  • IMG_0032.jpg
    278.8 KB · Views: 110
  • IMG_0031.jpg
    337.3 KB · Views: 115
  • IMG_0034.jpg
    296.7 KB · Views: 165
  • IMG_0035.jpg
    254.5 KB · Views: 175
  • IMG_0036.jpg
    214.9 KB · Views: 183
  • IMG_0037.jpg
    248.9 KB · Views: 195
  • IMG_0038.jpg
    185.3 KB · Views: 177
