The Professional Class-H Amplifier 2KW

[AutoClassA]

Hello........

This is my Professional Class-H amplifier capable of power output upto 2kW in 2ohms

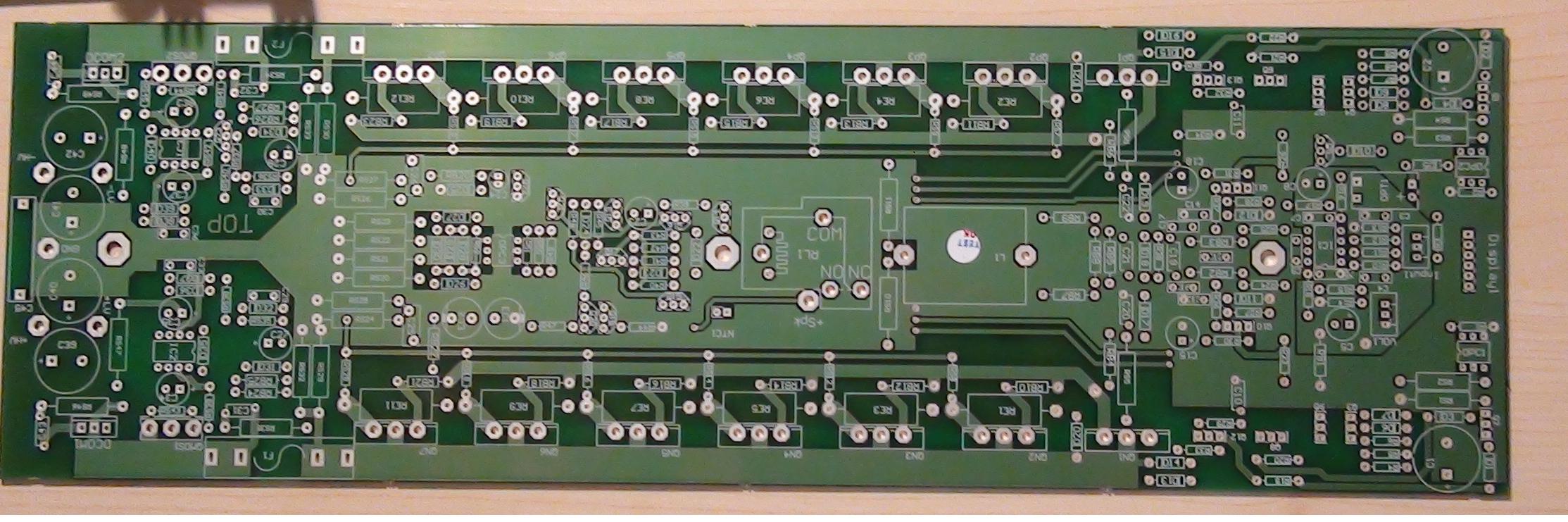

Also This is double sided epoxy pcb designed in altium software.

Thanks



[meanman1964]

Very nice did you etch boards for this amp?



[AutoClassA]

Pro PCBs

Very nice did you etch boards for this amp?

Yes, i have got them etched at pcb manufacturer.



[AutoClassA]

Amp Futures

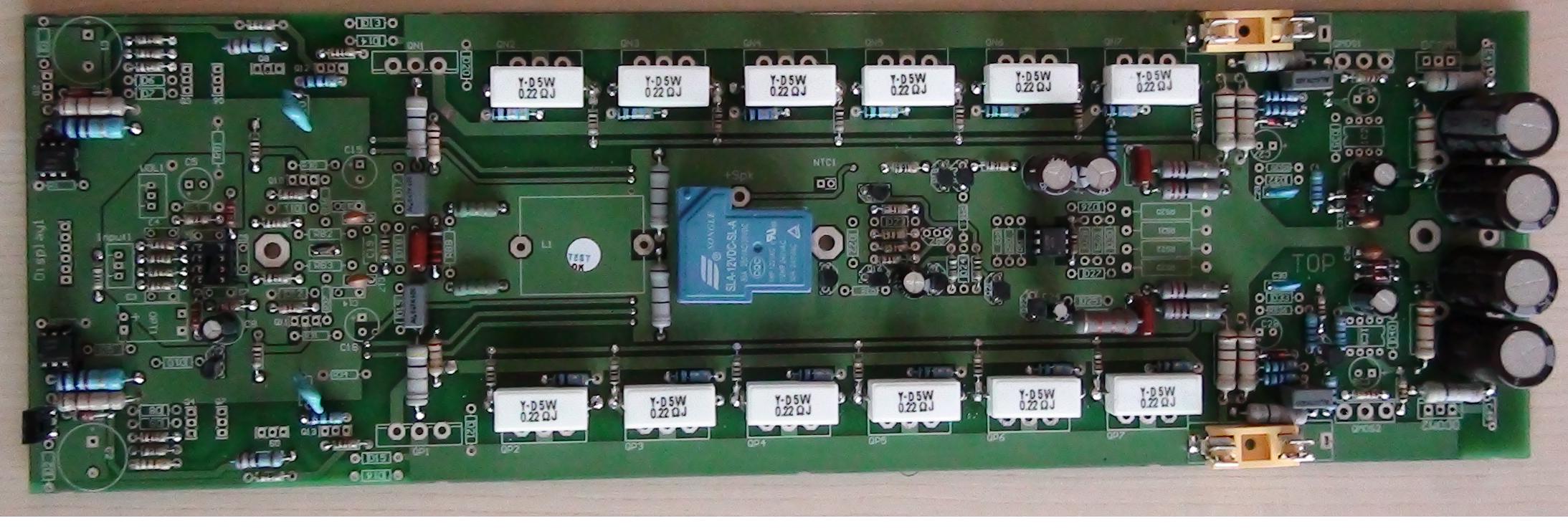

Some info about the amplifier.

The module uses 6 pairs at output, its 2-step class-H with every set of protection like temperature, short-circuit, clip limiter, DC-offset



[meanman1964]

Yes, i have got them etched at pcb manufacturer.

Only one or more?



[AutoClassA]

PCB

Only one or more?

I have 67 PCBs



[A square]

hello sir very nice pcb...

nd nice amp also..

thanx



[meanman1964]

I have 67 PCBs

How much is it for 2 channels with shipping to Belgium?



[AutoClassA]

COST

How much is it for 2 channels with shipping to Belgium?

Hello


Thanks for the interest, I have to evaluate the cost for the PCB
And will let you know soon.



[A square]

i also want to buy this good amp..

thanx



[khalsa]

Hallo sir i like this amp very .......good amp and good power



[kASD]

Stay tuned, more to come😉



[meanman1964]

Can you post the schematic too?



[gaetan8888]

Hello

Yes, it would be very interesting to see the schematic.

Thank

Bye

Gaetan



[kASD]

The Schematic😀



[khalsa]

Hi workhorse thanks for schematic I am Khalsa audio center at ludhiana punjab THANKS



[HighTec]

ermm...cough... what is in the output? Which transistors? 2SC5200/2SA1943? Moar please! 🙂



[AutoClassA]

ermm...cough... what is in the output? Which transistors? 2SC5200/2SA1943? Moar please! 🙂

Yes, output transistors are...

2SC5200/2SA1943

6 Pairs



[ostripper]

No complete schematic (values and all). ??
OS



[khalsa]

HI AutoclassA pls send me the pcb drawing of this amp thanks
