SOLD OUT--- 12,000Uf 80 Volt cap

[Apex Jr]

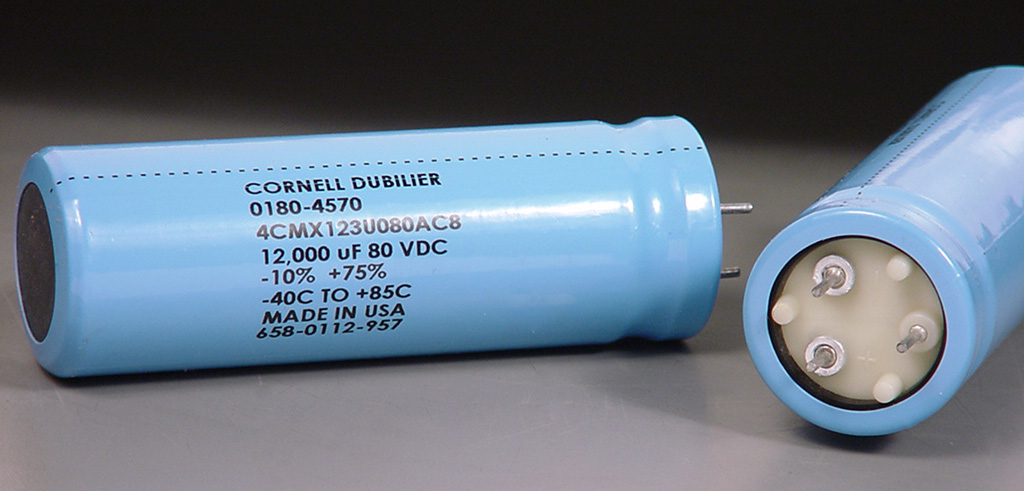

I just got in some Cornell Dubilier 12,000Uf 80V Caps
P/N 4CMX123UO80AC8
They measure 1 1/4" Dia and 4 1/8" Tall



Steve



[Arius]

Nice part. It appears to have been "customized" for Hewlett-Packard. There's a special 4X4 part number "0180-4570". Good price too.

Here's some info from the parts database:

FUNCTIONAL/PHYSICAL INFORMATION:
Type : N/A
Fxd or Var : FIXED
Std Cat Item : NO
Diel Matl : ALUMINUM ELECT
No of Sect : 1
Cap Nom : 0.012 F
C Var Min : N/A F
C Var Max : N/A F
C Tol + : -10 %
C Tol - : 75 %
Oprg Temp Min : -40 deg C
Oprg Temp Max : 85 deg C
Test Frequency Nom : 1000 Hz
WV-max : 80 V
Lkg Cur Max : 4.8 mA
EIA code : NON HP STANDARD
Pkg Tp : STANDOFF
Pkg Matl : NOT SPECIFIED
Pkg Shp : CYLINDRICAL
Termn Tp : WIRE LEADS
Termn Base Matl : NOT SPECIFIED
Termn Barr Matl : NOT SPECIFIED
Termn Outer Pltg Matl : NOT SPECIFIED
No Of Pkg Pins : 2
Termn Spcl Fmg : NO
Mtg Tp : SOLDER
Pkg Lg English : 1.406 in
Pkg Wd English : 1.406 in
Pkg Ht English : 4.375 in
Cmpnt Ht English : 4.375 in
Termn Row Sp English : N/A in
Termn Pitch Sp English : N/S in
Termn Dia Min English : N/S in
Termn Dia Max English : N/S in
Termn Lg Min English : 0.235 in
Pkg Lg Metric : N/S m
Pkg Wd Metric : N/S m
Pkg Ht Metric : N/S m
Cmpnt Ht Metric : N/S m
Termn Row Spcg Metric : N/A m
Termn Pitch Sp Metric : N/S m
Termn Dia Min Metric : N/S m
Termn Dia Max Metric : N/S m
Termn Lg Min Metric : N/S m
Pkg Des : NOT ASSIGNED
Mtg Tech : THROUGH HOLE
Pkg Orient : YES


Source Control : STRICT SOURCE

A) Name : CORNELL-DUBILIER ELECTRONICS INC
Name Abbreviation : CDEI
City : WAYNE
Geographic Area Name : NJ
Country Code : US
Supplier Status : ACTIVE
Manufacturer Part Number : 4CMX123U080AC8
Manufacturer Part Number Status : ACTIVE
Manufacturer Part Number Approval : A
Discontinuance Date :



[CharlieLaub]

how to tie in to leads/posts?

I'm interested in buying some of these caps. From the picture, it looks like the "leads" are really more like posts and that soldering on to them would be difficult.

How are these usually connected?

-Charlie



[Apex Jr]

Charlie....
There are the 2 leads with the metal rings around them which are the
positive and negative while the one on top is a dummy
a positioning pin and the 3 protrusions are for holding the cap on there
PC board.
These are leads and not ilet or screw down caps, I do not see any problems
with soldering to them. You can always cover your work with shrink tubing
or Teflon tubing..

Steve



[raymondtyson]

capacitor

I just got in some Cornell Dubilier 12,000Uf 80V Caps
P/N 4CMX123UO80AC8
They measure 1 1/4" Dia and 4 1/8" Tall
Price is $3.95

Soon to be listed on the website at $4.50 each


Steve

I just need to know how can I get to purchase 6 of these items



[Apex Jr]

I just need to know how can I get to purchase 6 of these items

I still have some in stock...
I'll need to know where you are to quote a shipping cost. It should be
in the USA I can fit 6 in a USPS Flat Rate Video box for $7.50 overseas
for $27.00.

In the USA and Canada you can call me TOLL FREE at
1 866 4- APEX JR ---- 1 866 427-3957
or PM me
