SlewMaster Project Boards

[evanc]

Jason,
Boards arrived today.
Thanks again,
Evan



[gwrskien]

Hello,

Wolverine pcb`s recived..

Thank`s



[tjencks]

Hi Jason,

I got my most recently order...boards look great as usual...thank you sir!!!

Best Regards,
Theo



[jkuetemann]

Thanks for letting me know orders are hitting their marks. Current status:

tjencks - 2x IPS (Symasui), 2x IPS (Wolverine) - Delivered
evanc - 2x IPS (Wolverine), 1x IPS (CFA-XH), 2x 5P OPS - Delivered
gwrskien - 4x IPS (Wolverine), 2x 2P OPS, 2x 5P OPS - Delivered

scalpel - 2x IPS (Symasui), 2x 2P OPS - Shipped
xLoff - 2x IPS (CFA-XH), 2x 5P OPS - Shipped
mrsavage - 6x IPS (Wolverine) - Shipped
arthur - 4x IPS (Wolverine) - Shipped

Bangla H - 2x IPS (CFA-XH), 2x IPS (Symasui), 2x 2P OPS - Paid, ready to ship, PM Sent (and email) requesting shipping address.
buzzforb - 2x IPS (CFA-XH), 2x 5P OPS - Request Acknowledged, PM Sent


Pre-order list for Spooky IPS and Mini OPS:

quan - 2x IPS (Wolverine), 2x IPS (Spooky), 2x Mini OPS - Request Acknowledged
mrsavage - 8x IPS (Spooky), 8x Mini OPS - Request Acknowledged
gwrskien - 4x IPS (Spooky), 6x Mini OPS - Request Acknowledged
tjencks - 2x IPS(Spooky), 5x Mini OPS - Request Acknowledged



[arthur]

Pre-order list for Spooky IPS and Mini OPS

please add me 8 x(Spooky)and 8x Mini OPS

Thanks



[vitalica]

Please add me:
2x IPS (Wolverine) ; 2x IPS (CFA-XH); 2x IPS (Symasui); 4x 5P OPS.

Thanks.



[jkuetemann]

Current Status

scalpel - 2x IPS (Symasui), 2x 2P OPS - Shipped
xLoff - 2x IPS (CFA-XH), 2x 5P OPS - Shipped
mrsavage - 6x IPS (Wolverine) - Shipped
arthur - 4x IPS (Wolverine) - Shipped
Bangla H - 2x IPS (CFA-XH), 2x IPS (Symasui), 2x 2P OPS - Shipped

buzzforb - 2x IPS (CFA-XH), 2x 5P OPS - On Hold
vitalica - 2x IPS (Wolverine), 2x IPS (CFA-XH), 2x IPS (Symasui), 4x 5P OPS - Request Acknowledged, PM Sent

Pre-order list for Spooky IPS and Mini OPS:

quan - 2x IPS (Wolverine), 2x IPS (Spooky), 2x Mini OPS - Request Acknowledged
mrsavage - 8x IPS (Spooky), 8x Mini OPS - Request Acknowledged
gwrskien - 4x IPS (Spooky), 6x Mini OPS - Request Acknowledged
tjencks - 2x IPS(Spooky), 5x Mini OPS - Request Acknowledged
arthur - 8x IPS (Spooky), 8x Mini OPS - Request Acknowledged
Jim Hamley - 4x IPS (Spooky), 4x Mini OPS - Request Acknowledged

I had a busy weekend doing some work around the yard and house and didn't get Spooky buttoned up. I'll get some time in the next few evenings to hopefully get to the final error checking stage and ready to order. Thanks to all for your patience.



[jkuetemann]

Spooky Preview - Time for error checking!

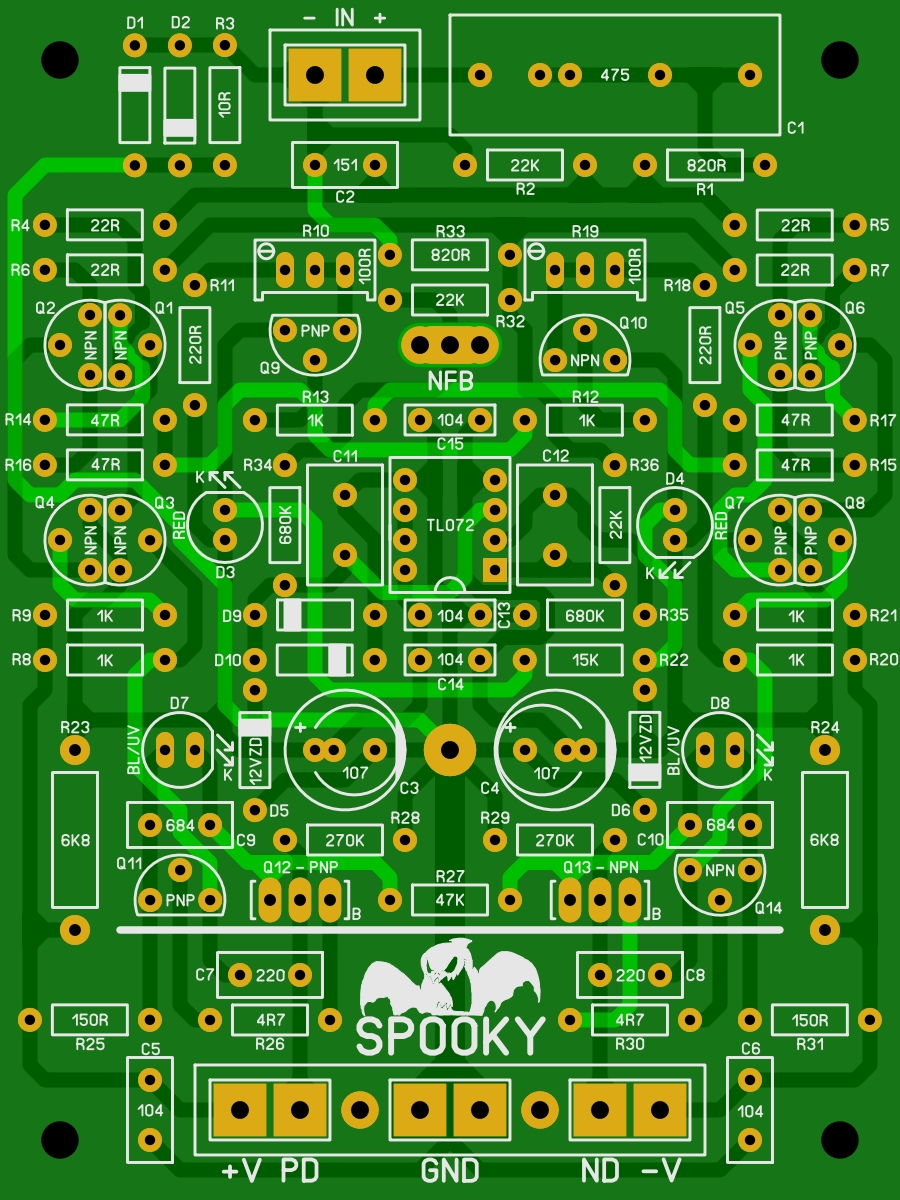

Here is what Spooky should be looking like, barring any gross errors on my part. Time to go through it carefully for error checking.



[Carl_Huff]

Here is what Spooky should be looking like, barring any gross errors on my part. Time to go through it carefully for error checking.

Nice layout job,

That's got to be your busiest and most densely packed Slewmaster PCB yet!



[jkuetemann]

It is very densely populated. I think it is the busiest one overall, at least so far.



[jkuetemann]

QC went well this time...

Wow, Spooky passed a node-by-node QC pass with only a couple minor errors on the silk layer. No reworking required. I'll be outputting the files for manufacture tomorrow. I will be also ordering the Mini OPS at the same time.

In the mean time, I'm out of the CFA-XH boards (all spoken for). Shall I update the CFA-XH with the last OS modified version? This would bring in the best of the BV mods without changing it too much. I would also bring the form factor in line with the others so there is no odd sized IPS in the line-up. I would then consider re-ordering those too. Thoughts?

Also, how much interest is there in the NAD based IPS? I haven't had anyone ask for it yet. I know there are a few new IPSs OS is coming out with, but I'd like to wait for them to mature just a little before jumping onto those. They will however end up being done.



[vitalica]

Hi Jason ,

Pre-order: 2xSpooky IPS and 2xMini OPS

Thanks!



[jkuetemann]

Will be ordering boards this evening...

scalpel - 2x IPS (Symasui), 2x 2P OPS - Shipped
xLoff - 2x IPS (CFA-XH), 2x 5P OPS - Shipped
mrsavage - 6x IPS (Wolverine) - Shipped
arthur - 4x IPS (Wolverine) - Shipped
Bangla H - 2x IPS (CFA-XH), 2x IPS (Symasui), 2x 2P OPS - Shipped
vitalica - 2x IPS (Wolverine), 2x 5P OPS - Order Updated, Shipped

buzzforb - 2x IPS (CFA-XH), 2x 5P OPS - On Hold

Pre-order list for Spooky IPS and Mini OPS:

quan - 2x IPS (Wolverine), 2x IPS (Spooky), 2x Mini OPS - Request Acknowledged
mrsavage - 8x IPS (Spooky), 8x Mini OPS - Request Acknowledged
gwrskien - 4x IPS (Spooky), 6x Mini OPS - Request Acknowledged
tjencks - 2x IPS(Spooky), 5x Mini OPS - Request Acknowledged
arthur - 8x IPS (Spooky), 8x Mini OPS - Request Acknowledged
Jim Hamley - 4x IPS (Spooky), 4x Mini OPS - Request Acknowledged
vitalica - 2x IPS (Spooky), 2x Mini OPS - Request Acknowledged



[jwilhelm]

Can I get 2 Mini OPS and 2 Spooky IPS boards?



[gwrskien]

Hello,

I`d like the NAD input stage, i like the sound in the NAD amps, and some hybrid ips`s, or maybe an hybrid headphone or pre amp, if that is something that you consider making..
I will probably get what ever that you deside to produce though..

Thank`s for all your hard work!!

Gisle



[mrsavage]

Received my PCB's

I received my PCB's. Thanks for all your work and great layout design!!!

I'm interested in the NAD IPS as well.



[alcroner]

Very fine designed boards, looks nice in the pictures, and several versions even,



[jkuetemann]

Boards are on order. There is an upcoming week-long Chinese national holiday that will delay shipping. I will let everyone know when they are on their way.



[gwrskien]

Hello,

I`ve gone through this tread, and made a list of schematics and pictures, i hope i got them all..

Maybe some of this info could be posted in the first post, so it`s easyer to find the right schematics and stuff..

Drill template post #24
Symasui #54 (#47 with forgotten trace)
2P OPS and Symasui IPS pic #73
Drill templates #84
OPS schematic #87
Wolverine Preview #112
Wolverine IPS #121
Wolverine layout #130
Wolverine final layout? #144
Spooky Leach "under way" #152
Wolverine powered up pic #171
Wolverine ips schematic #173
Single pair of Lateral MOSFETs with an EF driver #181
Spooky Leach prewiew #199
Spooky prewiew #208

I have a feeling this tread are going to be long before all pcb`s are finished...

Thank`s

Gisle



[jkuetemann]

It probably isn't required to link every picture, but schematics certainly. My intent has been to re-draw them for added clarity. Some links already exist, others need to be added.

It might even be better if I ask a moderator to add the attachments directly to post #1.
