I received the boards yesterday.
Impressive job, very well done!
Thanks for your great work
Nicola
Impressive job, very well done!
Thanks for your great work
Nicola
find out that some parts are missing in the BoM:
LS-Protect
1x BC 517 ist missing (need 1 per PCB)
FC-100 AMP
only 4x 2,2R are included you need 6x 2,2R per PCB
MKS-4 100N -> need 2 per PCB only 1 ist included
The Spacing of MKH100-15 470N is 15 mm does'n't fit to the PCB-Spacing
Shunt Regulator
missing the 2x 2,2nF and the 2x 2,2µF Caps included are 2x MKH400-7,5 4,7N ??
maby Rudi can explain what todo with the 4,7N 🙂
LS-Protect
1x BC 517 ist missing (need 1 per PCB)
FC-100 AMP
only 4x 2,2R are included you need 6x 2,2R per PCB
MKS-4 100N -> need 2 per PCB only 1 ist included
The Spacing of MKH100-15 470N is 15 mm does'n't fit to the PCB-Spacing
Shunt Regulator
missing the 2x 2,2nF and the 2x 2,2µF Caps included are 2x MKH400-7,5 4,7N ??
maby Rudi can explain what todo with the 4,7N 🙂
Nico,
LSProtect: instead of the BC517 you can take a 2N5551, BC546 / BC550, ... as well.
FC-AMP: you need of course 6 base-stoppers 2R2. You need 2 MKS4 - 100nF.
I cannot find the 470nF that you are talking about.
Shunt-Regulator: REICHELT does not offer 2.2µF MKT capacitors. These capacitors are "bypassed" by ceramic NPO capacitors.
I remember that REICHELT did not offer 2n2 at the time, when I added this cart. That is why I included 4n7. The 4n7 will do it as well.
Best regards - Rudi-Ratlos
P.S. It is not possible to change a public cart. The only way to change things is to delete the old cart and add a new one
(with corrections made). But then the URL I sent to you all is no longer valid.
LSProtect: instead of the BC517 you can take a 2N5551, BC546 / BC550, ... as well.
FC-AMP: you need of course 6 base-stoppers 2R2. You need 2 MKS4 - 100nF.
I cannot find the 470nF that you are talking about.
Shunt-Regulator: REICHELT does not offer 2.2µF MKT capacitors. These capacitors are "bypassed" by ceramic NPO capacitors.
I remember that REICHELT did not offer 2n2 at the time, when I added this cart. That is why I included 4n7. The 4n7 will do it as well.
Best regards - Rudi-Ratlos
P.S. It is not possible to change a public cart. The only way to change things is to delete the old cart and add a new one
(with corrections made). But then the URL I sent to you all is no longer valid.
OK thanks Rudi
i talking about this one: MKH100-15 470N - capacitor 470N, 100V at reichelt elektronik its in the cart of Shunt Regulator.
i talking about this one: MKH100-15 470N - capacitor 470N, 100V at reichelt elektronik its in the cart of Shunt Regulator.
Hi Rudi!
I got the package from the post office today. 🙂
Thank you again for the effort you put on this GB.
Regards Dori
I got the package from the post office today. 🙂
Thank you again for the effort you put on this GB.
Regards Dori
free set of PCB
Hi guys,
For potential customer I can offer my unused set of PCBs:
FC-100 pcb - 2 pcs
Shunt reg. - 2 pcs
LSProtect - 2 pcs
Soft Power on - 1 pc
Futaba resistor - 12 pcs
Matched JFET - 2+2 pcs
You can pay via paypal, or EUROGIRO services ( usualy is providing on Post offices )
price: 80 EURO ( including postage fees )
contact: milandks at pobox.sk
regards
milandks
Hi guys,
For potential customer I can offer my unused set of PCBs:
FC-100 pcb - 2 pcs
Shunt reg. - 2 pcs
LSProtect - 2 pcs
Soft Power on - 1 pc
Futaba resistor - 12 pcs
Matched JFET - 2+2 pcs
You can pay via paypal, or EUROGIRO services ( usualy is providing on Post offices )
price: 80 EURO ( including postage fees )
contact: milandks at pobox.sk
regards
milandks
I could be interested to take the following items:
FC-100 pcb - 2 pcs
Shunt reg. - 2 pcs
Futaba resistor - 12 pcs
Matched JFET - 2+2 pcs
Can you give me a price with shipping included?
Thank you.
Anto,
I have 2 FC-100 AMP PCBs left.
I do not have any other PCBs, for example: I do not have the shunt-PCBs, but you can start
with a LM317 / LM337 voltage regulator for the frontend.
The frontend needs +/- 37VDC @21.5mA.
If you are interested, I will check, if I have any other "hard-to-get" components for you.
Send me a PM.
Best regards - Rudi_Ratlos
I have 2 FC-100 AMP PCBs left.
I do not have any other PCBs, for example: I do not have the shunt-PCBs, but you can start
with a LM317 / LM337 voltage regulator for the frontend.
The frontend needs +/- 37VDC @21.5mA.
If you are interested, I will check, if I have any other "hard-to-get" components for you.
Send me a PM.
Best regards - Rudi_Ratlos
Group-buy Round 2
Gentlemen,
after having received several requests concerning the build of Mihai Rauta's FC-100, I feel obliged to open Round 2 of a group-buy for this amplifier.
I will once more not only provide you the PCBs, but will assist you in getting the "hard-to-get" components, like: NJL0 - transistors
(I will match them for you), MPC74-emitter resistors, authentic Toshiba 2SA / 2SC transistors, matched input 2SK170 transistors, ...
Since I have promised my German DIY-friends to offer them a project for the long autumn and winter evenings, I will align Round 2
with my offer to my German friends.
Do therefore not expect this round to be closed before October.
In my ears Mihai Rauta's FC-100 defines the "TOP" of what can be made by DIYers.

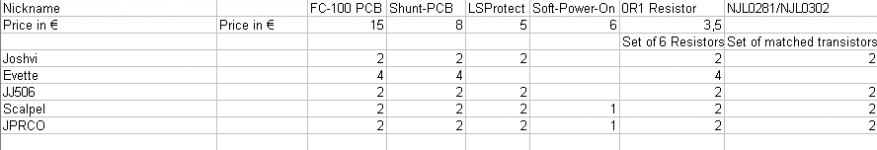

Find attached the interested part list.
Best regards - Rudi_Ratlos
Gentlemen,
after having received several requests concerning the build of Mihai Rauta's FC-100, I feel obliged to open Round 2 of a group-buy for this amplifier.
I will once more not only provide you the PCBs, but will assist you in getting the "hard-to-get" components, like: NJL0 - transistors
(I will match them for you), MPC74-emitter resistors, authentic Toshiba 2SA / 2SC transistors, matched input 2SK170 transistors, ...
Since I have promised my German DIY-friends to offer them a project for the long autumn and winter evenings, I will align Round 2
with my offer to my German friends.
Do therefore not expect this round to be closed before October.
In my ears Mihai Rauta's FC-100 defines the "TOP" of what can be made by DIYers.
Find attached the interested part list.
Best regards - Rudi_Ratlos
Attachments
Last edited:
Hi Rudi,could I get the following.Fc100 pcbx2.Shunt pcbx2.Ls protectx2.Soft startx2.Total so far Euro74.Output transistor setsx2 and other "hard to get "trannys if possible and the total cost.Thanks and best regards,Manuel
Hi, Rudi. I think I would like to have a go at this amp too over the winter. Can you put me down for 2 of everything for now until you decide final cost for all. Thanks again for your hard work for DIYers!
