RJM Audio B-Board 2.1 Standalone Buffer Line Driver PCB

Status
Not open for further replies.
Jump to Latest
rjm

rjm

Member
Joined 2004
phonoclone.com
#1
I've put an order in for a bunch of these little buffer boards, I figured they'd most likely be come in useful to someone.

It's a unity gain buffer / line driver. PSRR 75 dB, <100 dB harmonics at 1 Vrms simulated in LTSpice.

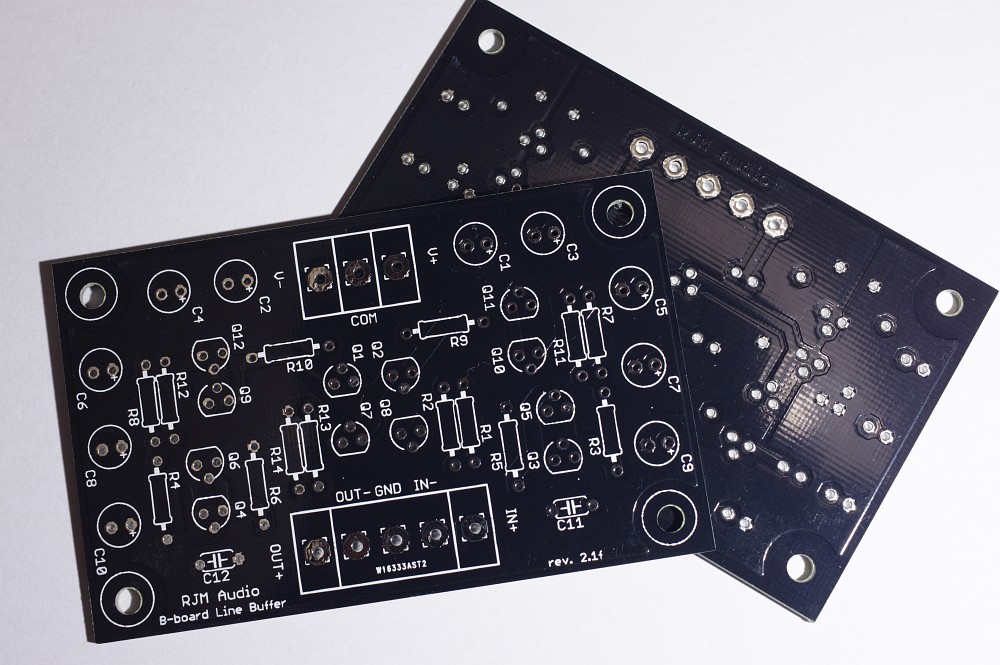

The boards are 5x8 cm. Black. 2 layer, 2 oz copper. Will power from +/-5 V to +/-18 V supplies.

Price $15/pair (Paypal) including shipping. pm if interested.


Attachments

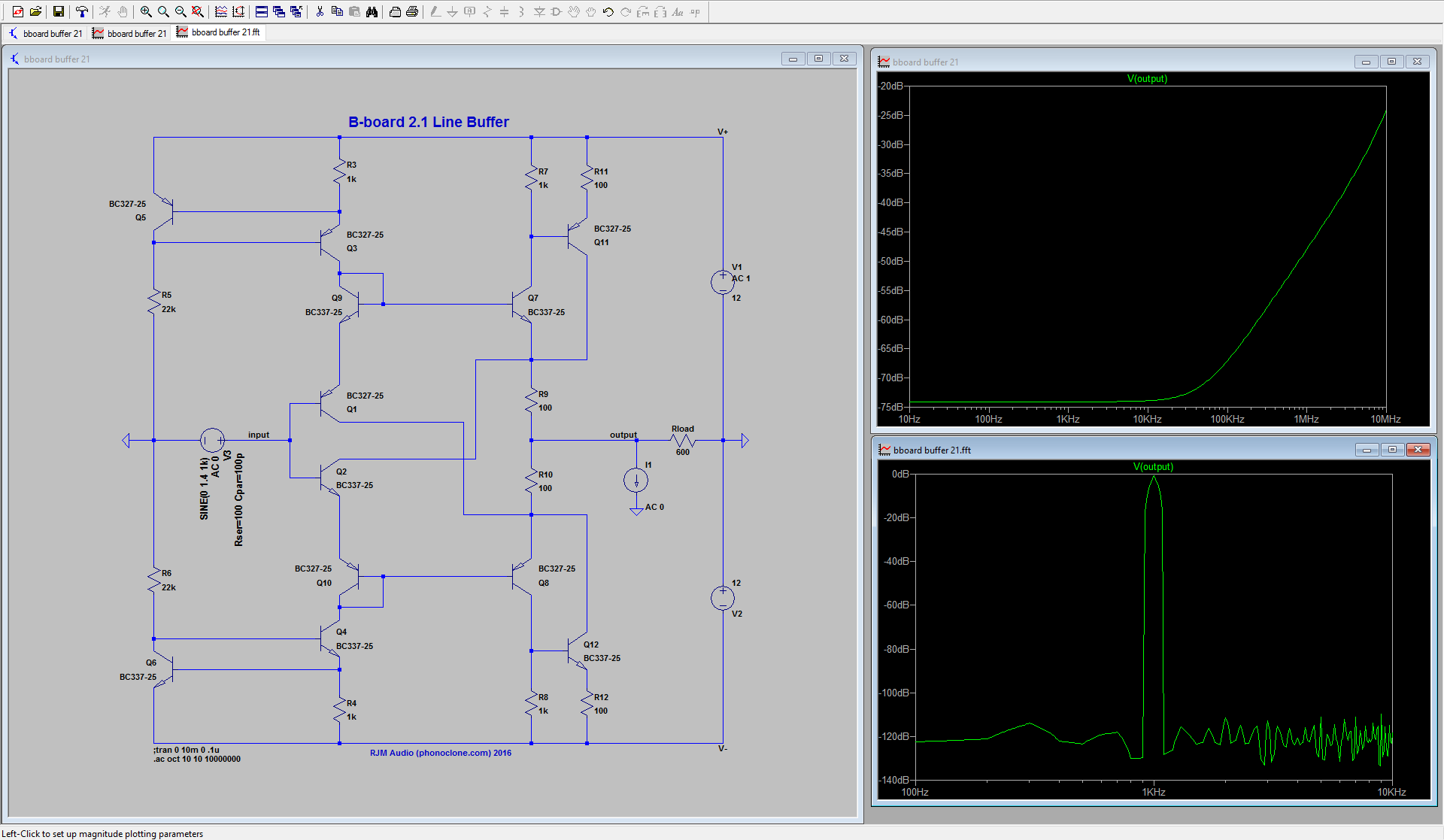

  • bboard21-LTSpice.png
    62.3 KB · Views: 276
  • bboard buffer 21.asc
    bboard buffer 21.asc
    4.6 KB · Views: 71

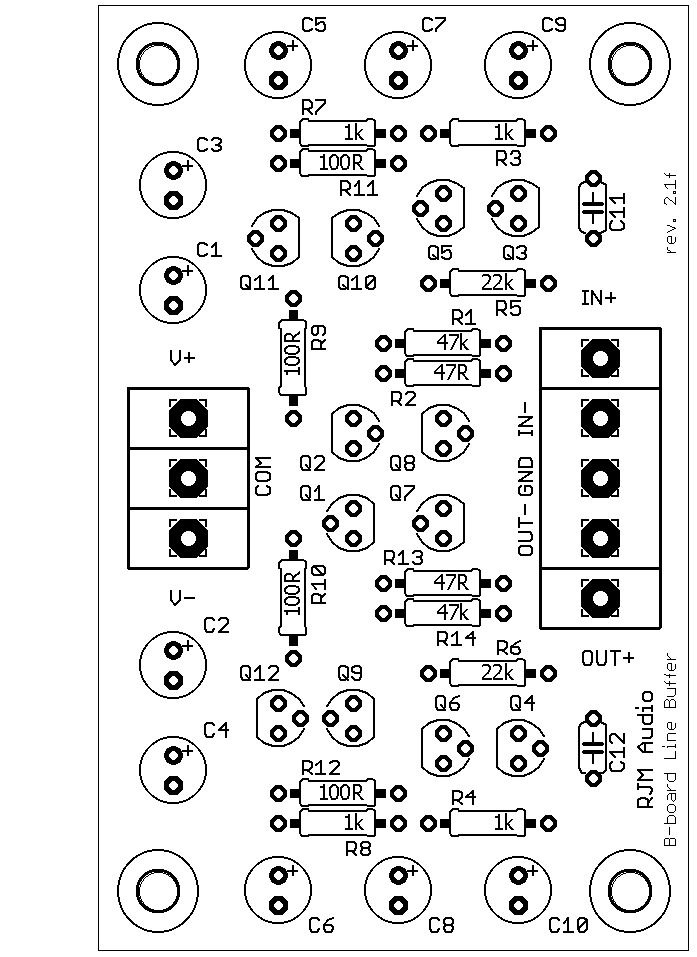

  • buffer-21f-brd.png
    11.8 KB · Views: 277

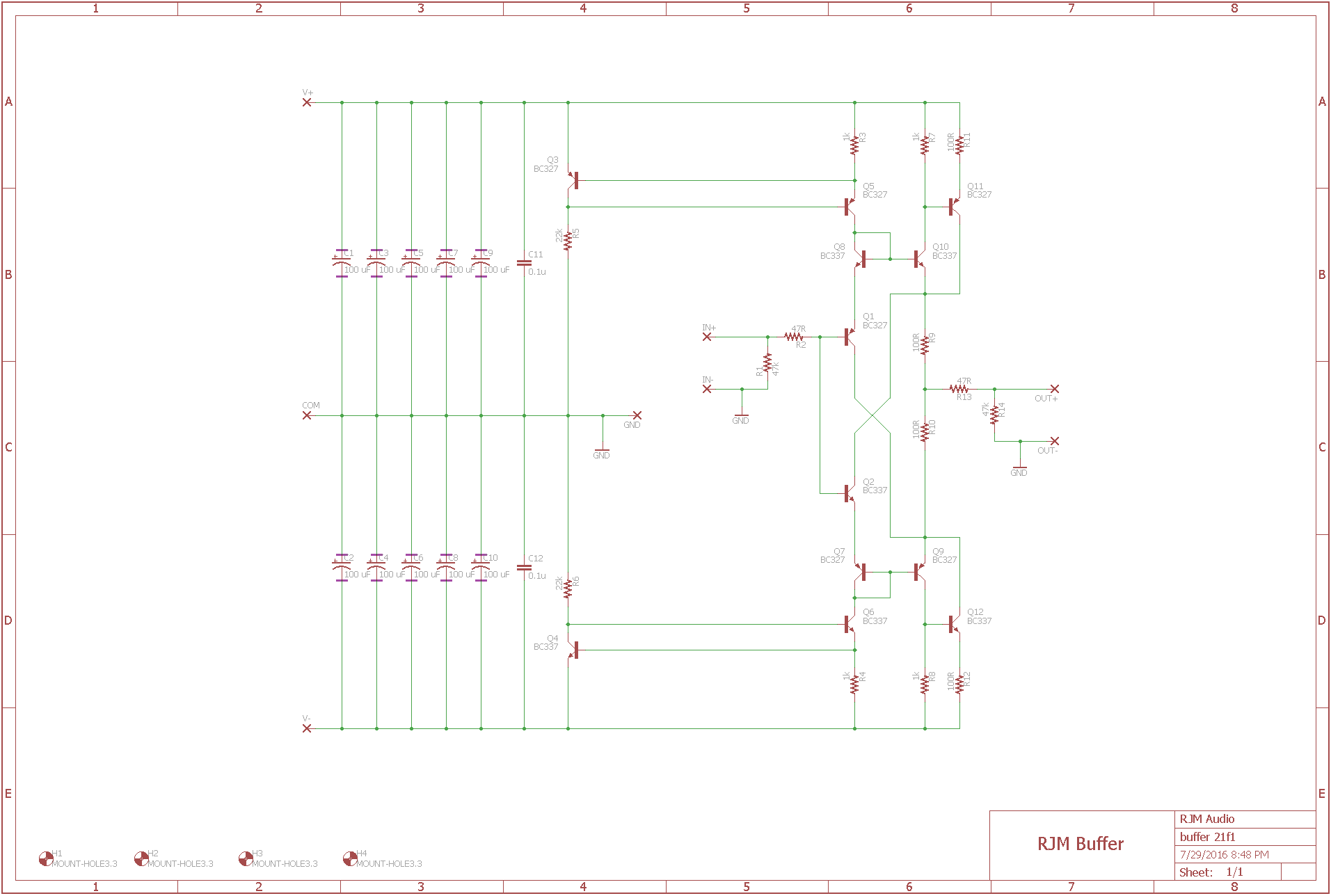

  • buffer-21f-sch.png
    25.3 KB · Views: 277
