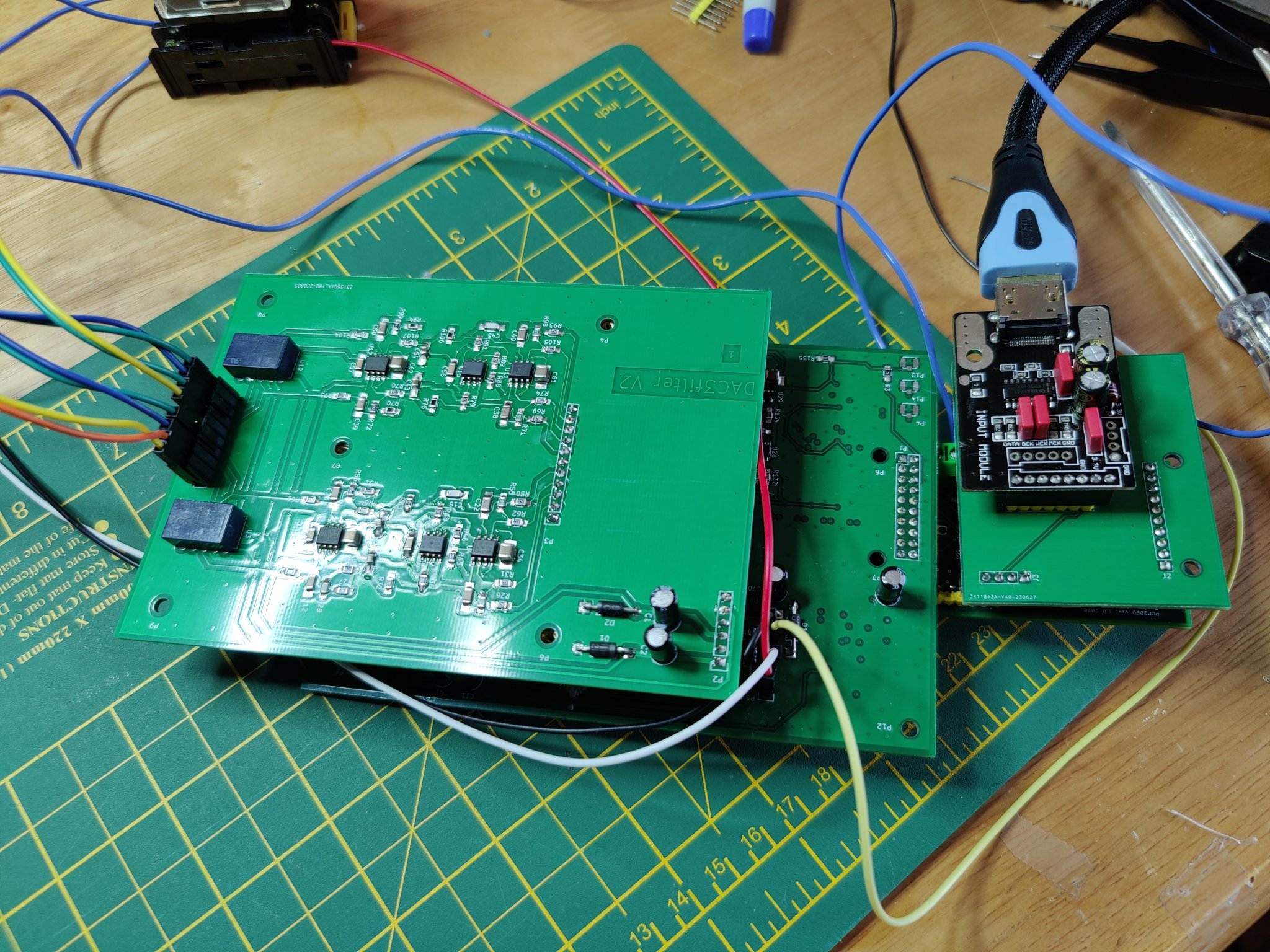

RTZ DAC no2 with Ray's version of the filter board with the last stage removed:
Also, LVDS receiver board mounted on my own daughter-board to hook up to the PCM2DSD below. This DAC is being fed from my Logitech Transporter via LDVS.
Also, LVDS receiver board mounted on my own daughter-board to hook up to the PCM2DSD below. This DAC is being fed from my Logitech Transporter via LDVS.
During discussions with Hans Polak, it was found that it can sometimes be handy to have a DSD file with repetitive 101010... patterns. For a FIRDAC with a notch at half the sample rate, it eliminates ultrasonic quantization noise, folding effects due to ultrasonic quantization noise and non-linearities or crosstalk issues, and it largely suppresses the effect of far-off clock jitter, leaving only the plain old analogue circuit noise. Attached is a zipped dsf file with just over one minute of 101010... in DSD64. Mind you, the file becomes more than 1000 times larger when you unzip it.
There was a bug in the file: I miscalculated the number of samples by a factor of two. A DSD player can either ignore the stated number of samples and just play it properly or complain about a corrupt .dsf file. Hans's software just played it.
Anyway, attached is a corrected file and similar files for different DSD rates, all zipped. They all become about 1000 times as large when unzipped.
There are also two DSD128 files with periodic patterns representing large DC offsets, they are in plusmineenDSD128.zip. Whatever you do, don't play these at high volumes over completely DC coupled equipment! One of them has a periodic 11101110... pattern, that is, a positive offset of 0 dB DSD and the other a 00010001... pattern, corresponding to a 0 dB DSD negative offset.
Attachments
Just in case it is of use to anyone: attached is a Pascal program that generates DSD512 .dsf test files with silence, an offset, or a sum of an offset and a sine wave, depending on what values you give the constants offsetL, offsetR, freqL, freqR, amplL and ampR at the beginning of the program. Mind you, when the sigma-delta modulator input signals are too large, you get a runtime error. The program's file extension is supposed to be .pp, but I've changed it into .txt to please the forum software.
Unlike the attachments of the previous post, the files this program generates have irregular patterns with noise-shaped quantization noise. It uses the very same algorithm I used for the PWM8 mode of my valve DAC, except that the code to prevent misbehaviour when the sigma-delta is overdriven is missing. It is a quasi-multibit sigma-delta modulator with an embedded pulse width modulator with randomly rotated output patterns, as explained here: https://linearaudio.net/sites/linearaudio.net/files/03 Didden LA V13 mvdg.pdf sections 3.1 and 9.
The program runs under Free Pascal Compiler. Whether it actually produces a valid .dsf file may depend on the endianness of your computer.
Unlike the attachments of the previous post, the files this program generates have irregular patterns with noise-shaped quantization noise. It uses the very same algorithm I used for the PWM8 mode of my valve DAC, except that the code to prevent misbehaviour when the sigma-delta is overdriven is missing. It is a quasi-multibit sigma-delta modulator with an embedded pulse width modulator with randomly rotated output patterns, as explained here: https://linearaudio.net/sites/linearaudio.net/files/03 Didden LA V13 mvdg.pdf sections 3.1 and 9.
The program runs under Free Pascal Compiler. Whether it actually produces a valid .dsf file may depend on the endianness of your computer.
Attachments
Last edited:
As far as I understand, DoP is used to get a DSD signal from the computer into the Amanero. The Amanero's output side is a switchable I2S or raw DSD interface. The DAC requires raw DSD.
Hans,
May I ask if you tried running Amanero from clean +5v power?
Also, how did it sound? In your opinion to what extent did the measurements correlate with good quality musical sound as perceived on your system?
May I ask if you tried running Amanero from clean +5v power?
Also, how did it sound? In your opinion to what extent did the measurements correlate with good quality musical sound as perceived on your system?
Last edited:
Hi Mark,
Good question, but since crosstalk between data and clock already seemed to play a role in this test, I was afraid of adding just another antenna and/or groundloop to the unshielded setup.
And since my goal was just testing and not listening, I didn’t use this option for which I’m sure that it may improve the listening experience.
But as you may have read in the review, I tried a double shielded very short USB interlink versus a very simple 1.5 meter USB cable and could not detect any difference.
Hans
Good question, but since crosstalk between data and clock already seemed to play a role in this test, I was afraid of adding just another antenna and/or groundloop to the unshielded setup.
And since my goal was just testing and not listening, I didn’t use this option for which I’m sure that it may improve the listening experience.
But as you may have read in the review, I tried a double shielded very short USB interlink versus a very simple 1.5 meter USB cable and could not detect any difference.
Hans
Last edited:
That is not in dispute. The terms are. The idea of DOP to I2S is ridiculous. The payload for DOP is DSD data. I2S doesn't get a look in. And as for I2S DSD.........As far as I understand, DoP is used to get a DSD signal from the computer into the Amanero. The Amanero's output side is a switchable I2S or raw DSD interface. The DAC requires raw DSD.
Instead of critisizing acronyms, it would be more positive when you could suggest a better name for dsd split into 3 channels.
I haven’t come across so far.
Marcel calls it raw DSD, and I called I2S DSD to indicate that the incoming DSD signal was split in 3 signals.
Hans
I haven’t come across so far.
Marcel calls it raw DSD, and I called I2S DSD to indicate that the incoming DSD signal was split in 3 signals.
Hans
Raw DSD and native DSD are the usual terms for an interface with a bit clock and left and right DSD signals. Whether raw and native DSD are officially defined anywhere, I don't know.
There are alternatives to JRiver for DSD test signals.
Archimago's blog has some information on DSD test signals and how to generate them using sox. Also a download link for some test signals.
http://archimago.blogspot.com/2022/06/notes-on-dac-dsd-1-bit-pdm-measurements.html
Multitone Analyzer has DSD test signals and DoP output on Windows.
https://distortaudio.org/multitone.html
Archimago's blog has some information on DSD test signals and how to generate them using sox. Also a download link for some test signals.
http://archimago.blogspot.com/2022/06/notes-on-dac-dsd-1-bit-pdm-measurements.html
Multitone Analyzer has DSD test signals and DoP output on Windows.
https://distortaudio.org/multitone.html
Thx Bohrok,
Very interesting information on the archimago site.
In one of his reviews he compares several PCM to DSD options.
I was happy to see that JRiver came out as almost the best.
Also tried again to find out whether an official name exists for DSD after being split into Left, Right and Clock, but no succes.
In this world with so many acronyms this seems to be the one that's missing.
I'm sorry when using the term I2S DSD caused any confusion.
Hans
Very interesting information on the archimago site.
In one of his reviews he compares several PCM to DSD options.
I was happy to see that JRiver came out as almost the best.
Also tried again to find out whether an official name exists for DSD after being split into Left, Right and Clock, but no succes.
In this world with so many acronyms this seems to be the one that's missing.
I'm sorry when using the term I2S DSD caused any confusion.
Hans
SDIF (SDIF-2 DSD and SDIF-3) might be it. It's based upon separate 75 ohm BNC cables for left/right/clock.
dCS support article: https://dcsaudio.zendesk.com/hc/en-gb/articles/360015051300-What-is-an-SDIF-2-interface-
Sony paper from 1999: https://www.grimmaudio.com/wp-content/uploads/sdif3v10.pdf
dCS support article: https://dcsaudio.zendesk.com/hc/en-gb/articles/360015051300-What-is-an-SDIF-2-interface-
Sony paper from 1999: https://www.grimmaudio.com/wp-content/uploads/sdif3v10.pdf
Rockies,
Interesting info on SDIF-3.
Dcs and Sony have slightly different definitions, but they have in common that the Word Clock is being used and not the Bit Clock.
Hans
Interesting info on SDIF-3.
Dcs and Sony have slightly different definitions, but they have in common that the Word Clock is being used and not the Bit Clock.
Hans
As opposed to what? Composite DSD?and I called I2S DSD to indicate that the incoming DSD signal was split in 3 signals.
Hi rfbrw,
When a road splits in two or more roads and we give this a name, I don’t see any opposition, do you? 😊
Hans
When a road splits in two or more roads and we give this a name, I don’t see any opposition, do you? 😊
Hans
It already has a name and even if it didn't any chosen name ought to be relevant.
So the relevant name is Composite DSD according to you.
Here is a link, happy reading.
https://www.dsdcomposites.com/
Hans
Here is a link, happy reading.
https://www.dsdcomposites.com/
Hans
Composite DSD was part sarcasm part in-joke. I guess pro audio/video is not your thing.
