The reflector is poured concrete, and should reach the bottom edge of the baffle cut out. The extreme start of the horn, indeed. But that wasn't what I was uncertain about. Where to mount the driver over the baffle cut out? Centered at the middle of its height? That's what I would automatically guess anyway. And it would probably be fine like that.
But the baffle cut out/throat is shaped rather typically, which I assume is deliberate. The cut out is basically the radiating surface into the horn. Its triangular shape seems to be intended to limit/direct sound radiation (to an extent) towards the triangular reflector). I wanted to know how the driver would originally sit in front of the cut out. Obviously, there is more treble coming off the center/whizzer of the driver. I think Voigt will have deliberately placed the driver in relation to the reflector.
I know, caught up in little details that may not matter much.
Anyway, I have seen several images of the driver in a home constructor's horn, the domestic corner horn and, apparently, the Lowther PW1 and PW2 horn. I also read some observations from owners and people who have seen these enclosures up close. According to those sources, the driver was standing on the ground (in case of the bare home constructor's horn without bass chamber) or on a panel inside the horn, simply slid up to the horn. Not screwed or bolted. A thick layer of felt forms a gasket/seal. Because the original drivers have a square frame and the size of said frame is known, I know where the center of that square is, and therefore the center of the driver.

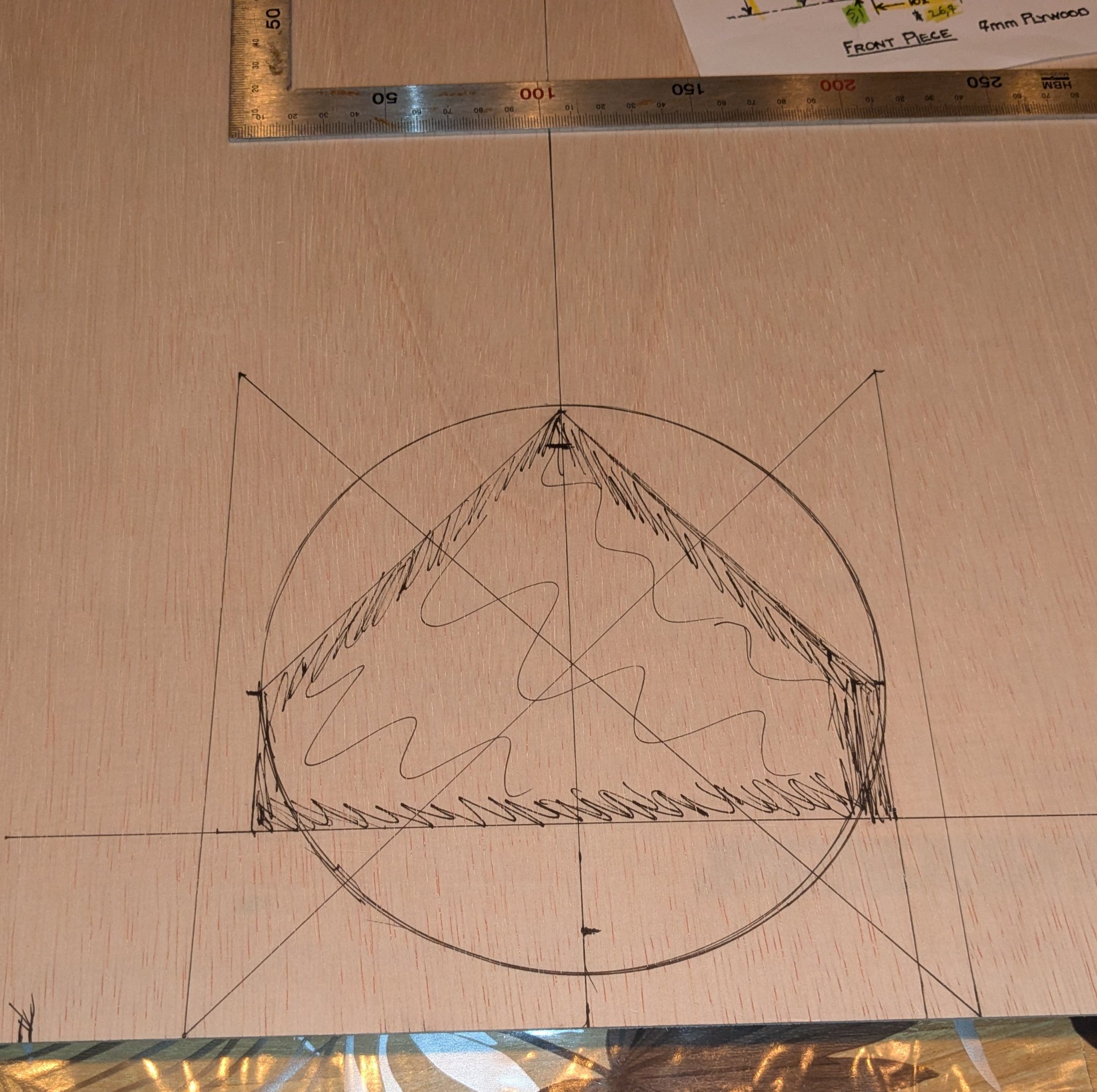

I just drew out the baffle cut out on a piece of cardboard and located the center of the driver. It was a messy, messy process. I didn't take my time to think it through and had to start over a few times. I'll make a neat drawing at some point in this thread and will mark the center of the drive unit clearly, and why. Make it easier for future driver swapping.
Also, the driver is obviously circular and the baffle cut out isn't. So the driver doesn't cover the cut out. I guess I can mount the driver on a square panel and mount that to the baffle.
But the baffle cut out/throat is shaped rather typically, which I assume is deliberate. The cut out is basically the radiating surface into the horn. Its triangular shape seems to be intended to limit/direct sound radiation (to an extent) towards the triangular reflector). I wanted to know how the driver would originally sit in front of the cut out. Obviously, there is more treble coming off the center/whizzer of the driver. I think Voigt will have deliberately placed the driver in relation to the reflector.
I know, caught up in little details that may not matter much.
Anyway, I have seen several images of the driver in a home constructor's horn, the domestic corner horn and, apparently, the Lowther PW1 and PW2 horn. I also read some observations from owners and people who have seen these enclosures up close. According to those sources, the driver was standing on the ground (in case of the bare home constructor's horn without bass chamber) or on a panel inside the horn, simply slid up to the horn. Not screwed or bolted. A thick layer of felt forms a gasket/seal. Because the original drivers have a square frame and the size of said frame is known, I know where the center of that square is, and therefore the center of the driver.
I just drew out the baffle cut out on a piece of cardboard and located the center of the driver. It was a messy, messy process. I didn't take my time to think it through and had to start over a few times. I'll make a neat drawing at some point in this thread and will mark the center of the drive unit clearly, and why. Make it easier for future driver swapping.
Also, the driver is obviously circular and the baffle cut out isn't. So the driver doesn't cover the cut out. I guess I can mount the driver on a square panel and mount that to the baffle.
This is my process at the moment. I get lost in my own handwriting and erroneous measurements, but it's getting there.

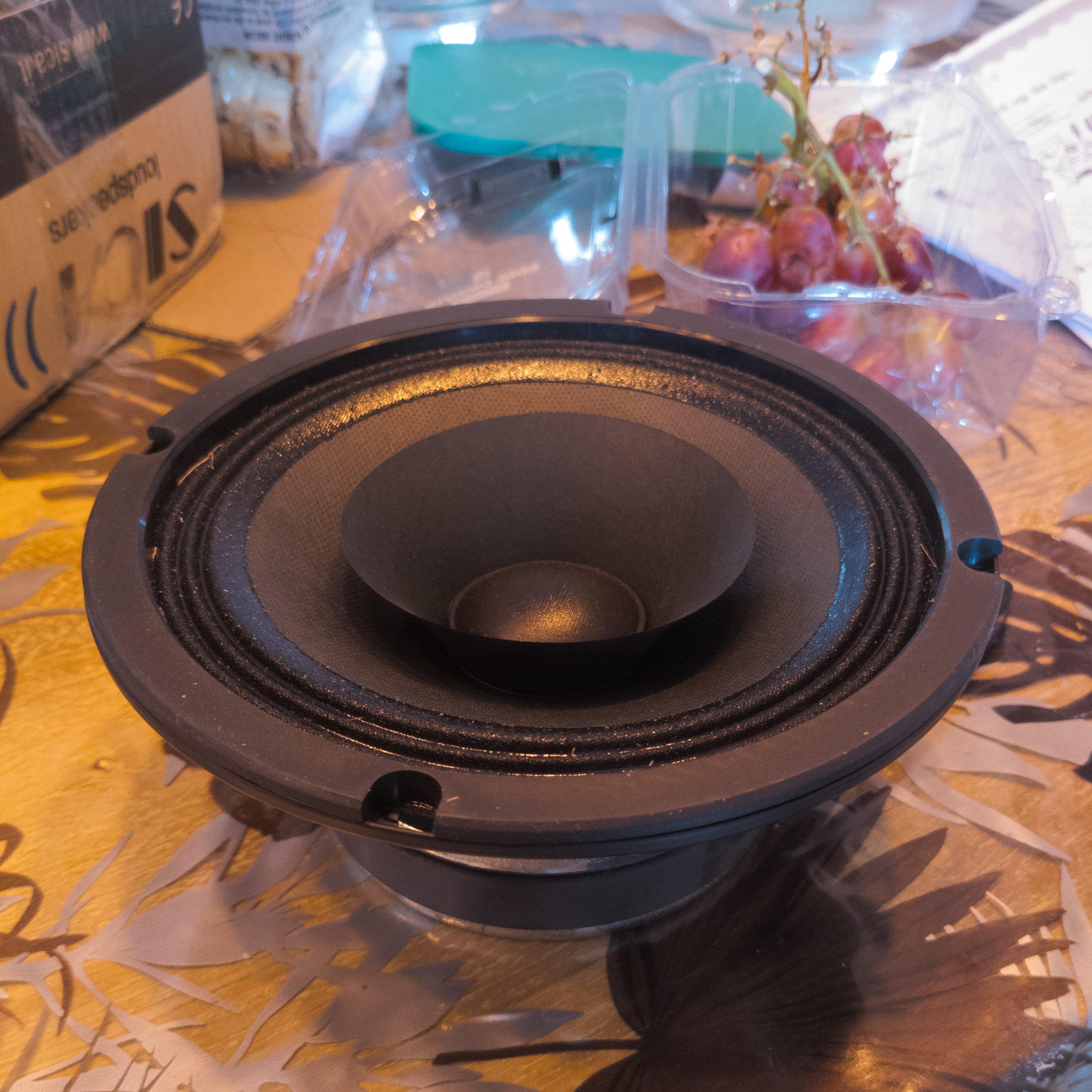

Oh, and the drivers have arrived. It feels like a classic fullrange driver, built very well. Surprisingly heavy for a relatively small drive unit. I'm looking forward to hearing it in the horn

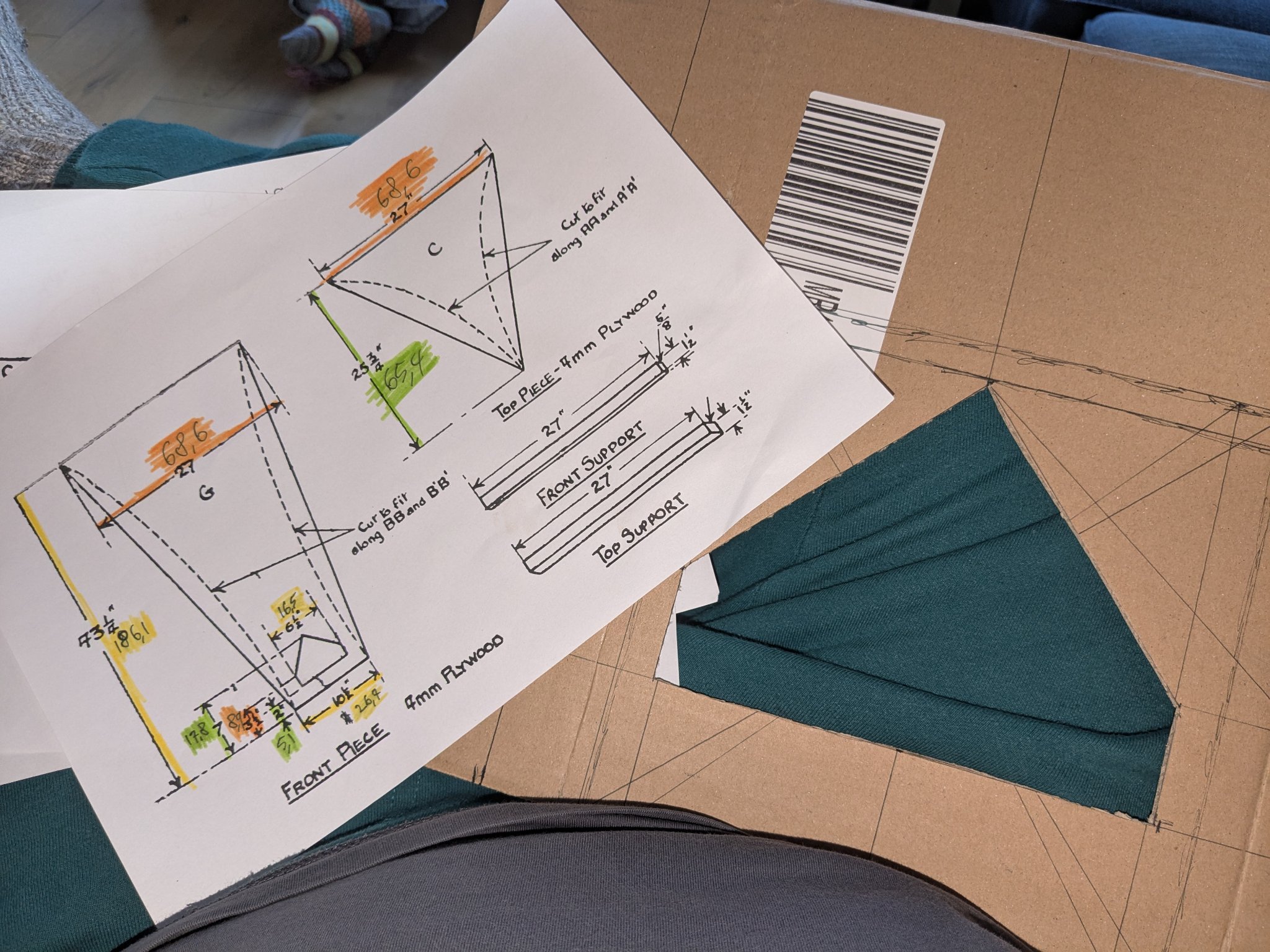

Starting to draw it out. I have the straight side panels already laid out. I used a bendy ruler to "connect the dots" for the curved lines and that turned out nice. But no pics. I am rusty with documenting a build.

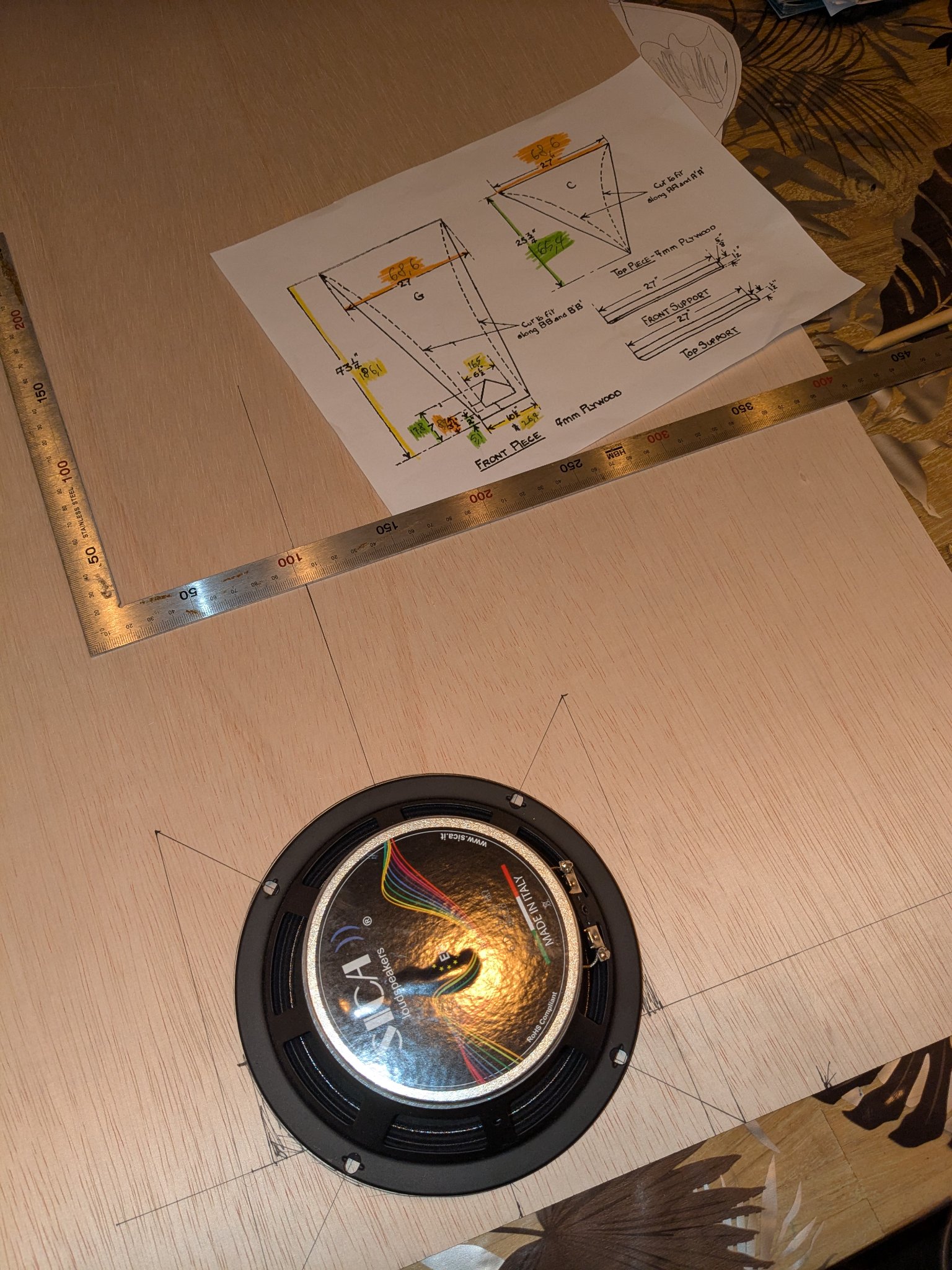

Here I laid out the throat/baffle. It's hard, for my burnt out brain. I have rulers and straight edges that are in metric and imperial, and somehow this helps and it doesn't. I am enjoying that this is a quick test build, so I just check and correct until it's symmetrical etc. If I want to do a very nice build, I'll probably draw it on a computer and print it out to scale.
Material used is called triplex, it's ply but with just 3 layers, regardless of thickness. It's lighter than birch ply, but also costs just half and it is very resistant to warping. And it looks pretty nice. It's pretty ideal prototyping material.
I'll have to see when I have time to start cutting and glueing. Now is really not the time (getting keys for the new house on Tuesday, yikes), but it is incredibly relaxing to have a side project to distract from all the work that's coming my way. 😉
Here I laid out the throat/baffle. It's hard, for my burnt out brain. I have rulers and straight edges that are in metric and imperial, and somehow this helps and it doesn't. I am enjoying that this is a quick test build, so I just check and correct until it's symmetrical etc. If I want to do a very nice build, I'll probably draw it on a computer and print it out to scale.
Material used is called triplex, it's ply but with just 3 layers, regardless of thickness. It's lighter than birch ply, but also costs just half and it is very resistant to warping. And it looks pretty nice. It's pretty ideal prototyping material.
I'll have to see when I have time to start cutting and glueing. Now is really not the time (getting keys for the new house on Tuesday, yikes), but it is incredibly relaxing to have a side project to distract from all the work that's coming my way. 😉

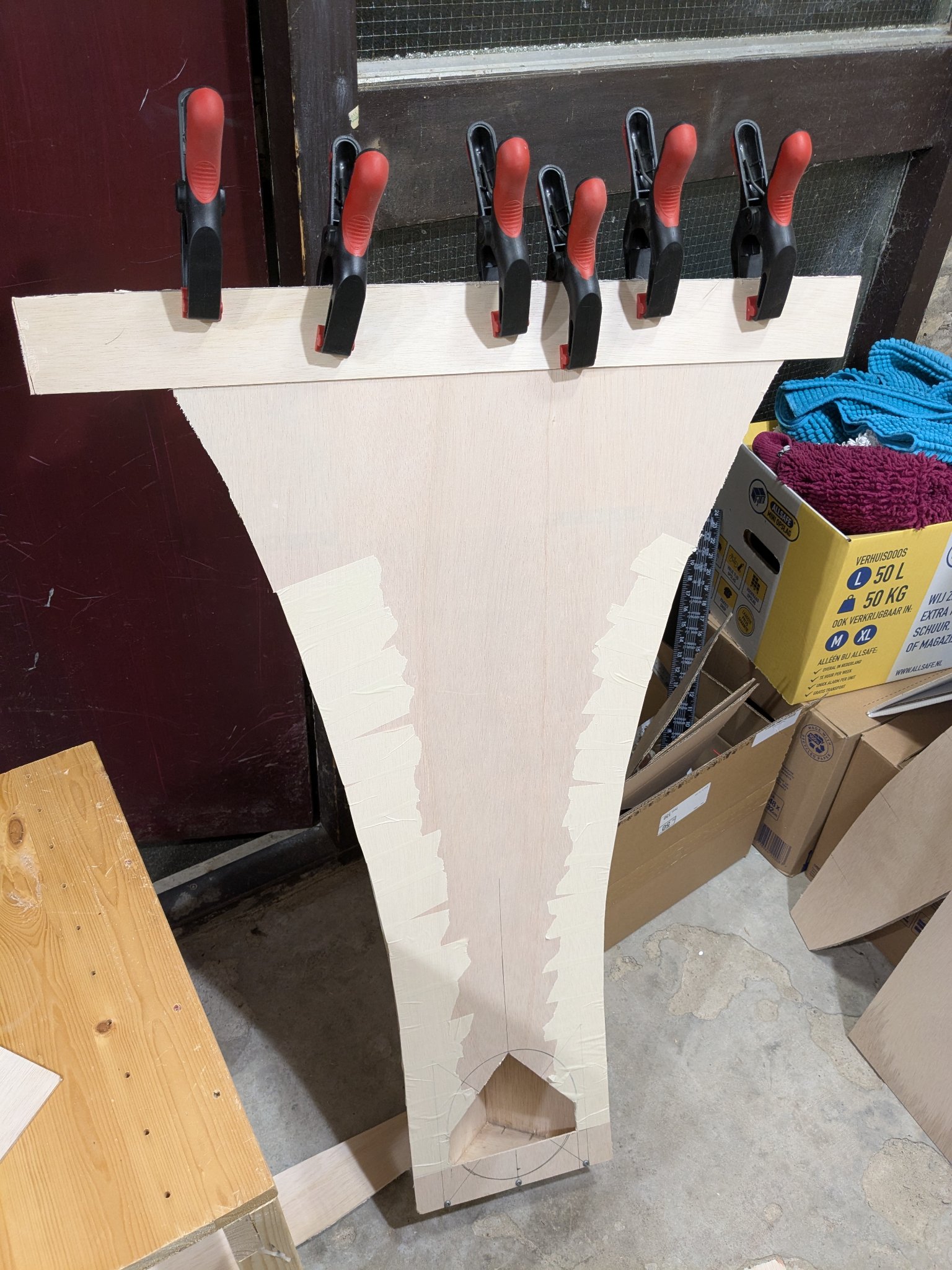

First glue, even. This is just the horn, not the reflector above it. That will be a separate "hat" to the horn. It's bigger than I expected, but overall pretty small compared to your average corner horn. 😜
So this is how I have been progressing. I fixed the bottom of the curved panel to the bottom of the straight sides. Then I pushed the thin (3.6mm) ply against the sides a bit and traced that length with a thin marker. I took it off and cut the line with a semi-circular multitool bit, which is SURPRISINGLY good for cutting controlled free-hand curves.
After a while, pushing it flush with my hands wasn't sufficient anymore, just too long and the places where I didn't have a finger pushing didn't meet the sides anymore. So from then on, I used masking tape where I had already cut the curve.
The standard size panels I use are a bit too narrow, and the curved panel was curving in a bit, so there's a patch to extend the width on top, and a beam... Beamlette? Slat? Across the width of the edge. It glued up nicely, it's strong and the transition inside the horn is smooth.
After a while, pushing it flush with my hands wasn't sufficient anymore, just too long and the places where I didn't have a finger pushing didn't meet the sides anymore. So from then on, I used masking tape where I had already cut the curve.
The standard size panels I use are a bit too narrow, and the curved panel was curving in a bit, so there's a patch to extend the width on top, and a beam... Beamlette? Slat? Across the width of the edge. It glued up nicely, it's strong and the transition inside the horn is smooth.
Attachments

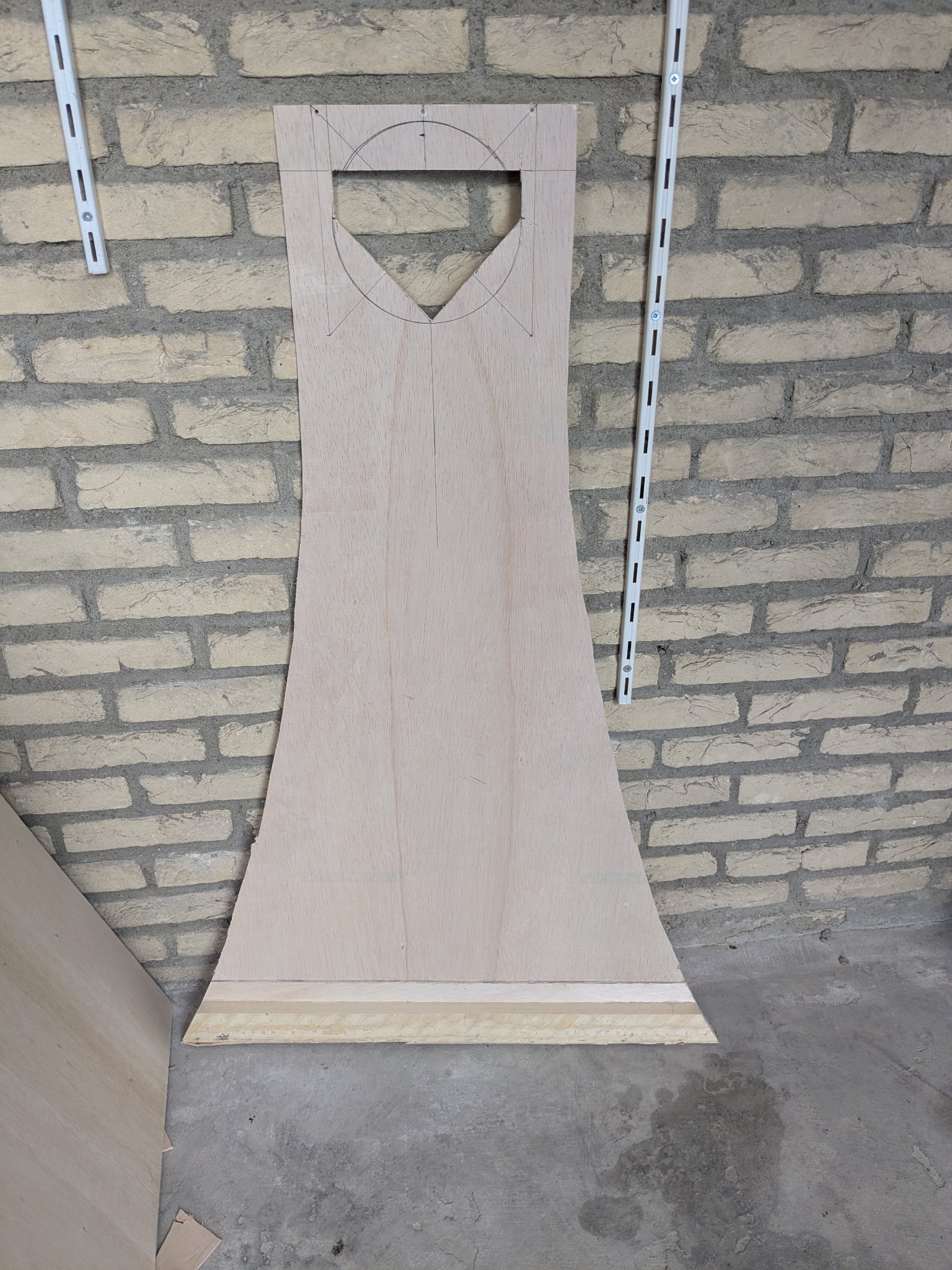

I finished cutting it. It's a bit rough, it will be trimmed and smoothed in some way when it's glued up.
My preferred prototyping play bends OK at 3.6mm but not the prescribed u
7mm ply. I plan to glue this layer on and then doubling it up. Probably glueing the first section (a bit higher than the driver circumference outlined on the ply here) to ensure that's nicely flat, dripping with glue and clamped effectively.
Perhaps I get really impatient and just double up the first bit and see how it sounds then. 😉
I have a strategy for the simple curved reflector in this design ready. But, you know how it goes. The pretty dual radial curve is attractive as well and becoming an intrusive thought.
There's little sound in our new house at the moment, might be nice to quickly finish this thing and drag it over. Music during home improvement. It would beat a Bluetooth speaker by a good margin, even if only because I made it and Voigt designed it. 😎
My preferred prototyping play bends OK at 3.6mm but not the prescribed u
7mm ply. I plan to glue this layer on and then doubling it up. Probably glueing the first section (a bit higher than the driver circumference outlined on the ply here) to ensure that's nicely flat, dripping with glue and clamped effectively.
Perhaps I get really impatient and just double up the first bit and see how it sounds then. 😉
I have a strategy for the simple curved reflector in this design ready. But, you know how it goes. The pretty dual radial curve is attractive as well and becoming an intrusive thought.
There's little sound in our new house at the moment, might be nice to quickly finish this thing and drag it over. Music during home improvement. It would beat a Bluetooth speaker by a good margin, even if only because I made it and Voigt designed it. 😎
Oh, and we bought a house from 1975, from an elderly couple. They did all the decorating in the '70s and left it at that, so the place is like a time capsule. We will be updating the technical stuff and giving it our own colour scheme, but will retain a lot of the original typical '70s features of the home. My wife is looking at orange lamps and accessories, so I immediately drove to the hardware store and got some orange paint. I am not discussing this, but the interior of the horn WILL be orange and it WILL be prominently placed in our room LOL 🤣
