Question – why noboady uses MJ15025 and MJ15024 pair of transistors

[dutch diy]

another way for TO-3

I've used TO-3's (ON MJ15003's) in my most recent project and mounted them this way:
Image of mounting TO-3.



[audioPT]

Hi!

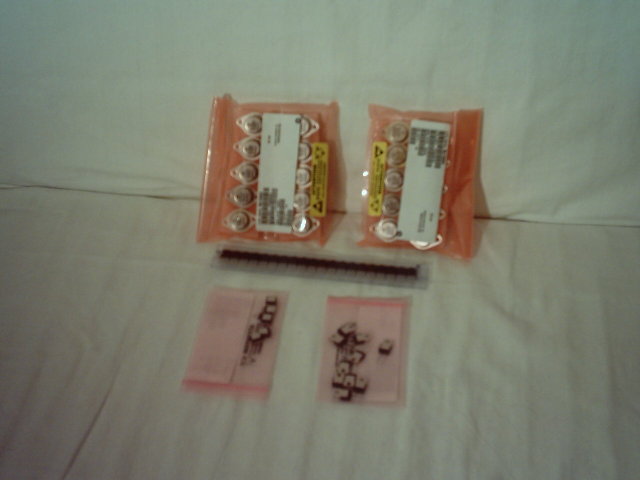

MJ15025 and MJ15024 OnSemi Samples:

Regards

Pedro Martins



[millwood]

Hi!

MJ15025 and MJ15024 OnSemi Samples:

Regards

Pedro Martins

Wow, they look good. All for free?

How about those TO220 like devices onthe bottom? What are they?



[sss]

try also the new on semi trannies
MJL4281A and MJL4302A



[audioPT]

Wow, they look good. All for free?

How about those TO220 like devices onthe bottom? What are they?

Well, MBR2515 - 25A 15V Schottky Rectifier and MC34167 - 5A, Step-Up/Down/Inverting Switching Regulator (Normal and SMD Version)


Yes, all 4 free... Samples!

Regards

Pedro Martins



[audioPT]

try also the new on semi trannies
MJL4281A and MJL4302A

Some samples of each coming...

I'll put pictures here when they arrive... Maybe tuesday!



[sss]

i ordered those too 2 weeks ago
its not even shipped yet



[mcp]

Marking TO-3 holes

One method of marking holes for drilling is to use the insulation micas as templates.

Lay out all the micas on the heatsink and use a permanent marker to mark out all the hole centers.



[CheerfulYC]

Could someone out there help me up .....
Could the MJ15024/25 be a direct electrical replacement for the 2SC5200/1943, apart from its mechanical difference?



[li_gangyi]

Dude..check out the datasheets...are the graphs perfectly matched in any way?? if not they are NOT a DIRECT replacement...I mean they behave differently...so there's no direct replacement...but nothing is stopping you from trying though...watch out the SOA there though...



[CheerfulYC]

Thanks for your pointer ..... QuaqYi. The problem is I can't find datasheets of the two transistors that provide me with the same transfer characteristic (Ic-Vce) graphs to make the comparison. Would deeply appreciate if you could post them to me. Many Thanks!!!



[li_gangyi]

The 2SC5200 is from Toshiba right?? So you should be able to reach it's datasheet from this webby
http://www.semicon.toshiba.co.jp/op...cSearchResult-loadPartDetails?partKey=2SC5200
the MJ15022 is manufactured by On-Semi which would mean there are samples available...hehehe...anyways..the dadasheet here.
http://www.onsemi.com/site/products/summary/0,4450,MJ15022,00.html
Scroll down a bit...



[Reactance]

Im currently busy with a "vero-board" layout for the M250
Can i use TIP 3055 Output transistors ? my supply is +/- 50V and using the amp to power an 8 - ohm, 8 - inch woofer, with a LPF with an Fc of 3.1Khz so i dont need super fast tranistors, right ? can this be done ??

Thanks in advance for ur help !



[MikeB]

That's a very big NO, unless you like the smell of burned transistors...
You shouldn't even consider comparing the TIP3055 with a MJ15024.
With a supply of +/-50v you would exceed the max rating for 3055 by lightyears !

Mike



[Reactance]

That's a very big NO, unless you like the smell of burned transistors...
You shouldn't even consider comparing the TIP3055 with a MJ15024.
With a supply of +/-50v you would exceed the max rating for 3055 by lightyears !
Mike

, eem is there a cheaper transistor then when i mean cheap i dont mean FAKE transistors heheh just a lower and cheaper version may a plastic case?? if no then i`ll use the MJ`s then eem heheh


the reason why i want cheap ones is cause like i said the load will be light 8 - ohm , with a bandwidth of 20 - 3.1Khz ,and the amp wont work very hard but when i do decide i will put better output transistors in place,also my sub subwoofer is my next which will consisits of x2 M250amps running in brige mode
with the TO-3 metal cases no finance cuts on that sub woofer project.


Thanks for ur input ppl !



[MikeB]

3.1khz is not really low bandwidth, this is around the most critical frequencies. For plastic and not too expensive maybe MJL21194/3 ?
Otherwise keep the MJ15024/25.
A cheaper but less quality device is the MJ15003/4.

Mike



[Reactance]

Ok mike im NOT a pro at building audio amplifiers,so i wont whine at get other outputs,i should buy all the suggested outputs then,,



[djk]

Check the price on the MJ15015/16, a 15A part good for ±57V and has 180W SOA at 60V.

Used by Crown and Carver in various models, I paid USD$1.23/$1.30 for mine.



[MikeB]

Ah, the "high" voltage version of 2n3055... But can you use a single pair of them at these voltages ?

Mike



[Reactance]

?? high voltage type i`ll download the datasheet right away and compare them.!
