Confirmed. The boxes where delived two days ago to my home.
At this point many thanks to the xen-audio team for all the efforts to
make these kits available to us.
Markus
At this point many thanks to the xen-audio team for all the efforts to
make these kits available to us.
Markus
For subscribers who received the parcel(s), please drop me a line by email to info at xen-audio dot com.
I will then forward you a document including the schematics.
Thanks.
WK
I will then forward you a document including the schematics.
Thanks.
WK
First box opened

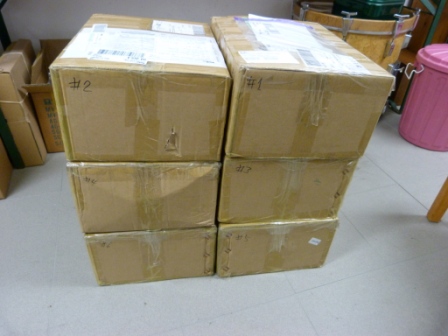

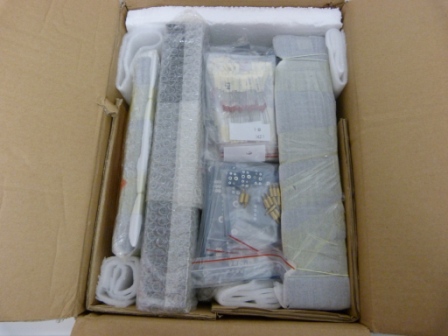

Yesterday we found time to open box #1 out of the six boxes we´ve got last week.
The parts are looking really nice and we found them packed with lots of care.

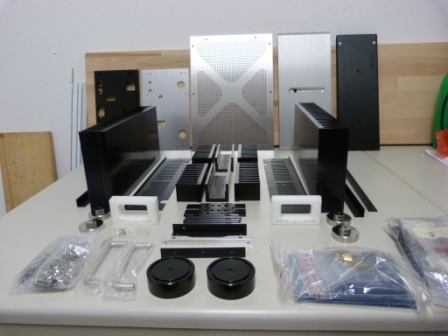

For those who are still waiting for getting their boxes out of the customs I am sharing some pictures for your pleasant anticipation.
Markus
PS: Mark, German customs did not forget us, they never would.🙄
I´ve got the customs bill from Fedex yesteday.
Yesterday we found time to open box #1 out of the six boxes we´ve got last week.
The parts are looking really nice and we found them packed with lots of care.
For those who are still waiting for getting their boxes out of the customs I am sharing some pictures for your pleasant anticipation.
Markus
PS: Mark, German customs did not forget us, they never would.🙄
I´ve got the customs bill from Fedex yesteday.
Attachments
One of the changes for batch 2 daughter board
As I begin to populate my boards a couple things have come up concerning the relays called out in the existing BOM.
the relays on the daughter boards are now surface mount components, so rather that the Omron G6K-2PDC12 part, you need the G6K-2F part. Digikey part number is Z113-ND.
Remember, also the 2A relays on the capacitor doubler board are 12v, not 24 volt, as in previous BOM.
Matt
As I begin to populate my boards a couple things have come up concerning the relays called out in the existing BOM.
the relays on the daughter boards are now surface mount components, so rather that the Omron G6K-2PDC12 part, you need the G6K-2F part. Digikey part number is Z113-ND.
Remember, also the 2A relays on the capacitor doubler board are 12v, not 24 volt, as in previous BOM.
Matt
Matt,
Many thanks for pointing that out. Both myself and the two Alpha testers missed those.
As to the relays, you can use both 12V or 24V, depending on what you can get.
The protection board will output 24V. I listed 12V because they are more available.
If you use 12V relays, you should wire them in series to make up 24V and connect as one to the protection board.
One slight advantage is that you can be sure they switch on and off at the same time.
Even though this is also not a must-have for the functioning of the amp.
Just small personal choices.
Hope I explained clearly and did not add to the confusion.
Patrick
Many thanks for pointing that out. Both myself and the two Alpha testers missed those.
As to the relays, you can use both 12V or 24V, depending on what you can get.
The protection board will output 24V. I listed 12V because they are more available.
If you use 12V relays, you should wire them in series to make up 24V and connect as one to the protection board.
One slight advantage is that you can be sure they switch on and off at the same time.
Even though this is also not a must-have for the functioning of the amp.
Just small personal choices.
Hope I explained clearly and did not add to the confusion.
Patrick
