Pictures of your diy Pass amplifier

[carpenter]

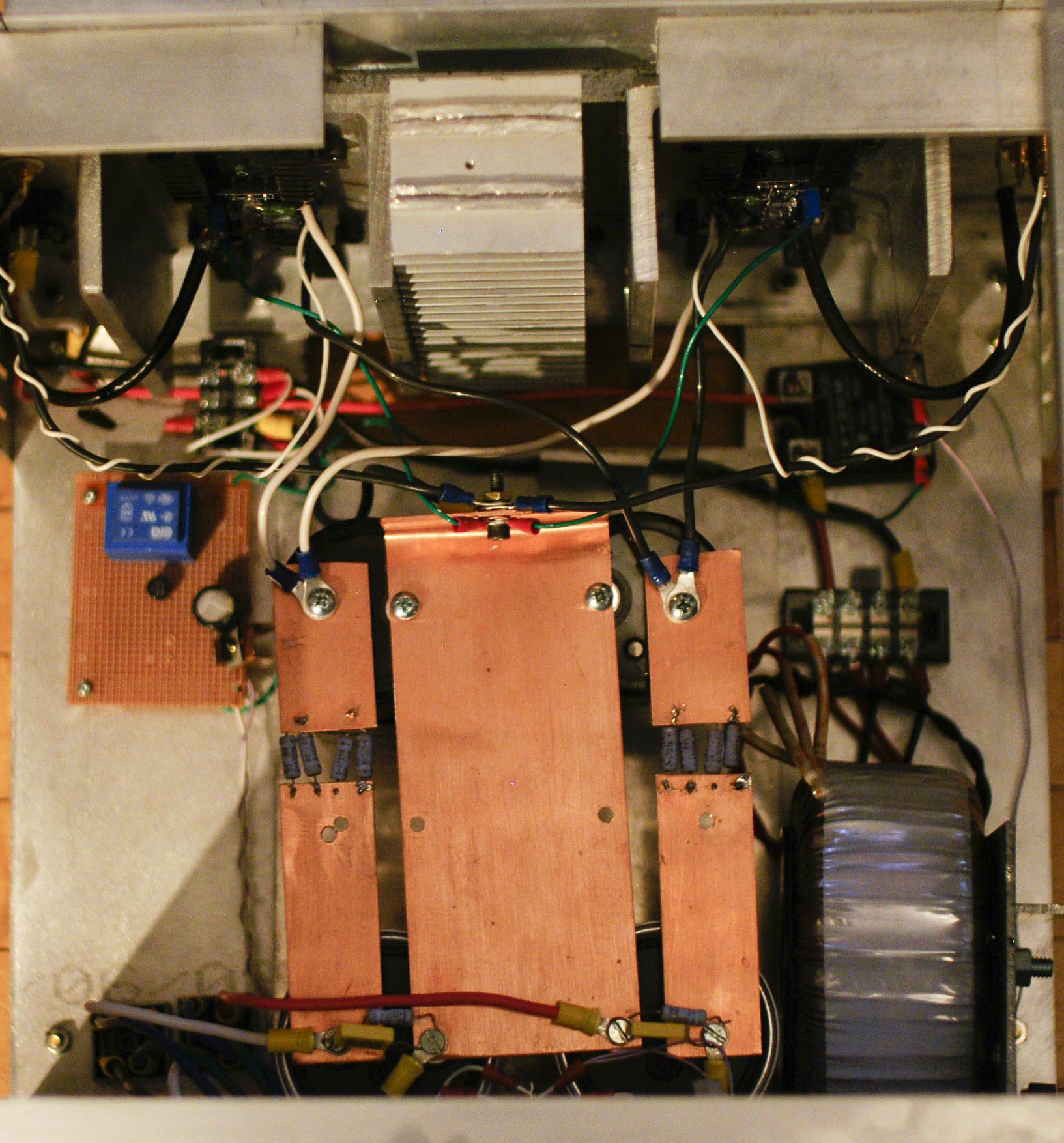

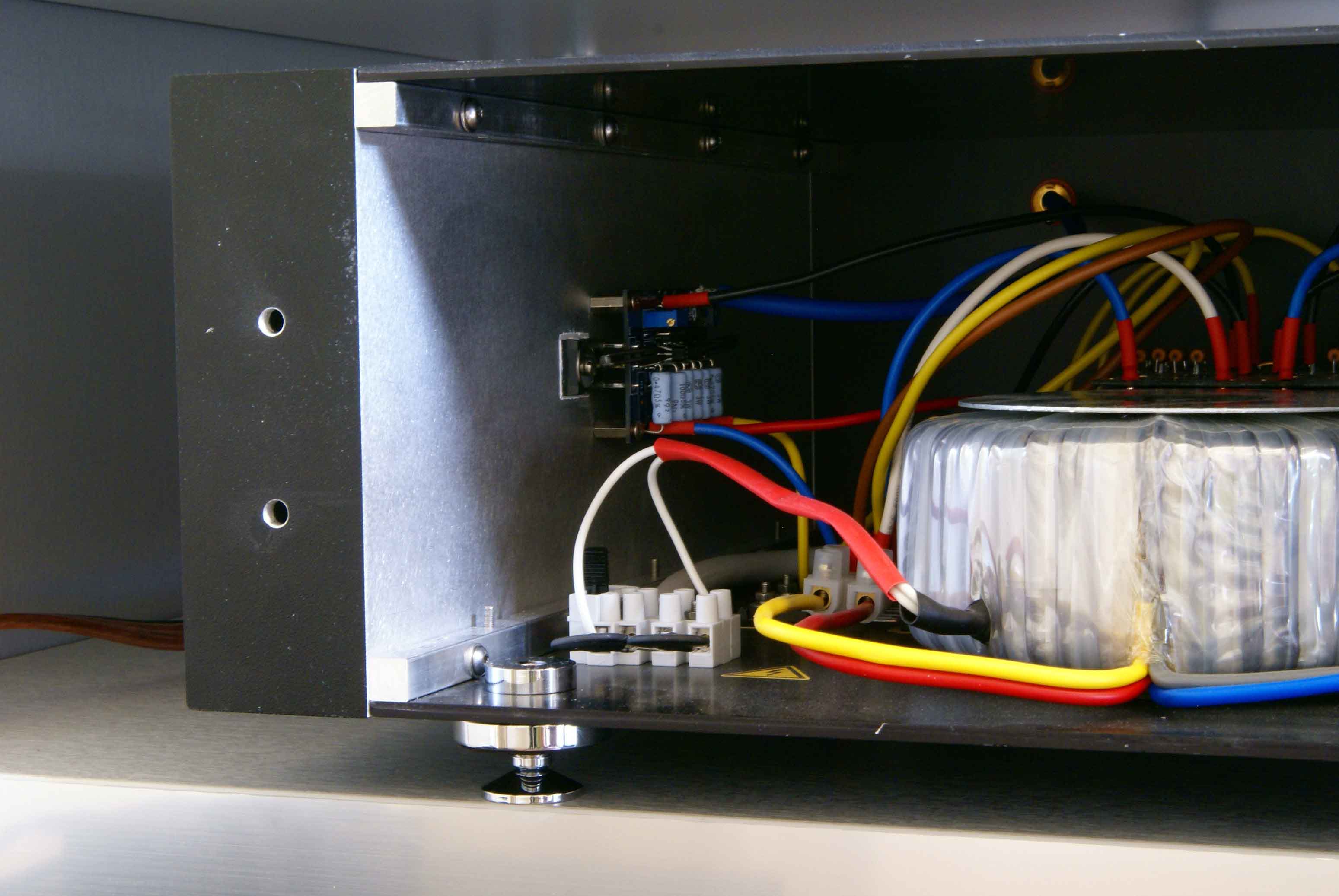

Here's the inside after a ton of wiring--yes, it's a bit busy.



[lanchile]

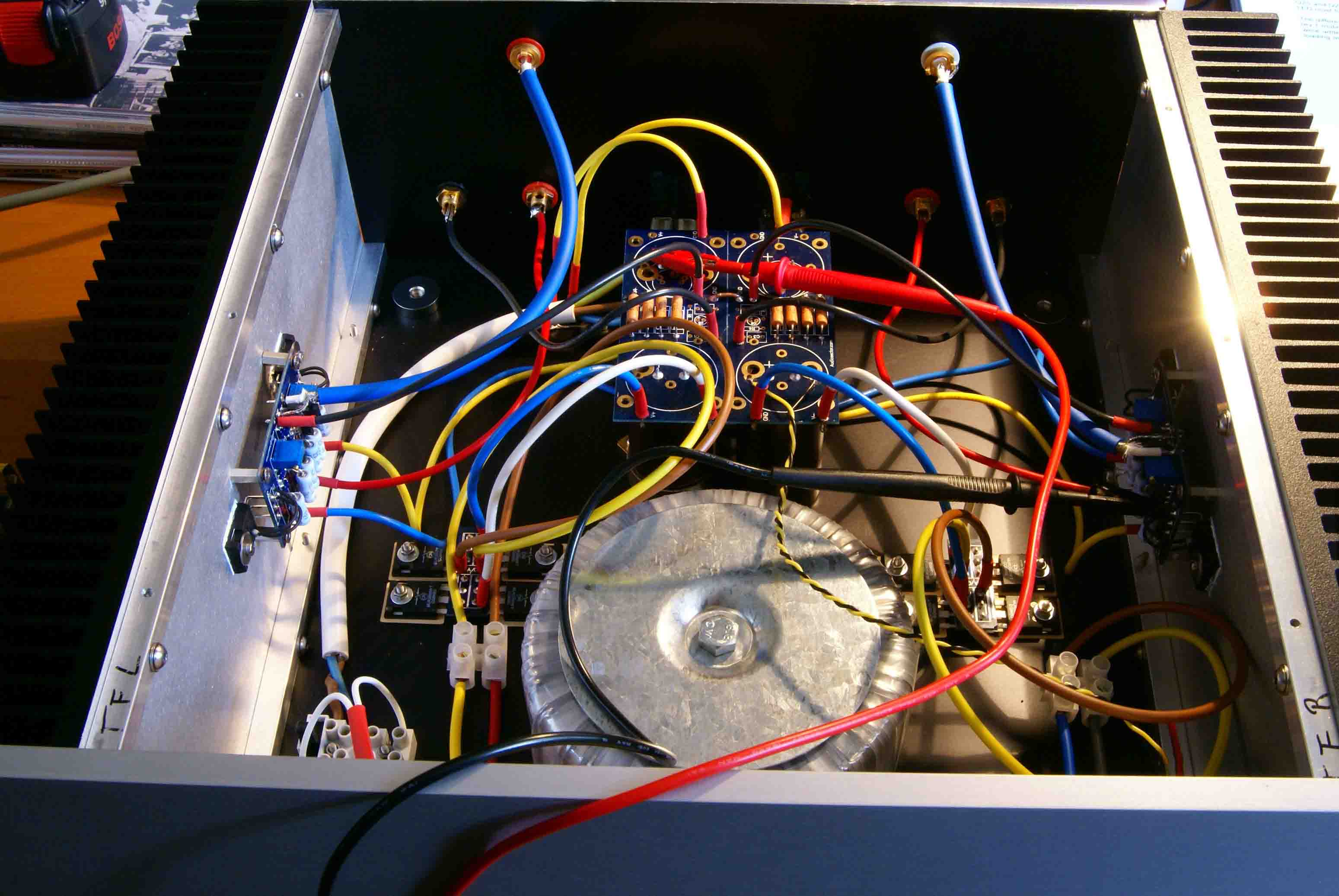

Here's the inside after a ton of wiring--yes, it's a bit busy.

I think you missed a wire there. I just got hungry lol



[carpenter]

I think you missed a wire there. I just got hungry lol

Yes, don't forget the sauce.



[westend]

What are you using 6mm Al plate?

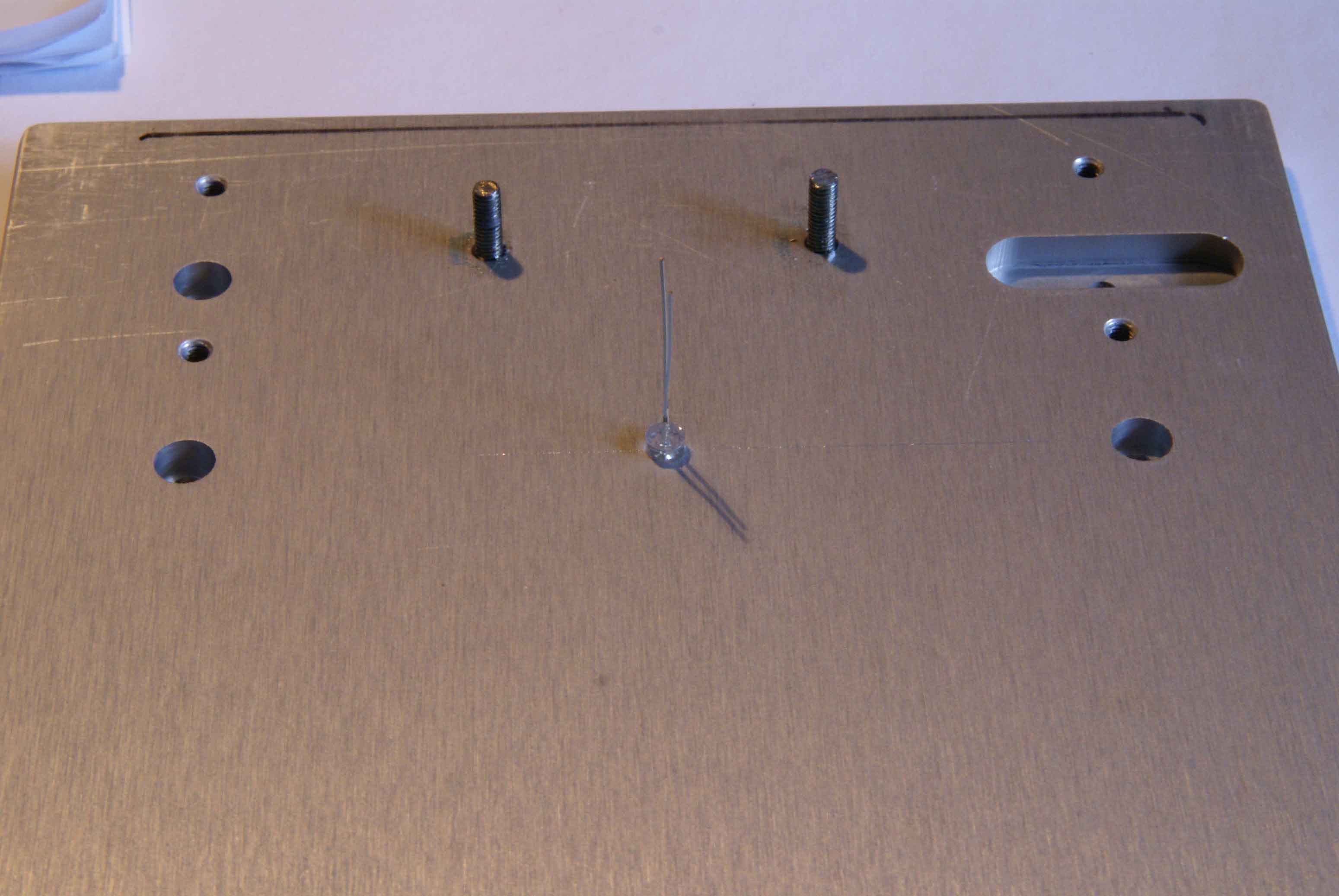

Stateside, it is 1/8" plate for the back, bottom, front sub-panel and the same for the B1. The faceplates are 3/8" 6061 for the F5 and 1/4" for the B1. The B1 sides are 3" extruded aluminum T-track.

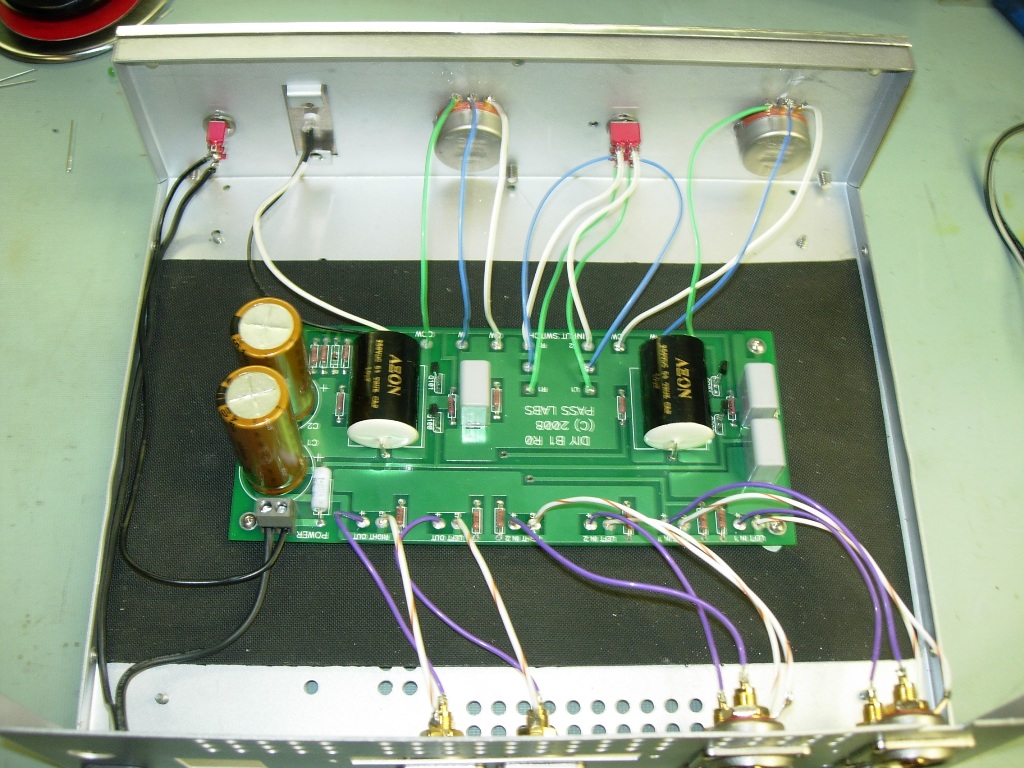

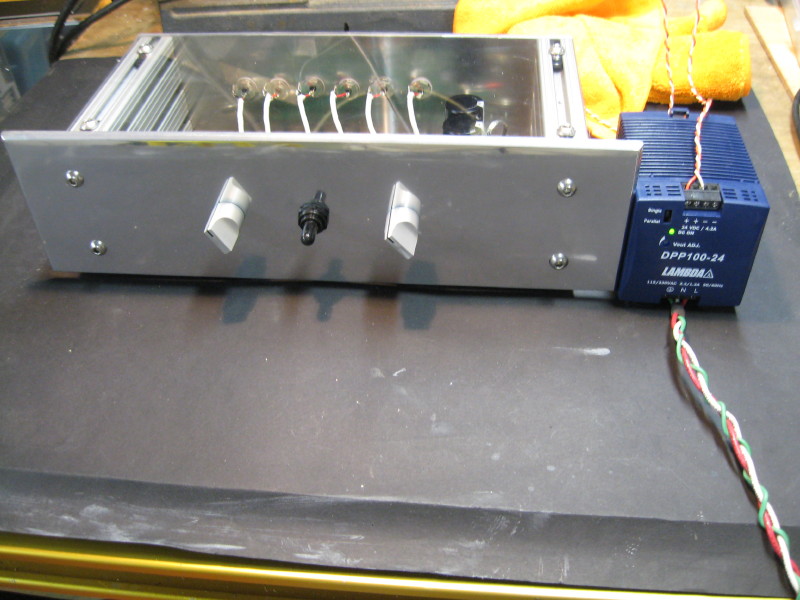

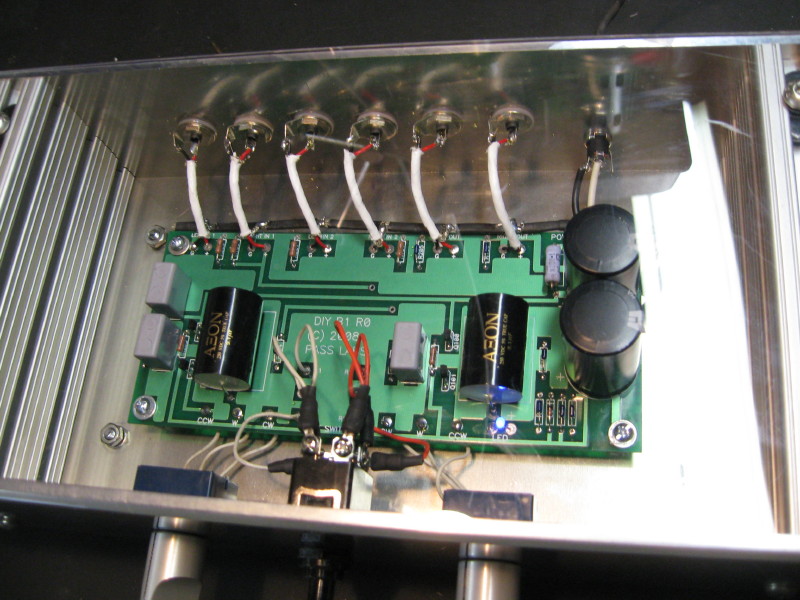

Got the B1 populated and wired. The little 24v. supply needs it's own little box and that will be next.



[etoiledusoir]

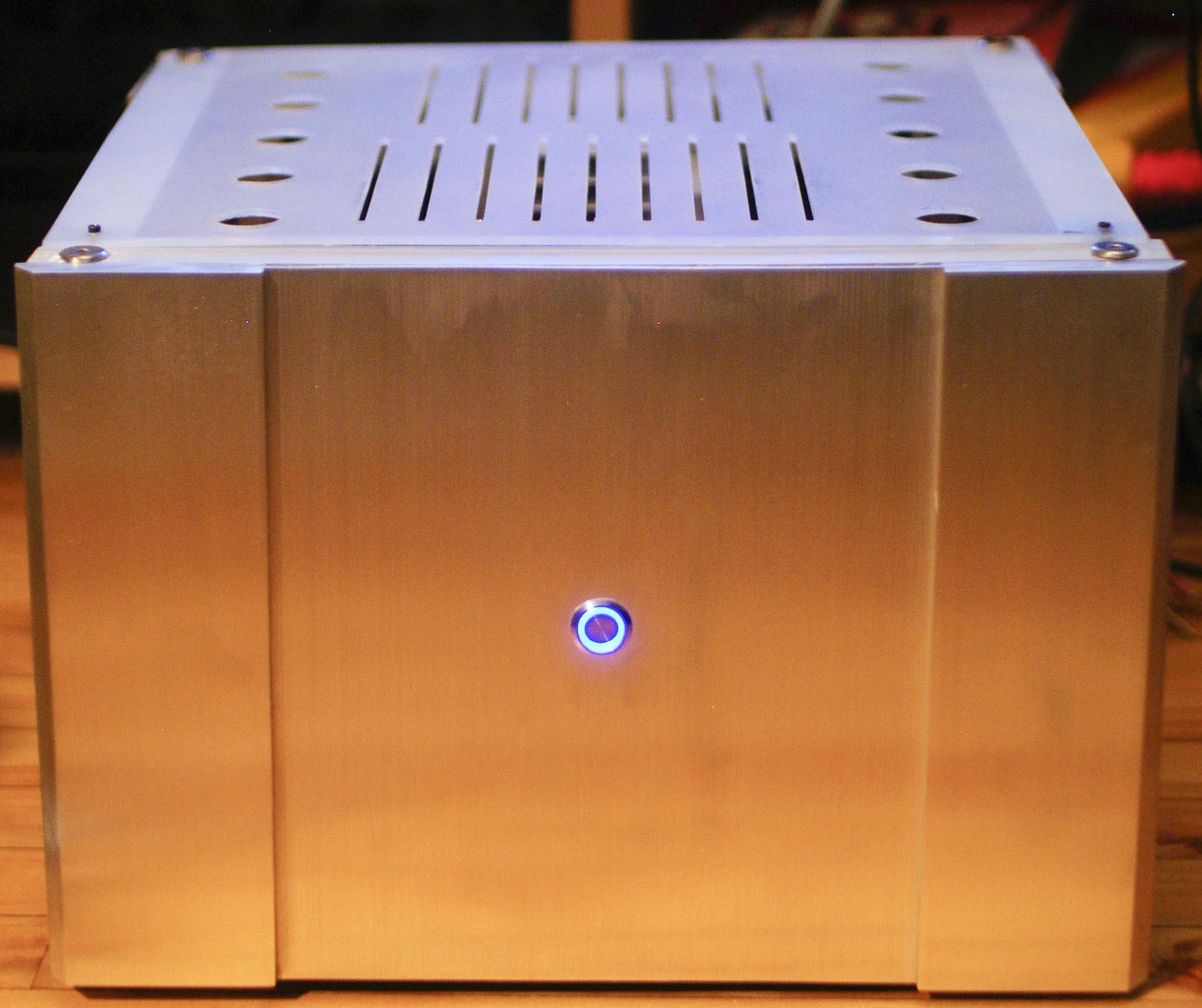

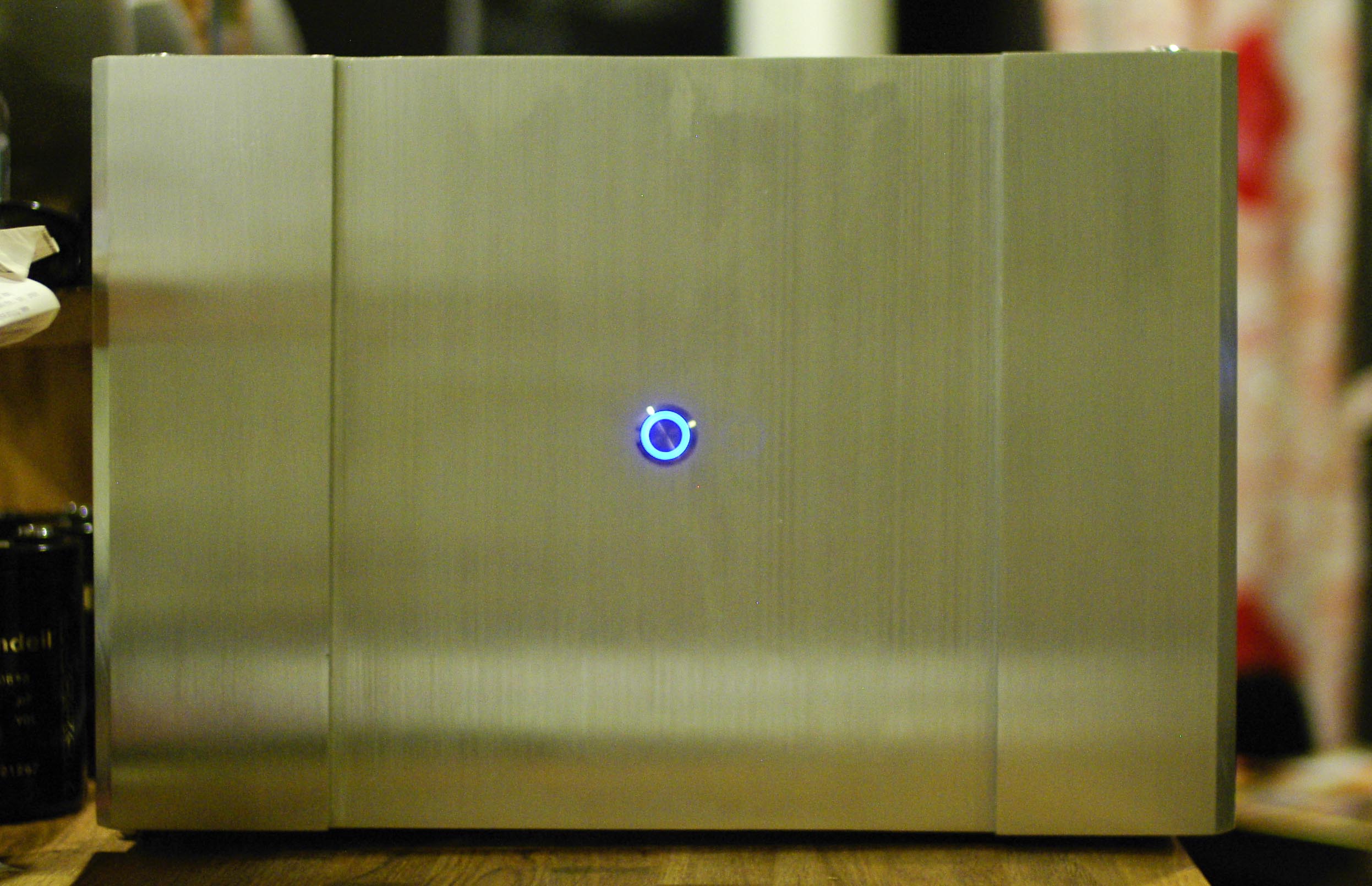

My f5, almost finish.



[jacco vermeulen]

Nuit étoilée dans le desert.



[wicked1]

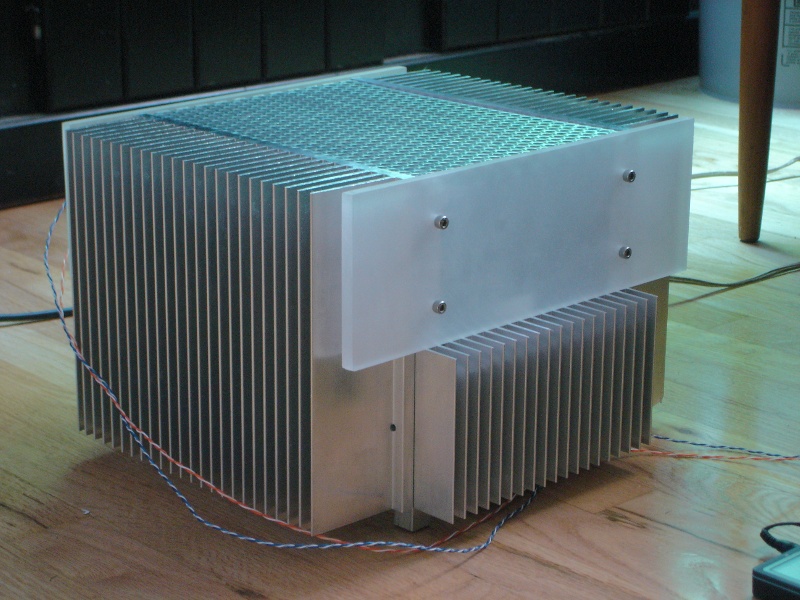

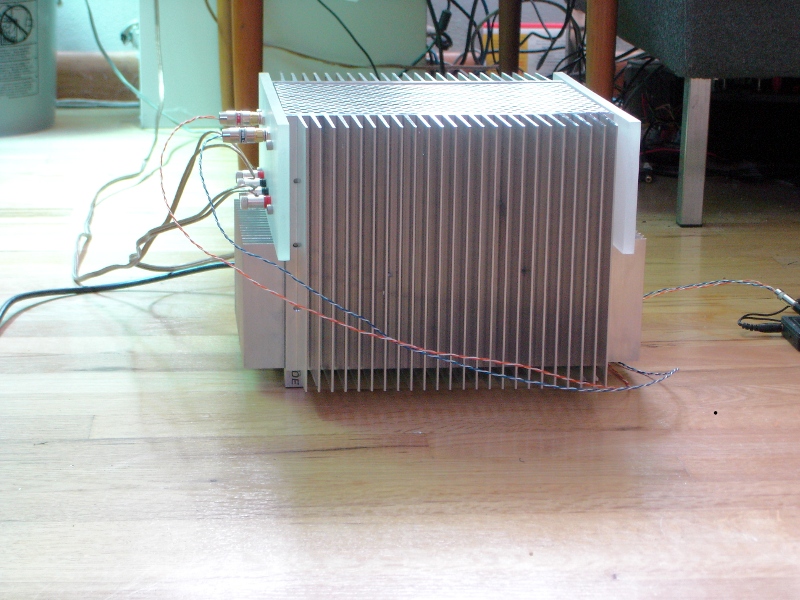

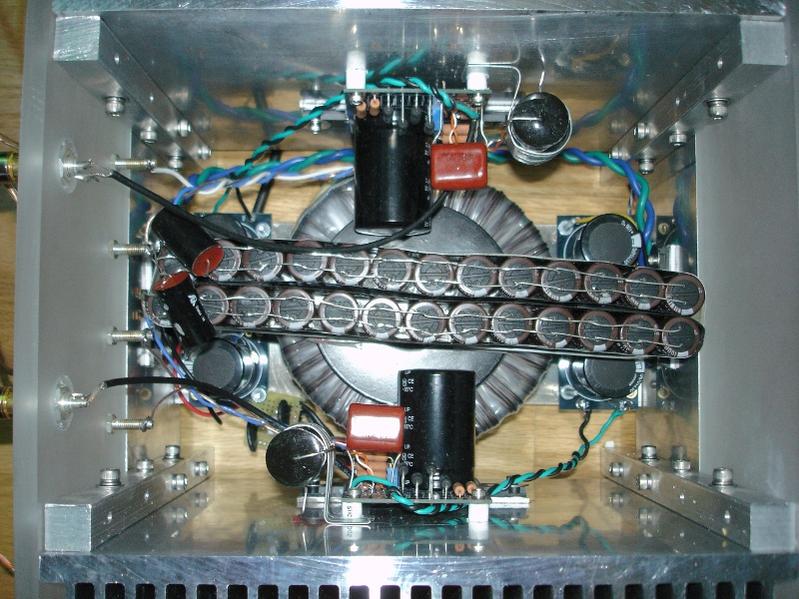

Here's my F2, now F2-j

I think I'm linking to thumbnails, so if you care to see the larger pics, here's my post from last year when I built the amp.

http://www.diyaudio.com/forums/pass-labs/150652-finished-my-diy-f2-last-night-2.html#post1925588



[etoiledusoir]

My F5

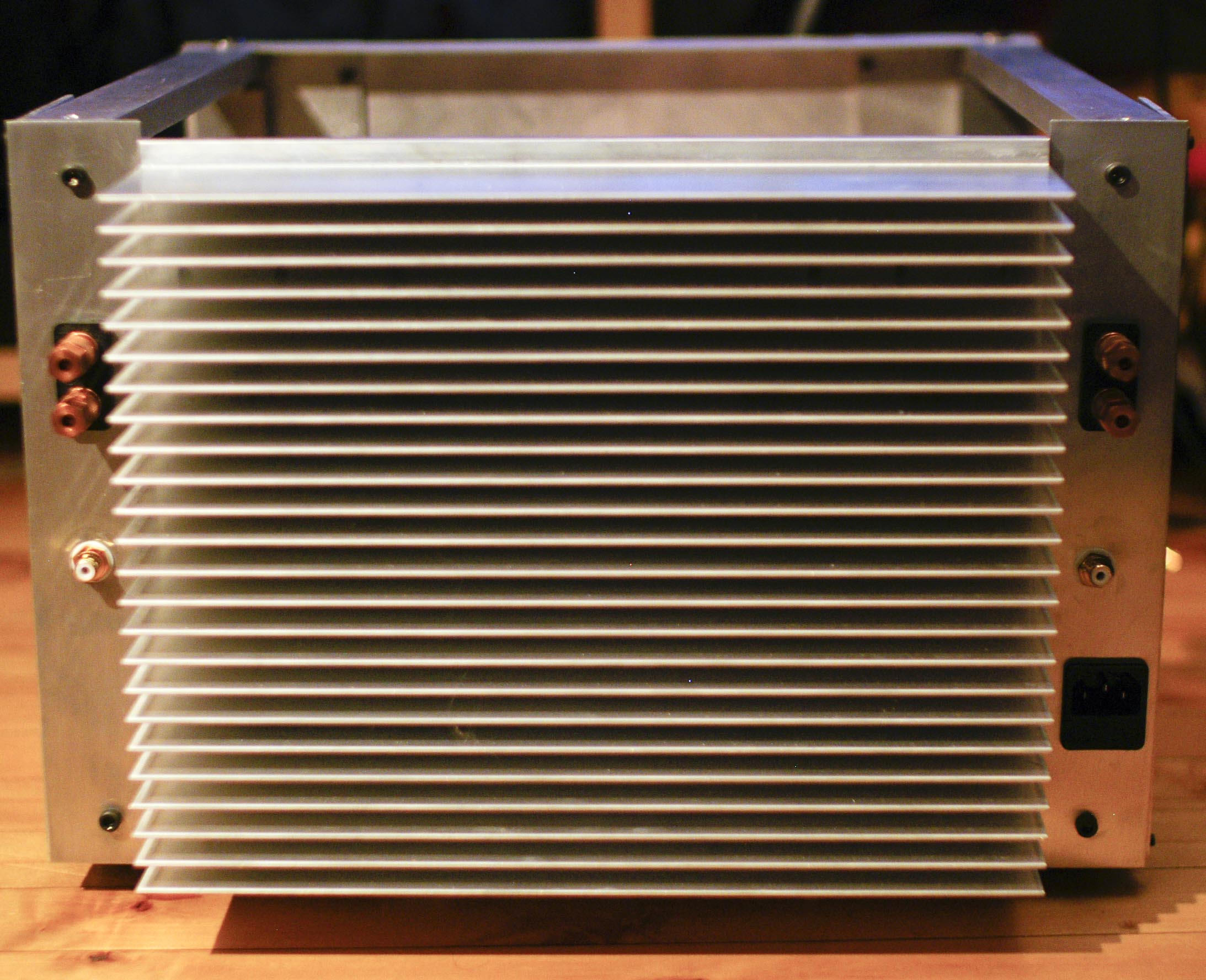

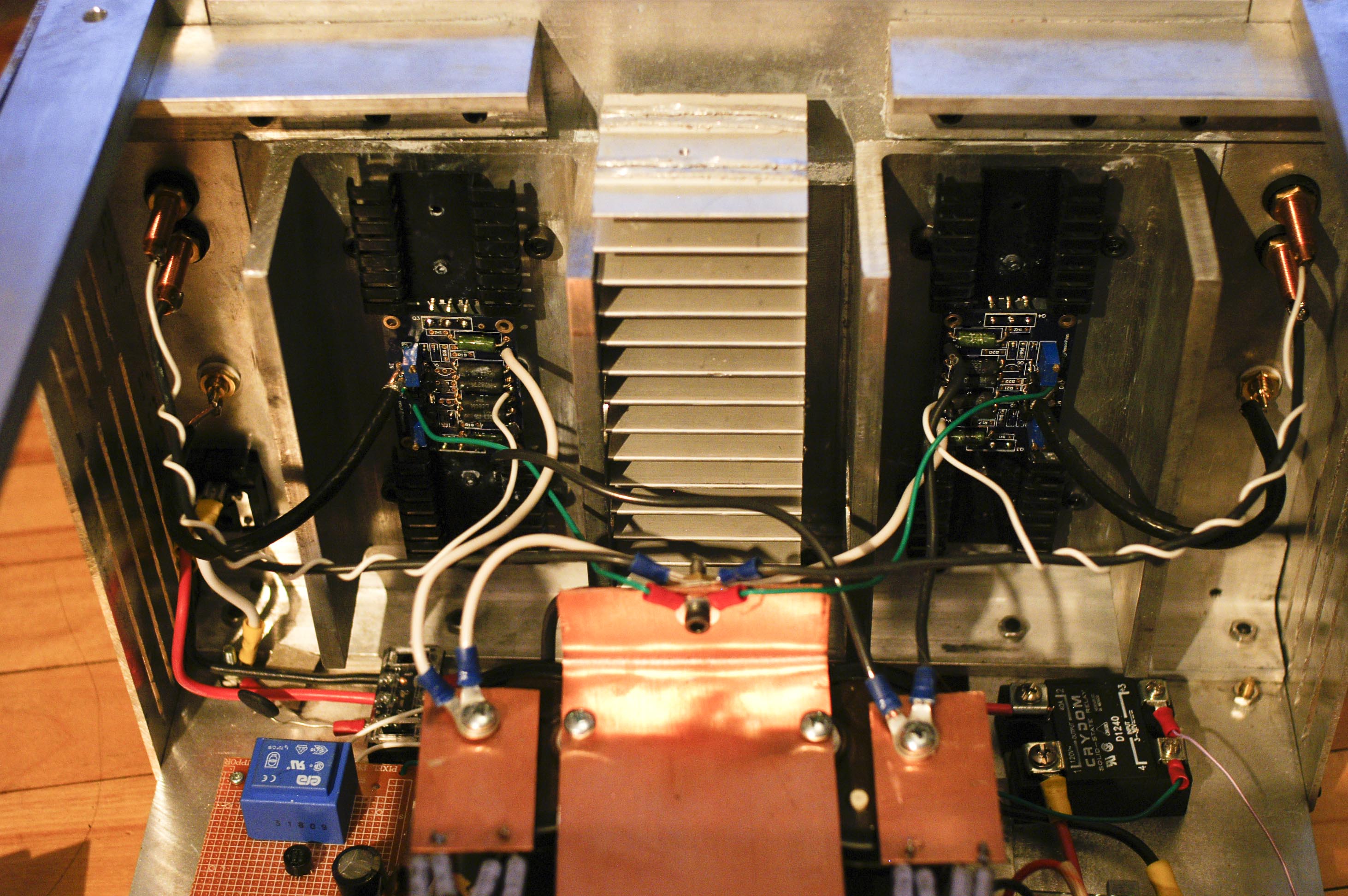

I take a guess and construct my f5 with one heatsink and a bunch of spare aluminium pieces and small heatsinks. I can bias it up to 1.3 amp, the mosffet is about 60 c.



[gervenja]

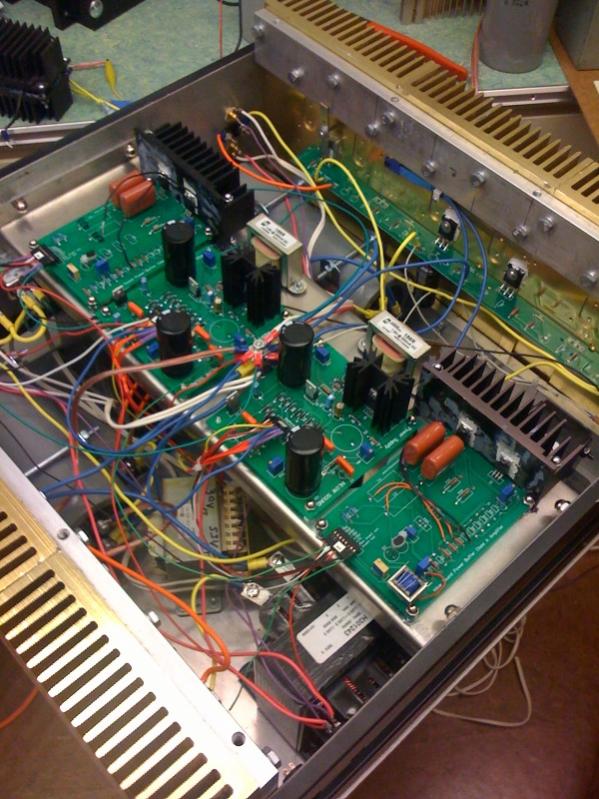

An other B1 and F5

After some months of building is this the result.
At a diy audio day in the Netherlands there were enthusiast comments.
Some has already started building 😀



[gervenja]

An other B1 and F5

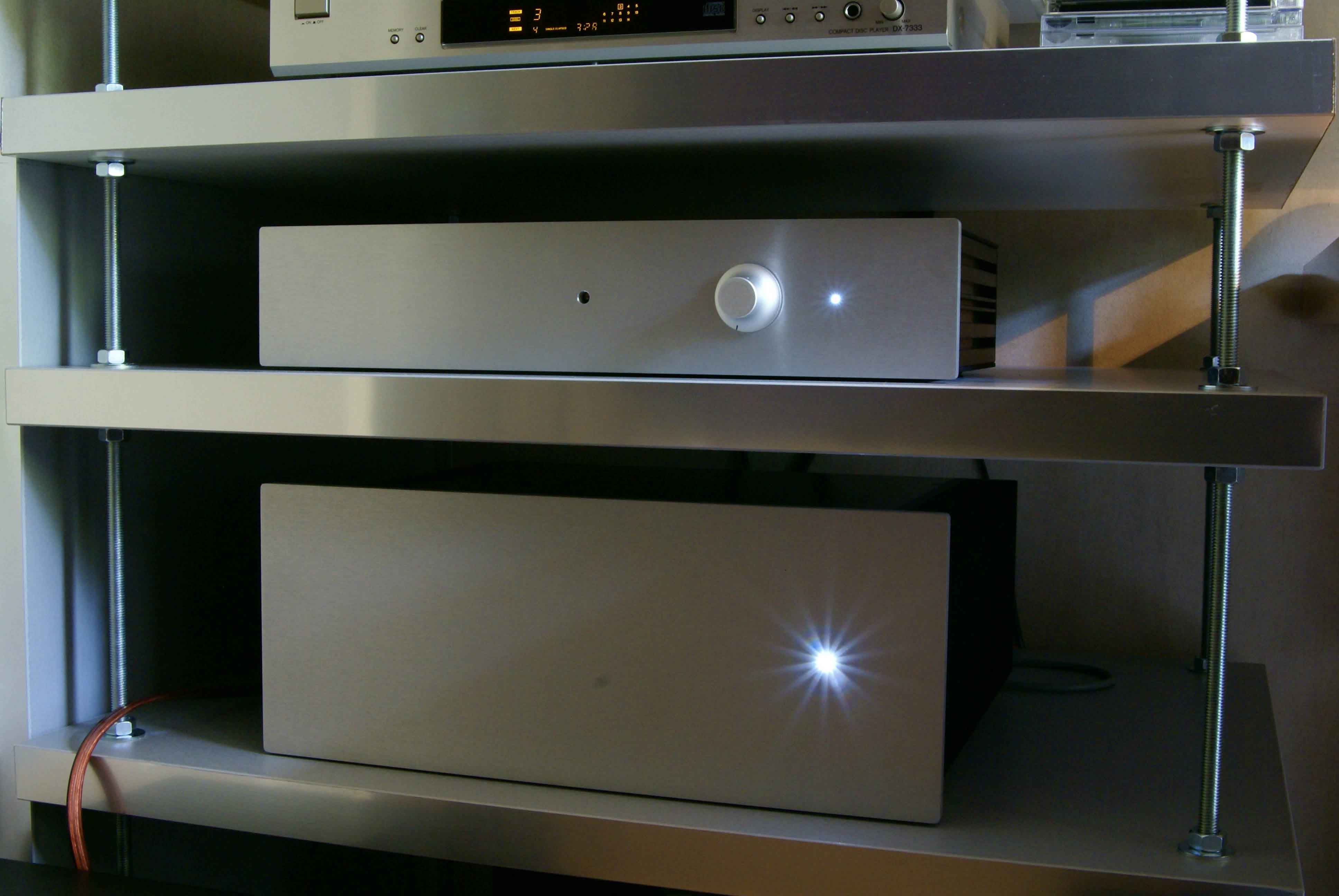

And a wonderfull sounding B1 an F5 working together.
I am not shure wich selector switch I will use so I leave open for now.



[Andersonix]

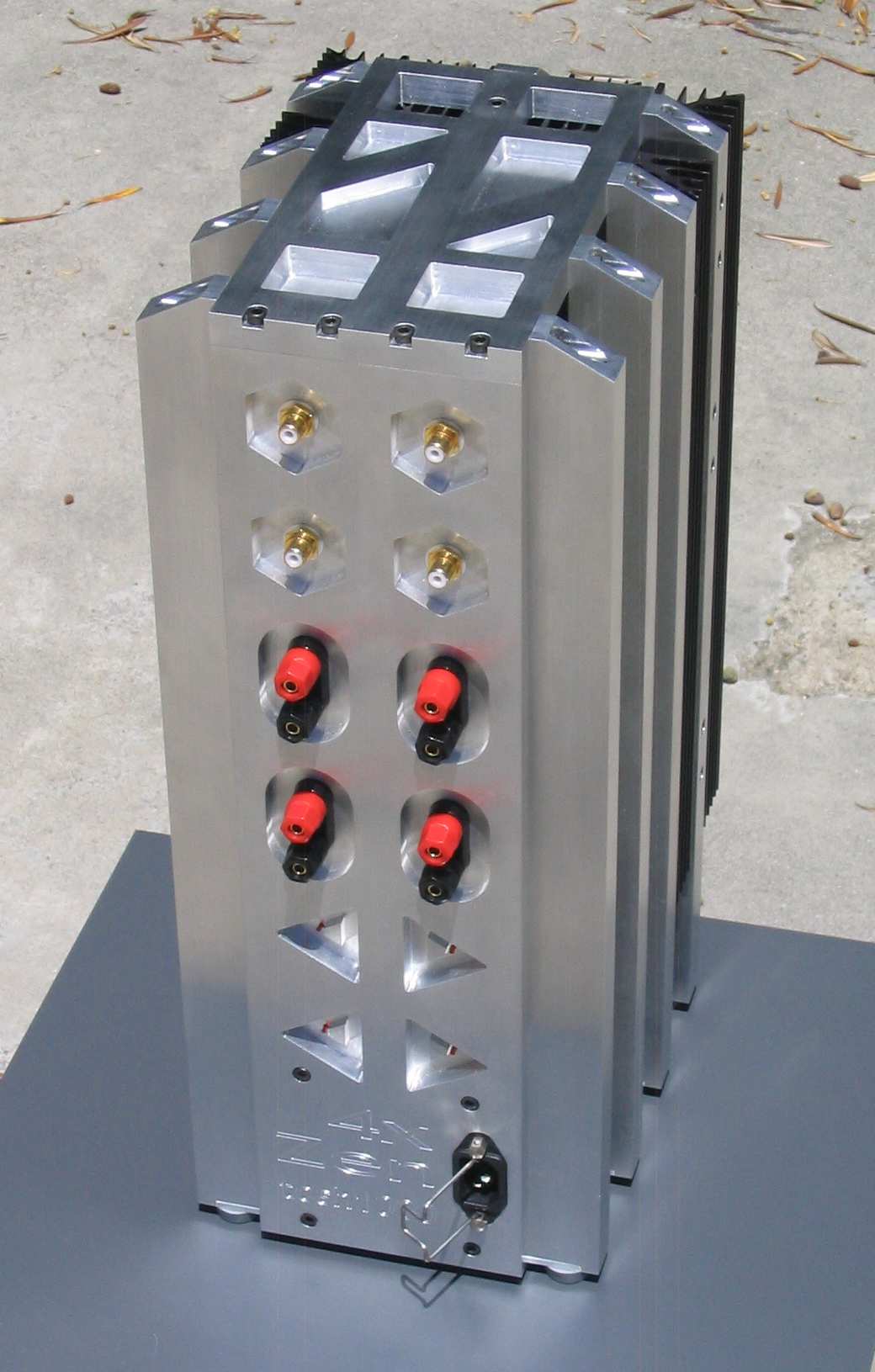

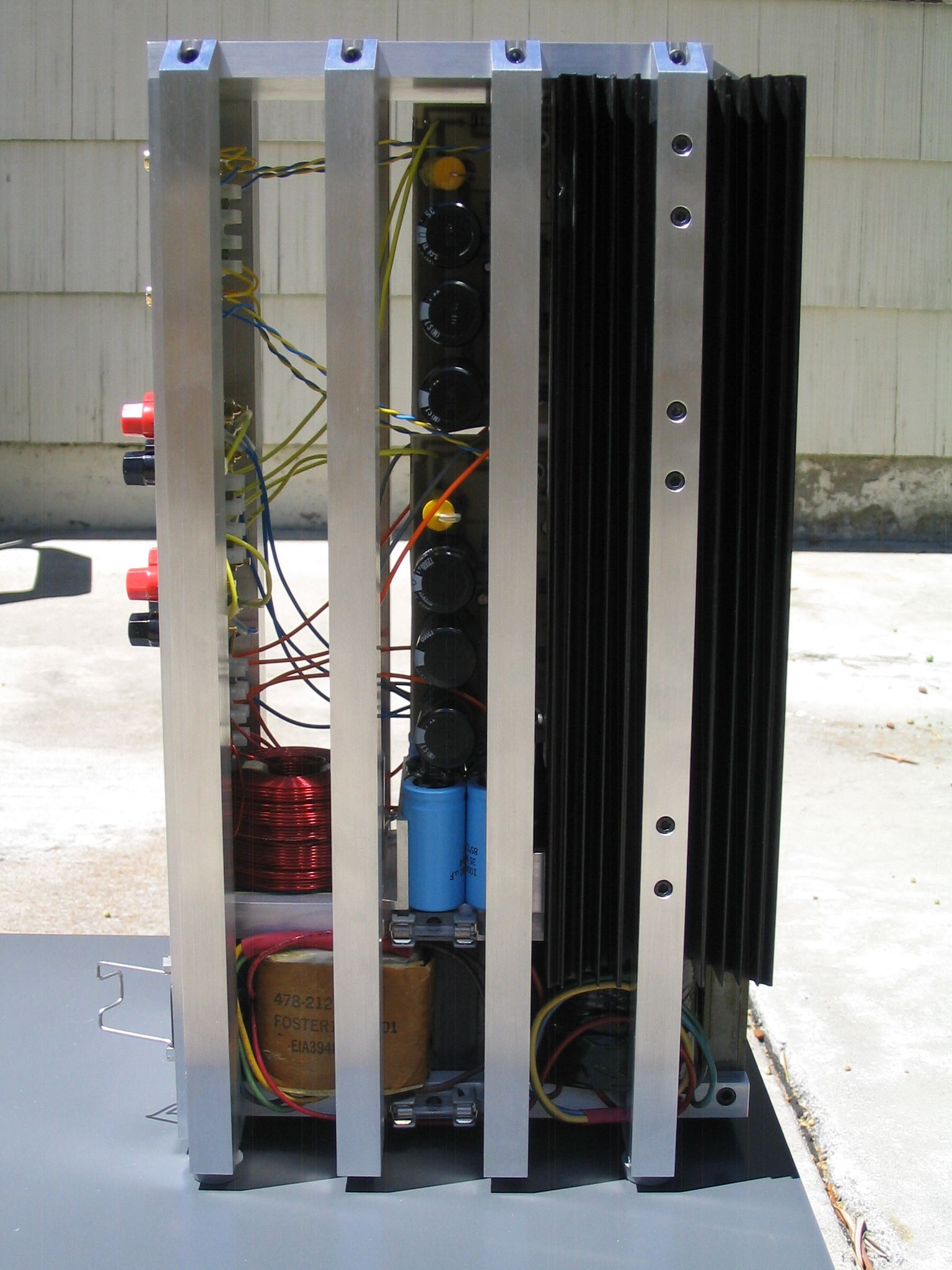

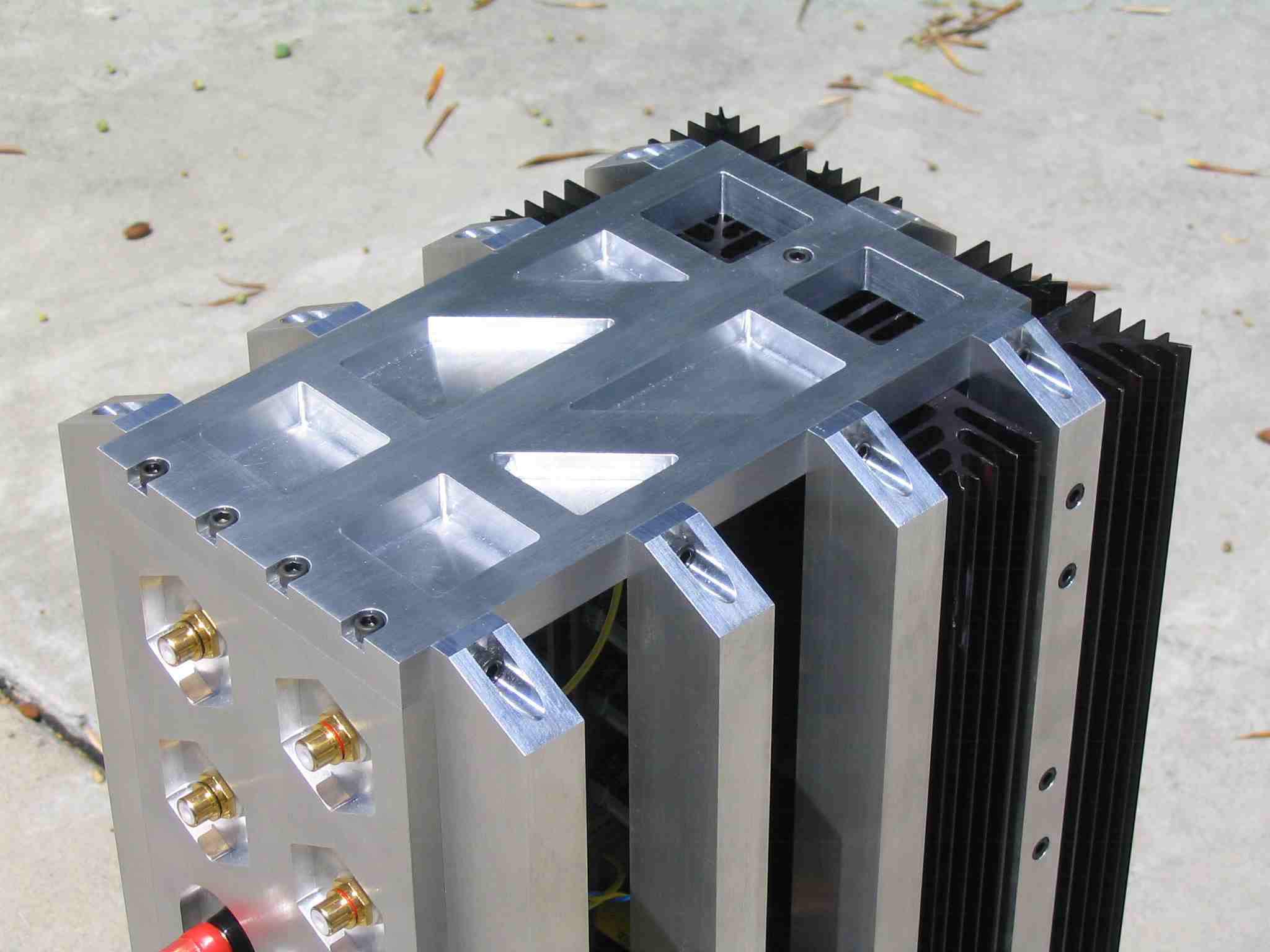

4x Zen: Designed in SolidWorks and made on CNC mills at De Anza College, Cupertino in 2007.



[Stefano]

It's a wonderful work of art! I'm speechless!



[ma_coule]

4x Zen: Designed in SolidWorks and made on CNC mills at De Anza College, Cupertino in 2007.

Hi Tosh,
very original & impressive...
Side view a little bit unfinished... 😉



[Zen Mod]

4x Zen: Designed in SolidWorks and made on CNC mills at De Anza College, Cupertino in 2007.

Fugly!



[chris661]

4x Zen: Designed in SolidWorks and made on CNC mills at De Anza College, Cupertino in 2007.

Talk about ventilation...



[mhouston]

4x Zen: Designed in SolidWorks and made on CNC mills at De Anza College, Cupertino in 2007.

Its an electric cheese grater.



[stoN_Cold]

Its an electric cheese grater.

Only heaven know😱

Regards zeoN_Rider



[pmchoong]

looks very on topic to me🙂

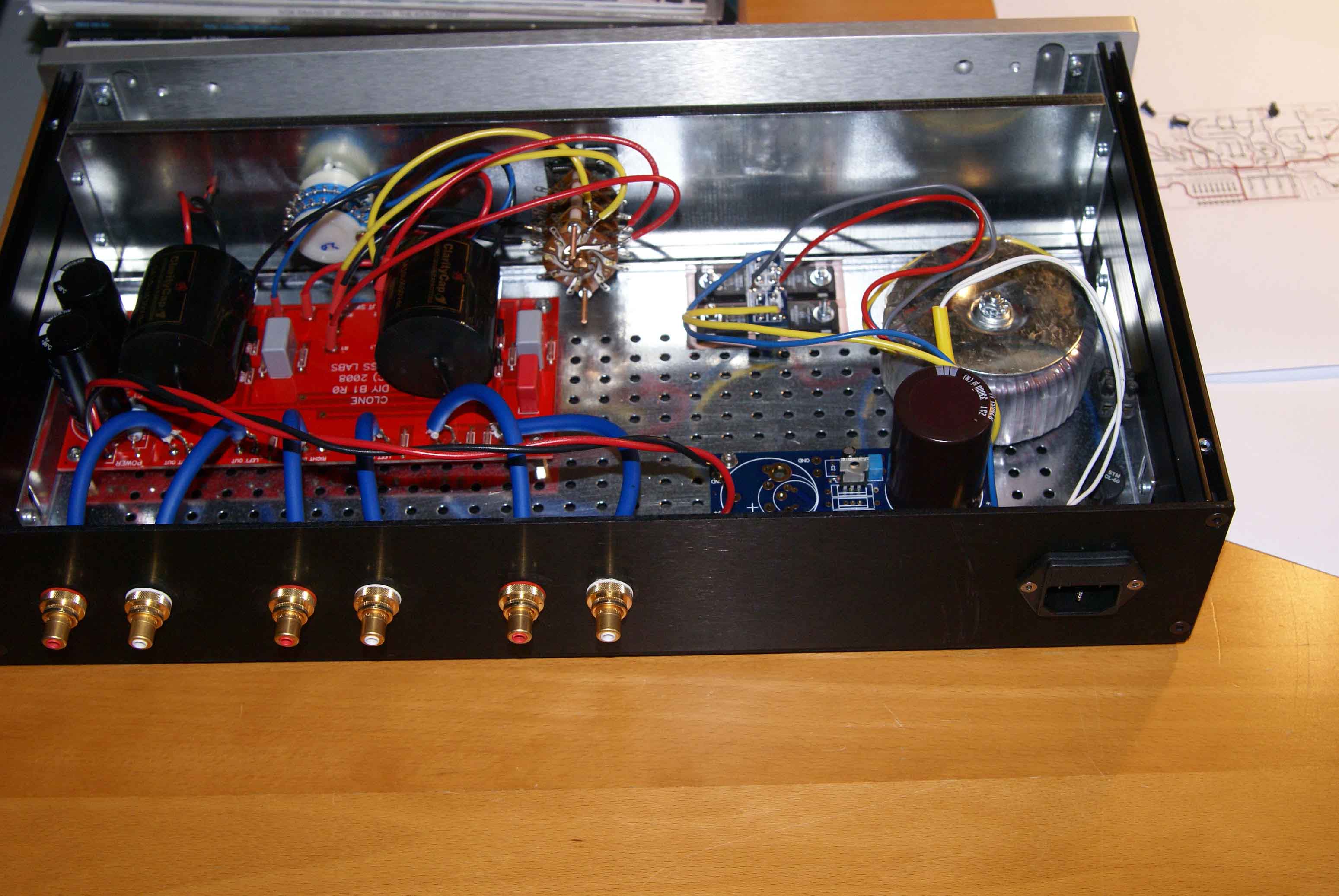

my B1(reclaimed Bogen mic amp case) and F5

jim

Hi Jim

Looks like you create a balance output from the unbalance....correct? how is this done and did the sound quality improve?



[Blues]

4x Zen: Designed in SolidWorks and made on CNC mills at De Anza College, Cupertino in 2007.

Very impressive Tosh! I'm looking forward to what you're sculpting for your F5.



[alazira]

Sweet looking metalwork Tosh. Kudos!
