Pictures of your diy Pass amplifier

[nar]

Dear nar,
Brought from AliExpress u can search 7n speaker cable .

Hi zen thanks for advice but
Can not move to lower ,coz split power supply .

Best

Whaowwww, that's godamm' cheapo' 7N copper cable then !

(Most likely china copy)

If you return the amp, the fets will be on 1/3 low, so much better dissipation ...
Just place amplifier feet on the other side

Best,

nAr



[Stefanoo]

Dear nar,
Brought from AliExpress u can search 7n speaker cable .

Hi zen thanks for advice but
Can not move to lower ,coz split power supply .

Best

that's very interesting looking could also be used for internal wiring. I want to sample some.



[aradan]

Well a bit of my first completed big amplifier.

M2 Clone.

Thanks to everyone who helped me to get it up and running.

PRP resistors, I know they are a bit too big being 1/2 watts.

Furukawa white resistors.

Oversized mundorf 3300uf giving it a bit of Pizza tower style.

380va 18vchinese r-core

66000uf Kemet caps in the cap bank.

Based on Tea-bags kit.

Special th aka to Tea-bag and CRT for the boards and kits avialble.

And to Papa for the great and easy to build design.

It sounds great very full, I did not expect such a full sound from a 25wpc amp.

Sent from my F8332 using Tapatalk



[matty297]

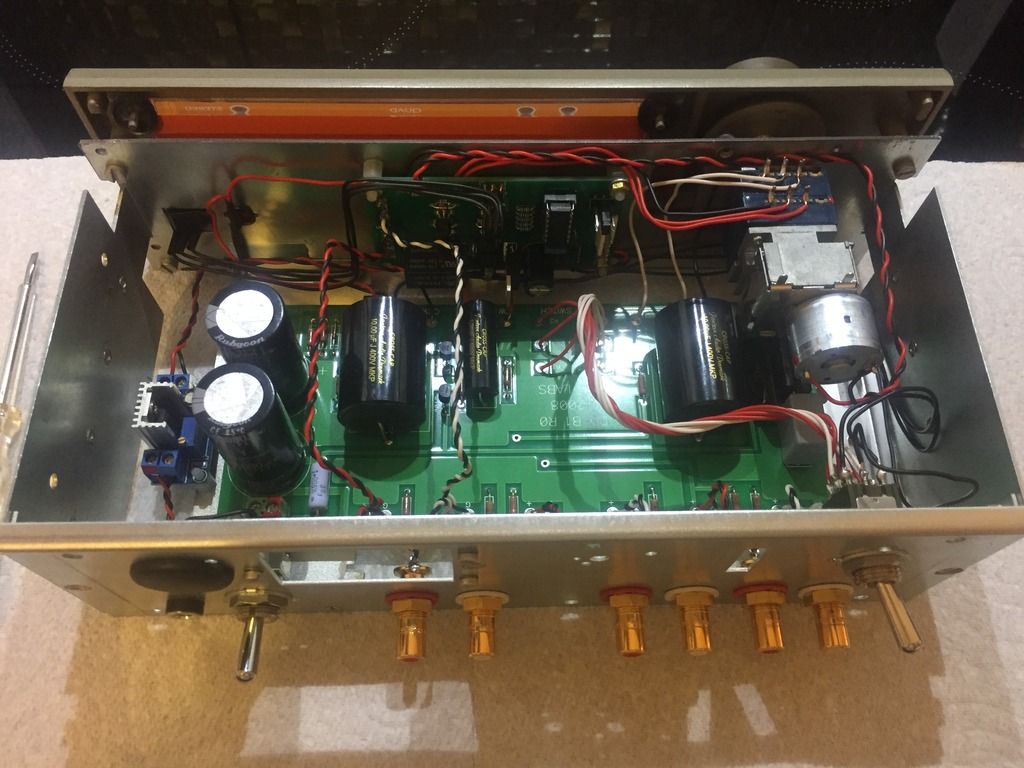

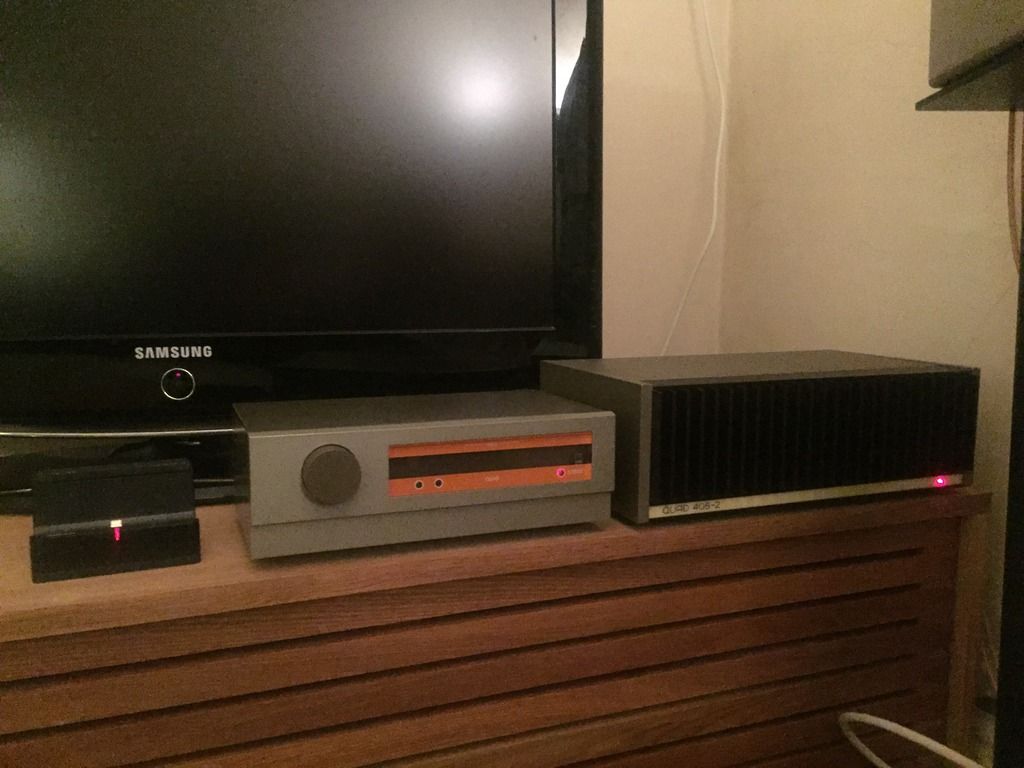

My B1 Buffer! Using it with a Modified Quad 405/2 so used a Quad FM3 Enclosure for the retro look! Also fitted a Glasshouse Remote Volume control.



[Bones13]

Looks great @Aradan ! Well done.

Looks cool @Matty297 ����



[kpsthakur]

Awesome Matty, I am sure you would have seen the audio magic by now...from the pics, seem you have used motorised pot, what circuit have you used for remote


Sent from my iPhone using Tapatalk Pro



[matty297]

Awesome Matty, I am sure you would have seen the audio magic by now...from the pics, seem you have used motorised pot, what circuit have you used for remote


Sent from my iPhone using Tapatalk Pro

I used this from hificollective!

Glasshouse Remote Control kit for Alps & TKD motorised pot | Hifi Collective



[kpsthakur]

Cool, need to figure out how to get this in US....thanks and congrats


Sent from my iPhone using Tapatalk Pro



[Zen Mod]

I just hope that FM3 was so ooked , beyond salvage

otherwise , simply sacrilege



[matty297]

It was bought dead for £30 specifically for this project as I didn't want to use a 33 as that would have been sacrilege.



[Zen Mod]

in that case - thumbs up

Fugly!



[Soundhappy]

Well a bit of my first completed big amplifier.

M2 Clone.

Thanks to everyone who helped me to get it up and running.

Special th aka to Tea-bag and CRT for the boards and kits avialble.

And to Papa for the great and easy to build design.

It sounds great very full, I did not expect such a full sound from a 25wpc amp.

Congratulations Aradan nice first diy build M2 amplifier.
Kindest regards



[kpsthakur]

Well a bit of my first completed big amplifier.

M2 Clone.

Thanks to everyone who helped me to get it up and running.

PRP resistors, I know they are a bit too big being 1/2 watts.

Furukawa white resistors.

Oversized mundorf 3300uf giving it a bit of Pizza tower style.

380va 18vchinese r-core

66000uf Kemet caps in the cap bank.

Based on Tea-bags kit.

Special th aka to Tea-bag and CRT for the boards and kits avialble.

And to Papa for the great and easy to build design.

It sounds great very full, I did not expect such a full sound from a 25wpc amp.

Sent from my F8332 using Tapatalk

Cool...I like your cabinet...good work, guess it sounds good too


Sent from my iPhone using Tapatalk Pro



[aradan]

Thanks the chasiss is form china
Breeze audio with some modifications

Back panel
UMS heatsinks and front panel. Will add pictures once complete

Sent from my F8332 using Tapatalk



[NicMac]

No. It's just an aluminium box.
This is the clone one of Mr Pass. There are more of them, they all wear a tie.

Also this (elderly) clone wears a tie. Remarkable resemblance



[alvinlim]

My first Pass amp - F6. Very happy with it..



Sent from my iPad using Tapatalk



[grimberg]

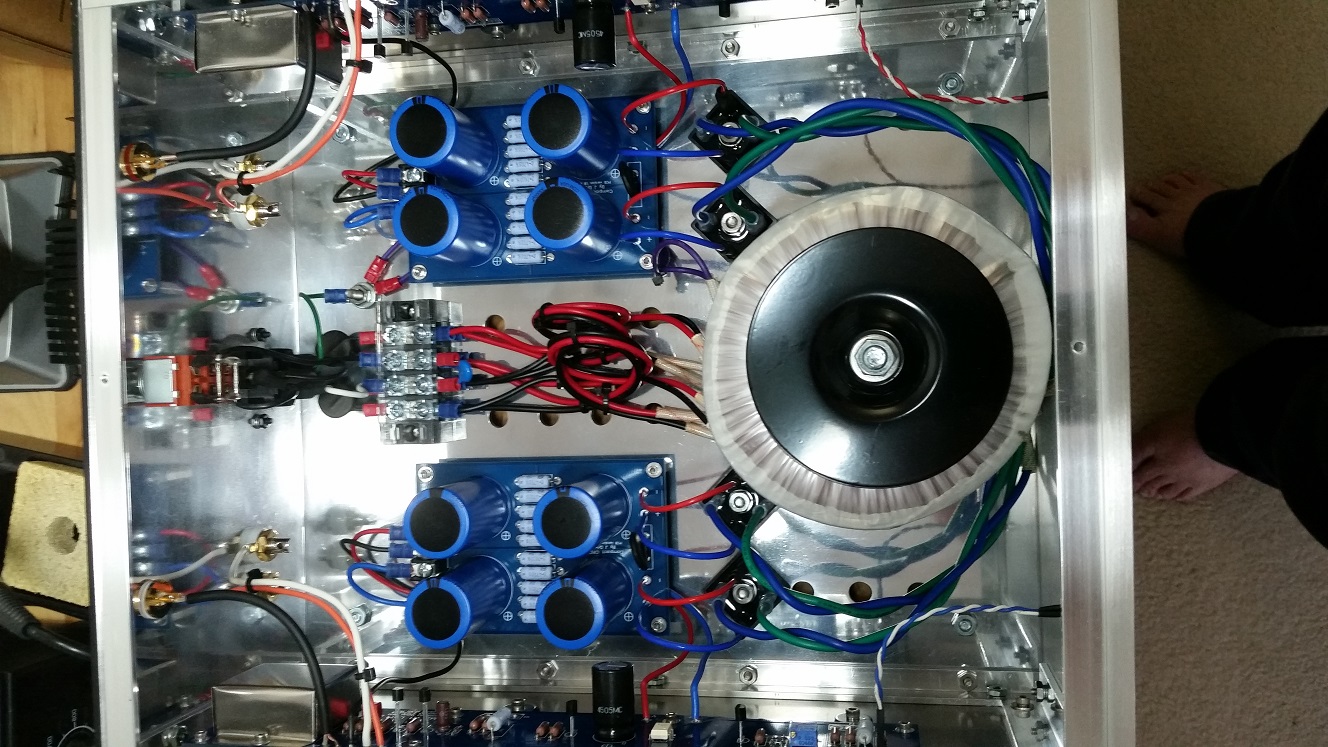

My M2 clone

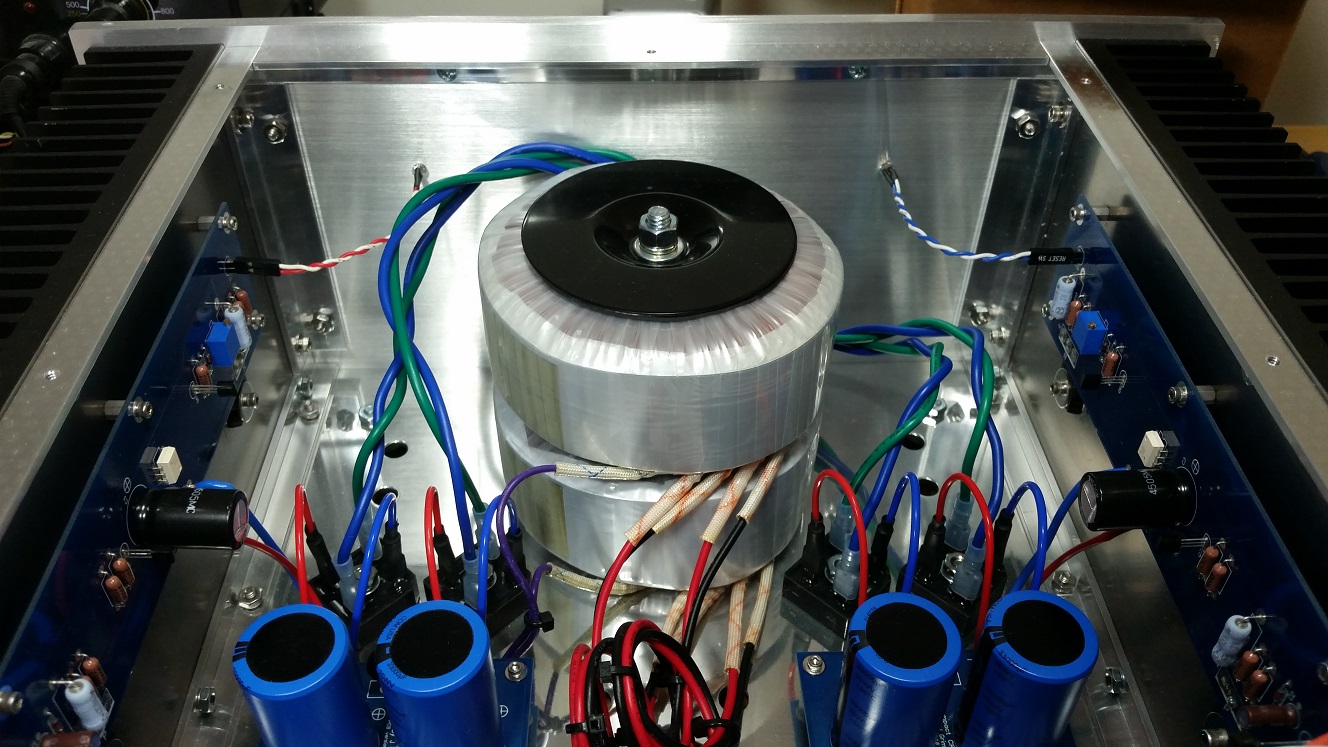

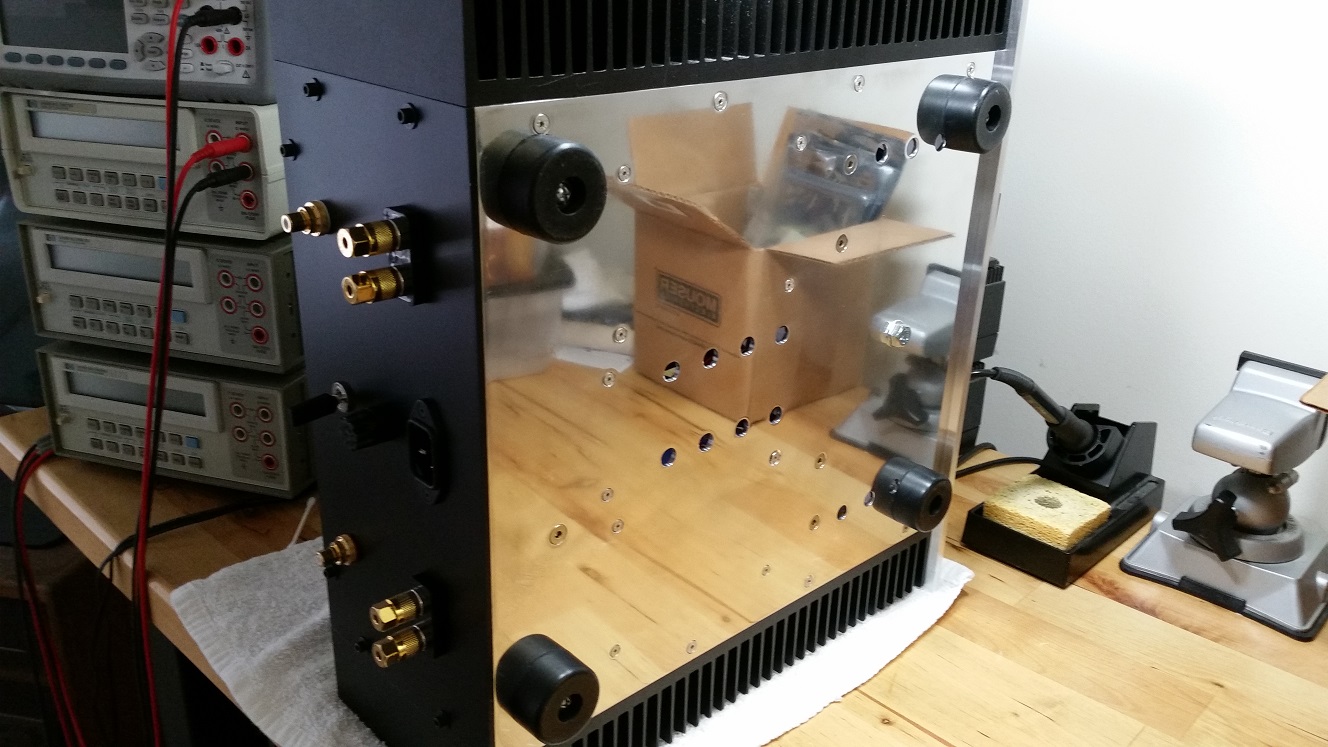

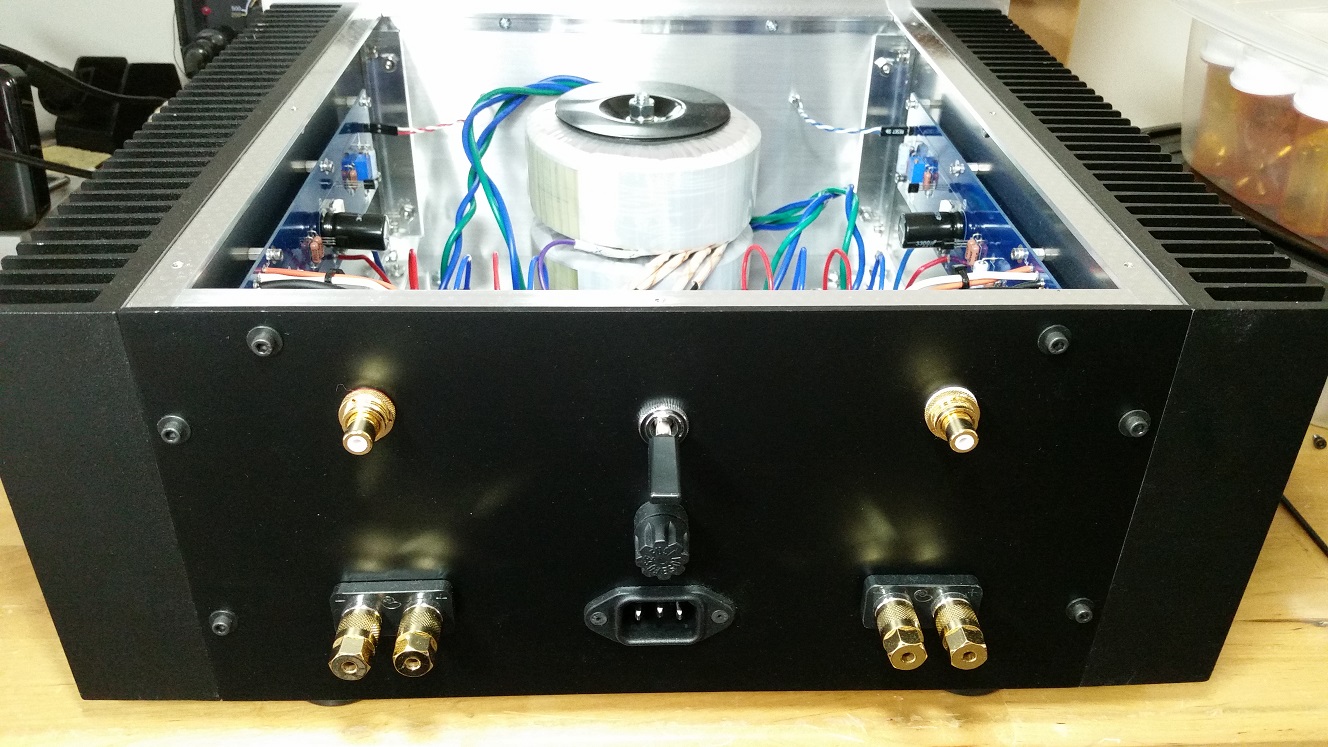

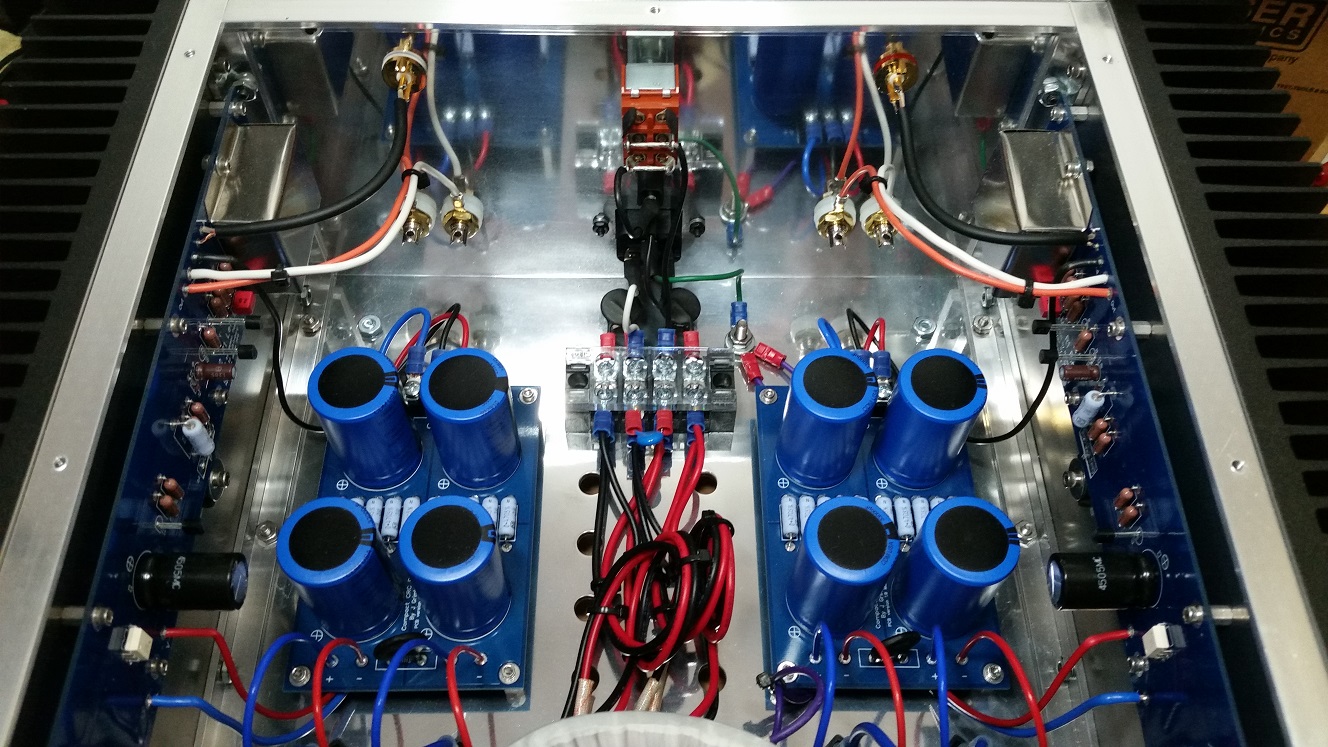

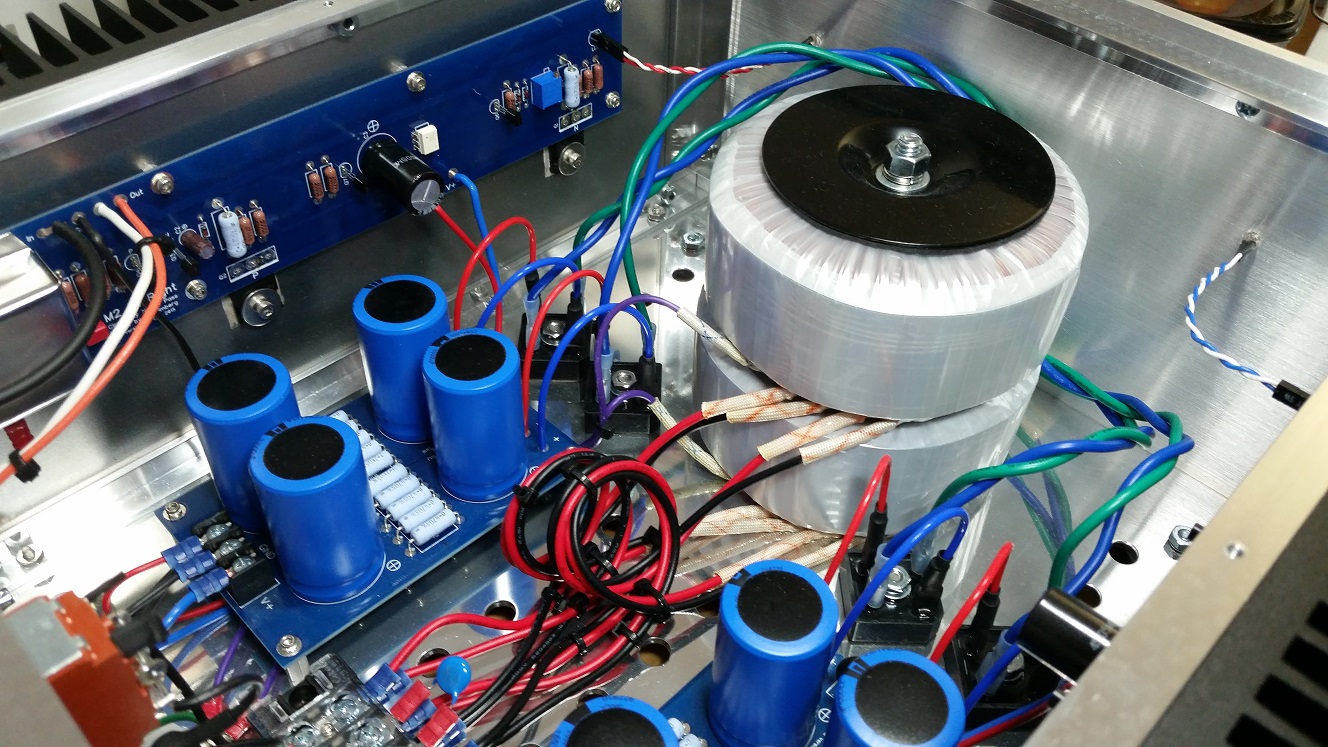

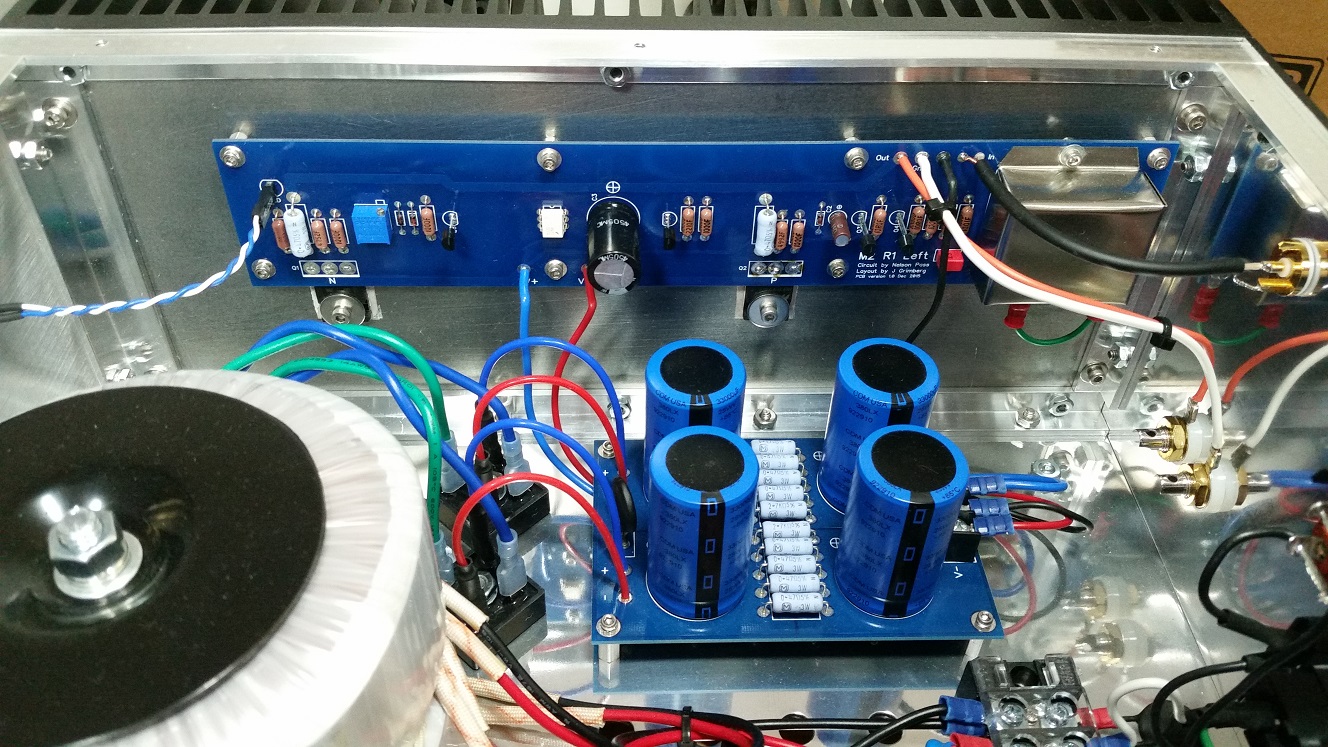

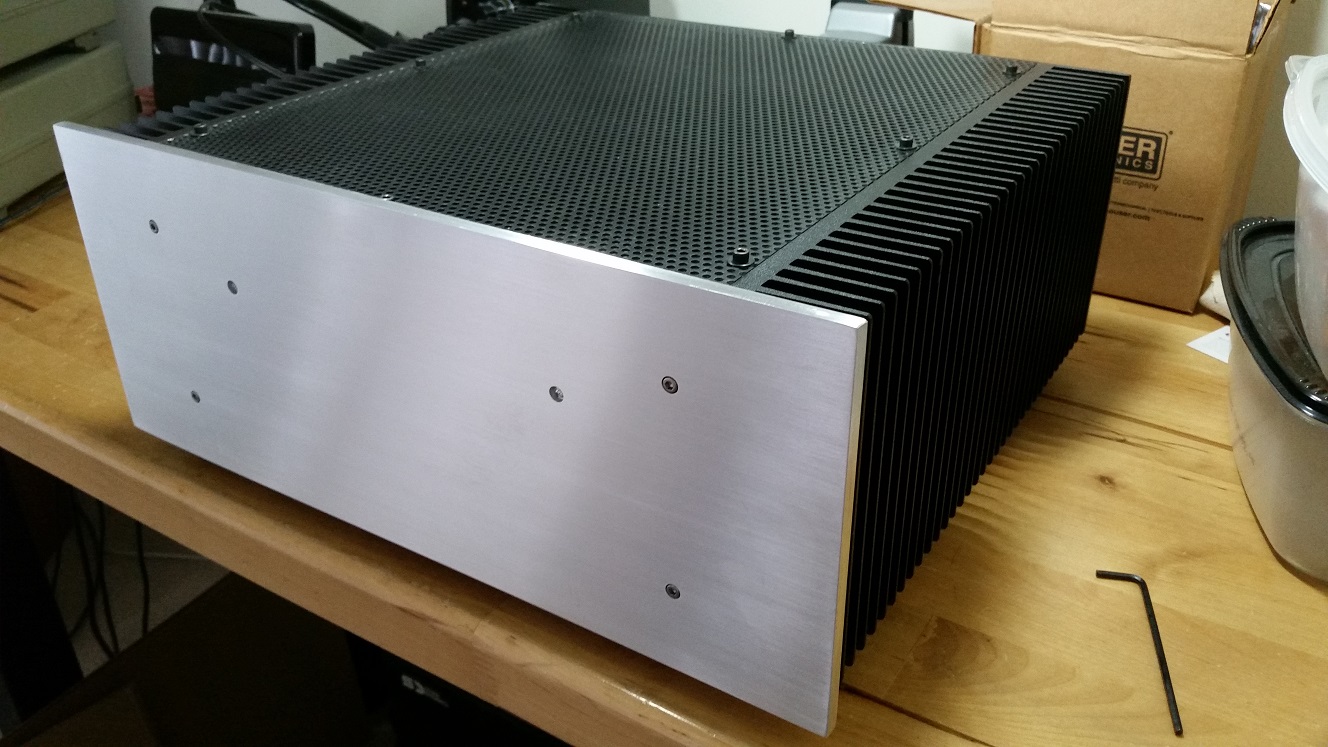

Here are some pictures of my First Watt M2 clone. I designed the PCBs and used individual power supplies for each channel, all assembled in a hand crafted case. The internal dimensions are: 11.75" width x 13.62" length x 5.87" height.



[ColinA]

Tidy build.
Just a comment, I would not have used red for DC -
red is normally +



[WalterW]

A masterpiece grimberg, very nice metalwork very nice PCB's!



[grimberg]

A masterpiece grimberg, very nice metalwork very nice PCB's!

Thank you!
