people who complain about scratchy controls are overlooking leaky coupling caps and spending small fortunes on exotic cleaners.
nothing brings out noise on a pot like a small amount of dc (i use this very thing to evaluate potentiometers/faders in mixing consoles)

yes exactly, for audio. (potentiometers are used for all manner of adjusting dc voltages but that's a different scenario)
if coupling caps have even small amounts of leakage it will increase "wiper noise"

don't take my word for it try it for yourself a 1.5 volt battery and a pair of clip leads are all that's necessary and an amp of course.
or better yet monitor on a scope and see.
this is one i learned from the Audio Cyclopedia years ago i'll have to look up the section and cite it when i find it.

Last edited:
Juma BJT HA by Prasi

http://www.diyaudio.com/forums/pass-labs/298369-jumas-head-amp.html

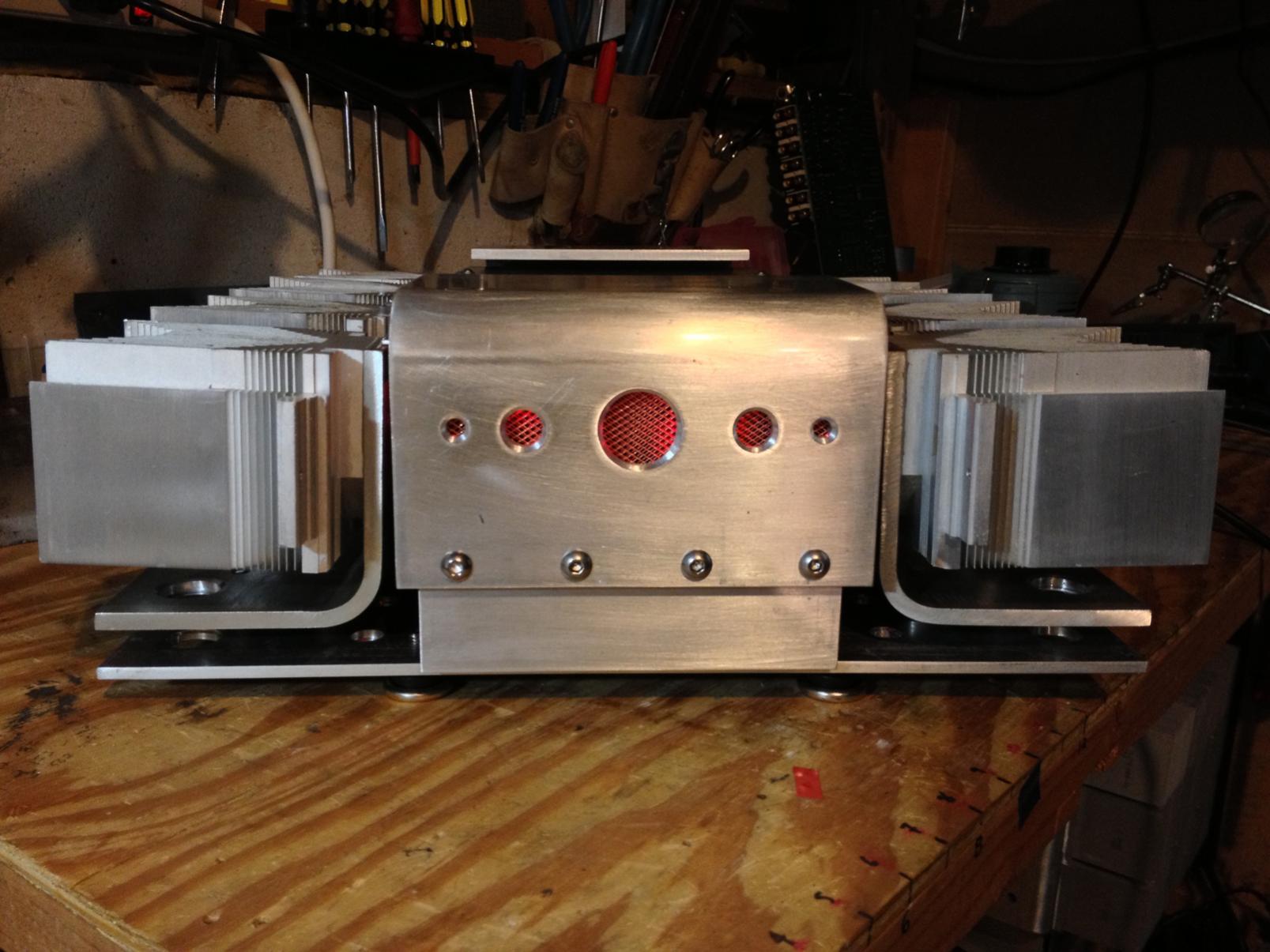

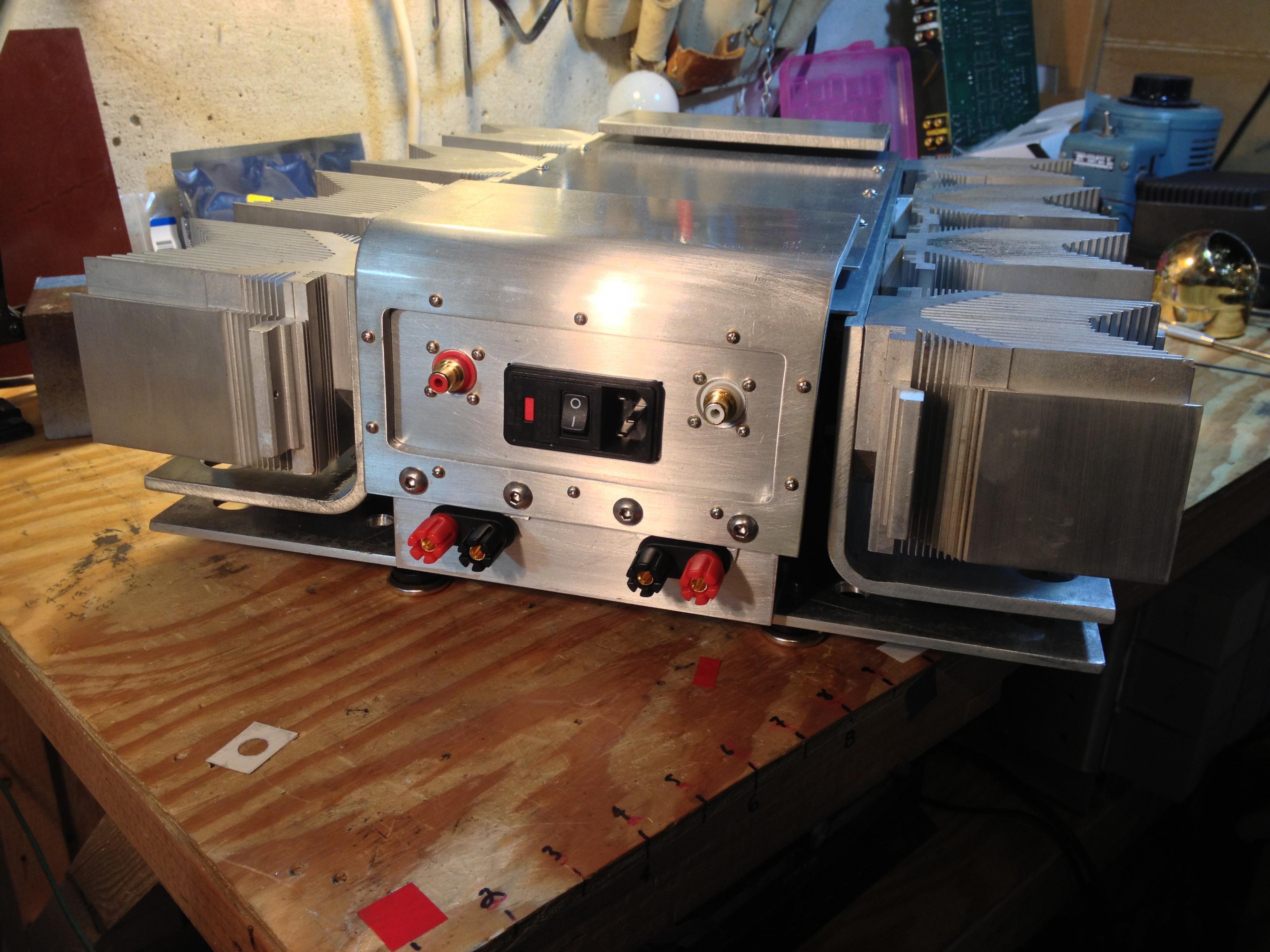

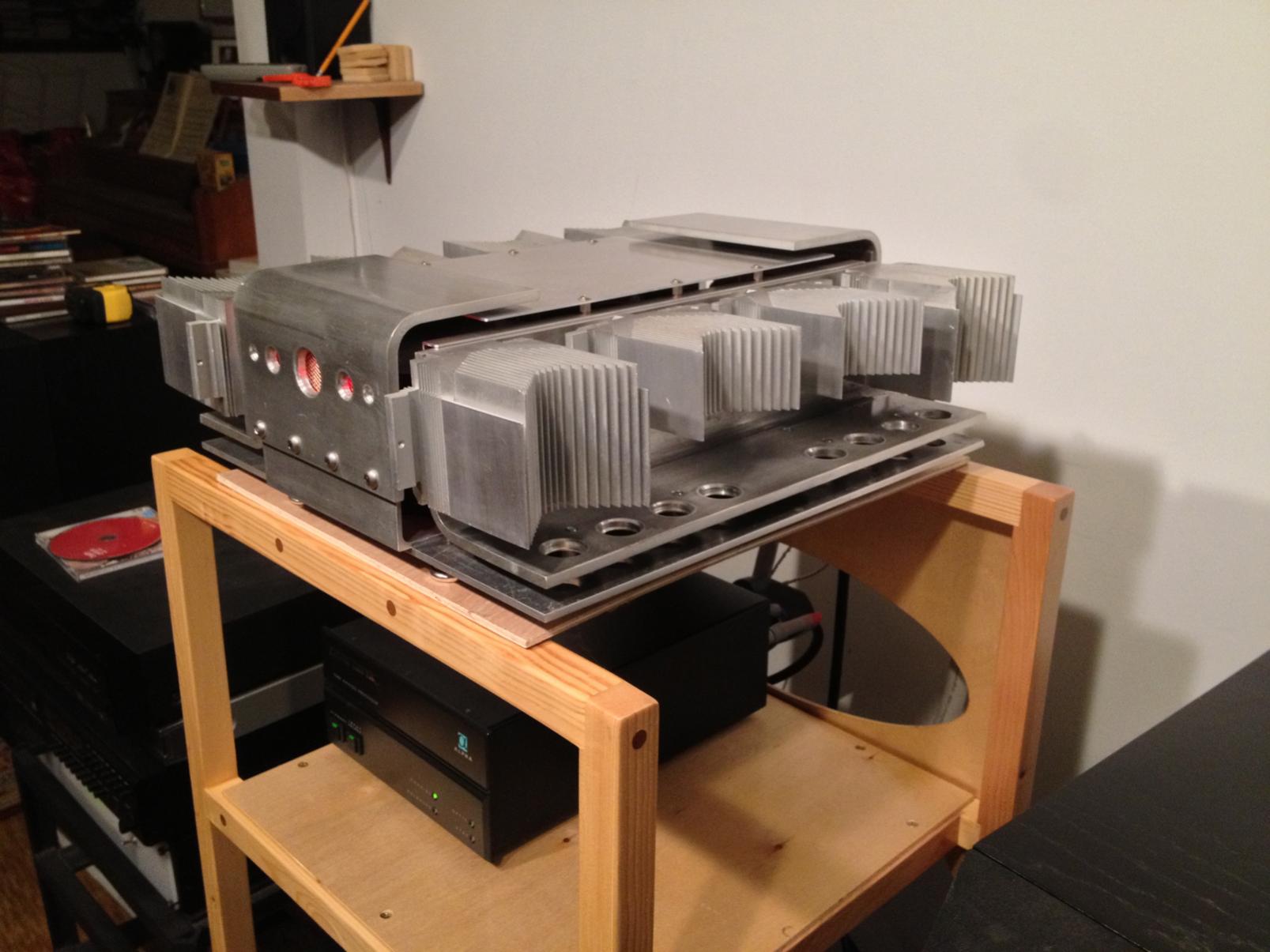

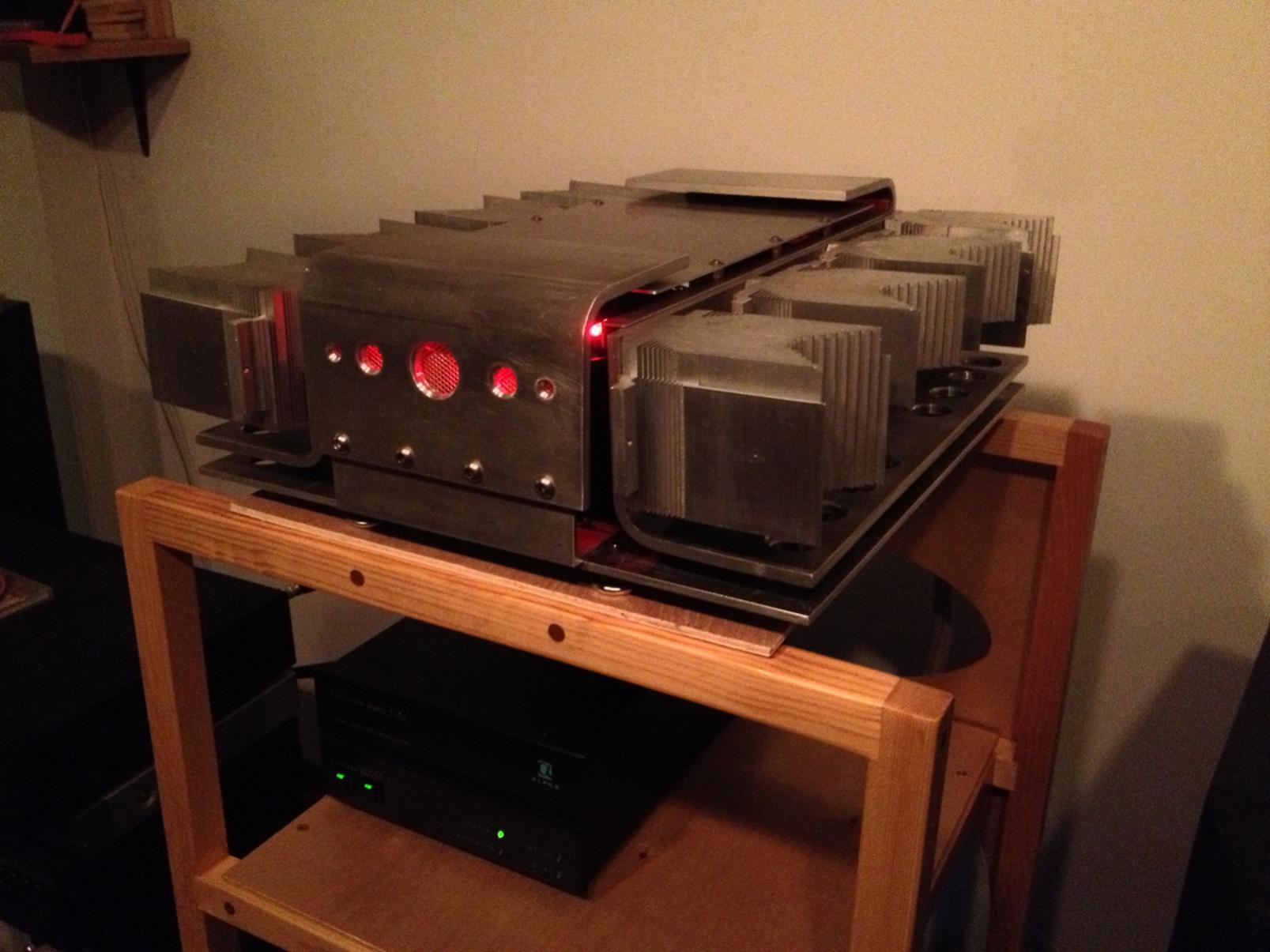

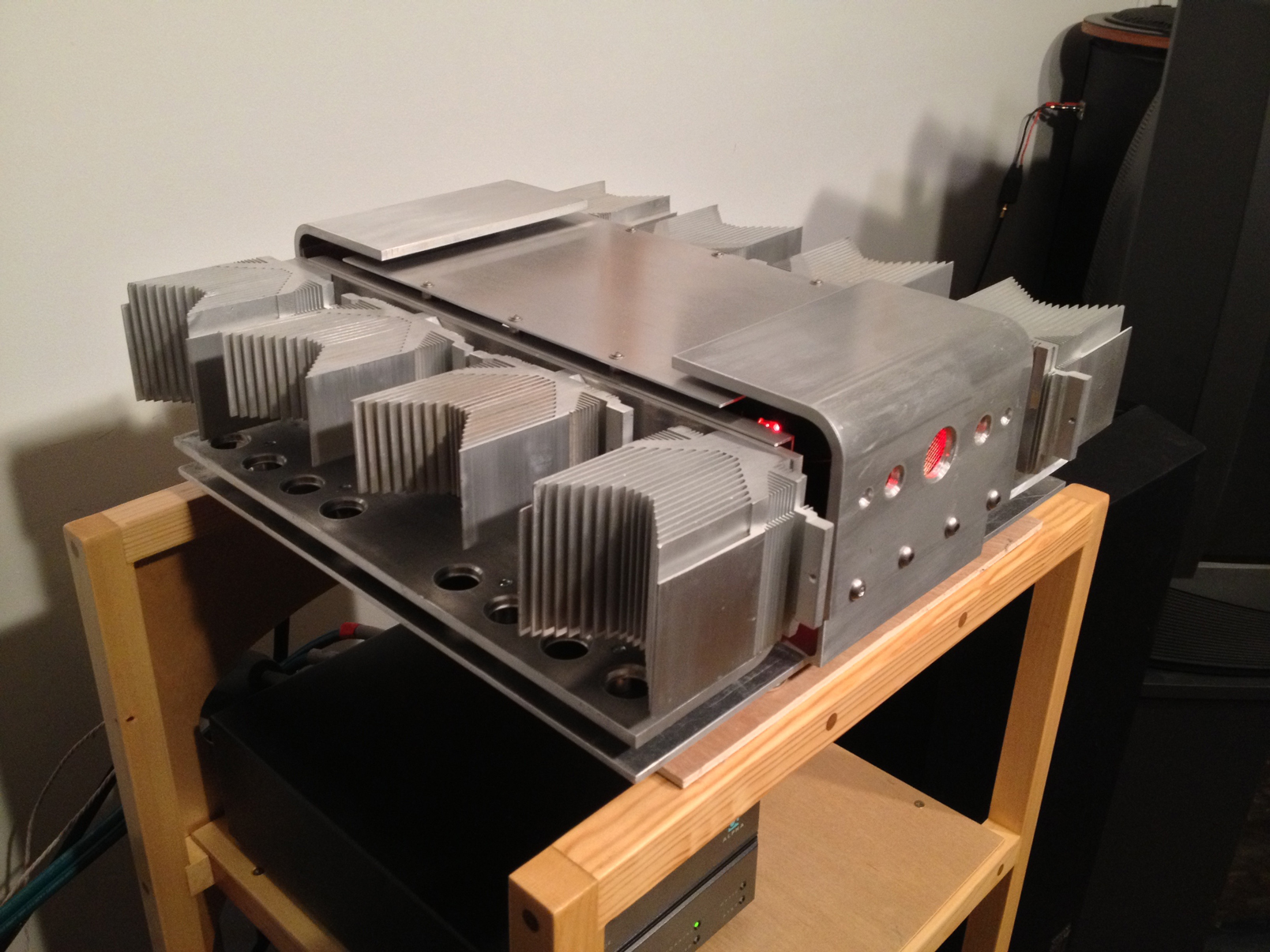

F6 finally complete

I took my time with this one. Space was tight. The whole amp is only 16 x 16.

I'll post pics in multiple sets. It seems to work better that way :-0


Attachments

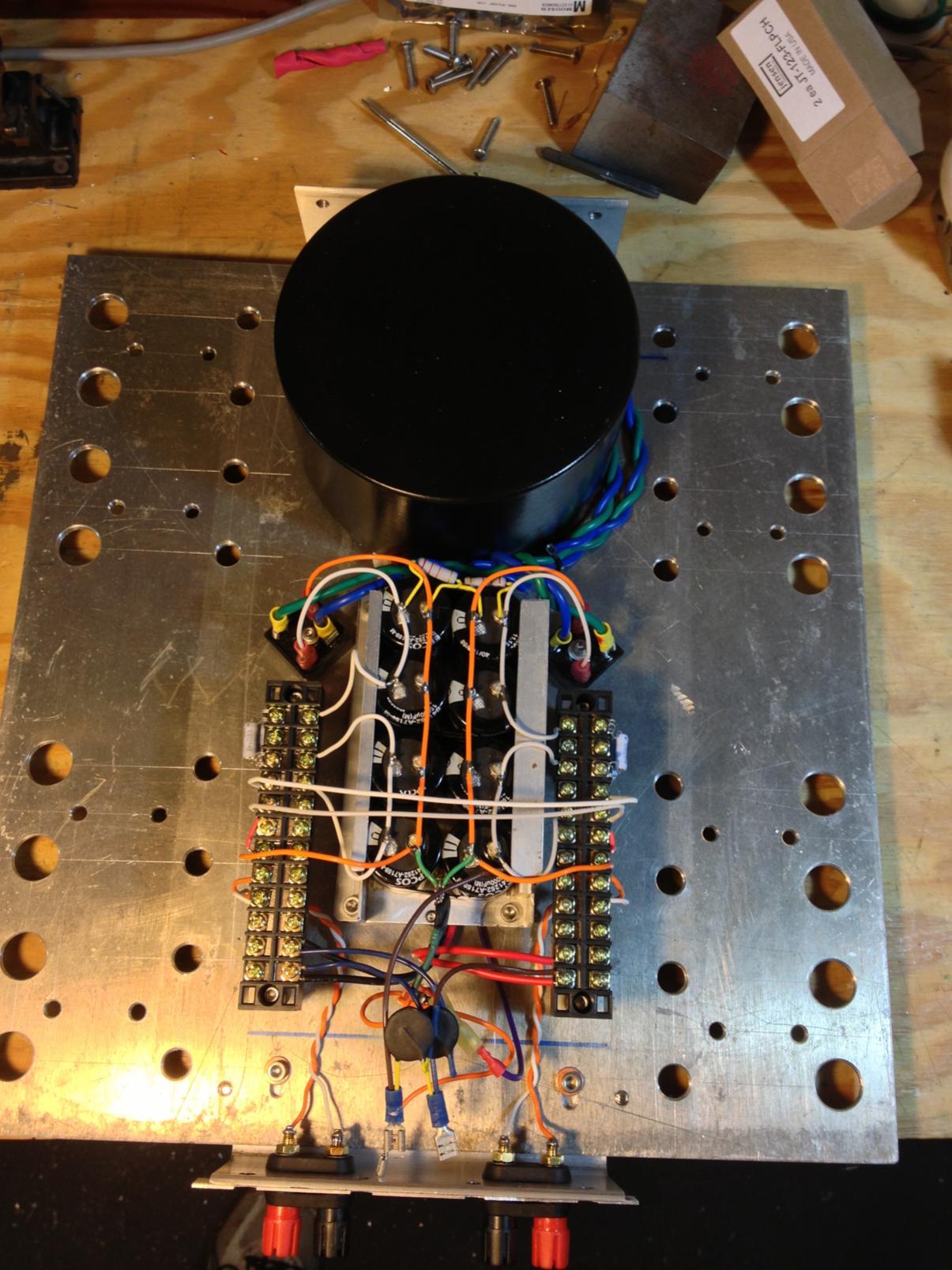

  • F6 PSU.jpg
    F6 PSU.jpg
    231.2 KB · Views: 1,108

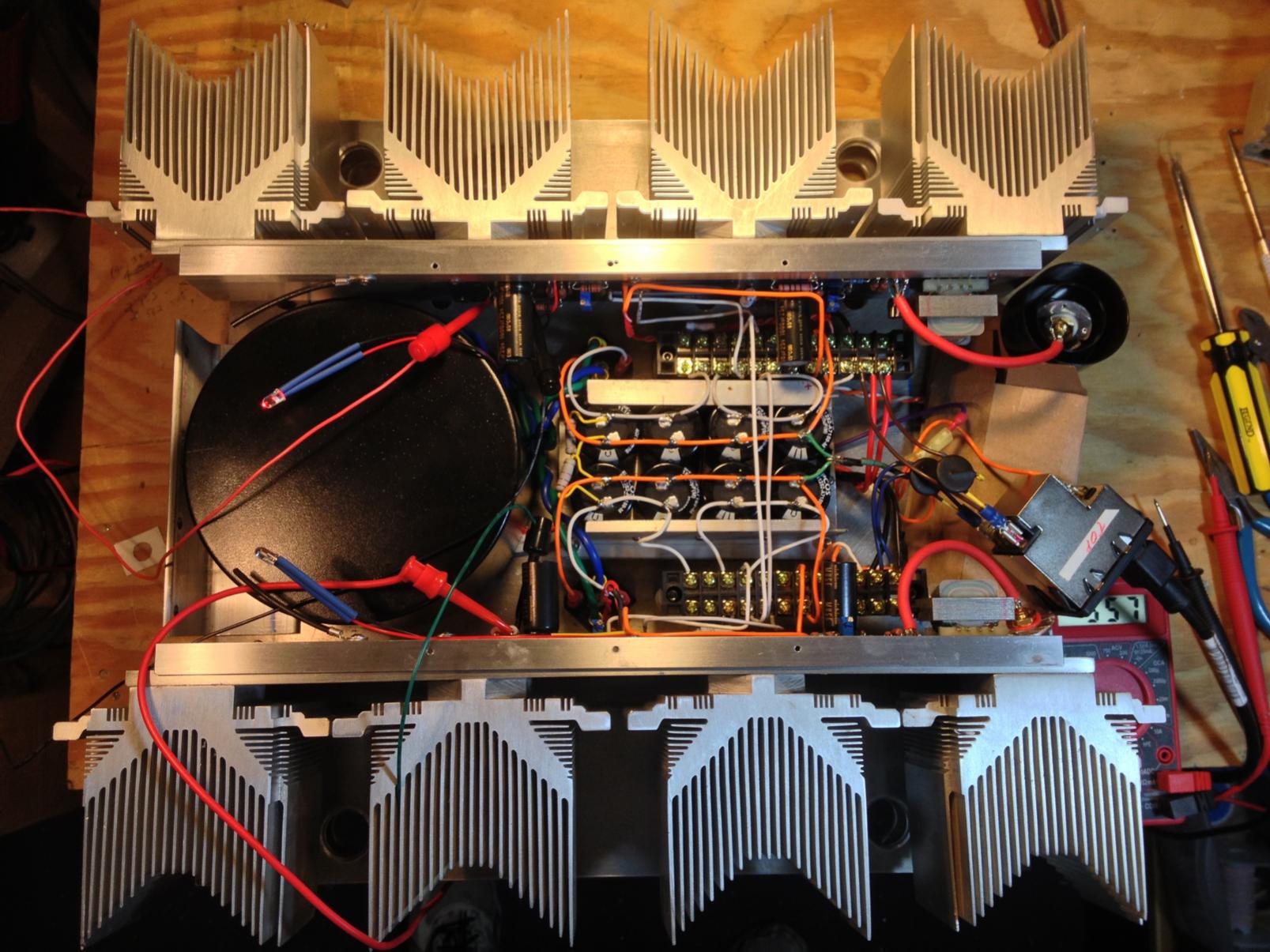

  • both channels testing.jpg
