Mike I'll let you know once they are here and in envelopes for everyone already on the list. I think so though.

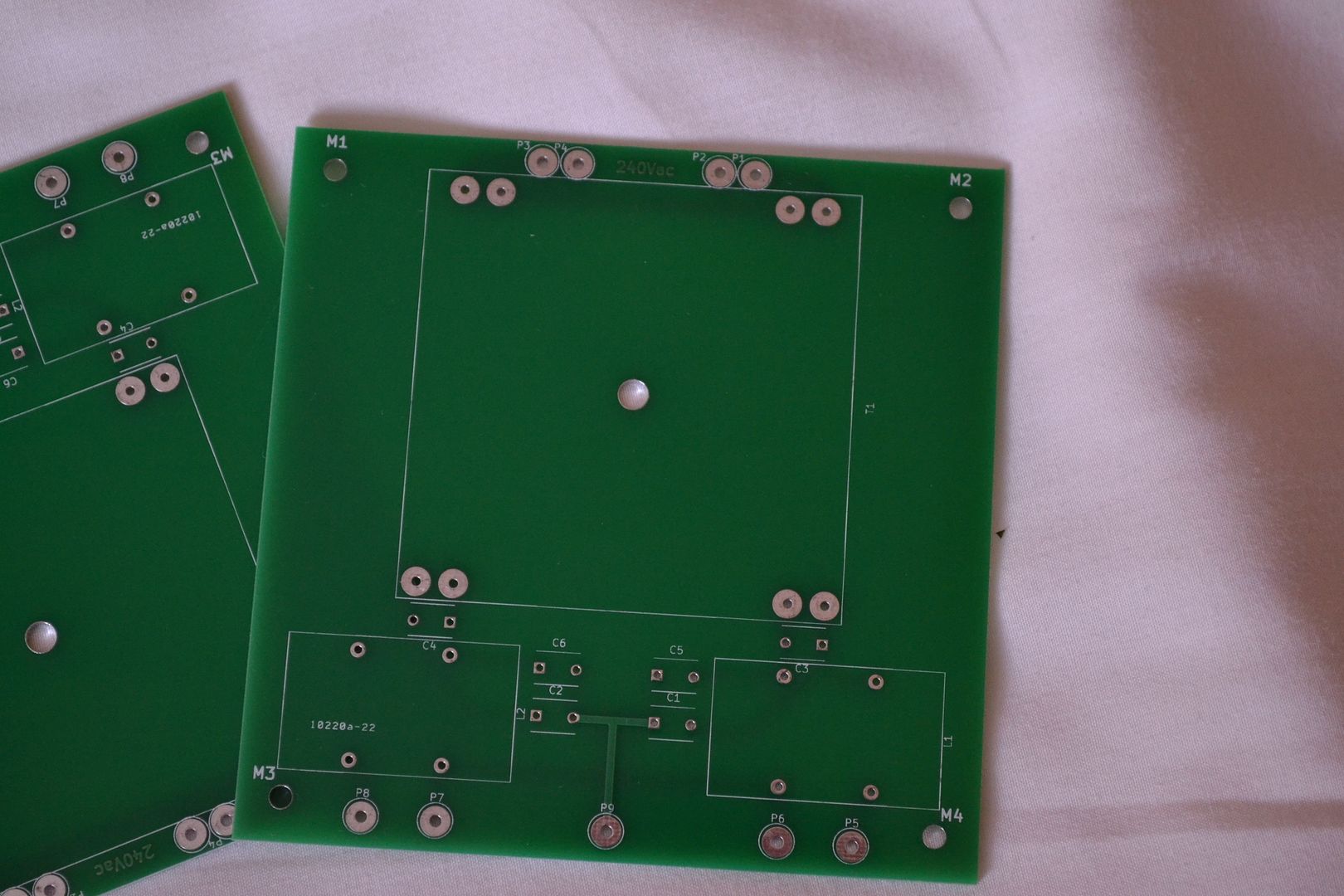

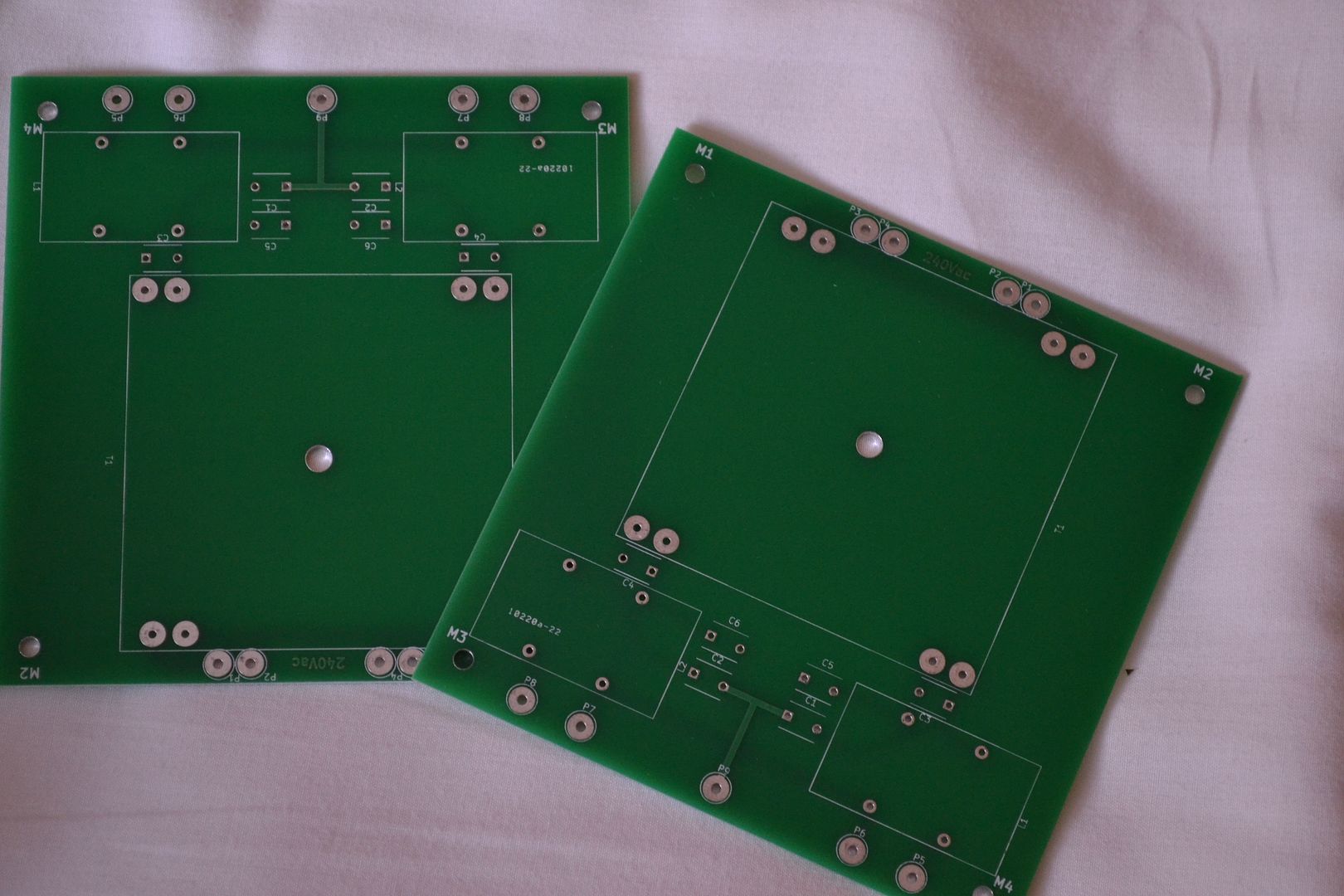

Off to Les's to pick up 50 cap6 boards this afternoon. I've ordered 75 traffo/choke boards and can always get more cap6 from Les for any stragglers.
Anyone on 110V will have to cut the track on the back of the pcb that links up the 230v winding. It's obvious.
Anyone on 110V will have to cut the track on the back of the pcb that links up the 230v winding. It's obvious.
An externally hosted image should be here but it was not working when we last tested it.
All boards here I'll start sending out the UK ones today. I need to check the 110v function for the few US buyers before I ship those.
Can all the UK buyers pm me their address details.
cheers
Cheers Keith glad they arrived in a timely fashion.
Here the BOM that I use.
2x Talema 70065k transformers: https://www.electronic-shop.lu/EN/products/133830 RS doesn't have them on stock until January !
4x Epcos TDK 82uH common mode chokes: http://www.mouser.co.uk/Search/Prod...virtualkey59250000virtualkey871-B82724J2501N1
8x LQA10T300 high speed zero recovery diodes: http://www.mouser.co.uk/Search/Prod...T300virtualkey59040000virtualkey903-LQA10T300
16x 0.1uf (100n) wima caps: http://www.mouser.co.uk/ProductDeta...=sGAEpiMZZMv1cc3ydrPrF7l45uRd9dVhK2iviYXLQ3E=
4x Caddock, 20 ohm, 30 watt thick film resistors: http://www.mouser.co.uk/Search/Prod....0-1%virtualkey68400000virtualkey684-MP930-20
4x Hammond 158T 300mA chokes: https://www.jukebox-revival.eu/staging/smoorspoel-hammond-158t.html
I snub the diodes with 10n styrene caps under the board from rush-online.co.uk, no need for resistors due to the proximity of the 20r Caddocks and the coil impedance.
EU buyers will likely need different dropper resistor values, as will our U.S. cousins.
Here the BOM that I use.
2x Talema 70065k transformers: https://www.electronic-shop.lu/EN/products/133830 RS doesn't have them on stock until January !
4x Epcos TDK 82uH common mode chokes: http://www.mouser.co.uk/Search/Prod...virtualkey59250000virtualkey871-B82724J2501N1
8x LQA10T300 high speed zero recovery diodes: http://www.mouser.co.uk/Search/Prod...T300virtualkey59040000virtualkey903-LQA10T300
16x 0.1uf (100n) wima caps: http://www.mouser.co.uk/ProductDeta...=sGAEpiMZZMv1cc3ydrPrF7l45uRd9dVhK2iviYXLQ3E=
4x Caddock, 20 ohm, 30 watt thick film resistors: http://www.mouser.co.uk/Search/Prod....0-1%virtualkey68400000virtualkey684-MP930-20
4x Hammond 158T 300mA chokes: https://www.jukebox-revival.eu/staging/smoorspoel-hammond-158t.html
I snub the diodes with 10n styrene caps under the board from rush-online.co.uk, no need for resistors due to the proximity of the 20r Caddocks and the coil impedance.
EU buyers will likely need different dropper resistor values, as will our U.S. cousins.
It would seem that electronic-shop do not have the transformers in stock. They are expecting a delivery next week so hopefully I will have them in my sticky mitts within a fortnight. Fingers crossed.
Hi Simon - I'm away from home at the moment but I'll let you know/make payment as soon as I get back.
