Paradise phono stage

[Salas]

Is that mounting transport worthy?



[Marra]

Do you mean like these

CBSB-8-01A2-RT - RICHCO - PCB SUPPORT TAPED BASE 12.7MM | Farnell United Kingdom



[Salas]

Those need pcb holes also.



[Marra]

My bad.I do remember seeing some supports that had double sided tape fixing but the pcb fitted into a groove on the support.



[elfischiso]

Boards and parts received!

Today the post-man delivered some beautiful pcbs and parts at my house!

Thanks Alfred and thanks Birger for your efforts!

Stefan



[Joachim Gerhard]

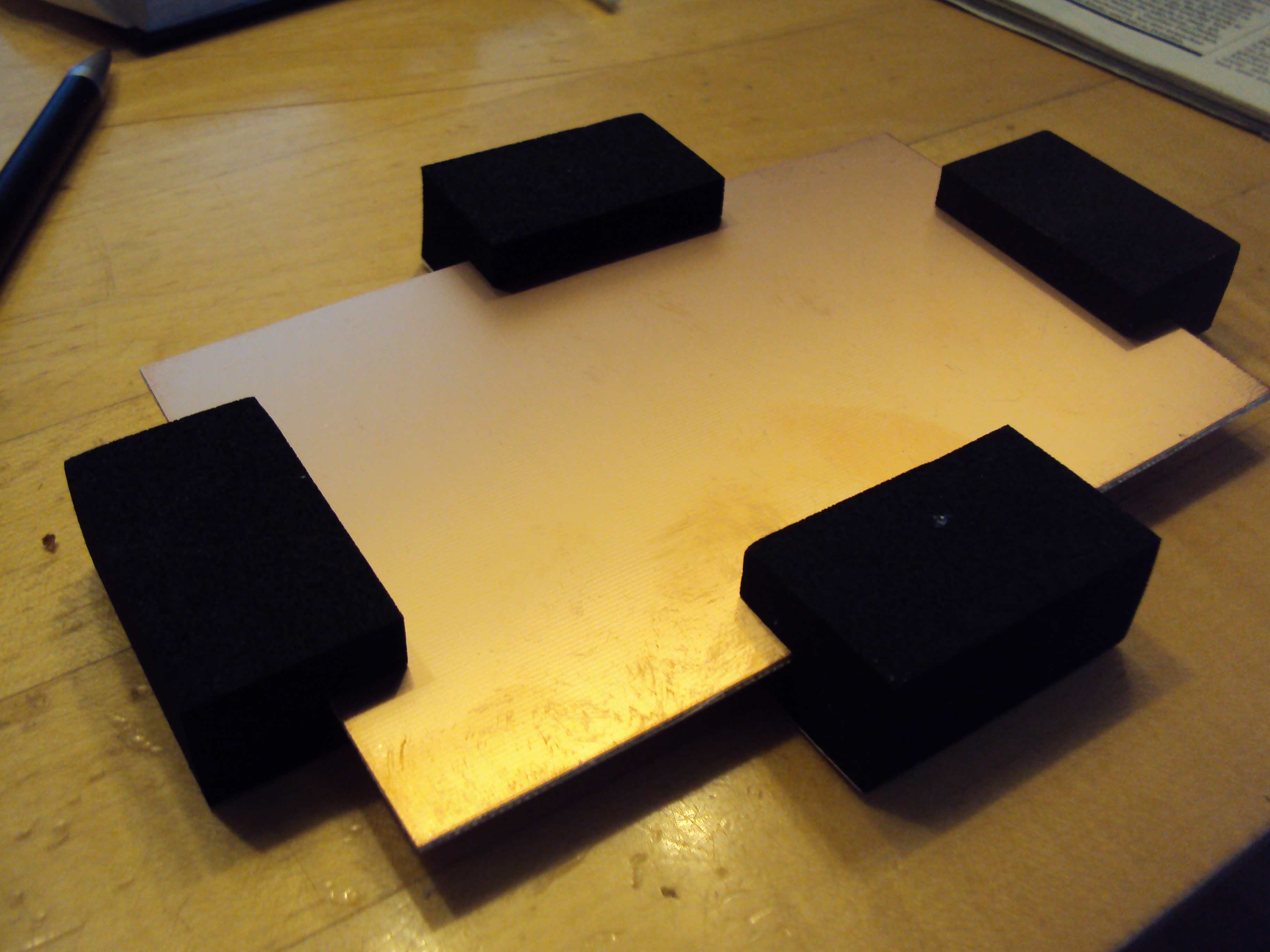

It´s like this.
One possibility that can be transported. The pads can be cut and made smaller or used at the edges.



[reins]

Parcel has arrived

Wow, a lot of parts, I think I underestimated the whole thing. This is a nice winter project.

Thank you guys for all your effort to make this possible.

Stephan



[FdW]

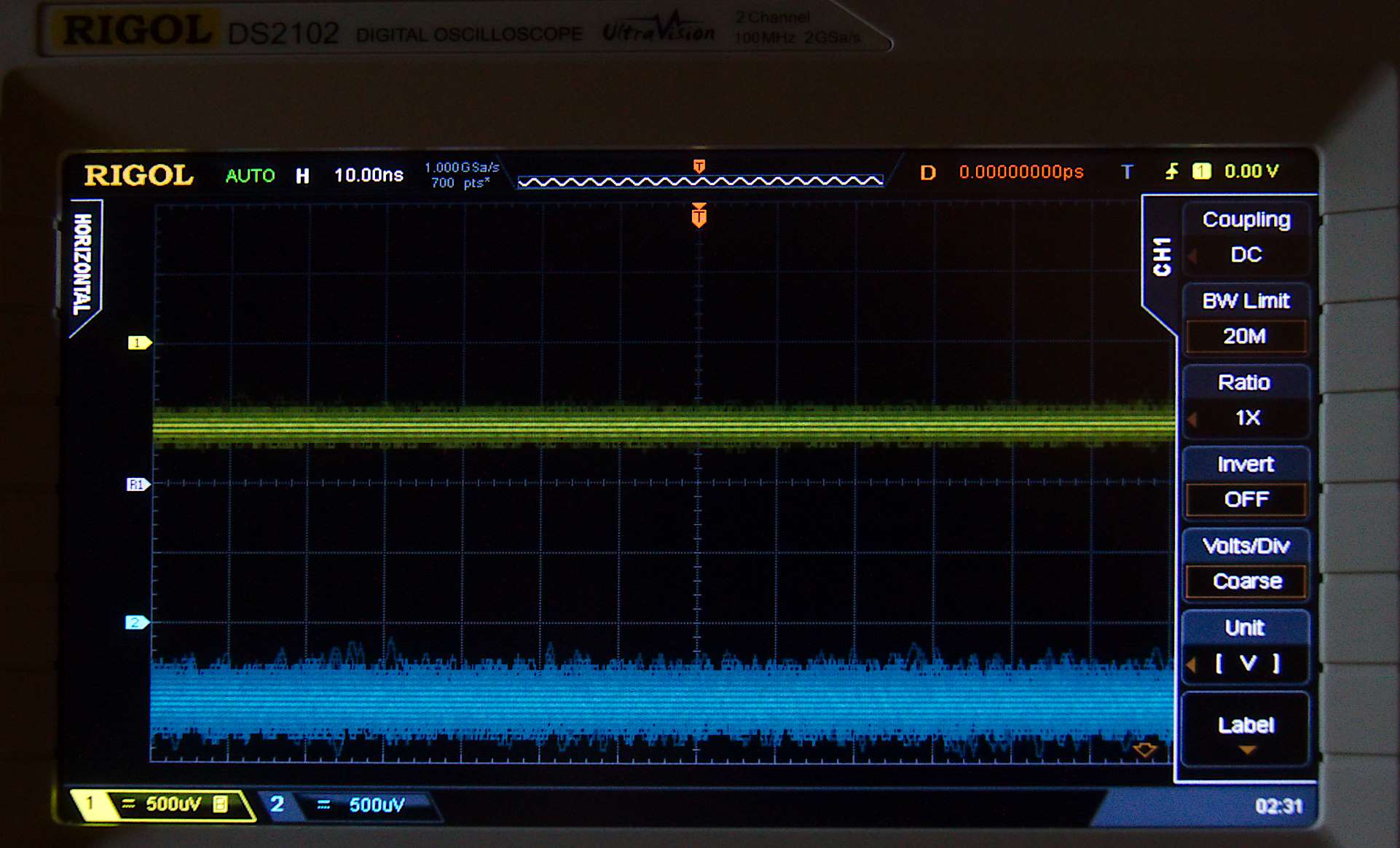

How much is noise RMS at 500uV sens for full out bandwidth and 20MHz limit with the crock clip shorting the probe's tip?

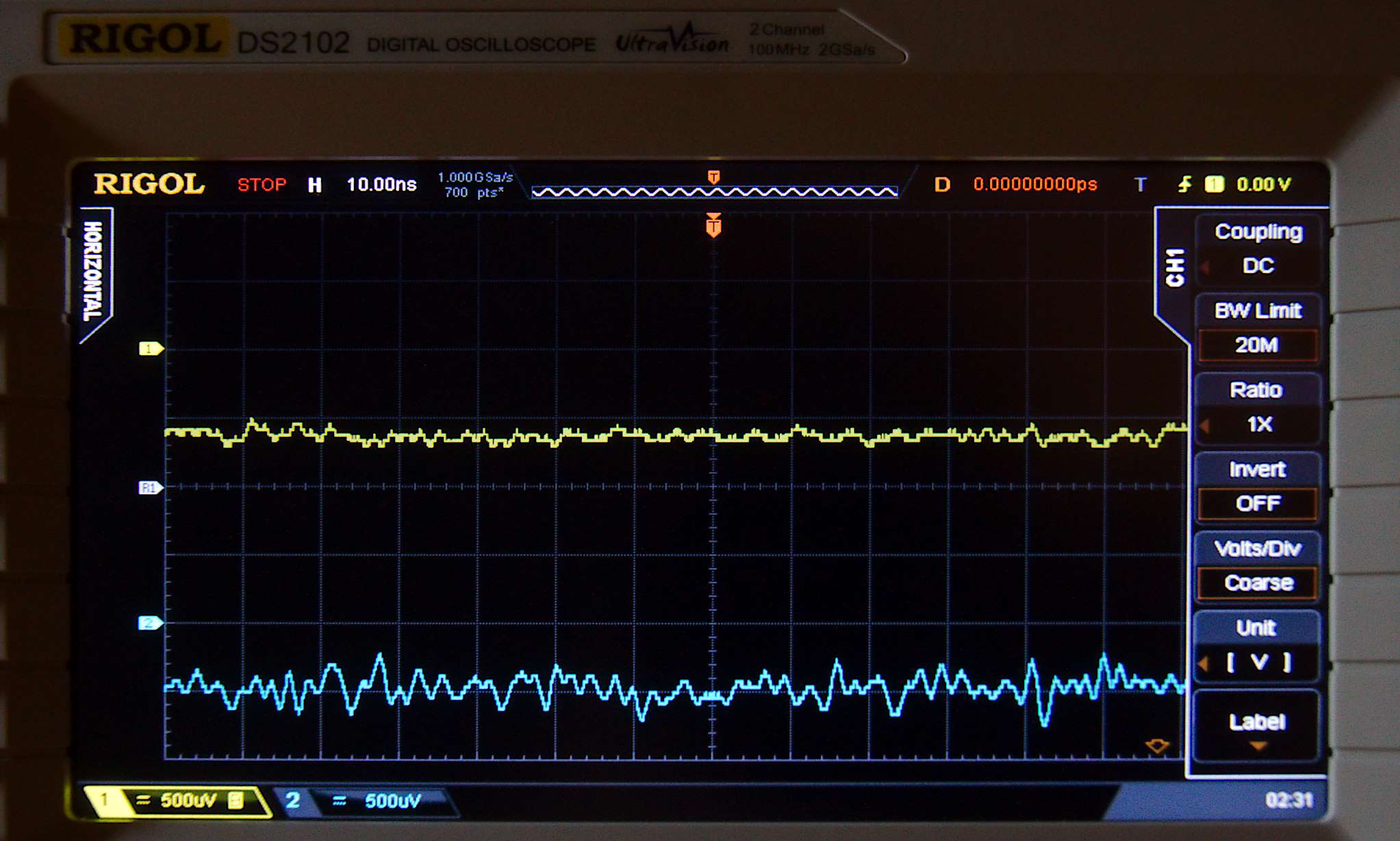

Here the pictures, Ch1 shorted, Ch2 open, Ch1 20Mhz, Ch2 100Mhz 🙂



[D3rsch]

My paradise is here.
Thank you for the great service !

Dirk



[cheffe01]

😎

Danke an Alfred
und an alle die daran mitgearbeitet und viel Zeit
geopfert haben. Nun kann es losgehen, ich freue mich schon. 😀

Liebe Grüße
Stephan

------------------------------------------------------------------------

Thanks to Alfred
and to all who worked on it and a lot of time
have sacrificed. Now the fun begins, I can not wait. 😀

Greetings
Stephan



[Salas]

Here the pictures, Ch1 shorted, Ch2 open, Ch1 20Mhz, Ch2 100Mhz 🙂

Thanks. Looks like it has a good front end as DSO's go for noise.



[Salas]

It´s like this.
One possibility that can be transported. The pads can be cut and made smaller or used at the edges.

I use a single, little off centre, screw to tension the PCB safer on the pads when choosing some give in mounting. SYLOMER supporting blocks under green boards in this example.



[Joachim Gerhard]

Looks pretty good.



[Bksabath]

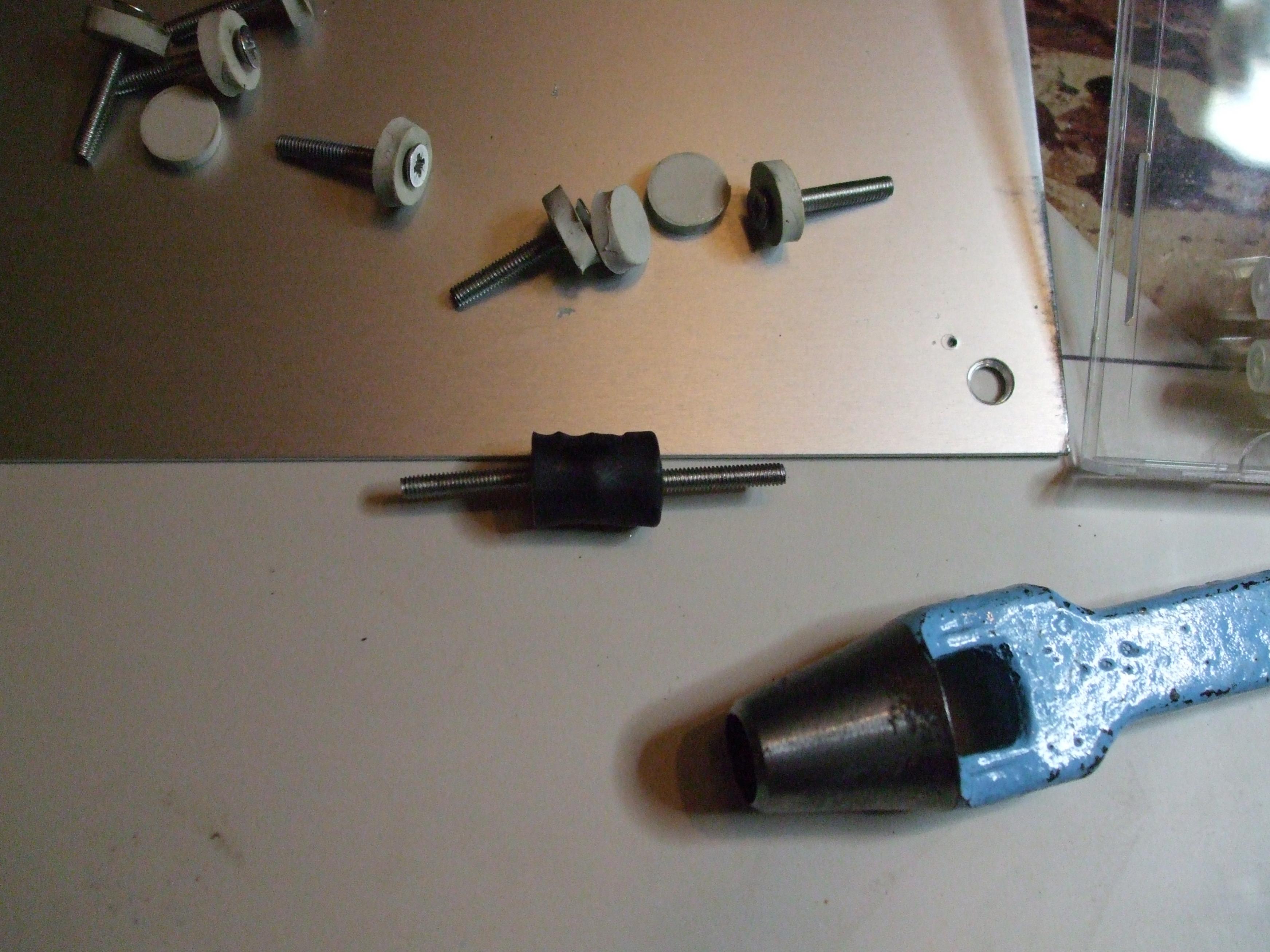

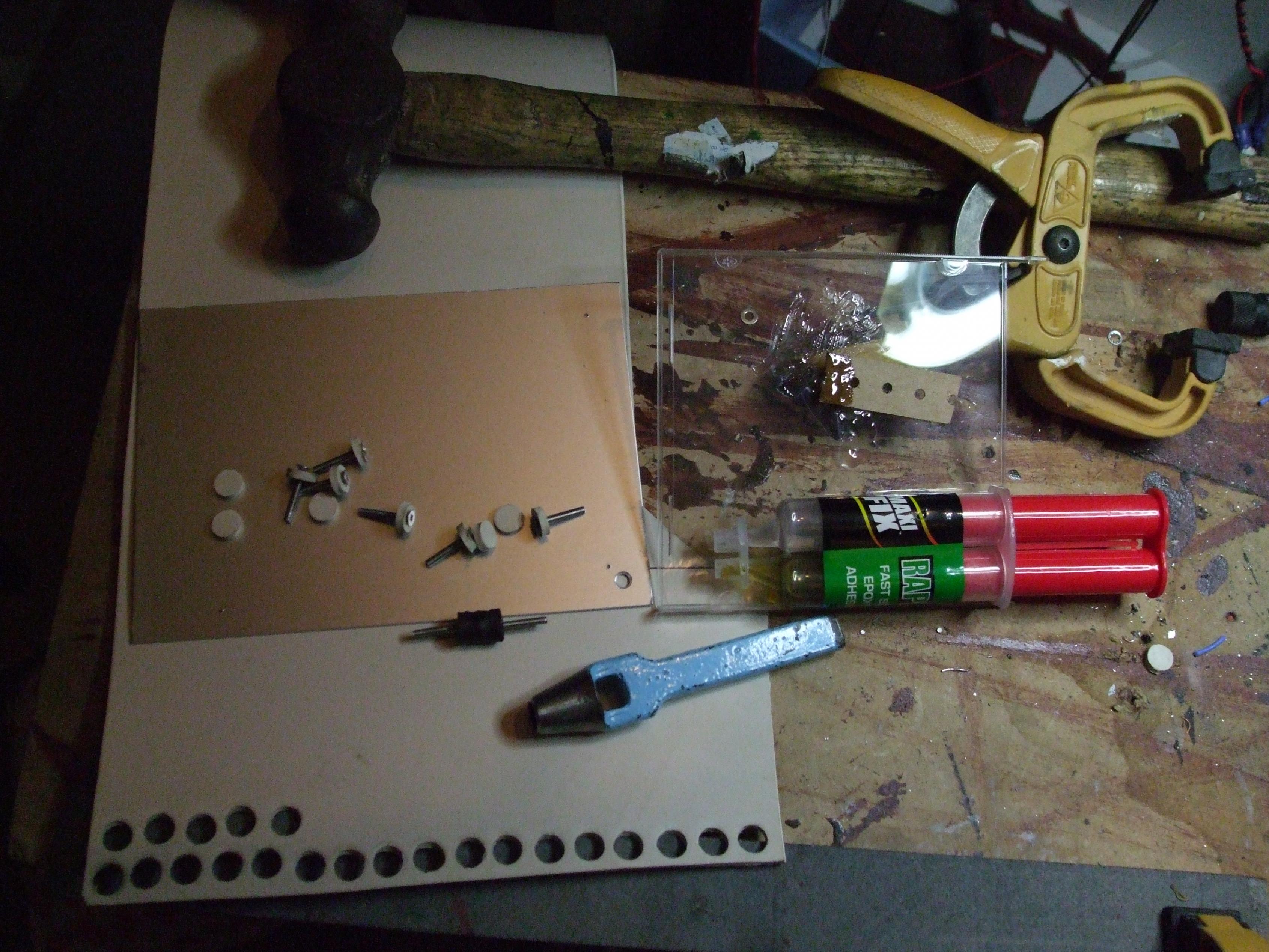

Here is another one Diy stile
Rubber sheet cut in to circles and srrink sleeve to keep them togheter.

Epoxi resisin is not needed realy



[Joachim Gerhard]

endless creativity



[Bksabath]

Not only cheap, they can be tuned with or whitout epoxy and with number of circles or rubber type .😀
screws or nuts or duble sided stiky tape avvaliable depending on what is in one draw
Nuts 😀
