My "Stupendous" PPP 6P1P build

[Lingwendil]

I used to think point to point was the best, but I really enjoy PCBs overall now. Greatly increases ease when building more complex or repetitive stuff like arrays or PSUs.



[Francois G]

@Bas Horneman,

At what primary impedance are you planning to use your Lundahl LL1620s?



[Bas Horneman]

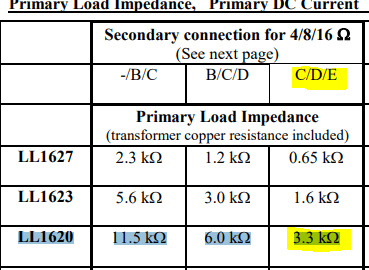

3k3. And they say this in the datasheet:

Step 1 From your secondary load impedance (4, 8 or 16 ohms), we suggest a secondary connection alternative with 0.5 dB loss.

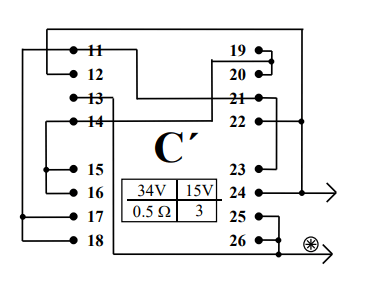

Chose this:

All rather confusing to me.



[Bas Horneman]

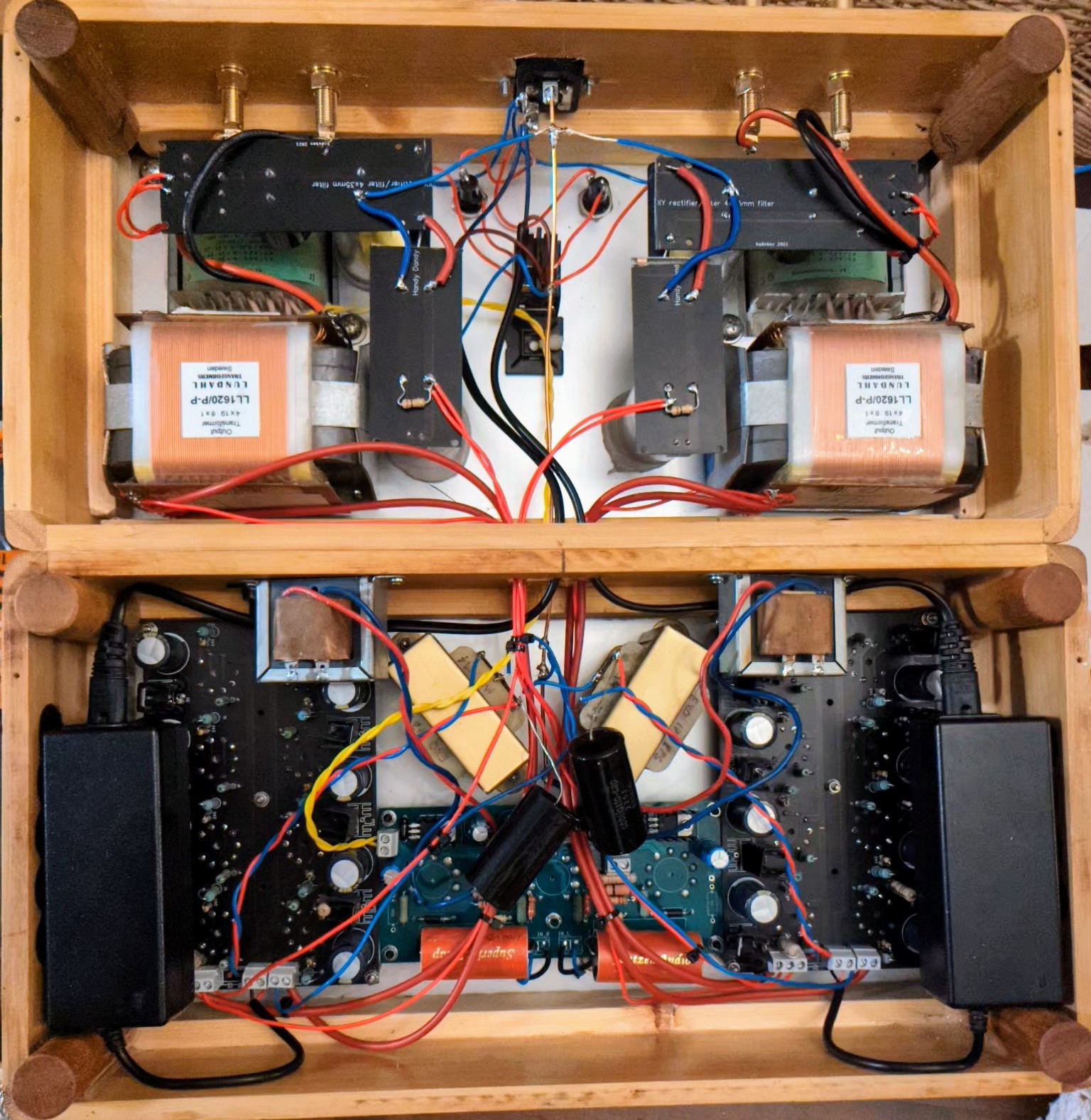

All wiring done. Perhaps I'll fire it up. If I have enough courage. Perhaps I'll have to whip up some Dutch courage.



[HeyBill]

Yipeeee.



[Kay Pirinha]

Perhaps I'll fire it up. If I have enough courage.

Of course you will! Won't ya?? 👍



[Bas Horneman]

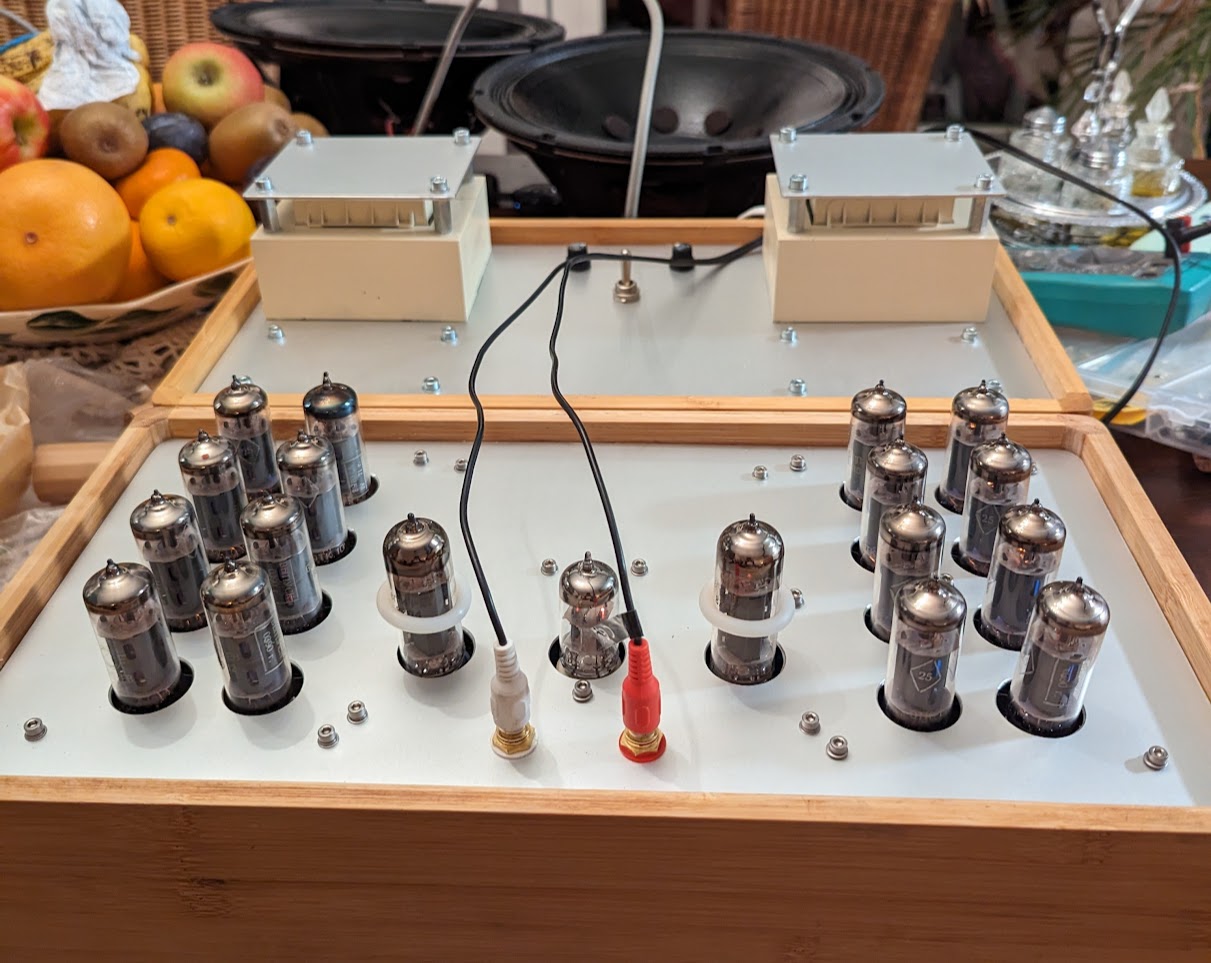

It's Alive!



[Bas Horneman]



[HeyBill]

Well done Bas.



[amplidude]

Very nice build, I know that feeling flipping the switch first time..



[Bas Horneman]

Scary. I had a short... Luckily fused. Triple fused. Main. And then one for each channel.



[amplidude]

Clean underwear on and back on the horse...



[HeyBill]

What's a short among friends.



[Bas Horneman]

Just removed the ecc81 out of the circuit BTW. Way too much gain. Even with just the EL84. Much more gain than I need. I'll turn it into triode mode soon.



[Bas Horneman]

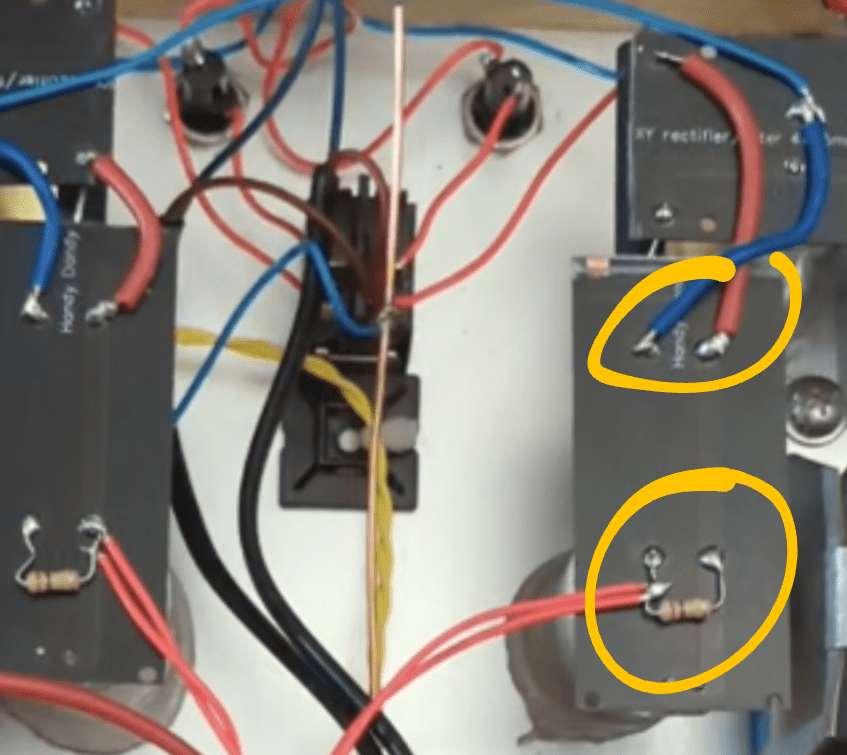

Looks like I'll have rebuild it. Hummmm. I not sure of it is power transformer too close to output. Or something else.



[Bas Horneman]

All video's without bass just so you know. The plate amp went into protection mode after I swopped rca input cables.



[Bas Horneman]

In smoketest mode.
