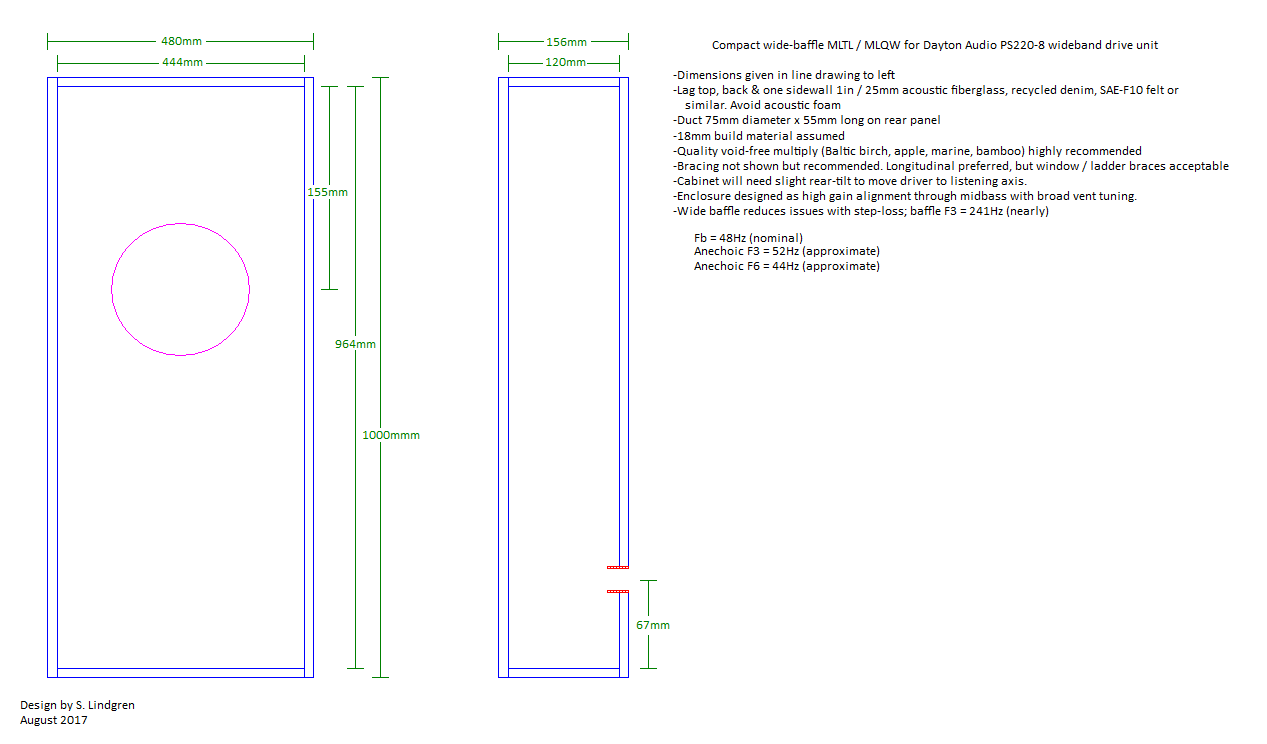

I work up far more designs than I usually publish on the forum or ever normally see the light of day elsewhere. Some were done at request, some are simply quick design exercises or checks / investigations, some I can't actually remember the reason for doing. I don't always have time to systematically catalogue things, and they can end up lying around on one of my HDDs for months until I sort through them. I'm currently in the process of going through one of my old external USB HDDs before it's recycled & found quite a few. Most weren't worth bothering with, but there were some more practical / interesting ones so rather than scrapping them, I thought I'd start a thread that can essentially be a bit of a dumping ground for misc. designs that I've done that either haven't found a home elsewhere, or that have previously been posted but got buried on other threads, so at least they're concentrated together.

Advance warning:

-There is little consistency in the layout / sketches. I'm lousy at CAD, and there's no way I can inflict more than a small portion on the long-suffering Dave to draw. In these cases, it's probably not worth a high quality drawing anyway. I've quickly re-saved most into png format to save space & done a little tidying if needed. The rough date is sometimes mentioned, sometimes not, depending if I remembered to add it at the time. Sometimes damping is shown in the sketch (all done in Windows Paint so they are very basic), sometimes it isn't, but I always refer to it in any accompanying notes. Same for bracing or vents / ducts; I often don't show the dimensions but they're in the notes. There may be some errors; I don't think there is anything major though. Normally I work in Imperial & assume a baseline 3/4in build / sheet material thickness. Some are metric, in which case the assumption is 18mm. Change as desired, providing the internal dimensions are not altered.

-Most of these are physically quite simple; vented box variations, some MLTLs or ML-Voigts etc.

-I'll add periodically as / when I find things. All are free for personal use.
Last edited:

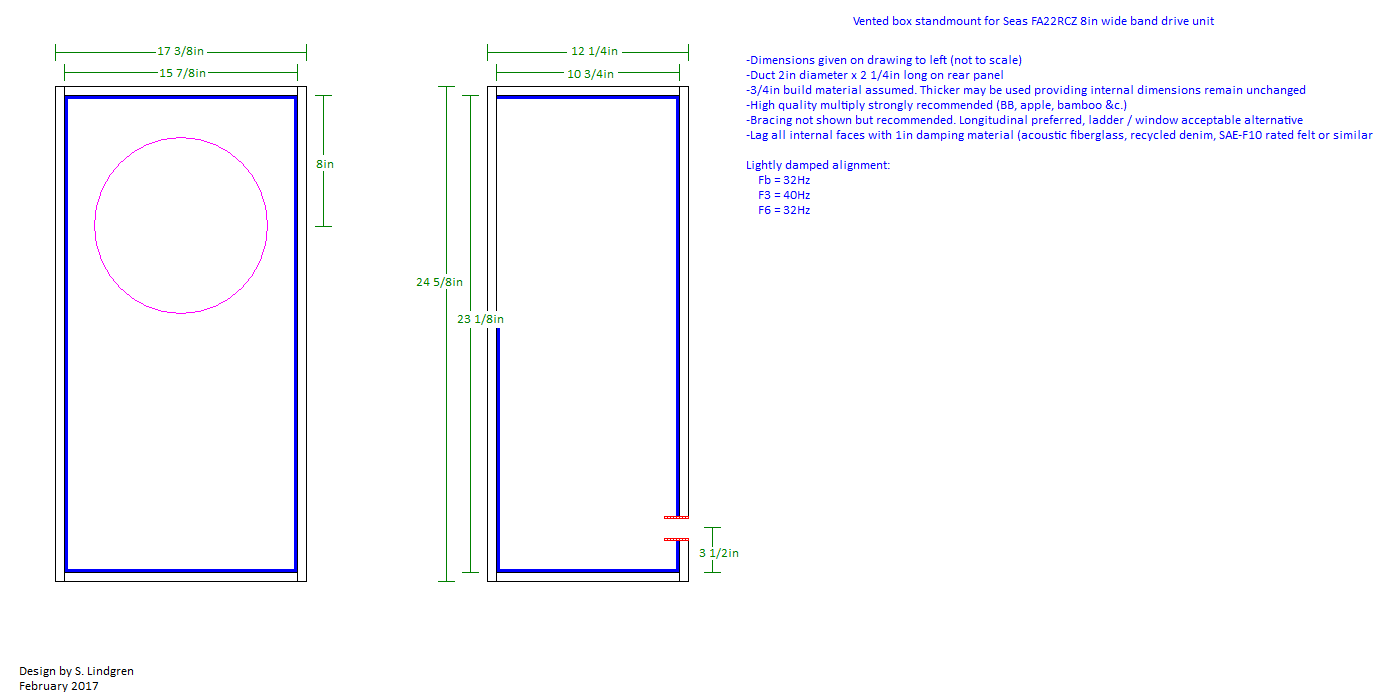

Moderate sized (OK, large by some lights) vented box standmount for the 8in Seas FA22RCZ. It's a nice driver of its type, deserves a wider audience.

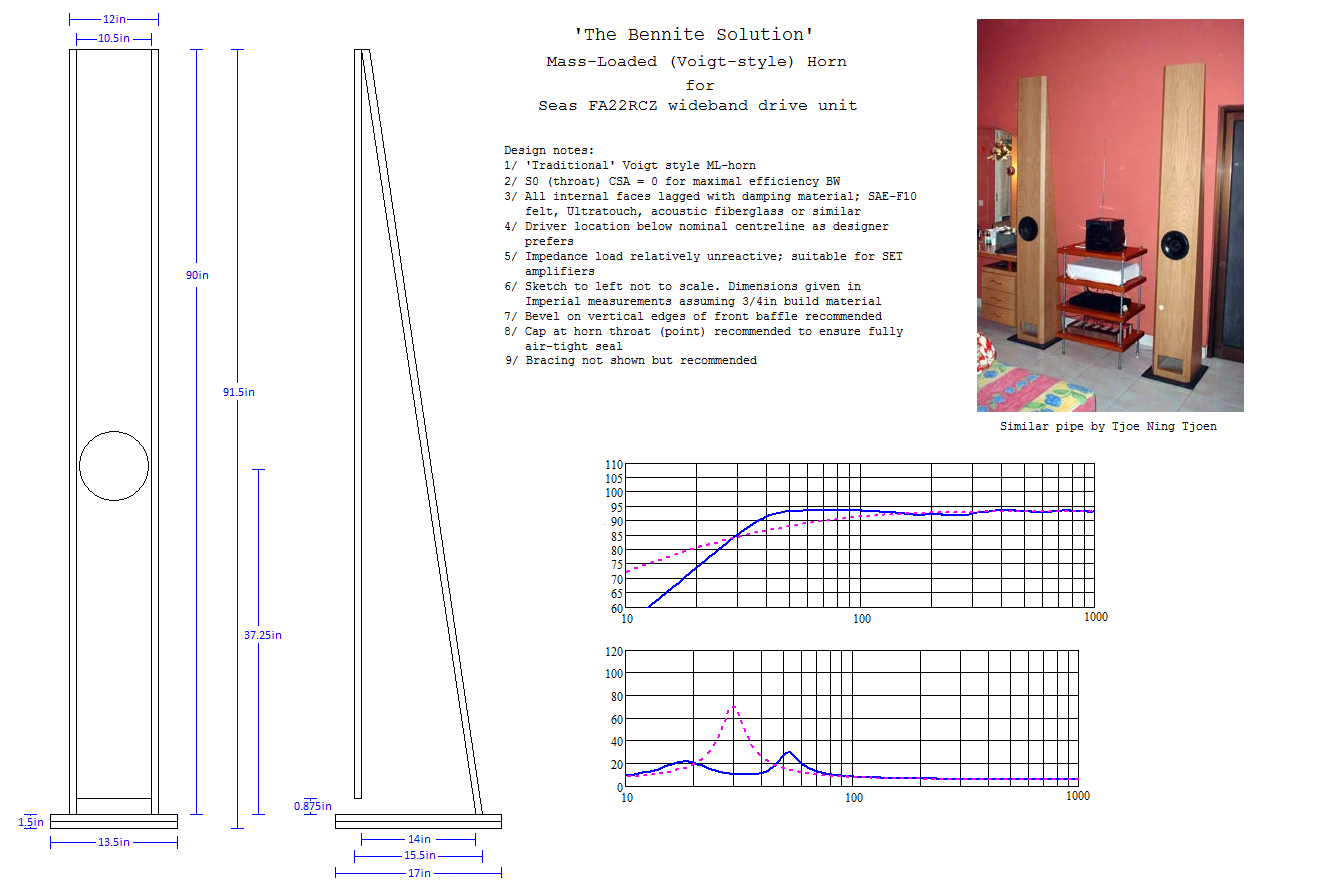

I've dug out a large ML Voigt (The Bennite Solution) I did for it that's buried in another thread too. I quite like this. ;)


  • FA22RCZ vented box standmount.PNG
    FA22RCZ vented box standmount.PNG
    27.3 KB · Views: 6,837
  • The Bennite Solution Seas FA22RCZ.PNG
    The Bennite Solution Seas FA22RCZ.PNG
    291.1 KB · Views: 5,361
Last edited:
A bunch of boxes for the MA Pluvia 11. Some have been posted before, but not all; I'm deliberately concentrating them here as they're all over the shop at the moment.

Two here. Well, technically four.

-A set of 3 vented box options (The King of the Swingers -thank you Disney) I worked up when the driver was quite new; design exercise in different sizes & tunings, accounting for typical output impedance of many SET amps, in the 2.5ohm - 4ohm category.



-A tall ML Voigt (The Thin End of the Wedge -thank you, Yes, Minister / Yes, Prime Minister).


More Pluvia 11 boxes. Might as well have them together.

-A tall MLTL. Closer to being a 'true' MLTL than some, as it doesn't use as much forcing. That isn't to say it's 'better' or 'worse' than shorter types. Just a bit different. YMMV.



-A compact standmount 'monitor'. No, I'm not claiming it's a studio monitor, just using the term loosely. Live with it. ;)



These are not in any kind of date order BTW. Sorry.
And more Pluvia 11 boxes. Will it ever end? Yes. But not yet. :D

-Twin driver standmount. A bit different. And why not? Run them wide open if you like, or low-pass the lower if you wish. Which I would, but that's just me. Depending on how you wire them (i.e. series or parallel) you can do a simple low-pass on the lower with either a series inductor (parallel wiring) or a shunt cap (series wiring).



-A quadrupole MLTL. A little (well, 5ft) nod to Burhoe's EPI flagship M1000 from the early 1970s. A driver on each vertical face, series-parallel wiring, no filtering. Yes, I am aware of what that means. It's meant to be like this, given the inspiration. The M1000 had & still has a following, so some people like it. Hi-Fi? Depends on your perspective. But interesting, if you have the space & don't necessarily want or value pinpoint imaging.

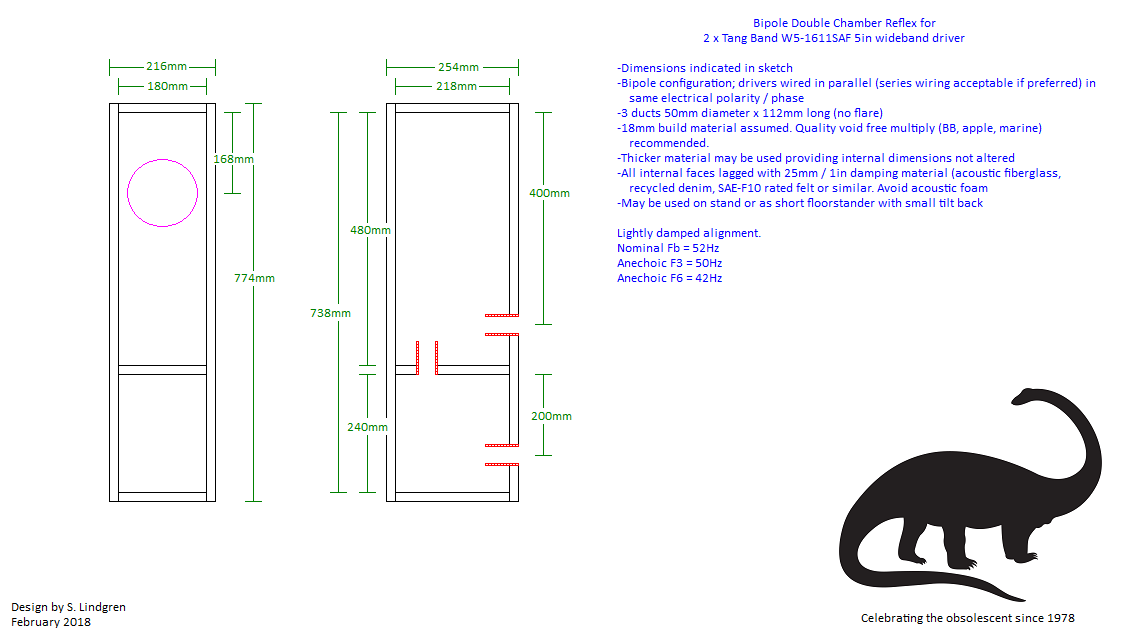

Continuing briefly on the (partial) indirect radiation theme, a bipole for the Tang Band W5-1611SAF. Minor twist: the cabinet is either a tall standmount or a short floorstander depending on your perspective & uses the double chamber reflex load. If you want to change the vent size, the pdf Dave put together with the appropriate formulas is also attached.


  • W5-1611SAF bipole DCR.PNG
    W5-1611SAF bipole DCR.PNG
    42.3 KB · Views: 982
  • ChangingPortSize.pdf
    135.6 KB · Views: 237
