NATDBERG said:
Tibi, what are the buttons like that will be supplied with the controller? Are they separate, individual little boards or on one board with the data wheel thing?
Click to expand...

Sorry for late replay. Forum notifications do not work as expected.

Buttons can be used together or separate.
Few MAYA pictures are available on my webpage.
vicol audio : MAYA - your ultimate volume-controller

Regards,
Tibi

iTiberius

iTiberius

Member
Joined 2005

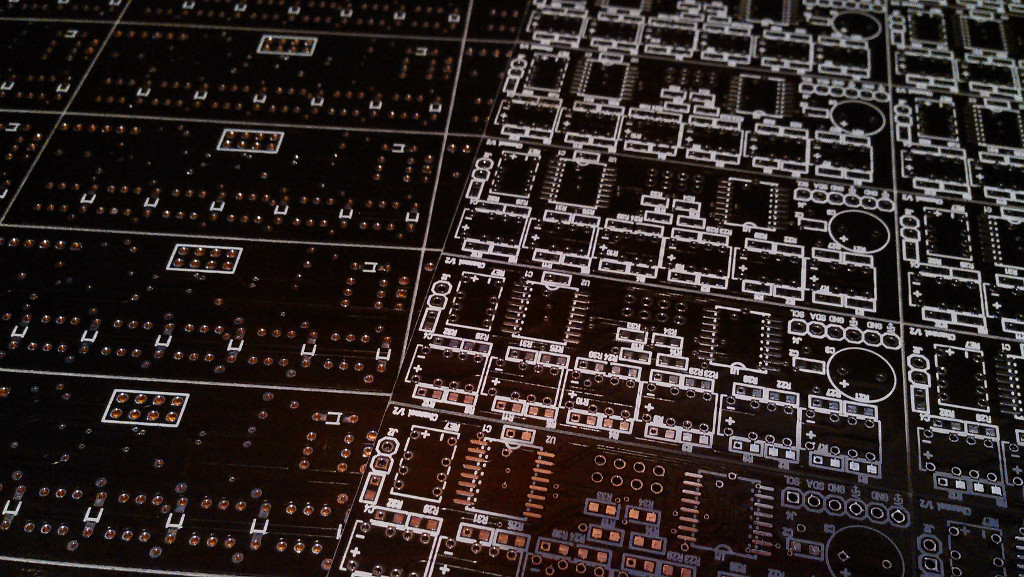

VoICB board are ready. 4 input boards should arrive soon.

Regards,
Tibi


Attachments

  • 20160625_003.jpg
    278 KB · Views: 465
danzup

danzup

Member
Joined 2007
Hans Polak said:
It would be great to have the correct gain in the display.
I have made the max gain 6dB as default, but some people have expressed their wish to use another setting.
The only way to get around this would be to make the max gain to be programmable with the remote control, but I'm afraid this is quite a hassle.

Coming back to the method of volume change, I communicated with Tibi the way I did this in hardware in my own remote control.

Tibi mentioned that going from X to Y as xxxxxx / 000000 / yyyyyy will be available.
Since this works flawlessly for me , I would suggest you supply the Firmware for the BPBP with the same time delay between 3.5msec and 4.5msec, after the 000000 has been first offered to the PCF chip, to give all relays enough time to break.
So as an example, 011111 will first go to 000000 and ca. 4 msec later to 100000

Will this timing be possible?

Regards,
Hans
Click to expand...

Hi Hans ,
then it will be like you want .
( X to Y as xxxxxx / 000000 / yyyyyy with 4ms delay after every set , for let the relay settle )
Any combination can be made if you know what to ask.
Best regards.

iTiberius

iTiberius

Member
Joined 2005
Short update.

Bad news ! Due a misunderstanding, first batch of boards have been produced from early Hans gerber files (version 1 and 4) . Therefore this is the first GB when I'm loosing money ...

Good news ! Hans provided me latest gerber files and now are in production.
There will be option to choose OLED display between blue and yellow. Only 10 yellow displays are available.
Because I'll have a large batch of VoICB ver.1 and ver.4, I think to sell full mounted few of them and put things back to profit.

Regards,
Tibi

H

Hans Polak

Member
Joined 2005
pixelpusher said:
What are the differences between versions of the VolCB?
Click to expand...

The first edition was just for the BPBP with its two input channels.
The second edition included possible attachment of the 4 input channel extension board, but had to be connected by soldering wires to it.
The third and last edition also includes support for the 6 input GB and has a header for connecting a ribbon cable with plug.

This last edition of the VolCB supports remote control for all 3 possible options:
- 2 input BPBP
- 4 Input extension board
- 6 input extension board, to be used in combination with an interface board, directly connected to the 6 input GB board.

Hans

iTiberius

iTiberius

Member
Joined 2005

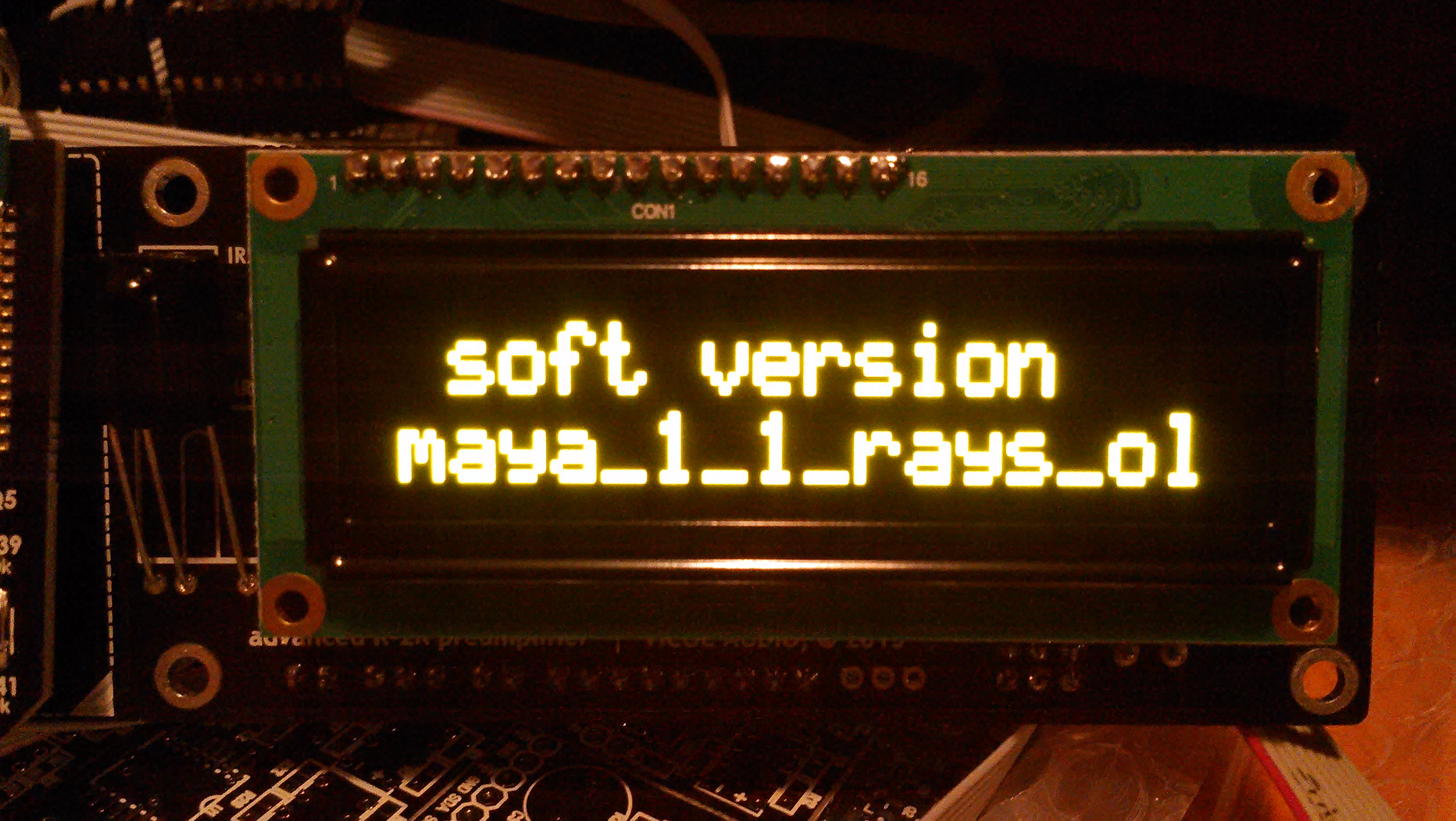

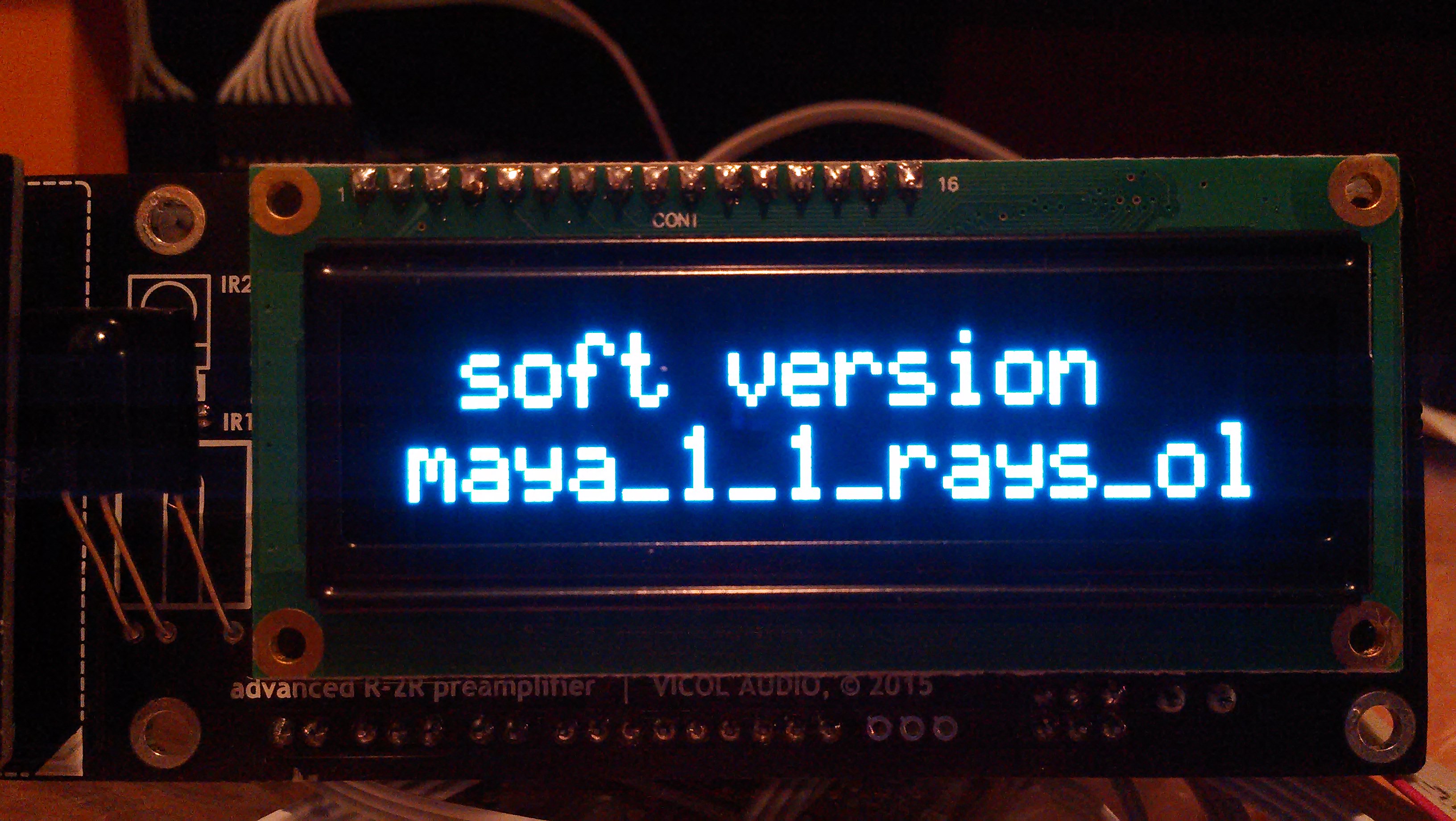

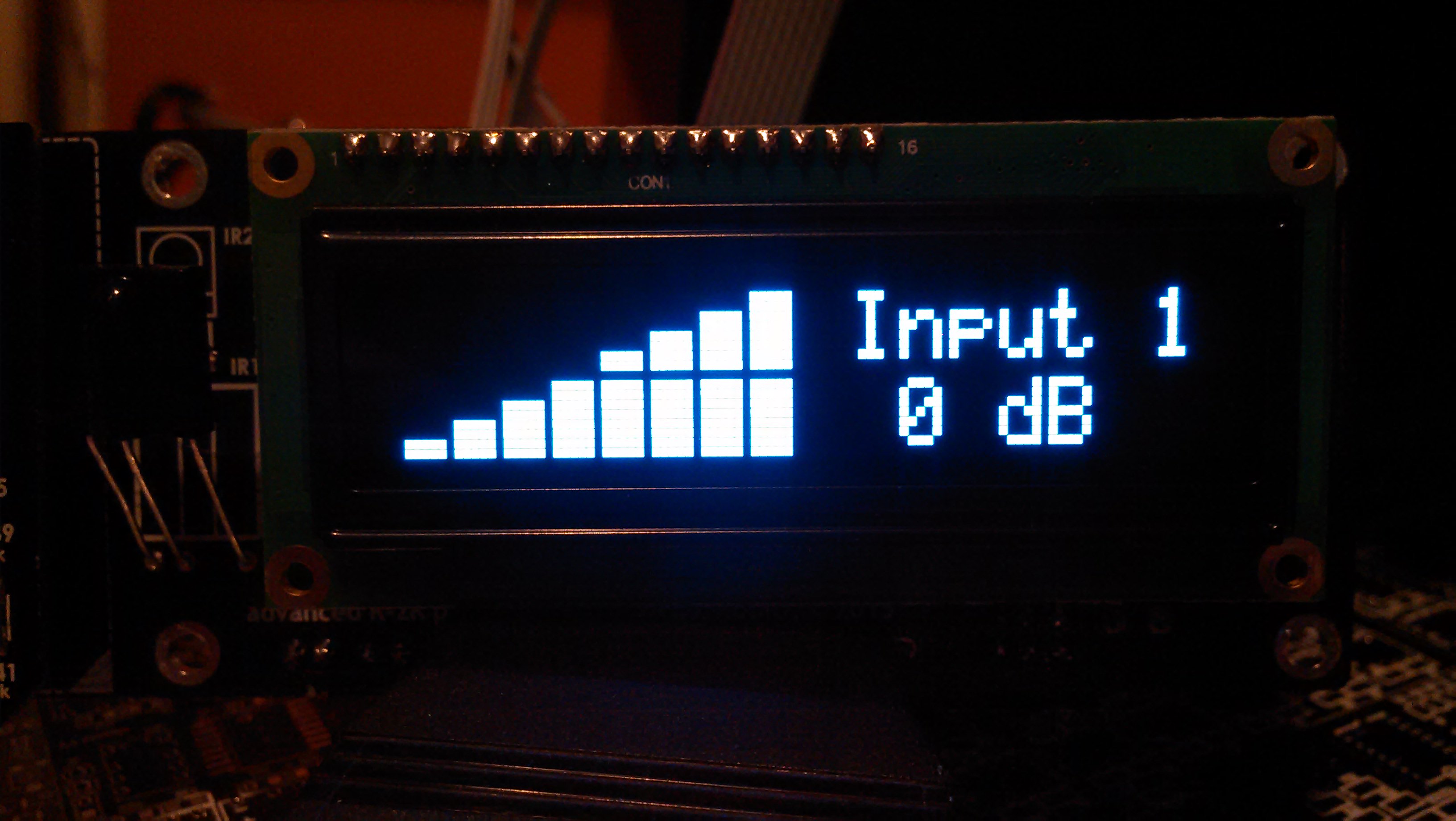

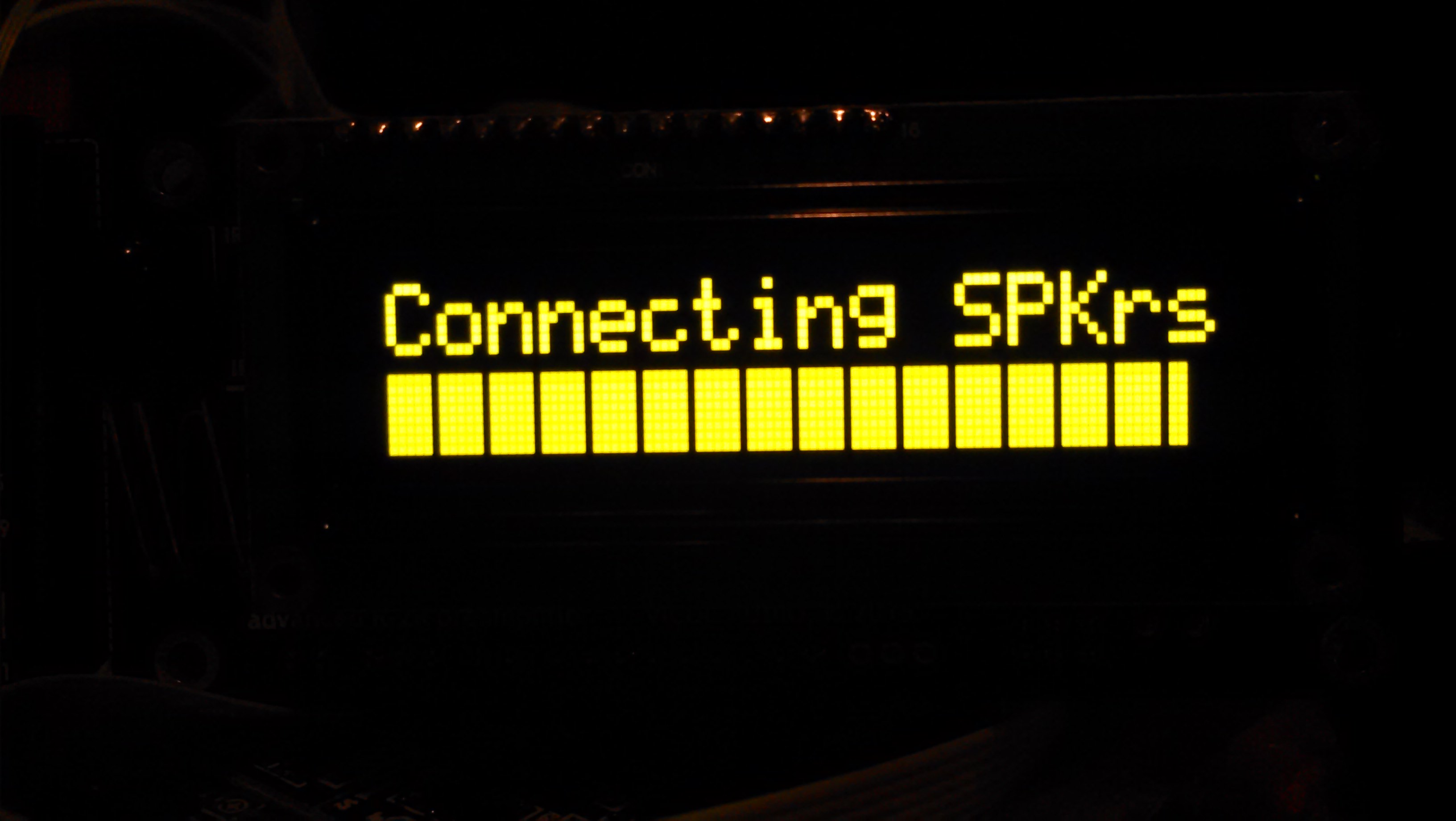

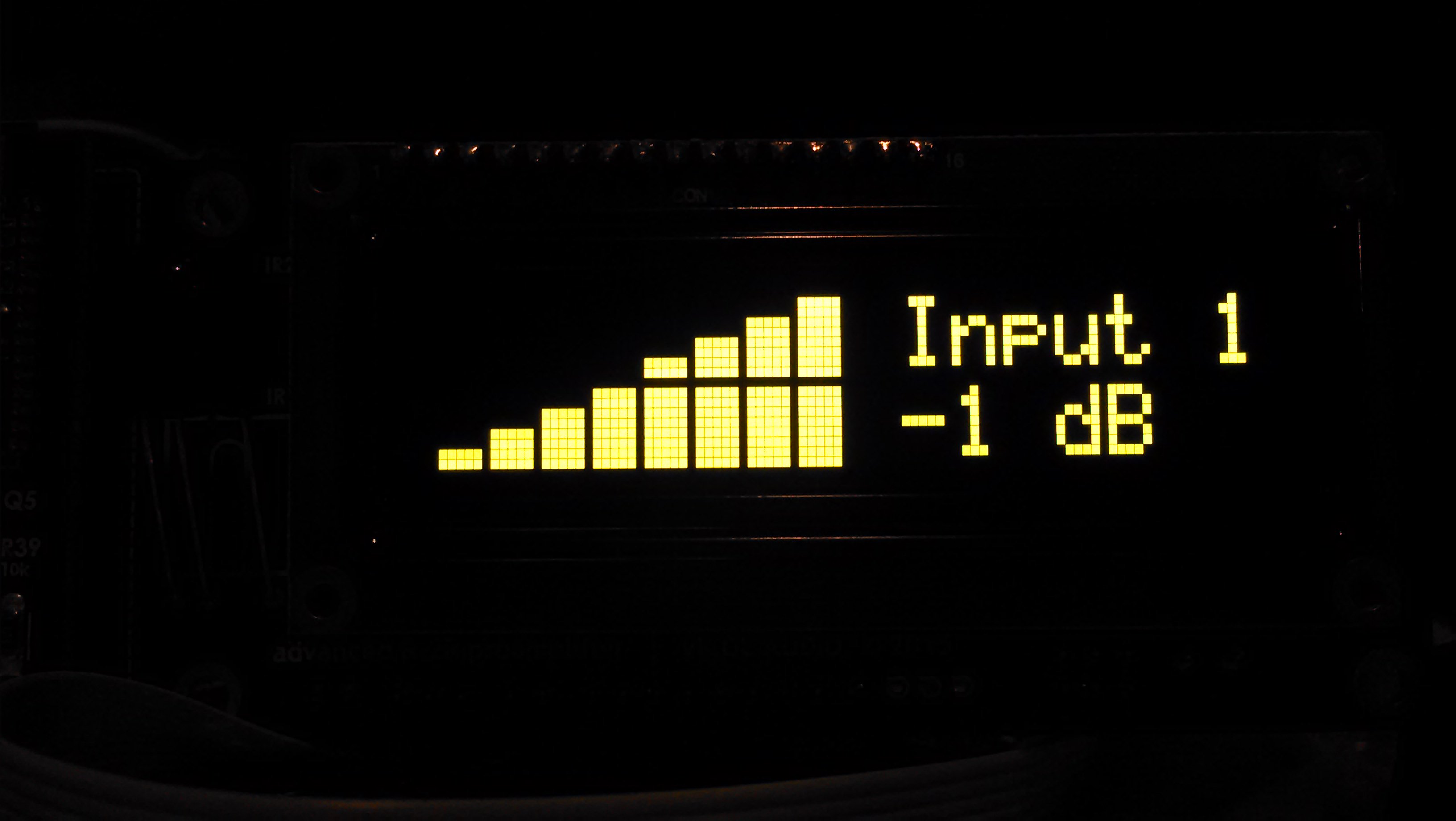

I got few yellow OLED displays. For comparison I have added few pictures. In reality colours are more vivid and eye candy. My phone is not able to capture entire gamut.
If anyone interested in yellow please drop me a pm or mail.

Thanks & Regards,
Tibi


Attachments

  • 20160715_008.jpg
    408.1 KB · Views: 433
  • 20160715_007.jpg
    758.1 KB · Views: 429
  • 20160715_004.jpg
    242.2 KB · Views: 410
  • 20160715_003.jpg
    278.3 KB · Views: 383
  • 20160715_002.jpg
    711.7 KB · Views: 368
iTiberius

iTiberius

Member
Joined 2005
