JL Audio Slash 500.1 help

[Perry Babin]

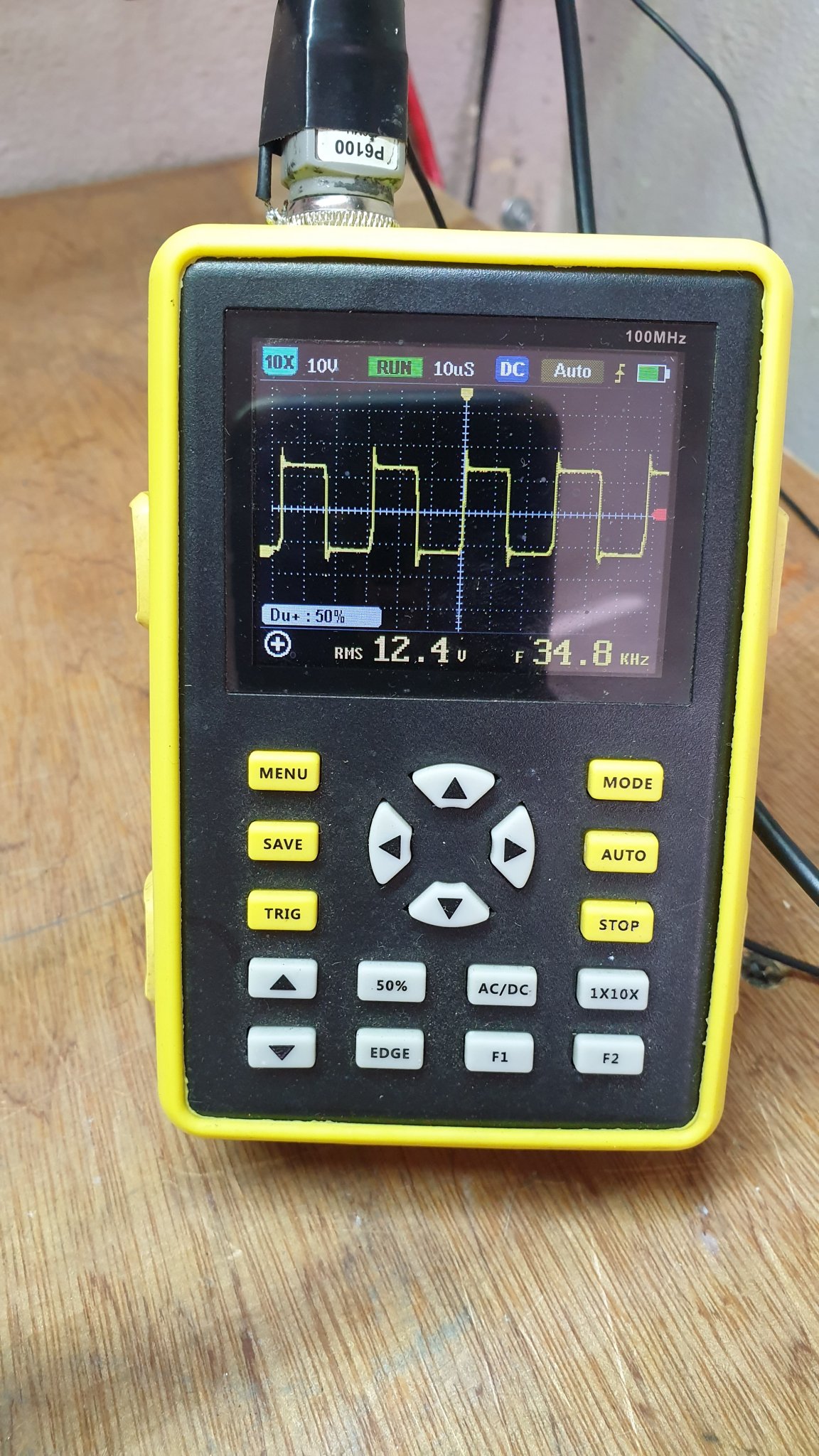

Where is the waveform taken from? I wouldn't expect that much ripple.



[Mjimenez]

Where is the waveform taken from? I wouldn't expect that much ripple.

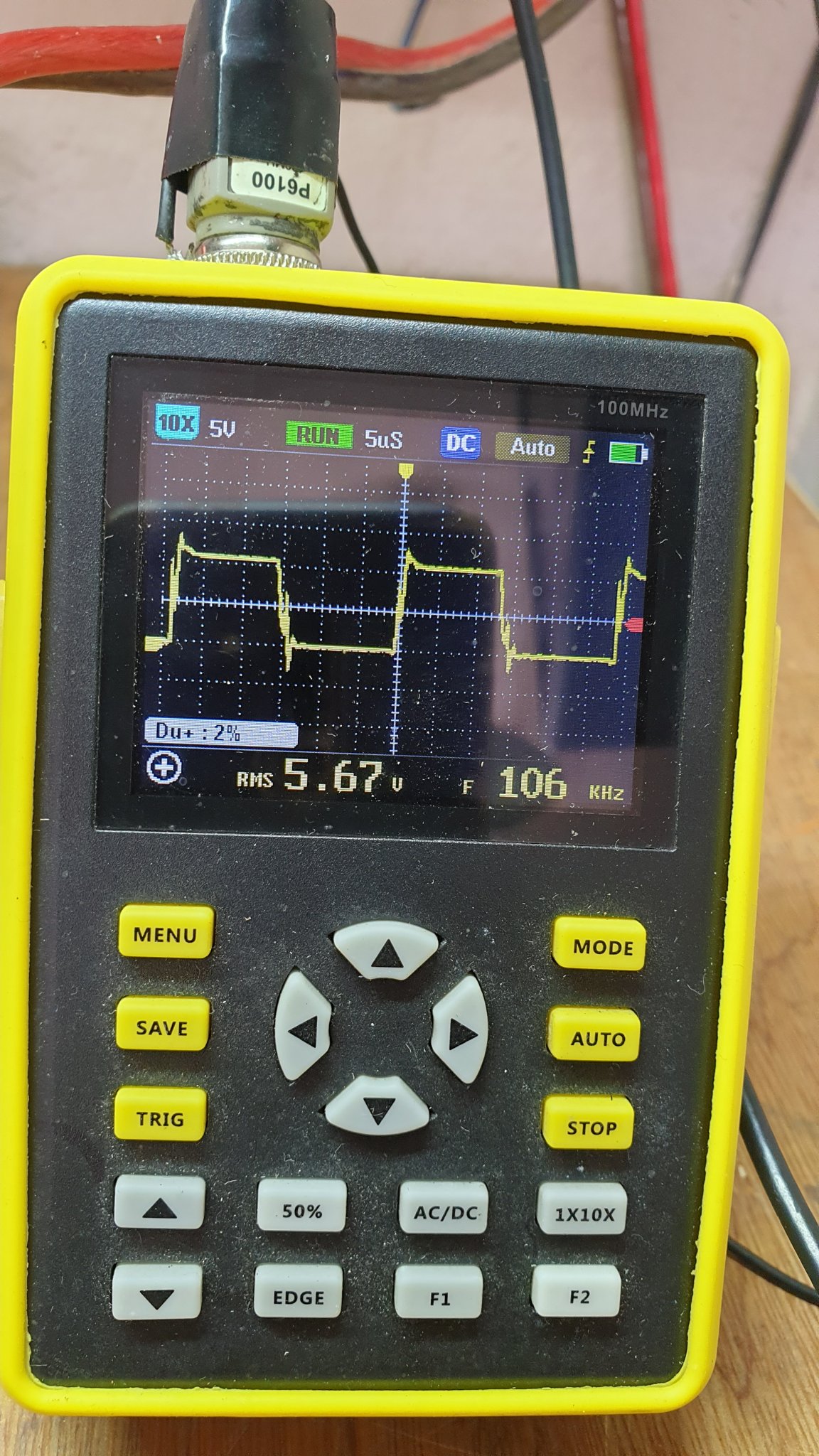

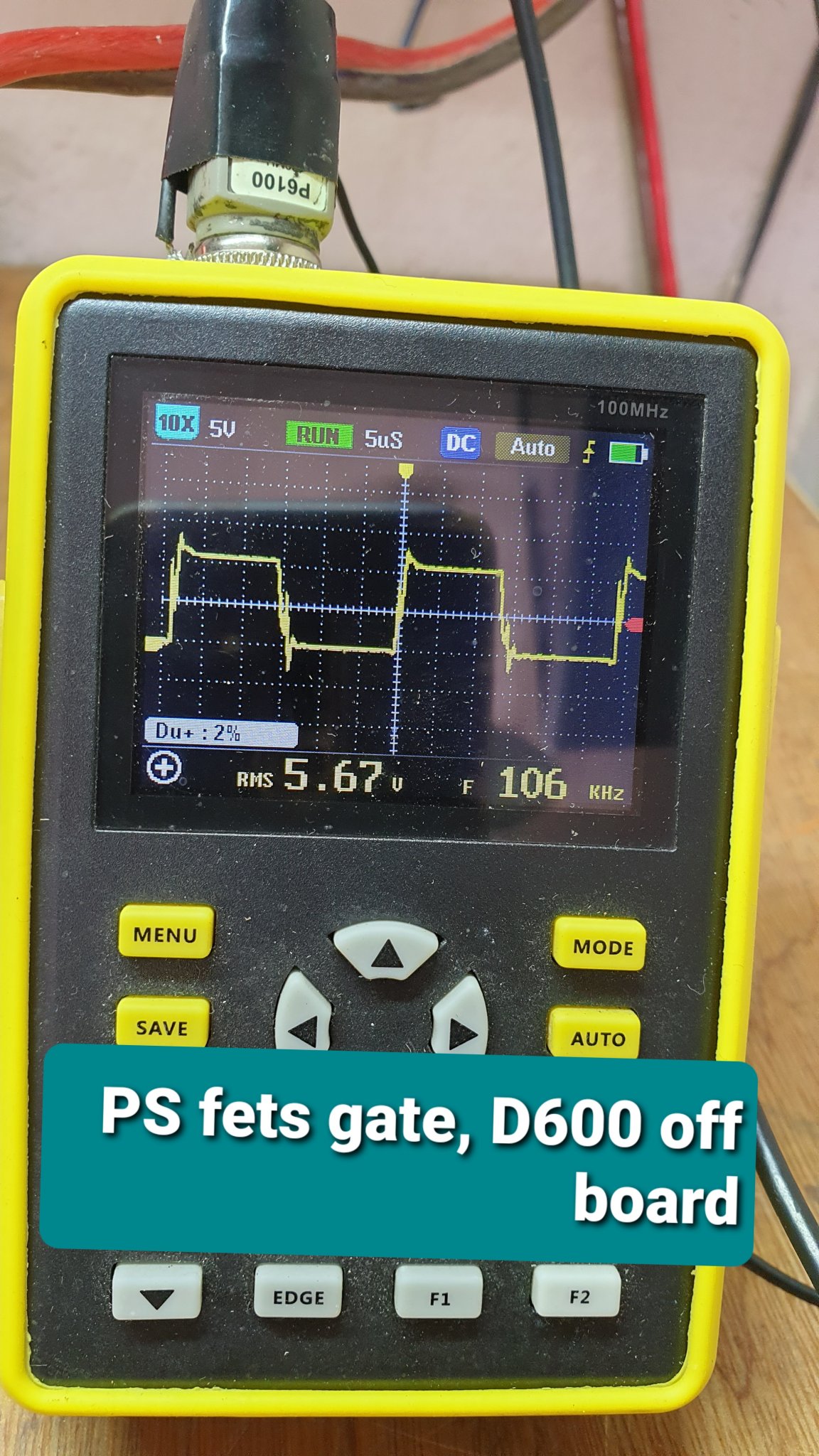

ground and pin 2 of the d600



[Perry Babin]

Check on the center pad of the high-side output FET.



[Mjimenez]

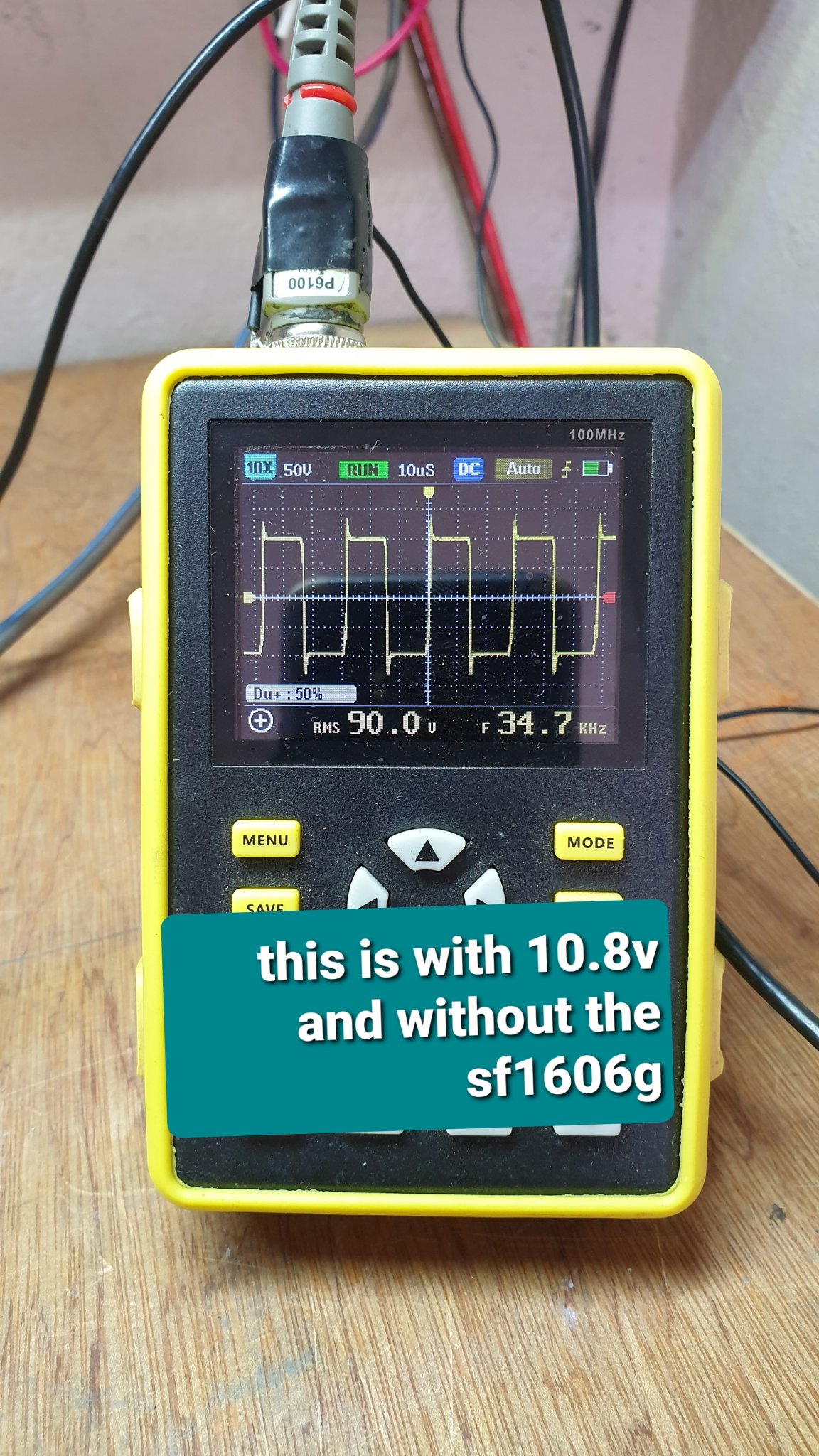

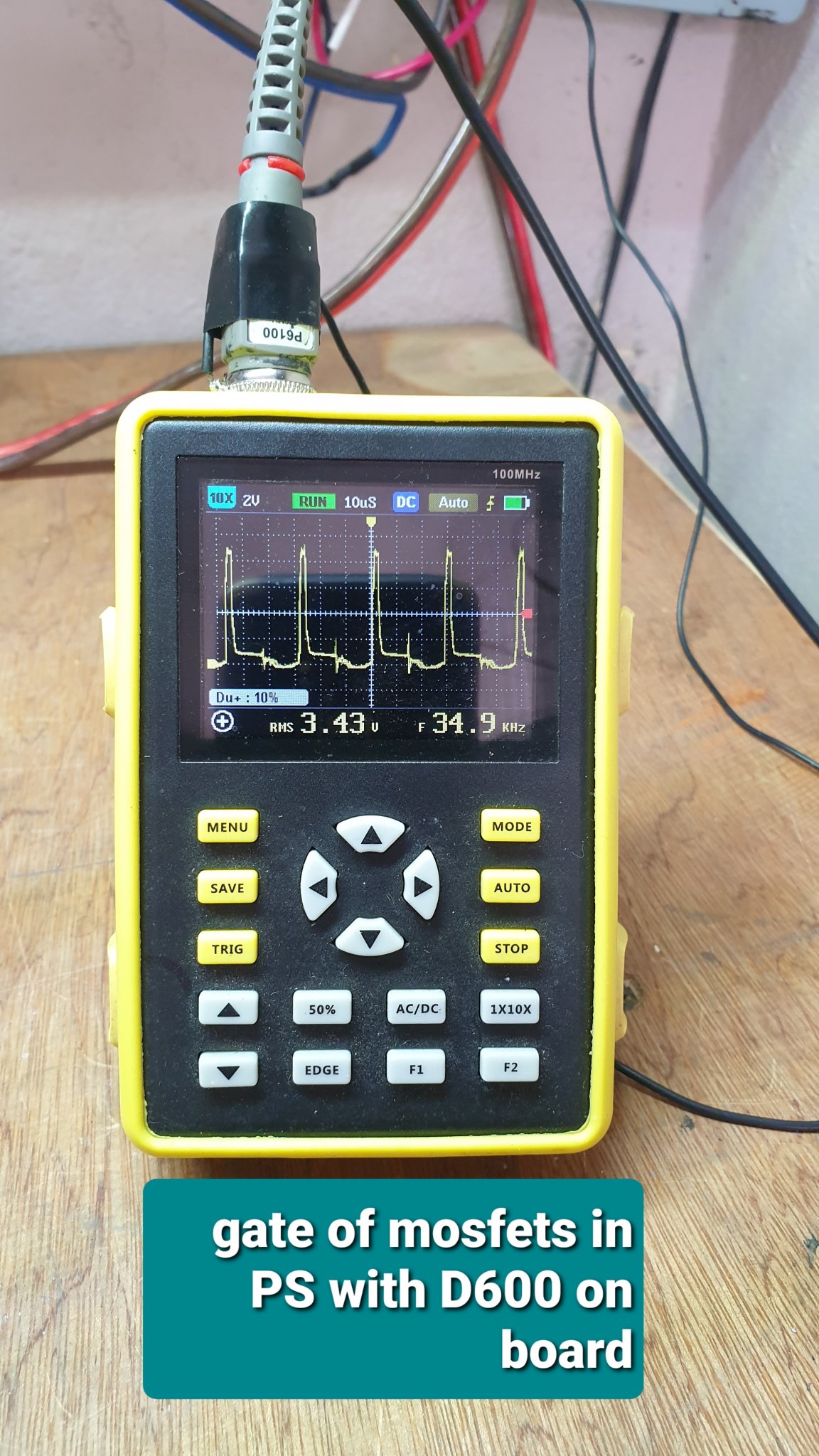

a pulse starts to grow but quickly the current draw rises and the PS fets get hot



[Perry Babin]

What changed since you checked the waveform previously?



[Mjimenez]

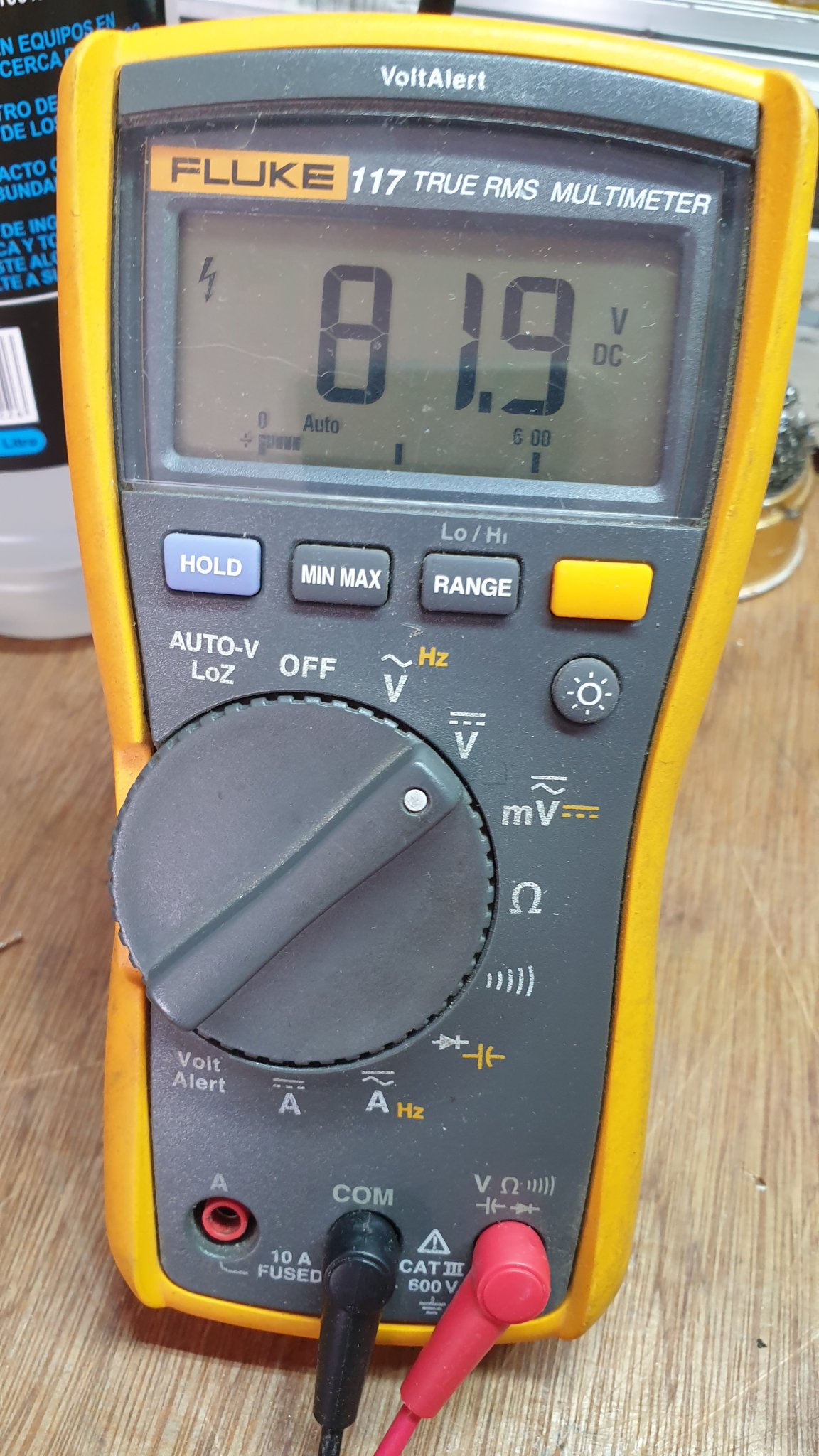

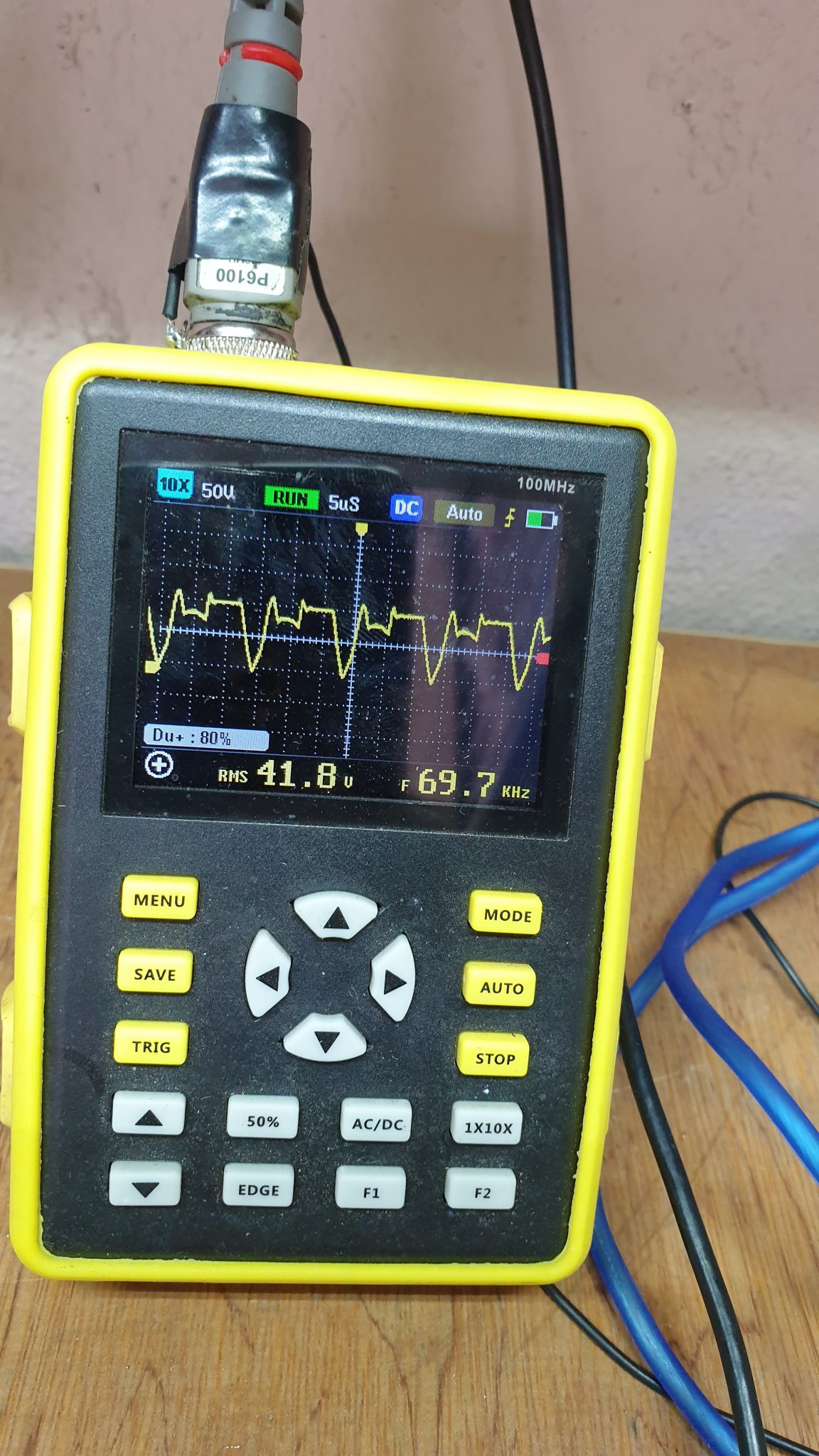

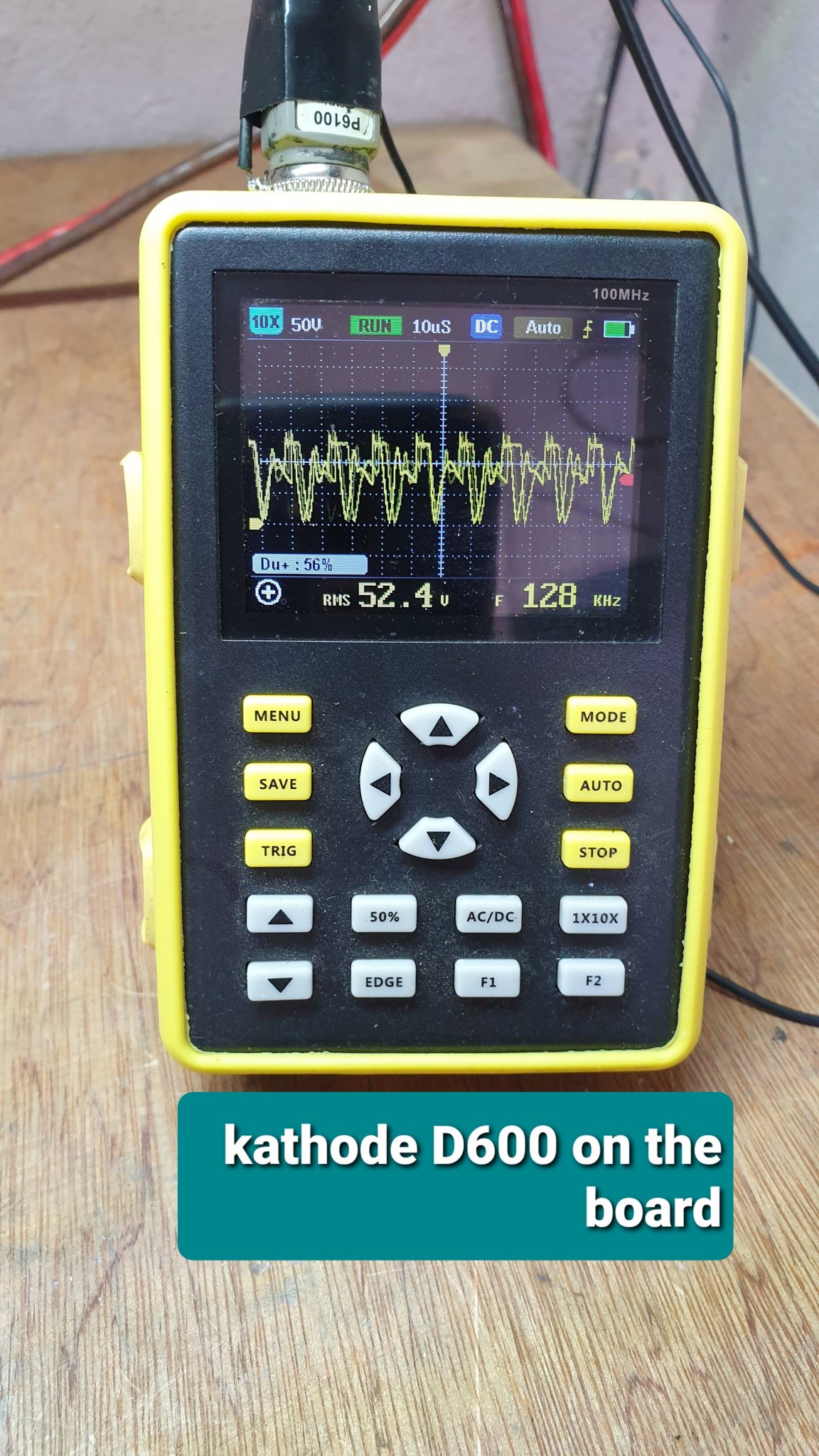

only the wave in the central pad of the d600 is more stable after placing the mur1660fct and with the change of the 2n3906



[Perry Babin]

What's the resistance from the center leg of the rectifier to the center leg of the high-side FET?



[Mjimenez]

I already got lost, but that's how they are shown in each of the fets
Q504: 0.3 ohms
Q505: 1.7mohms and increasing
Q506: 12 kohms and increasing
Q507: 0.2 ohms
all with respect to central pad of the rectifier



[Perry Babin]

Q504 and 507 are the high-side FETs.

There's no reason that touching the probe of the meter or scope should cause excessive current draw.



[Mjimenez]

It does it even without touching the oscilloscope, I'll have to find out what is causing them, what makes the PS fets heat up.



[Mjimenez]

I already found the fault they were two of these schottky diodes, I replaced the 4 greetings and thank you very much
