JL AUDIO 1000/1

[mike49504]

Where are u504 and 505 located?



[Perry Babin]

See attached.



[mike49504]

Voltages on U404 and U405

1:0
2:0
3:0
4:-3.66
5:-5.45
6:-8.42
7:-0.12
8:-3.53
9:-3.55
10:-4.20
11:-6.63
12:-0.66
13:0
14:0


1:-5.80
2:-5.94
3:-2.74
4:-8.83
5:0
6:-6.72
7:-6.42
8:-6.83



[Perry Babin]

I'll check these when I get the amp back on the bench.



[Perry Babin]

Check R533.



[mike49504]

Where is R533 located there are no board locations on alot of them



[Perry Babin]

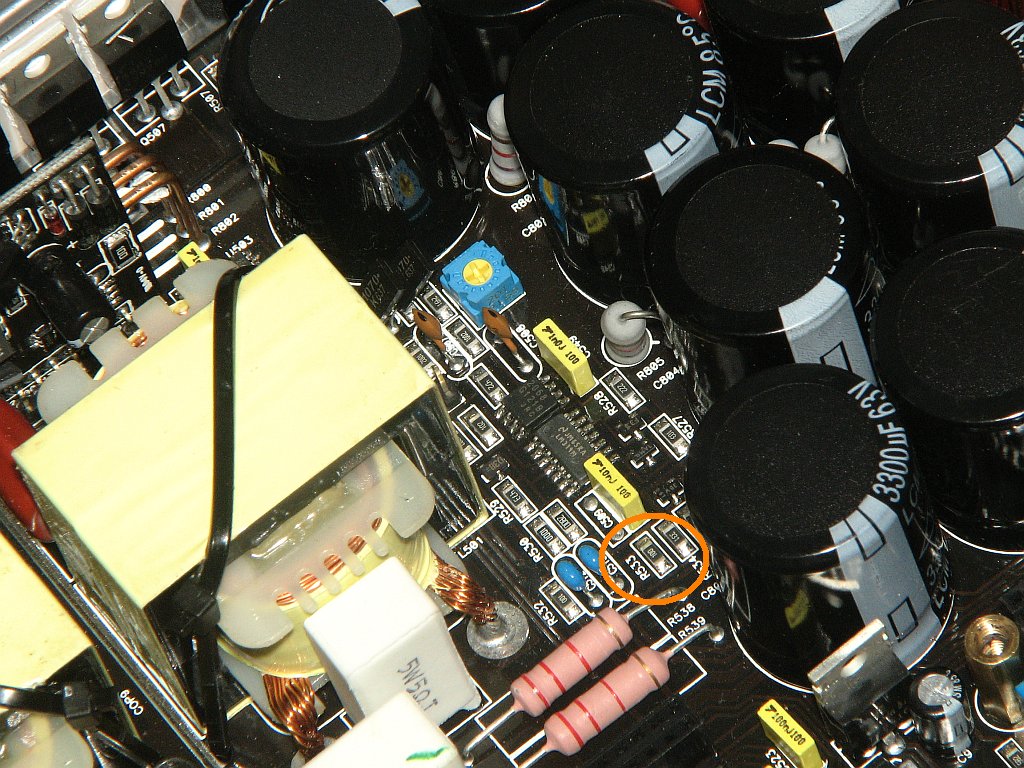

See attached. If it's within tolerance, measure the DC voltage on both ends of it.



[mike49504]

Ok i believe its suppose to be a 10 ohm resistor it measures way out of tolorance so i will pick 1 up later today.

Do you know the values of R321 and R309 ? They are located on the long input board right by all the surfacemount IC's



[Perry Babin]

309 is 10 ohms. I don't see 321.



[klangston76]

anybody have any idea whats in slot c839,c809,and c810? any help would gladly be appreciated



[Perry Babin]

809/810 are 0.1uf@100v

839 is a 0.022uf@250

If you have any more questions, start a new thread.



[klangston76]

809/810 are 0.1uf@100v

839 is a 0.022uf@250

If you have any more questions, start a new thread.



[klangston76]

thank you.I had another question,if i just type in the values of both on ebay should i be able to find the replacements?



[klangston76]

is there anything in the position c509 or is it an empty slot?Thanks Perry for the help yesterday



[Perry Babin]

Start a new thread. Include the amp make/model in the subject line.



[egsi93]

Hi ppl out there !!! I'm just start learn fix amps cause I love car audio and now I having problems to find a part number
D800
D801
D802
D803
C810
If some 1 can help me out please I'm new on this !!
Thanks every1
