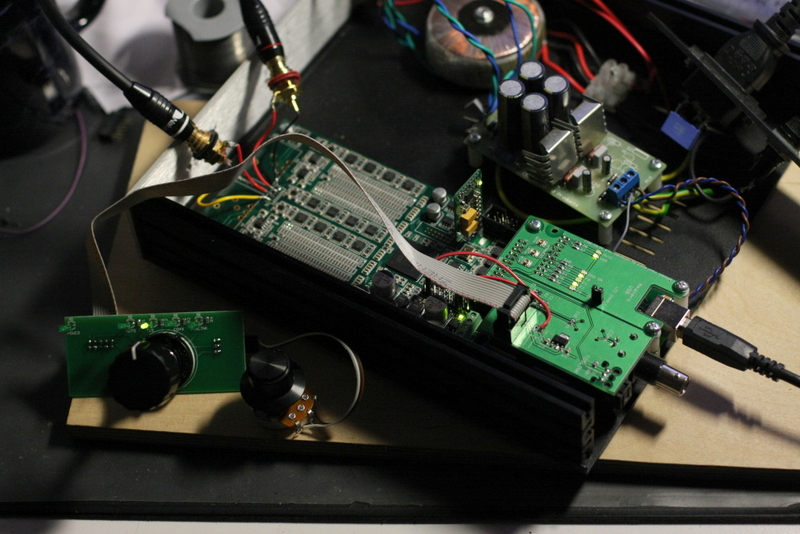

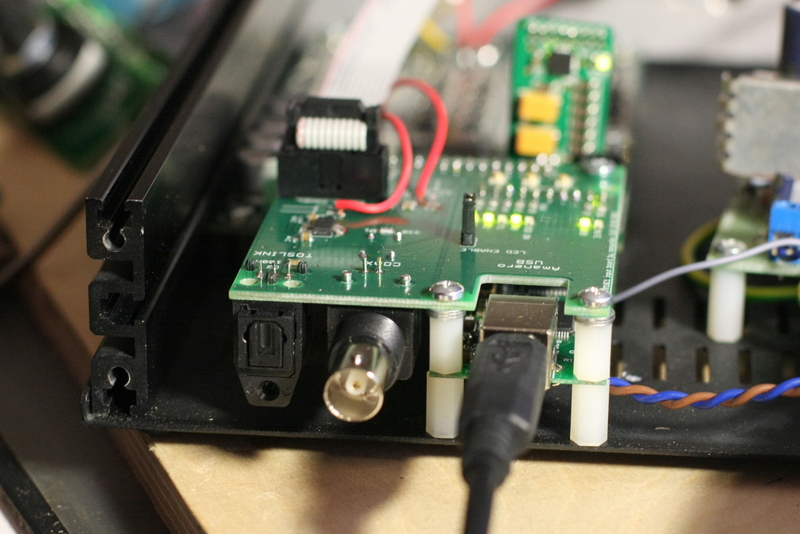

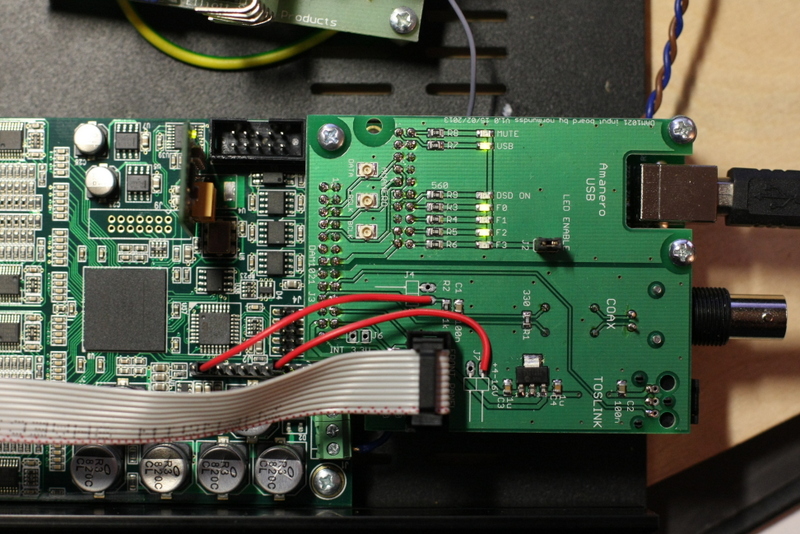

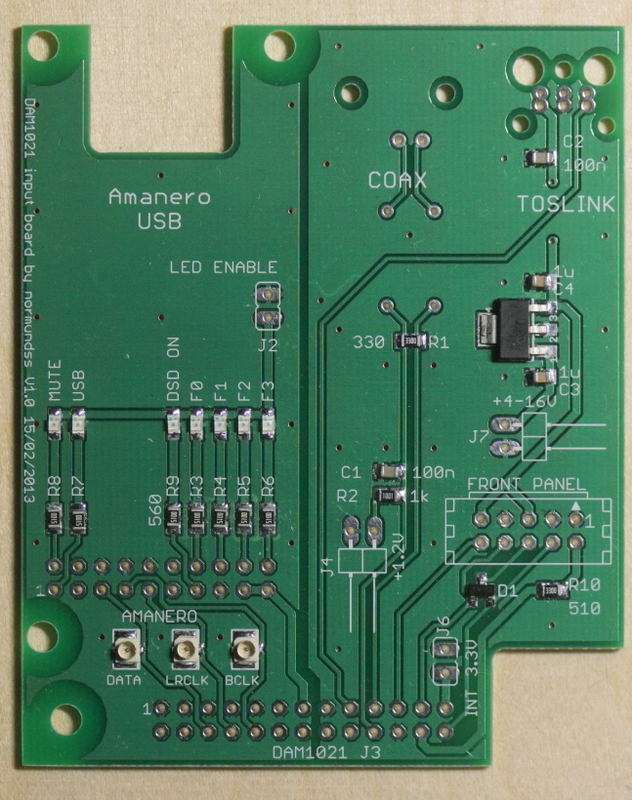

Received the test boards today. Here are a couple of teasers 🙂
Ignore the 3.3V regulator with yellow caps sticking out of the dac, that has nothing to do with the input board 😉
There are some glitches with input switching and POWER LED indicator. Those could be firmware issues, I will ask Soren on the main thread.
Other than that, everything seems to work fine. I will make some adjustments to the layout to allow connections to TXD/RXD pins, and maybe other currently unused pins as well. I'm also considering extending the board outline over J2 power connector to avoid those power wires, and dropping the option to use power from DAM +3.3V line. Can't think of a reason why anyone would want that, given that the input board contains its own 3.3V reg.
Anyone wishing to get into this GB round can still sign up until Sunday evening. The boards will go to fab on Monday and should be ready in one week.
Ignore the 3.3V regulator with yellow caps sticking out of the dac, that has nothing to do with the input board 😉
There are some glitches with input switching and POWER LED indicator. Those could be firmware issues, I will ask Soren on the main thread.
Other than that, everything seems to work fine. I will make some adjustments to the layout to allow connections to TXD/RXD pins, and maybe other currently unused pins as well. I'm also considering extending the board outline over J2 power connector to avoid those power wires, and dropping the option to use power from DAM +3.3V line. Can't think of a reason why anyone would want that, given that the input board contains its own 3.3V reg.
Anyone wishing to get into this GB round can still sign up until Sunday evening. The boards will go to fab on Monday and should be ready in one week.
