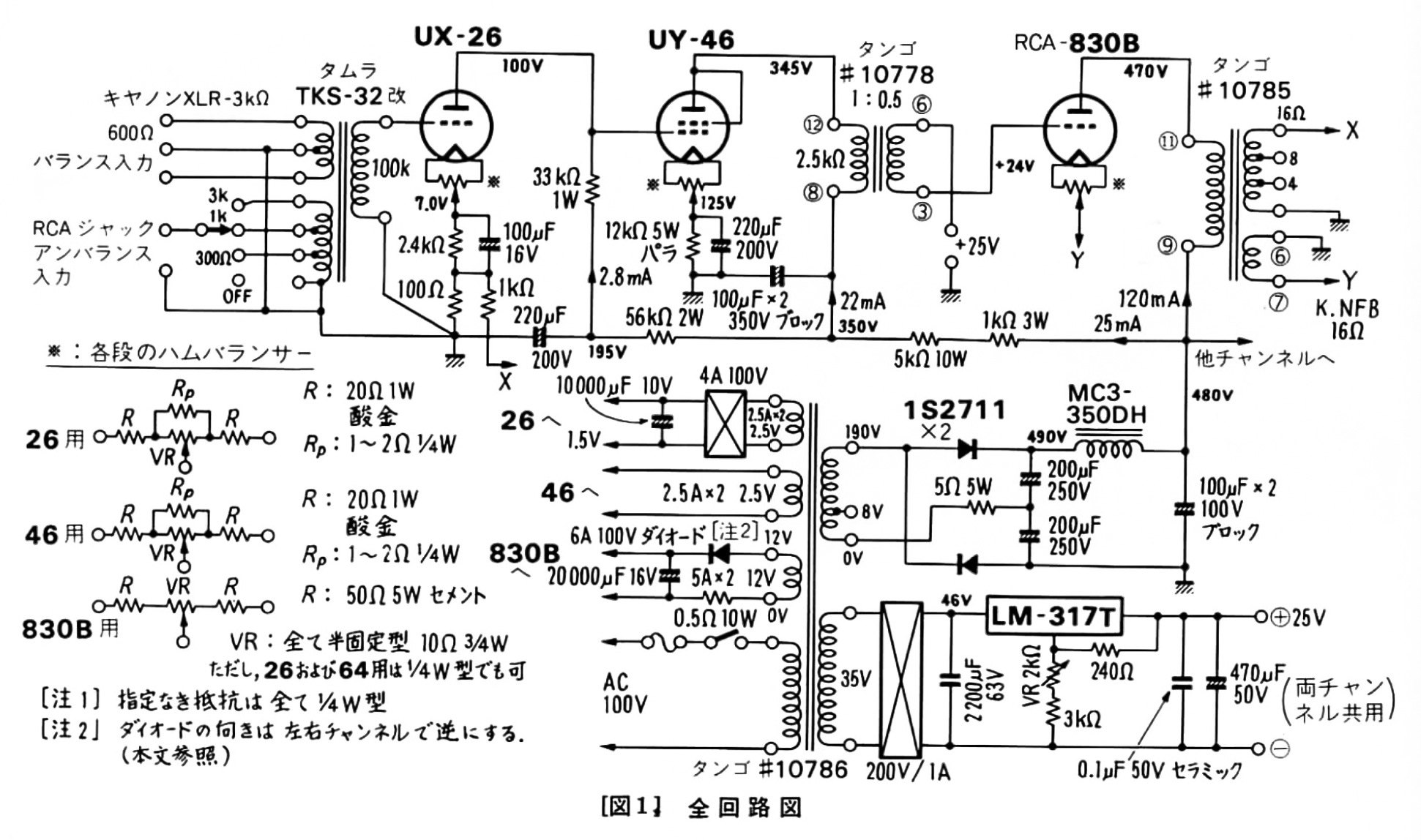

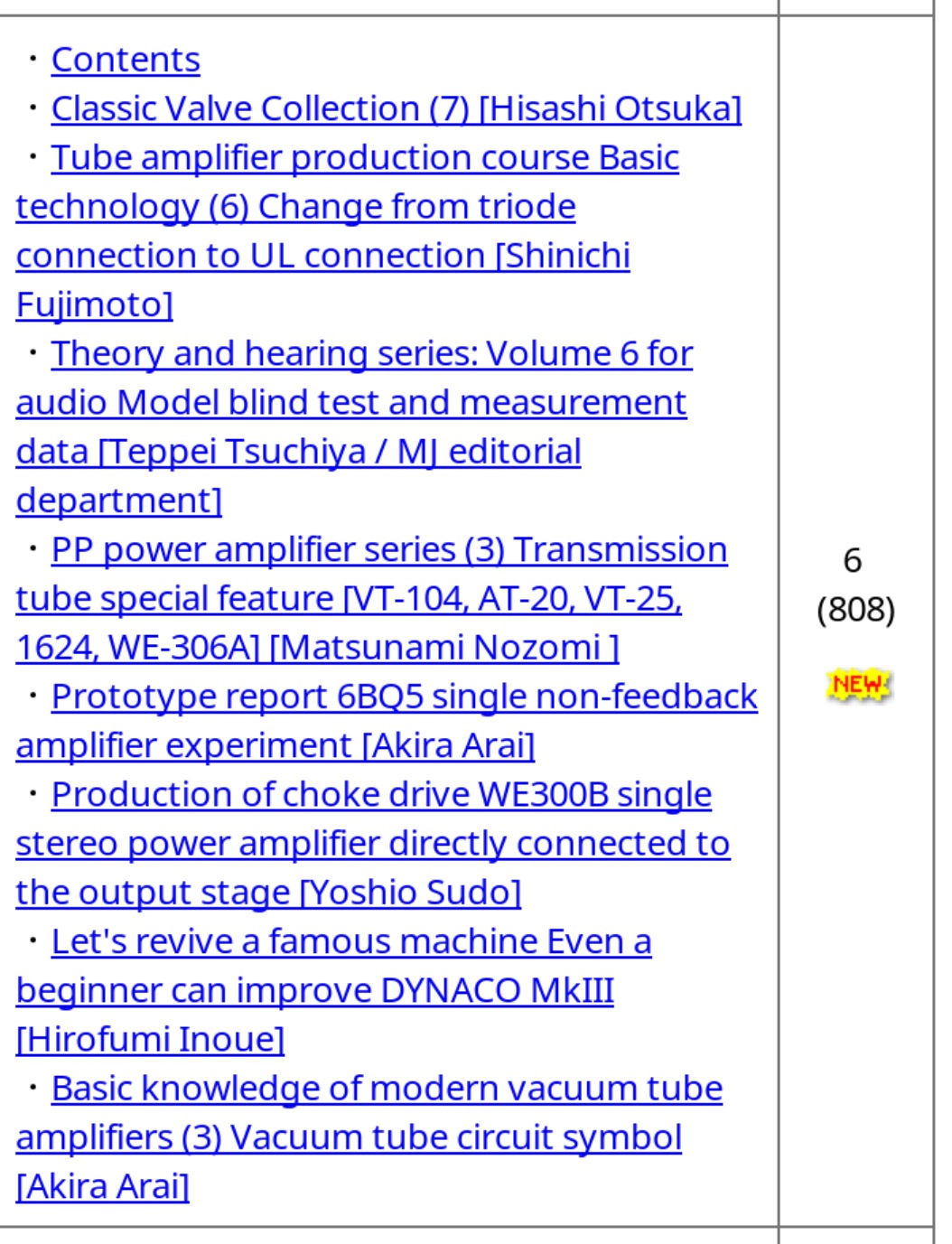

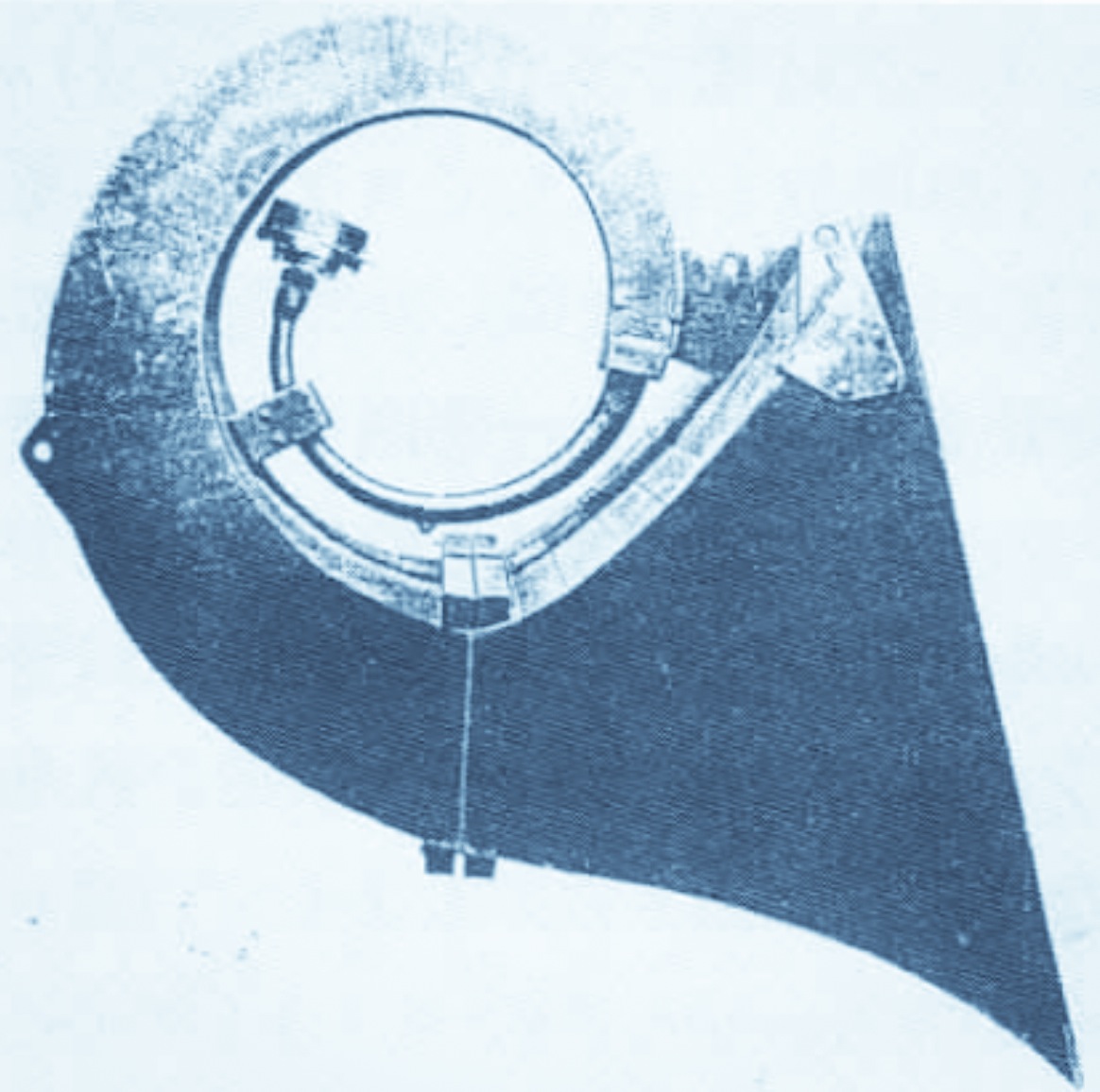

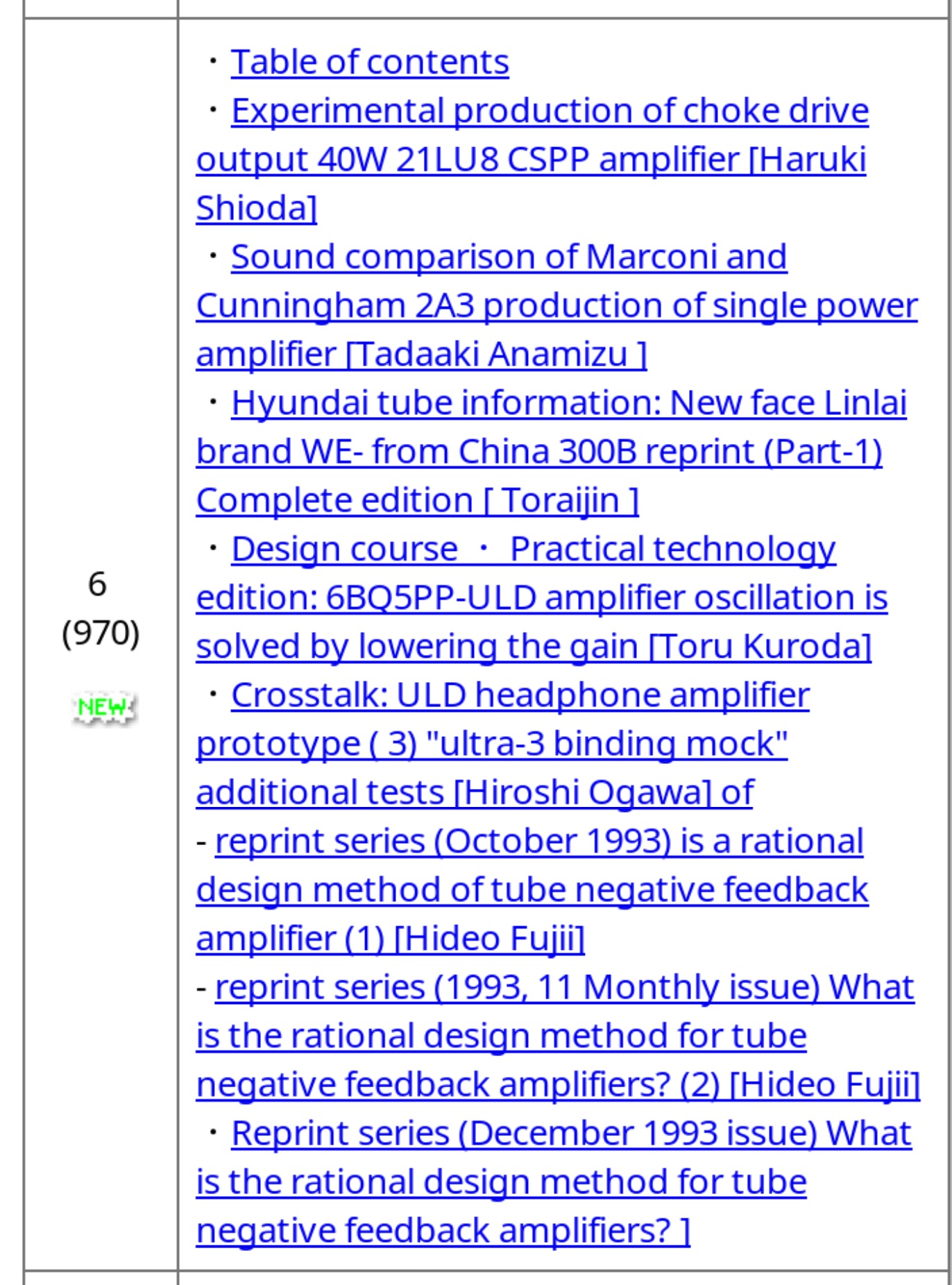

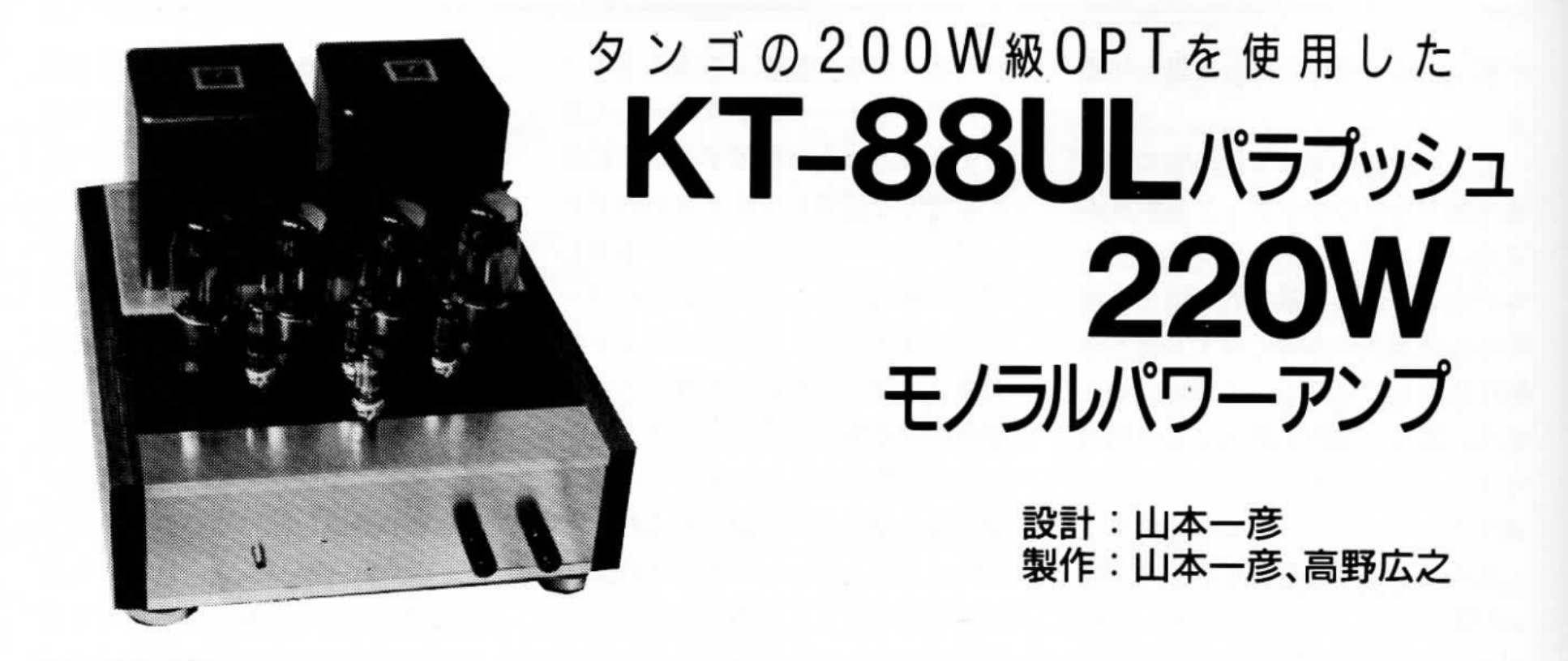

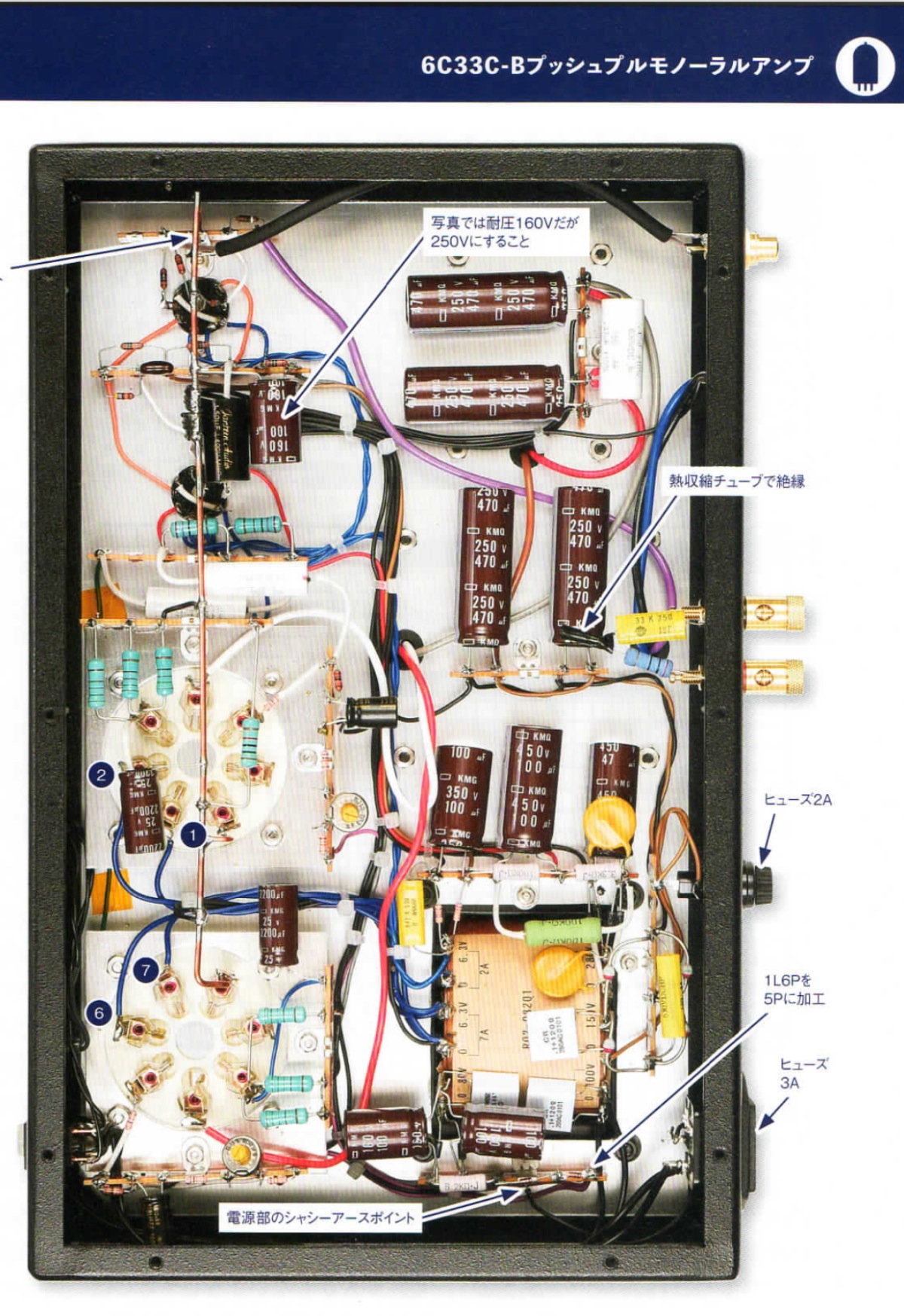

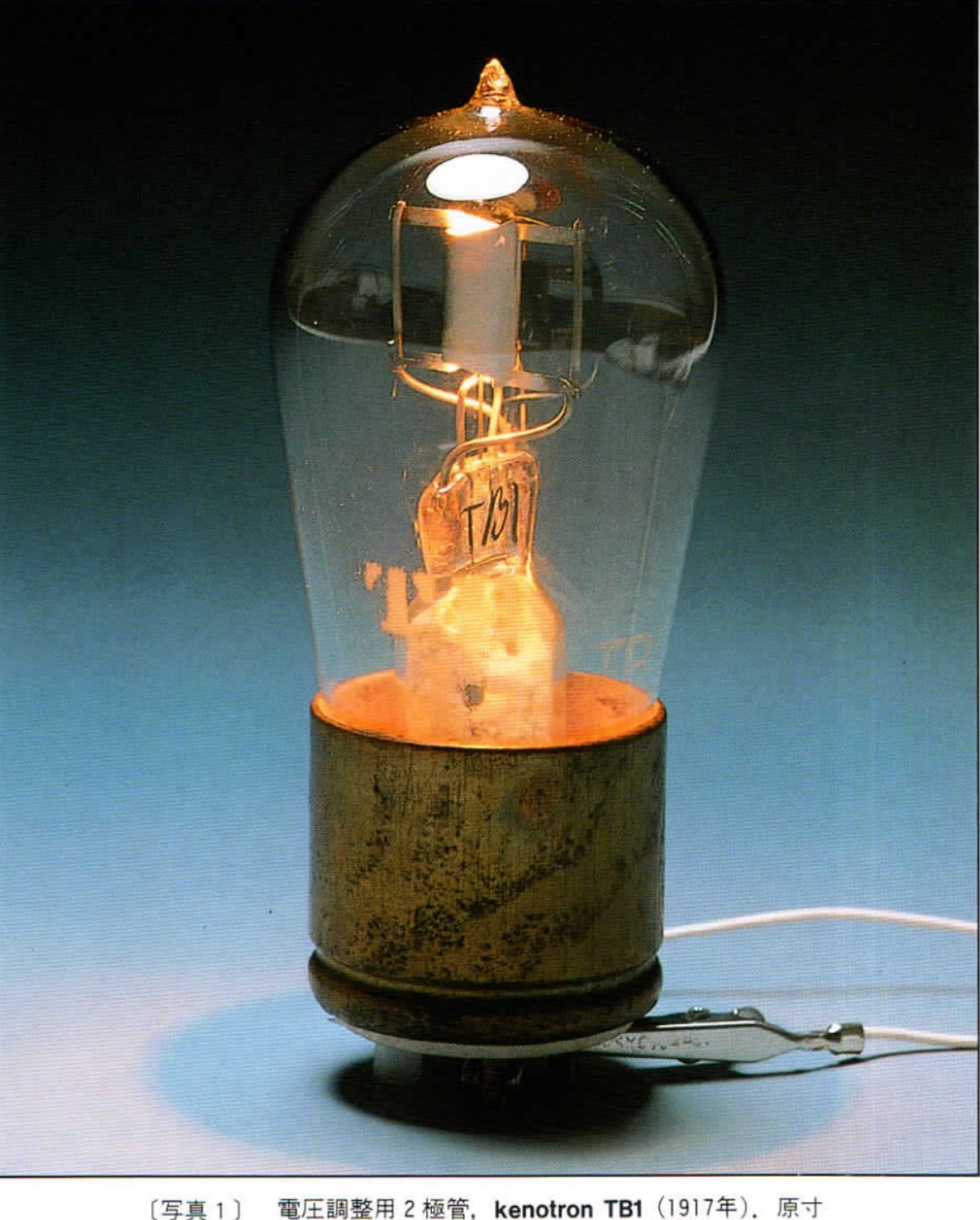

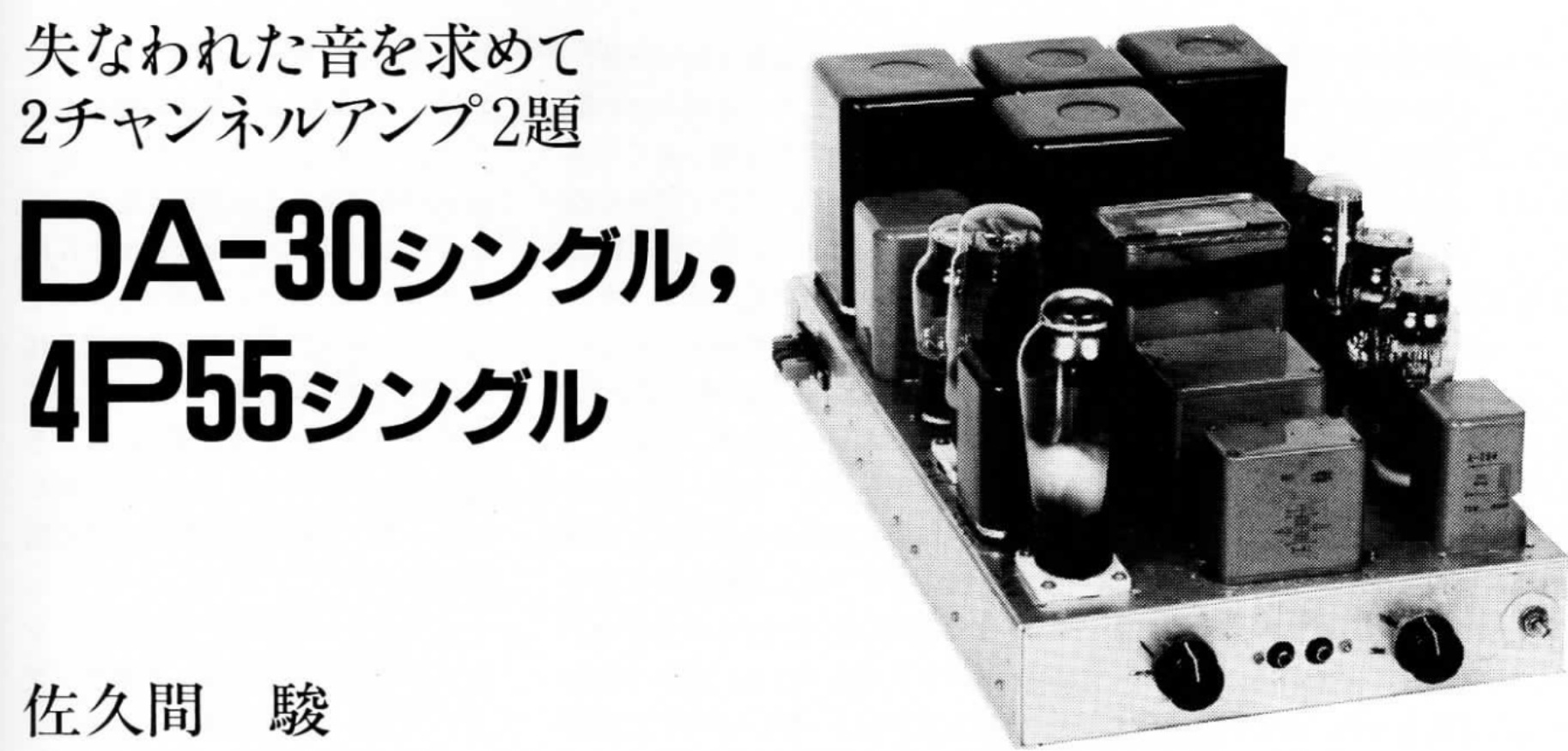

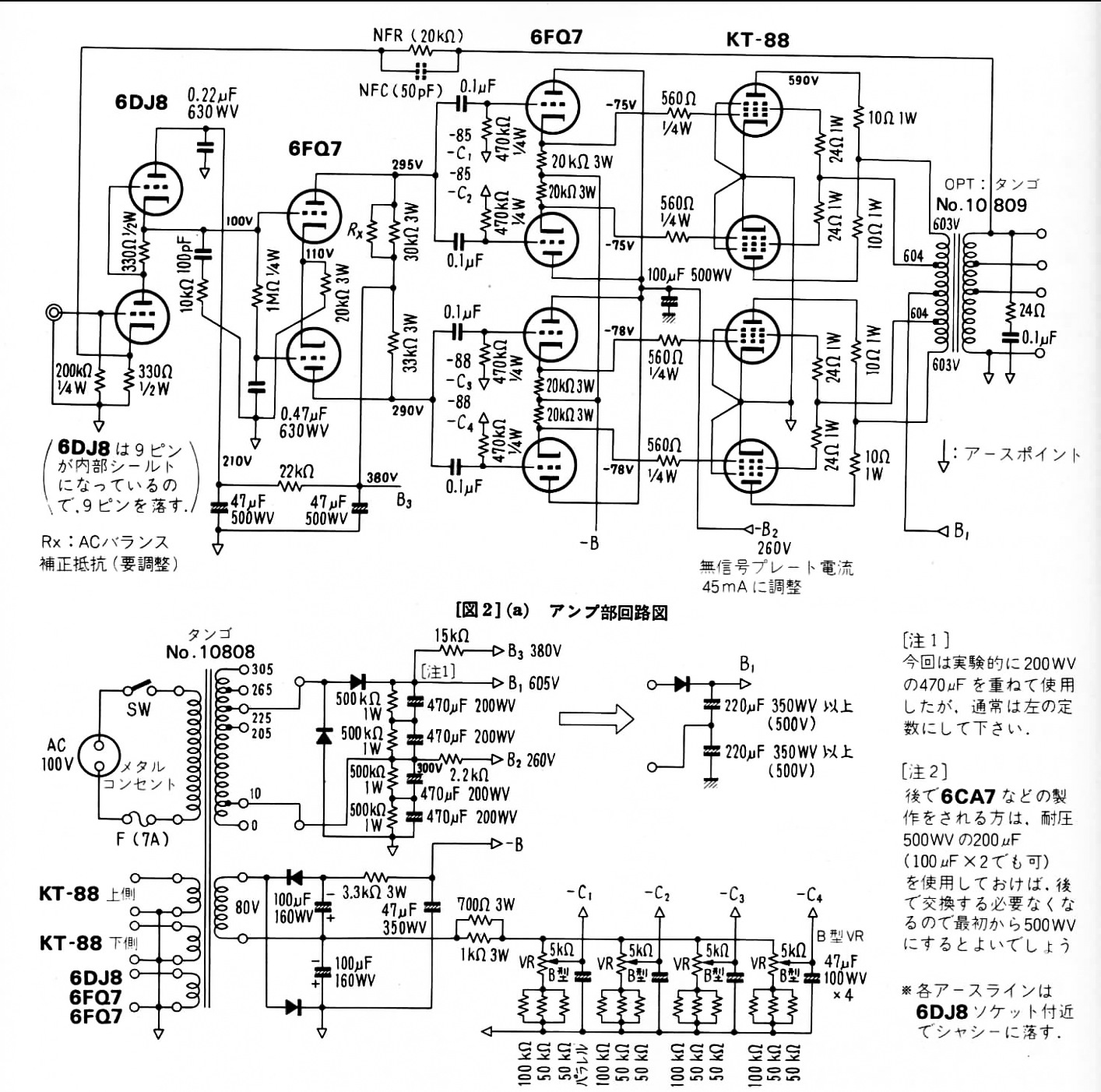

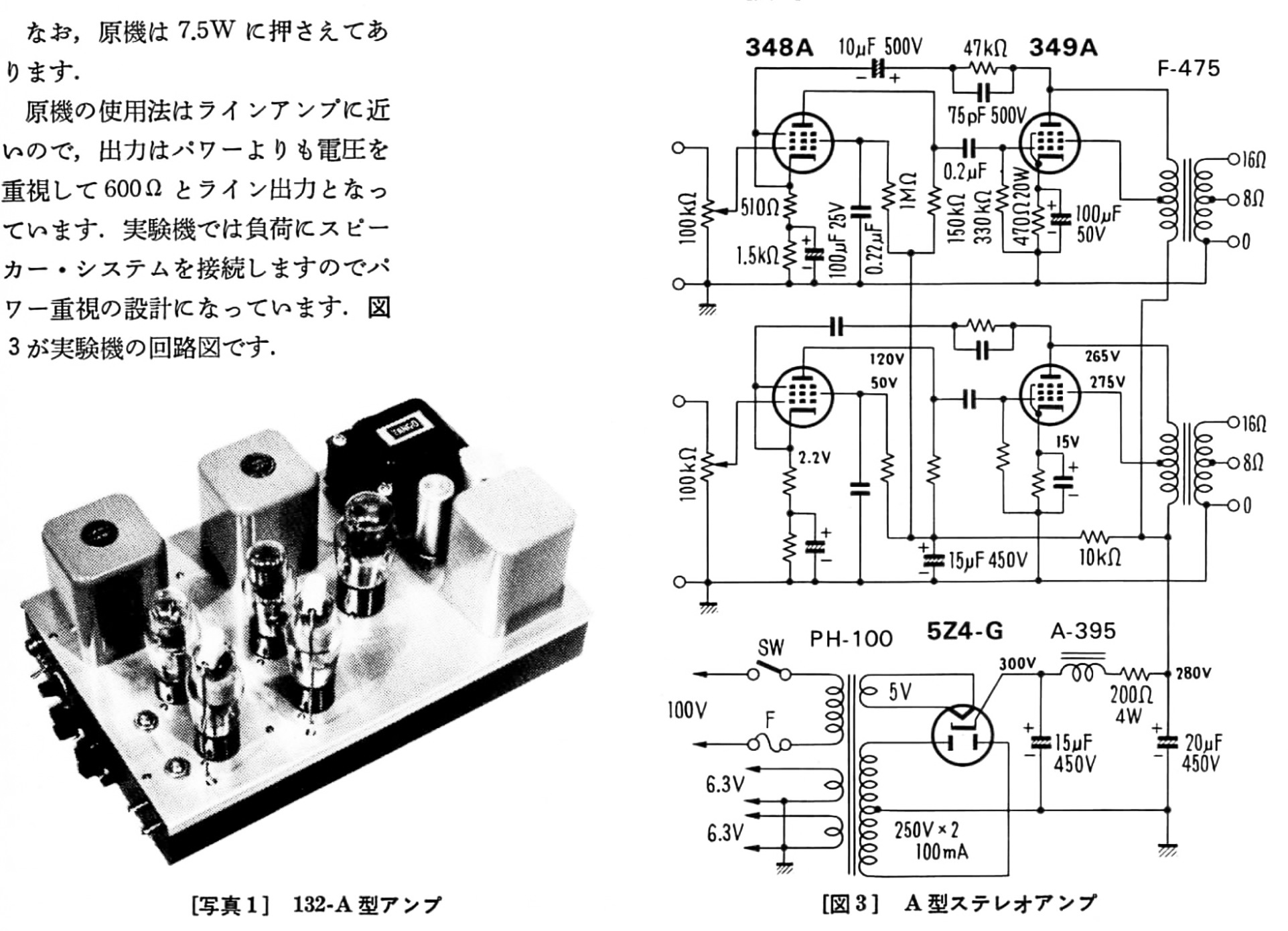

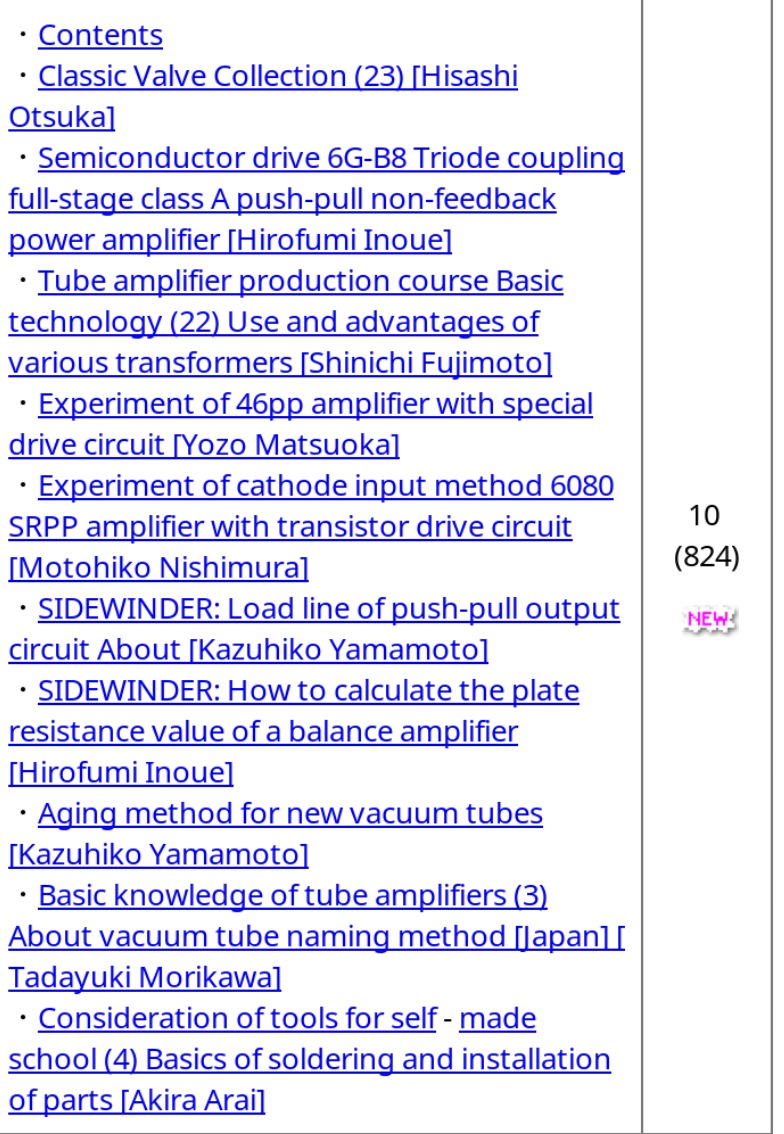

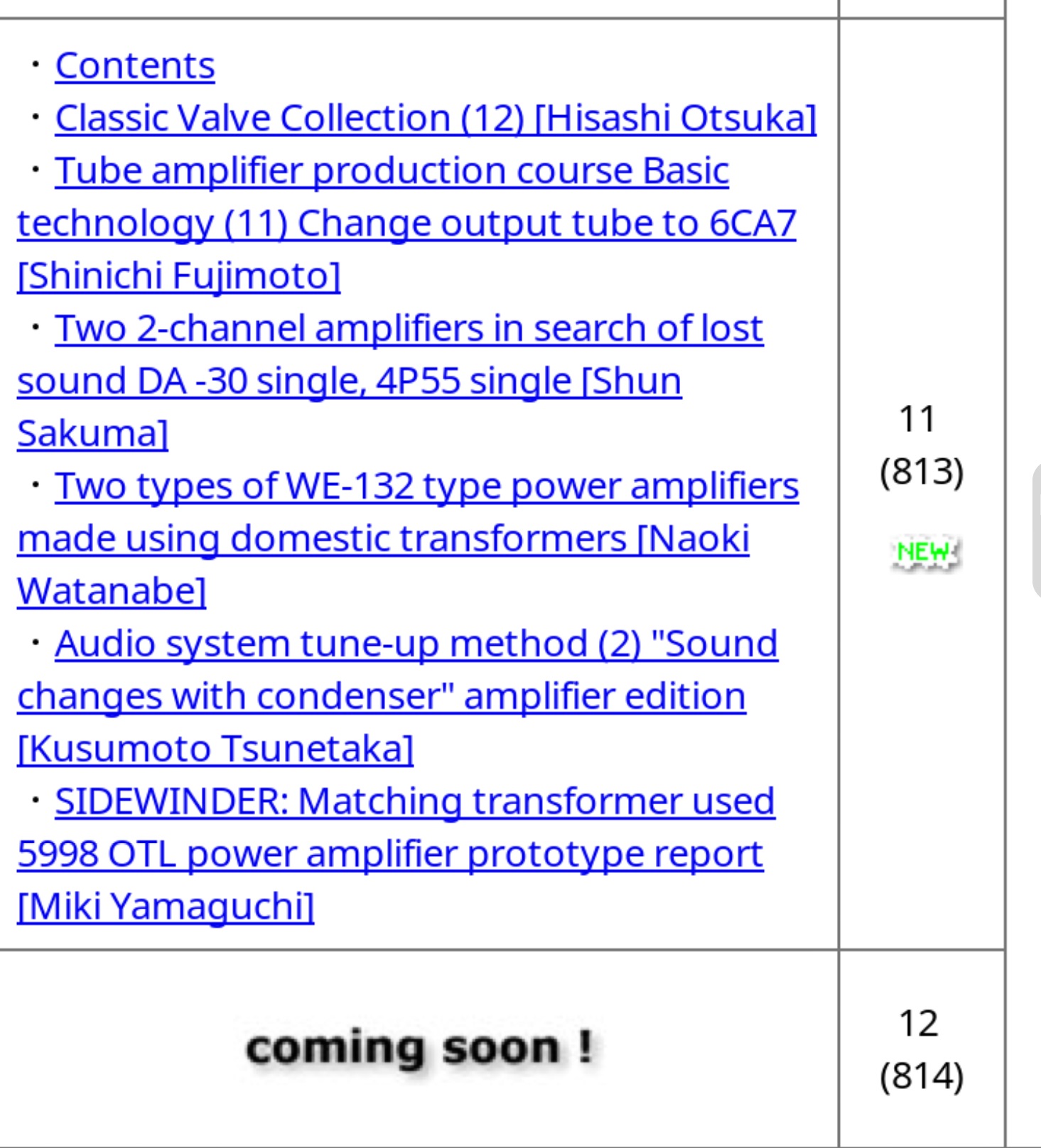

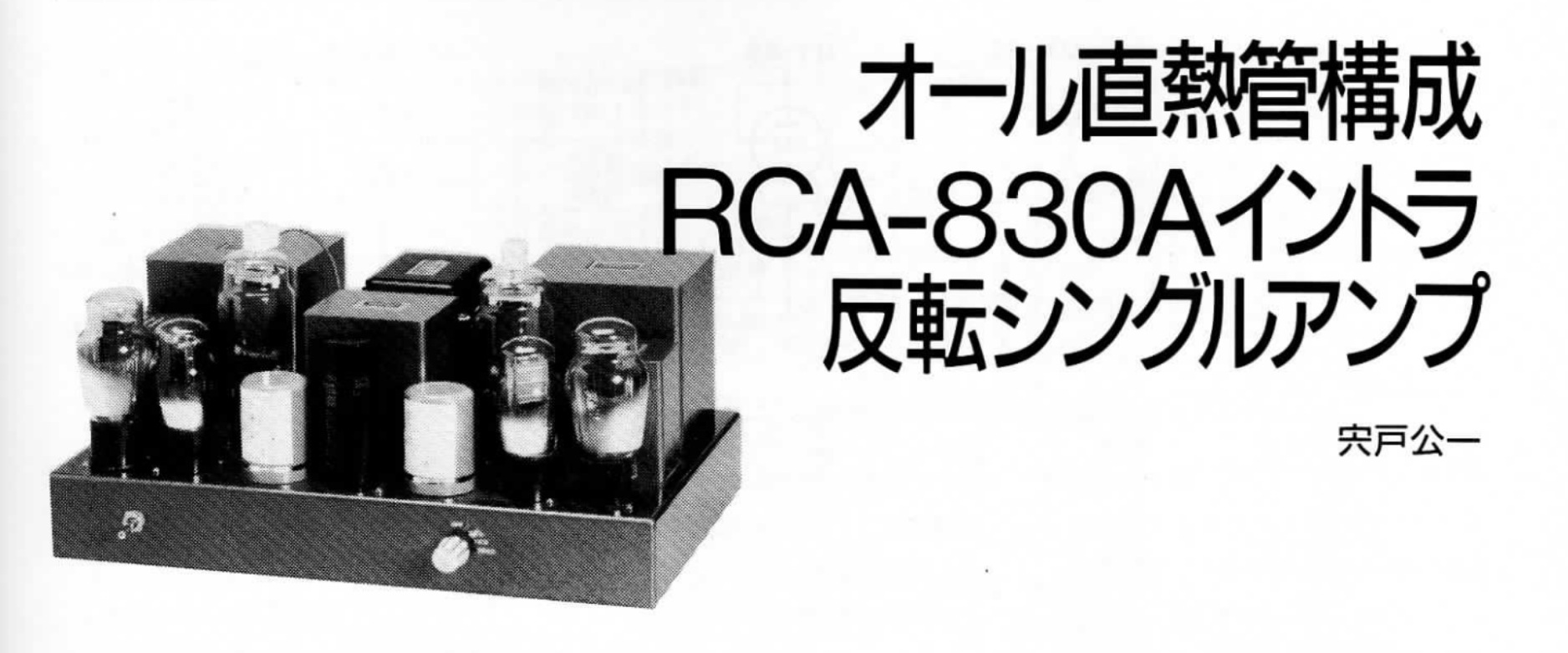

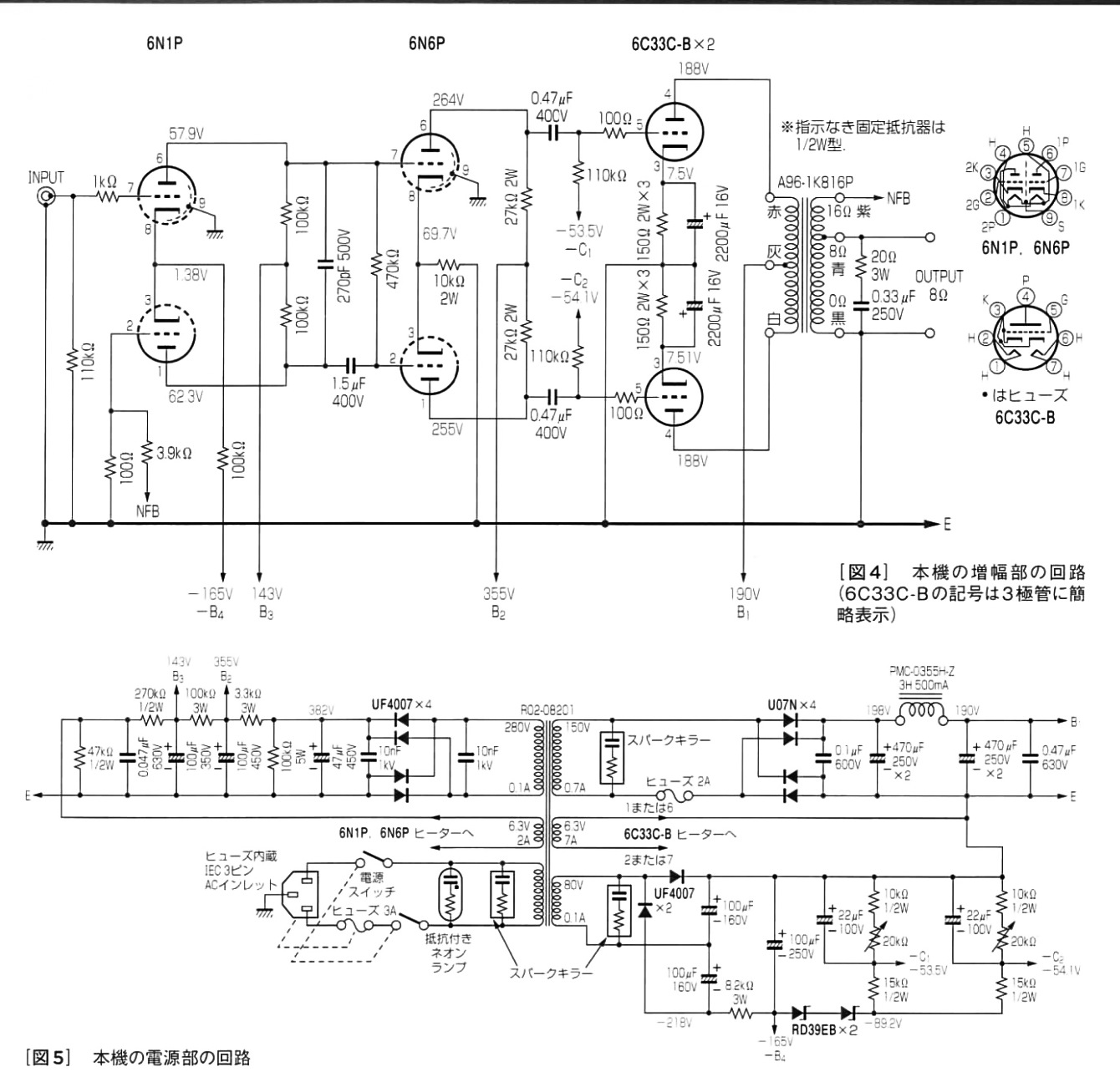

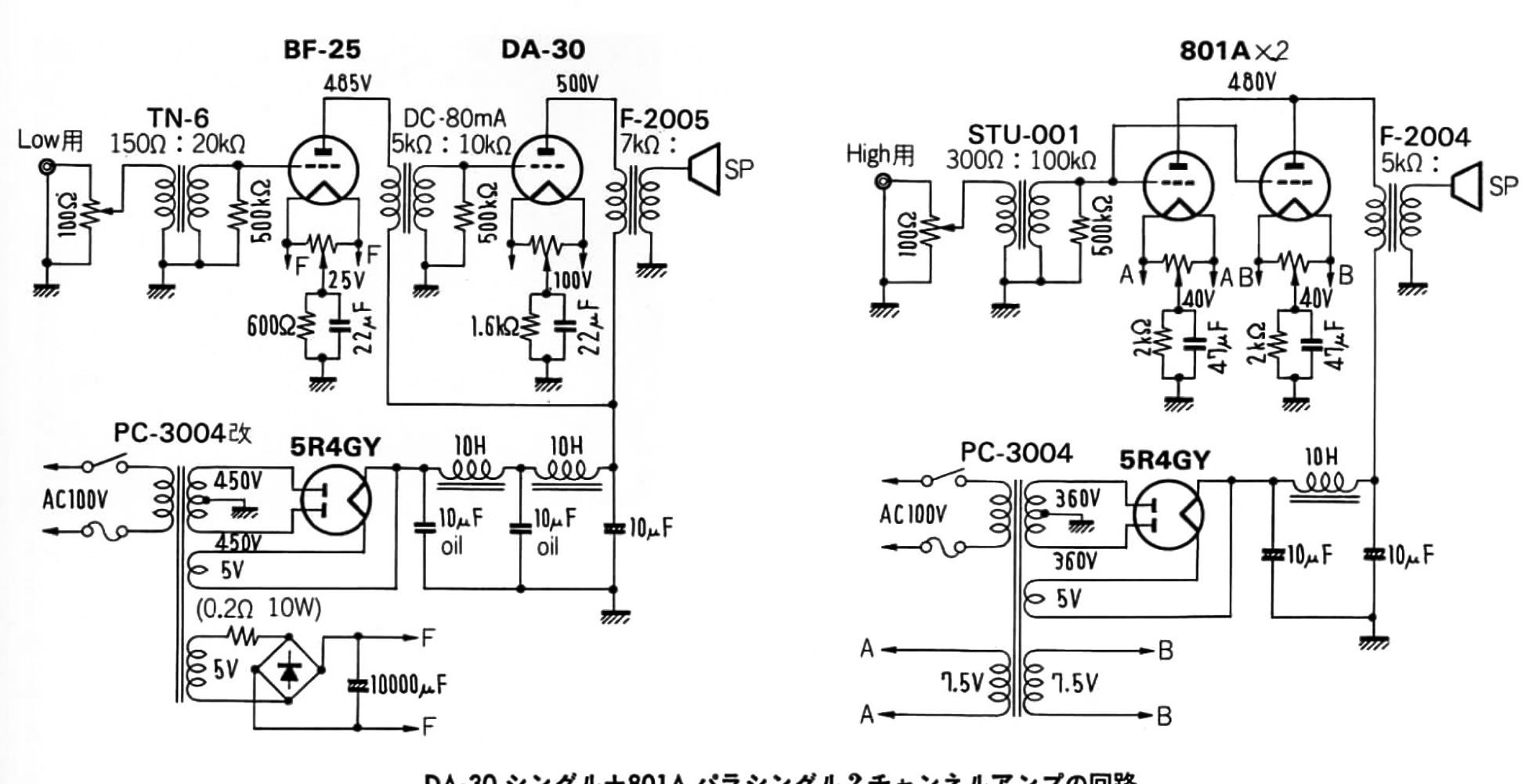

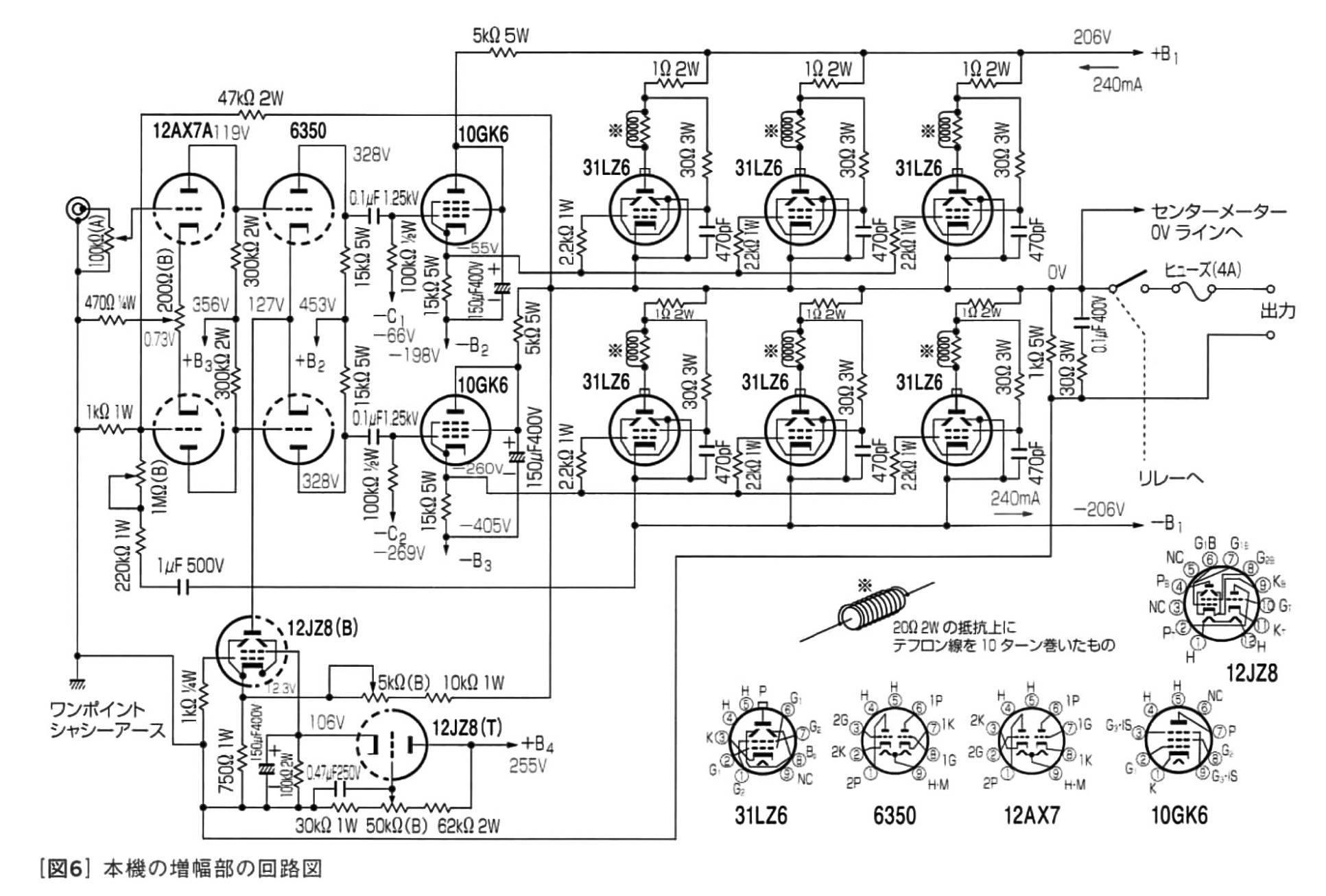

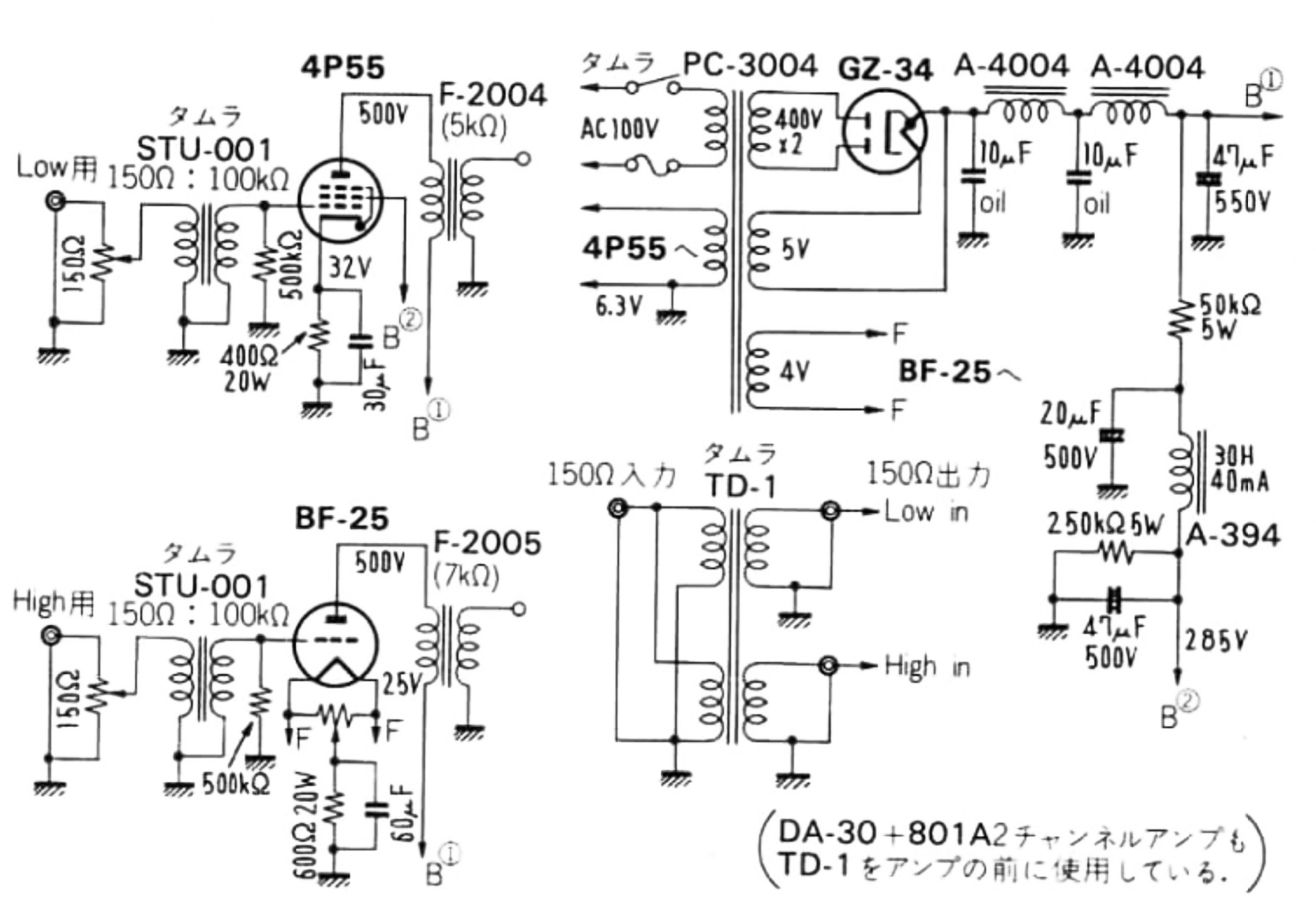

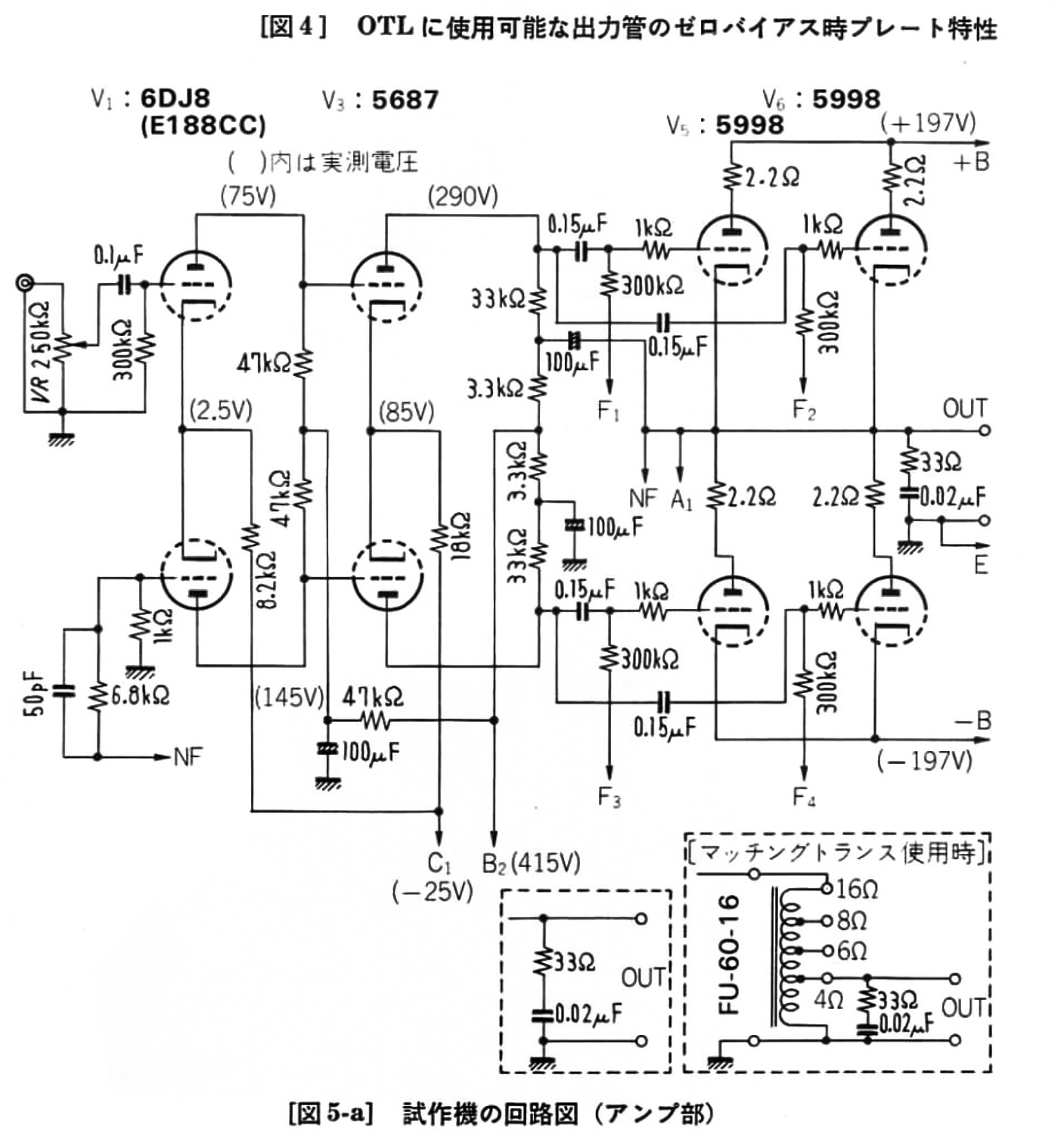

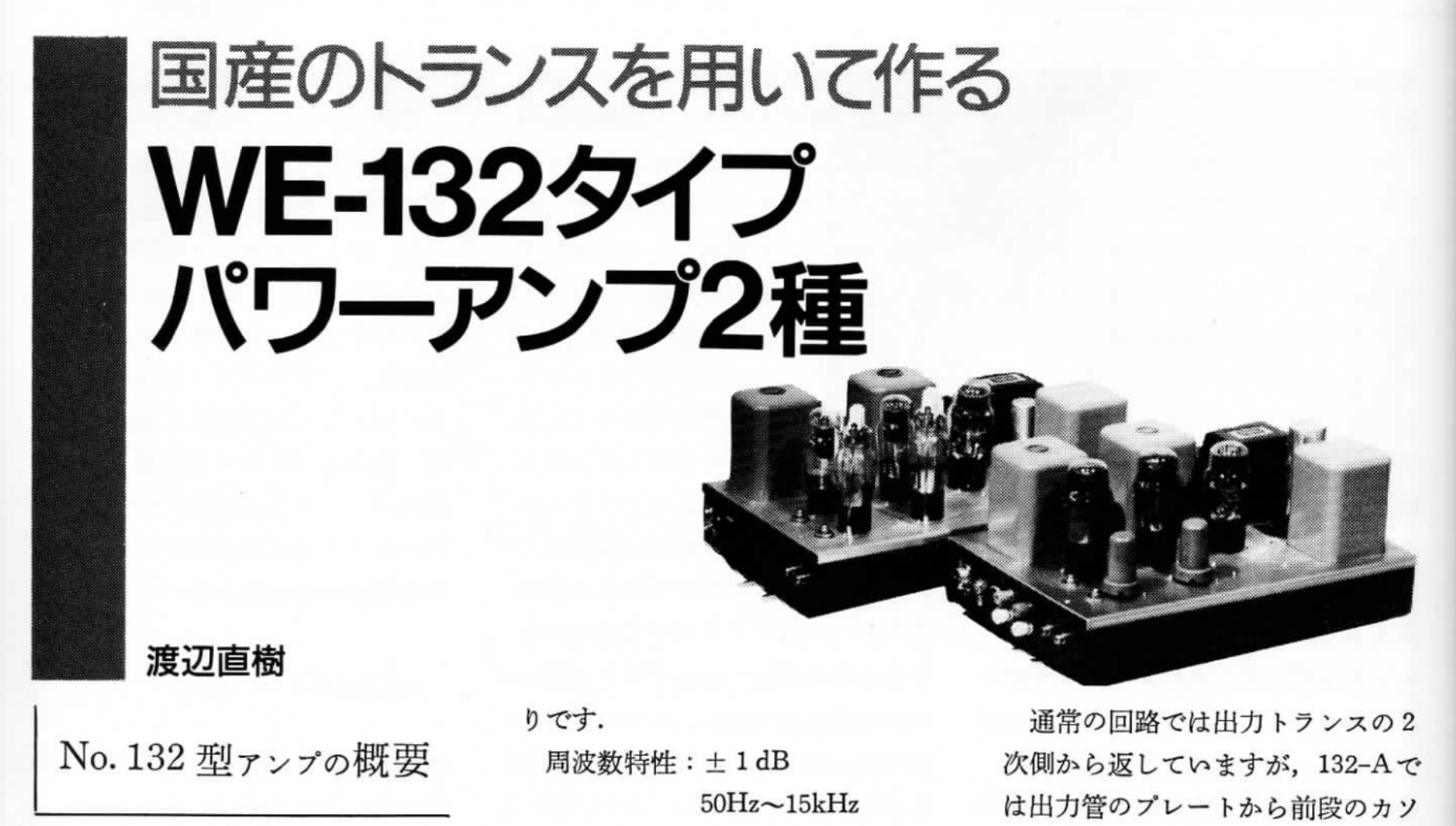

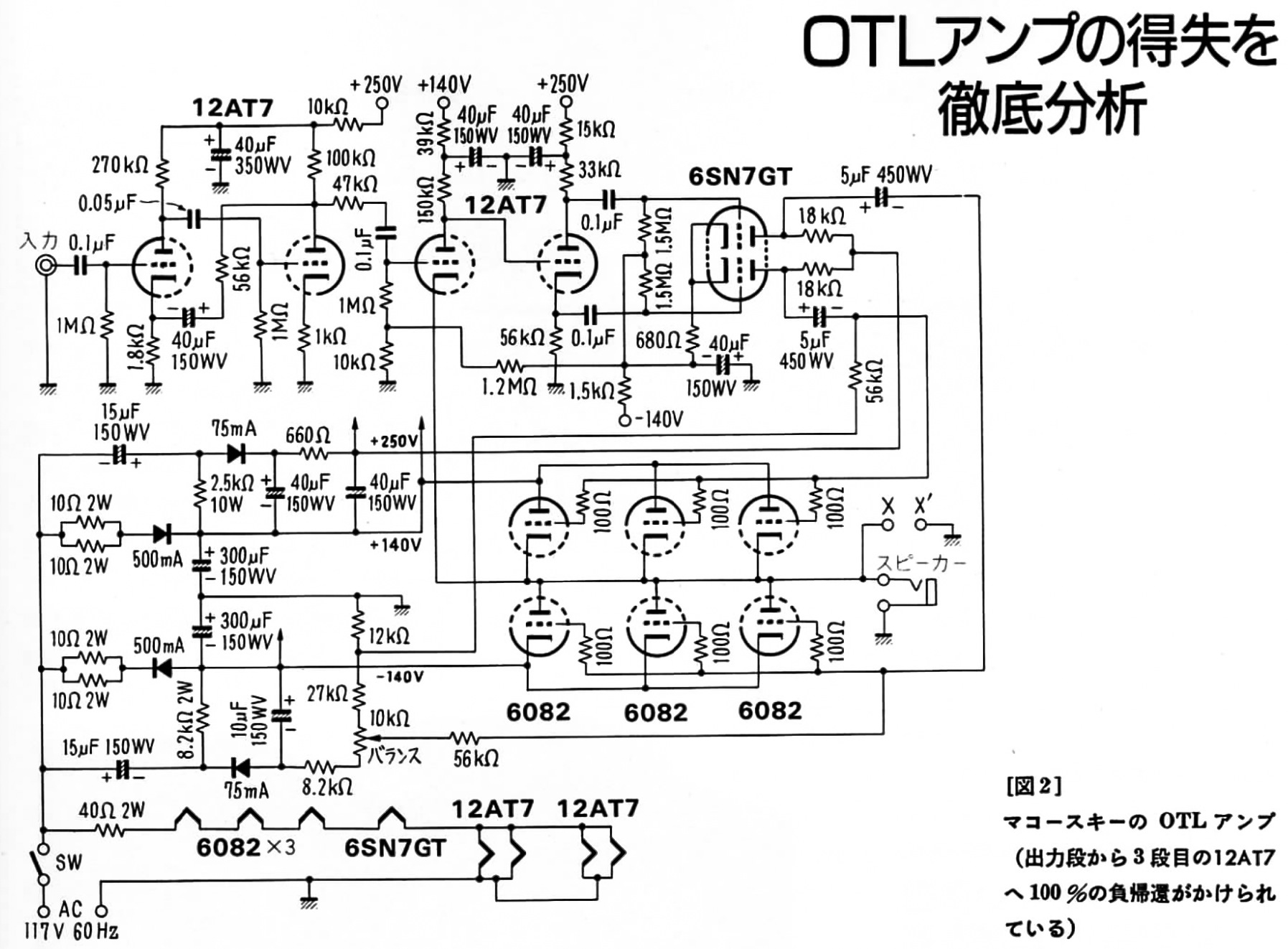

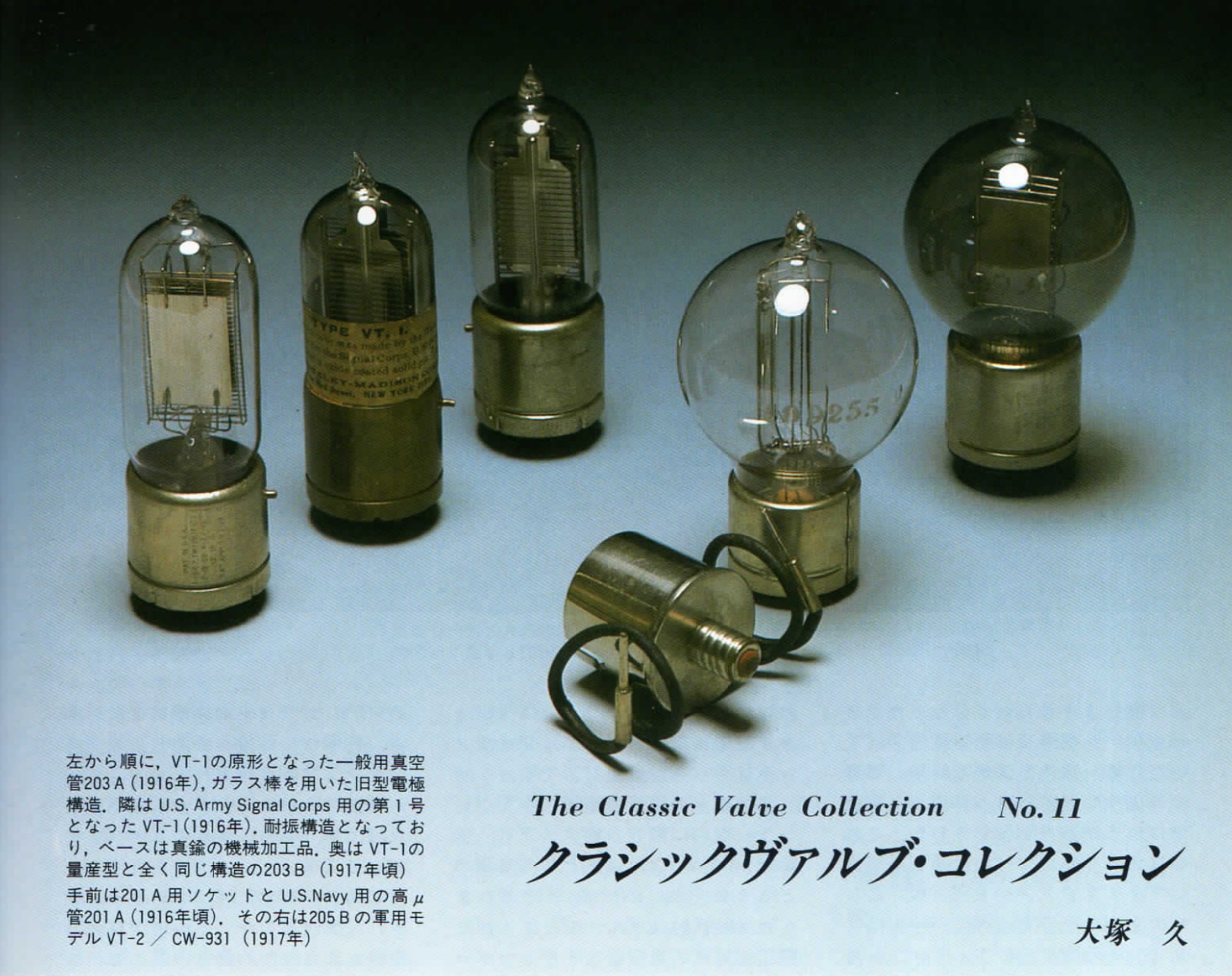

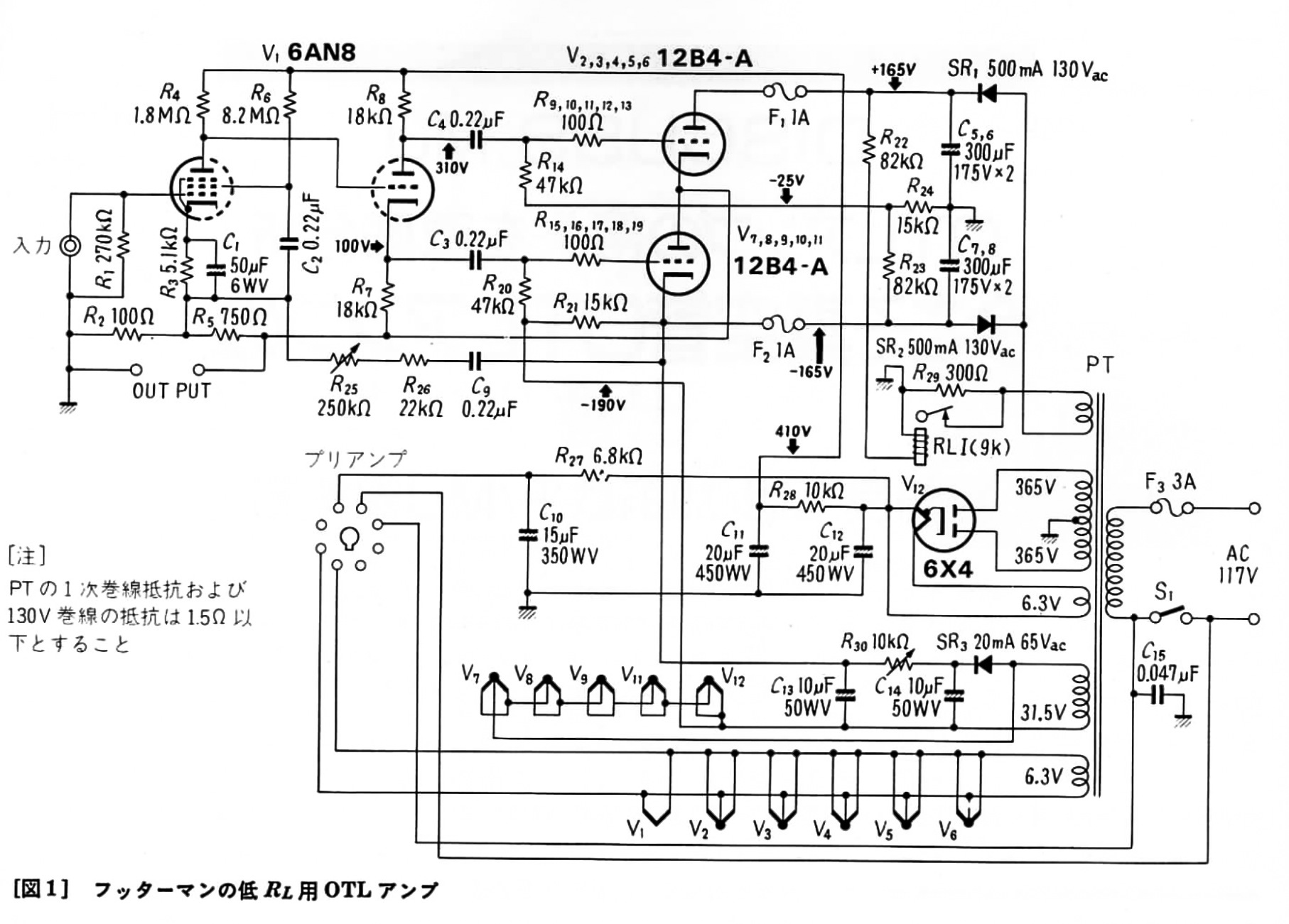

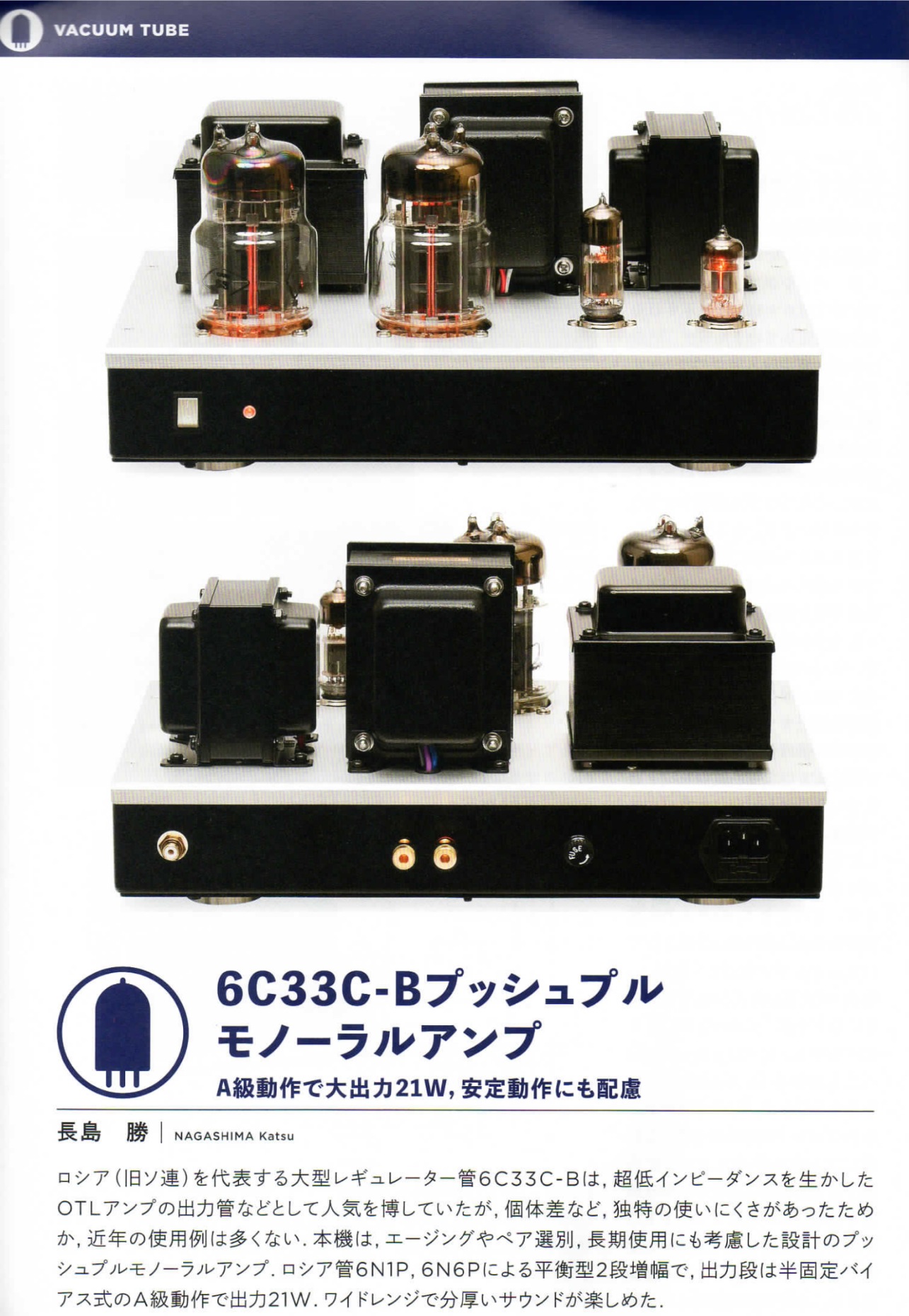

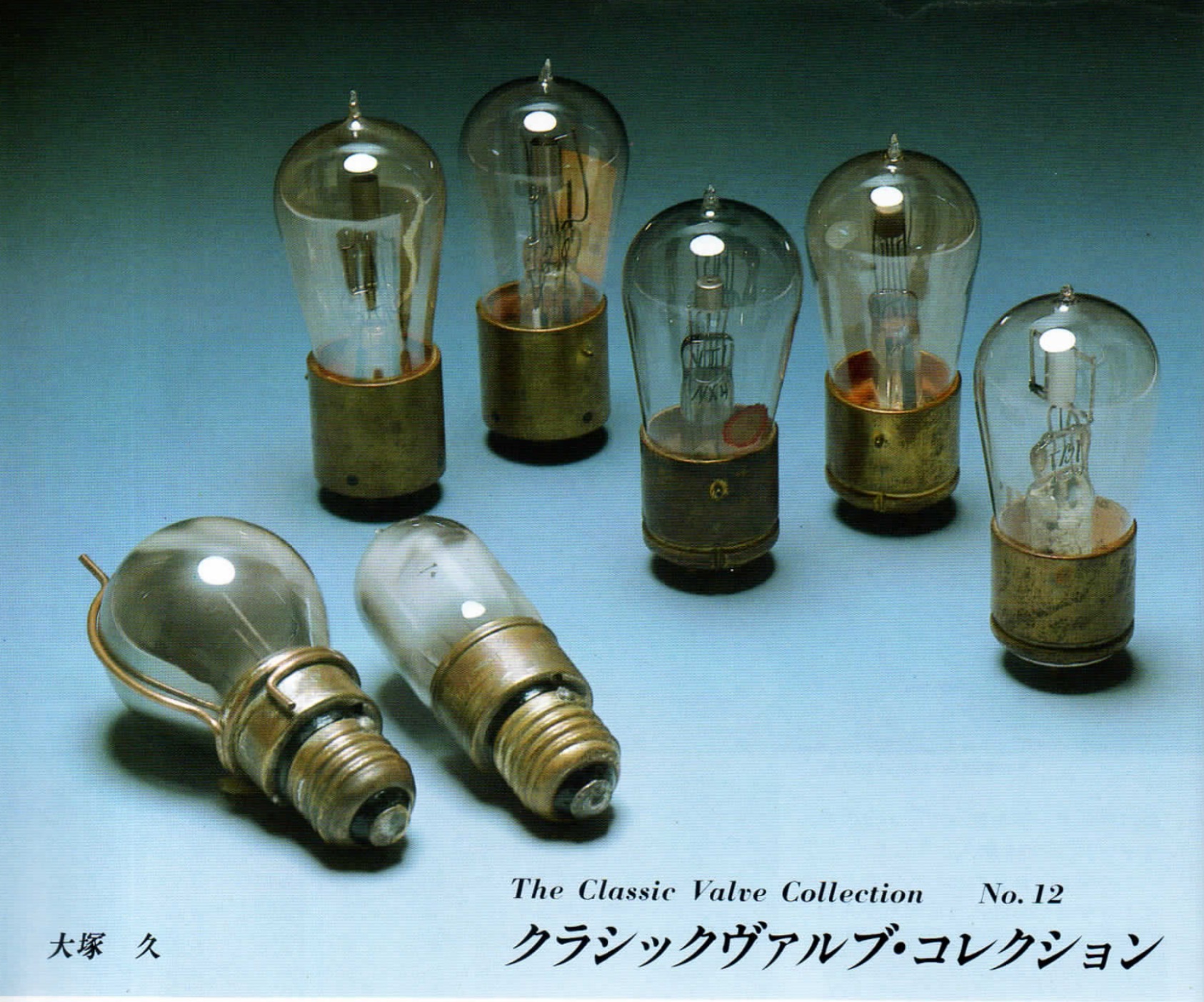

Gold mine of DI¥ audio tubes schematics from Japan

[Soundhappy]

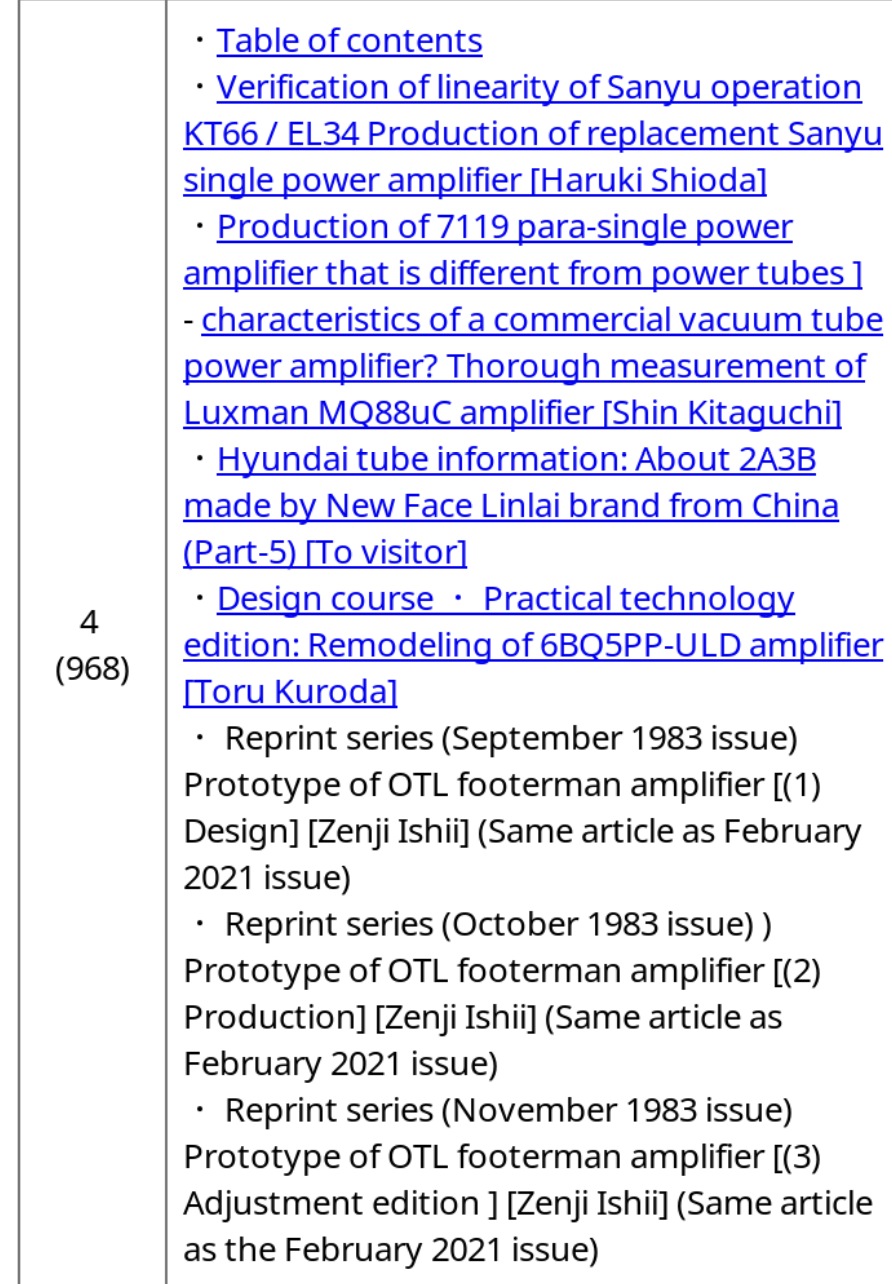

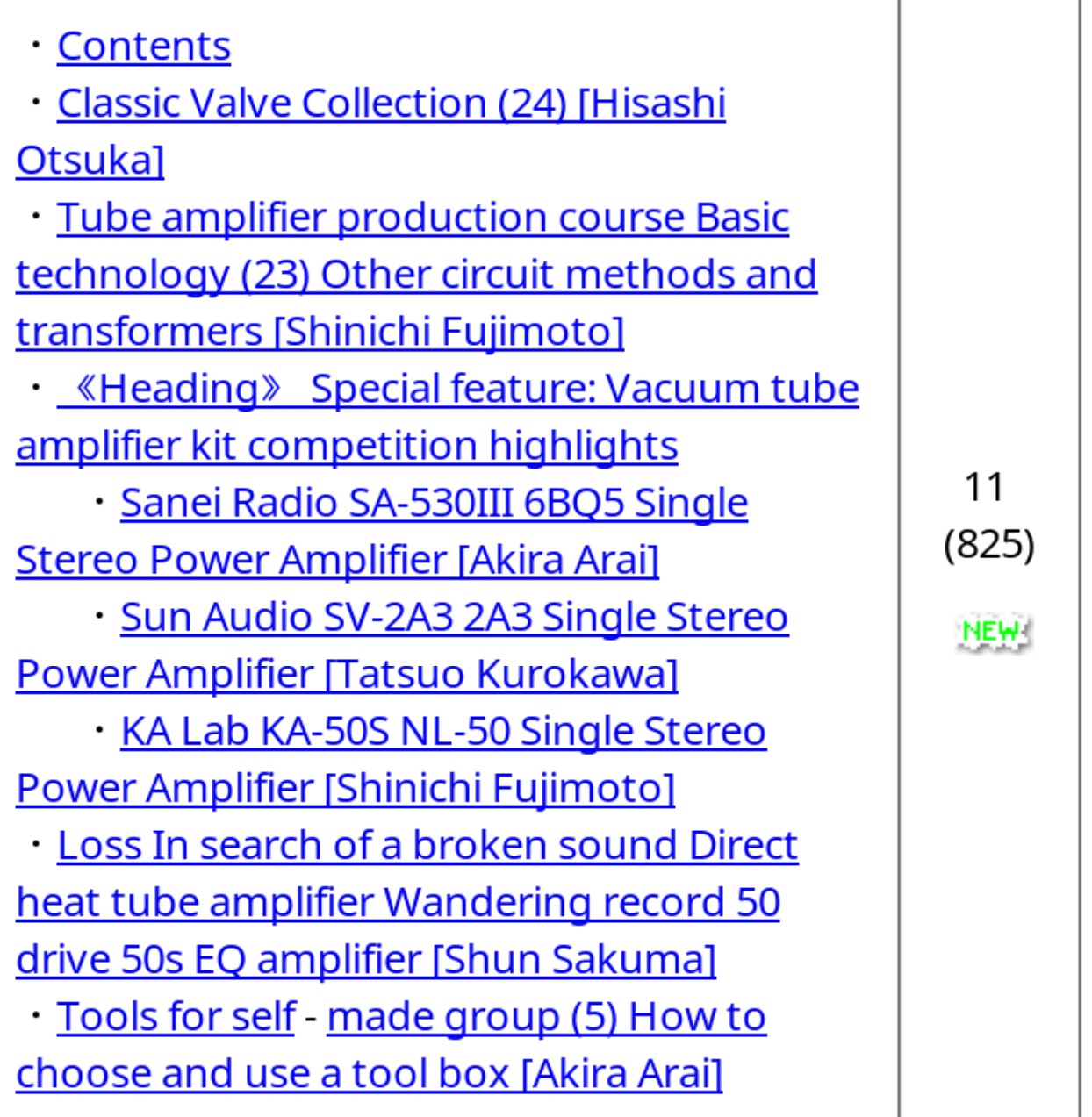

In the 70's ,80's and 90's France have L'Audiophile DiY magazine:

index

index

Best regards

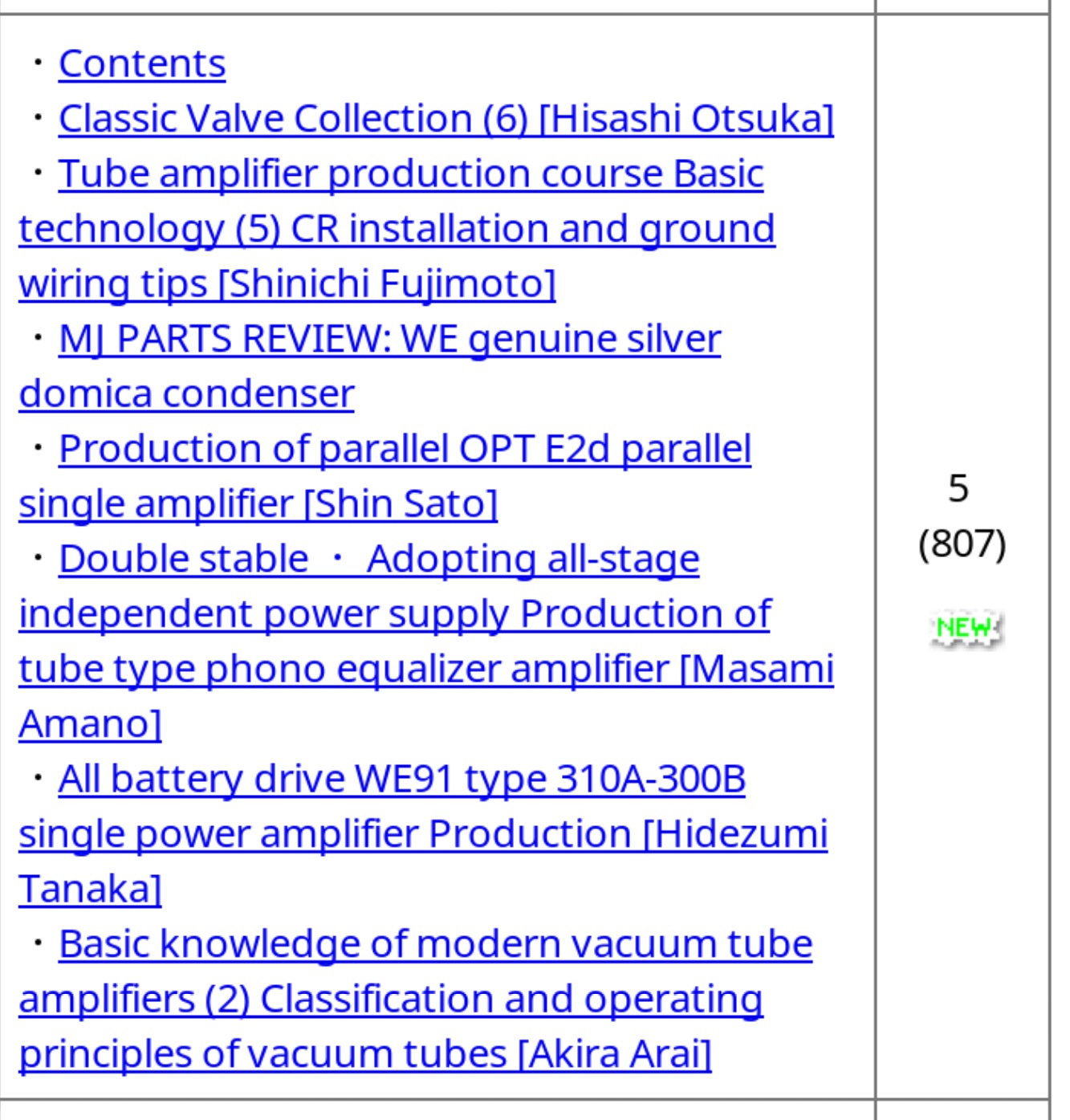

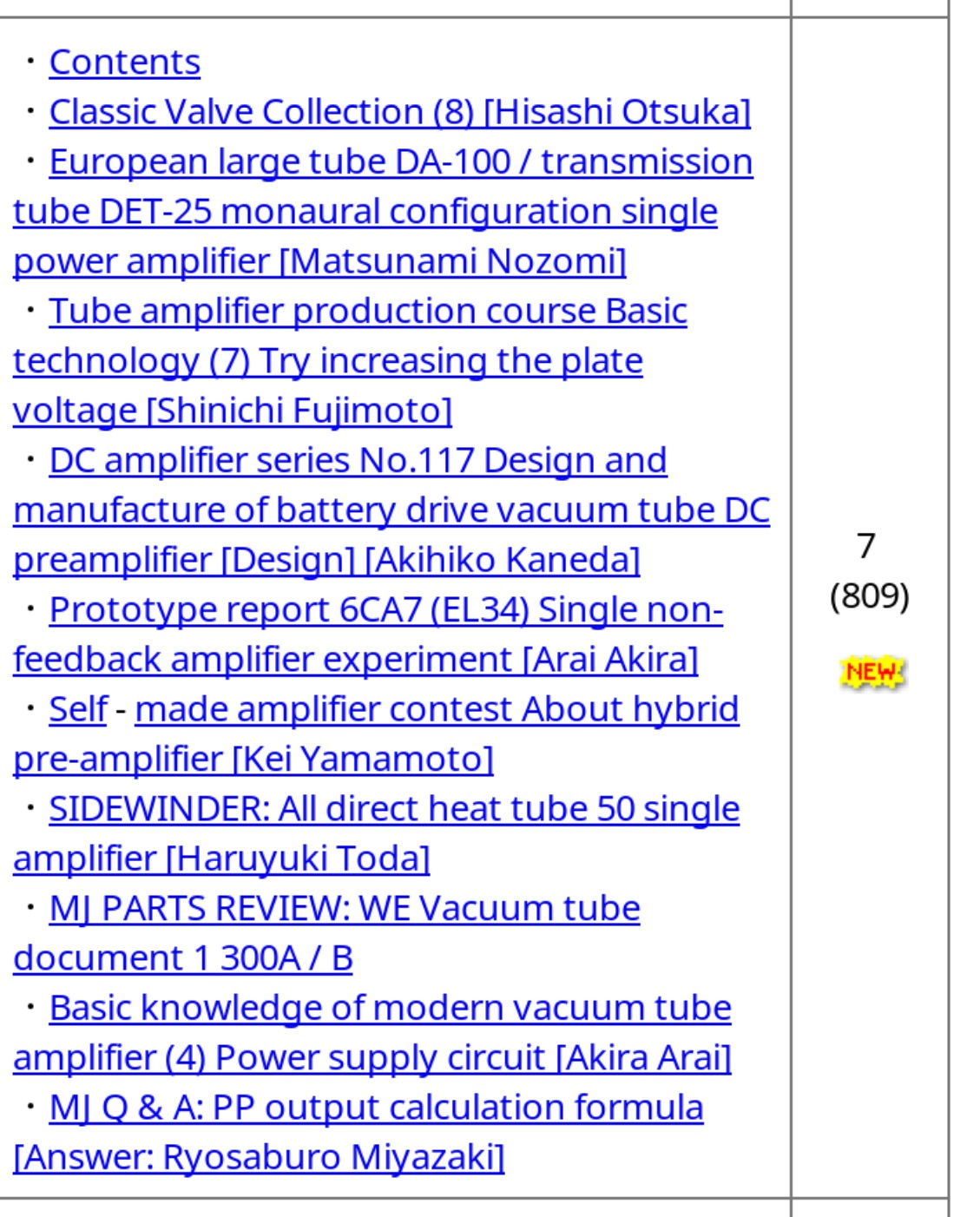

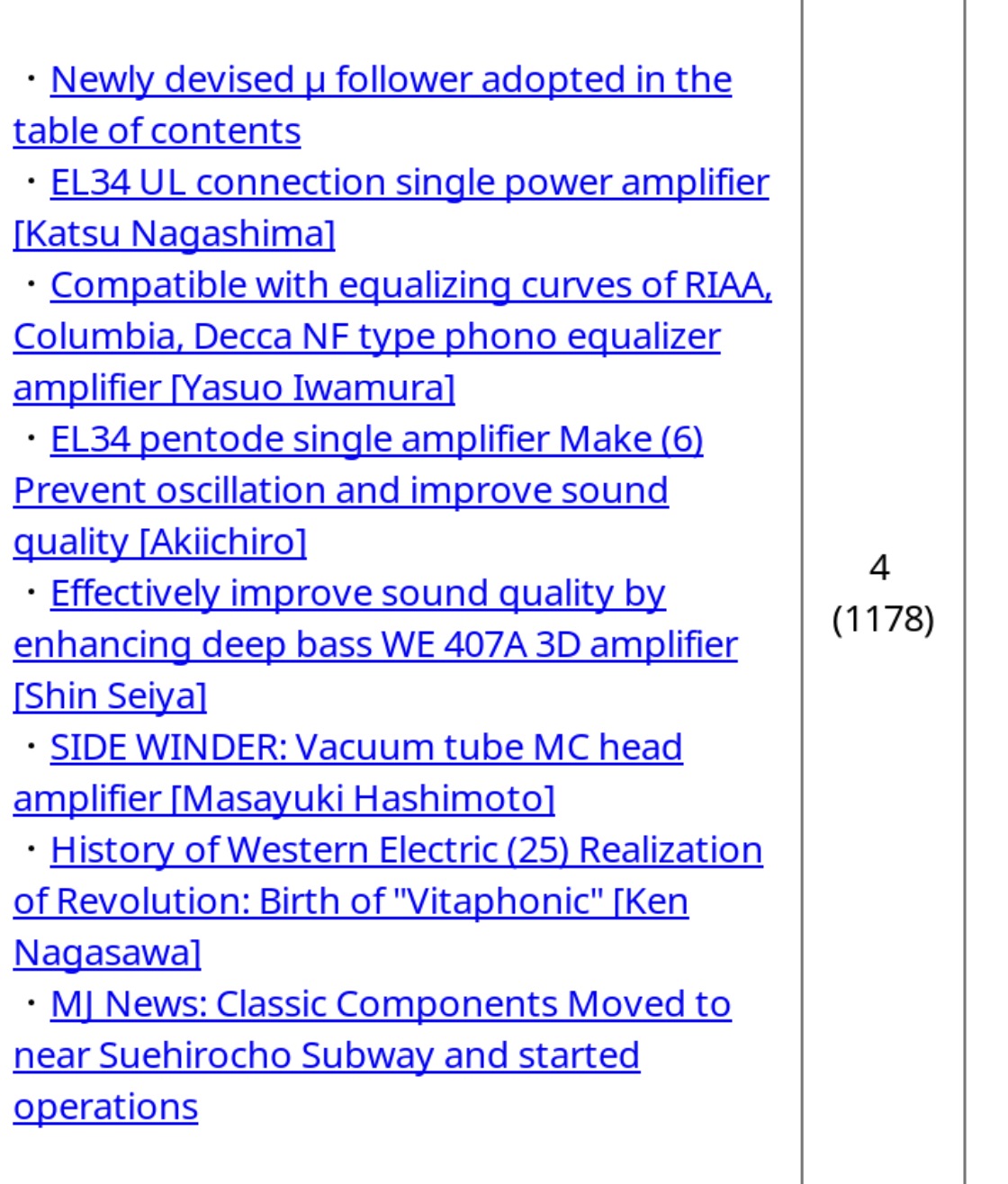

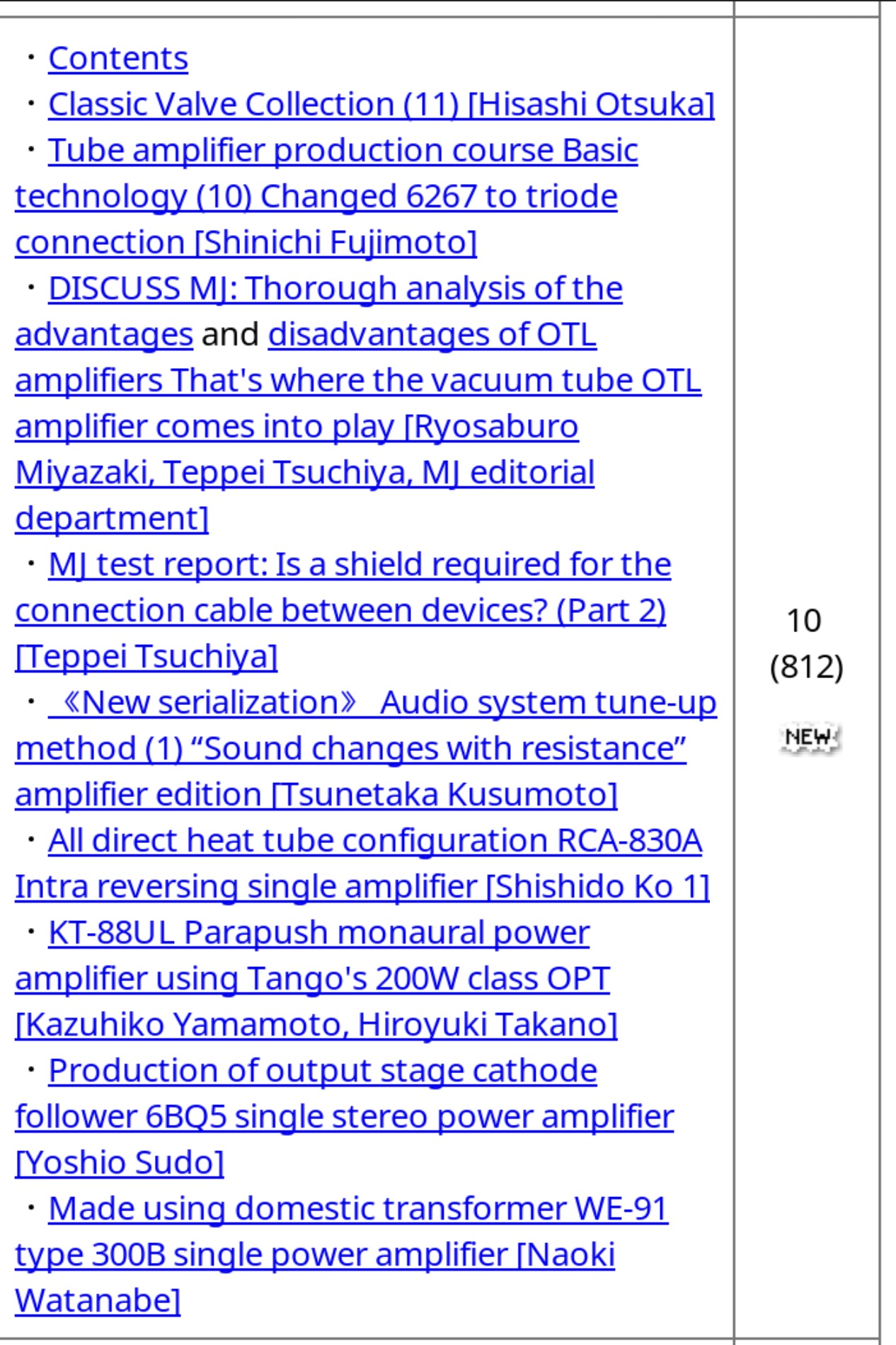

Old links don't work but yesterday I find new pdf's download source from archives Retronik Enjoy 🙂



[gideon1990]

Thanks for those!



[Soundhappy]

Tamura transformers catalogue https://ia801009.us.archive.org/0/items/Tamura_Audio_Transformers_1997/Tamura_Audio_Transformers_1997.pdf



[Soundhappy]

Enjoy 🙂 DIY tube articles updates HOME



[Soundhappy]

E documents public domain interesting source

Vacuum Tube Technology

Electronics Resources Page

🙂 Kind regards



[Kay Pirinha]

Wow, that's amazing. Thank you very much 😉!
Best regards!



[JoeAlders]

Soundhappy, those E documents are indeed very interesting!
Thanks for posting.



[Soundhappy]

Enjoy DIY tubes articles updates HOME



[Soundhappy]

遠い昔のラジオ少年 HOME



[Soundhappy]

DIY tube audio articles updates HOME



[Soundhappy]

+ 🙂 DIY tubes audio articles updates HOME



[Soundhappy]

Have a nice day Enjoy



[astouffer]

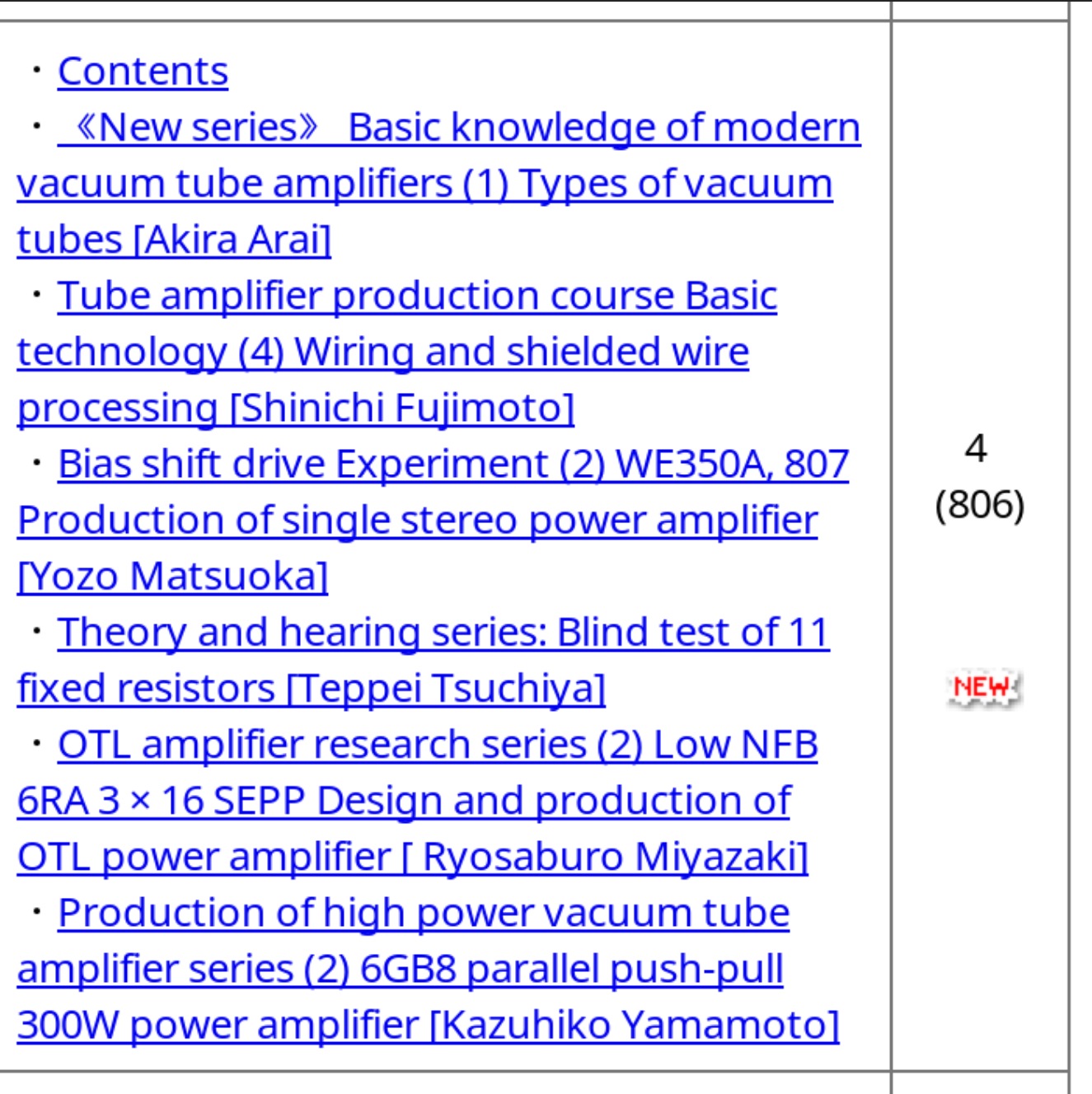

This one really needs to be translated. A blind test of 11 resistors. MJ^9004_(05)fixed-resistor-blind-test_KadoT.pdf - Google Drive



[analog_sa]

This one really needs to be translated.

Most of the resistors there are as rare as the proverbial hen's teeth, so not much practical use. Interestingly, the Shinkoh did not even make the top 5. As for the winning Tokyo Light Sound, i only knew they made attenuators.

Soundhappy once posted a link to a Susumu RE55 datasheet and that is all i have ever seen.

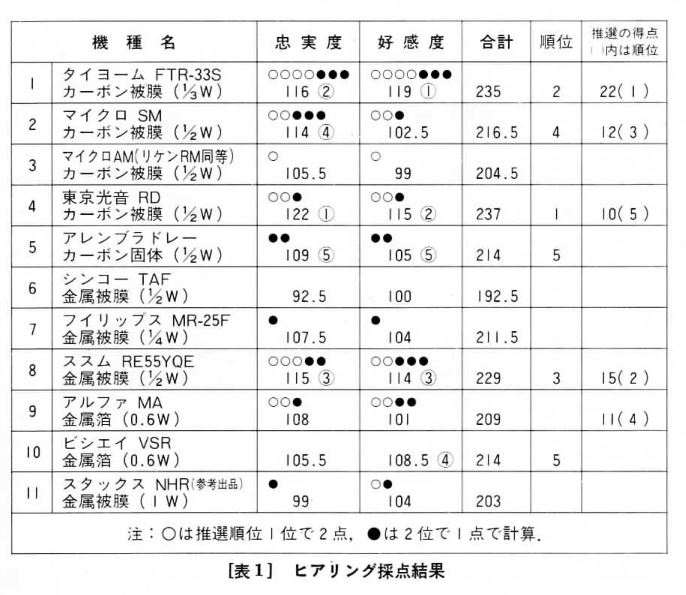

Machine translation of the comparison table likely produced some garbage but still gives an idea of what the resistors were. The ranking is easy to find in the table. Larger numbers equate to better sound.

Taiyome FTR-33S
Micro SM
Micro-AM (Riken-RM, etc.)
Tokyo Light Sound RD
Allen Bradley
Shinko TAF
Philips MR-25F
Susumu RE55
Alpha MA
Vishay VSR
Stack NHR (Reference )



[astouffer]

I can't make heads or tails from the table after google has translated. How were the votes spread out? I'm curious if there was a clear winner.



[NickKUK]

My only concern with a “reference” and everything else is better makes me question the test. It’s like it’s saying anything is better than what we had, when I may be different.



[analog_sa]

I did mention the winner above. Look at the left column containing the resistors in the same order as in my post above and then at the final ranking in the penultimate column on the right.



[analog_sa]

My only concern with a “reference” and everything else is better makes me question the test.

Easy to achieve if the reference is a Chinese generic metal film with magnetic leads. This is after all just another subjective ranking amongst many; certainly interesting but of little practical value.



[Depanatoru]

I doubt you can hear resistors by maker , maybe by technology , lets say carbon vs wirewound but even this depends on the circuit and values 😀



[Kay Pirinha]

My only concern with a “reference” and everything else is better makes me question the test. It’s like it’s saying anything is better than what we had, when I may be different.

Until someone translates the Japanese text for me into a language I do understand, I dare to say the »reference« is a handwound resistor made by maiden virgins in a cloudless full moon night shortly after midnight, using their own golden hair.
Best regards!
