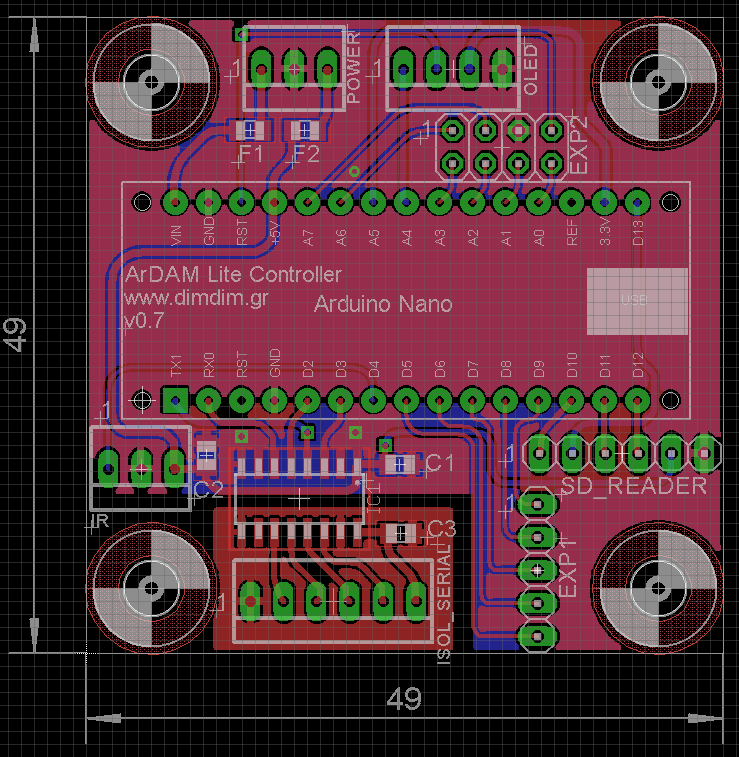

I believe that I have finalized the design. It is a small PCB, approximately 50mm x 50mm.

attachment.php


A minimum number of components is necessary for it to function.

The isolator chip is an Si8642 in SOIC-8 package, which should be very easy to solder on, even with no SMD experience.

Since a few inmates asked, I considered giving an option to include the OLED display in the GB but it doesn't really seem to make sense to me, since:

1) They are available in at least 2 different sizes (0.96" and 1.3") so the end user would probably like to have final say.
2) They are available in several colours so the end user would probably like to have final say.
3) They are already relatively inexpensive and generally available (Ebay, Aliexpress, etc).
4) Any cost reduction due to bulk pricing will most likely be cancelled out by severely increased packing costs and postage in my end.
