Novice question: Snap in caps seem to come in different physical sizes. What sizes are suitable for the PS PCB ?
Novice question: Snap in caps seem to come in different physical sizes. What sizes are suitable for the PS PCB ?
Back from Portugal
Back from a great new-years getaway! 😀
I have updated the wiki and sent a few paypal requests.
The footprint I use is for 64Y, but I have added an extra hole for those trimmers with all pins on a line.
Back from a great new-years getaway! 😀
I have updated the wiki and sent a few paypal requests.
rhysh said:
The footprint I use is for 64Y, but I have added an extra hole for those trimmers with all pins on a line.
Shipment information
I'm starting to get a lot of "when do I ship" questions. And I understand why you want to know that, but I'm afraid I can't give an answer any more clear than I have already written on this thread. Here it is condensed:
I ordered the boards the 18th of December and production time is 14 business days, which means the boards will be shipped from china around middle of January, depending on how much they celebrate Christmas. The shipment to me should take only 2-3 business days.
When I get the boards I'll quickly build a channel to test if everything is ok before I start shipping. I expect to be able to start shipping ultimo January.
Drill sizes
I have created and attached a picture of the gerber files sent to production, with a list of drill sizes indicated by some pink shapes you can find over the drill holes. You can use this site for unit conversion:
http://www.digital-dutch.com/unitconverter/
EDIT:
Is it too late to order?
I also get a few questions about if it is too late to order, and the answer is still no, it is not too late. I have ordered plenty and I can always order another batch if more people want to build F5's.
I'm starting to get a lot of "when do I ship" questions. And I understand why you want to know that, but I'm afraid I can't give an answer any more clear than I have already written on this thread. Here it is condensed:
I ordered the boards the 18th of December and production time is 14 business days, which means the boards will be shipped from china around middle of January, depending on how much they celebrate Christmas. The shipment to me should take only 2-3 business days.
When I get the boards I'll quickly build a channel to test if everything is ok before I start shipping. I expect to be able to start shipping ultimo January.
Drill sizes

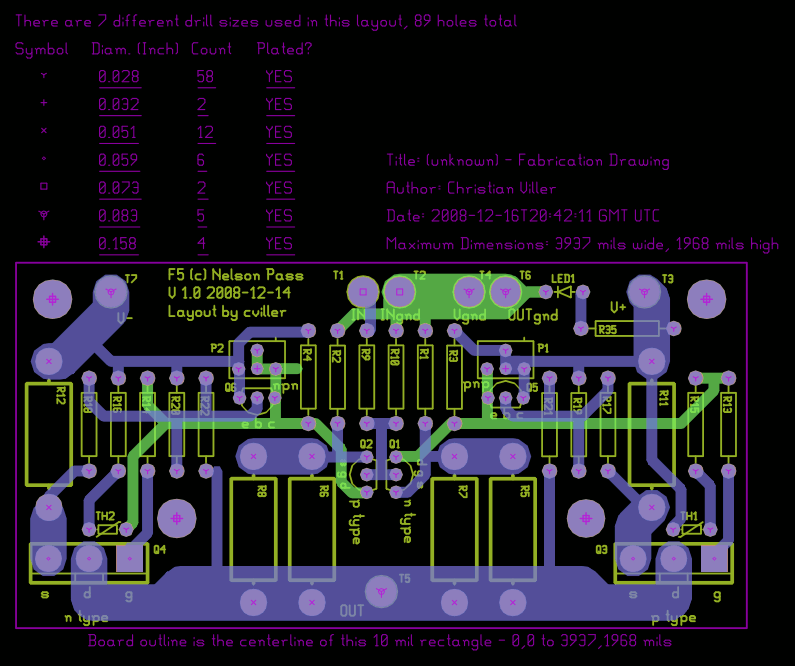

I have created and attached a picture of the gerber files sent to production, with a list of drill sizes indicated by some pink shapes you can find over the drill holes. You can use this site for unit conversion:
http://www.digital-dutch.com/unitconverter/
EDIT:
Is it too late to order?
I also get a few questions about if it is too late to order, and the answer is still no, it is not too late. I have ordered plenty and I can always order another batch if more people want to build F5's.
Attachments
a tiny tech question. I read that the initial "start" setting should be done with the pots set on minimum. Does that mean RO or Rmin between gnd and V+ and V-, or the opposite, higest R between gnd and V+ and V-?
tnx
stefan
tnx
stefan
It means you should turn the trim pot down so that it is almost a short - then you have no vgs voltage drop and your fets will not conduct. Turn the pots up slowly to get higher vgs drop and your power fets will start conducting.
Great!
Anyone have a complete BOM for the F5? I recall seeing some online store with a parts kit. (Can't seem to recall it though)
😀
Anyone have a complete BOM for the F5? I recall seeing some online store with a parts kit. (Can't seem to recall it though)
😀
merlin2069er said:
That would be this Jackinnj:
http://www.tech-diy.com/Store/CloneKits.htm
I have only heard good about him.
caps question
the PS PCB has 8 caps. Is there any problem with having, say, 4 15k caps and 4 30k caps of a different make ?
the PS PCB has 8 caps. Is there any problem with having, say, 4 15k caps and 4 30k caps of a different make ?
I'd like to order four F5 boards and two PSU boards.
I tried to send money through Paypal, but the email at http://www.diyaudio.com/wiki/index.php?page=First+Watt+F5+Clone+PCB+GB+ did not work.
Regards,
Kyungdae.
I tried to send money through Paypal, but the email at http://www.diyaudio.com/wiki/index.php?page=First+Watt+F5+Clone+PCB+GB+ did not work.
Regards,
Kyungdae.
