GB - ACA Power Supply Filter Kits

Jump to Latest
S

Steveau

Member
Joined 2015
rhthatcher said:
Not supercritical. Just note the physical size and the lead spacing. You may have to bend the leads a bit. Electrically your choice of 210uH is a little more inductance (so just fine), and 4A is a little lower current rating, but plenty for the circuit (so also perfectly fine).
Click to expand...

I was just wondering if you still happen to have a couple of pcb's hiding out there, without a home?

rhthatcher

rhthatcher

Member
Joined 2018
Paid Member
bambos said:
I am just wondering if I could use (On the ACA PSU Filter PCB) for C2 and C3 a 1000μf 35V instead of 50V?

I am using exclusively only the 24V PSU.
Click to expand...
Absolutely - I think that's a typo on the schematic. I shipped the kits with 35V IIRC. So by all means, 1000uF 35V.

I used the same series of caps that were called out in the store's P089ZB kit. Nichicon UHW or Kemet ESH series.

bambos

bambos

Member
Joined 2021
rhthatcher said:
Absolutely - I think that's a typo on the schematic. I shipped the kits with 35V IIRC. So by all means, 1000uF 35V.

I used the same series of caps that were called out in the store's P089ZB kit. Nichicon UHW or Kemet ESH series.
Click to expand...
Thank you for your reply, I was just checking just in case there was a reason for 50V.
Thank for your design and for sharinmg the Gerbers with us.

Bambos

R

ripblade

Member
Joined 2007
Hi folks,

Is there a consensus among members who've installed the filter as to what the sonic improvements are? I've discovered a slight vocal sibilance audible with some tweeters and am wondering where the source is. The Meanwell brick, coupling caps or something else? I have the v1.6 running in stereo mode.

Thanks,
Glenn

KevinHeem

KevinHeem

Member
Joined 2007
Paid Member
@ripblade
You’re a prime candidate to try it and report back. I have mono blocks with the filters installed and honestly I can’t tell a difference. However, I didn’t have a problem I was trying to address, you do. All that to say that I do have extra kits available (I ordered for future projects) and would be willing to send you one. PM me if interested.

R

ripblade

Member
Joined 2007
KevinHeem said:
@ripblade
You’re a prime candidate to try it and report back. I have mono blocks with the filters installed and honestly I can’t tell a difference. However, I didn’t have a problem I was trying to address, you do. All that to say that I do have extra kits available (I ordered for future projects) and would be willing to send you one. PM me if interested.
Click to expand...

I'm definitely interested, Kevin. I'm not sure how to contact you directly. Is there a minimum post count I need to fulfill before I can do that?

I'm not sure I even understand the instruction given here:

New members who are still under moderation are not allowed to send private messages. Also known as "Start a conversation."
This is to prevent spam by private message.

If you need to contact a forum member about a group buy, or an item on offer, you can post in the thread to request a PM. You will be able to read an reply to that PM.

Once a member has cleared moderation, starting PM will be available.
Click to expand...
Do I post the request here is or is there a dedicated thread for starting PMs somewhere?

https://www.diyaudio.com/community/...ot-send-private-messages.384831/#post-6986646

Every time I get used to something they change all the rules.:ROFLMAO:

R

ripblade

Member
Joined 2007

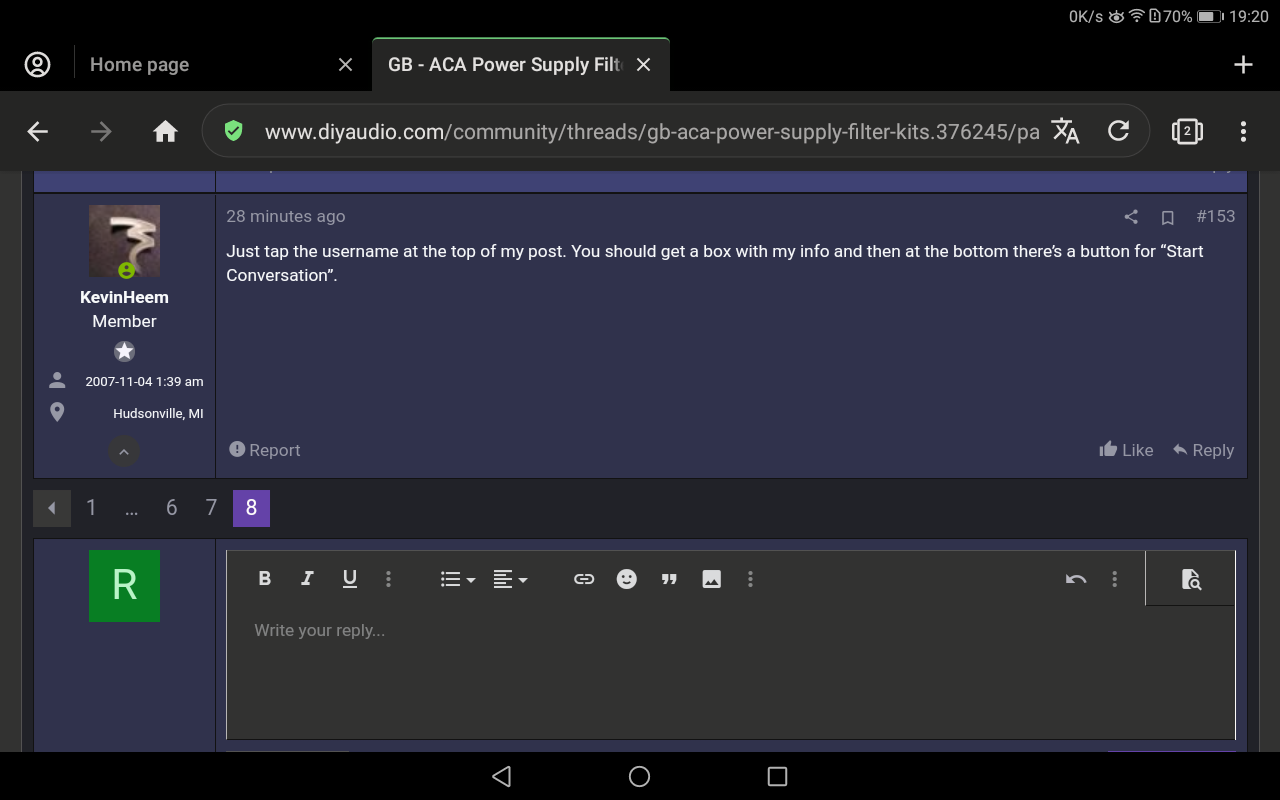

This is what I see....


You must log in or register to reply here.
