FLEA PPP, all ecc99

Status
Not open for further replies.

Attachments

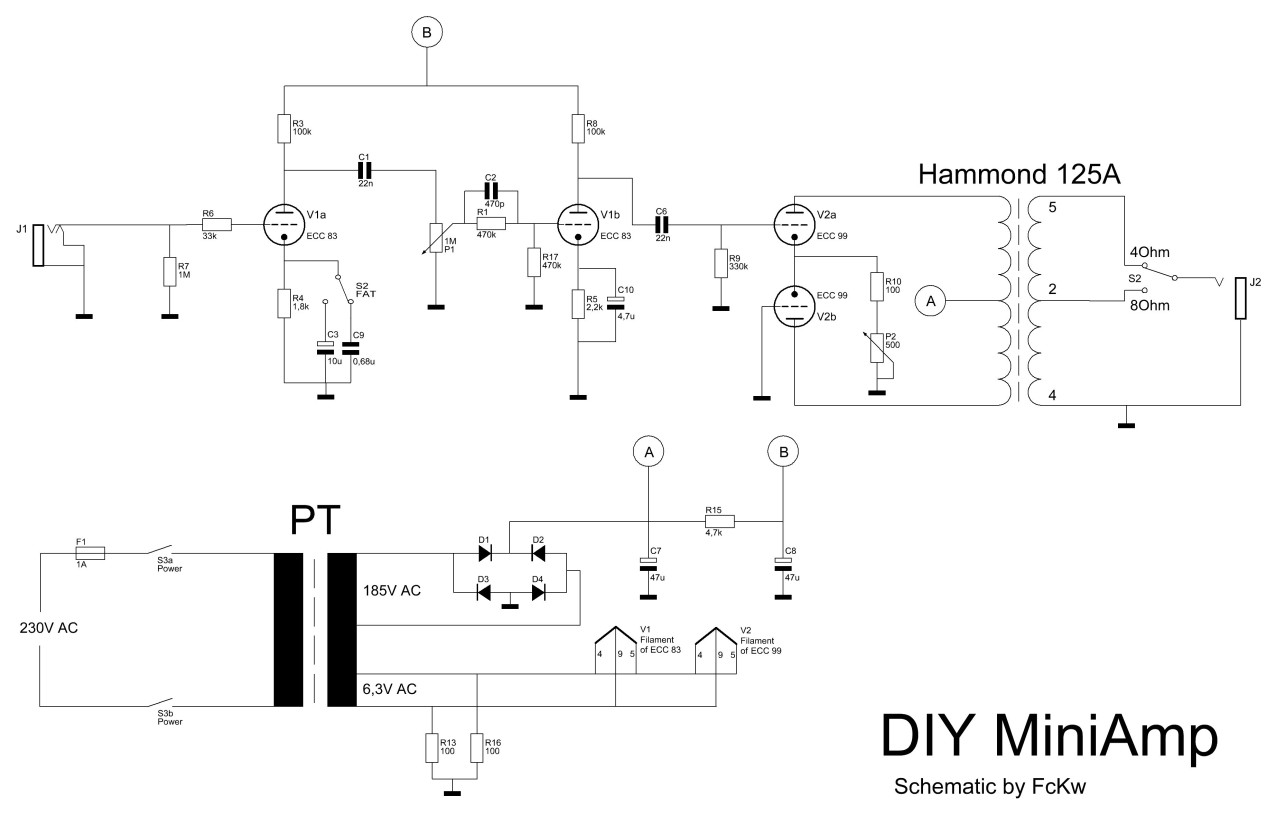

  • miniamp-schematic1.jpg
    75.1 KB · Views: 325
2x 6N6P or ECC99 each channel, PPP

Edcor's are not expencive

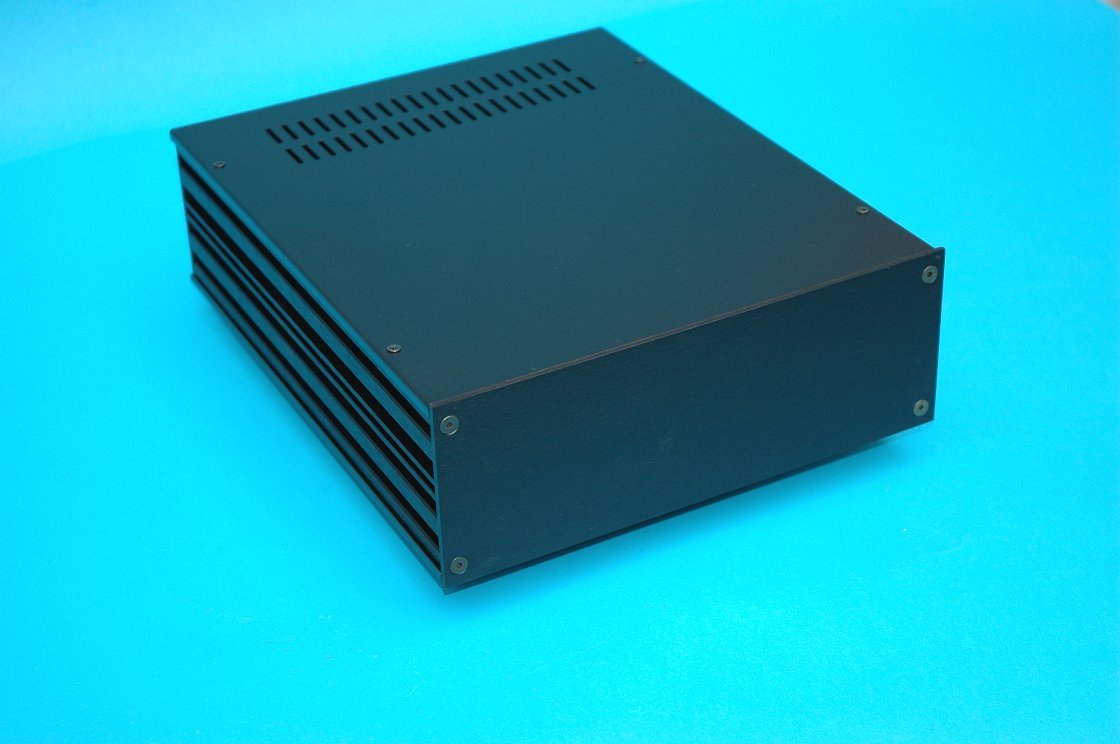

Shown alu box is very affordable too
LL line trafos are not, unfortunately

I might give it a try


Attachments

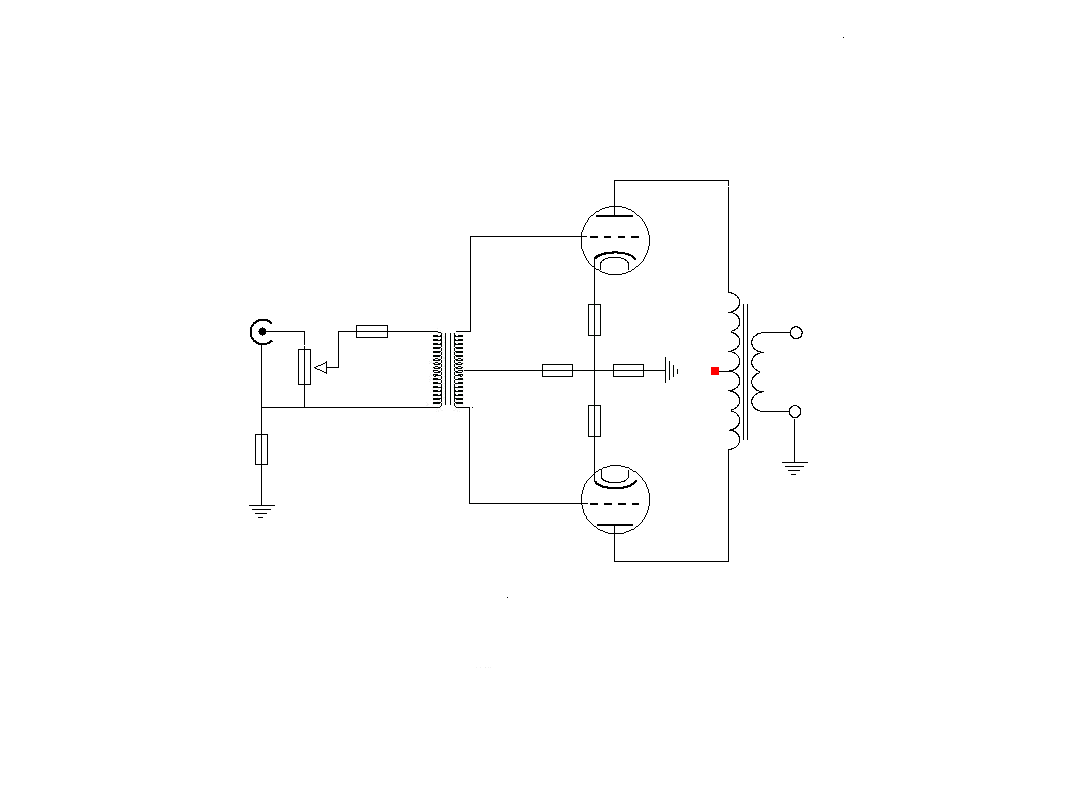

  • Simple 6N6P  PP.GIF
    Simple 6N6P PP.GIF
    7.1 KB · Views: 274

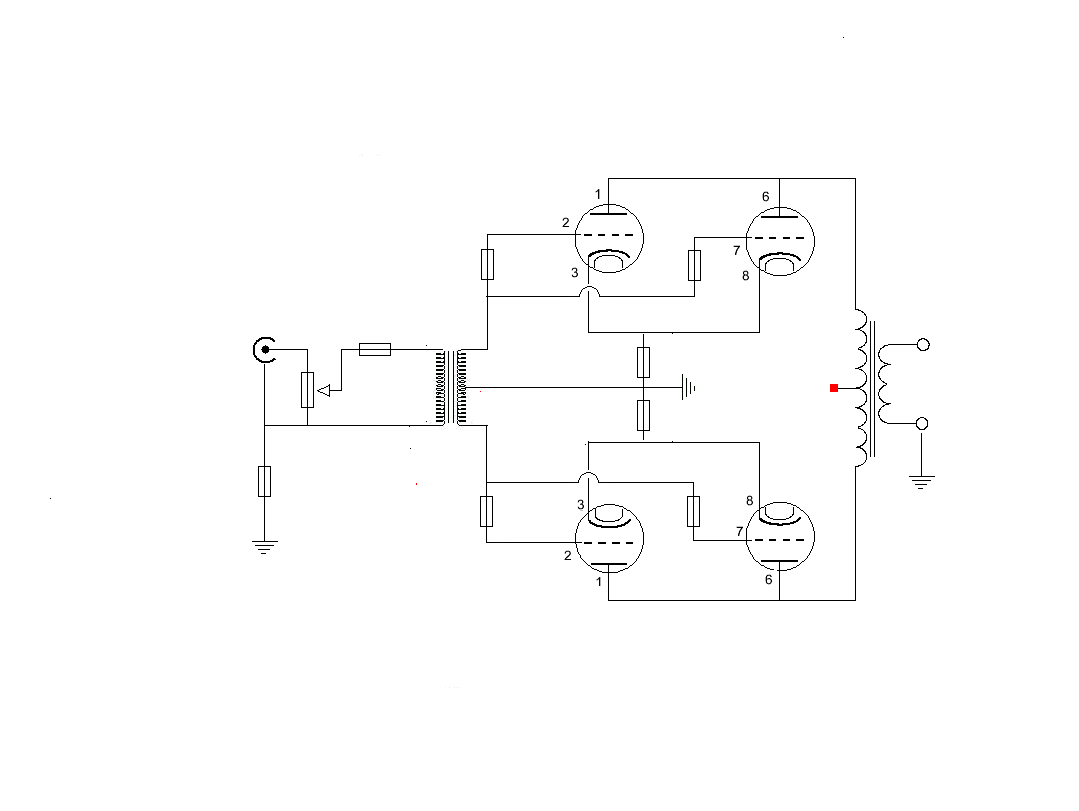

  • Simple 6N6P PPP.GIF
    Simple 6N6P PPP.GIF
    9.3 KB · Views: 266
  • modu galaxy.jpg
    modu galaxy.jpg
    85.6 KB · Views: 260
seems I still dont know how it works with bias and grounding 😕


Attachments

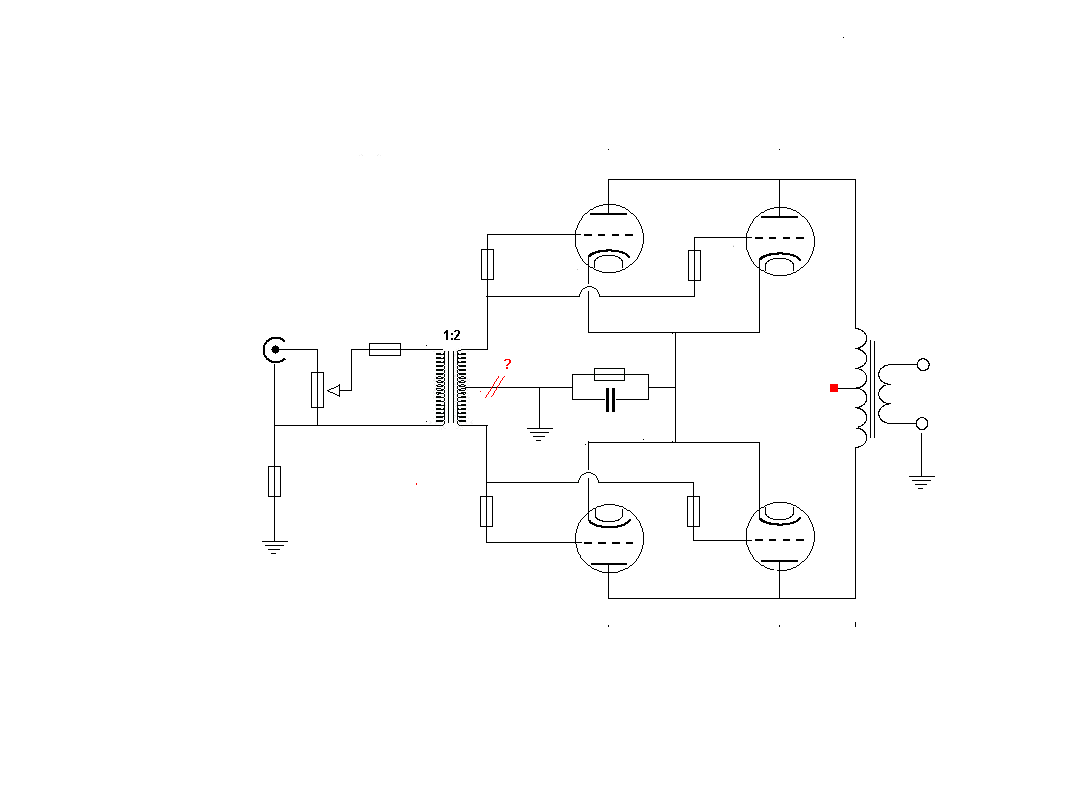

  • Simple ECC99 PP.GIF
    Simple ECC99 PP.GIF
    8.8 KB · Views: 215

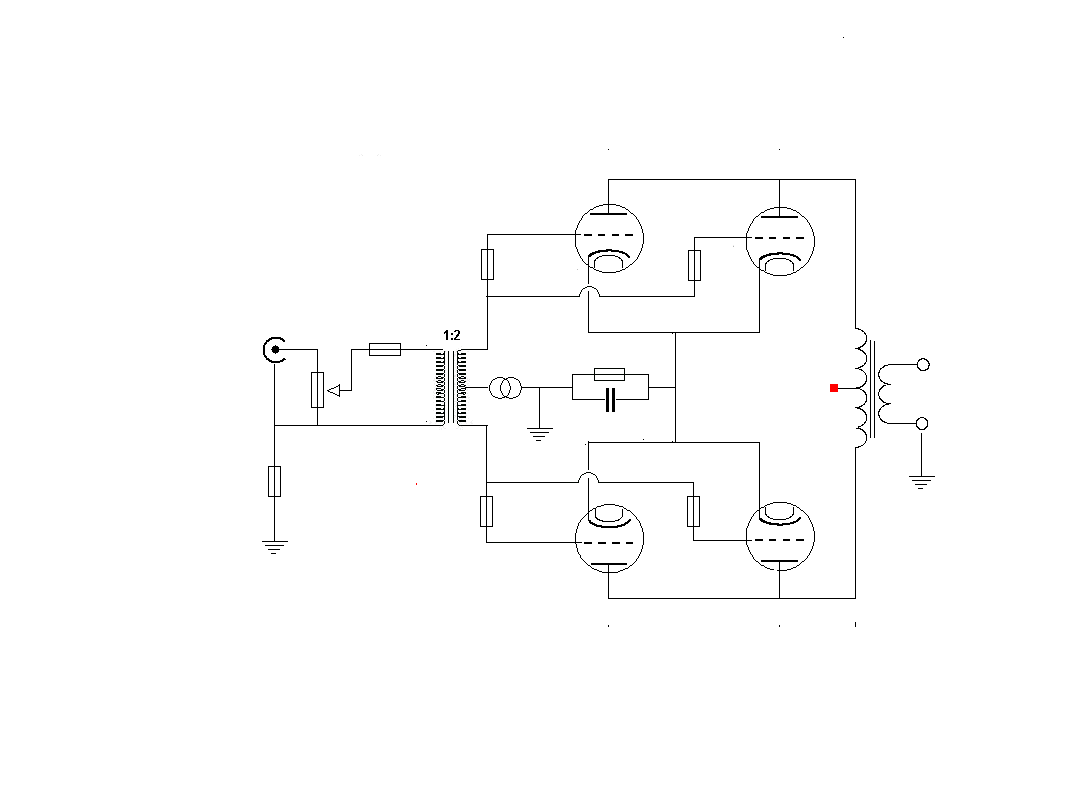

  • Simple ECC99 PP ccs.GIF
    Simple ECC99 PP ccs.GIF
    8.8 KB · Views: 117
  • Simple ECC99 PP rev.GIF
    Simple ECC99 PP rev.GIF
    9 KB · Views: 106

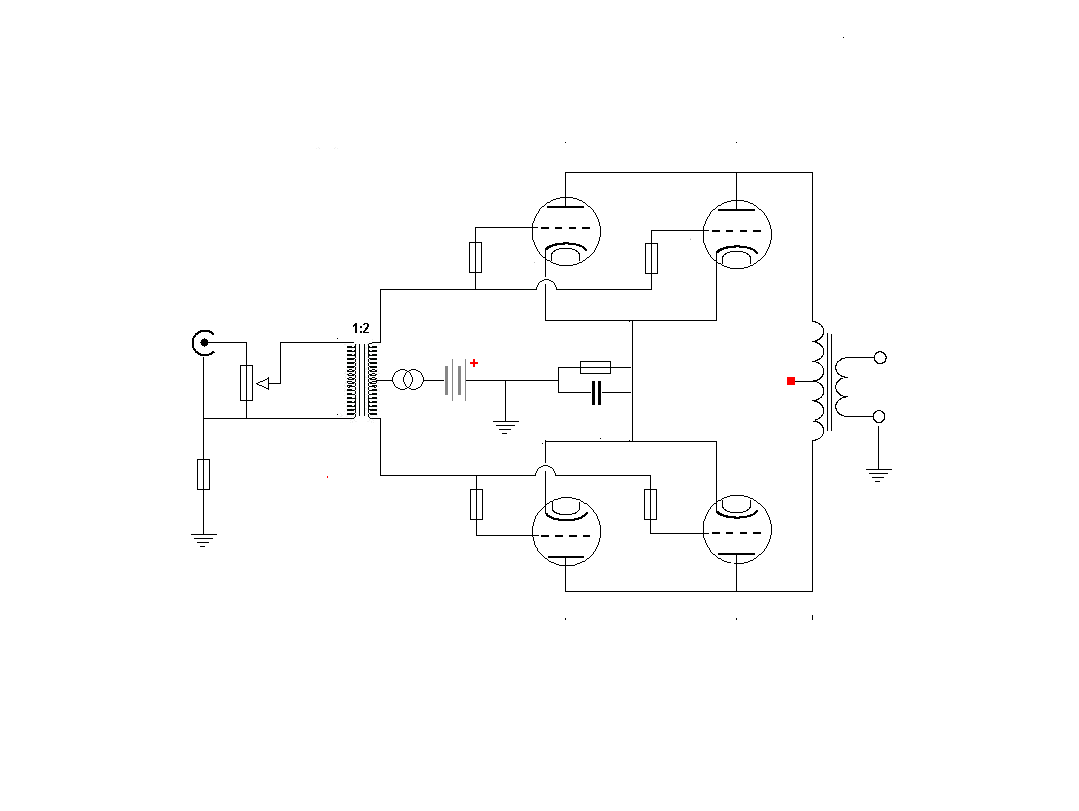

  • Simple ECC99 PP ccs rev.GIF
    Simple ECC99 PP ccs rev.GIF
    9 KB · Views: 117
I might give this one a second chance :clown:

and... at the time i didn't know about the Blumlein Garter cross reference bias scheme
might make sense to use it for this

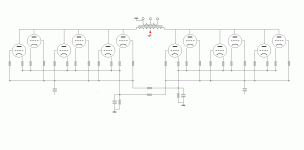

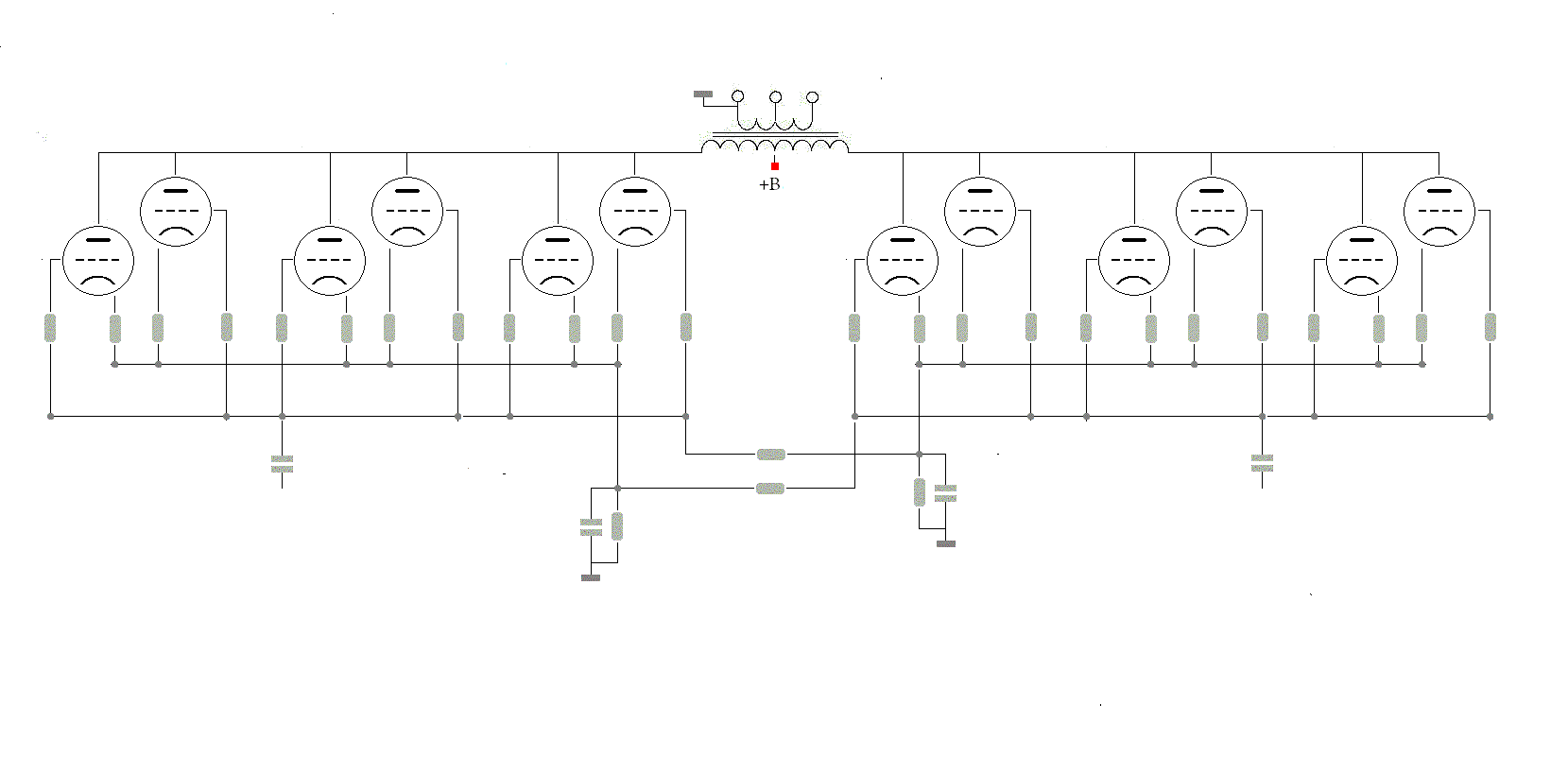

how many ECC99 or 6N6P will I need to us a 1K6 PP output trafo ?
my first guess is 6x ECC99 per mono amp
being double tubes means 6 tubes in paralel, in reality
