Dual 5AR4s in Preamp

Possible lay out for power supply.]

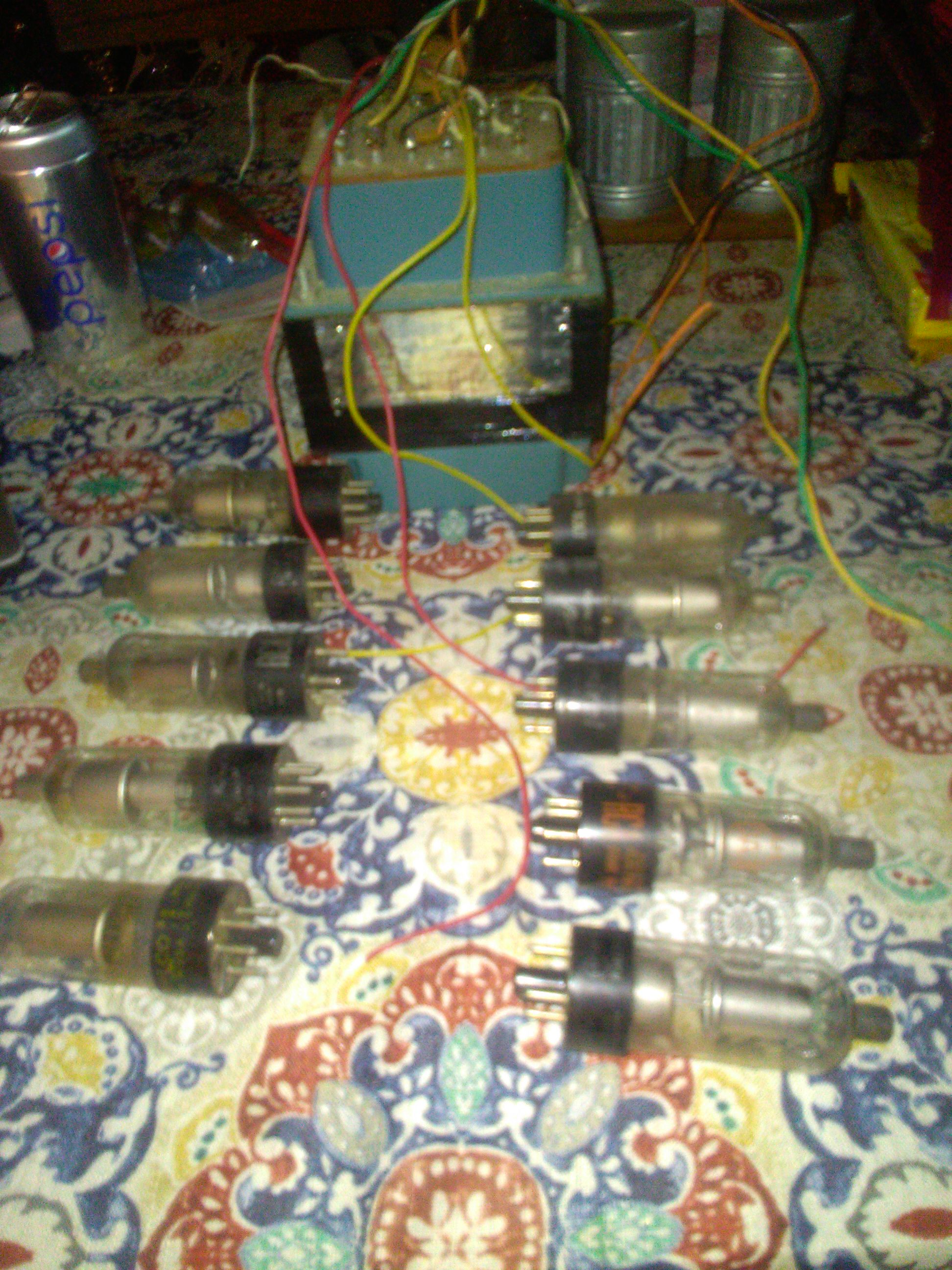

10 1B3's , 19 pound tektronix transformer, maybe 10h 300ma choke and 1000mfd of film caps! should be enough for a single 12ax7.


Attachments

  • KIMG0587[1].JPG
    827.7 KB · Views: 104
damn, i just started a design using 4 x 5U4's to power a 2 tube 12au7 ccda preamp.....

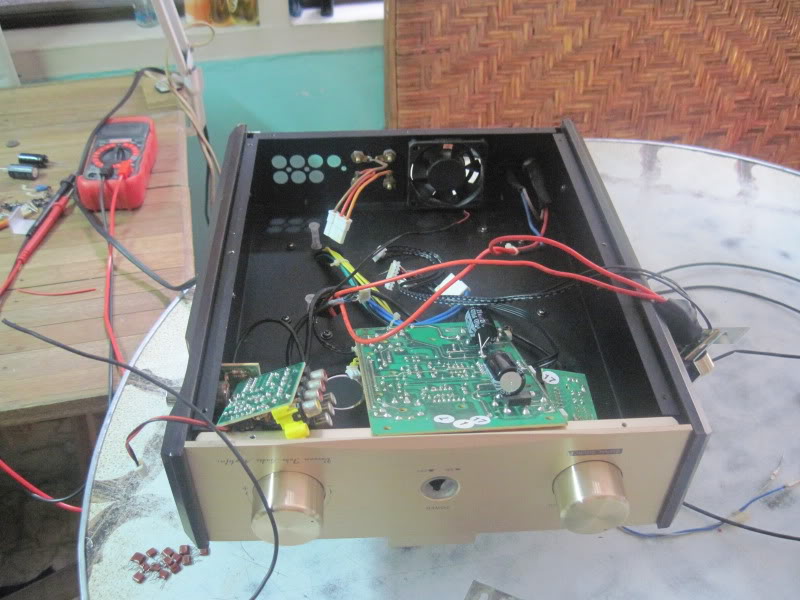

this chinese amplifier with 12ax7 cathode follower to supply +-6 volts to that stage used 2 5V4 rectifiers, and that is becuase the cathode followers used dual rails....

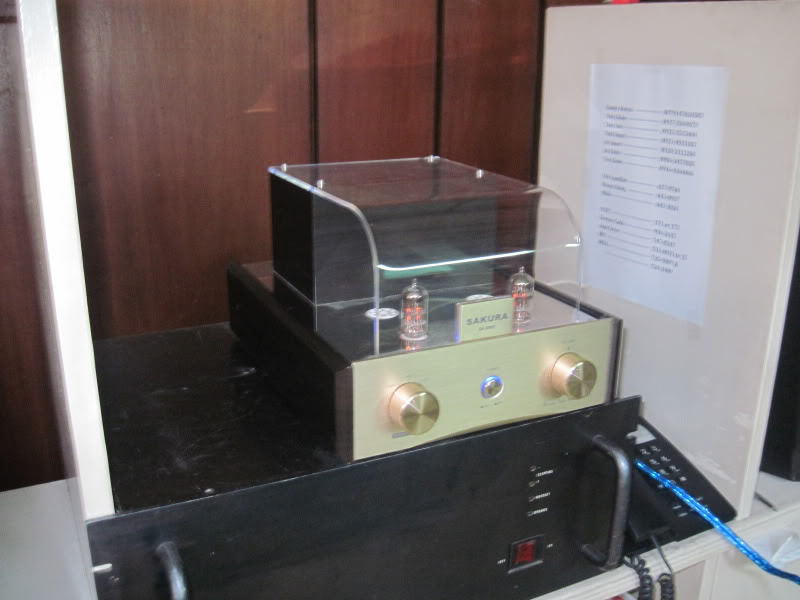

mind you this amp sold like hotcakes in manila....
