Diy ribbon

[MichaelGaedtke]

New design

Very nicely done, indeed!
How do you fixe the magnets and machine the stators?



[ABJensen]

The design is made by Boye the designer of Jamo 909.



[tinitus]

Nice and smooth

Well, in the previous picture you show your new nicely looking design, and it seems to be a corrugated true ribbon, so it cant have anything to do with the planar design you show last(Boye, Jamo)



[ABJensen]

It is a corrugated planar tweeter.Boye is the name of the person who designed Jamo 909, and he helped me with this design.



[jzagaja]

On above picture there are two conductors in series and in the middle again paper? 3M is makes nice papers (medical).



[ABJensen]

Thats correkt jza



[tinitus]

It is a corrugated planar tweeter.

Corrugated planer?

I have always had my doubts about that, but if you say it works...ehh, could be that the foam at the edges does the trick, right



[ABJensen]

Corrugated planer?

I have always had my doubts about that, but if you say it works...ehh, could be that the foam at the edges does the trick, right

It could be . And you are right even the simpel is troblesome



[jzagaja]

Design looks be 0.28T average with 10x10mm N40. I wondering about stacking four (omni) with TL loading.



[tiki]

Hello,
your FEMM-script looks different to ABJensens script.



[poopydoopynoopy]

AB very nice effort!



[jzagaja]

Båndsei,,

Could you post harmonic distorsion spectra?



[ABJensen]

Båndsei,,

Could you post harmonic distorsion spectra?

No I am sorry. But they sound fine down too 200-250hz with sharp digitalfilter.



[ABJensen]

Will post a better picture later.



[MichaelGaedtke]

Very impressive!



[ABJensen]

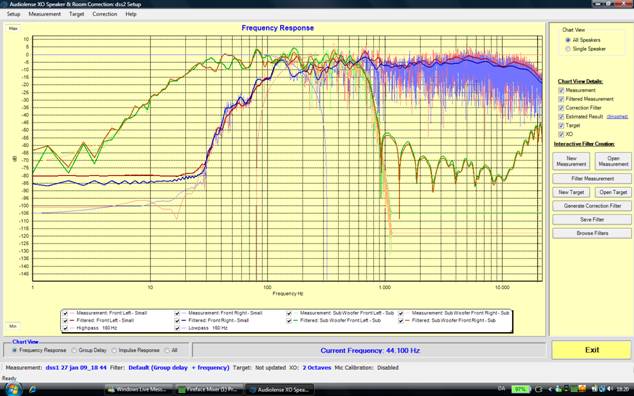

Measured in lisning possion with Holmfir. correkted from 2000hz and up. buttom curve is TDH



[ABJensen]

Fullrange planar ribbon - YouTube

Think it works now with this corrugation.



[ABJensen]

planar ribbon movement - YouTube

Ribbon movement

I is there any other planar tweeter out there, that can match that ?.



[blaaberg]

Hejsa Andre`,
Can you be more specific about ribbon material and corrugation?
I think it`s hard to find very thin alu foil. In my ribbon I use household 11mY.
True without paper, corrugated horrisontal, 18mm x 1800mm. The impedance is a little tricky, so I use 2 ohm in serial, and super amps and filters from Groundsound (Denmark)

Cheers Jan



[ABJensen]

Ribbon material is thin capacitor paper with 4*5mm 60cm long 7 my alu strips clued one.
it is corrugated vertical.

Køb alufolie i irma med papir på, det er 7my.Du vil kunne bruge det som det er i din konstruktion.
