My Buffalo III DAC
Hi,
I came across this DAC gallery. A week ago I had posted a large article about the Buffalo III I had build this year.
Here is the link: Buffalo III DAC
Hi,
I came across this DAC gallery. A week ago I had posted a large article about the Buffalo III I had build this year.
Here is the link: Buffalo III DAC
Hi.
My group starting a project on USB audio box from scratch. Any willing to show the example schematics?
My group starting a project on USB audio box from scratch. Any willing to show the example schematics?
haha, perhaps you need to look up what it means to build 'from scratch', besides, you'll excuse us if we are a little suspicious of brand new members joining to ask for 'from scratch' USB audio schematics
Hi,

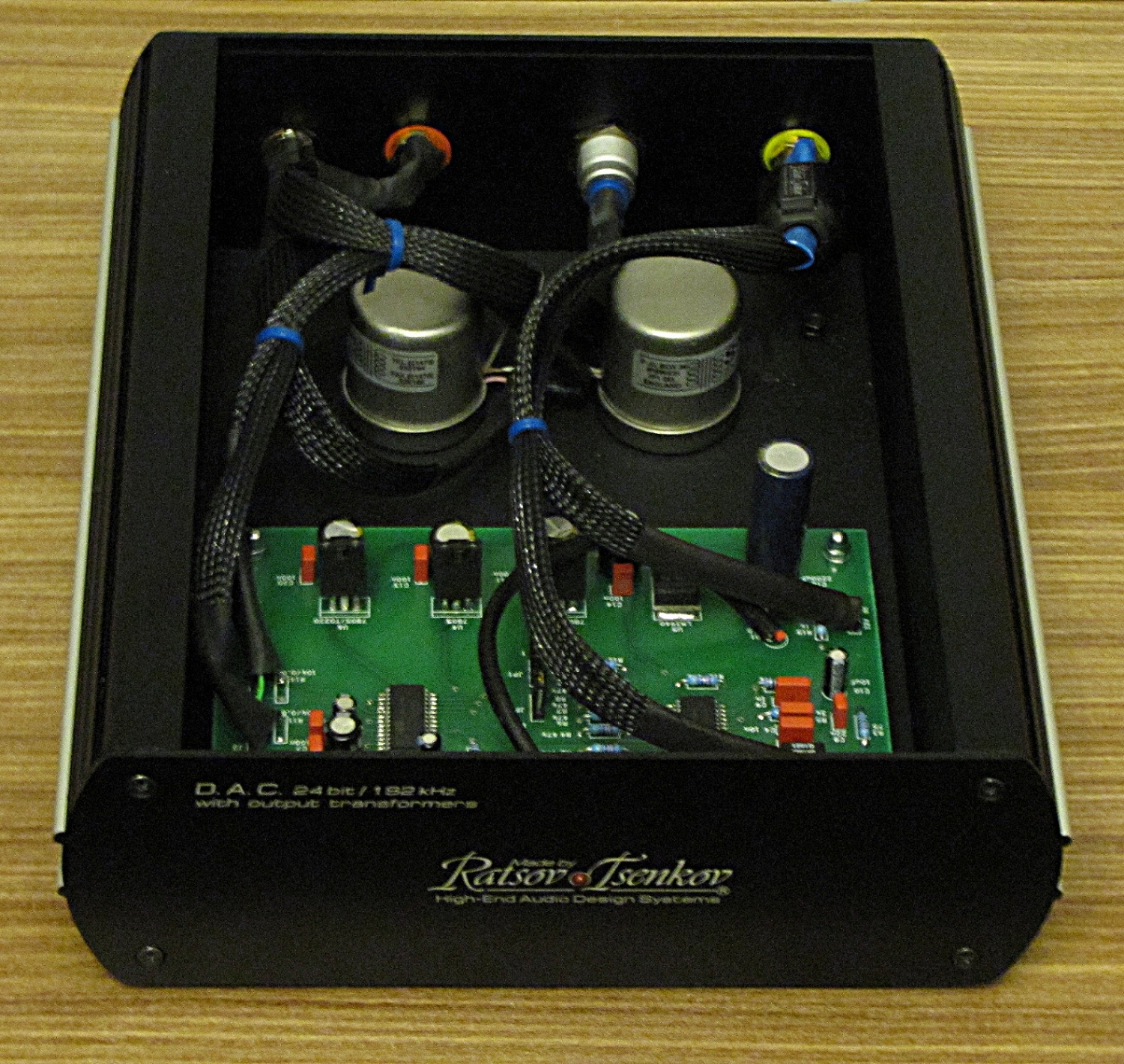

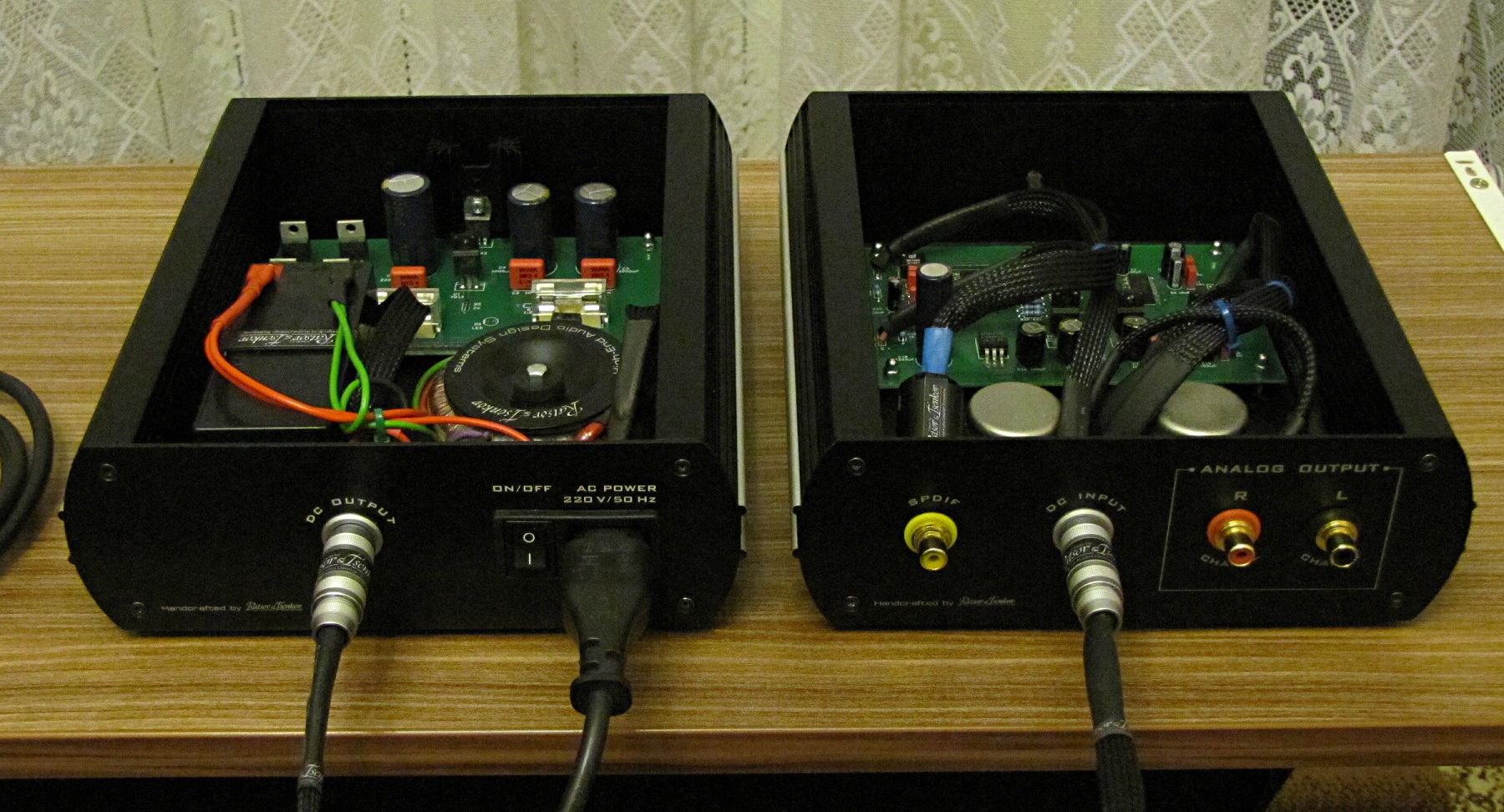

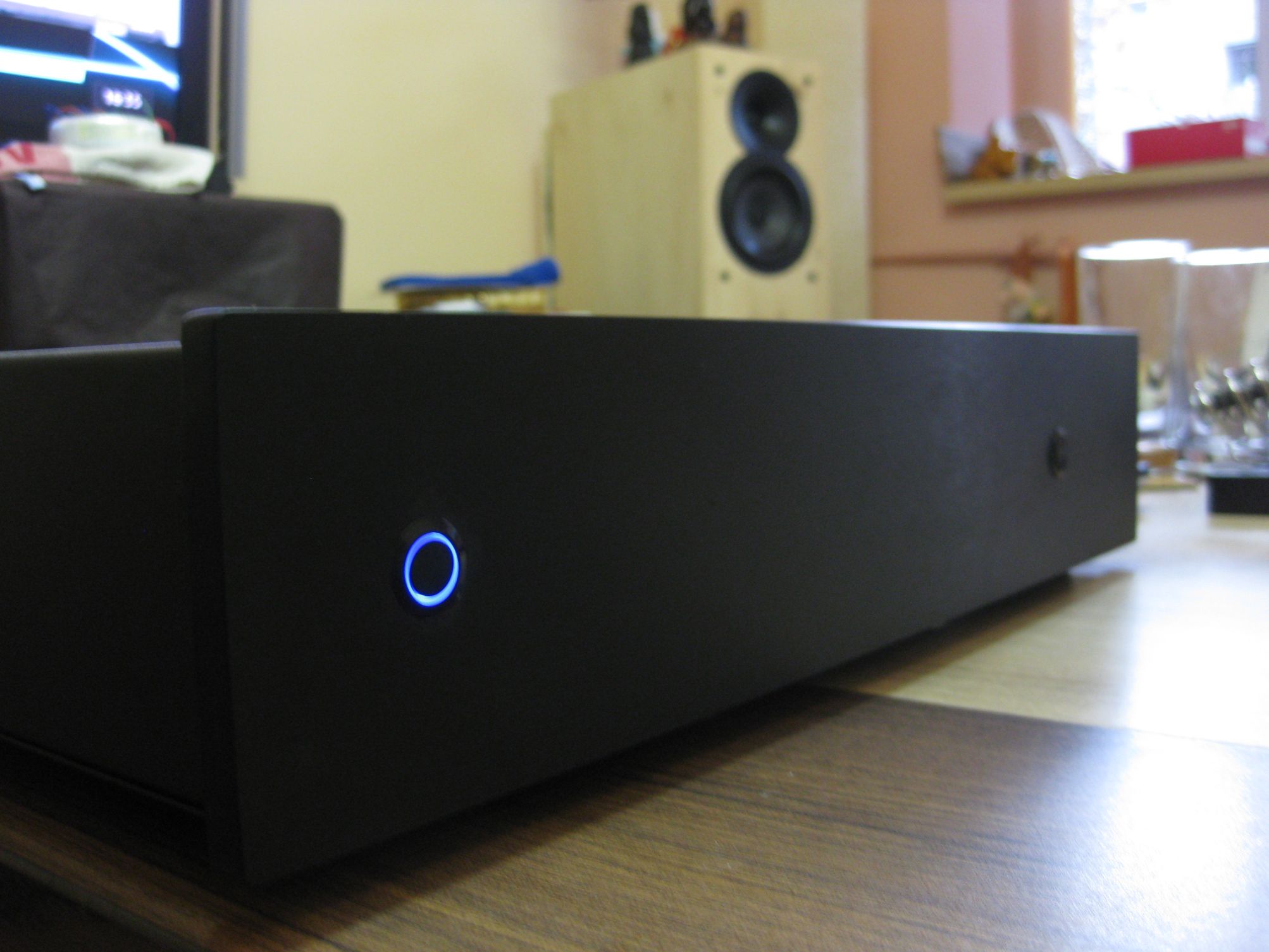

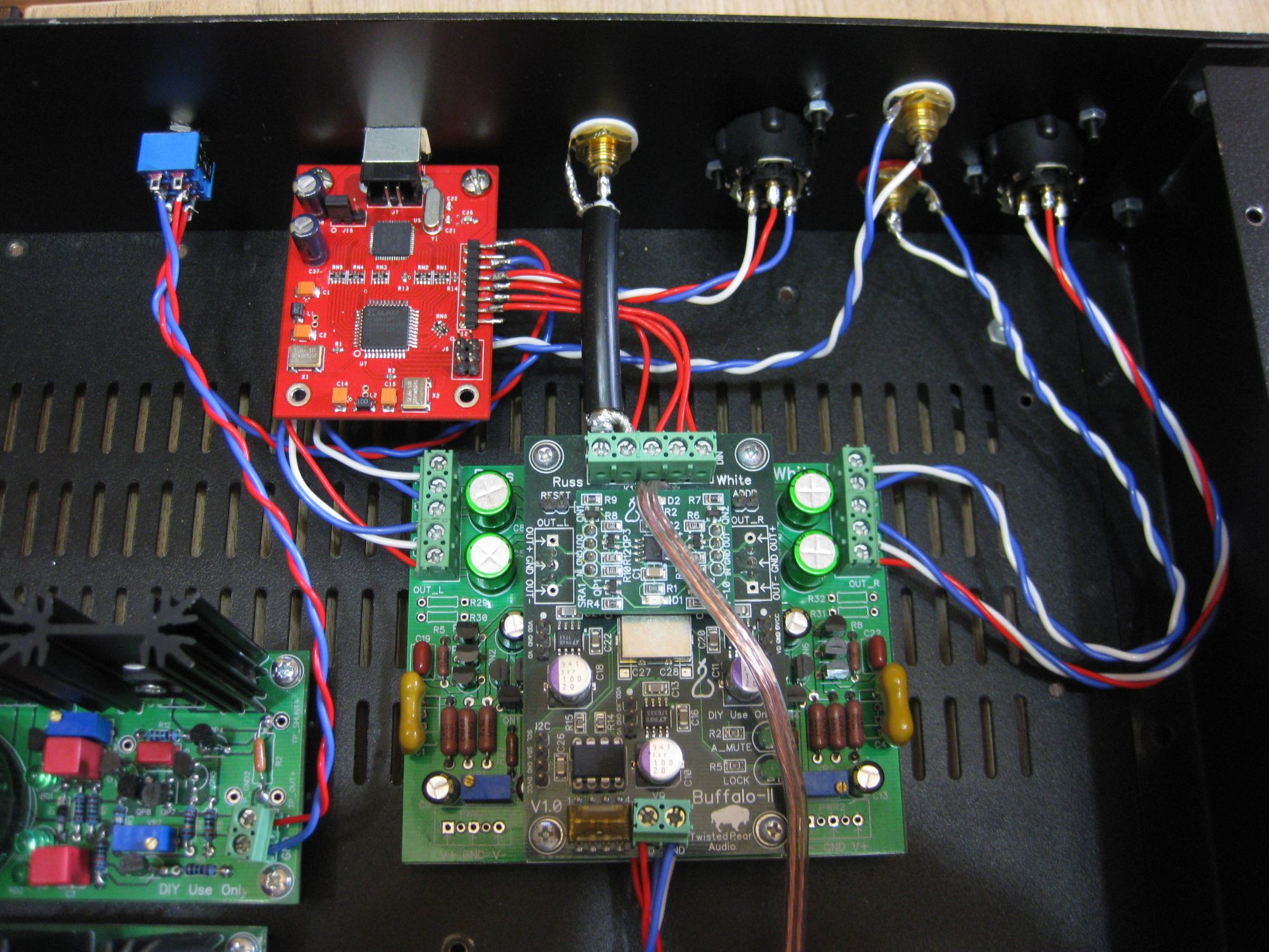

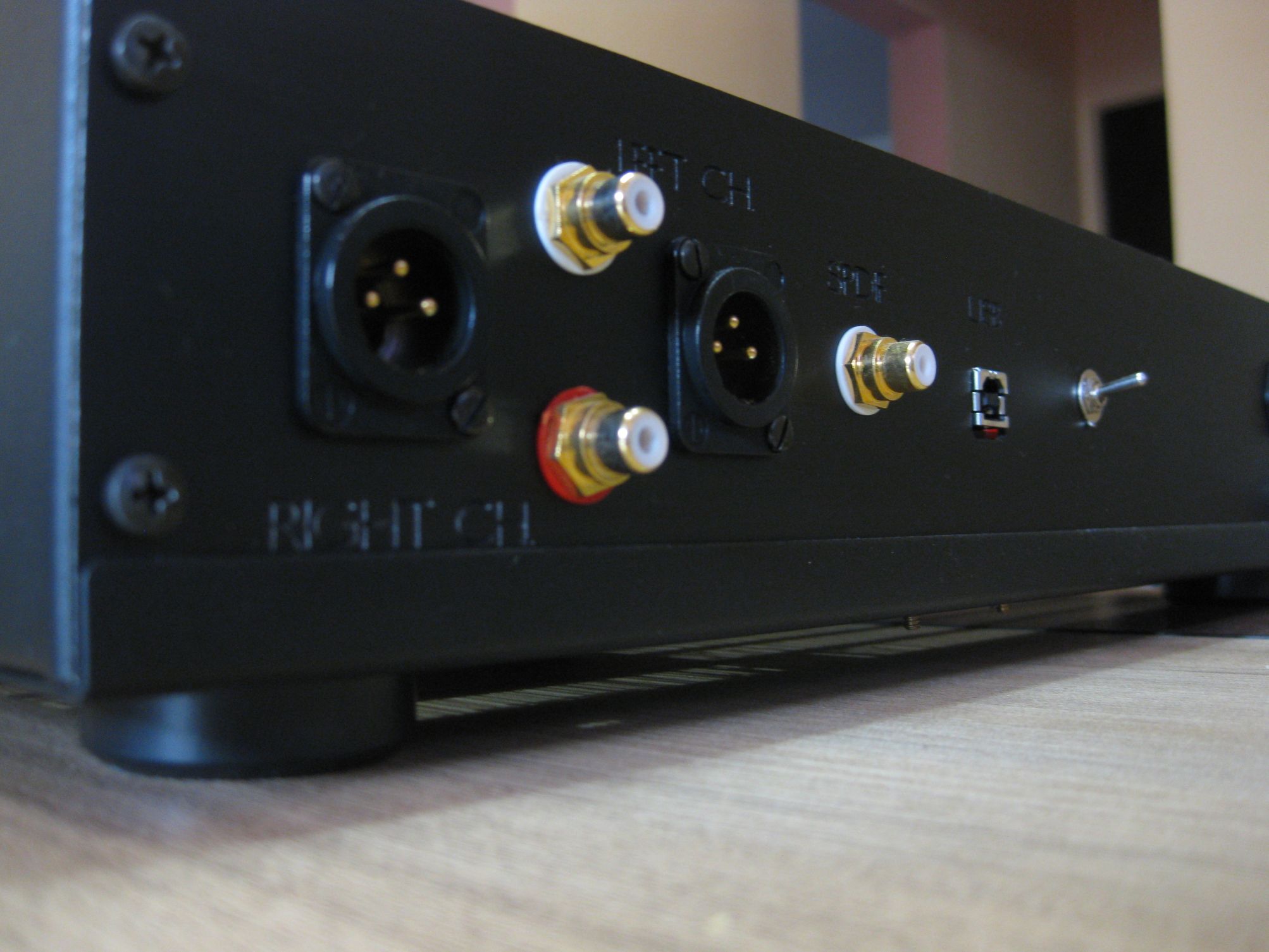

This is my DAC build.
USB: Audiobyte USB TO I2S 24/192 Asynchronous with separate P/S
DAC: Standard BII+Legato
Case: 2U from Modushop.
Arctic Cooling Silent Media Server with Foobar+Wasapi.

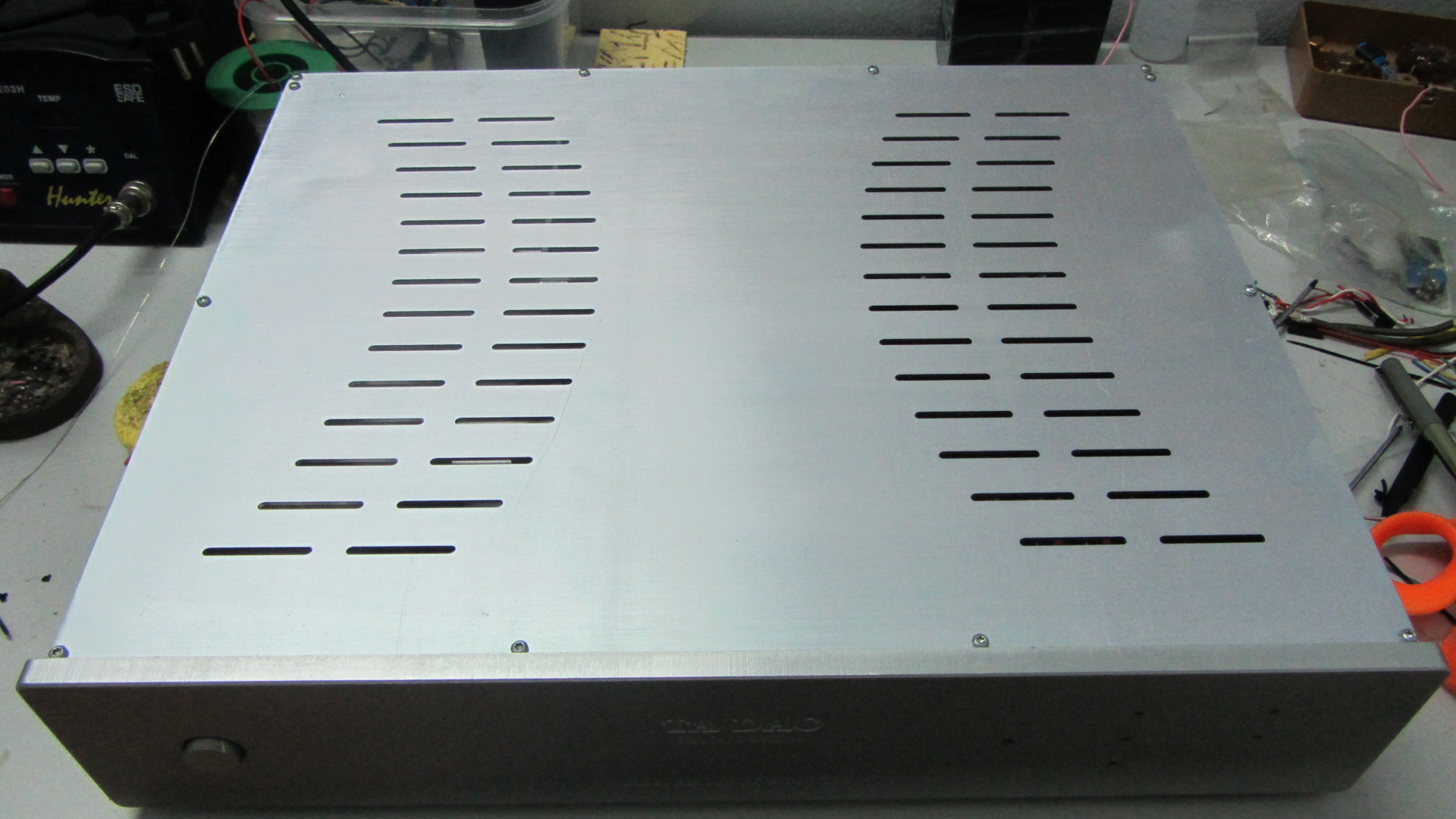

This is my DAC build.
USB: Audiobyte USB TO I2S 24/192 Asynchronous with separate P/S
DAC: Standard BII+Legato
Case: 2U from Modushop.
Arctic Cooling Silent Media Server with Foobar+Wasapi.
the new DDDAC1794 NOS 192/24 DAC
In the past year I have been working on my new project: designing a DAC which will play 192kHz / 24bit material from a PC (or Mac...) There are many DACs who can do this, but I wanted to design a NOS version, as so far, every listening test I did, this led to a more open, natural and detailed sound.
I found this to be possible by using the well known PCM1794 and avoiding the digital filtering built into the chip. This proved to be quite tricky, but I managed to find the key to do it. It has been a great adventure with much to learn and a fantastic result at the end....
I give a very detailed report on www.dddac.com
you can download the specifications here: dddac1794_nos_ver30.pdf
and below I share a few Pictures. I will also open a thread for discussion on the NOS PCM1794 topics
In the past year I have been working on my new project: designing a DAC which will play 192kHz / 24bit material from a PC (or Mac...) There are many DACs who can do this, but I wanted to design a NOS version, as so far, every listening test I did, this led to a more open, natural and detailed sound.
I found this to be possible by using the well known PCM1794 and avoiding the digital filtering built into the chip. This proved to be quite tricky, but I managed to find the key to do it. It has been a great adventure with much to learn and a fantastic result at the end....
I give a very detailed report on www.dddac.com
you can download the specifications here: dddac1794_nos_ver30.pdf
and below I share a few Pictures. I will also open a thread for discussion on the NOS PCM1794 topics
In order of appearance:

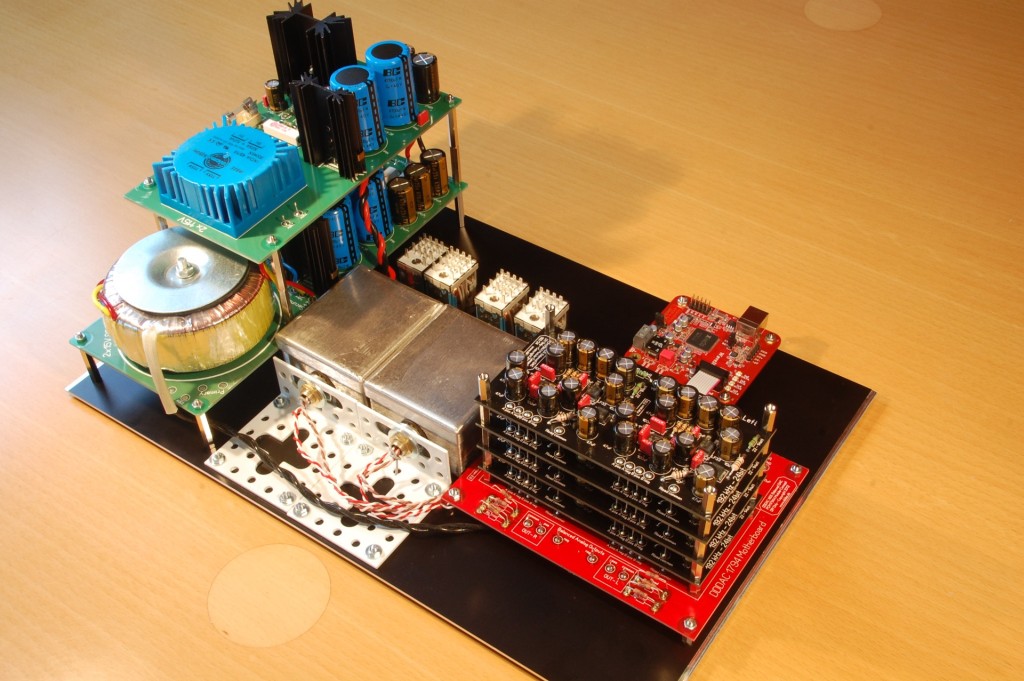

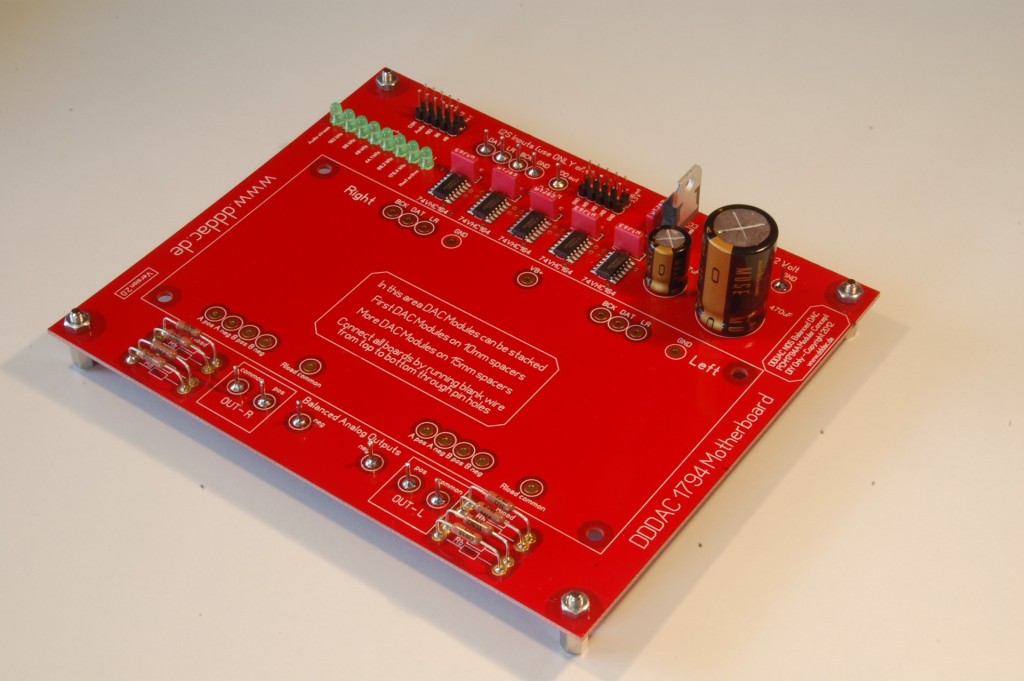

The Mainboard with I/O and I2S to right handed conversion
The actual dual mono DAC Module (can be stacked parallel)
Built up with 4 modules and two power supplies (5 and 12 Volt)

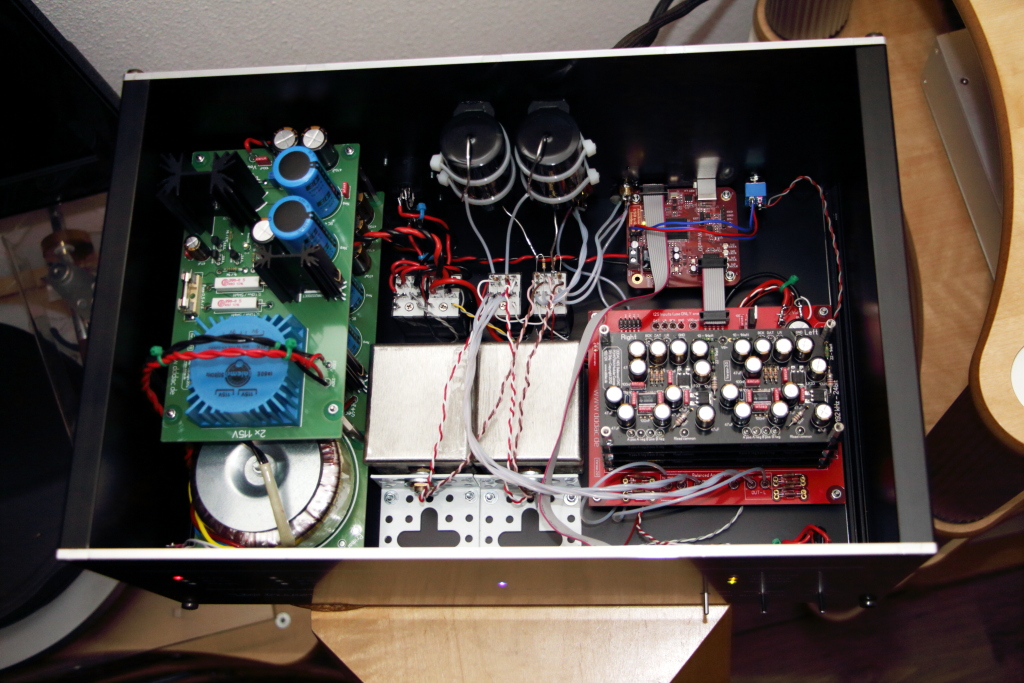

Wired up in Chassis (Mundorf Gold silver oil Output and optional Sowter 1:2
The DAC in my Audio rack

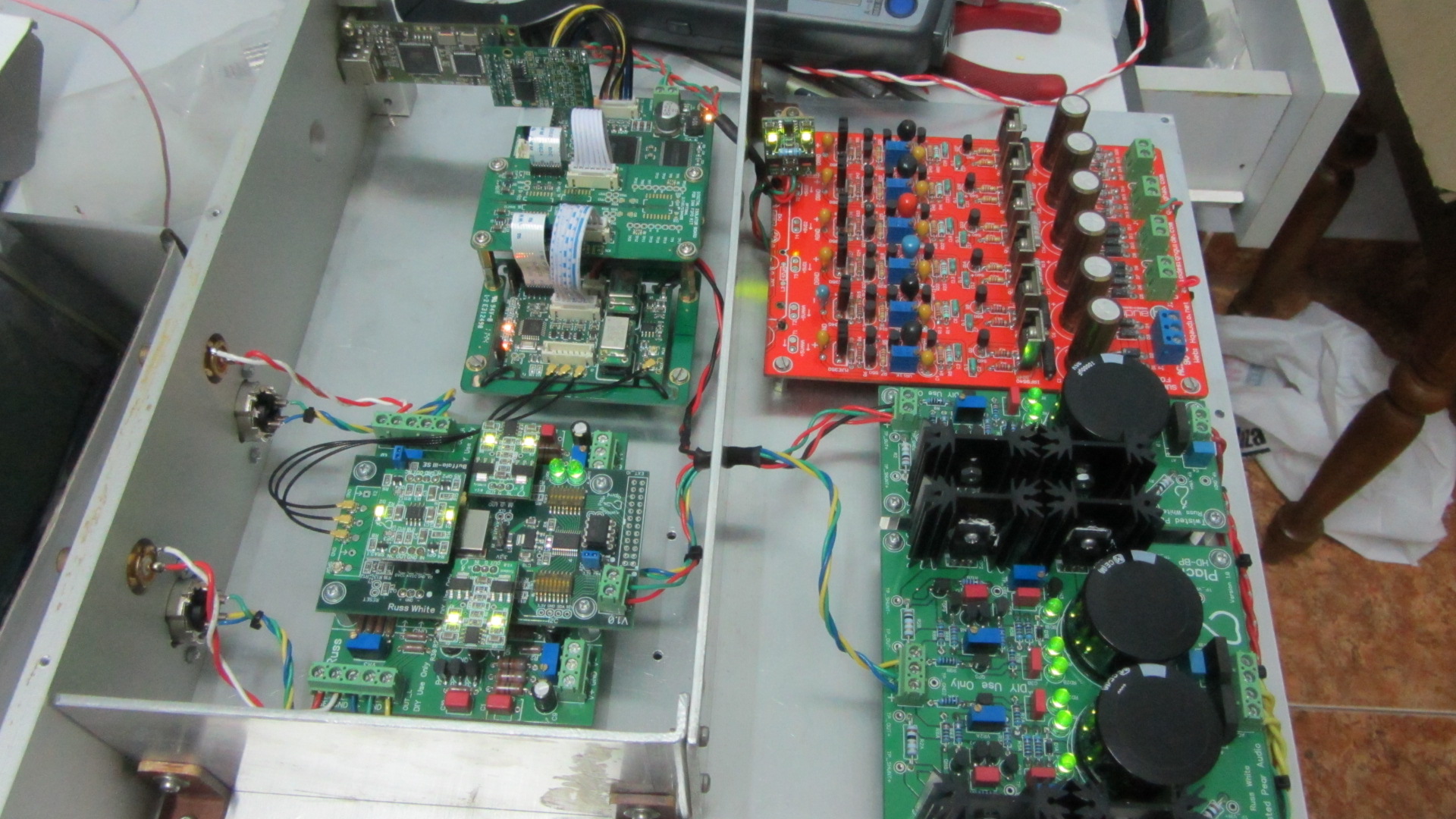

another view inside
The Mainboard with I/O and I2S to right handed conversion
The actual dual mono DAC Module (can be stacked parallel)
Built up with 4 modules and two power supplies (5 and 12 Volt)
Wired up in Chassis (Mundorf Gold silver oil Output and optional Sowter 1:2

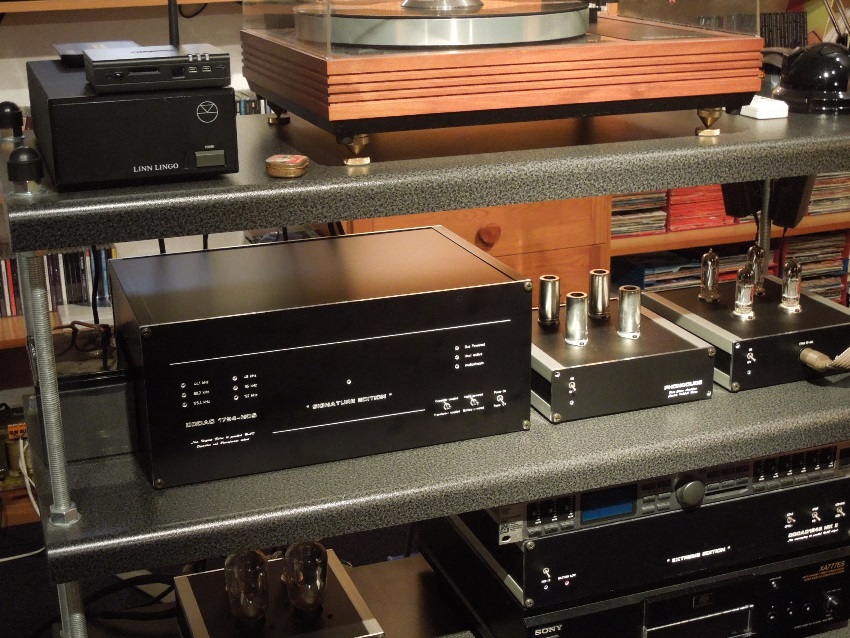

The DAC in my Audio rack
another view inside
Attachments
Wow! Super great diy! I had already seen your website as was very impressed by it
Dual Mono BIII / Hi-Fi 2000 Modushop

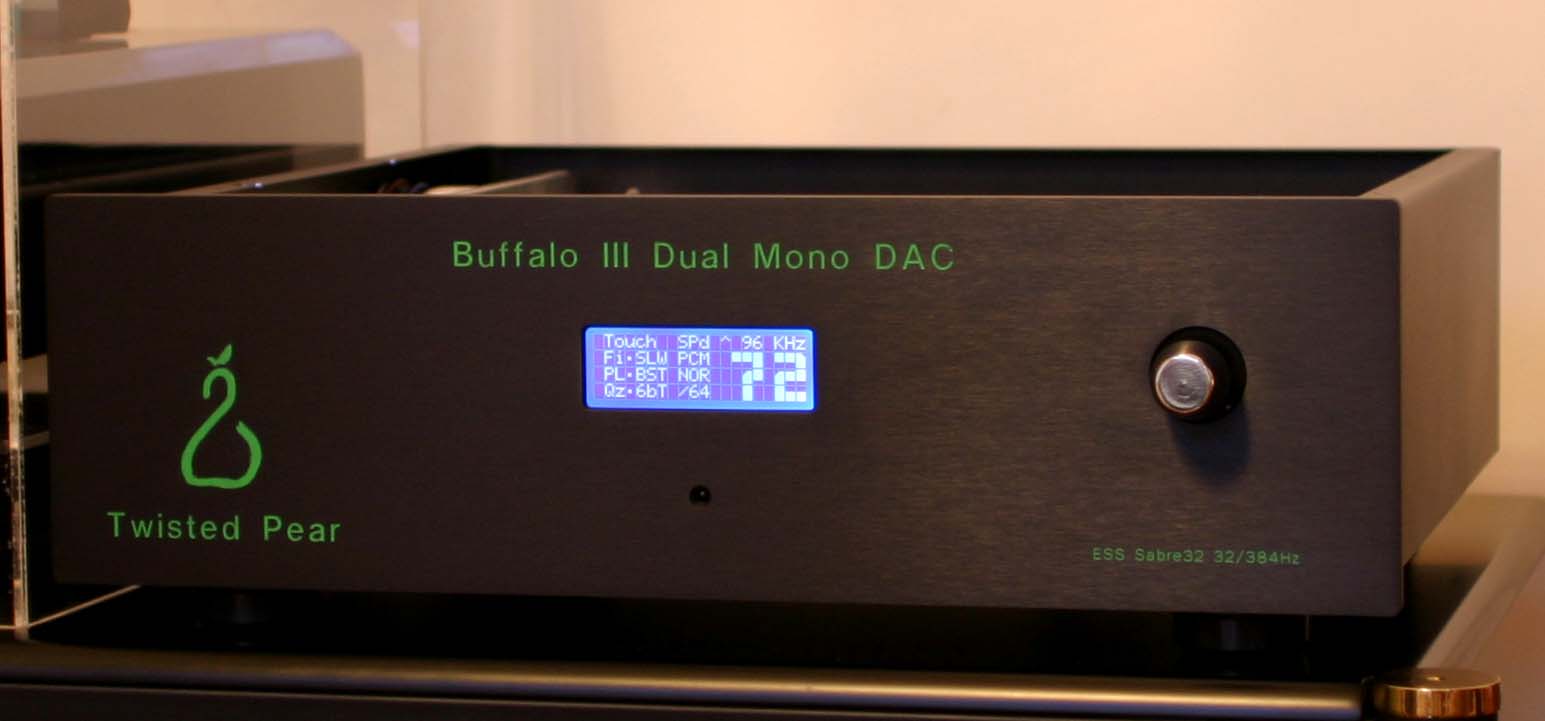

I finally finished my dual mono BIII. Oddly enough this build was financed after I built a turntable (Lenco) and sold a pricey belt drive.
I have a Denon 3910 modded to export I2S/DSD to the DAC. I am also waiting for my GB Amanero USB module.
DAC: BIII's with Legato's.

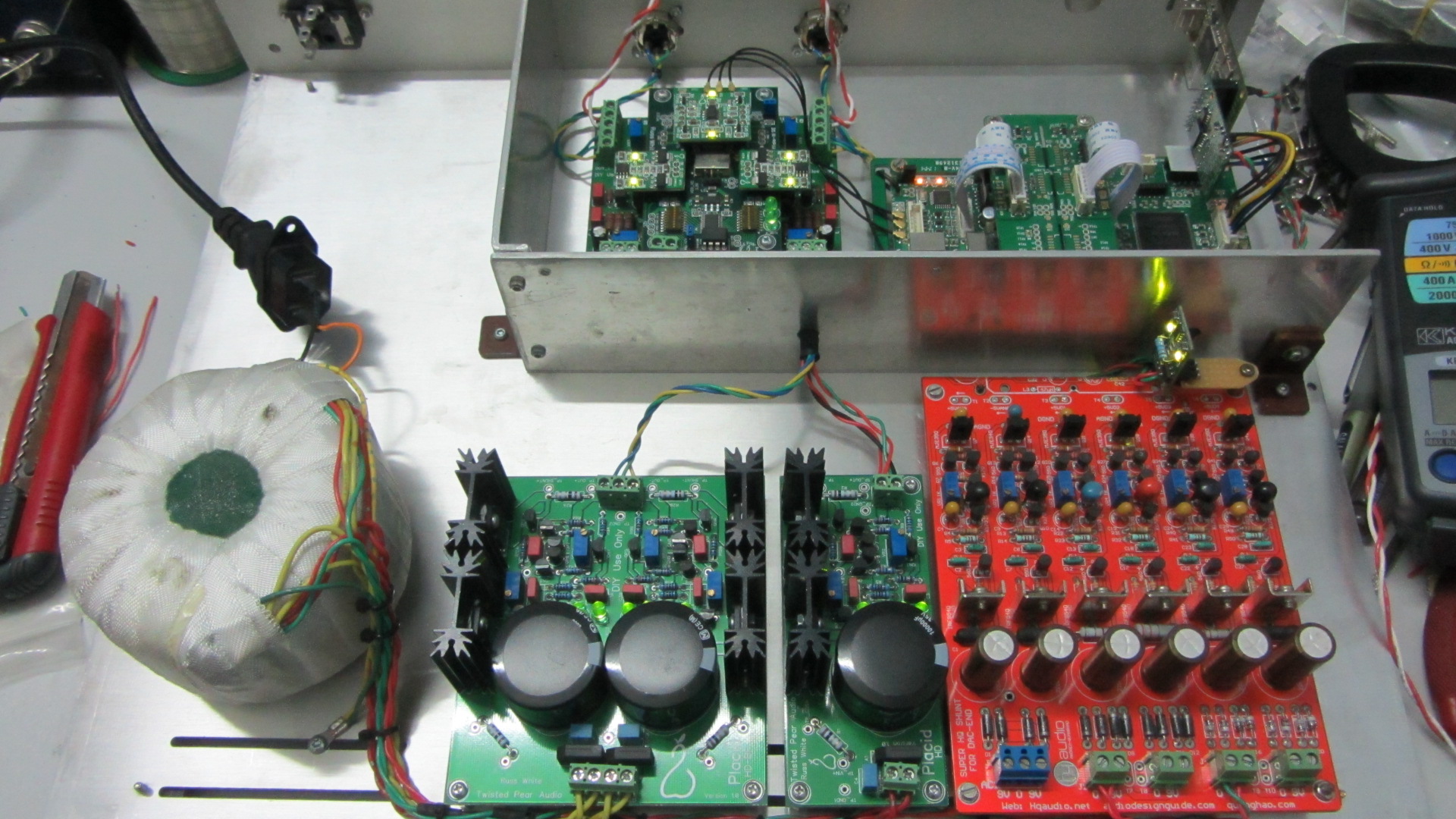

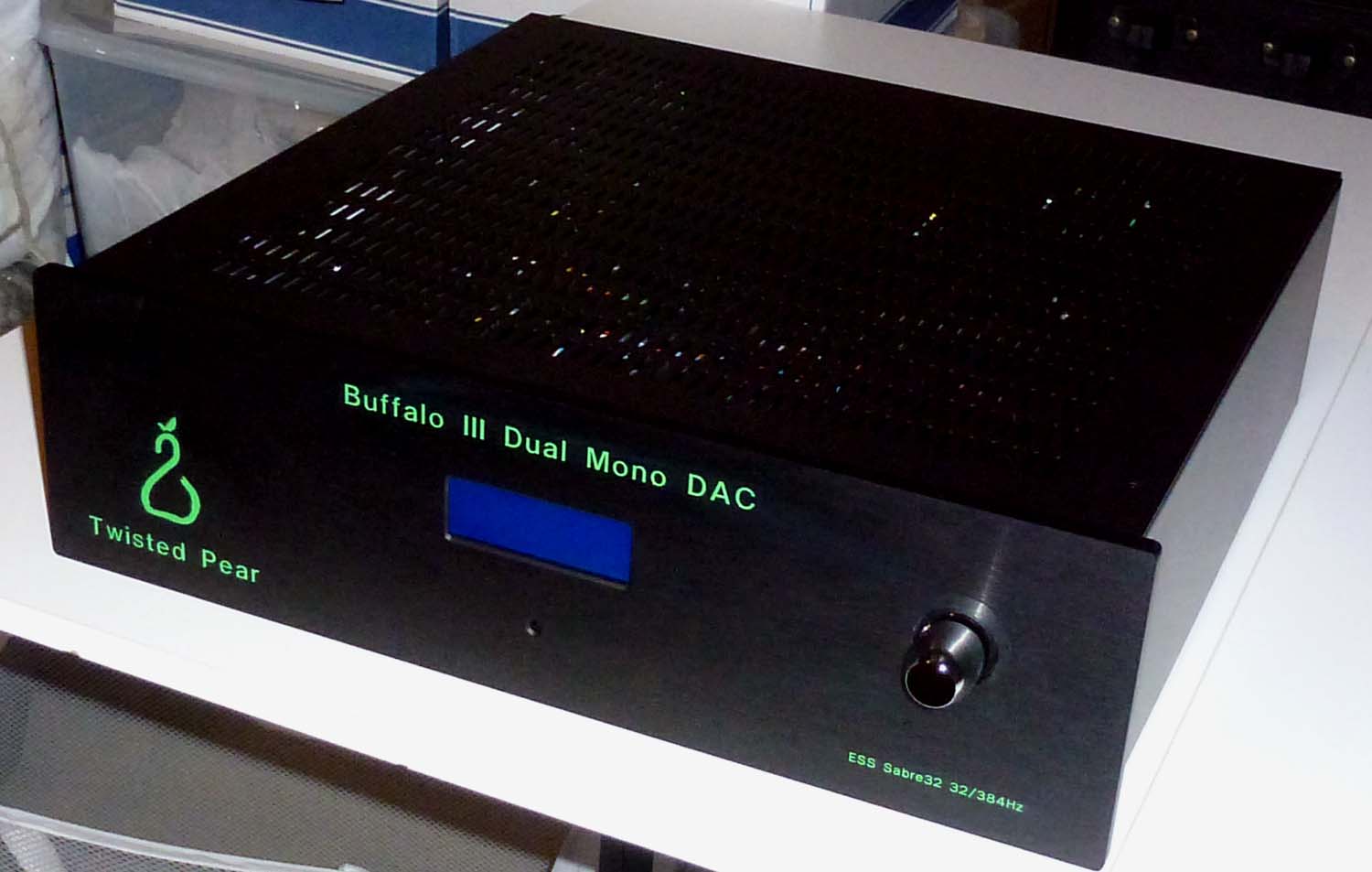

Enclosure: Hi-Fi 2000 Pesante 3U with optional drilled base and fully vented top cover.

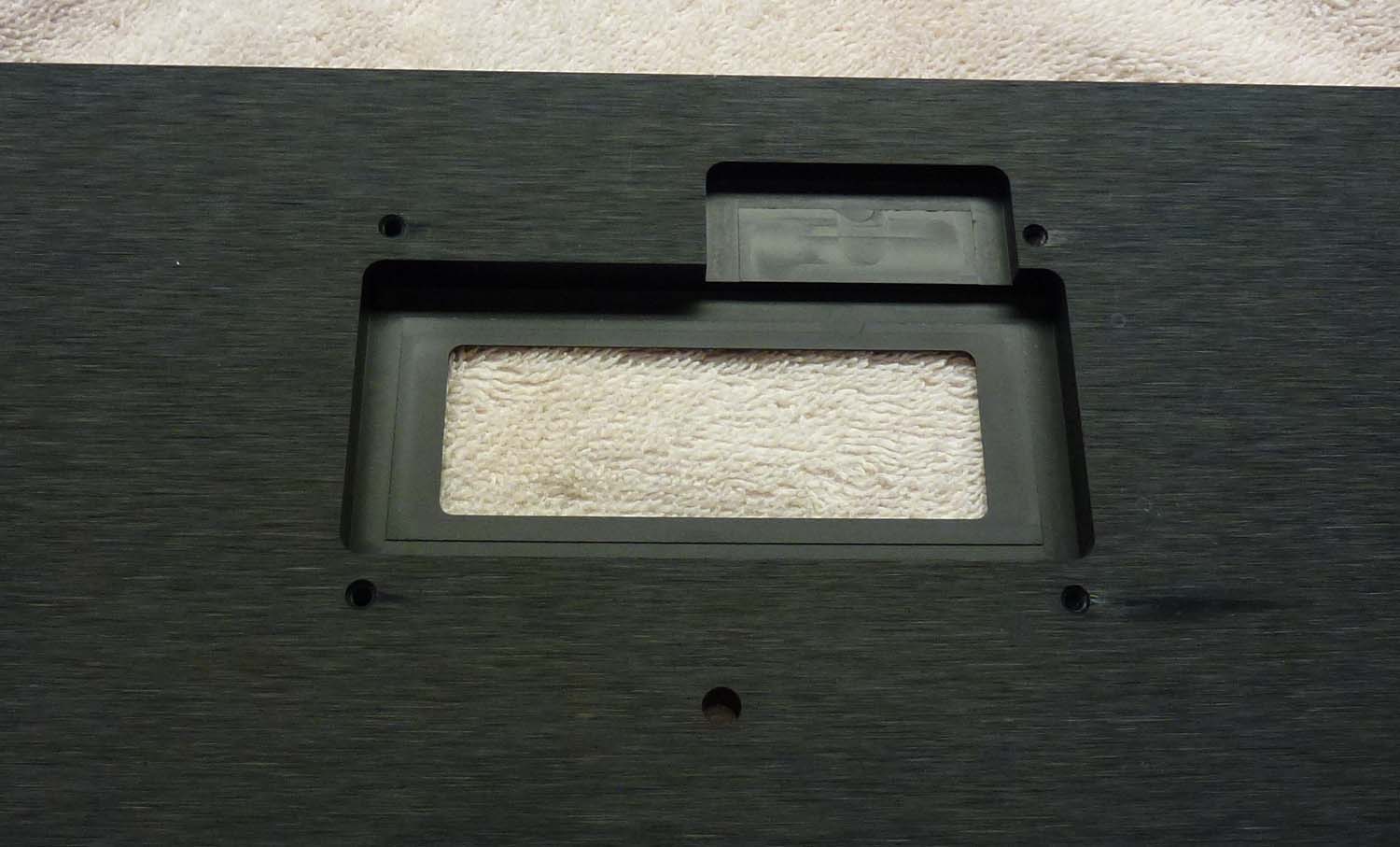

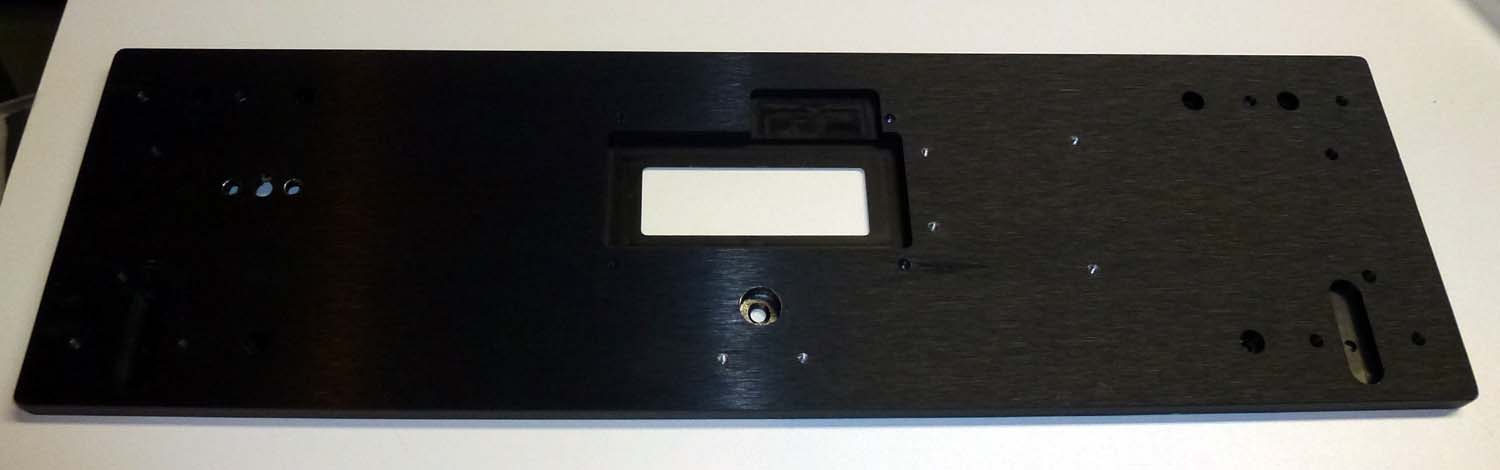

Modushop machining (LCD cavity, LCD mount holes drilled & tapped, encoder knob cavity)/engraving.
Anodize after machine.
Arduino control with HiFiDuino/Corpius code.
Apple remote.
Corpius shield.
electroFUN I2C LCDextra IO to reduce LCD wiring.

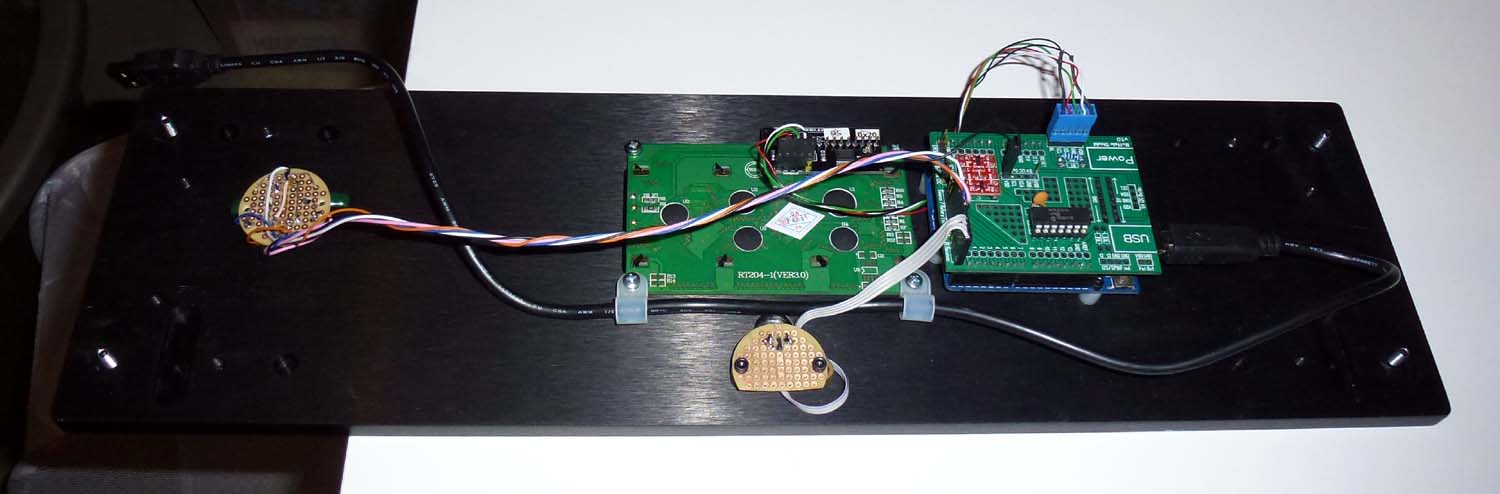

I did the color fill of the front panel engraving using Testors enamel. I drilled/tapped holes for the Arduino/IR receiver so they are not as nice as modushops CNC work. The rear LCD cavity was to get the LCD closer to the face of front panel.
I finally finished my dual mono BIII. Oddly enough this build was financed after I built a turntable (Lenco) and sold a pricey belt drive.
I have a Denon 3910 modded to export I2S/DSD to the DAC. I am also waiting for my GB Amanero USB module.
DAC: BIII's with Legato's.
Enclosure: Hi-Fi 2000 Pesante 3U with optional drilled base and fully vented top cover.
Modushop machining (LCD cavity, LCD mount holes drilled & tapped, encoder knob cavity)/engraving.
Anodize after machine.
Arduino control with HiFiDuino/Corpius code.
Apple remote.
Corpius shield.
electroFUN I2C LCDextra IO to reduce LCD wiring.

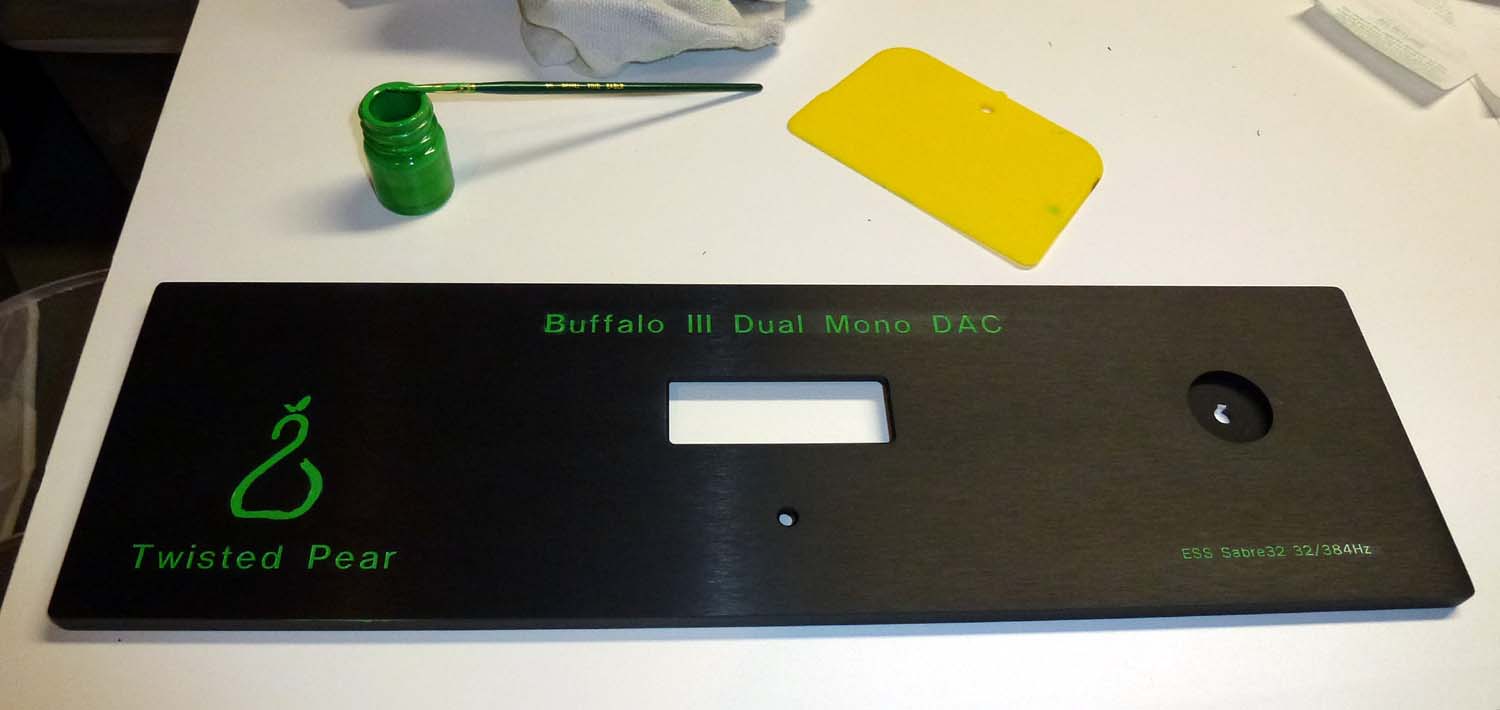

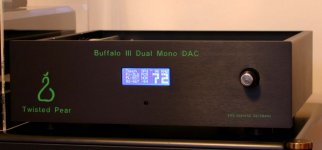

I did the color fill of the front panel engraving using Testors enamel. I drilled/tapped holes for the Arduino/IR receiver so they are not as nice as modushops CNC work. The rear LCD cavity was to get the LCD closer to the face of front panel.
Attachments
I'd like to make a request that everyone posting DAC project photos please include the identity of the vendors of the major commercial sub-systems. For example, metal casework and knob vendor, DAC module vendor, etc. Not a full B.O.M., just the 4 or 5 major hardware elements. In particular, I'd be interested in knowing who are the casework and knob vendors providing you with such professional looking enclosures. Thanks. 🙂
Good point! my DAC is obvious I hope 🙂

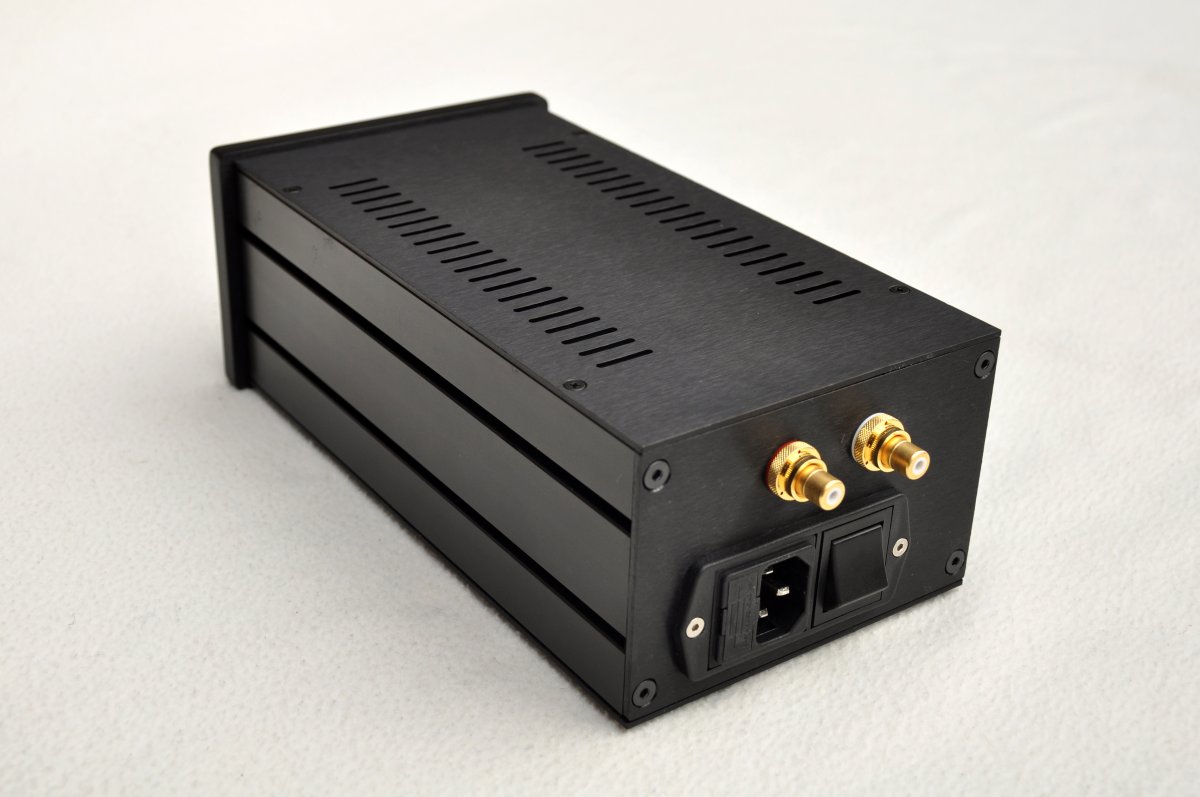

the chassis is from Schaefer. there is link on my website ...
Click here
the chassis is from Schaefer. there is link on my website ...
Click here
just another multi tda1543 dac. 12 stacked, lm317 reg and deode's i/v values on carbon comp. russian 4uf pio (or piwax? best sounding russian caps ive come across in that theyre actually listenable without killing the resolution. ) copper shielded wires and te8802 usb chip. 8802 sounds comparable (not as good tho) to waveio but has reliability issues..
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
Last edited:
Just an USB-DAC prototype.
I2S from Edel USB interface clocked by DAC (two Crystek CCHD-957);
AD1955;
I-V and LP on OP-AMPs buffered by emitter followers.
An quite unimpressive device:
And a couple of spectra (1063 Hz, -0.15 dB FS; 192/24) for both channels measured with notch filter:
I2S from Edel USB interface clocked by DAC (two Crystek CCHD-957);
AD1955;
I-V and LP on OP-AMPs buffered by emitter followers.
An quite unimpressive device:

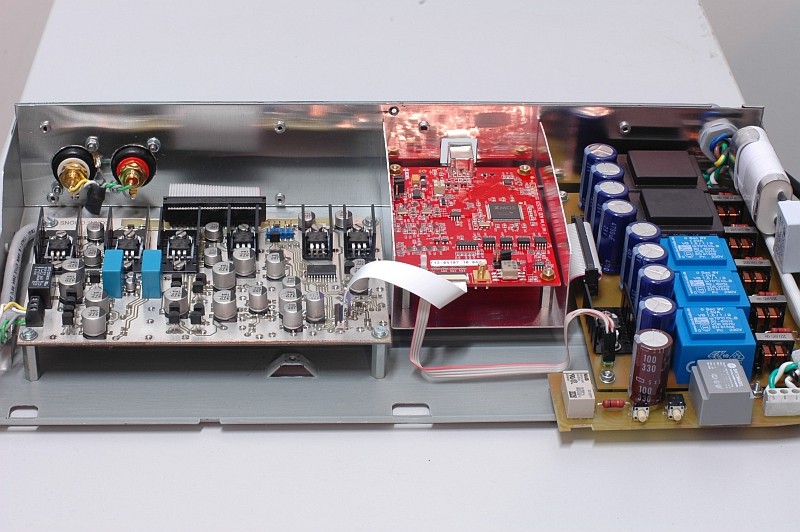

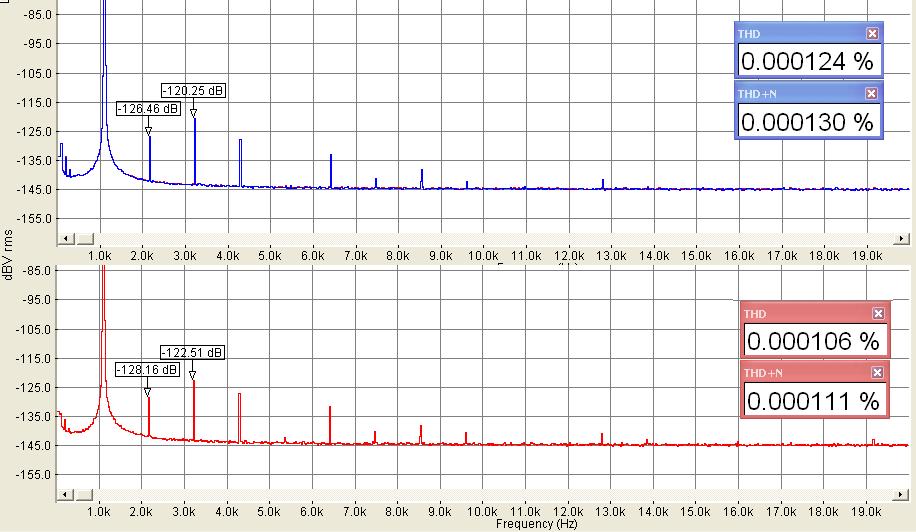

And a couple of spectra (1063 Hz, -0.15 dB FS; 192/24) for both channels measured with notch filter:
Attachments
