That looks like the base of an old Victrola?My not finished yet Sure Tk2050 and it's "The eye to hear" case 😉.
The nice thing about this assemble is that I made it of parts from my old polyvox 2900. Alps pots, switchs and everthing else but mundorfs and the board.
Hi all
This is my first post after reading quite a lot of very usefull information when putting together my first couple of amps.
This was my first attempt, a Yuanjing TA2020 modified with 2.2uf 250v Claritycap ESA input caps and cheap fleabay sourced toroids. I replaced the 0.22uf caps behind the inductors as a couple got damaged when I wasn't careful enough removing the original inductors, and I had these wima 0.22uf caps to hand. It is housed in an external light unit along with 4 Sound Reactive RGB LED light strips (60 LEDS in total). I'm very surprised at how good it sounds!
The board;
The housing;
It sounded so good I decided to see if buying what seeme to be a better board to start with would give better results so I ordered a Helder MK111. I found an old power supply in an aluminium chassis at a bootfair to house it in.
Finally the board arrived, even before hooking it up I changed the input caps for some 2.2uf Obbligato Gold Premium+ that I had to hand.
And with a lot of luck it fitted perfectly into the enclosure!
The verdict? Its definitely better than the modded Yuanjing, but not by as much as I had hoped. The YJ definitely seems to be louder, although the Helder is more refined. I am using my now old Mission 734's and am still amazed amps so small can produce such a great sound from them.
I have since relented, this was meant to be a 'serious' amp. but I've built in blue sound reactive leds, looks amazing at night!
Now for something more powerful.... 🙂
So, thanks to all that contribute to this forum, you may not always get direct replies but the advice to be found is invaluable to a beginner like myself.
Hello,
i prefer some faster, highend buffer caps.
So the helder sounds more detailed and has a better punch and stage.
Changed the big one against some Nichicon fine gold and the two smaller ones to Panasonic FC 470µF 35V.
This changes generates the best results for my feeling, more than the decoupling caps.
Just a tip to try...
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
If you want to build an "bigger" T-Amp i can recommend the Helder TK2050 double Mono amps.
Sounds great!
An externally hosted image should be here but it was not working when we last tested it.
An externally hosted image should be here but it was not working when we last tested it.
Regards
Oliver
Now that summer is in full effect here in SoCal, that means a pool party every weekend. Usually my friends and I use a small logitech ipod dock speaker system but we have outgrown that. I decided to build an amp that was small yet powerful enough to power larger speakers. I found this TK2050 amp and got to work. It has a simple 3.5mm jack and volume/on-off switch. I am powering the amp with a 24v 5A power adapter. Below is the result.
Looks great. Which 'source selector' board did you use in your integrated amp? Link?
I thought it looked somewhat familiar. I have a similar one based on the same PGA2311 chip. Works as expected once I figured out what its limits are. I've got a good vendor I've been buying from in China, along1986090. I've bought a lot of enclosures, modules, boards and other parts from him for several months now and am very happy with the service I've received. Aside from the high shipping costs on some items, I've found him fair, friendly and almost always responds to my emails. He also has a broad range of amps, DACs and other goodies. 🙂
One other question... where did you get that enclosure? That is very classy looking and includes a nice cutout for the PGA2311 display.
Last edited:
I know along and i bought some parts from him, but he mostly sells consumer items,
not so specialized like jim. Service of along is also good and fast...
The enclosure is from modushop.biz

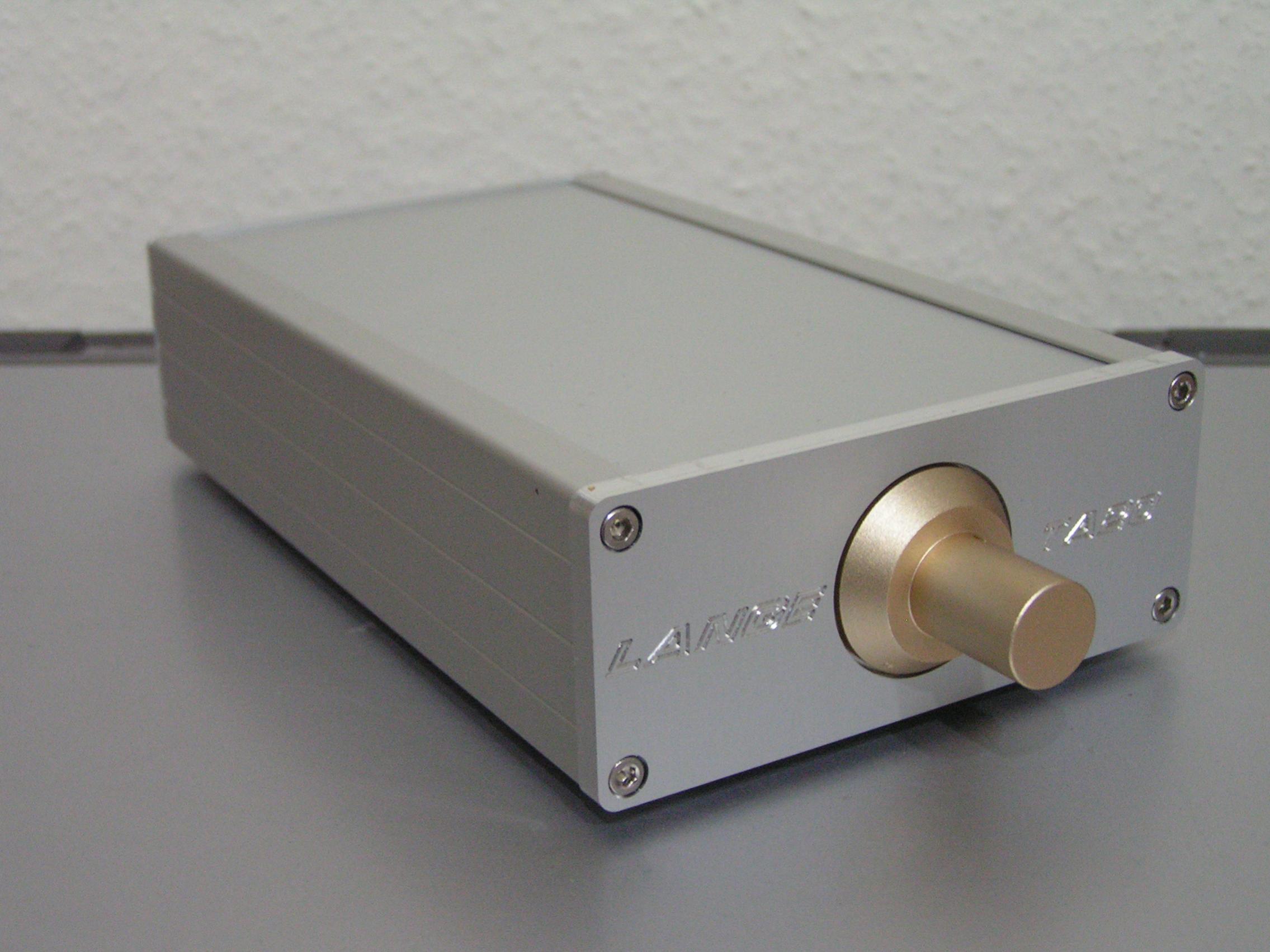

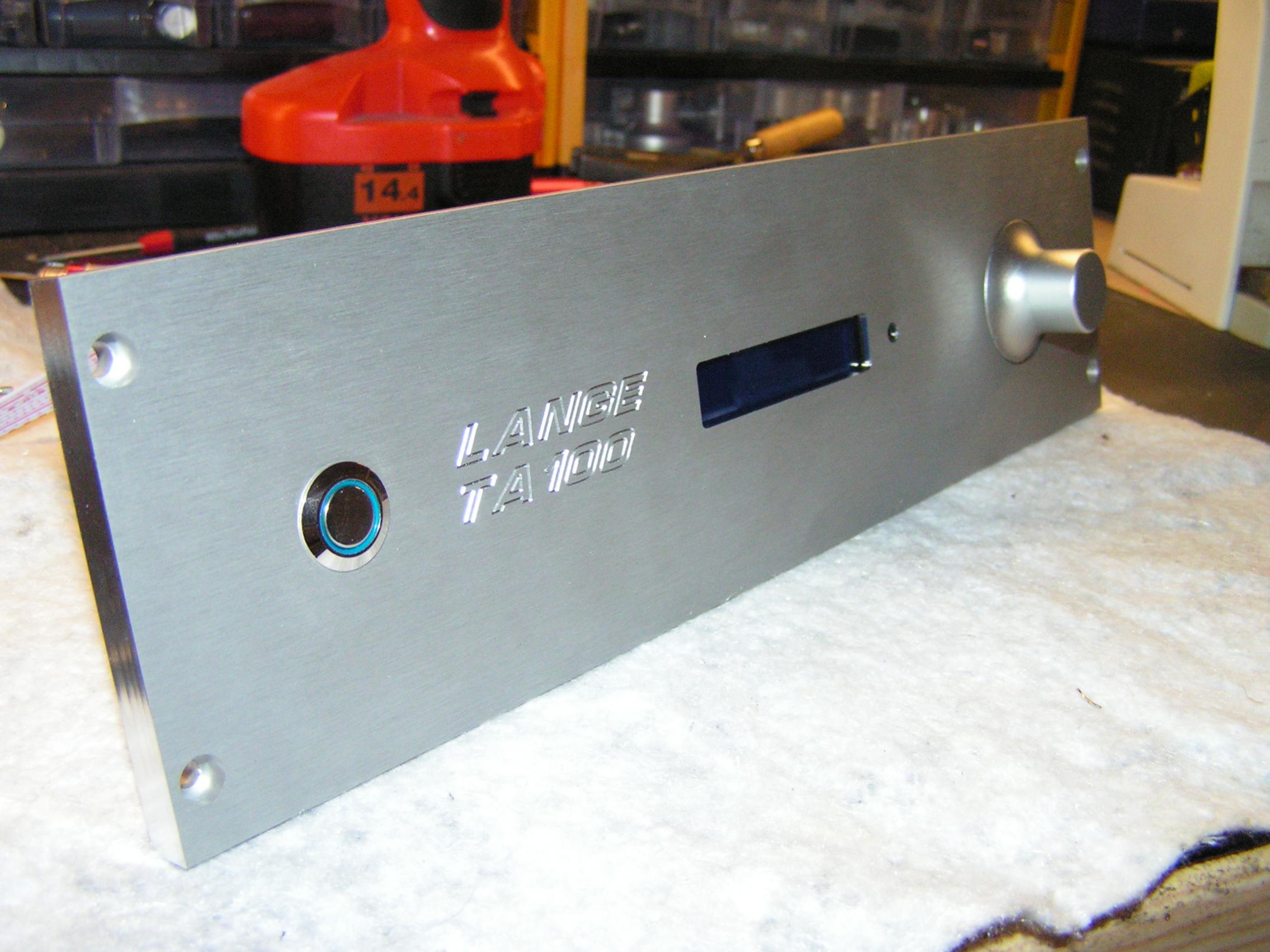

But the front of the enclosure was designed by me and edited by a milling.
I did some other amps like this one... gives a personal touch (Lange is my last name) 😉
I like amps with a personal touch and not so usually... as the following TA2021 in a acrylic enclosure.
This is, why i like this thread so much! There are so crazy projects and great works... wonderful!
not so specialized like jim. Service of along is also good and fast...
The enclosure is from modushop.biz
But the front of the enclosure was designed by me and edited by a milling.
I did some other amps like this one... gives a personal touch (Lange is my last name) 😉
I like amps with a personal touch and not so usually... as the following TA2021 in a acrylic enclosure.
This is, why i like this thread so much! There are so crazy projects and great works... wonderful!
An externally hosted image should be here but it was not working when we last tested it.
Attachments
Last edited:
mmm, I like, can't wait for the pcb and for your results on how it compares to other ones from you
Nice work Baldin. Try HIP2011 or isl2011 they are similar to the 5104. There are some others from maxim which are goes up to 175V for mosfet driver.
BW

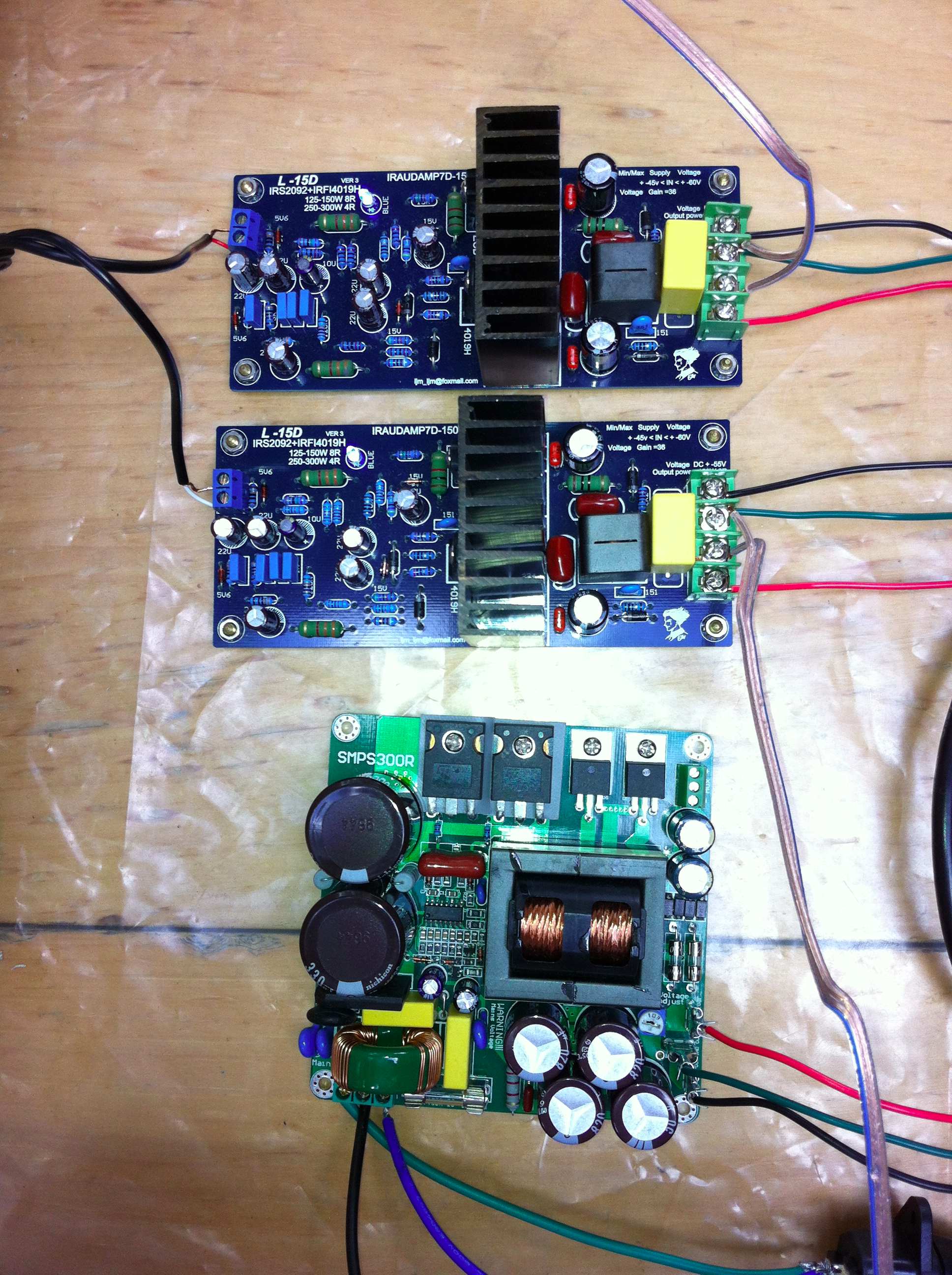

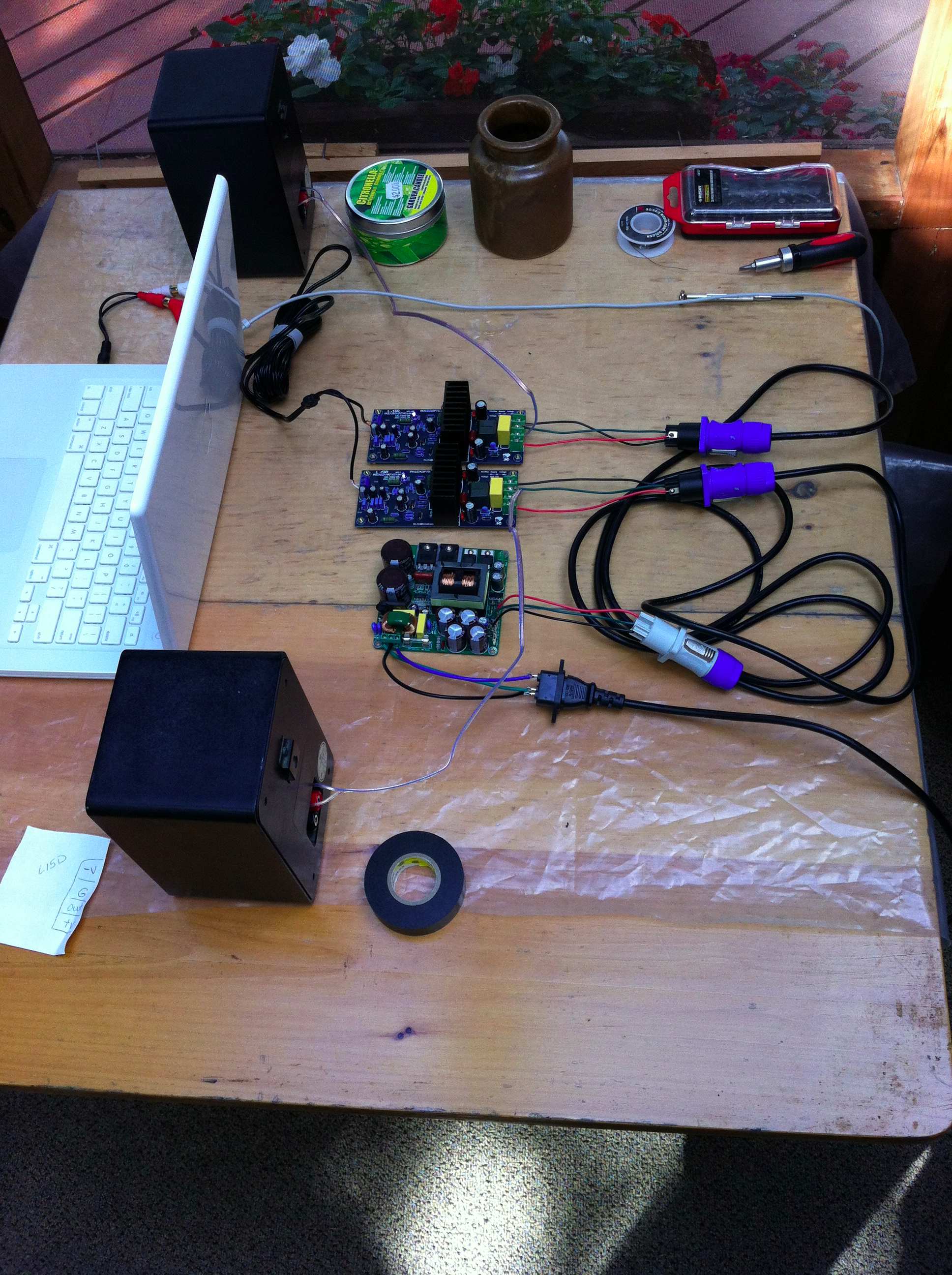

My self-designed Class D stereo discrete audio amplifier is fully working now. This version is same as the after post, but in a new PCB, more separately the components. Briefly I'll post photos and the circuit.
Nicely done.. you certainly did a nice job of shoehorning the SMPS and amp into the same box. It looks like you have two different power supplies in that series of photos?
Can provide a link to the SMPS you used? Looks like one that could fit the space I have. It does look like 2, but upon closer inspection I see that it's not.Some small toyzz
