Also very interested, was also looking at buying the Rurifi 1e400A but will wait to here more on availability and pricing of these as Bare Boards.
btw:
Happy New Year to everyone.
btw:
Happy New Year to everyone.

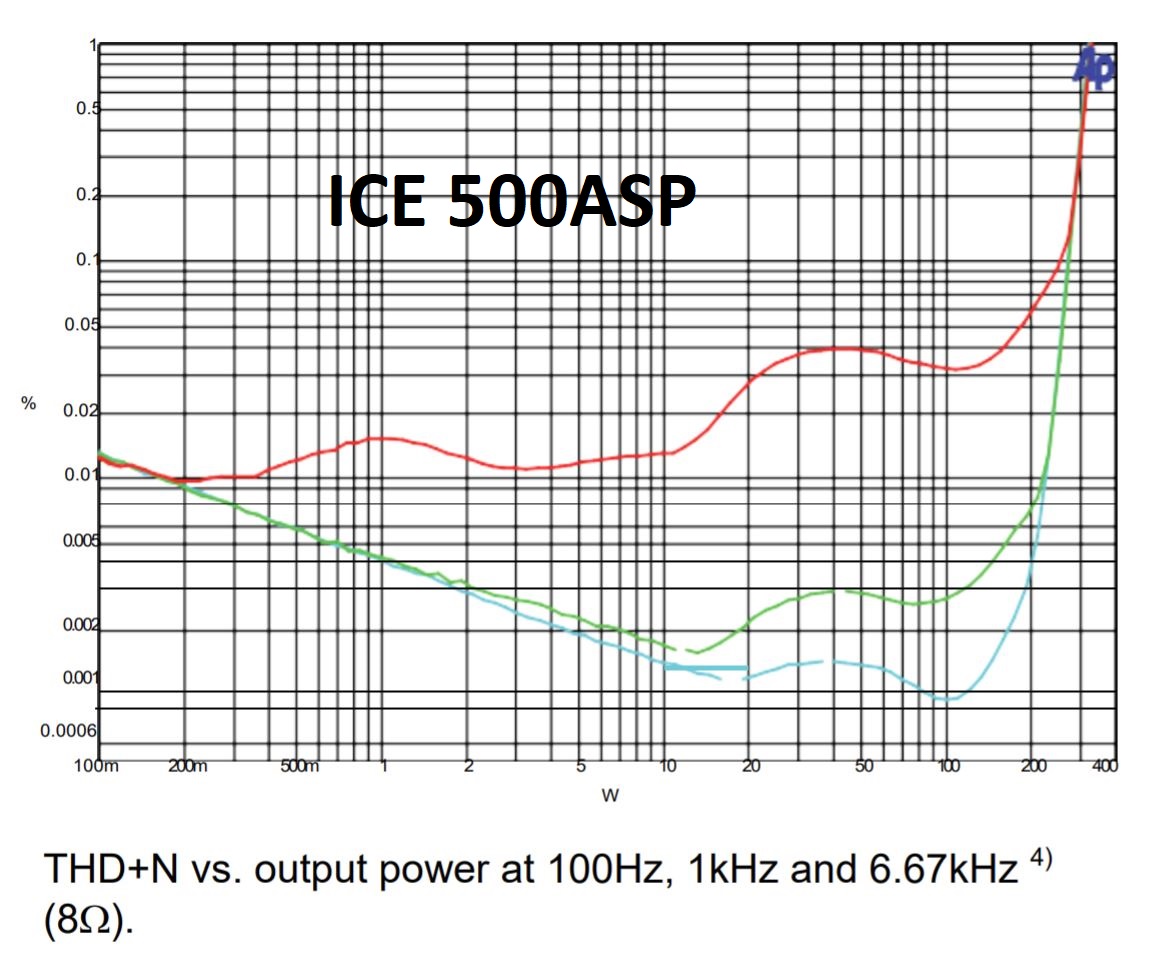

I found the 500ASP measurements on their website here.

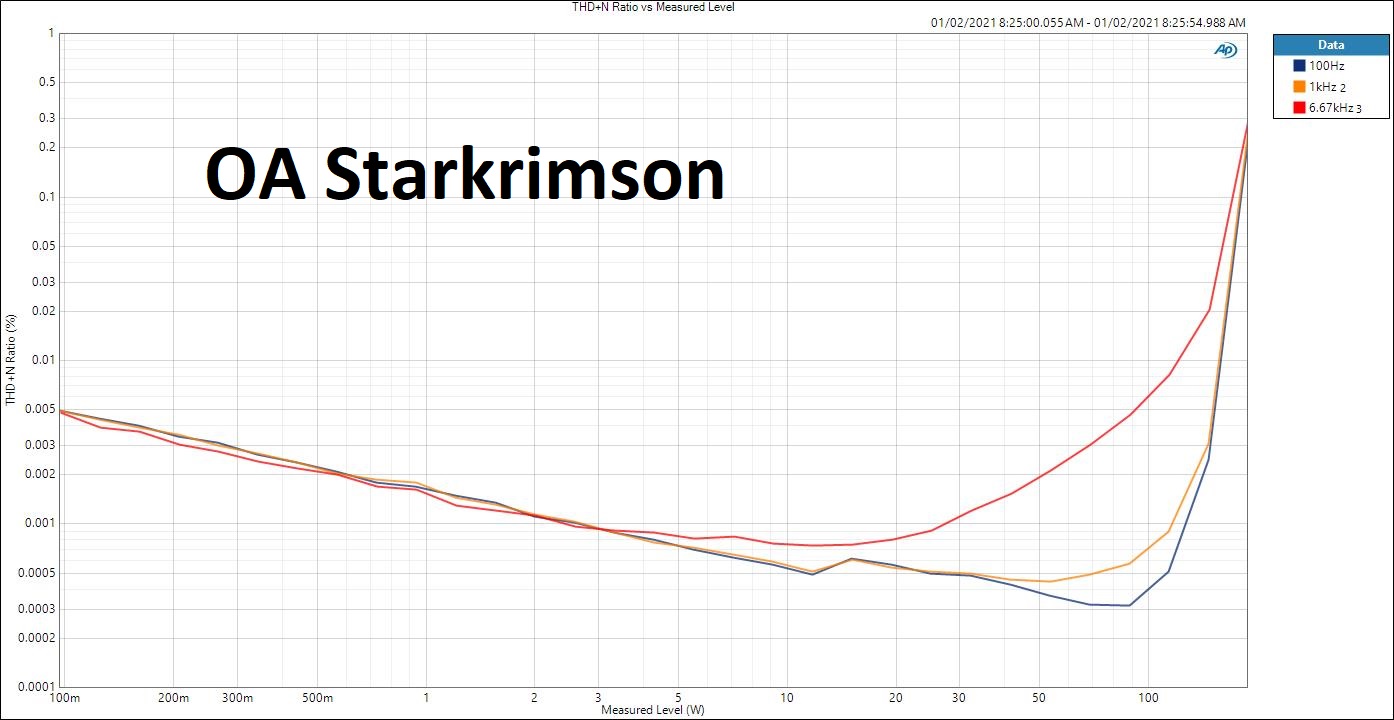

Here is a comparison between their module at 8ohm and my existing Starkrimson modules at 8ohms. As you can see at all frequencies the distortion of Starkrimson is much lower especially at 6.67kHz. The new modules will have either identical or better performance.
Attachments
Last edited:
Final pricing is as follows:
2 x Starkrimson Ultra assembled and tested board --> $849.95 USD
2 x Starkrimson Ultra bare board w/BOM --> $99.95 USD (NDA Required)
To place your orders go here:
https://orchardaudio.com/shop/ols/products/strk-ltr-mdl
The discounted pricing will end on January 31st.
Delivery will take place in March/April 2021.
If you have any questions please contact me through this link:
Contact Us | Orchard Audio
If you would like to see the preliminary BOM I have that available now, you will just need to sign NDA.
2 x Starkrimson Ultra assembled and tested board --> $849.95 USD
2 x Starkrimson Ultra bare board w/BOM --> $99.95 USD (NDA Required)
To place your orders go here:
https://orchardaudio.com/shop/ols/products/strk-ltr-mdl
The discounted pricing will end on January 31st.
Delivery will take place in March/April 2021.
If you have any questions please contact me through this link:
Contact Us | Orchard Audio
If you would like to see the preliminary BOM I have that available now, you will just need to sign NDA.
Last edited:
The modules need the following power supplies if you do not plan to use Hypex one:
+/-36V (+/-30 to 42.5V) - Amplifier Power Rails
+15V (9 to 16V) - Mosfet Driver Supply - Referenced to -36V rail - 100mA minimum
+/-12V (+/-10 to 22V) - Analog Supplies - 100mA per supply minimum.
+/-36V (+/-30 to 42.5V) - Amplifier Power Rails
+15V (9 to 16V) - Mosfet Driver Supply - Referenced to -36V rail - 100mA minimum
+/-12V (+/-10 to 22V) - Analog Supplies - 100mA per supply minimum.
How hard to solder the board? Are parts easy to source? total costs?
I'm interested but too early to be convinced.
I'm interested but too early to be convinced.
All the parts are readily available from Digikey/mouser. If you want to figure out the BOM costs please send me a pm or message through the website to ask for NDA.
You will not be able to solder this by hand unless you have special equipment to do the SMT part with hidden pads. The smallest parts on the board are 0402.
If needed, I will also provide you the stencil drawing so you can have one made.
You will want to review this too:
https://gansystems.com/wp-content/u...ns-for-GaNPX®-Packaged-Devices-Rev-190806.pdf
Last edited:
Are these modules designed for a specific case?
Is there an off the shelf case that these were designed to fit?
Thank you
Is there an off the shelf case that these were designed to fit?
Thank you
There is no specific case these will work with. I know a bunch of other forum users used galaxy cases for builds with my other modules.

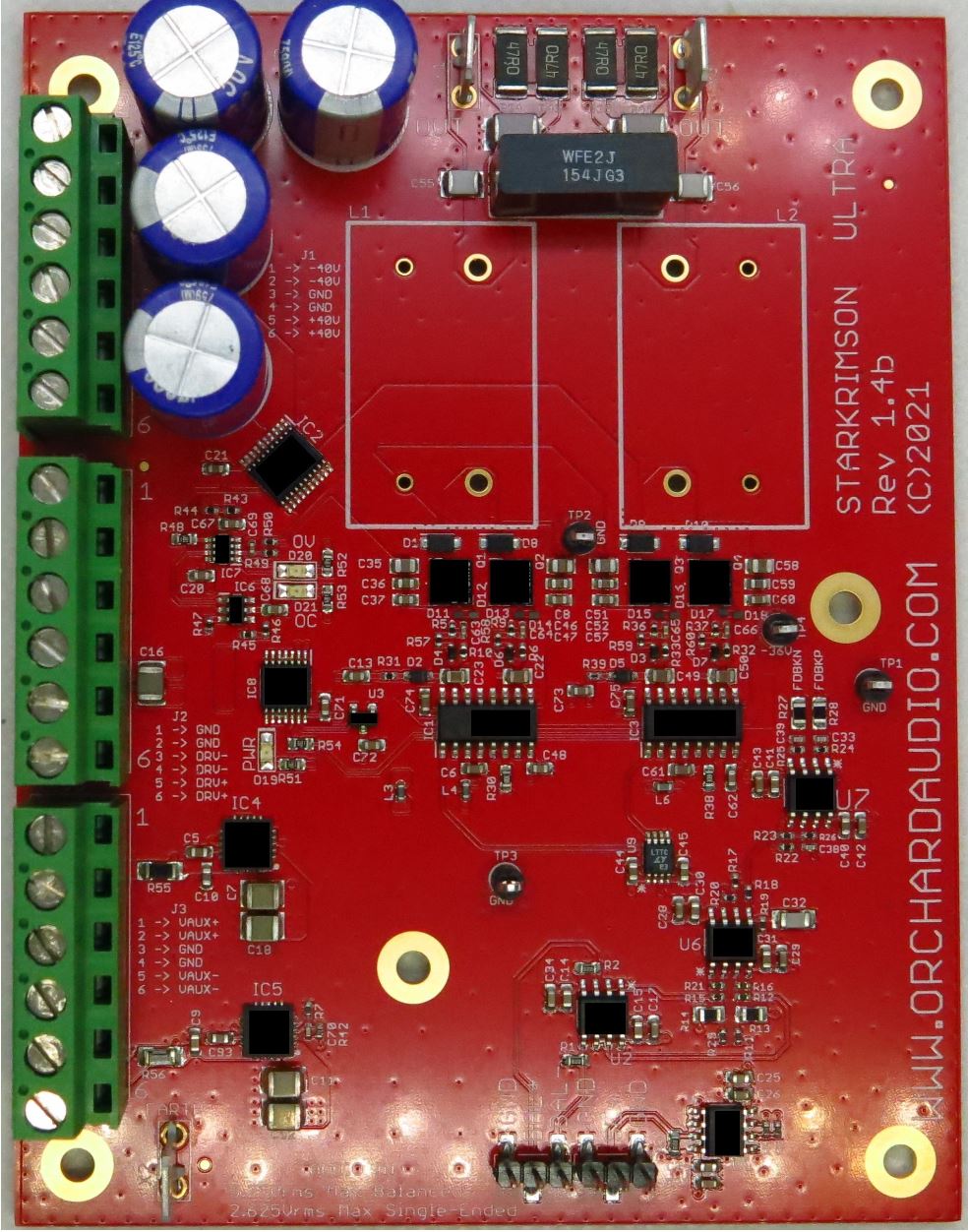

The completed modules require no soldering. All connections are on terminal blocks/headers.

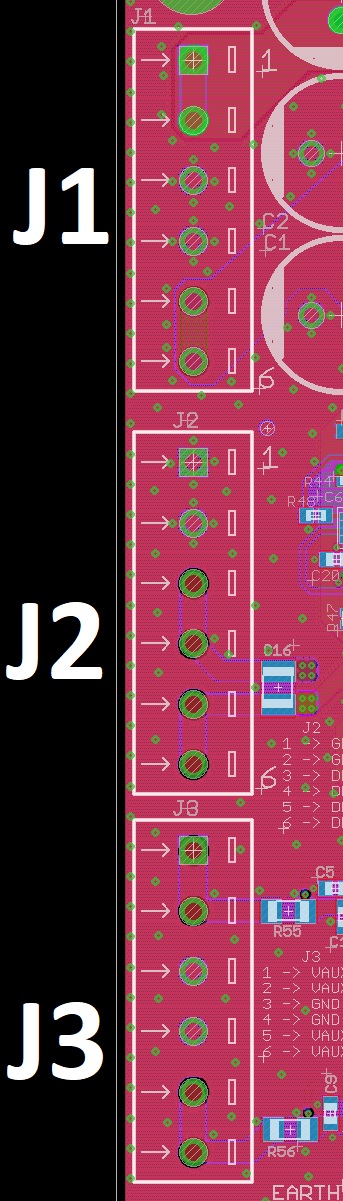

J1, J2, J3 are all for different power supplies.

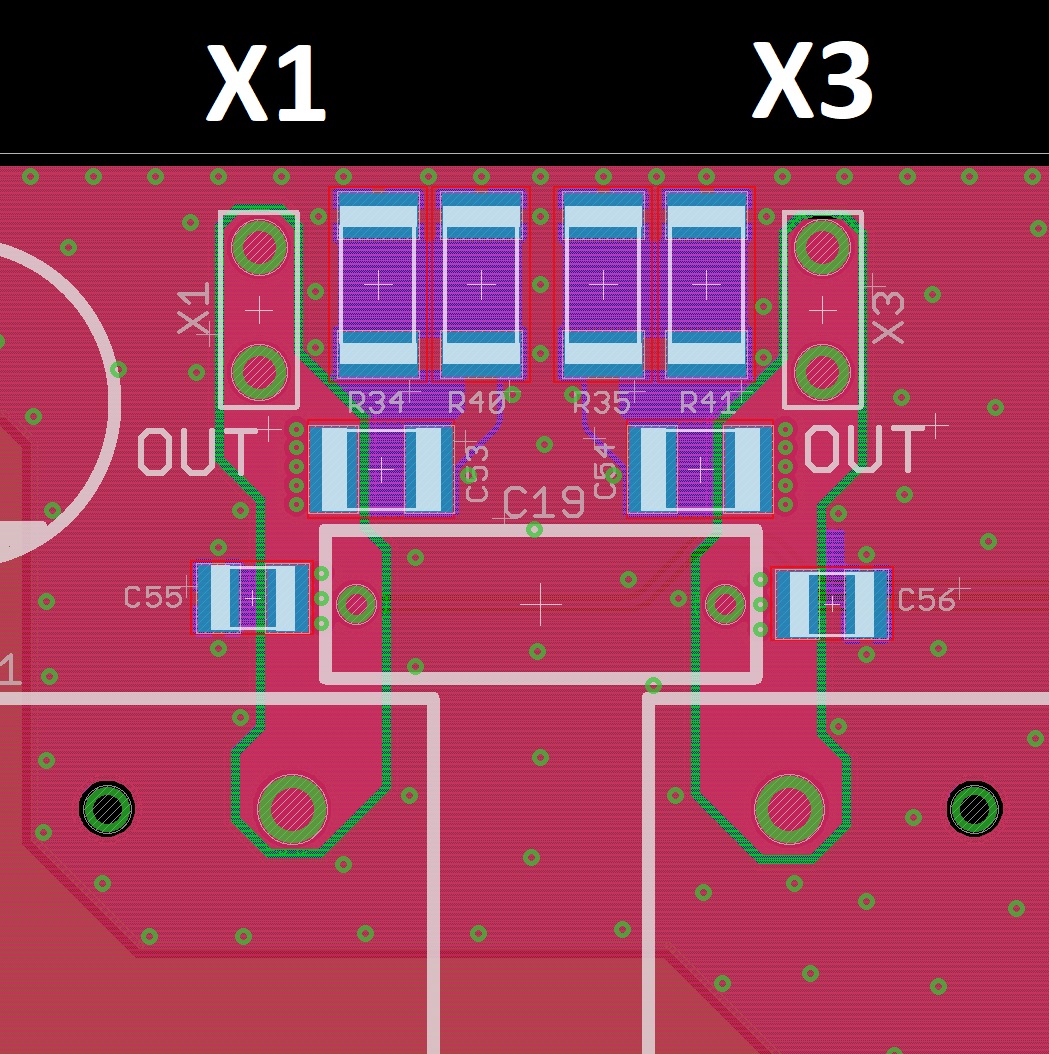

X1, X3 – Amplifier output
J6 – balanced input

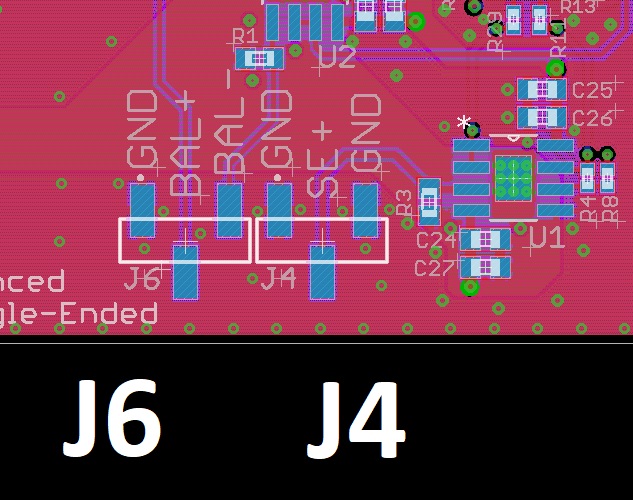

J4 – Single-ended input
J1, J2, J3 are all for different power supplies.
X1, X3 – Amplifier output
J6 – balanced input
J4 – Single-ended input
Attachments
Last edited:
Update 01/10/2021:

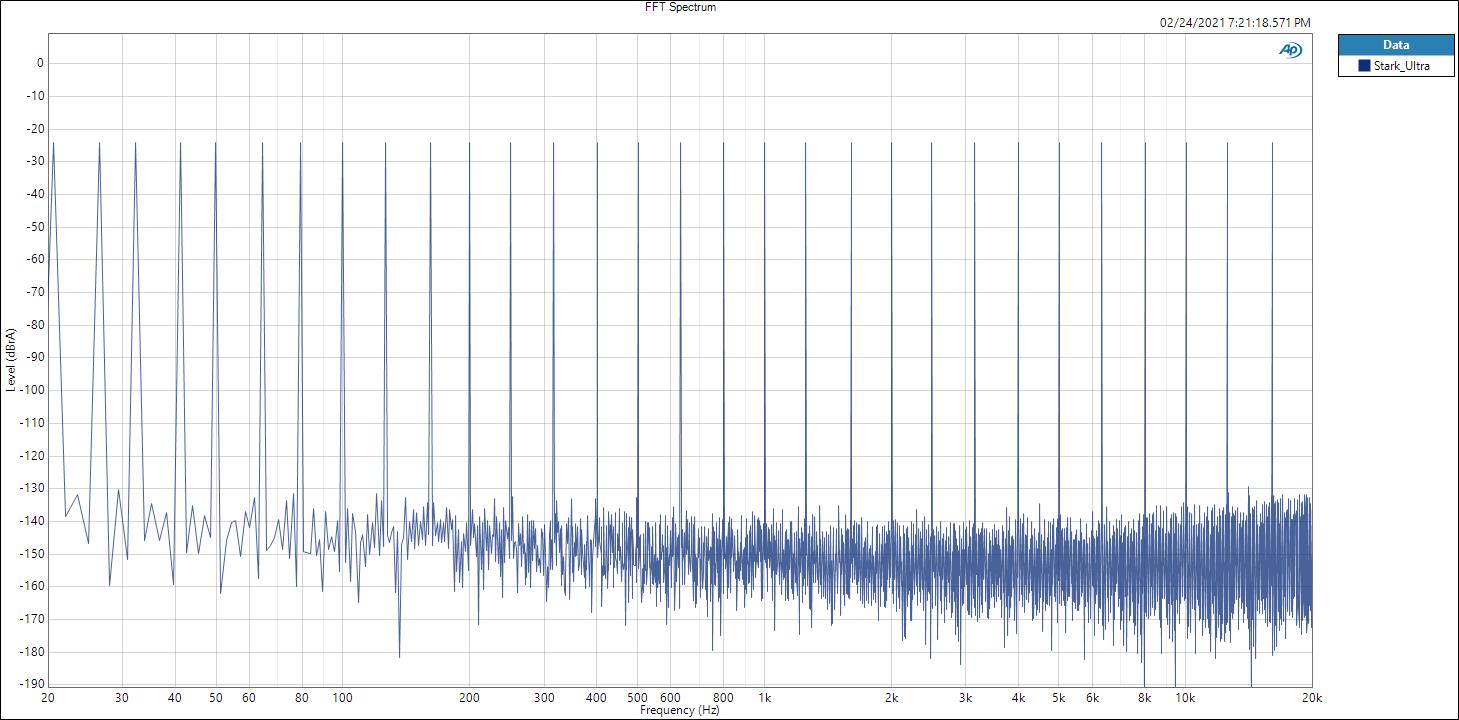

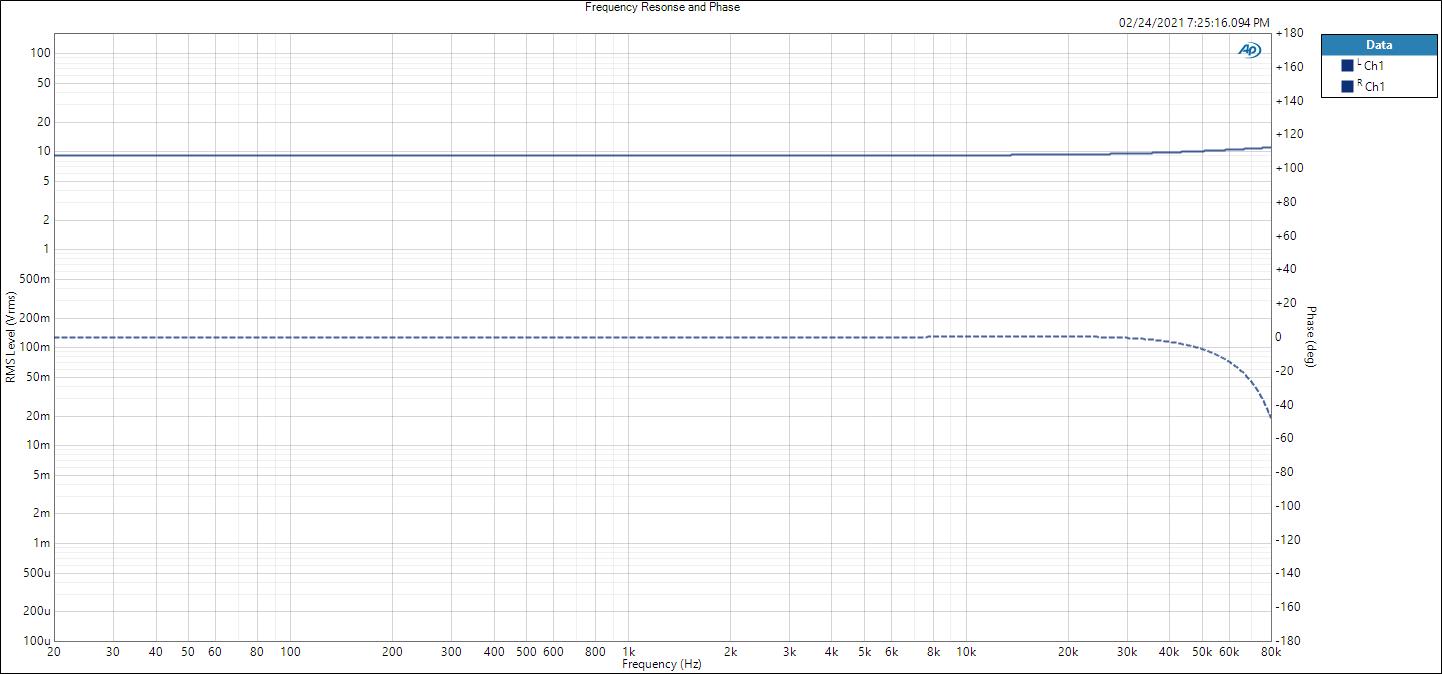

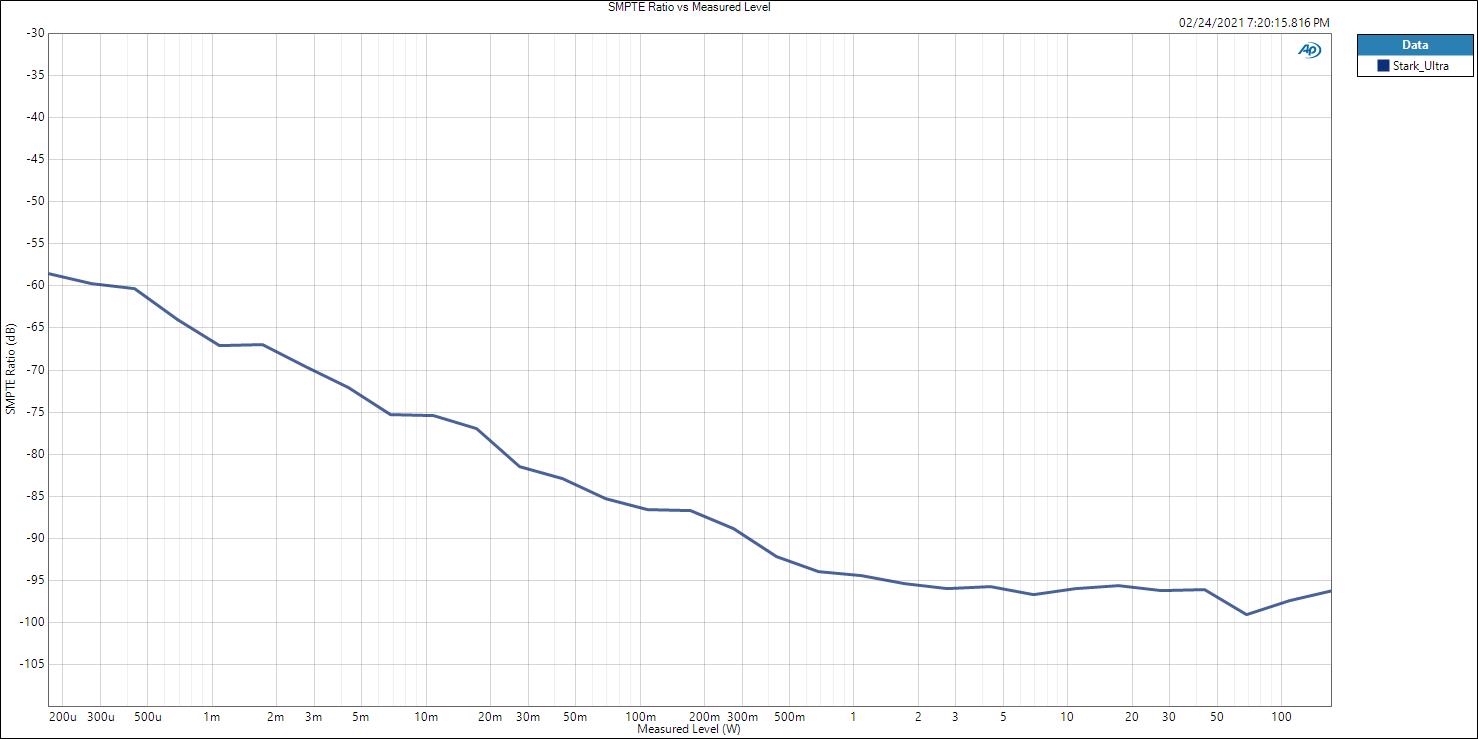

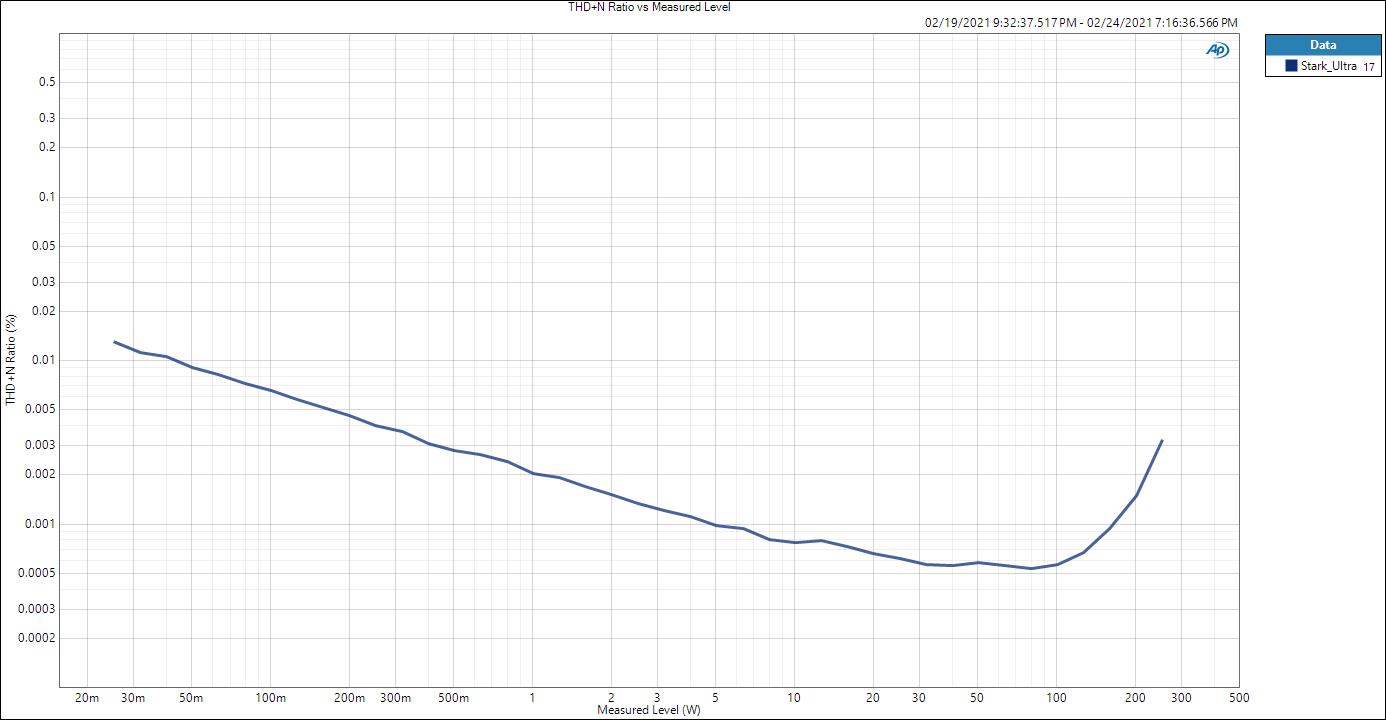

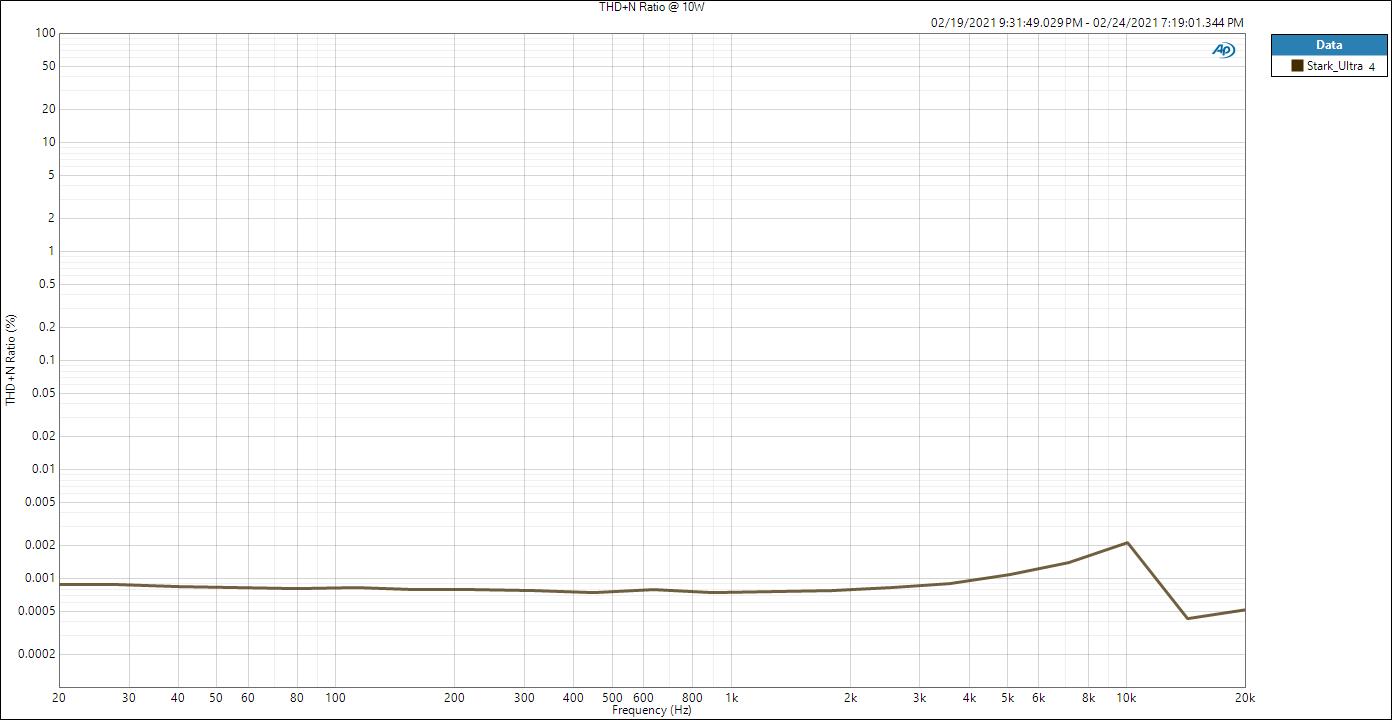

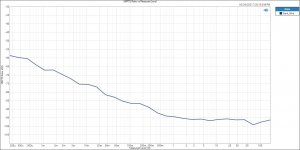

Updated specifications list:
Updated specifications list:
- Gain (balanced input): 19.3dB
- Gain (single-ended input): 25.3dB
- Power output into 8Ω/4Ω: 250W/500W
- Input Impedance balanced/single-ended: 44k/22k
- Sensitivity (balanced input): 5Vin for 250W into 8Ω
- Sensitivity (single-ended input): 2.5Vin for 250W into 8Ω

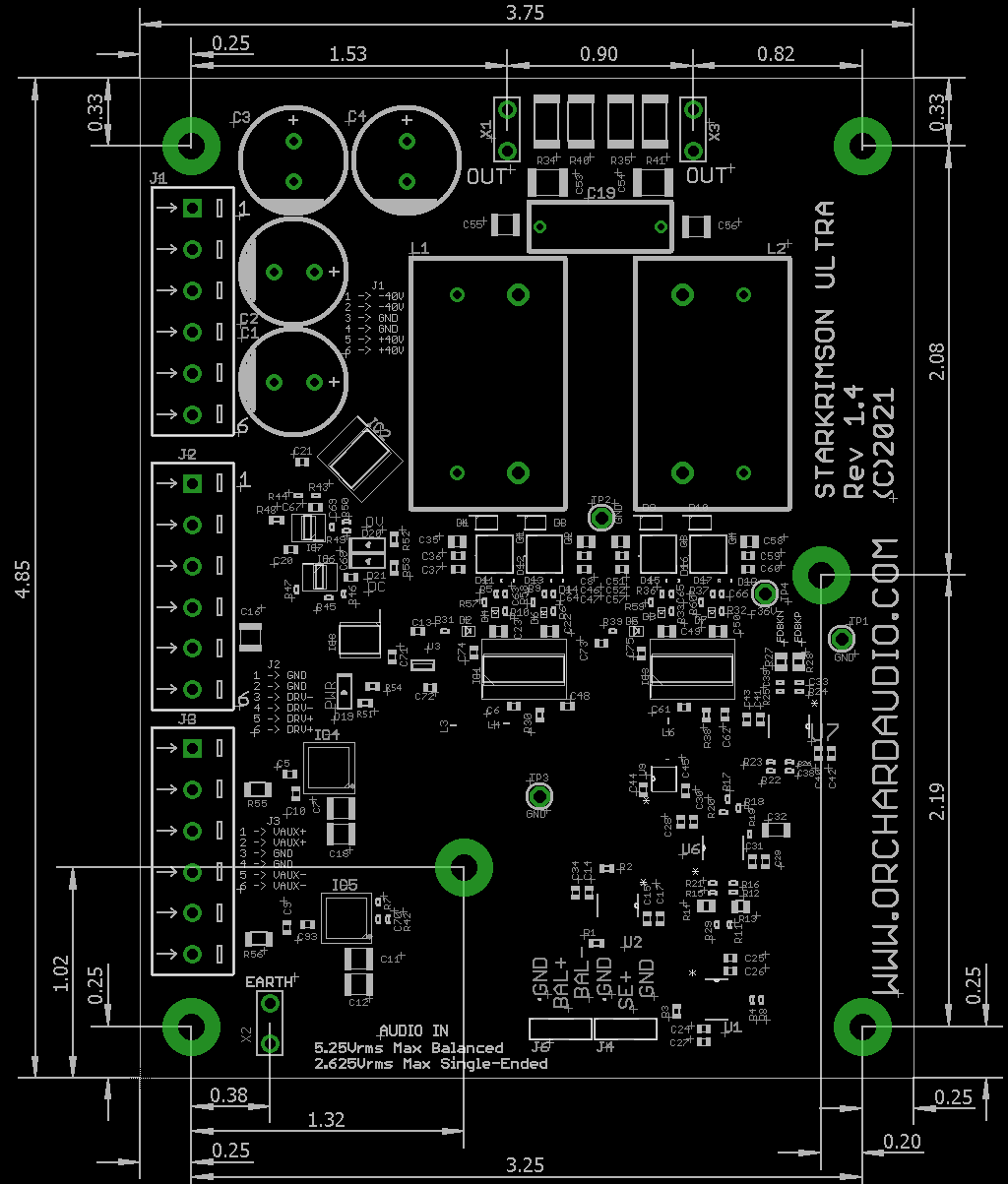

- Size: 4.85" (123.2mm) x 3.75" (95.3mm) x 1.45" (36.8mm)
- 6 x 4-40 mounting holes
- Required Power Supplies for Module
- +/-36V (+/-30 to 42.5V) - Amplifier Power Rails
- +15V (9 to 16V) - Mosfet Driver Supply - Referenced to -36V rail - 100mA minimum
- +/-12V (+/-10 to 22V) - Analog Supplies - 100mA per supply minimum.
Last edited:

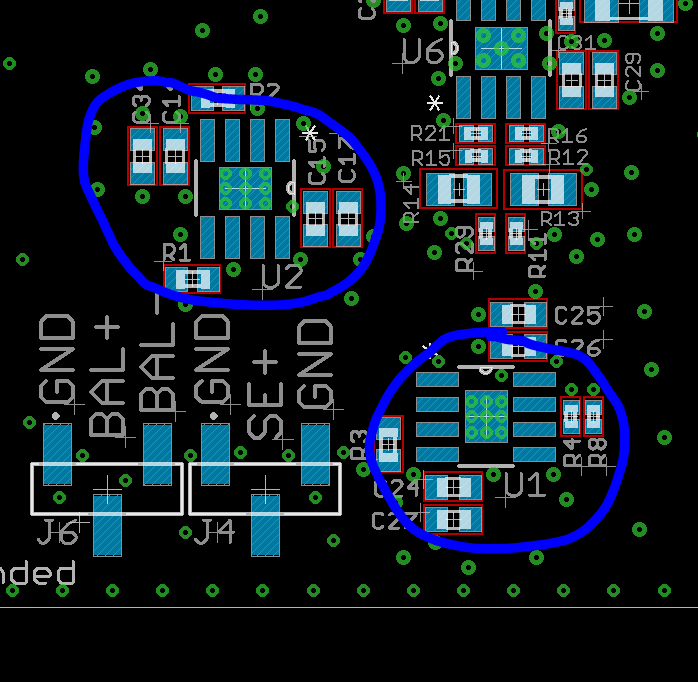

For those of you that like op-amp rolling and are purchasing the bare board option, op-amps U1 and U2 can be changed to something else that you may prefer. They are just used as buffer stages for the XLR and RCA inputs. So changing these op-amps to something else is low risk.
However, since the amplifier is DC coupled make sure your opamp has a very low input offset voltage (Vos)
The package is SOIC-8 with a thermal pad. However, the thermal pad is not needed for all op-amps and can be left unconnected.
However, since the amplifier is DC coupled make sure your opamp has a very low input offset voltage (Vos)
The package is SOIC-8 with a thermal pad. However, the thermal pad is not needed for all op-amps and can be left unconnected.
Attachments
I am extending preorder pricing until February 15th.
This to allow me to test the initial batch of modules that have been delayed in manufacturing.
This to allow me to test the initial batch of modules that have been delayed in manufacturing.
