100W Ultimate Fidelity Amplifier

[WINTEK]

AX14

Hi..

Please Give your comments and suggestions for Improvements...



[WINTEK]

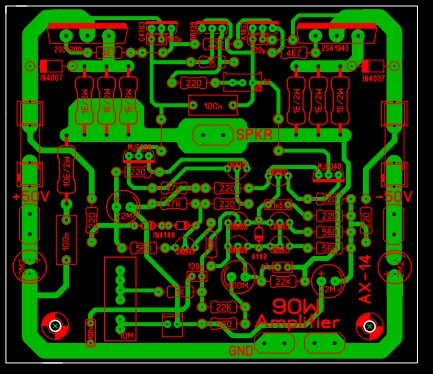

AX14

Layout..



[gannaji]

Dear Wintek,
Please post also the schematic with the actual components used by you for completeness !
--gannaji



[apexaudio]

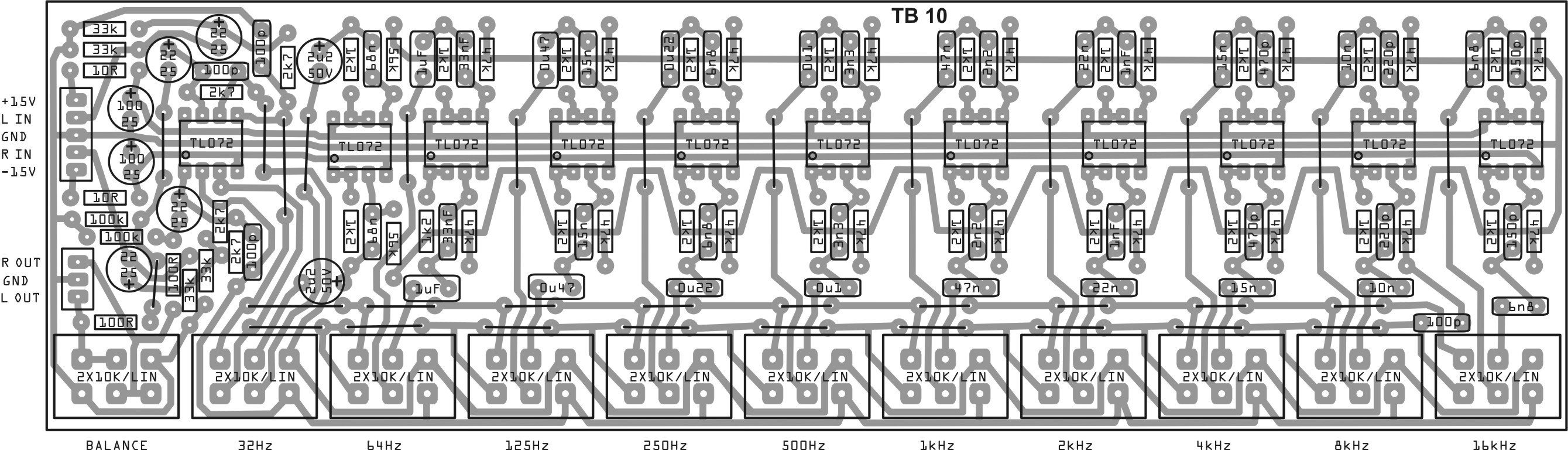

Thanks for this Mr. Mile. I think I can make use of multiple TB3 PCBs to build TB7. Between, do u have the scheme of 10 band equalizer, may be TB10?

Thank you
Sha



[WINTEK]

Dear Wintek,
Please post also the schematic with the actual components used by you for completeness !
--gannaji

Circuit same what was posted here as AX-14...PCB yet to be made and procure components to assemble and test...
All are available components in India only..



[shabusf]

Superb!! Thank you Mr. Mile 🙂



[WINTEK]

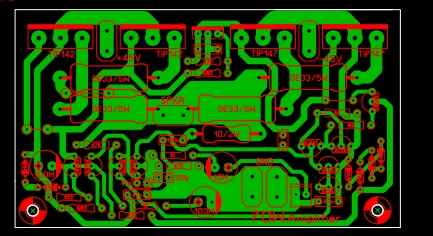

X12C

Hi..

Please Comment..



[WINTEK]

AX12C

PDF..



[Mamak]

Hi..

Please Give your comments and suggestions for Improvements...

Beauty components arrangements



[Mamak]

My ax14

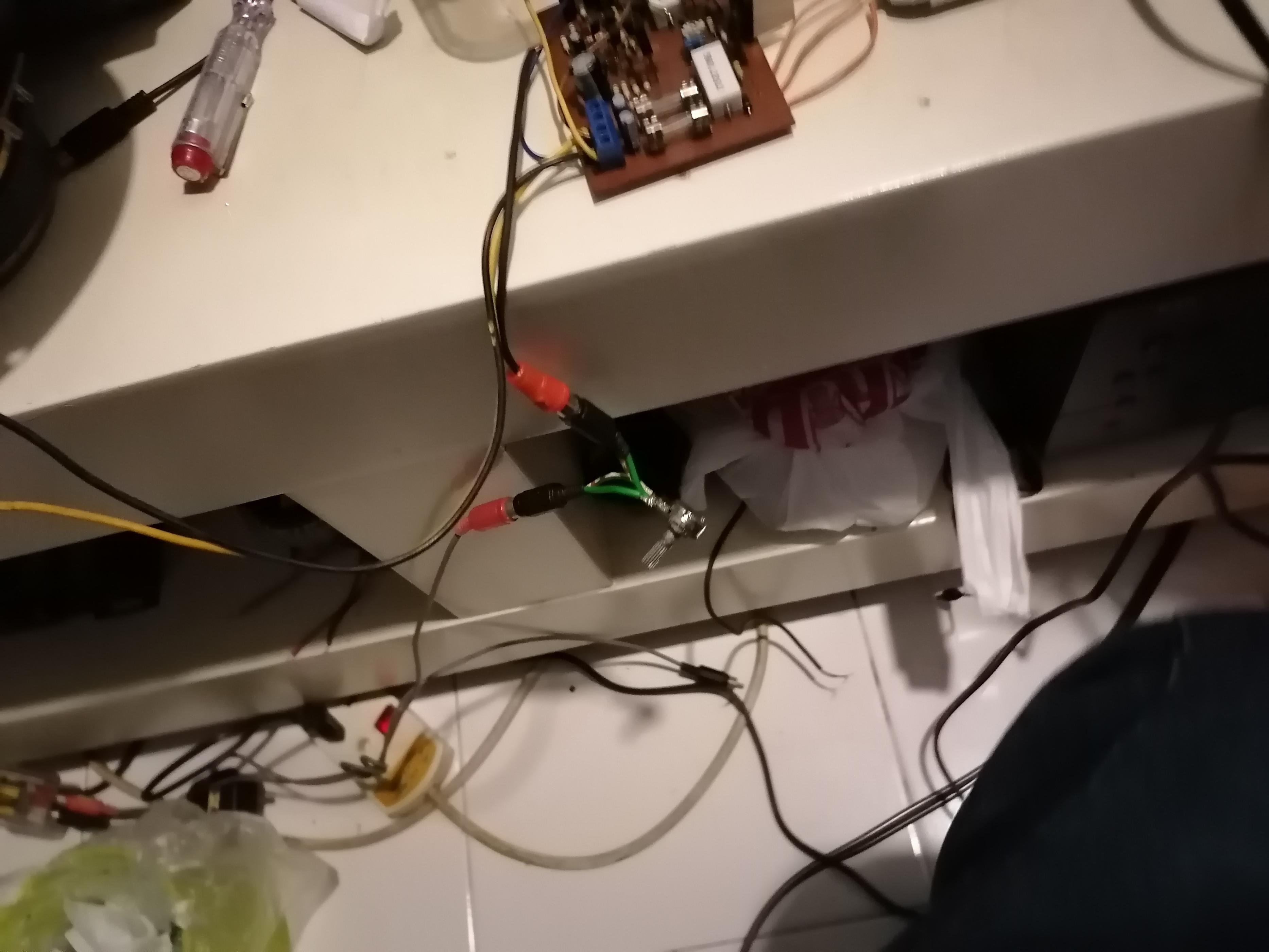

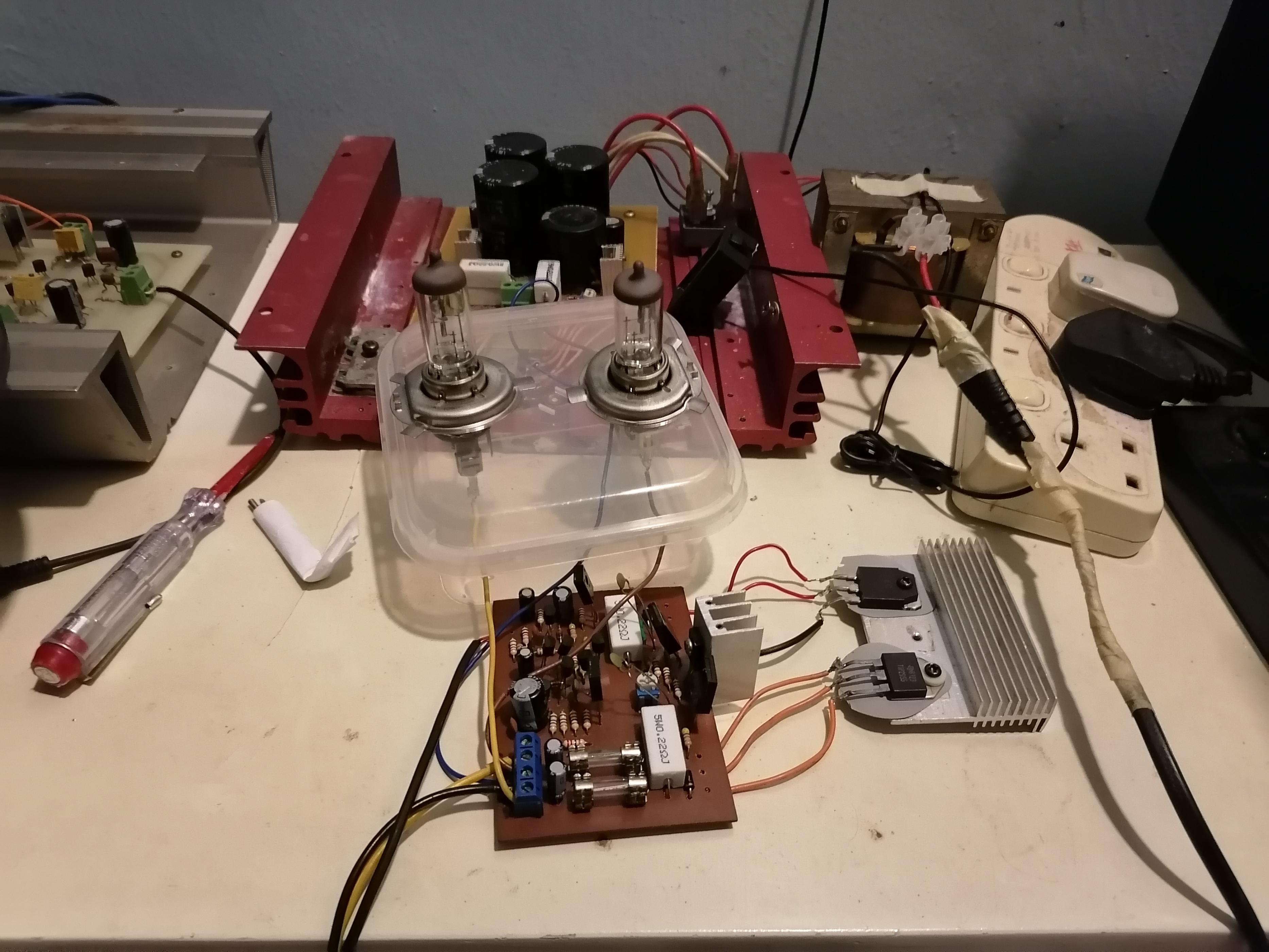

After many years, my ax14 alive. Sound very good. Deep bass and clear at high.. Picture just for testing only. Will build new board.



[r_jik45]

@Mamak,
What are these lights for?



[karachay]

After many years, my ax14 alive. Sound very good. Deep bass and clear at high.. Picture just for testing only. Will build new board.

hi can i ask what did you use on ax14 for c1, c2, c7, c13



[Mamak]

@Mamak,
What are these lights for?

For short indicator



[WINTEK]

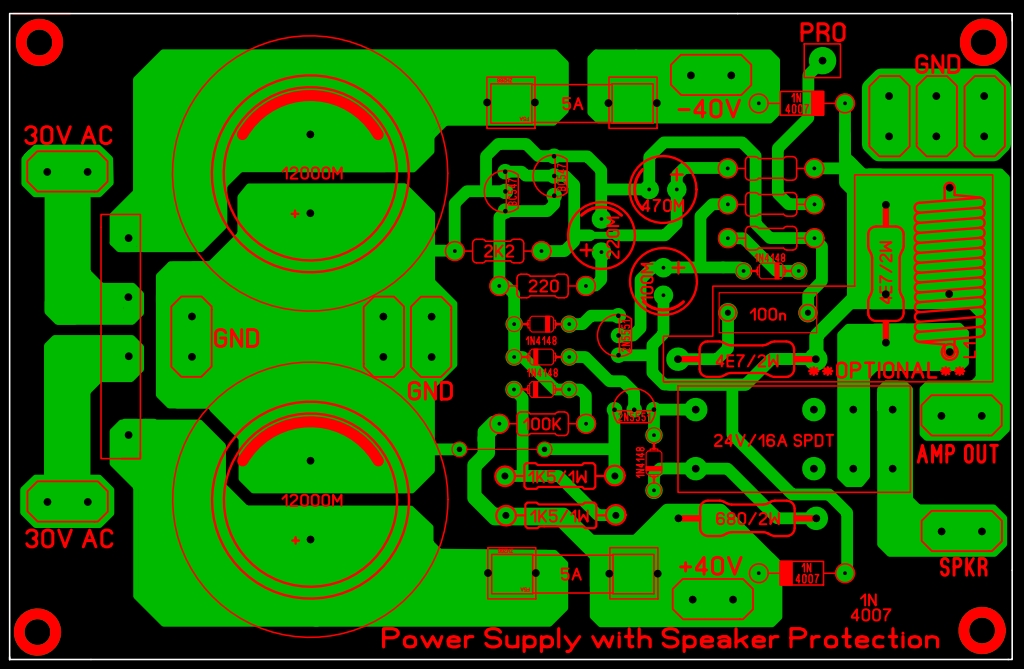

AX11_PSU

Hi..

Please comment..



[r_jik45]

Please comment..

To what is the top-right GND connected to?



[WINTEK]

To what is the top-right GND connected to?

May be used for Returns from amp out and to speaker if required...

Also provided one extra return (GND) at DC Output for speaker ground so that from amp board need to take speaker (+) alone to protection board...



[Mamak]

hi can i ask what did you use on ax14 for c1, c2, c7, c13

C1 10uf
C2 100pf
C7 33pf
C13 dont have if C3 1.5nf

I dont know the exact good value for this all capacitor. Hope somebody can give advice.



[karachay]

C1 10uf
C2 100pf
C7 33pf
C13 dont have if C3 1.5nf

I dont know the exact good value for this all capacitor. Hope somebody can give advice.

thank you mine is same too but bass is not good enough and if i dont connect volume pot 5k or 10k there is too much noise coming to output.

maybe i need check prassi sch with apex sch so i can see the what is different.

thank you again for answer..



[masood251]

Did you use this pcb?

Hi sir
In which post this pcb is??
Thanks



[ballisticz4]

I finally started my build. Initially wanted to build the FH9, but then changed to the NX14. Started populating it last night. Then found out I ran out of 220r 1/4 watt resistors. Got some at work today and going to finish it off now. When this build is done Im going to start the FH9, and then the much praised A40.


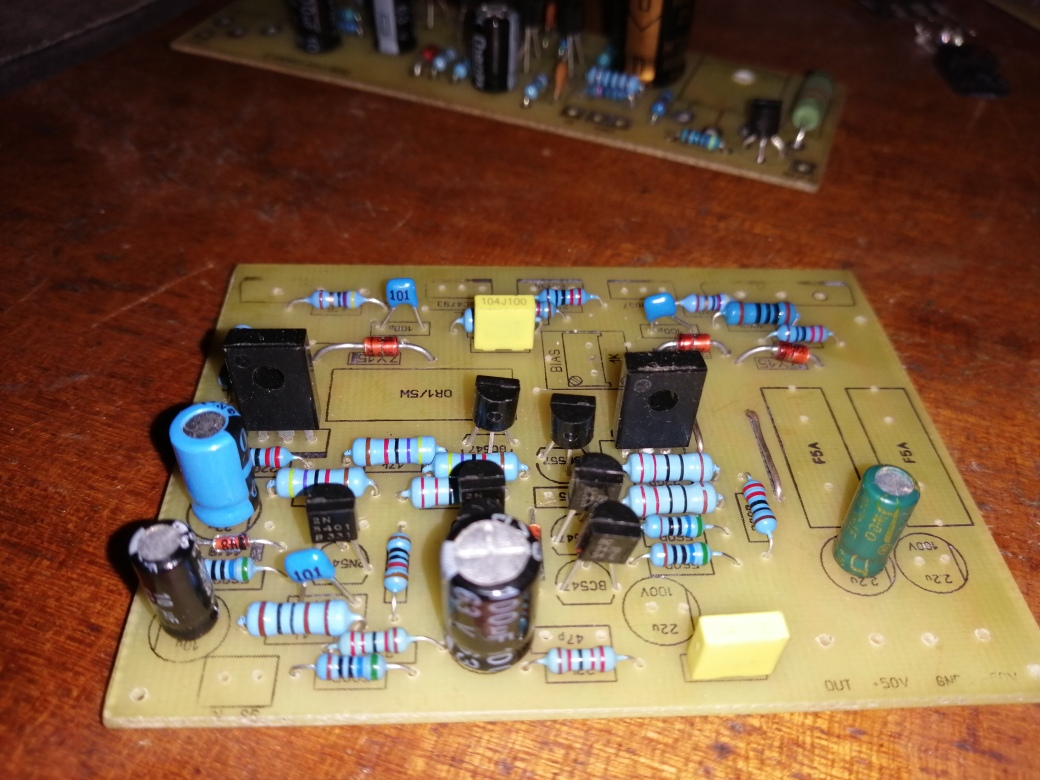

My AX14 so far

Anybody care to share the last working pcb layout of the P30 preamp?


Cheers
