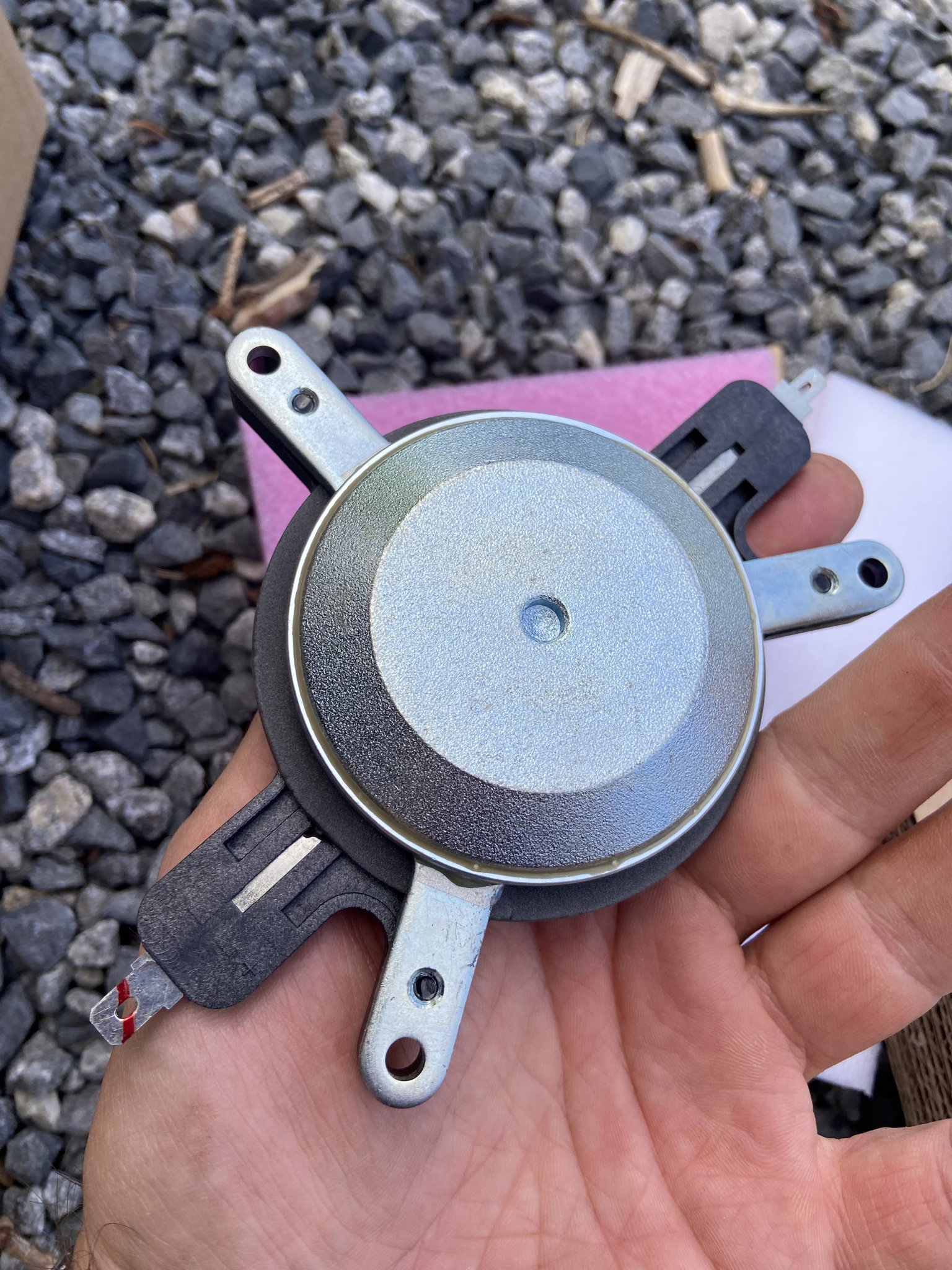

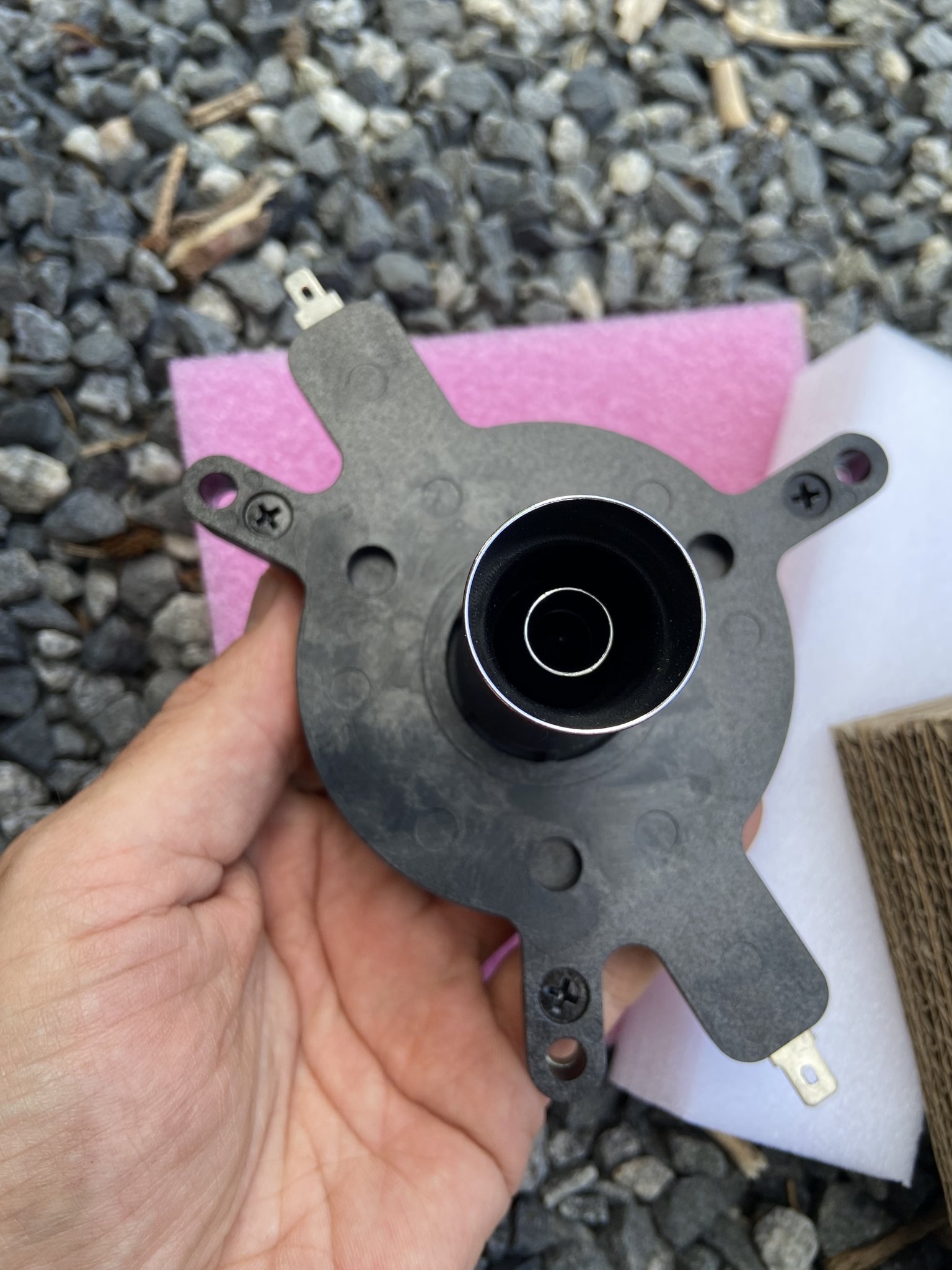

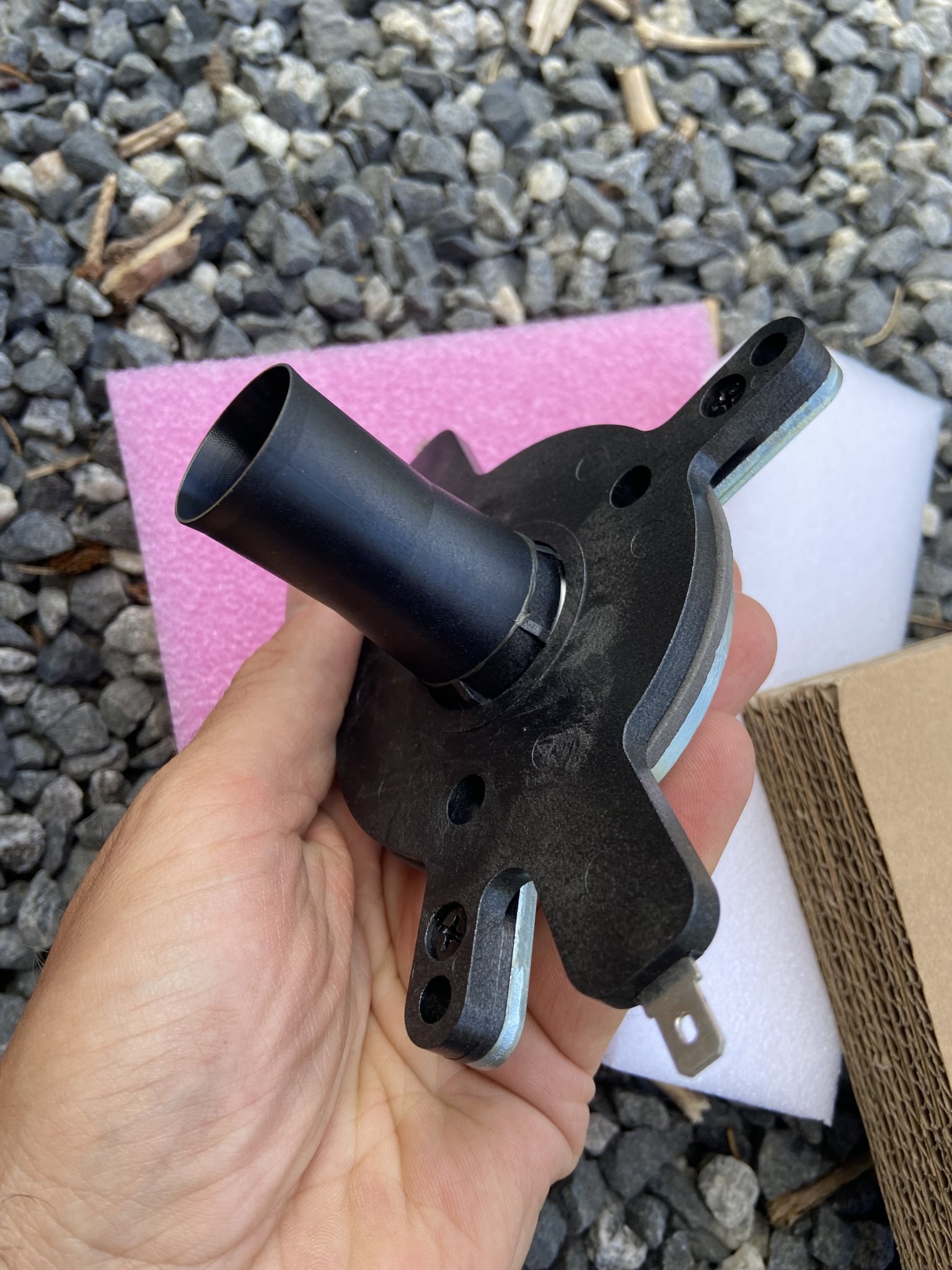

On a lot of TG speaker designs there are stepped baffles with the HF unit set back 20mm.
I spoke to another speaker designer recently and he said that from 2 /3 metres distance he would doubt that you could actually hear a difference from using a stepped or flat baffle with the same crossover.
My question of course is what do you think.

For Sale: some matched 2sk170. I sourced the parts at the last known reliable source for genuine Toshiba 2sk170s - millenial media aka ebay seller punkydawgs. This source is also recommended by Nelson Pass.

I matched the jfets with the help of a simple matching jig and a spreadsheet. Take a look at the pictures attached to see what is left.

machted octet: €65,-
machted quad: €30,-
matched pair: € 15,-

Shipping (second class tracked small parcel):
EU - €9,-
UK - €12,-
US - €16,-
other countries: please ask


Please also take note of my other items: search for "For Sale" and restrict results to Member "AddiDub"

Edit 8-2024: adjusted pricing to make pairs and quads more attractive

Hi, I'm building a B1 buffer and instead of using a DPDT 6A 125V toggle switch, I'd like to use a 2 position rotary switch. Any insight on what could work here? This is purely for aesthetic reasons 🙂

I have a couple of 1943 Amperex JAN-CEP-120 tubes, NOS in boxes.
It looks like a smaller version of a 211(vt-4c) or 845, the only reference I can find about them is a pair for sale on a chinese website last year.

Does anyone know what they are and/or have any specs?



The picture attatched shows an amperex 211, the cep-120 in the middle and an 845 on the right for scale.

If suitable, they would make a cute SE amp, but replacements could be scarce.

Regards,
Dave.

I' living close to the cologne and the düsseldorf section on the right side of the rhine river. What I like vintage tube and class a audio combined with vintage and modern fullrange speakers. Sonic sound hasn't to be expensive!

Hi, credit to all the work that people have done on the A60 power amp "clones". I do have several questions:
1. Does anyone know the difference between the A60-V1.0 and the A60-V1.1 boards?
Note: A60 using 3x NPN and 3x PNP output stage version, not the 8x NPN and 8X PNP high power version.
I have looked high and low for this info and have had no luck to date.
2. Has anyone experimented with a revised VAS stage?
The A60 clone boards use an oddly revised cascode with bootstrap VAS stage vs. the Accuphase simple but effective cascode Darlington version.
3. Is there any good data on the THD vs. Po and frequency behavior of the A60 or the A60+ power amps?
4. Is there any concise discussion of mods or improvements to these boards?
Thank you, and regards.

Wondering if anyone has any old ceramic forms for winding inductor coils. The size about 1 inch to 2.5 inch in diameter. About 6 inches long. For LC circuit / antenna impedence matching. Thanks

I have an I2S break out box which will allow me to get I2S from my streamer (hp mini) via USB and cd player (via spdif coax).

And its outputs are aes toslink and RJ45.

And so what I want to do is try buying one of these cheap ESS chip dac modules with obviously I2S pins (a block of 5) at one end and left and right RCAs at the other.

So I'm looking at either getting or making an ethernet break out cable.
But the standard ethernet cable has 8 wires? (and I've found a 1 ft RJ45 break out cable that has an 8 block at the other end.

But the dac module I'm looking at has a block of 5 pins or sockets on it.

I saw on the soekris thread a plan that has the 8 pin layout with the first 3 being ground but being 8 that doesn't suit either.?

Alternatively is there an I2S package I could buy with the dac module and cables together.?

Thanks in advance.

I am a long time audio dilletante. The best parts of my system are SET 300B's and FR speakers w. supertweeters. I hope to ask some basic questions about I2S having tried to avoid the sbc wave for a long time. But finally needing some advice.
Rob

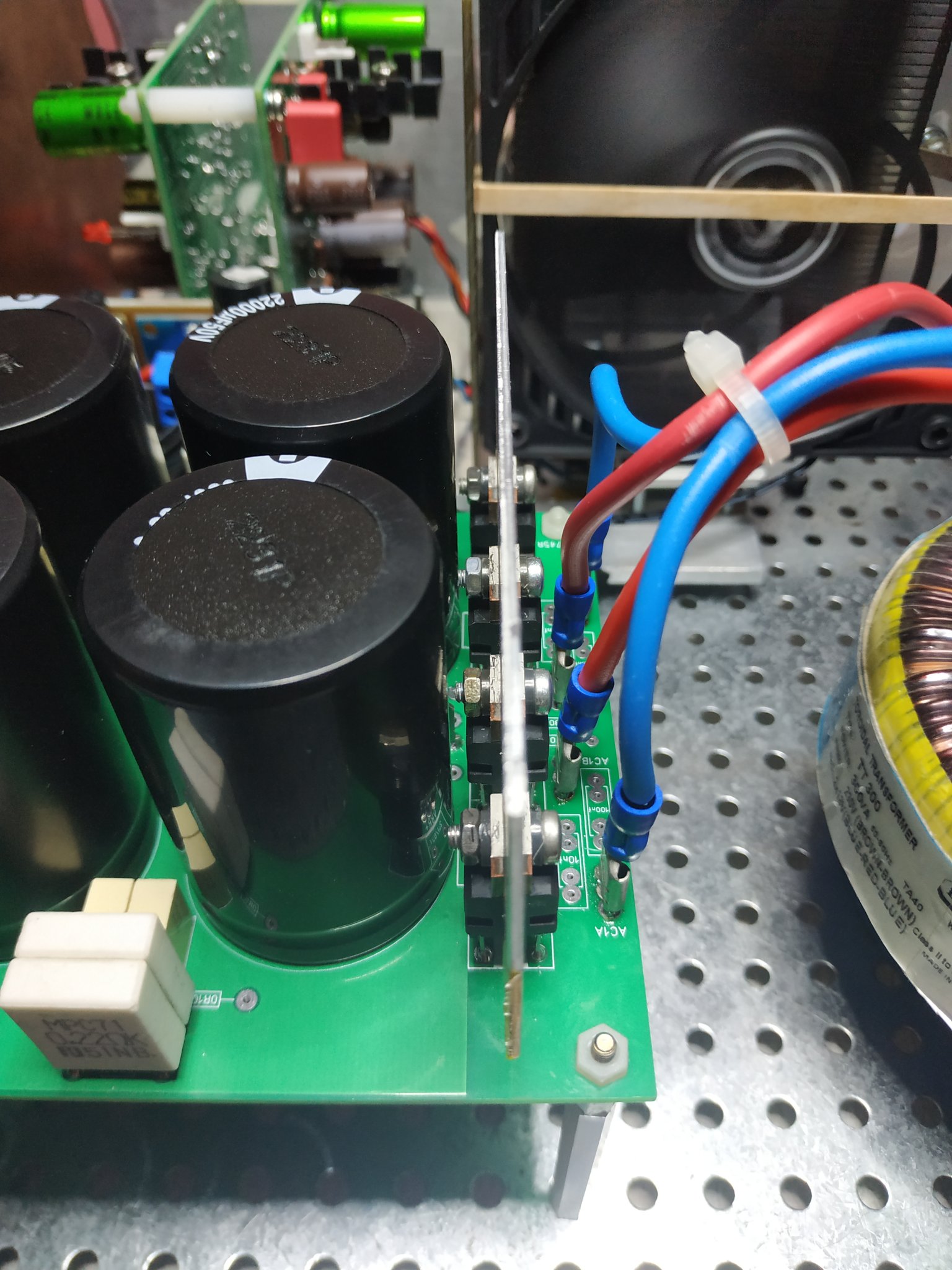

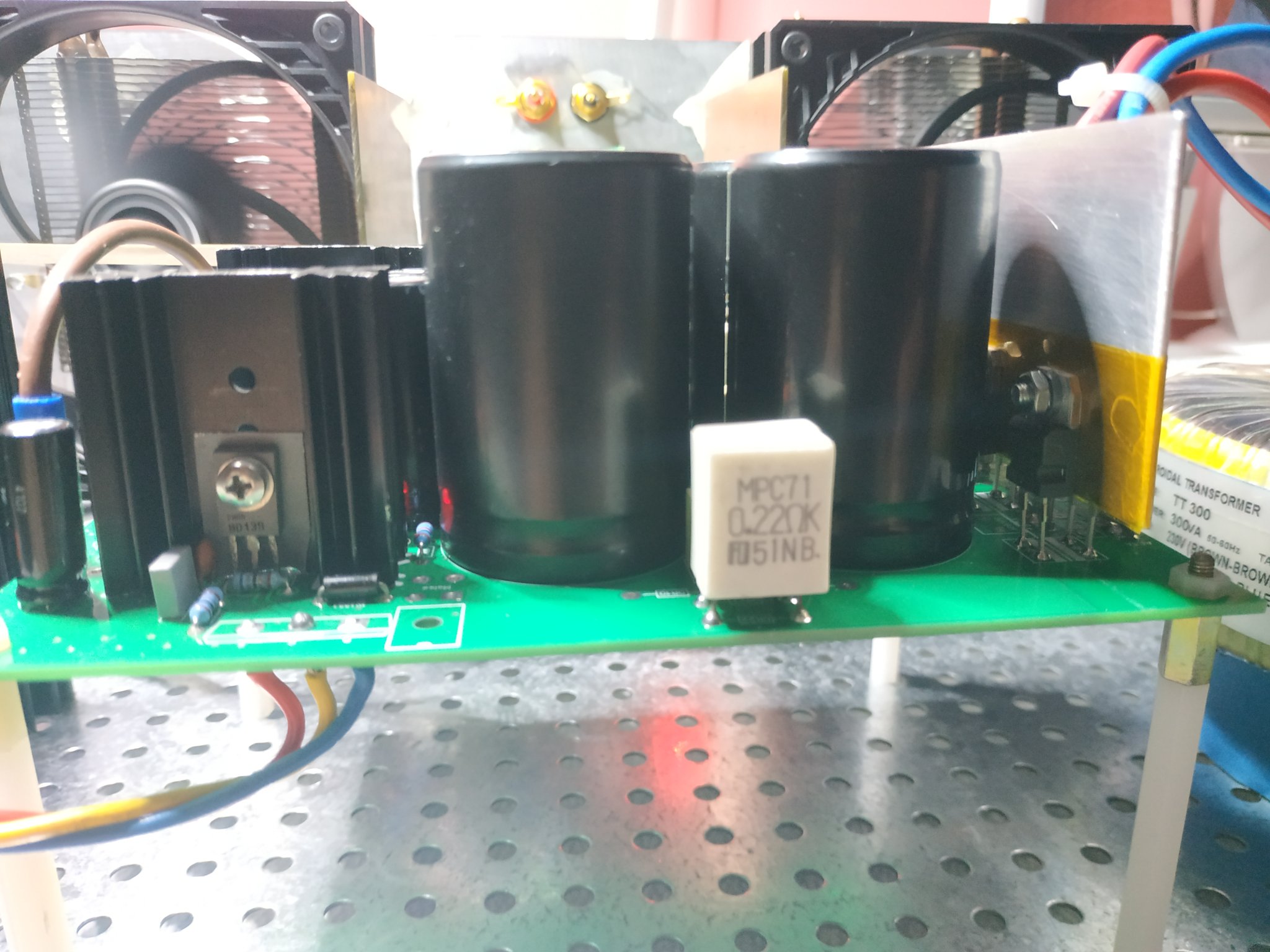

Good day all, in the last few months I have upgraded from my Threshold SA-2s to an un-updated pair of SA/12es. Love the big Thresholds as the drive my Kappa 9's as they are supposed to be!

Anyway the 12's have an audible mechanic hum from the transformers. I am supposing that it's due to the age of the PS Caps at 30+ years. It's remarkable these days how difficult it is to find CDE capacitors but I have managed to source the 16 quite reasonably priced and in stock! Very nice.

I am going from the original rating of 27,000uF/85v to a 41,000uF/75v cap as I did also with the SA-2s. (The 2's I actually stuffed 4 per chassis to quite an audible difference.) Figuring that should work just fine.

My question for you fine folk is, I figure I should change the rectifiers as well, 2 per chassis 35A is the original, and should this be increased or just going to a fast IXYS at 35A be sufficient? Also is there somewhere else I should look to update that might be impacting the transformers cause the technical hum?

Thank you in advance!

Scott

I have made a simple, yet, very necessary, PC Speakers' Preamplifier :

PC Speakers Preamplifier - Google Drive

Planning to build an SET 307a tube amp. Looking for opinions for best output transformers -- some candidates I am considering. Please provide feedback and recommendations on reasonable, high quality candidates:

Hashimoto HC-507U
Lundahl LL1623
Silk
Magnequest

Have not used any of these but wish I had the chance to compare the nice ones.

thanks.

I've been enjoying my 2002 dated 5350SE amp, especially using DIY TNT AirCoil Interconnects. The detail and clarity have been very good and the interconnects measured 1.5uH, 31.3pF and 0.034 ohms for 1m and cost £24.

However, the RCA input/volume control (passive pre)/power amp path of the 5350SE is quite long, has more L, C and R than ideal and I don't need more than one input, nor the extra facilities (phono pre etc).

I wondered if I could apply some of the interconnect principles to the RCA input/volume control/power amp path of the 5350SE without butchering any components.

YES! (Please see attached photo)



I installed a boxed header socket on the remote/volume board to facilitate A/B comparison and to easily restore original functionality, if desired.

Even with unshielded twisted pairs from some Cat5e cable the clarity, transparency and detail exceeded my 4330Mk2 - I could easily hear subtle details and quiet lyrics, individual instruments were better resolved.

I've now used Teflon insulated 23 AWG 6N silver-plated solid core Ohno Continuous Cast copper wire with 96.5% tin/3.5% silver solder.

WOW!

The clarity, transparency, detail, focus/coherence and bass authority are superb!

All for £10!

I've not yet measured/analysed how frequency response or channel separation have been affected, but I'm loving it!

Hi, I've wanted to build my own speakers for a long time and finally did it: the frugel horns mk3 🙂
I've recently finished an education in electrical engineering and it's a bit ironic that I choose this design because -electrically at least- the concept is kept simple: there are no crossovers. But I've enjoyed the woodworking and I'm pleased with the sound of the almost finished mk3's!

Hey all, I am checking up on an amp that is getting warmer on one channel than the other. This amplifier doesn’t make it super easy to check his current. I took out the positive busbar and installed leads so that I could measure the current.



For the warm channel I’m measuring about 30 mA per device and the cooler just a little under 10-1/2 mA per device.

For amplifiers using lateral MOSFETs in TO3 cases it seems the general rule is to shoot for 100-110 mA per device. At least for the Hafler stuff. For my B&K amp that uses TO3p it’s about 50 mA per device.

What would be suggested for these smaller TO220s?

Dan

Having used a uTracer3+ and ExtractModel for years to create spice models now I am trying to create spice models with a uTracer6 as the 6P36S can support very high plate currents that I want to model in spice.

I am using the ExtractModel software from DOS4EVER that I have successfully used for years with my uTracer3+.
Now with the 6P36S tube data collected with a uTracer6 I get the error in the title, "*** Internal error in DetSweep".
I have so far failed to find the cause.

Does anyone have a list of error codes for ExtractModel that may provide a hint as to what it is not liking in my data?

Has anyone see this error before?

I attached the data files I am using.

My current email addresses were hacked and blocked so I moved over to Microsoft outlook.
Things were easy enough, just create new email addresses then change them in my ebay, RS Components etc.

Then I got a message saying my main email had been blocked due to misuse.
I was just sending normal emails I didnt do anything wrong.
I tried to get it unblocked but went around in cicles as unblocking URL kept asking for phone number but after I input it it said there was a problem with that verification method and to try another verification method.
But there wasnt one !

I got in touch with Microsoft and a day later they sent a URL to reset password and account.
I tried it and kept getting too many tries message !

So just going around in circles at the moment.

I looked up outlook email blocking and it appears you can only send a few emails a day before becoming blocked.
It suggested upgrading account to Microsoft 365 and trying again.
So the free outlook wasnt so free after all.
Must have spent a full day trying to sort it all out.

Hi all, need help finding easiest way to do a conversion task.
I need to convert a txt report that lists biquads like this:



into a string like this, and also add an a0 value of 1 as highlighted in orange: (note a0 is not listed above)


If I only had a few to do, manual is easy. But I need to do 20 at a time, and try a number of sets.
A single csv file with 20 lines, each line a biquad string like above, each string pulled from the original txt report and converted, is what I need to get to.

I don't know where to start...whether this is a simple enough task for an advanced txt editor, or move to Excel/spreadsheet, or move to Excel with an AI spreadsheet assistant.

Happy to do the work/learn...just would like to get a vision for easiest route. Been a long time since I've done any type programming...
Thx for any guidance

Hello!

Probing around in my vintage amp I noticed the voltage present on the speaker relay coil was about 39 VDC, way higher than its rated 24V. The relay is a Potter & Brumfield RTE24024F, 1440 ohms/400mW coil. Below is the relevant part of the schematic; sorry for the bad scan quality this is the only one I could find online.



The relay is fed from the left channel output stage's negative rail which is -42 VDC unregulated. 680 ohms series resistor R3 drops some volts to bring that down close to 24V. I went ahead and simulated the circuit and in this configuration the relay would see 27 VDC.

In my amp this resistor is only 220 ohms and the relay coil then dissipates about twice its rated power. All the other components are operating correctly.

I only have the schematics for the rev. 3 revision of the circuit whereas my amp is rev. 1. The original relay failed about 20 years ago and I had it replaced by an authorized dealer - perhaps the original circuit really had 220R or the repair technician changed it.

At any rate this amp has been running 24/7 for like 15 years without problems... Do relays typically can handle this kind of abuse or I was just lucky on this one?

In a few weeks/months I'll need to replace some old caps and was planning to preemptively replace the relay with a fresh one, to be sure to have less oxydised contacts. It's already 20 years old after all. I'm thinking of replacing the series resistor at the same time with a 680 ohms like specified in the rev. 3 schematic.

Is that a good idea or a case of "If it ain't broke don't fix it" ?

Thanks in advance.

NLA

Thanks,
Jed

Hello dear audio friends,

who here has an idea how big the relevant membrane area SD in qcm/square inch is exactly on a vintage Philips AD 9710 M 01. I can measure or calculate a circle area myself, that is kindergarten. 8 inch fullrangespeakers are usually around the 220 sqcm SD – if a multiple is needed it does not help to estimate, the error is then bigger. There must be somewhere reliable facts about the SD on the AD 9710 M 01!?

Already best thanks for your infos!

Kind regards Gerd

I purchased the "Battery Life Saver" perhaps more than a decade ago, off ebay from the OEM as a "cosmetic second". I dare say it works. having brought back its money's worth of lead acid batteries from going completely useless. Last night, I connected it (along with the "brick" charger) to my 24V lawnmower whose batteries are losing capacity - and went to bed. During the night, it burned emitting magic smoke and oozing a quite noxous brown oil that I cant quite get the smell off my hands (see pic). A potentially more dangerous situation than smelling up things out in the garage and my person.

I called the place which is still in business and offered to send it back for FA. They offered 10% off of a new unit, which is ~$100+. There was no reason for it to fail, as it's rated for use up to 36V. It's potted as I assume they dont want you to discover "how it works" easily.

I'm not sure I want to buy another unit. I'm an engineer, I have a function generator and I know how to drive a FET to sink current pulses. The OEM touts "Square Wave Technology" - I know what a square wave is. When it was working, I never bothered to assess the frequency, the duty cycle, not the current amplitude of whatever it does when you connect it to a battery.

So my question to the anyone here is, if I wanted to replicate this thing using my function generator along with a FET and a couple resistors, what would be the FG setup for frequency and duty cycle, also the current pulse amplitude? Just wondering if anyone knows offhand. Thanks!

Hello diyaudio folks. I am actually returning from a long time ago. E-mail address shanagins.. etc. None the less. I have jumped back in with just enough knowledge to get myself into trouble and am looking forward to chatting with you all about fixing the horrors I create.
My main interests are converting old tube radios into guitar amplifiers. So far the outcomes have been satisfactory. Years have passed though, and my knowledge and patience has grown. Mostly the patience.

I am working on a new 45/45B tube SET AMP project for 2023.​

1. output tube 45/2A3.. interchangable​

2. output transfomer PT and Choke -->Hashimoto​

3. output power 2W 45 tube​

4. Tube set 45 + 12AU7X 2 + 6CA4 / EZ81 X 2​

I need 30 -35 participants to start this project..I am excited to hear the magic of 45 tube SET amp.​

I need your valuable feedbacks too. ​

We are planning to offer one version​

premiun version (with Hashimoto H20-7U + Hashimoto Chokes X 2 + Hashimoto PT ) ​

Full Music Balloon Mesh Plate - Gold Pin


Full Music Balloon Carbon - Gold pin

​

Looking for a Marantz Dial Pointer.
I'm currently restoring a first generation Marantz 2215.
Btw.: If anyone has an idea where I can find the fuse board that my receiver has mounted next to the power amp (https://www.diyaudio.com/community/threads/oldest-amp-you-still-use.388499/post-7543721) in the circuit diagram, I would be happy to hear from you.
Thanks in advance!

Greetings all. Introductions from the east. Inspired by all things music and hifi related, I’m pleased to be here.

Hello Folks !!


I'm doing the next couple of tweaks to my old Linn LK1 preamp
and the LK2 poweramps right now.

Some years ago I several caps in the RIAA section, most ps and
decoupling capacitors.

Parts used are Wima FKP3, Elna silmic, cerafine, BC 051 etc..

Now I will try Epcos Sikorel an Mundorf M-Lytic HC for the power amp
(ps is separate).

Biggest problem:

Coupling caps in the signal path even in the MC preamp are several tantal caps of small size.
Most of them are 100 + 22 µF parallel.

How to replace them? BG, Oscon, silmic ??
There's no space for FKPs..

Another question: Does anybody have more information about tweaking old Linn gear ??

I put some stuff on sale on Swap Meet, but forgot to say anything about these. So I guess it was meant to be that, following Codyt's example, I'll give these to someone here on the Pass Labs forum. This forum has been a huge aid and inspiration on my Audiophile journey. Also the kindness and willingness to help even us "not so into the knowledge", is beautiful. So it is only fitting to give something back. So here is a chance to get MOSFETs for the F7 - or other amp.

I really don't know if there are many people seeking after ALFETs, but we will see then.

Giveaway:
ALF08P16V x2
ALF08N16V x2

So the basic rules are the same as with Codyt (I trust it's okay to copy your text Codty? You said I better then I could):

Rules and conditions:
One entry per person. I'll pay for the shipping. As long as the Finnish post will ship to your country/address. Ideally these would go to someone who hasn't had the good fortune of winning other lotteries – but if you'll use them, you may sign up.

How it'll work:
To enter, just copy the list of entrants, paste into a new comment, add your DIYA username to the bottom of that list and post. At about 11pm (local time) on the January first 2024 (1.1.2024), I'll make a comment saying that entries are closed. I'll take the final list of entrants, have my daughter state a random number between 1-100 and we'll see who's name the count stops on - that will be the winner. From there, that person simply needs to PM me their mailing address and I'll get them posted.

Happy and blessed New Year everyone! 🙂


EDIT 28.1.2024

This original lottery for a quad of ALFETs is over and out. But now, since then, Nelson has offered to donate 50 more quads.
To get on track with the current situation, jump to post #63 – and then to post #101.


EDIT 2.2.2024
The original and also the secondary lottery are completed.
If you are reading this after 1.2.2024, you were too late. Sorry for that.
But have a nice day! 😊

Early this year there was an ALFET lateral giveaway made possible by Nelson. The give away consisted of two pairs of ALF08P16V and ALF08N16V – to build an F7 e.g.
All who participated have seemed to get theirs, so it's time for the last move.

There are still three (3) sets left.

As many of you already have a set, this time it will just be the three fastest, who will get these. Hopefully someone who hasn’t received a set yet.

The ALFETs are free, but the receiver will pay for shipping (5€/10€ depending country) via PayPal. I’ll give further details once we have the three names sorted out.
So the first three who want a set – please speak up!

- Jugi

Morning gents .
Should anyone have one or even two of the above please let me know.

Tubecad had a little article on the XPP amp. In the description he mentioned
that you could use 2 different tubes but my question is could I use jfets instead
of tubes in this circuit ?

Hi guys
I have a DAC CEC DA1N I'm searching for service manual, someone have it ?
The display has low brightness someone know why ?

I would also like to make a modification, adding an external PCM, to get to 192 K. For this I provided an mp3 signal on the USB port of the DAC and I thought I would find the analog audio on pins 28 and 29 of the PCM, but measuring with the oscilloscope I find nothing.. and I don't understand why ... if someone can help me... thanks

G'day Guys,

A question of construction theory here.

If was has a triplet of wires to be dressed eg: a centre tapped transformer secondary or the +Ve/GND/-Ve wiring from a PSU to an amp board.
Which is the superior approach.

A) To braid the 3 wires together: This looks to me like a superior solution to me as it appears to keep the wires more at right angles to eachother.
B) Twist all 3 together

I notice I don't see braiding in typical big brand AV amps that I salvage but I am guessing this is a cost factor.

I am tasked with repairing a Chinese manufactured "Line Magnetic" valve amp with a bad channel - it uses 845s and 300Bs. The access to this elephant is from below, and my 1938 RCA valve book categorically states the correct operation of the 845 is socket down, bulb up. I realise filament sag could produce unwanted flashover if this lump was operated on its side but how about upside down?. I have to get in there with meter prods and scope probes. The incumbent tubes are Chinese. Ideas?.

as above. pros/cons of connecting/not connecting?

I seemed to recall (many many years ago) some cable manufacturer sells RCA cables where the ground pin is only connected on source side.

thanks!

For sale one of the best, if not the best, analog tube testers ever made. Neuberger RPM375.

Here are a few links about this tester:
https://tubedatabase.co/testers/neuberger-rpm-375
http://www.jacmusic.com/Tube-testers/Neuberger/370/index-Neuberger-rpm-370.html
http://www.jogis-roehrenbude.de/Roe...Pruefer/Neuberger-RPM375/Neuberger-RPM375.htm
https://www.radiomuseum.org/r/neuberger_roehrenmessplatz_rpm375rp.html

I have attached a few pictures of it. Tester is not mine, a friend of mine is the owner who is closing down his business.

Tube tester is in EXTRA good shape, almost no visible markings (there is one dent on the top cover).

Comes with additional tube socket adapters and original cards. It has connectors for external heater power supply (if needed).

It can test almost any audio tube there is. I own Neuberger RPM375 too and it tests GM-70, 845, VT4C with no problem.

Price: 3500€.

Location Croatia

Hello. I was wondering of I could get some facts and opinions. First of all, this is my goal. Make a stereo amp to match the guitar I rewired to be stereo. One pickup to one channel, the other to the other. Standard Gibson theory there. I have built the stereo prototype and it sounds pretty good, but I still want to fine tune it, and possible tune it to reflect the strengths of the neck and bridge pickup respectively. At this moment I am still playing through each channel separately as it gives me some insight into the tonal changes I'm making to one in real time. Super handy.
As you can see in the schematic I have some thoughts and goals with the current design. Voltages are a little high, but I'm on the fence if this will be a real issue other than burning up tubes a little faster. They are easy to come by so no real issue there other than wasting tubes for what may not actually be any improvement in sound.
Questions: have I done anything stupid in the schematic? I know enough to get myself into trouble, and am working on learning enough to get myself or again. Suggestions are welcome as far as changes that people have tried and liked. Or, downright stupid things I have done and really need to change.
My other question is about a good way to mix a mono signal into the amp so it splits out both power amps (also in mono). In case I just want to play a normal guitar and don't need the stereo setup, but don't want to waste an entire side of the amp. There is a thread in here regarding this, but it rapidly moves away from what I think is useful for my purposes. My thoughts started with a phase inverter to split the signal, and it would probably work but there are phase reversal things I would need to do, etc. someone suggested using a cathode split (if I want a no gain buffered splitter), or a anode split of I want some gain from the buffered splitter. Placing this in front of both 6au6's seems smart to reduce noise. I'm pretty in the dark on this as design. I want to make sure I don't lose any signal in the split, if anything, maybe get a little more control because I would have two amps that sound slightly different that hopefully compliment each other. I don't have any intention of adding tone controls to either channel (yet), but I'm always open to good suggestions. Maybe a switch to move choose different coupling caps. This value did seem to make some big differences when I was fiddling with the first build. My transformer has enough juice for a couple more preamp tubes, but I'm thinking 6av6 or 6at6 for the buffer/splitter tube. I like the idea of keeping it 7 pin... don't look at the rectifier. it never happened 😀

So, after that long winded window into my thought process. Thoughts?



Also, as a quick note. The Silverstone 1301 was a big inspiration for the design. Also Les Paul jr, champ 5c1, and magnatone aloha. Anyway, 6sj7/6v6 designs are way easier to come by than 6au6/6aq5, and they are pretty interchangable.

I have put together this preamplifier kit ,

I have a few questions on the grounding that is troubling me ..

The negative rail of the circuit is connected to the chassis that also acts as a ground for the transformer and the rca connection . basically they all share a ground that is connected to the chassis .

as far as I'm aware that is not a great idea and in my mind can't be that safe ? can someone please advice me on this matter

also one more point is that the earth in the iec ( 230 ac input is not connected in the schematic , I guess if that is connected to the chassis as well that will produce noise into the circuit )

Hopefully someone will be able to put my mind at rest

hello my name is ian and i am from melbourne. i love all things audio and tubes .look forward to learning from this forum

Hi All,

I picked up a NAD 7400 that goes into Red protection mode. No blown fuses.
Tuner seems to be working fine.
Preamp and Amp are not connected.

I measure 74VDC (L to G and R to G) at the speaker terminal A.

No voltage on Speaker B terminals when Speaker B is On.

All transistors passed diode test ( no shorts found ) in situ.

Unfortunately I mis-diagnosed (measured an open circuit across CE - this is expected for BJT!) Q017 and Q020, Q023 and Q026 and removed them. I plan to resolder these.

Idle Current in the Right channel was high (around 27mV and rising) I managed to adjust it to 14mV per service manuals. Felt a lot of heat early from that side of the heatsink before lowering the idle current.

Idle Current in the Left Channel was adjusted to 14mV. It was close to the expected value.

Faults I’ve found so far
Speaker Relay RY001 (NO type Relay) is shorted( to be replaced by Omron Electronics G2R-2A-DC24 )

I’ve read 74 VDC (rail voltage?) at speaker terminals points to a short in the power transistors. I haven’t been able to find a short in the power transistors Q821-Q824, if I’m correct. Note the right channel in the schematics is a boxed abbreviated formed.

Can the RY001 short cause rail voltage at speaker terminal A?


Service manual attached. Thank you.

I have space to store 2 cabs. They should be able to be run from within this space locked into a dual opposed config or pulled out and arranged otherwise. This area is 4m wide, 50cm deep and 1m tall under desk area of a 4m x 2m x 2,4m booth. I think I can allow a pair of 18s under this desk. This booth will spend a lot of time on a 6m x 4m deck on a 6m boat and be open to salty air

This is a commercial project ina way as the craft or the pod will be for hire, or I might do a mobile CD/record shop when not on hire. Noise is not an issue, remote regional coastal town, can get away from residence and other water users. The craft is already built to survey, and now I am starting on the super structure and electrics

Power will be a pro grade class d module. These have integrated mains PSU and the design limits the power to 300wrms x 2 with either 8R or 4R. I can also either get the mono version of the same board, and this one does 600wrms/1400w dynamic into 4R

Power must be well-used. An arrangement of some lithiums and around 2kw of solar + an inverter generator to support that is feasible to me. I can series up in the bank to get to the minimum voltages needed for the universal PSU in the amp module. This bank will also run the main BLDC low speed cruise motor of the very efficient hulls

Would really appreciate some help in figuring out output potential based on the system power limitations. I am in sunny QLD and onboard volume would never be louder than safe levels, but the gear may get unloaded and transported for lil DJ gigs for lawn parties and such

https://www.wagneronline.com.au/attachments/Audio-Speakers-PA/sbacoustics/ROSSO-18SW800.pdf

I'm working on a Aleph 5 clone which is having hum issue, even without input cables connected. Upon tracing, I found the following waveform on the Gate of the lower half MOSFET, Is this normal or just due to poor power supply filtering? By the way, Purple trace is the Gate of the lower half MOSFET while Yellow is the Drain pin, aka the Output.

Every couple weeks I get a delivery from Hello Fresh food company, they supply meal packs that include an insulating bag containing foods for the fridge.

As a consequence I have a few sheets of very nice materiel that I'm sure will be excellent for lining speaker cabinets.

Each sheet is 34 x 18 inches by 20mm thick. Please see pics. I have five sheets at the moment, one sheet would likely do a pair of bookshelf speakers?

These are free for anyone, just pay postage

Aluminium panels of different thickness hopefully useful for heatsinks and custom chassis making. Unused and clean, still have protective film on one side.

Free just pay postage, the whole lot weighs 2KG but will send smaller bundles if needed. We all need a bit of aluminium now and then 😉

I have touched that topic in few discussions, but never got enough good arguments, so here it is.

Modern subwoofers have enough motor force and displacement, that the bassreflex port on a ported bin is often almost not needed.
At least not fully in band. Now I use it just for cone displacement control, impedance shaping and cooling, otherwise it works for me almost out of band. As it is out of band, it can be small, it doesn't get the efficiency hit of small port, port noise is low, power compression is low, what's not to like?

Speaking about 18" subwoofer in a 95l/3.55cu.ft box, tuned at roughly 28Hz, used between 34 and 85Hz. I first did it with 21"s.

Seemingly it works great for its box volume. Only the price per woofer is somewhat higher.

Is here someone willing to discuss and object to get to the bottom of things? Why noone is doing it ever?

Many thanks.

Hello everyone.

I was looking for solution to fix one issue with my speakers and google said 'look at diyaudio'. Well, I checked the topic and, honestly, I don't know if it can help me, but I decided to post a comment. Since it doesn't let me post until I introduce myself, I decided to make a post here. To make things looks even worse for me, I created this account 4 years ago, but my post count is zero. I guess I tottaly forgot to introduce myself back then. 🙁
Even though I probably deserve to be kicked out for such thing, I hope that will not happen. I'm sorry guys!

I'm kindly asking if you can allow me to post comments on this board.

Thanks!

Do you have such a module,I want to buy it.

Need a pair of 2.2 uF film capacitors for tweeter filter.

Voltage rating lower the better, new or used.

Paypal f&f, or if you want to trade, I have a ton of great film capacitors in 0.22 uF range and a ton of great tubes (12AU7/5814, 12AX7/5751, 12AT7, 6SN7(yikes), 5U4G, EL84/6BQ5).

The range of quality I'm looking for may include..:

Audience Auricap XO
Clarity Cap CSA, MR, CMR
Audyn true copper
Jantzen superior-Z or above
Jupiter or Miflex copper foil
Mundorf silver/oil or above
Rike audio Q-cap, S-Cap

Thanks!

Hi, I am a Pysics professor, now retired.
By several years I made amplifiers from scratch, including pcb design, following several diagrams, includind the famous Quad 33/303. Usually friend wanted to buy these amplifiers, and no one failed...
This was a long time ago. I'm now almost 74 and my usual amplifier is now the Audiolab 8000A.
Regards.

Hello, my name is Mihai, I am here to find repair info for some car navigation unit I have been working on. Used to be interested in audio some years ago, built some loudspeaker enclosures, power amplifiers, etc 🔉

Nice to meet you!

Thought this is a good idea for members that just need a few parts without building an order to meet the minimum requirement for free shipping.

Anyone here can offer to add to their order or request parts to add to someone's existing order from Mouser / Digikey / Farnell

If you need a few caps or resistors, anything, let me know, I will be ordering soon.

🙂

Hallo guys,

this is my first thread after reading a lot for years on this website. So thank you for all your input. I dont speak english very well, so sorry for that. Now I want to design a new speaker and it should be my last one (at least for some decades)...

Points to consider:

• My room is 5,5x4,5x2,6m. Listening Distance is 3,8m. My avg. (for me) loud listening at 3,8m is about 75-80db avg. with 85-90 db peaks. So the speakers should produce around 85db. avg. with 95-100db peaks, to have some headroom.
• Musictaste is very wide. Only thing I dont listen to is stuff like heavy metal, large orchestras...
• It should be a 3-way. No 2-way. No Di'appolito.
• It should be activ with dsp.
• It should allow to swap amps (so no Hypex but miniDSP)
• It should use the T25B and M74B (I already have them)
• Passiv Notchfilter will applied to lower distortion of the resonance peak of the M74B
• It should have a nice dispersion, but dont use waveguide (because my son is 1,5y old and I dont want to have beryllium exposed to him (atm using a TW34BWNG in my speakers that have to go because of it)
• Room is my homeoffice, music, homecinema, gaming room. So room treatment is an option. A little bit is done already and I will continue.
• It should looks like build by a company, not a diy dude. Similar to Rockport Orion
• It should cost overall arround 5-6000€ without amps.
• Solidstate Amp for woofer and Tubes for the Midrangdome and the Tweeter.
• It can be a bigger floorstanding speaker but no refrigerator.
• I want to do some fancy stuff, even if it wont help much (Tuned Mass Damper at the top of the speaker)
• Building time should be arround 6-12 months.

Tweeter is BlieSMa T25B crossed at 2750hz LR4 passiv.
Midrange is BlieSMa M74B crossed at 520hz LR4 activ (considering my needed max SPL and LR4 I think its fine).
Woofer will be most likely the new Purifi PTT10 crossed activ. Closed.
DSP will be miniDSP Flex or Flex 8 depending if I go with hybrid crossover or not.
Amp for the Woofers is a Accuphase 303-X (I inherit from my grandpa, so selling it, is more or less no option)
Amp for the Midrange I consider Tubelab SE with single-ended 300B
Amp for the Tweeter will be the same (if hybridcrossover) or a Tubelab SSE with single ended KT88 13-15Watt (to come closer to the max SPL of the M74B with 7-8 Watts from 300Bs)
I have a UMIK1 for measurements.

I dont know if I wanna go the Tube route with a Hybrid Crossover or not... Or just use 3 Amps... one less amp is tempting...

The plan for hybrid (of couse can only be finaled with enclosure build and measurments taken):



The plan if going full activ:



The enclosure plan:






Volume for the Purifi is exactly 24,8 L like Purifi datasheet and WinISD consider for 0,7. (You can get the mm² from sketchup for every object and than get the volume out of it. Volumen displacement from the Purifi is also considert.)
It maybe look like the enclosure for the purifi goes all the way to the top. But there is a plank under to M74B without any holes.

The bracing you can see in the pictures.

The front is in total 30cm wide. At the mid of the Midrangedome its 142mm wide and at the tweeter 88mm wide. C-T-C speacing between tweeter and midrange is about 1,2. (I follow some of HifiJims (and his friends) recommandations, I found at diy audio.

It will be build ot of 22mm good quality MDF and all parts will be glued with SikaBond T1 Purform. I have a fully equipt woodshop in my basement with a format circular saw, routers and so on. It will take time to do all the parts, but that's what make the design possible for me. You can print every piece in Sketchup in 1:1 and than use a router and flexible curve ruler to get it perfect. Than use the finished one as template for the same pieces.

The Tuned Mass Damper at the top will build out of steel with a total diameter of 110mm. It will be damped with small adjustable oildampers you can buy for RC cars. And it will be adjustable in height. I consider to make it out of aluminium and hollow to adjust the weight with damping oil. But this will increase the costs and chances are, the oil will escape.

I want you to ask, if my design is completely ******** or are there some mayjor design flaws?
Should I skip the hybric crossover and take a miniDSP Flex 8 with 3 Amps instead and for what reasons?
What I could maybe improve?
I just tried 2 passiv Notches for the M74B like found on this forum, but cant see much improvement over just one with slightly diffrent values. Is there a reason to use two? The Peaks are to close in my option to get much benefit out of it. Peak of resonance is -54 dB down at its highest point.

Thank you very much, be nice and greeting from Germany.

My name is Hans en I’m working as a linac engineer as professional.
During my life , I have build a few amps. But now will start with a tube amp.
Hopefully you can advise me if necesseray.
Kind regards, Hans

This is about an AER Compact Mobile2 acoustic guitar amp

Recently it started to blow fuses after a few hours of playing guitar. Until a few days ago that it started to blow them instantly when powering it up

There’s a mains filter inside the amp that it is shorted (fried). Bypassing it the amp plays just fine. But I don’t know if I can find the same one

Should I replace it or leave the amp without one? Is this a common 250V 4A mains filter. Do I have to find exactly the same one?

Hi!

Been looking a bit into building a high efficiency two-way with a 1st order filter. In other words, as simple as possible.
Are there any good HE drivers out there that works well with a 1st order filter?
I see Zu Audio are doing it with a 10" wideband/full-range.

Maybe a Dayton PM220 wideband woofer with a Dayton AMTPRO-4 or something?

Any suggestions? 🙂

High output.
What do you have?
Cash or swap for several items I currently have for sale:

AE TD10m drivers x2
KEF R8 META
AE TD15x Apollo X2 (in sealed cubes)
KEF 3005SE.eggs x12

(Red)horn response, (purple) is the mic @ the vent exit and some random irrelevant spl.

This is a new thread as suggested by Moray James. For Moray James: What I did was to simulate the enclosure with two speakers in Horn Response. I simulated it as you would an Altec A7 type of speaker but with a front chamber on the horn. This front chamber would be the plenum if I am doing it right. The plenum opening was the horn throat. I rounded the opening a couple of centimetres and used this as the horn. I did do the combined sim to take into account the vents. As I said in the other thread, I don't know if this is anywhere near accurate.

Any input from those who have done this type of design would be most welcome.
jamikl

In the near future, I'm going to put up for sale some small (4" full range) drivers. I don't have the original cardboard. What are some good ways to pack them up?

Hi all, after some years (10ish) I decided to revive my first hifi set. Sadly my cd-player didn't stand the test of time very well... So that's why I'm here to see if I can can everything back alive. I'm looking forward to it!

Hi to all from the RSA !
Does using layers on pcbs create a capacitive condition ?
If one layer is positive power supply and another layer is negative power supply, should they be on the same side or on opposite sides of the pcb?
Will they interact with ground plane layers ?

Thanks in advance for your comments !!

Hi,

I have two sets of PCBs to give, just pay shipping and they're yours.

1 - Set of VSSA Concept from Andrej Lakner, pcb designed by Jason Kuetemann

2 - Set of AKSA Quasi comp Mosfet by Ranchu

Best!
Do

As a newbie, I would like to introduce myself briefly:

I have been a HiFi enthusiast since 1978 after buying two Pioneer devices (SA-9500II and TX-9500II)!
The two devices formed the basis of a collection that has since grown, mainly of Pioneer devices and a few other manufacturers.
As a long-time electronics hobbyist and a qualified electrical engineer, I see myself as being able to repair everything myself and, if necessary, develop everything myself.

At the moment I am busy with a replica project "TAD TSM-2" and that is exactly why I ended up here.
I hope to find some additional information or to be able to give information to others!

I look forward to a lively exchange with you here in the forum -
best regards
Pioneer_Exclusive
(Juergen)

I want to measure the parameters of a lavalier microphone like this one:



The data I am most interested in are sensitivity, s/n ratio and frequency response.
To measure the frequency response, do I need an anechoic chamber?

What particular equipment do I need for a scientific measurement?

Thanks.

Witajcie członkowie diyAudio!

Hi everybody
I recently got a vintage amp and have been using it for a couple of months now. It works and makes a very pleasant sound to my ears. Though there is one concern. Almost all the time I hear that one channel is slightly louder than the other. Of course, it may be my hearing. I did the typical cleaning of the unit, including the balance and volume control pots and bias adjustment.

Question: Can I use a tool/equipment to measure the actual levels of the signal coming out the amp to both channels, to confirm or negate my subjective and personal suspicions?

Thanks.

I have been very interested by Merlin book on Tube Preamps and I decided to build the RIAA amplifier, however I decided to replace the cathode follower in the output stage by a MOSFET source follower (I already used this solution in a Baby Huey amplifier with a very good result) to save one tube and because I wanted to avoid the big voltage difference between the heater and the cathode of the output tube...
As I don't like point to point soldering, I have started to design a PCB. If someone has any suggestion about this project, please let me know.

Do you know if the PC900 can also be a good device for this project ? The pin-out is not compatible however 😡

Cheers,
Marc

Looking at some photos of open baffle stuff and this one comes up... One calls it slot loaded, another calls it horn loaded.

Technically I suppose I'm curious of:

• what the ring type relief is called?
• does the phase plug simply avoid the flat slapback of leaving that central portion untreated?
• is this slot or horn loading?

Maybe it's neither etc, I was just curious "what the folks at diyaudio called it" etc. Thanks

-SOLD-

Built using full kit from ZenMod with Antek AN-10425 transformer, Randy’s W12 CRCRC PS board, DIYAudio Softstart, WBT binding posts and RCAs, KimberKable wire and custom 4U 500mm chassis with UMS hole pattern. Sounds fantastic. Only selling because I purchased a PassLabs Int-25.

Asking $1,000 with shipping within continental US included.

Hello everyone,

I put some effort into designing an output filter for a class-D IC. Here I am using Coil Craft's and Murata's SPICE models to calculate the filter with an 8 Ohm load.

Lines:

• Red line is the capacitor impedance
• Green line is the inductor impedance
• Purple line is the filter response

Filter:

• -3dB cutoff is around 25kHz, just outside the audio band
• The filter works until about 10MHz where the parasitics of the components have a resonance.
• Sure the values can be tweaked, but this is not a bad starting point for now.

Post filter feedback

The IC that I am using TAS2780 has a post filter feedback (PFFB) feature and I thought that would be good to use to keep the THD as low as possible. So I started reading about the PFFB requirements.



It seems crazy to me to specify the filter cut-off frequency to be greater than 10MHz when this device is switching is 380kHz.

What could they mean?

1. The rise/fall time of 1/10MHz = 100ns. So maybe if the rise/fall time of the IC is around 10ns or less, the filter could filter that out?
2. The cut-off frequency they mean where the parasitics break the filter? This is around 10MHz for the L and C parts I am using.

They have an application report SLOA260 that was not that helpful, if focuses on using ferrites.

Questions

1. Can anyone experienced with Class-D and filter let me know if a -3dB cut-off just outside the audio band is sensible?
2. Has anyone used TAS ICs from Texas Instruments before, or the TAS2780 specifically? Can you suggest a sensible filter with or without the PFFB feature.
3. What the hell are they talking about in the data sheet and application report when they specify the cut-off must be greater than 10MHz?

Hi All,

I am going around in circles trying to decide how to proceed on my next build. I have a pair of lovely TAD2001s coupled to a beech plywood tractrix horn that I have made - very happy with the sound at home. Below it I am using a Supravox 285 in a ported enclosure as a 2 way monitor style. They seem to work very well together but the low end is limited in extension and the output of the woofer is slightly limited for high spl fun now and again albeit super detailed and fast in mid bass. The crossover is 2-way 2nd order at 800hz - that suits my horn fc and what TAD recommends. Using active crossover right now.

So I am now thinking how do I take this to the next level to accommodate more output without ruining quality but also being durable. I was considering either going for an alternative single 12” driver or building a new cabinet with MTM design using twin 12s per side OR going for a single 15” like the JBL 2226H. I did loads of Hornresp simulations of different drivers but can’t make up my mind. The 2226H in every sim I did didn’t really get adequately to 800hz. 700hz looked max but I realise many use it above that.

I do want to be able to play this system really loud on occasion so durability of woofers is also important. I am not too fussed about content well below 40Hz as I can augment with sub. Importantly I do want high efficiency.

Any advice much appreciated!

Anyone in the UK got a spare pair of DIY Audio Store Universal Power Supply they're willing to part with?

Hi y'all! New here but not entirely new to DIY audio projects.

My friends and I are looking for replacements for Toshiba 2SC3381 and 2SA1349 BJTs. There are forum posts with single package replacements over the years, but even those replacements are out of production. I'd like to avoid eBay or sketchy transistors if possible. If I'm not mistaken, the parameter we are having difficultly with is the DC current gain (hfe) classification we're looking for a minimum of 350.

Any help is appreciated, thank y'all!

When I have reached retirement, I can finally dedicate myself to diy audio, which I have been doing for 50 years now, especially in speakers, both on magazine projects and designed by me, also thanks to the forums on the web.
To write in English I have to help myself with the automatic translation of the web, so sorry for mistakes.
I have also been passionate about environmental acoustics for many years, because of a friend acoustic engineer specializing in concert halls, acoustics in public places, companies etc.
I finally made a special listening room of 7x5x3 meters designed and evaluated by him with a final written report. This is because for years I have been convinced that 50% of the final quality depends on the environment, especially for the bass and high levels of listening that I like with the right music.

Again greetings to all.

Rack Case, front aluminum panel size 3x17in.,box depth 12in.
Sale $28.

QA401 in excellent condition.
EU only
330Eur + shipping

Hello,

Im new here, hope this is correct subforum. I plan to test my working integrated amplifier Marantz PM-750 DC, want to try their preamp.
I already research that its doable. I want to make sure, is this the correct signal path? Here is the zoomed schematic, and below is full schematic.
What i read is right before power amplifier board to make an output.





Red is right channel line
Orange is left channel line
Blue is where i plan to cut.

And second question, if i plan to test the amp, should i put E-CAP bipolar 10uF 25v in series each channel, just like what i see in my Marantz 1180 DC right after "MAIN IN"?

Thank you

I'm designing something in which audio plays a small but vital part. A DFPlayer module will be used to play a short audio file and the output will feed an external PA system. The easiest way to do this is to use one side of the BTL outputs as a Line-Out rather than create a balanced-to-unbalanced converter

With this arrangement, one output pin will be open and the other pin will face an unbalanced high impedance load to ground. Is there any possible issue with this arrangement, in terms of stability and distortion? None of the documentations I've seen about DFPlayer is very forthcoming with this kind of information.

As the DAC nearly newly released maybe somebody will have benefit for it. There was error during asembly and many (I checked photos in internet- same error) or probably all cdp.3 have wrong capacitor soldered in filter - 15nF instead 1.5nF. I accidely found after tried listen to it. high frequencies was rolled of quite badly at 10khz already -3db

once replaced sound become transparent and airy.

i have expierended same ~2011m on m2tech evo usb conveter were highs had -3db at 15khz and 1.5db at 8khz

hope this helps

Ok as the title says I have the red Sanwu tda7498E version from Amazon. I soldered the 4 jumpers together on the bottom of the PCB and input a signal into the LEFT RCA only from my low pass filter preamp. I also put both dip switches that control gain to the max setting of 36db and the output level is approximately half of what I get in btl mode! I usually use this amp in btl with (2) 4-8ohm 2-way bookshelf speakers and it gets very loud. I measured 26vac average clean with my oscilloscope while using a 34v 10a PSU. While the amp is in PBTL I'm using a 4ohm GRS 8" high excursion sub from parts express. What's going on, am I doing something wrong?
