dvb projekt diyAudio Member Registered: February 2009 Location: Willich, Germany Posts: 1,481  |

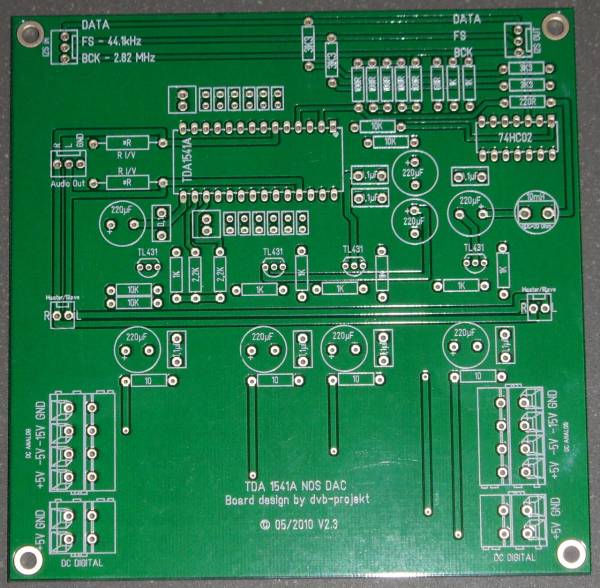

- separate TL431 Shunt regulators for each voltage line
- independent voltage rail for the DEM reclock circuit - I2S attenuator circuit - shortest possible position for decoupling caps - separate ground line for decoupling caps - Ground plane - 2mm pcb - Immersion Gold - green soldermask on both side - 35µm copper weight - Board size 125mm x 125mm |
| Date: Thu December 23, 2010 |
|
| Additional Info | |
| Additional Categories: "Reference" TDA1541A DAC project with I2S-BUS architecture | |
