Alright, so here it is, a taste of things to come; I apologize it took me so long, but I need to be in a certain frame of mind to come up with proper board layout.

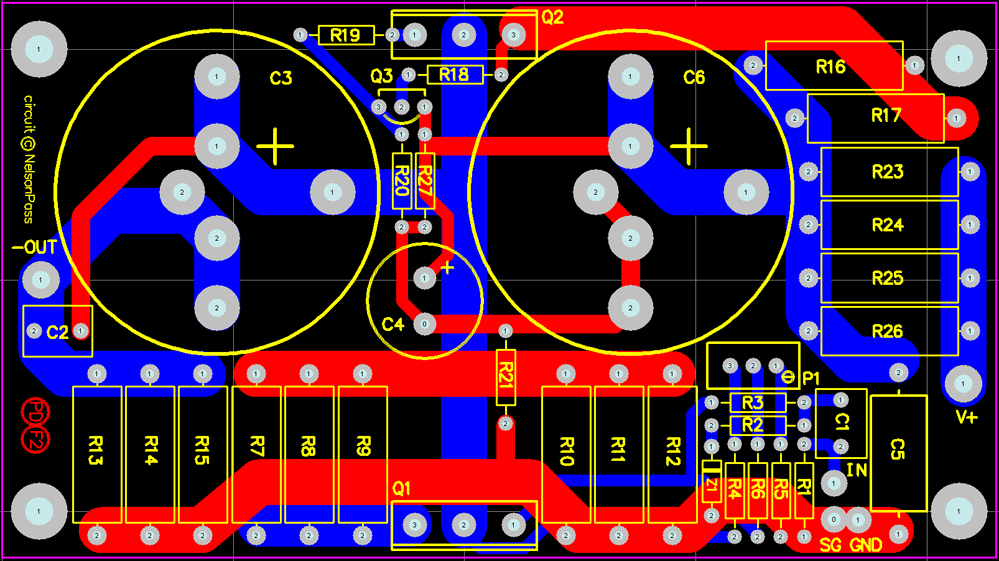

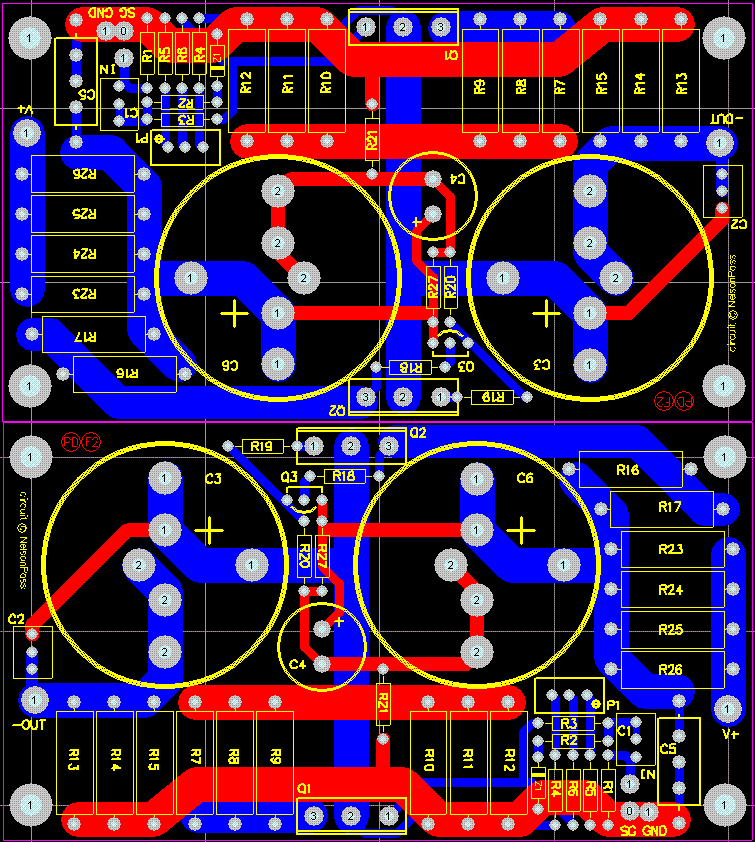

This is preliminary F2 pcb design, it is still subject to small corrections and changes and any feedback is welcome.
That board is very close in size to F4 and fully interchangable (same spacing on mosfets). C3 and C6 are good for 4 pin Jensens.
In a couple of days I will come up with a similar layout format for F1 amp board. The price will be approx $20 for stereo set, INCLUDING shipping.
This is preliminary F2 pcb design, it is still subject to small corrections and changes and any feedback is welcome.
That board is very close in size to F4 and fully interchangable (same spacing on mosfets). C3 and C6 are good for 4 pin Jensens.
In a couple of days I will come up with a similar layout format for F1 amp board. The price will be approx $20 for stereo set, INCLUDING shipping.
Attachments
As I will receive the boards in couple days, I'm ready to start collecting payments.
The F2 amp board has a scoring line and is good for two channels.
Price for two channels pcb is USD$18, paypal payment to my e-mail address posted here: http://audiosector.com/contact.asp
The prices include shipping. All boards will be shipped by airmail, with no tracking and no insurance and I cannot assume responsibility for lost packages. If you need insurance, please add $7 to your order.
Please note that I will be away starting July 12 to Aug 4 and won't be able to process orders during that time.
The F2 amp board has a scoring line and is good for two channels.
Price for two channels pcb is USD$18, paypal payment to my e-mail address posted here: http://audiosector.com/contact.asp
The prices include shipping. All boards will be shipped by airmail, with no tracking and no insurance and I cannot assume responsibility for lost packages. If you need insurance, please add $7 to your order.
Please note that I will be away starting July 12 to Aug 4 and won't be able to process orders during that time.
Attachments

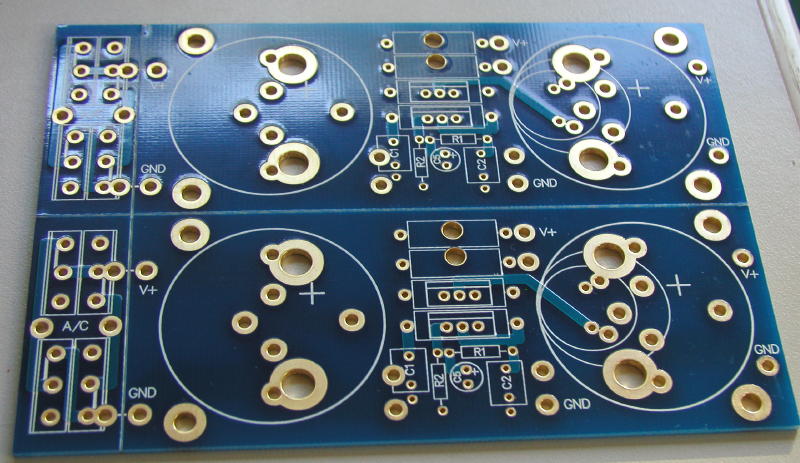

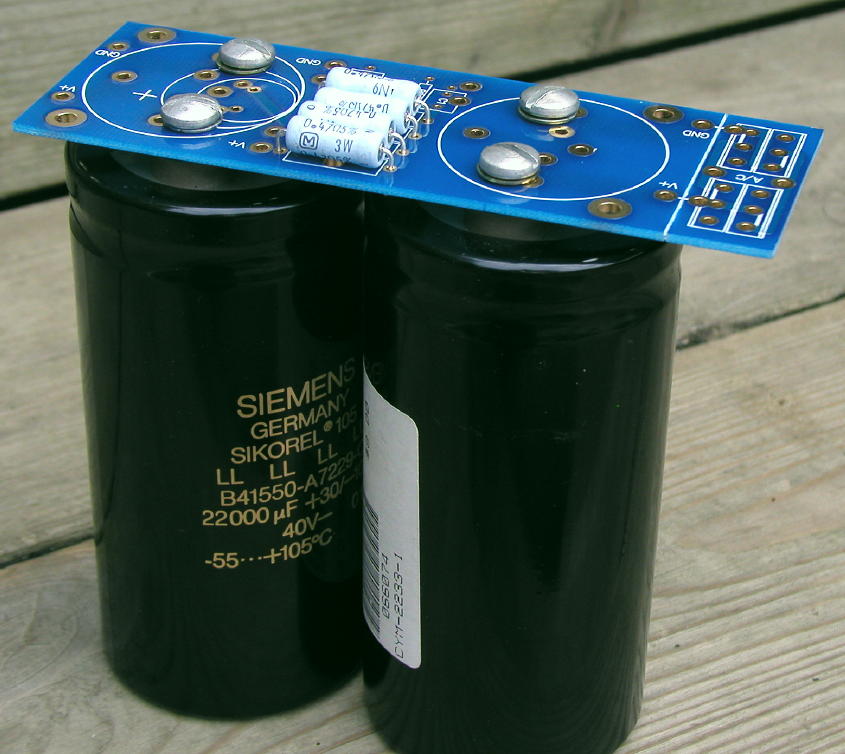

The new PS board will accomodate caps up to 50mm in diameter and screw mount type. If you can find suitable values in that size (like 15,000/50 or bigger) a simple assembly as pictured should be sufficient for one channel.
More info here: http://www.diyaudio.com/forums/showthread.php?postid=1237660#post1237660
More info here: http://www.diyaudio.com/forums/showthread.php?postid=1237660#post1237660
Attachments
