Just to clarify. You connect the "ON" line to ground to make the amps switch on... In the case of the Zappulse units you connect a similar connection to ground to turn them off (well into standby).
On a related note: Can anyone describe what they might do to have remote start and stop of these two types of amp? ie, I have a homebuilt pre-amp which has some spare outputs that I could use to do remote switching on/off all my amps.
Since they each flip in different directions, and also that connecting all the amp grounds together is unlikely to be clever, anyone got any clever ideas for using a relay to remotely flip em on and off?
Is it best to have a design where power needs to be applied continuously to some input line to switch the amps on? If the connection is removed then power goes away. Or perhaps it's better to have a three line input and pull one switch each way to make it flip-flop (with the default perhaps being "on").
Any thoughts on a nice design for this (preferably quite simple since it's going to have to be retro fitted in my case...)
On a related note: Can anyone describe what they might do to have remote start and stop of these two types of amp? ie, I have a homebuilt pre-amp which has some spare outputs that I could use to do remote switching on/off all my amps.
Since they each flip in different directions, and also that connecting all the amp grounds together is unlikely to be clever, anyone got any clever ideas for using a relay to remotely flip em on and off?
Is it best to have a design where power needs to be applied continuously to some input line to switch the amps on? If the connection is removed then power goes away. Or perhaps it's better to have a three line input and pull one switch each way to make it flip-flop (with the default perhaps being "on").
Any thoughts on a nice design for this (preferably quite simple since it's going to have to be retro fitted in my case...)
Well its up and running first impressions after about 30 minutes of listening, very dynamic and clear, slightly sibilant but that may be my speakers. Overall very very nice sound.
Modules are running very cool and so far no problems at all.
The switch on and off thump is minor less that the Music Fidelity I was using before.
Modules are running very cool and so far no problems at all.
The switch on and off thump is minor less that the Music Fidelity I was using before.
Here is a picture of my amp, its built into an old Music Fidelity case but this is temporary.
The picture is over a Meg so its a link :-
wytco0 amp
The picture is over a Meg so its a link :-
wytco0 amp
wytco0: Have you thought about using shorter wires...? Probably you could turn the PS around and make those wires extremely direct. Also, I'm sure the source and speaker wires would prefer to be a little shorter?
Anyone: is there any point seperating the modules? Do they interfere in any respect?
Anyone: is there any point seperating the modules? Do they interfere in any respect?
Ed. yes I am planning to make them shorter but this is just a test setup, the main thing I was doing here was making sure that all pairs of wires are the same length. In the longer term I will rebuild it as dual mono.
The only ones I am a bit concerned about is the input wires they may be a bit long and not ideal they are stripped out of a bit of Cat 5 Network cable. I have a feeling they may be contributing to the sibilance I am getting.
The only ones I am a bit concerned about is the input wires they may be a bit long and not ideal they are stripped out of a bit of Cat 5 Network cable. I have a feeling they may be contributing to the sibilance I am getting.
My advice also is to tidy up in the case. As short wires as possible and keep signal, speaker and power wires well separated. I'll believe this is even more important since this is a class D amp.
I wonder if the cooling is sufficuent for the rectifiers, maybe if you play "normal" music. Notice that one of the rectifiers has less cooling than the other one.
Otherwise I think the UcD modules looks real good and professional.
I wonder if the cooling is sufficuent for the rectifiers, maybe if you play "normal" music. Notice that one of the rectifiers has less cooling than the other one.
Otherwise I think the UcD modules looks real good and professional.
Indeed you are completly right, there is already a pull up resistor in the UcD180/400. So you can forget the +15V line by the transistor. A simple open collector output is already sufficient. There are all protection diodes inside the UcD180/400 so a higher voltage (max. 50VDC) is also no problem.
Regards,
Jan-Peter
Stef,
The point where the lines from the both capacitors are connected with the center point of the transformer must be a star point. On this centerpoint the voltage is 0V with no 100Hz voltage.
The current of the AC-detection is very small, so you can connect where you like.
Check this link: www.hypex.nl/pcb.pdf
Jan-Peter
The point where the lines from the both capacitors are connected with the center point of the transformer must be a star point. On this centerpoint the voltage is 0V with no 100Hz voltage.
The current of the AC-detection is very small, so you can connect where you like.
Check this link: www.hypex.nl/pcb.pdf
Jan-Peter
Jan-Peter said:
If I well understand, the GND of "standby circuit" should be connected to the ground at the output of the PSU (as a star !).
May be the best is to have the standby circuit on another pcb.

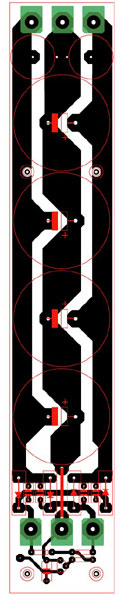

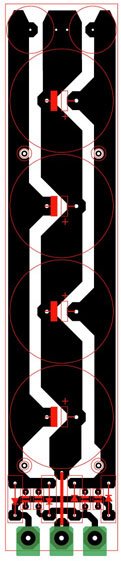

Curently, the psu project is like this. It will fit inside a 1U cabinet. Have a looks on the pictures.
