TPA3116D2 Amp

[Jensen567]

Agreed, I may try that one out next, will wait to see how thee first ones sound though. Link for anyone else interested.

http://www.ebay.com/itm/DC-12V-24V-...544858?hash=item280ae61d9a:g:~28AAOSw5VFWMHHi



[irribeo]

mono board with BTL output



[xrk971]

Those boards don't look to be as high quality as the Sanwu all SMT boards.



[Jensen567]

I agree that they do not look quite as nice as the 3118 boards, but I think the ones I bought at least look close. Worth a try anyhow. Tracking looks like I should have them Thursday, along with some Sanwu 3118 boards I put on the same order to compare. Will let you all know once I wire them up.



[irribeo]

There are two small ceramic caps under the heatsink, so it has some close to pin decoupling that is hardly visable.



[Jensen567]

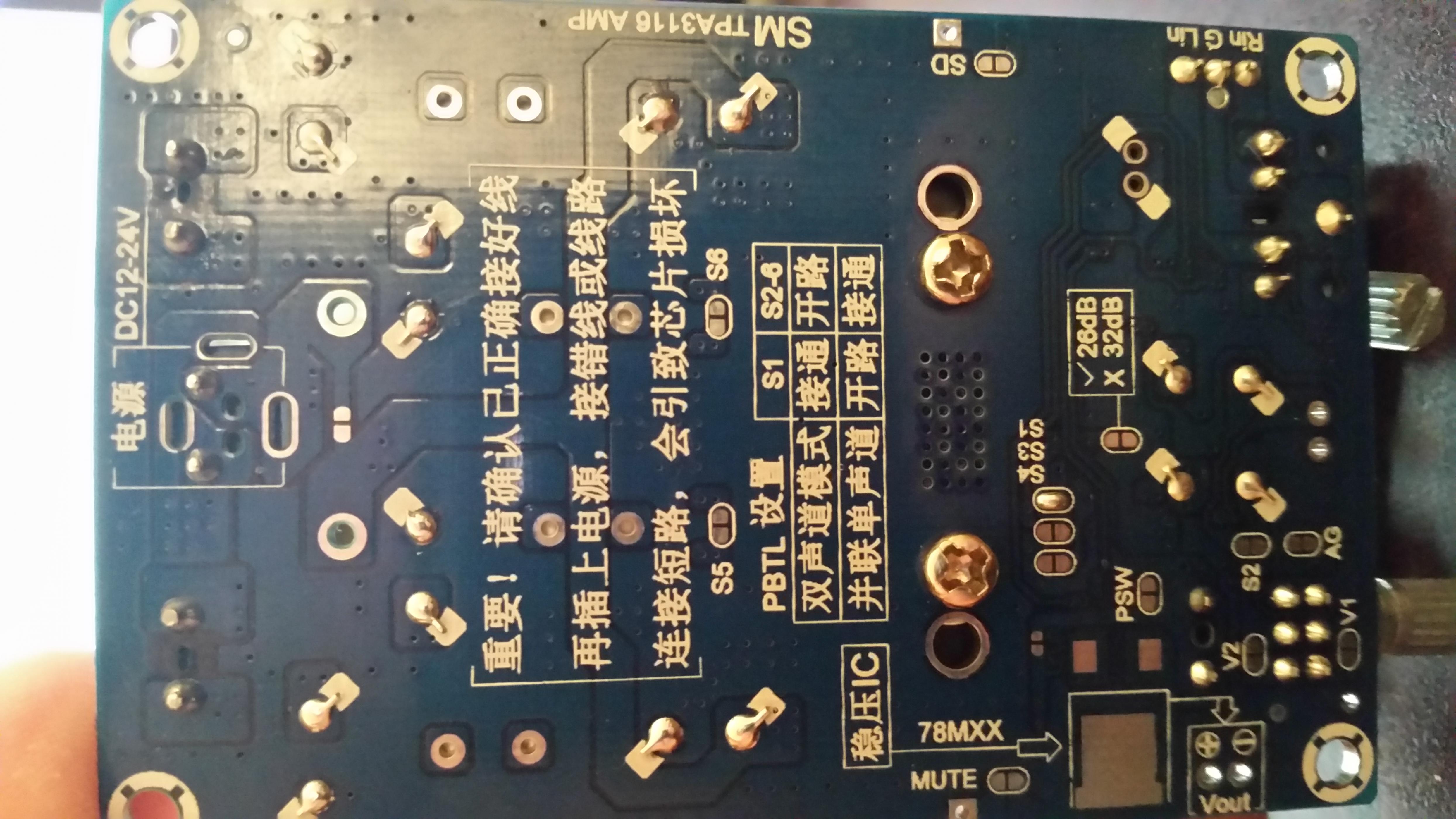

In the meantime, this showed up today. I have seen this version on ebay too.

http://www.amazon.com/gp/aw/d/B00KC...smakn+3116&dpPl=1&dpID=41PVJ5+tJuL&ref=plSrch

It has some interesting features, variable gain, PBTL option, bypasses for the volume pots and power switch, Shutdown and mute broken out, and space for a DPAK 78Mxx IC. Sounds pretty good too.



[smithie]

does this look like a contender for the ultimate 3116 implementation board?/
loving that blue power cap...
DC 12V-24V TPA3116 Mono 100W Digital Audio Power Amplifier Board BTL Out Amp | eBay



[Lo_Tse]

In the meantime, this showed up today. I have seen this version on ebay too.

http://www.amazon.com/gp/aw/d/B00KC...smakn+3116&dpPl=1&dpID=41PVJ5+tJuL&ref=plSrch

It has some interesting features, variable gain, PBTL option, bypasses for the volume pots and power switch, Shutdown and mute broken out, and space for a DPAK 78Mxx IC. Sounds pretty good too.

Yup. This is one of the better ones. I have this one about a year ago (I bought directly from the "manufacturer" (TPA3116??????12-24V??????/???????????-??????). Sounds fine. This is a newer version and has more features built in. Probably the "best value" among all the boards available, all things considered. Looks like the power on LED is removed. It is very bright. Enjoy!

Regards,



[Jensen567]

The power LED is actually in place but is a SMT 0603 style LED on the front. It is indeed quite bright. I got the 3118 version of that board as well, will post in that thread later.

That last mono board posted was my last choice simply due to size. Who knows though, might be the best of them all.



[irribeo]

does this look like a contender for the ultimate 3116 implementation board?/
loving that blue power cap...
DC 12V-24V TPA3116 Mono 100W Digital Audio Power Amplifier Board BTL Out Amp | eBay

I like differential inputs, but
Question is size too big with this layout, question is how does bottom look, question is what is under heatsink. That last part might be answered by picture below, same producer/designer. If like that I would say, no contender.



[xrk971]

In the meantime, this showed up today. I have seen this version on ebay too.

http://www.amazon.com/gp/aw/d/B00KC...smakn+3116&dpPl=1&dpID=41PVJ5+tJuL&ref=plSrch

It has some interesting features, variable gain, PBTL option, bypasses for the volume pots and power switch, Shutdown and mute broken out, and space for a DPAK 78Mxx IC. Sounds pretty good too.

I have the same amp - the "SMAKN" with lots of options. Sounds fine too as Lo Tse has said. It does concern me that they skipped the output snubber - there is no resistor and cap snubber after the main LC filter. This might mean some noise from the "dead time" between the transistor switching on and off as Irrebeo pointed out in the 3118 thread.

Interesting choice of 15uH inductors - a compromise between 4ohm (10uH) and 8ohm (22uH) output impedance?



[Jensen567]

I suppose the inductor compromise is probably good for me, my bookshelf speakers are 8 ohm and the woofers are 4 ohm.

I may add some snubbers myself knowing that they could help. I have tried numerous "SMAKN" amps now, all of them have been reasonably good so far.



[irribeo]

This new version smakn has a pre inductor snubber, bootstrapsnubber.



[Jensen567]

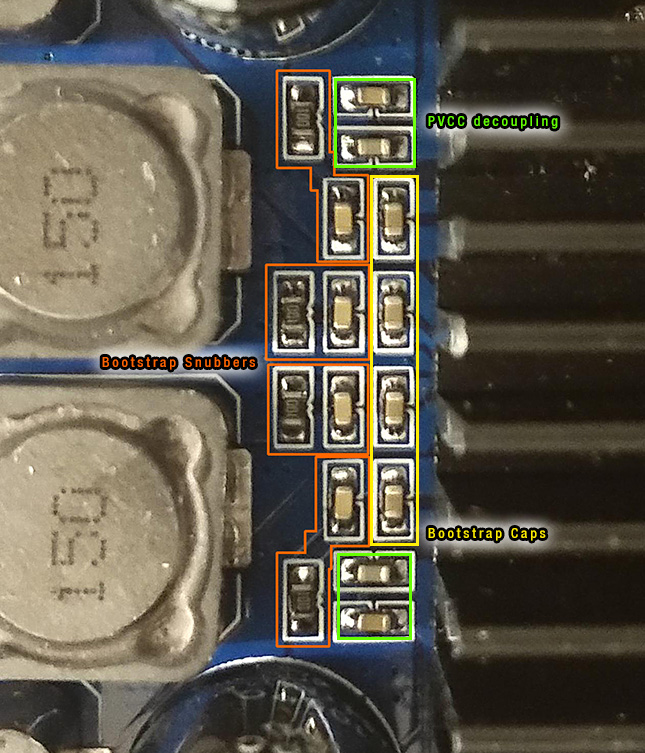

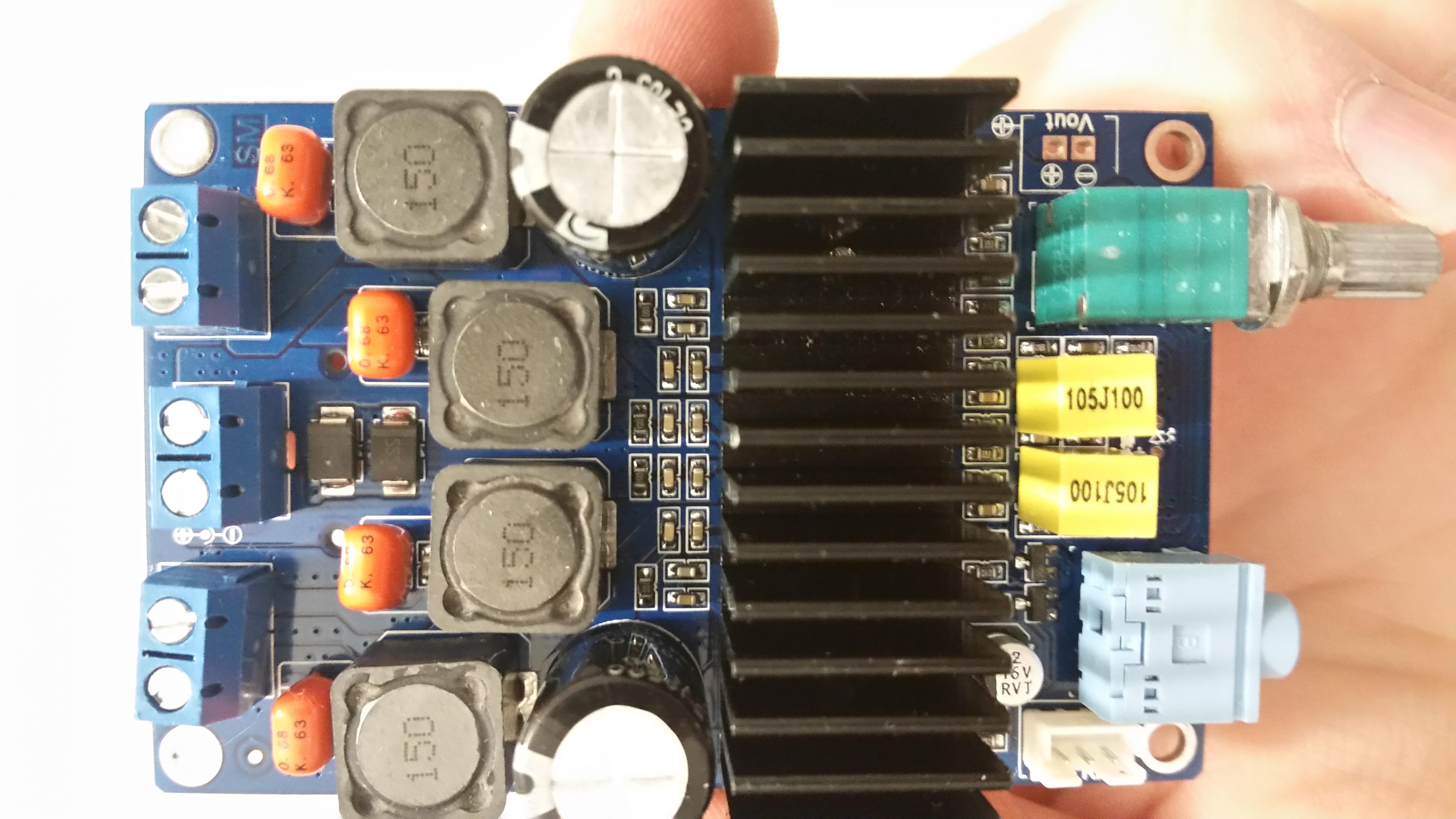

If you don't mind my asking, which components are the snubbers? I should probably know this. Haha. Here is a photo of the top of the actual board I have, looks identical to the photos on Amazon though.



[doctormord]



[xrk971]

Nice work on the graphic Dr Mord and nice photo Jensen.



[Lo_Tse]

This new version smakn has a pre inductor snubber, bootstrapsnubber.

Interesting. May be I should grab this one too. It is cheap enough



[matsuda]

Is the PVCC Decoupling the "pin 17 mod" discussed in this thread on page 300 ? Also, could someone share ebay/aliexpress link for the amp Jensen567 has? I'm reluctant to order one from Amazon.



[kvh1337]

Hi people

Anyone has experience with one of these boards?

TPA3116D 2 CH Class D 50W 50W H Power Stereo Digital Amplifier Board 12V CAR | eBay

TPA3116D2 2 0CH Class D 50W 50W High Power Stereo Digital Amplifier Board 2X50W | eBay

Im looking for a cheap amp with built in tone control and came across these ones. Which one do you guys think is better?

Thanks!



[impuls60]

Matsuda, I dont think its its the RC filter since it requires the resistor to be in series to pin 17. From the picture it seems that its just 2 capacitors in parallel.
