I'm planning to build your creature, and I'm searching for components at my usual suppliers.
What about IRF530/9530 instead of 510/9510?
And J310 for J309?

What are the matching criteria for BC546 - J309(10)?

Thank you (for sharing your job with us!)

Guido

well , you can still use 520/9520 ; 530/9530 have too much capacitance for my liking

J309 or J310 - whatever

just match left 309with right 309
same - match left BC with right BC

hehe

I hope that I'll have some pictures and news tonight ........



[GuidoR]

...not SO fast (unfortunately), I'm not Steen...

Before, I have to finish my F3 and F4...

...but one of these nights...

Many thanks

Guido



[Zen Mod]

...not SO fast (unfortunately), I'm not Steen...

Before, I have to finish my F3 and F4...

...but one of these nights...

Many thanks

Guido

I hope that I will have some news and pictures tonight ........



[GuidoR]

Ah, Youuuuuu
Yummmmmm....



[mpmarino]

..

hehe

I hope that I'll have some pictures ...........tonight ........

Of what? Yer pretty face?



[Zen Mod]

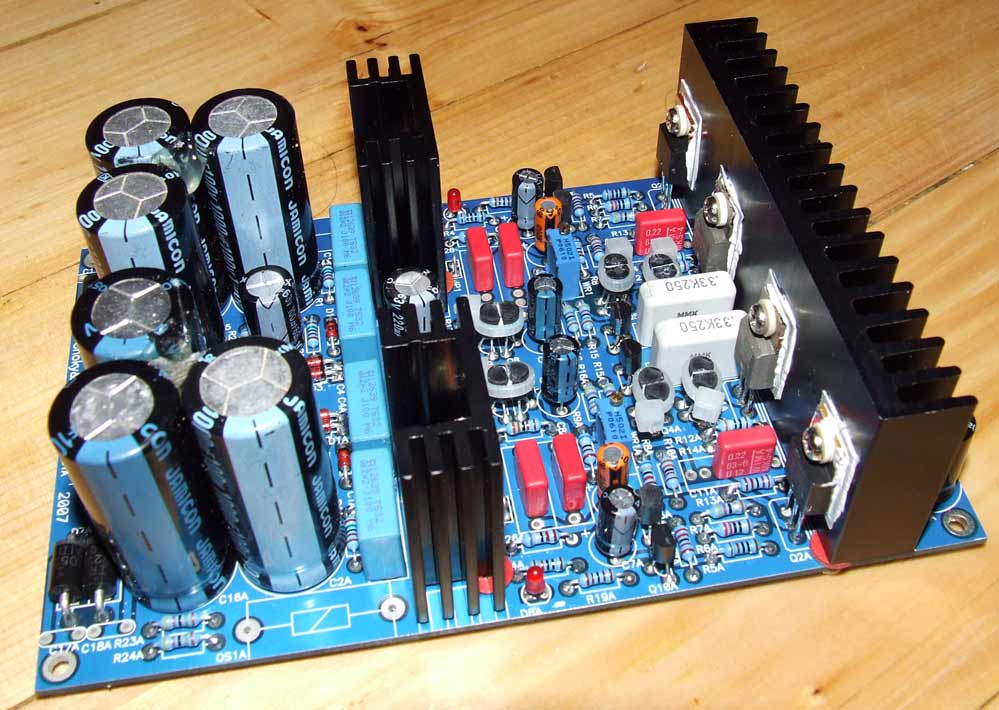

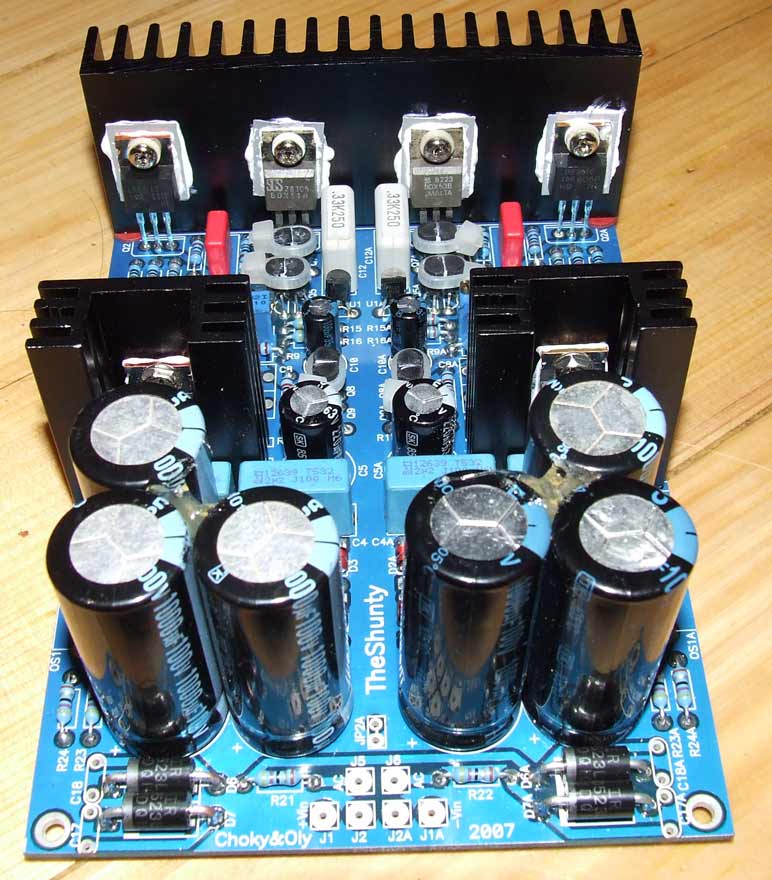

Porn for Steen ........ and CY ......... THE SHUNTY !

Of what? Yer pretty face?

testing tomorrow ; just few bits 'n' pieces (fuses......... who needs them ) ; I was just short in time to make it today .


ok

blur (sorry - no daylight in evening )

1/6



[Zen Mod]

Porn for Steen ........ and CY ......... THE SHUNTY !

2/6



[Zen Mod]

Porn for Steen ........ and CY ......... THE SHUNTY !

3/6



[Zen Mod]

Porn for Steen ........ and CY ......... THE SHUNTY !

4/6



[Zen Mod]

Porn for Steen ........ and CY ......... THE SHUNTY !

5/6



[Zen Mod]

Porn for Steen ........ and CY ......... THE SHUNTY !

6/6



[jacco vermeulen]

What was it again ?
Oh Yeah,....UGLY !



[mpmarino]

What was it again ?
Oh Yeah,....UGLY !

Yeah!

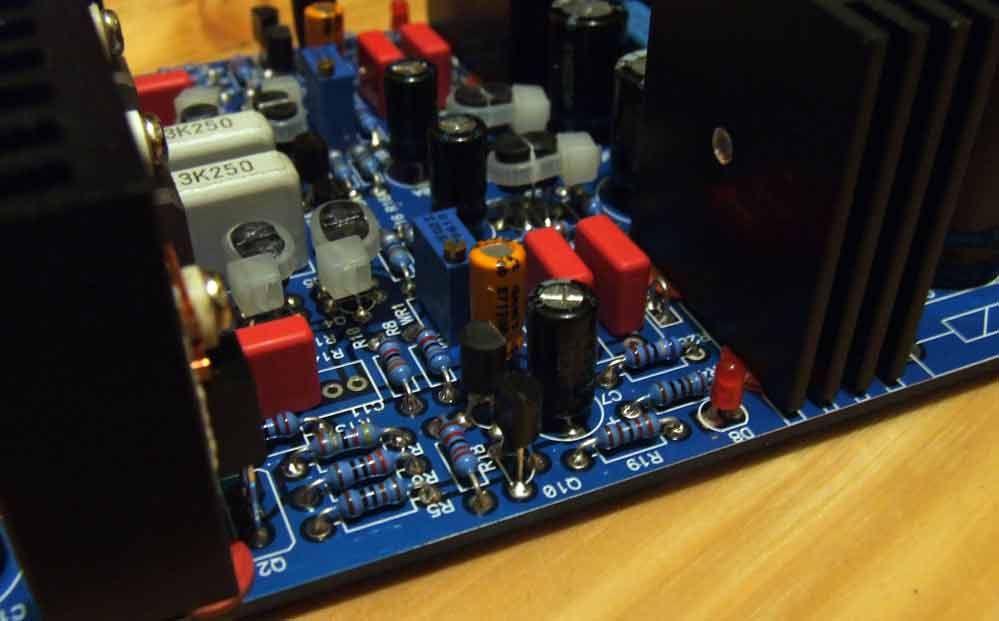

... and R5 is in backwards.



[Zen Mod]

Yeah!


... and R5 is in backwards.

yeah!

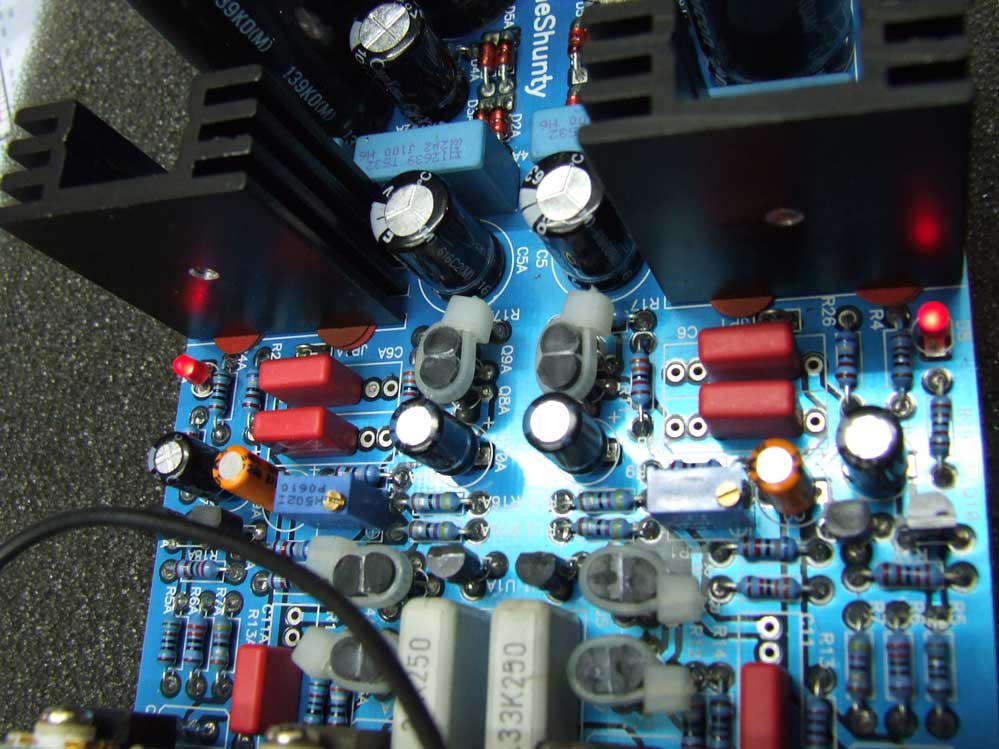

and R20/R20A , too.............



[vangelis]

Re: Porn for Steen ........ and CY ......... THE SHUNTY !

testing tomorrow ; just few bits 'n' pieces (fuses......... who needs them ) ; I was just short in time to make it today .

I need Fuseeeees! My TheFuseKiller works so good!

Yes! Yes! Yes!
This is realy PORN! Tell me... where is 'back' on TheShunty?
I like 'doggy' style!!!



[vangelis]

Porn for Steen ........ and CY ......... THE SHUNTY !

Oh yes! I kown where is 'back'...


Zen, what is it between big elkos on photo 2/6?
Results of 'doggy' life style?



[jacco vermeulen]

You have seen the ring, now you have to die for it.



[Zen Mod]

well , Shunty works......... surprise ?

yup;

fully tested , and it's functional ;

just few pics before opening new thread , because Pumpkin package is now finished , including fully tested main board(s) and fully tested reg board(s) .

conditions as intended :

input around 40+ Vac (twice that for both reg legs ) resulting in ~ 60Vdc at input of series reg part ;
after series reg part voltage is healthy 45Vdc ,then CCS pumps ~140mA ,then shunt part eats whatever is left from 470 ohms resistor at output , regulating entire gadget's output to 36Vdc ....... brownie load resistor eats ~ 75mA .......

apply same story for negative leg of Shunty



[Zen Mod]

well , Shunty works......... surprise ?

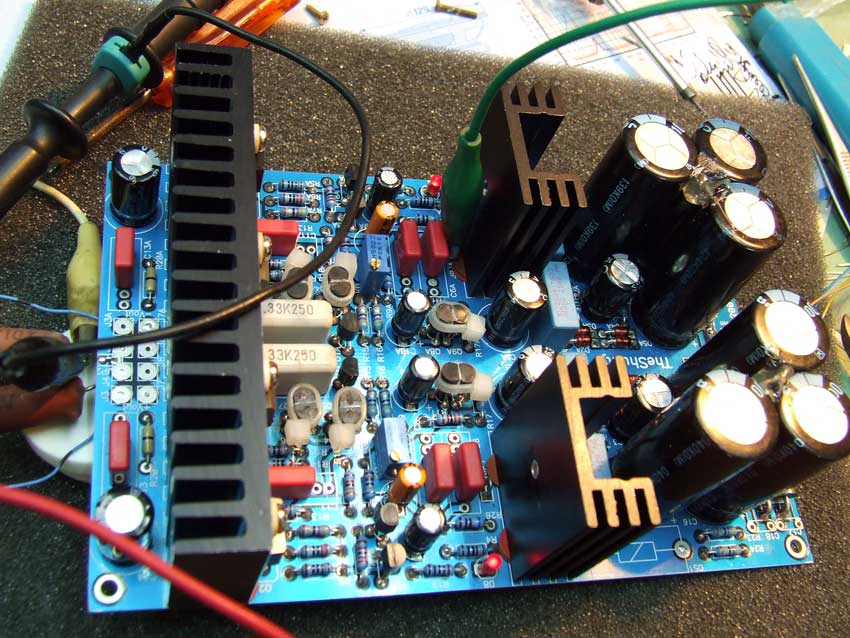

another one



[Zen Mod]

well , Shunty works......... surprise ?

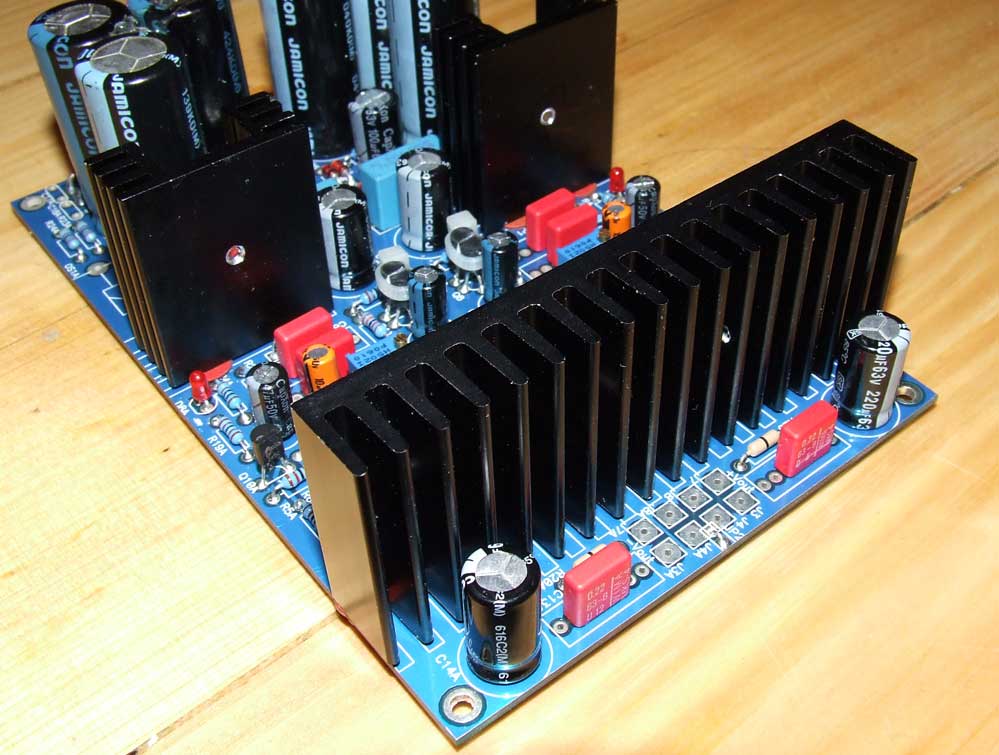

two brownies
