Dual Mono F5 Build

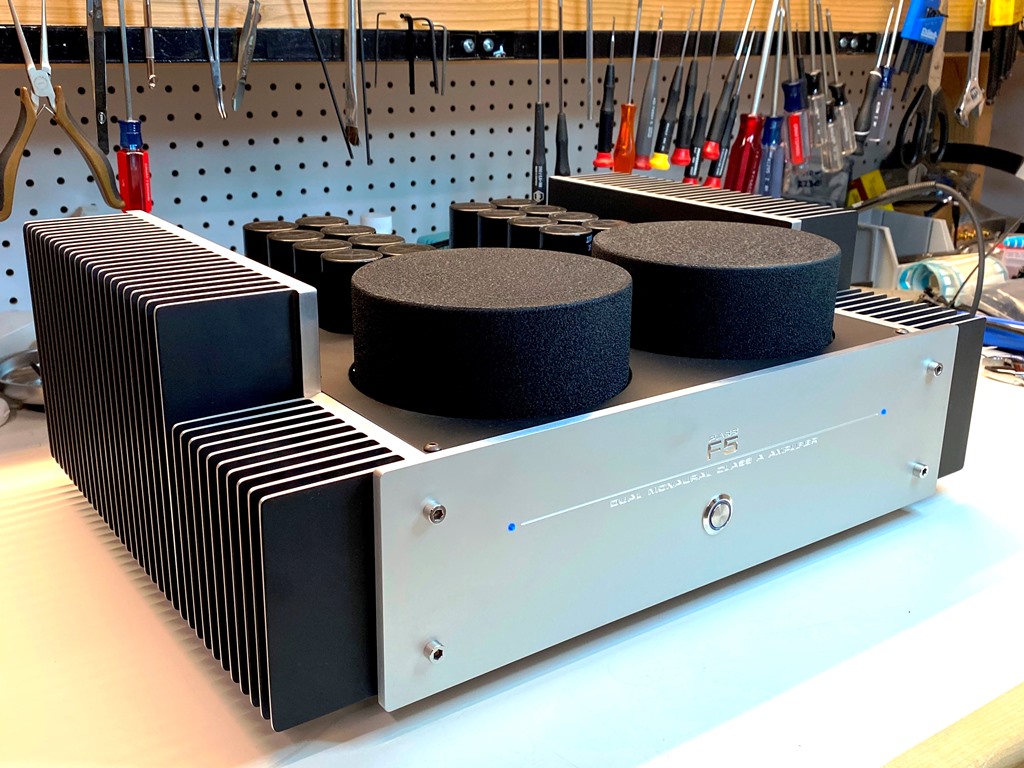

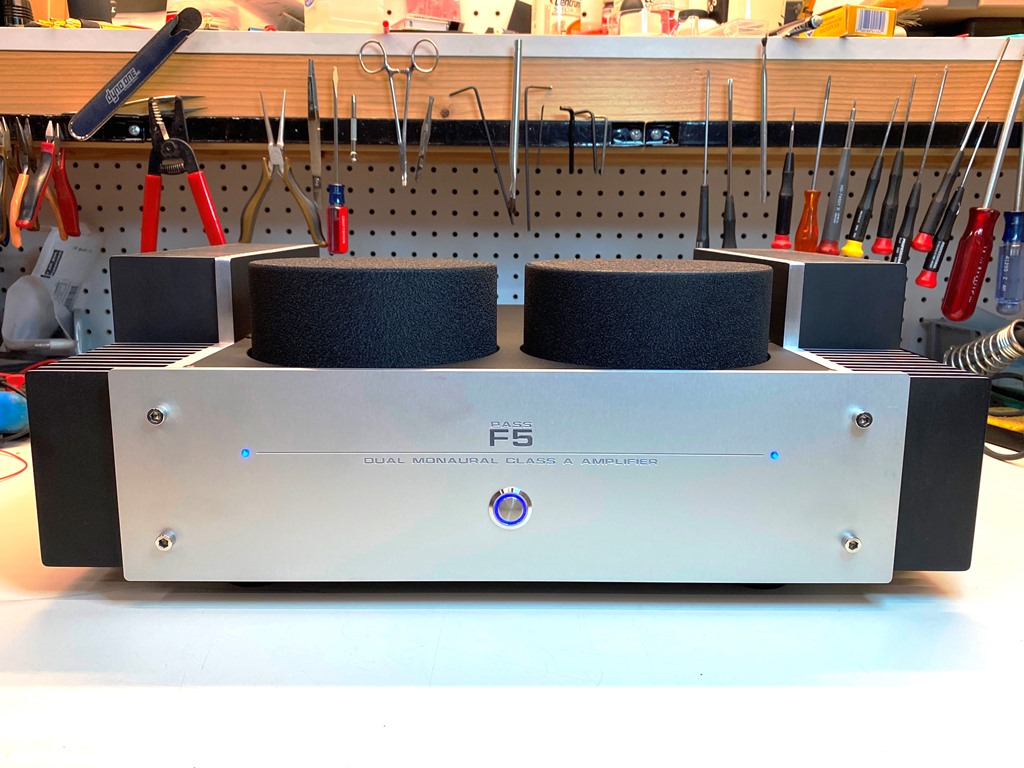

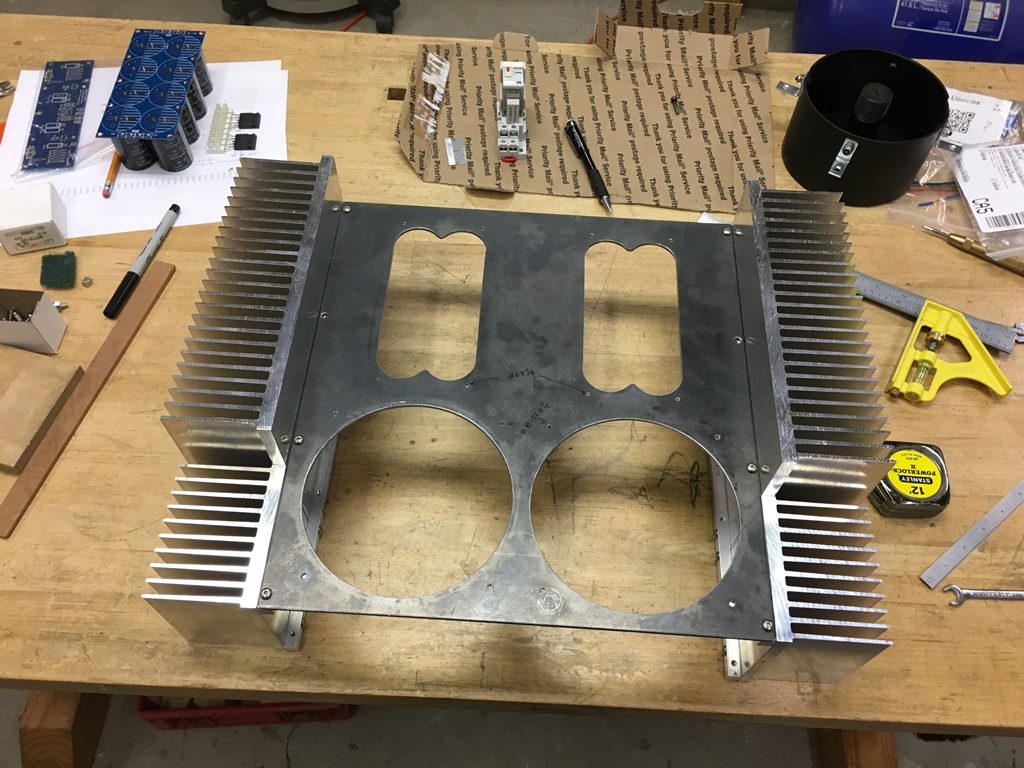

Here's my dual mono F5.

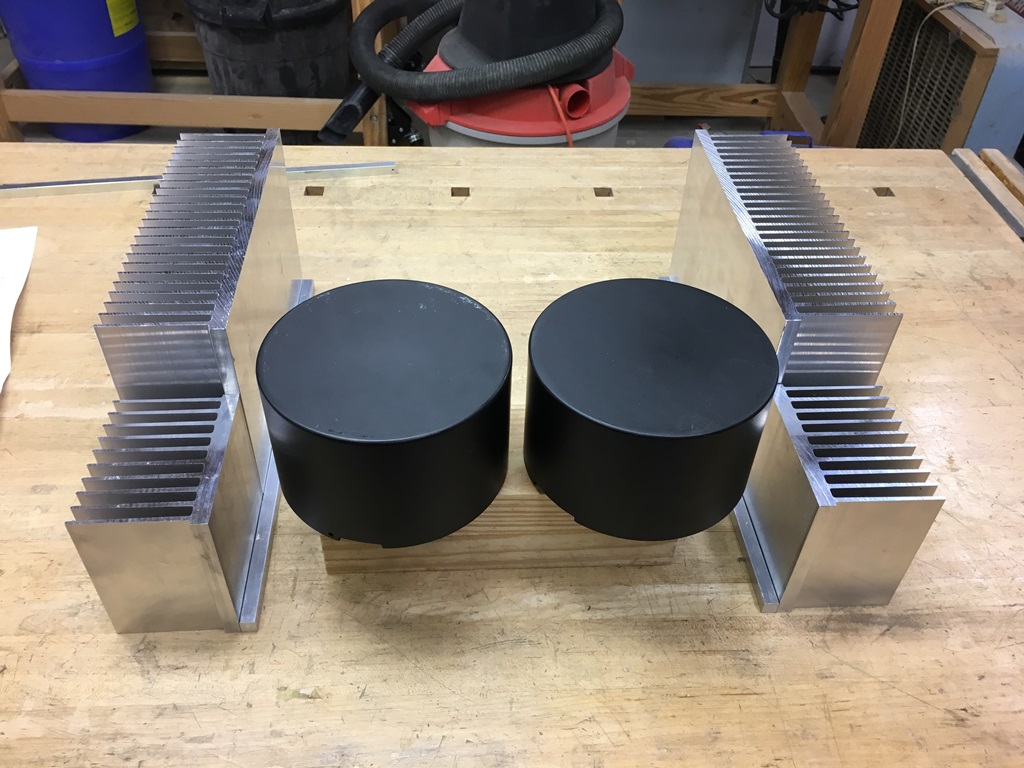

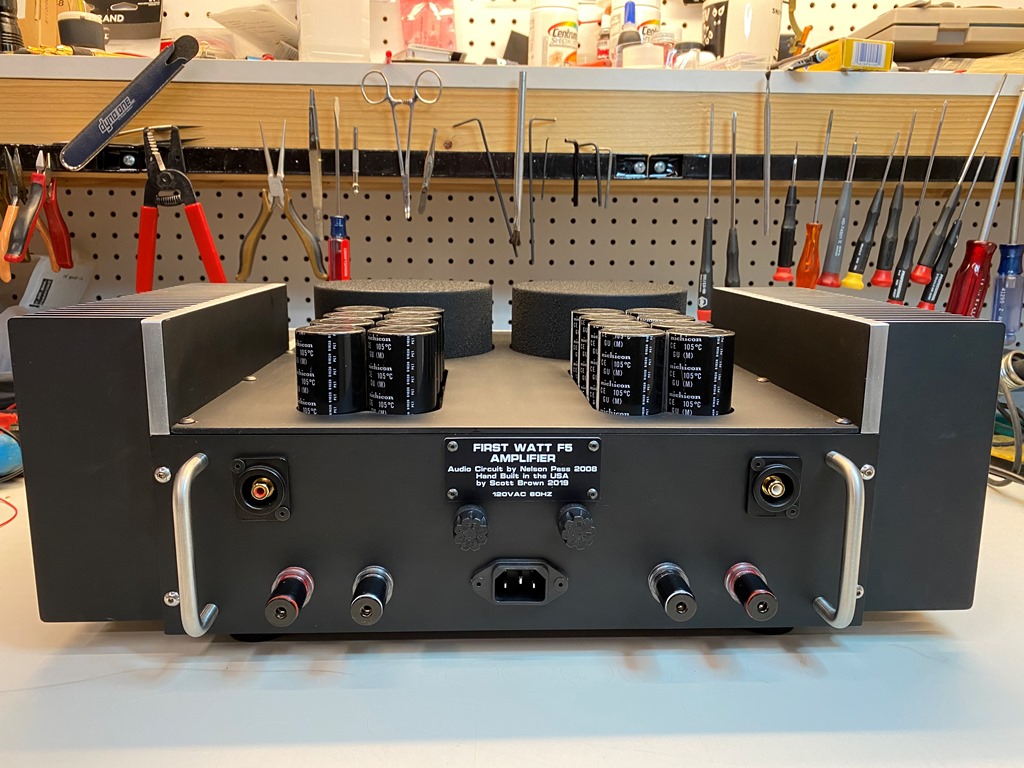

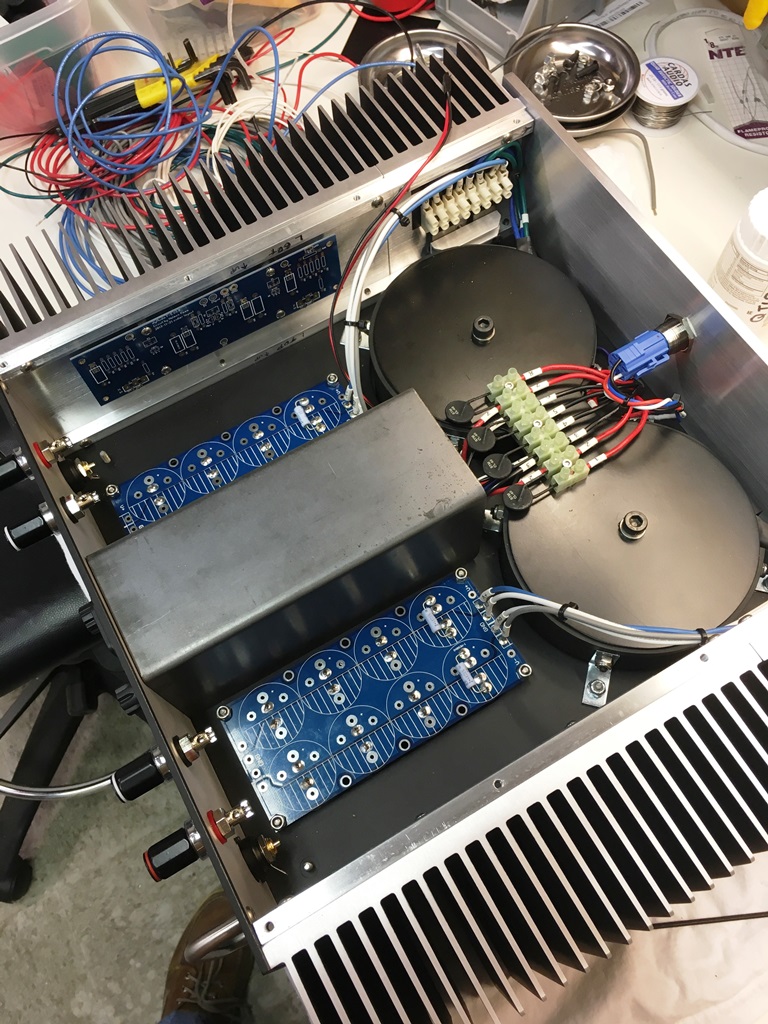

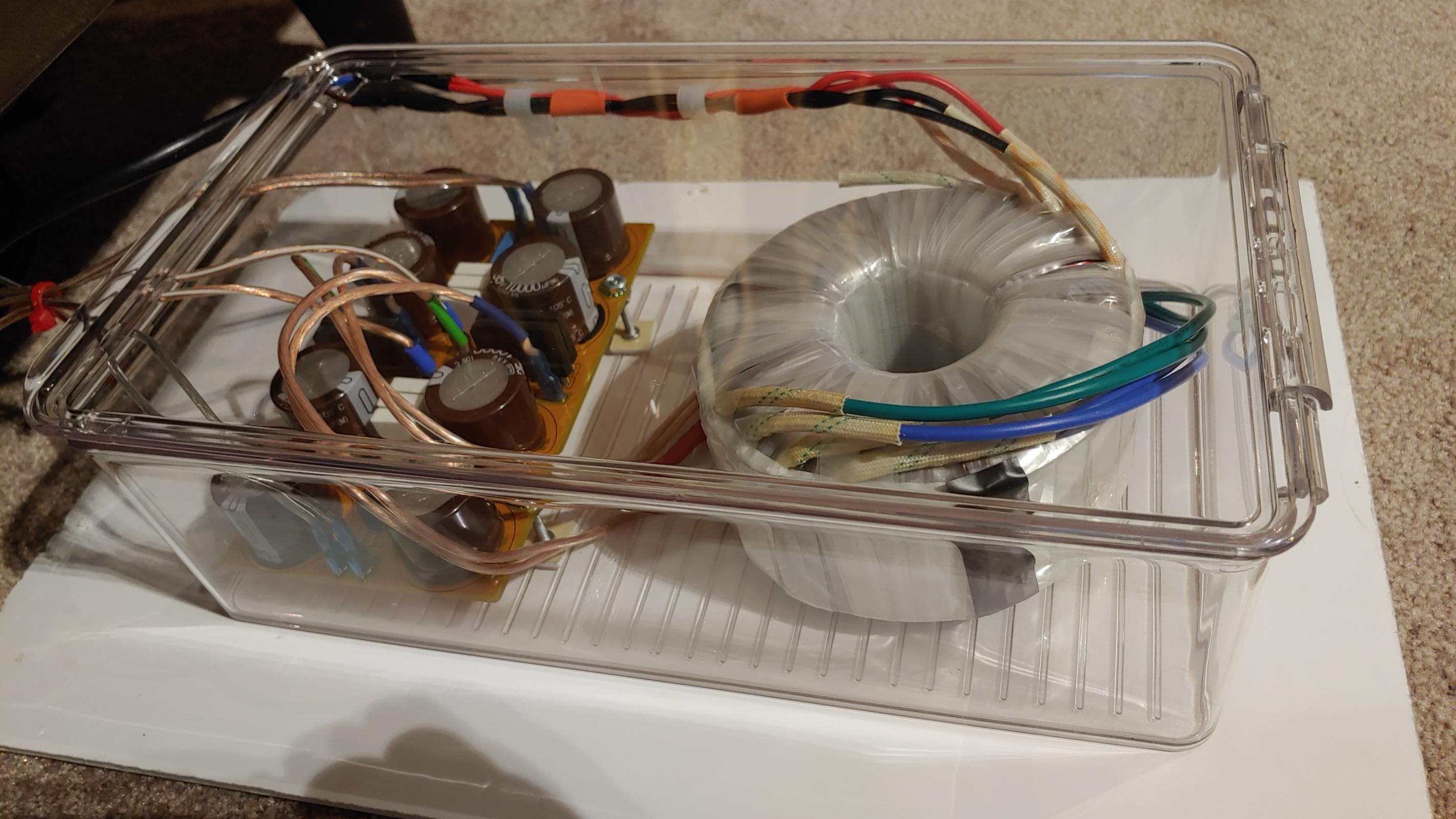

The transformers are outside the box to improve sheilding and reduce heat buildup inside. The capacitors are outside to reduce heat induced aging.

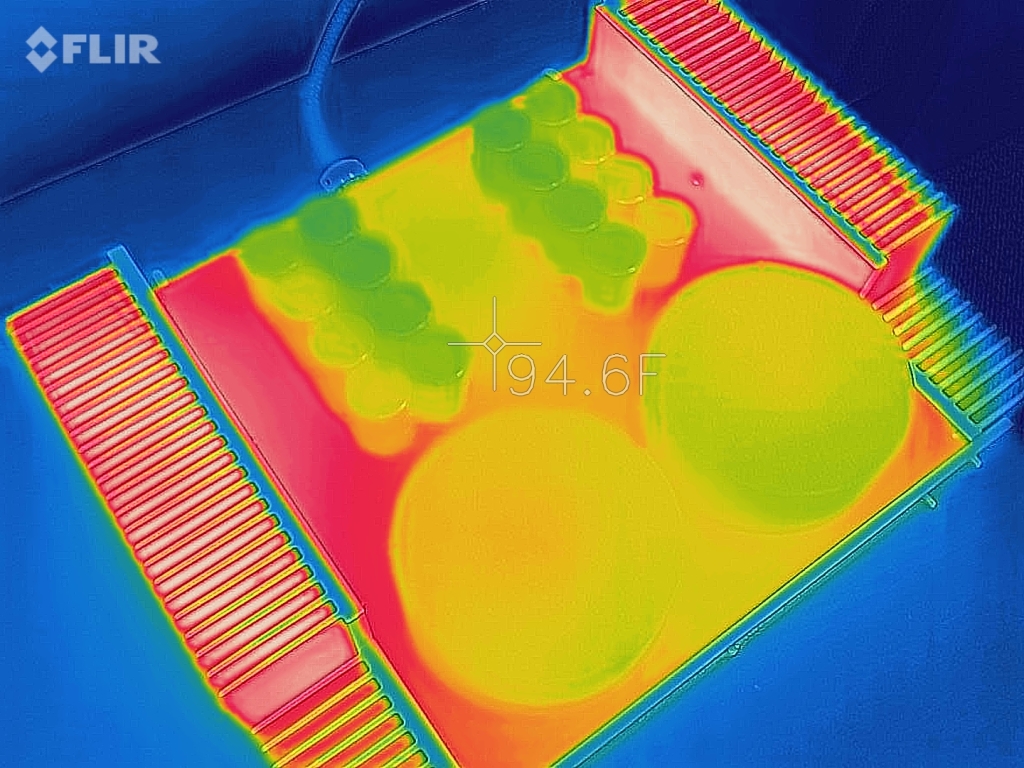

The heat sinks run about 110F at 1.35A bias.

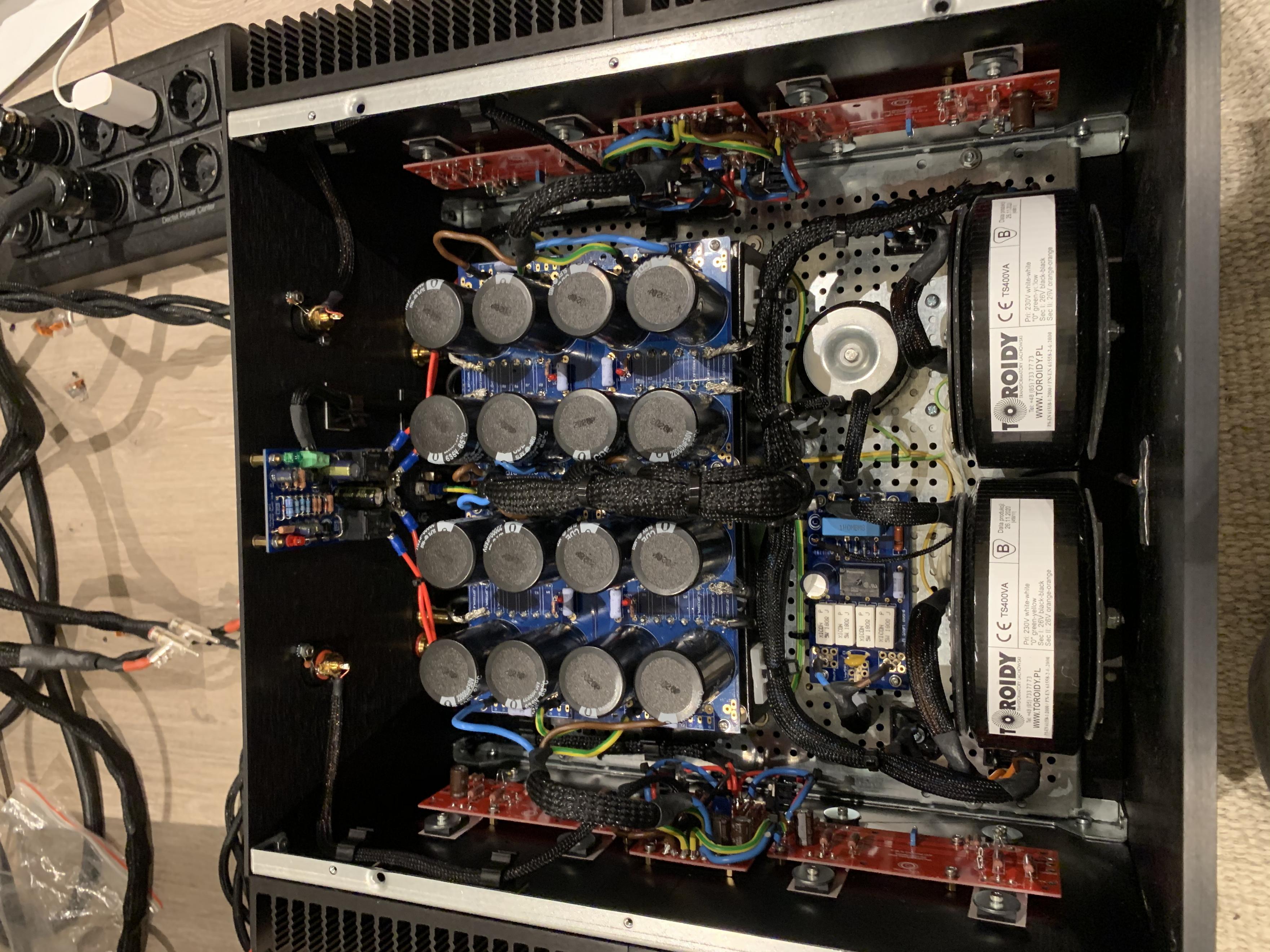

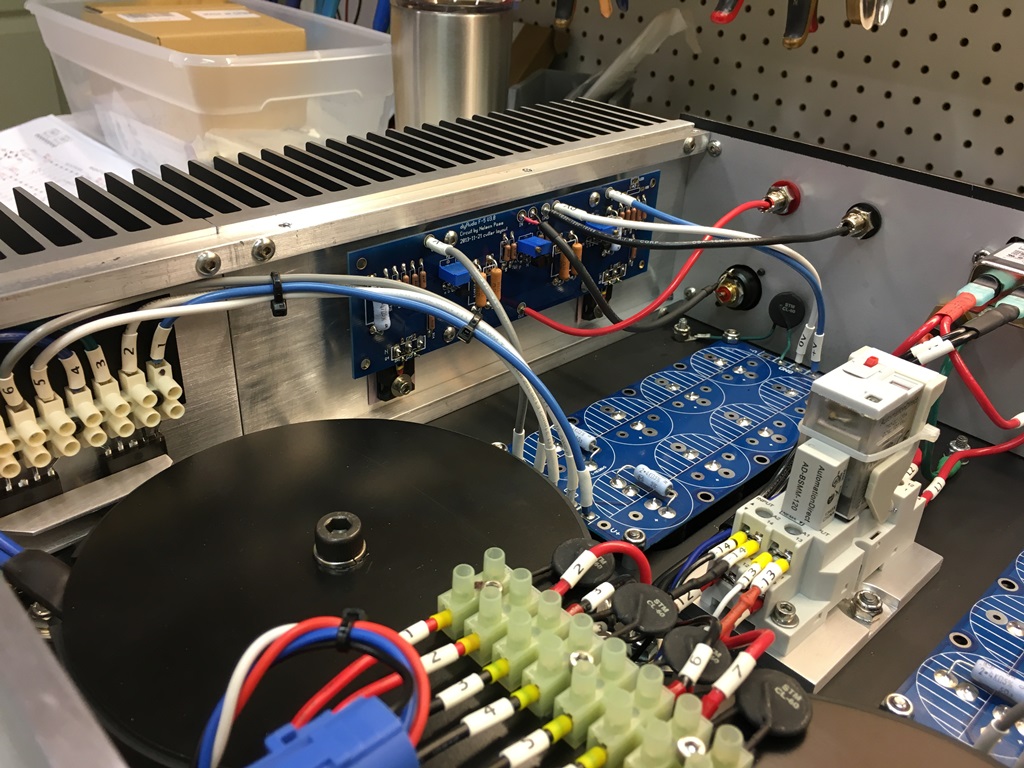

Each channel has a 300VA xfmr and 8x 22,000uf cap. It weighs 58 lbs.
Thanks for the DIY community for the inspiration and high standards.
Special thanks to Nelson Pass for sharing his designs and knowledge.

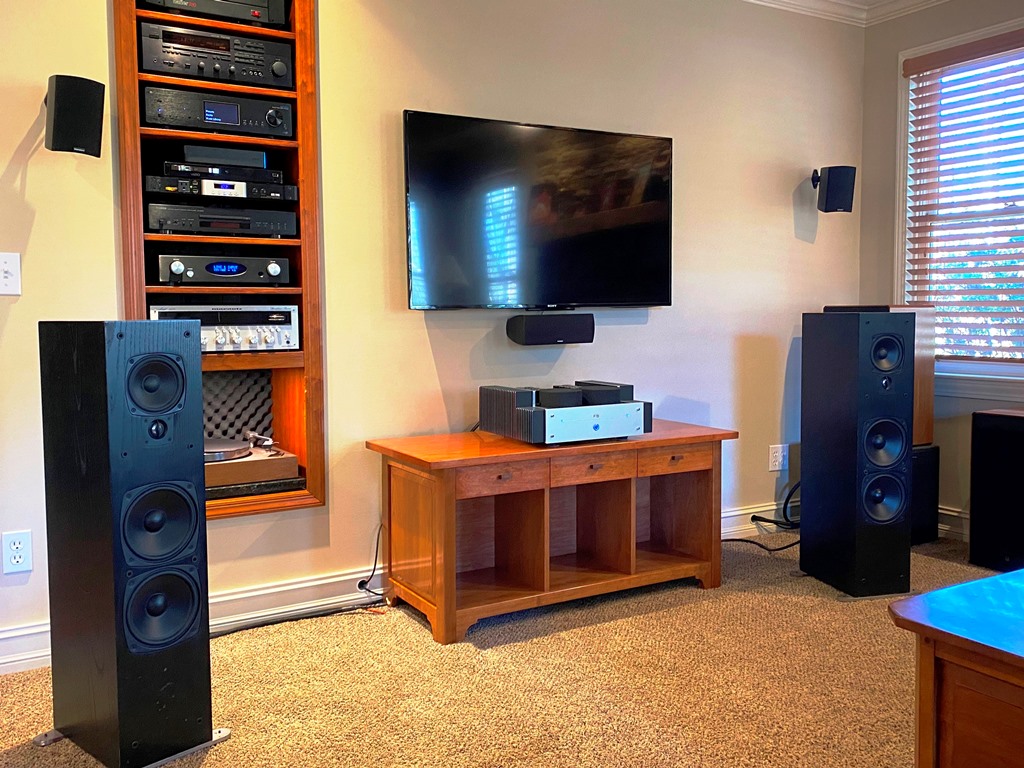

I'm currently feeding it with a Rouge RP-1 preamp and driving Boston VR-40s.
Sounds terrific
Here's my dual mono F5.
The transformers are outside the box to improve sheilding and reduce heat buildup inside. The capacitors are outside to reduce heat induced aging.
The heat sinks run about 110F at 1.35A bias.
Each channel has a 300VA xfmr and 8x 22,000uf cap. It weighs 58 lbs.
Thanks for the DIY community for the inspiration and high standards.
Special thanks to Nelson Pass for sharing his designs and knowledge.
I'm currently feeding it with a Rouge RP-1 preamp and driving Boston VR-40s.
Sounds terrific
Attachments
Steampunker Aleph 3 clone

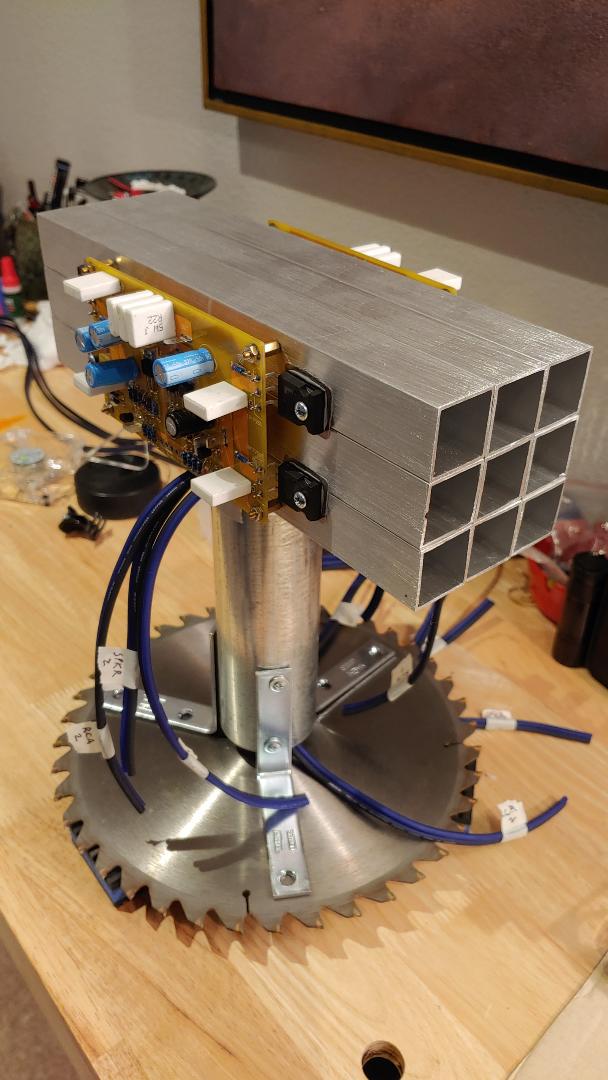

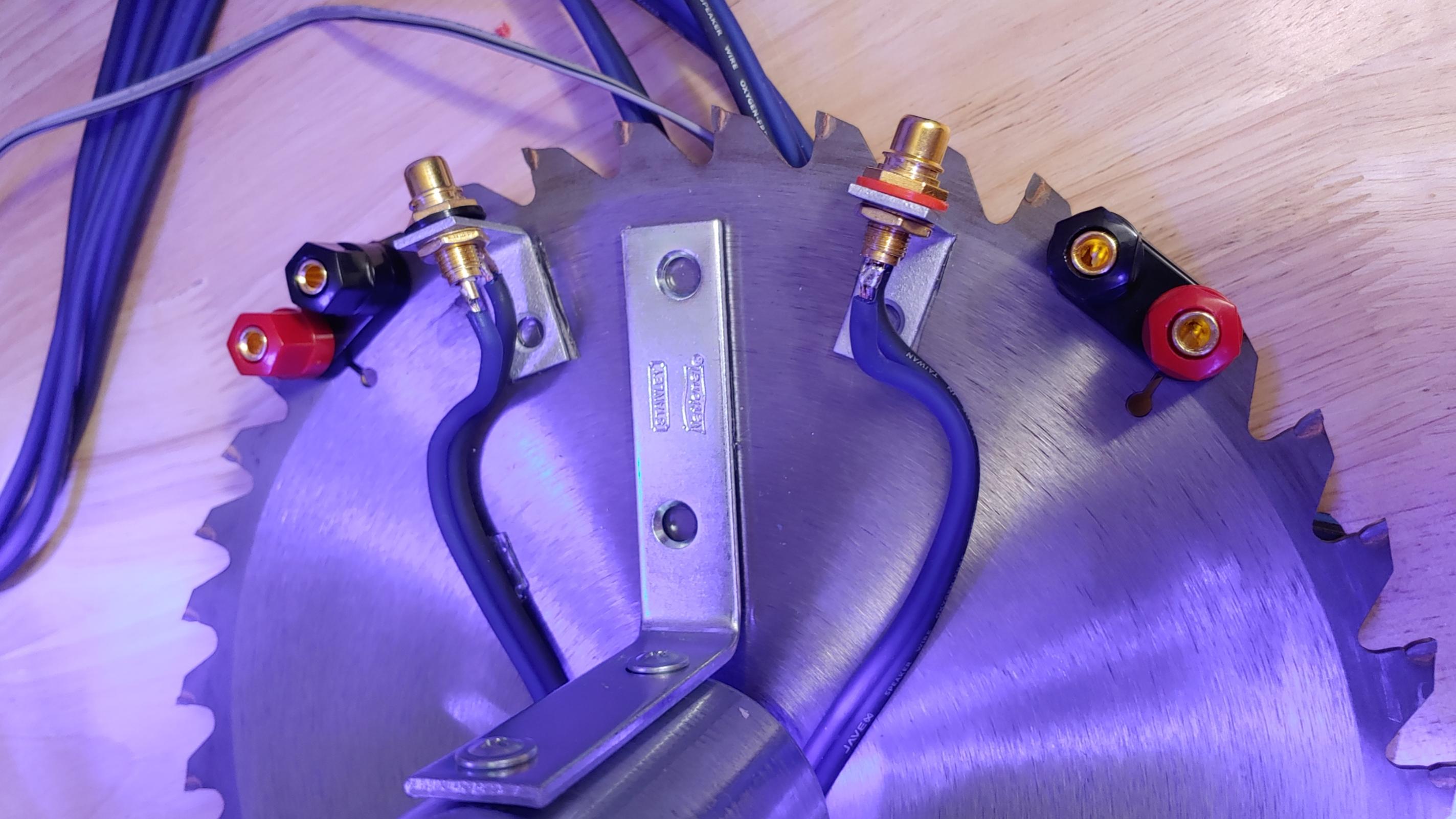

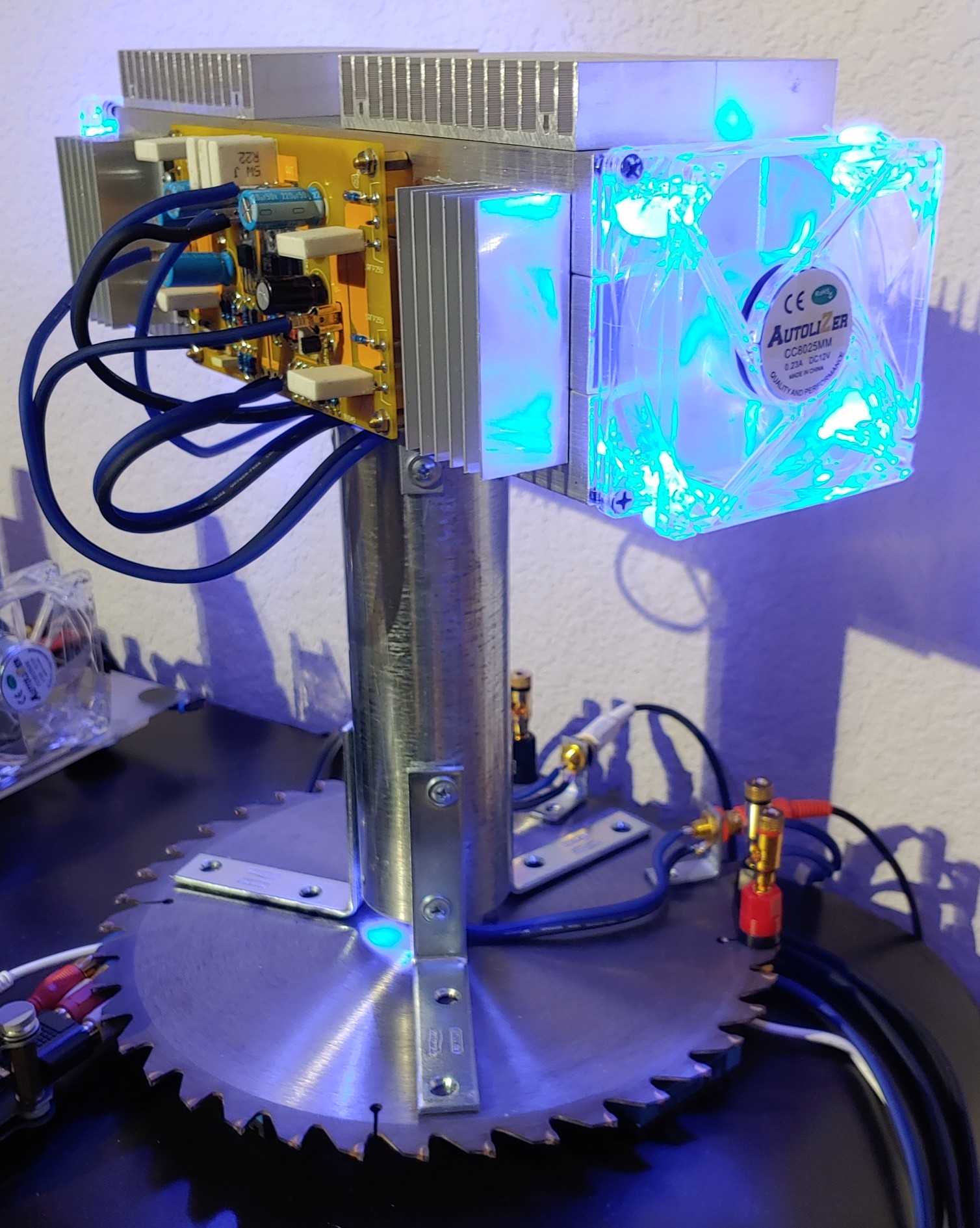

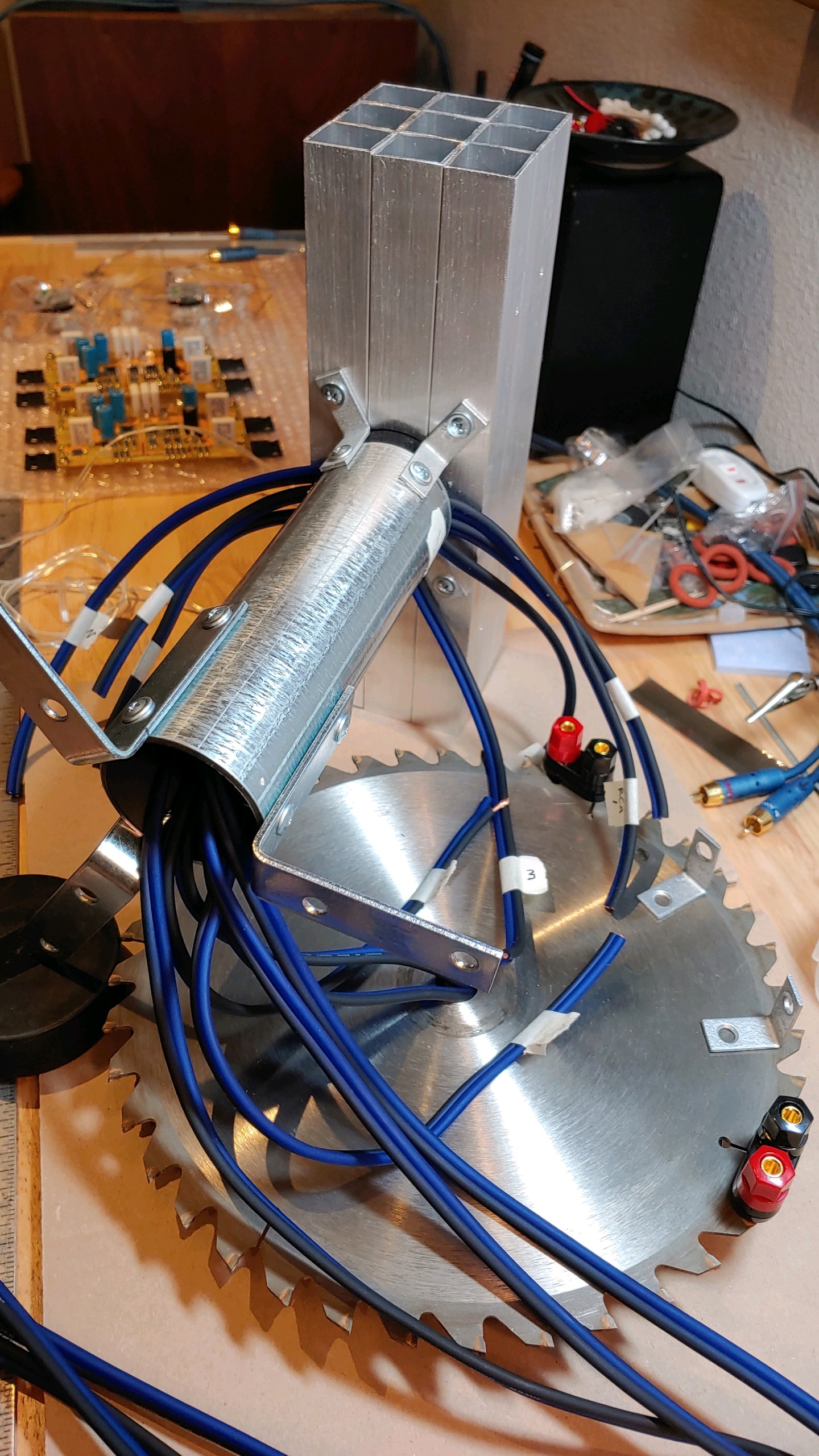

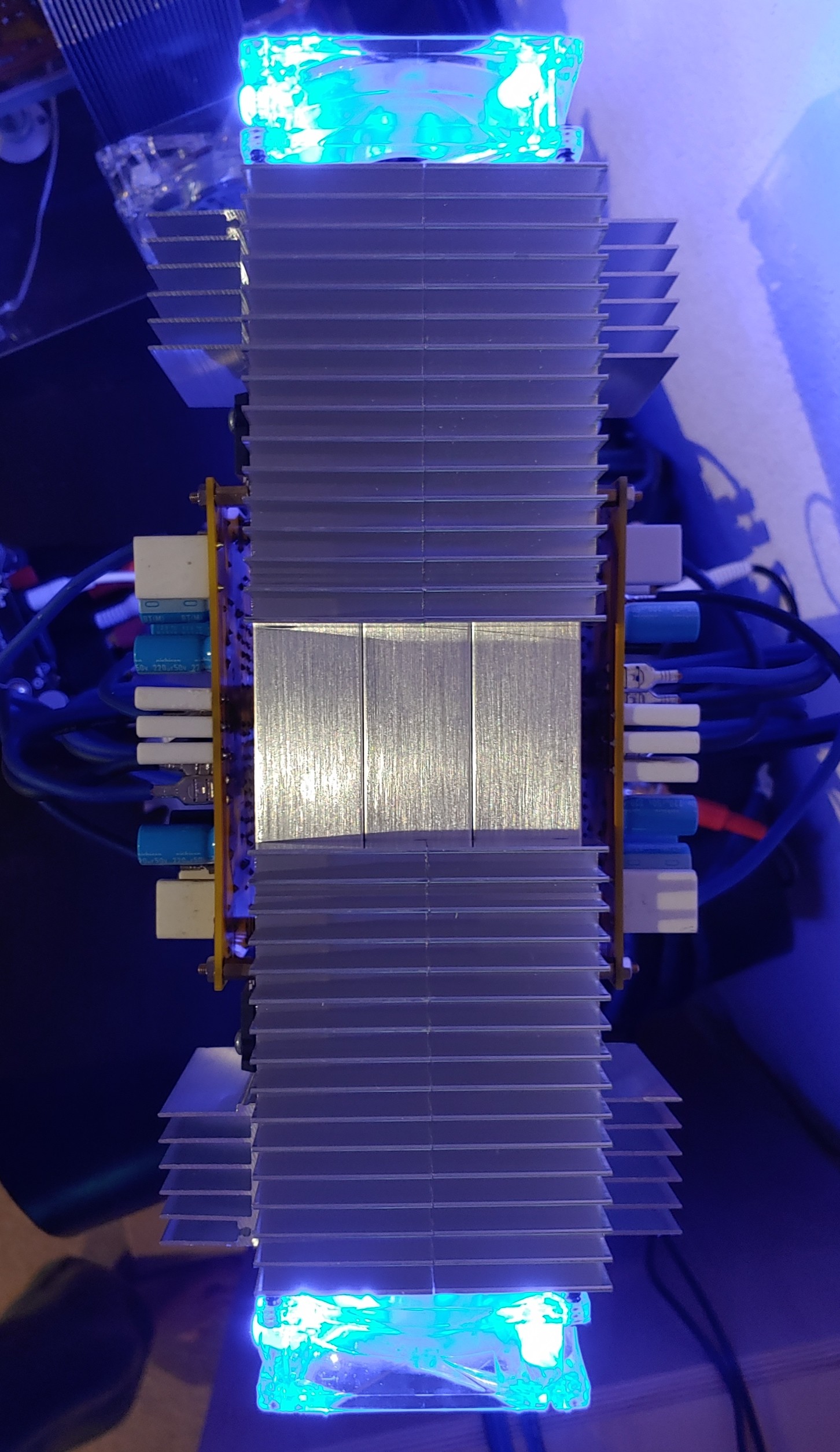

Dual-mono A3 boards assembled onto a horizontal “chimney” (nine thermal-expoxy-bonded 1” square aluminum tubes). As a retired engineer who first attended art college, most of my designs are of a 50/50 visual/practical split.
Dual-mono A3 boards assembled onto a horizontal “chimney” (nine thermal-expoxy-bonded 1” square aluminum tubes). As a retired engineer who first attended art college, most of my designs are of a 50/50 visual/practical split.
Attachments
New appliance heat element

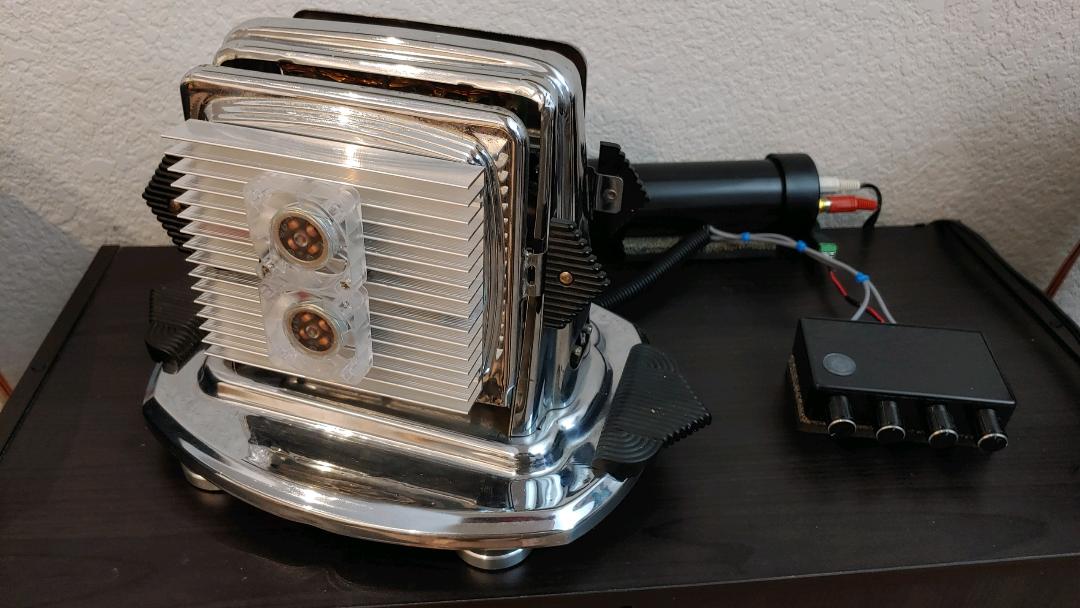

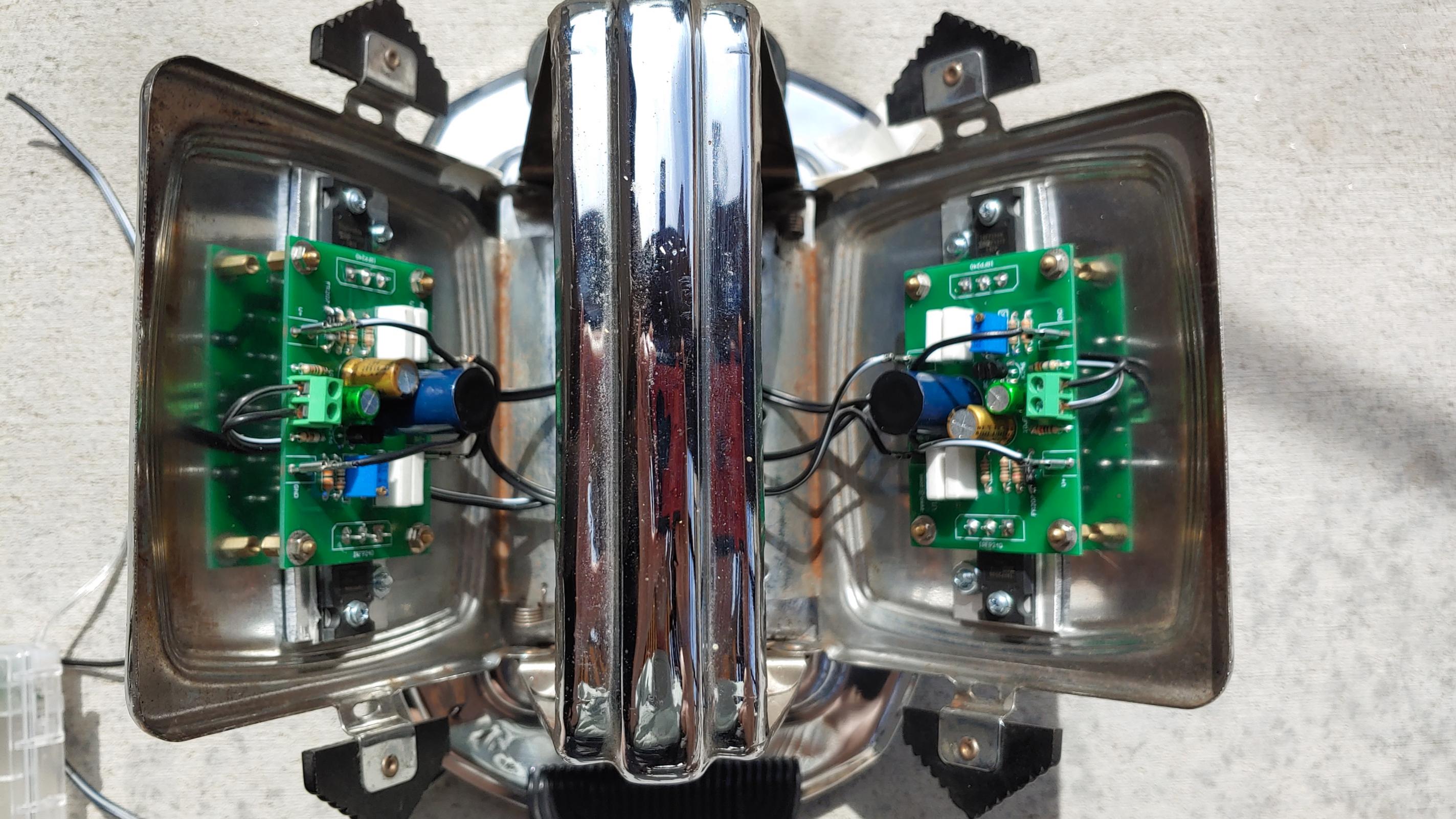

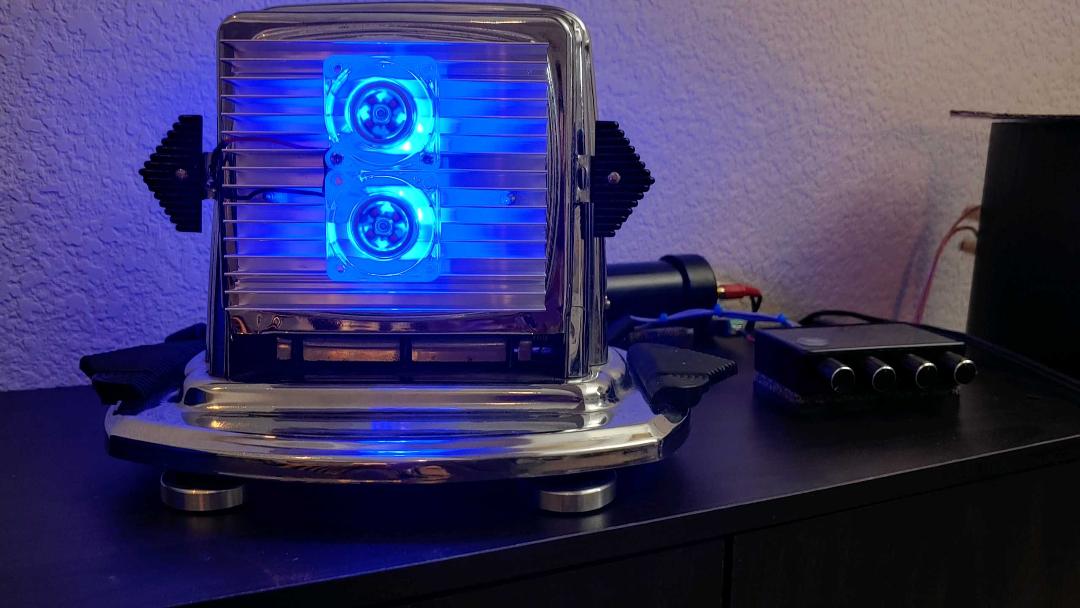

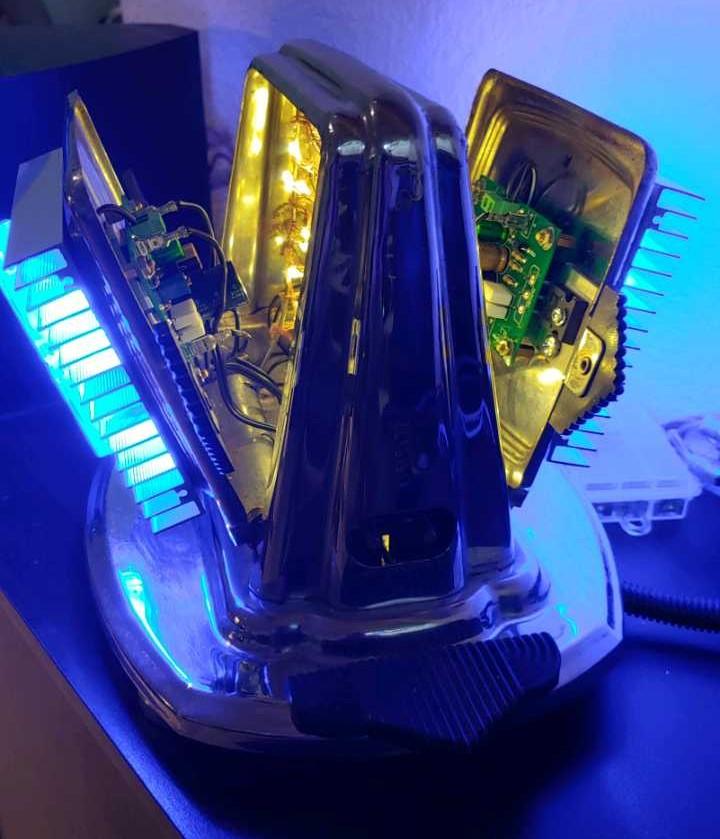

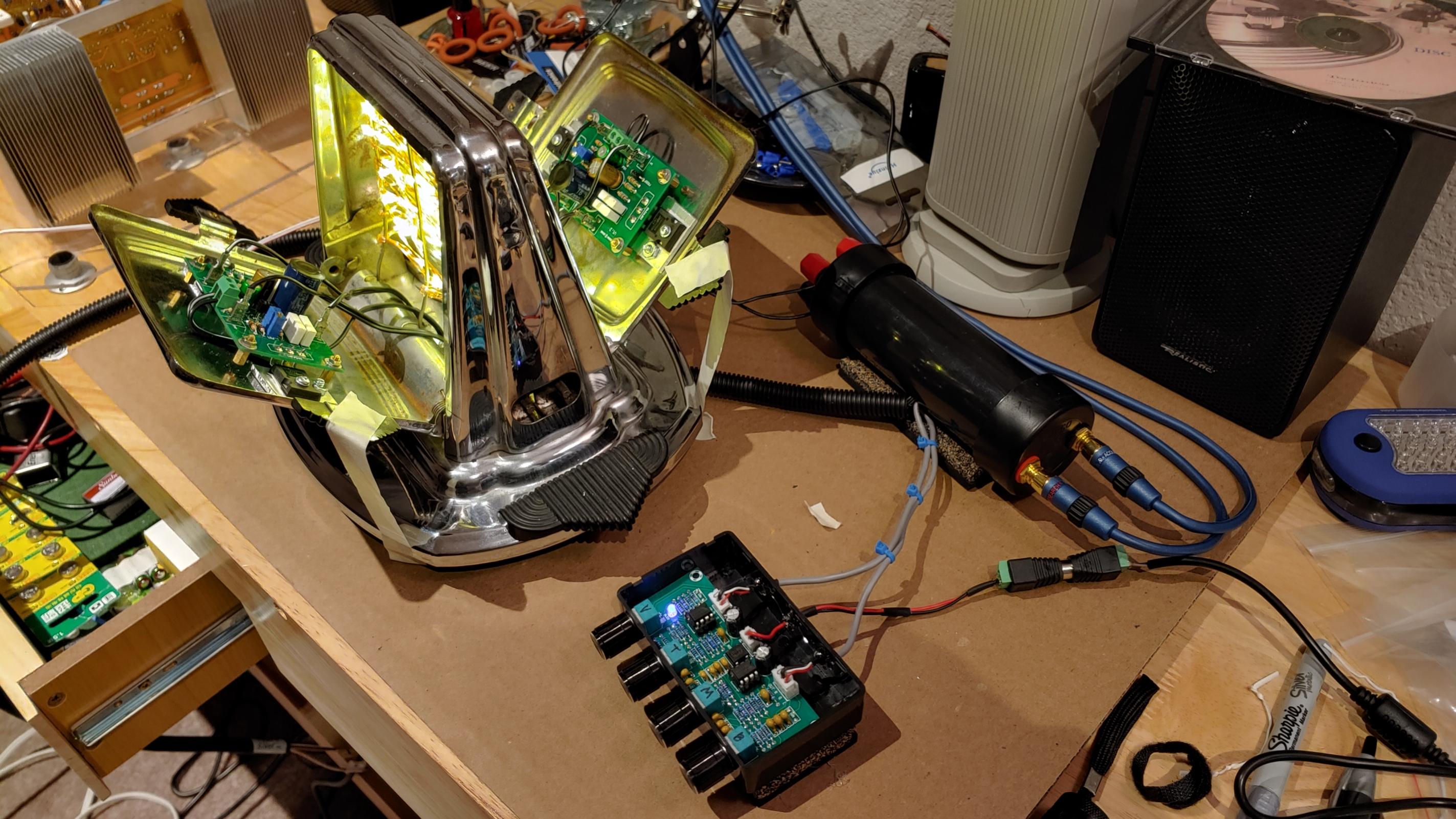

Very nicely done ACA clone boards - Antique toaster as chassis, initially figured the “flaps” would perform adequate heat sinking, though rising temps prompted the addition of actual heat sinks (and then razz pi fans). Using a Meanwell 24V/15A supply that yields great results - Not your grandma’s toaster
Very nicely done ACA clone boards - Antique toaster as chassis, initially figured the “flaps” would perform adequate heat sinking, though rising temps prompted the addition of actual heat sinks (and then razz pi fans). Using a Meanwell 24V/15A supply that yields great results - Not your grandma’s toaster
