Very cool, Walter.



[jacco vermeulen]

For the power supply

Very cool looking arrangement.

(my family members thank you again for saving me from throwing myself off the bridge)



[Preamp]

buy two adequate sized Rotring radierer gummi , and glue them in between Donuts and platform

Rotring, eh? Boutique stuff...



[massimo]

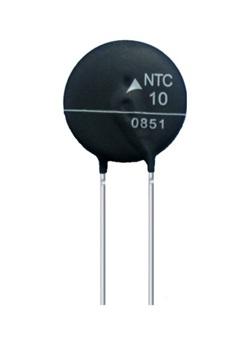

...Also upgraded some components... new better European NTC's in series in the softstart.

Which model, Walter?

P.S. Beautiful build! Congratulations



[Zen Mod]

yup

EU NTCs are usually better than US drek



[Triodethom]

buy two adequate sized Rotring radierer gummi , and glue them in between Donuts and platform

ya know how gummi is important for safety ....

That not adequate size this 150 plus mm size is Amazon.com: Present Time Silly For Big Mistakes Eraser There fixed that.



[Soundhappy]

@ WalterW

You are champion of diy
Congratulations and good build of Vfet 2
Thanks for such nice photos
Best regards



[WalterW]

Walter:

Beautiful work, as usual. In fact, it's insanely well organized and neat. Is your therapist concerned about your OCD?

Regards,
Scott

Ah, OCD.....found it...



[WalterW]

Walter, fantastic, professional and beauty.
Some questions, where you got the heatsinks?
You cut the aluminium bars, then machinate to they and Finally you anodize ?
I imagine that CSX1 is hard to beat...Do you think the same?
Best Regards
Esteban

Anodize ? No that's chemicals and voltage...too dangerous
Just spray paint with primer, matt black paint and a sealer.

Heatsinks are from Austerlitz: https://www.distrelec.nl/elfa3~nl_nl/elfa/init.do?item=75-626-71&toc=20476

And you are right CSX1 is not to beat....It's the best sounding amp I have.
Sound is so natural, flowing. Instruments and voices, they sound like they are actually in the room. Soundstage is big.
I guess SIT is the audio gain device.... I hope to hear one day Papa's SIT-1 or SIT-2. They must be stunning.

Walter



[WalterW]

(my family members thank you again for saving me from throwing myself off the bridge)

???



[WalterW]

Which model, Walter?

P.S. Beautiful build! Congratulations

oops, don't know for sure they are European..... but they are Epcos



[nashbap]

Love your wiring. Never any excess. Always neat and tidy.
I have learned a lot from looking at pics of your builds.

Nash



[dady]

Anodize ? No that's chemicals and voltage...too dangerous
Just spray paint with primer, matt black paint and a sealer.

Heatsinks are from Austerlitz: https://www.distrelec.nl/elfa3~nl_nl/elfa/init.do?item=75-626-71&toc=20476

And you are right CSX1 is not to beat....It's the best sounding amp I have.
Sound is so natural, flowing. Instruments and voices, they sound like they are actually in the room. Soundstage is big.
I guess SIT is the audio gain device.... I hope to hear one day Papa's SIT-1 or SIT-2. They must be stunning.

Walter

Thanks Dude, I will finish soon the mine.



[WalterW]

Very curious for your build
I haven't seen much VFET's builds here, the article is around a year old and there are initiatives for PCBs but a complete amp is rare



[nashbap]

Walter,

Have you posted pics of your VFET build? If so, could you direct me to the post #. Now that I have completed my F5TV3 I am thinking of tackling A VFET build.

Nash



[WalterW]

Walter,

Have you posted pics of your VFET build? If so, could you direct me to the post #. Now that I have completed my F5TV3 I am thinking of tackling A VFET build.

Nash

Hi Nash,
Here are some links:
http://www.diyaudio.com/forums/pass-labs/253411-article-sony-vfets-part-1-a-39.html#post3929904
and
http://www.diyaudio.com/forums/pass-labs/253411-article-sony-vfets-part-1-a-64.html post 640

http://www.diyaudio.com/forums/pass-labs/166784-pictures-your-diy-pass-amplifier-279.html



[nashbap]

Hi Nash,
Here are some links:
http://www.diyaudio.com/forums/pass-labs/253411-article-sony-vfets-part-1-a-39.html#post3929904
and
http://www.diyaudio.com/forums/pass-labs/253411-article-sony-vfets-part-1-a-64.html post 640

http://www.diyaudio.com/forums/pass-labs/166784-pictures-your-diy-pass-amplifier-279.html

Thanks.
Paintwork is excellent; look anodize.
Are you mounting your Fets (this build and others) directly onto the painted surface?



[WalterW]

No, the heatsinks are not painted, I always buy them black anodized.



[flyingsolo]

ACA with transformer PSU

Stereo chassis, transformer plus CRC filter to power 2 channels.



[flyingsolo]

ACA in mono blocks

Laptop PS powered ACA in monoblocks
