The article/Paper/Talk only specifies the xfmr and the TO3 gain devices. Everything else is only a value. The board was laid out with physical parts not just values. If you can't specify a B.O.M. with actual available parts, then we need the dimension's of every other part used in the layout ;)

D

dsdjoy

Member
Joined 2009
cumulocity.com
Hi,

here's the BOM based on info from Permaneder (Georg).

There are however approx. 100 boards already with members in this DIY forum, and there are some build reports in the thread mentioned above.

Hope someone can comment on the BOM. Maybe someone wants to start a build thread ?


Attachments

  • CSX1_BOM.pdf
    42.6 KB · Views: 174
  • Boards 2.JPG
    Boards 2.JPG
    609.2 KB · Views: 536

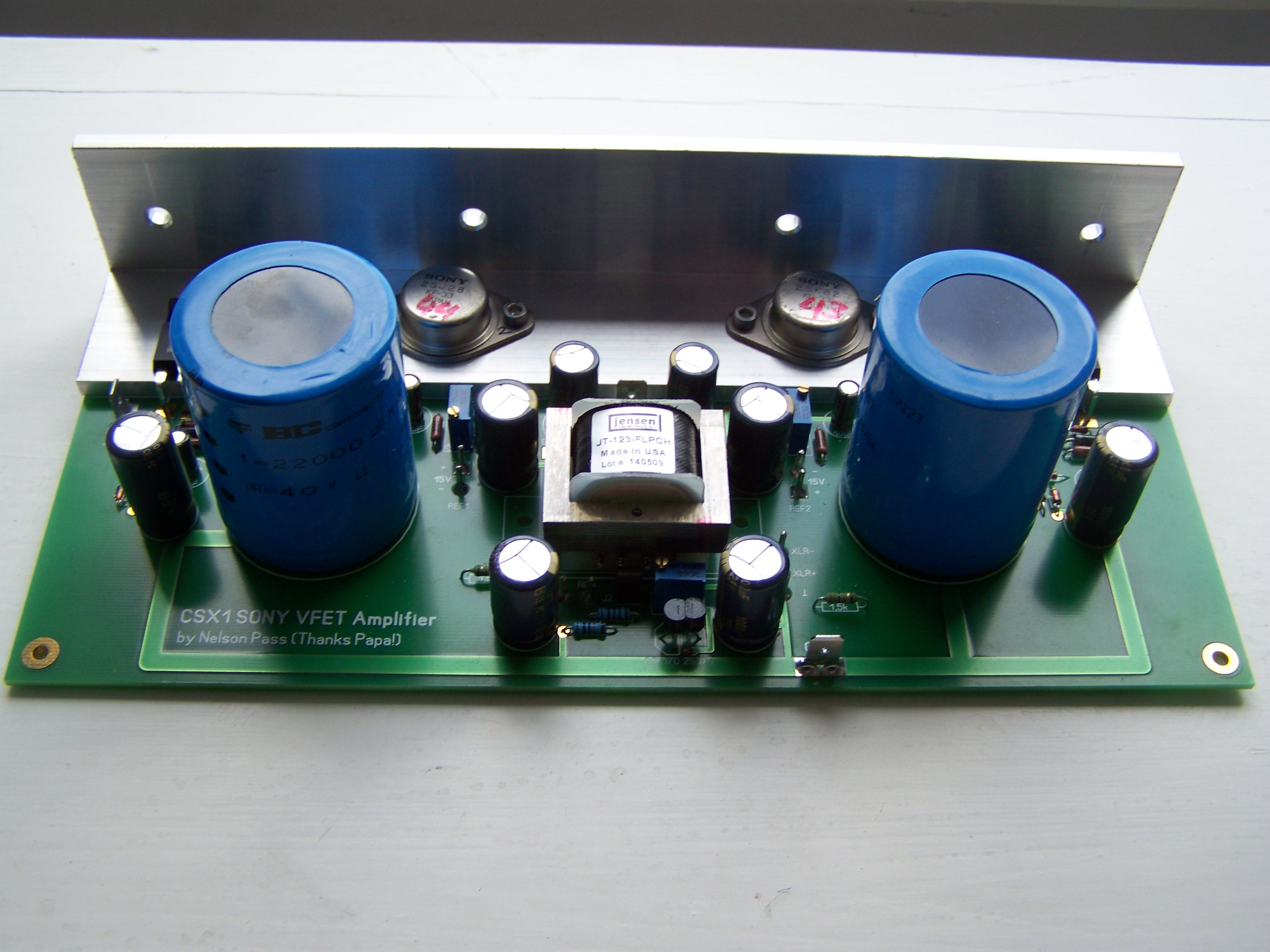

  • Boards stuffed 1.JPG
    Boards stuffed 1.JPG
    761.8 KB · Views: 528

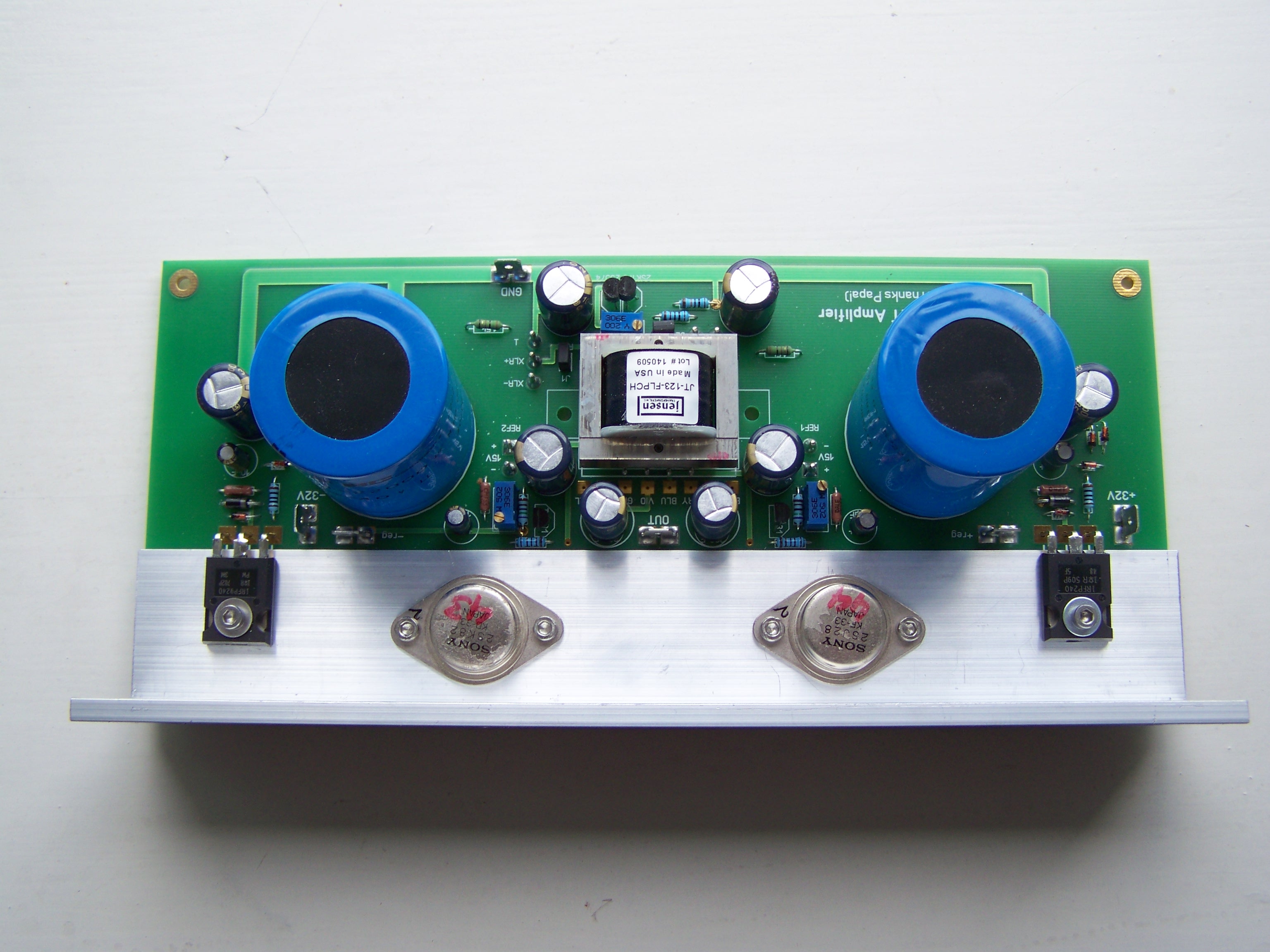

  • Boards stuffed 2.JPG
