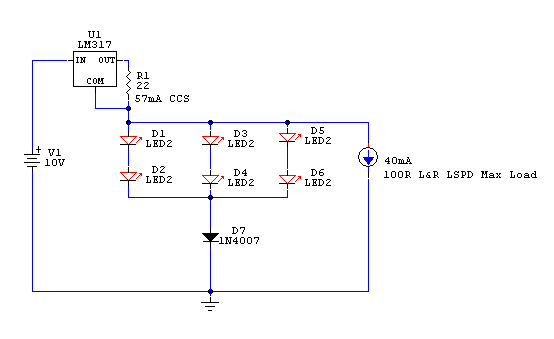

I have realized that there is another king of regulator for the LDR volume control. It was designed by Salas, using leds as shunts for reference.
Schematic in the attached file. You will need to add the input, output and adj-to-ground caps, and the output load resistor.
Schematic in the attached file. You will need to add the input, output and adj-to-ground caps, and the output load resistor.
Attachments
Here was the original LDR deal from Uriah on page 19 of this thread.
'Another thing. I obviously sell LDRs to build the Lightspeed. I have some LDR Mount and Balance boards I sell for $8 and matched quads of LDRs I sell for $35. Normally I charge 10 shipping worldwide for any order. For anyone buying in this group buy: If you want to build a Lightpseed all you need is the board/LDRs/100k pot/ 5VDC supply. I will include the LDRs and Mount and Balance board for a total of 30. You dont have extra shipping or extra 13 you would normally pay. So saving about 23 from purchasing some other time. I will also supply the 5k pot, 200R trimmer, 4 limiting resistors free of charge. So thats another 2 dollar or so value.'
Later somewhere Uriah offers to throw in a 100K dual linear pot, but says the volume comes on rather fast with this...
I managed to get everything (all the passives and a chunk of board) to build a PSU for about 10 dollars, still waiting for the LM338.
Uriah, I would have very mixed feelings about having no internet at home!
Only working from the office! Sounds great!
Bill
'Another thing. I obviously sell LDRs to build the Lightspeed. I have some LDR Mount and Balance boards I sell for $8 and matched quads of LDRs I sell for $35. Normally I charge 10 shipping worldwide for any order. For anyone buying in this group buy: If you want to build a Lightpseed all you need is the board/LDRs/100k pot/ 5VDC supply. I will include the LDRs and Mount and Balance board for a total of 30. You dont have extra shipping or extra 13 you would normally pay. So saving about 23 from purchasing some other time. I will also supply the 5k pot, 200R trimmer, 4 limiting resistors free of charge. So thats another 2 dollar or so value.'
Later somewhere Uriah offers to throw in a 100K dual linear pot, but says the volume comes on rather fast with this...
I managed to get everything (all the passives and a chunk of board) to build a PSU for about 10 dollars, still waiting for the LM338.
Uriah, I would have very mixed feelings about having no internet at home!
Only working from the office! Sounds great!
Bill
I bought a full LDR kit from Uriah, doesn'y it contain even the PSU and the pot?
No, because each one has a different method in mind to supply it. What PSU to include? a toroidal transformer? An EI transformer? an external transformer in a box for plugging it to the wall? Should he made the PSU suitable to tap the voltage from the MyRef_C?
Each one will have his own method in mind. I'm not even going to put it inside the MyRef_C, but in a separate preamp I already have.
And for the pot...I suppose more or less the same, given the wide range out there each one will choose different shaft lenght and so...
Is the GB closed? If not, how does he know how many input caps to buy?
Regards,
Regi
MyRefC Lightspeed PSU
Thanks RegiRegi, I added your Mouser selection to the spreadsheet.
Bill
http://spreadsheets.google.com/ccc?key=0AttLWNtAmAhedDJSVmstUklyU1JiWTVHUm1QOEF4Y1E&hl=en
Here you have the Mouser BOM:
R1: 71-RN55D-F-100
R2: 71-RN55D3300F
R3: 71-RN55D-F-499
C1, C3: 80-T356B105K050AT
C2: 80-T350G106K035AT
C4: 667-EEU-FC1V101
D1, D2: 512-1N4002
Pot: 313-2420F-100K
Mouser doesn't have the L338 in their stock, you could replace it with the LM317 without a hassle. It provides already more than 20x times the requiered power by the Lightspeed,and is as good as the LM338. Here is the part number: 512-LM317T
I have just revised your RS part numbers and all you have selected will work alright. Good to go!
Thanks RegiRegi, I added your Mouser selection to the spreadsheet.
