its a wonderfull forum good enough for people with teething problems, However i have build a six channel mixer using the ML3 . let me know can i short all the output of the preamp and make a common out or should i add a resistor...
Regards
Stanley



[apexaudio]

Hi Apex
its a wonderfull forum good enough for people with teething problems, However i have build a six channel mixer using the ML3 . let me know can i short all the output of the preamp and make a common out or should i add a resistor...
Regards
Stanley

Use circuit from post #30



[hayden13]

Sir Apex can u pls give the schematic as to how 6ML3 can form a mixer i need to complete it thanking u in advance



[hayden13]

Sir apex ,
were can i mix the signals of all the 6 channel ML3 built to make a mixer..pls give me the schematic as i am not able to find at post #30.
rgds
stanley



[hayden13]

Hi Apex,
Just to elaborate more on the understanding i have Ahuja amp with 4 input unbalance mic/line and it has common bass and treble control, It makes difficult when there is to control male and female voice. So how can i make ML3 a 6 channel mixer (having advantage of 3 tone controls) and i will feed one output from my mixer to ahuja amp.
Rgds
Stanley



[apexaudio]

Sir Apex can u pls give the schematic as to how 6ML3 can form a mixer i need to complete it thanking u in advance

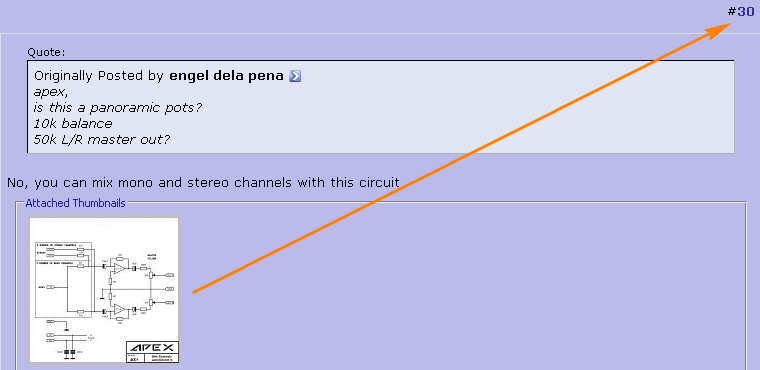

There is schematic in post #30



[hayden13]

Sir sorry i cannot find at post 30 could you pls give it sorry if i am troubling u



[hayden13]

hi Apex
Schematic pls



[hayden13]

Sir Alex

Is it the MX1 schematic you are referring to which is at #29
Stanley



[Zero D]

@ hayden13

I don't know why you can't see it ? It's there



[csom]

My ML3 Build has been running fine. I am impressed with its sound quality and stereo imaging.

Recently, a slight hissing sound appeared on one channel ( left channel ) after some 3 months.
This is prominent when there is no signal.
I tried changing the 100P but no luck.

Both the channels are in unbalanced mode. ( Line- and Ground).
Input source : Computer sound card.
The other channel ( right) is working really fine.
Any solution please?



Eagerly awaiting your feedback,
Som.



[hayden13]

check with the cd player or phone if still the problem persist than may be your cable or pot track may be open



[gmphadte]

Here is my pcb design for a tone control at post142 on page 15.

http://www.diyaudio.com/forums/anal...pcb-tone-control-transistors-dual-supply.html

Gajanan Phadte



[desertstorm]

Is anybody interesting about 100w guitar amp?

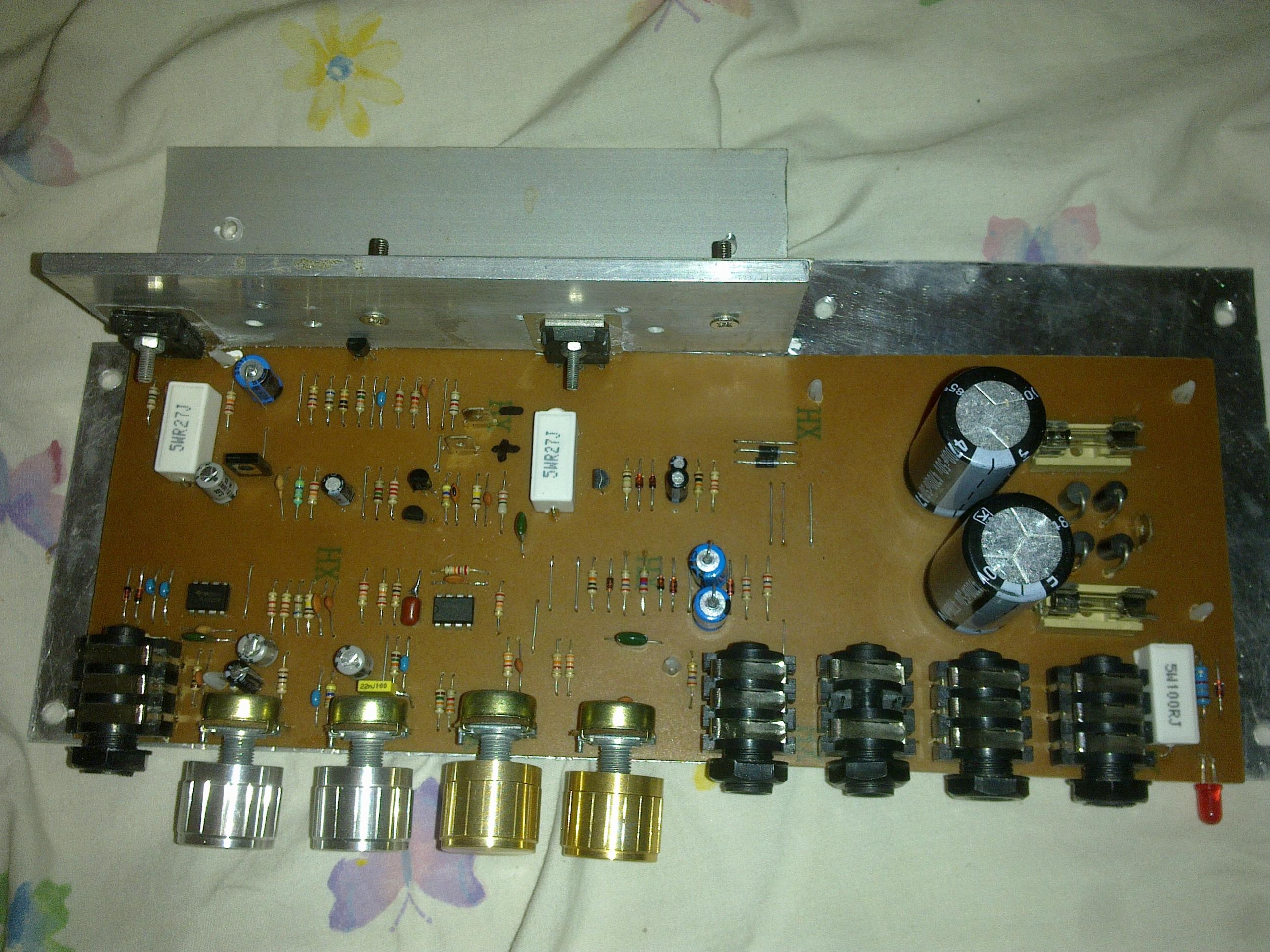

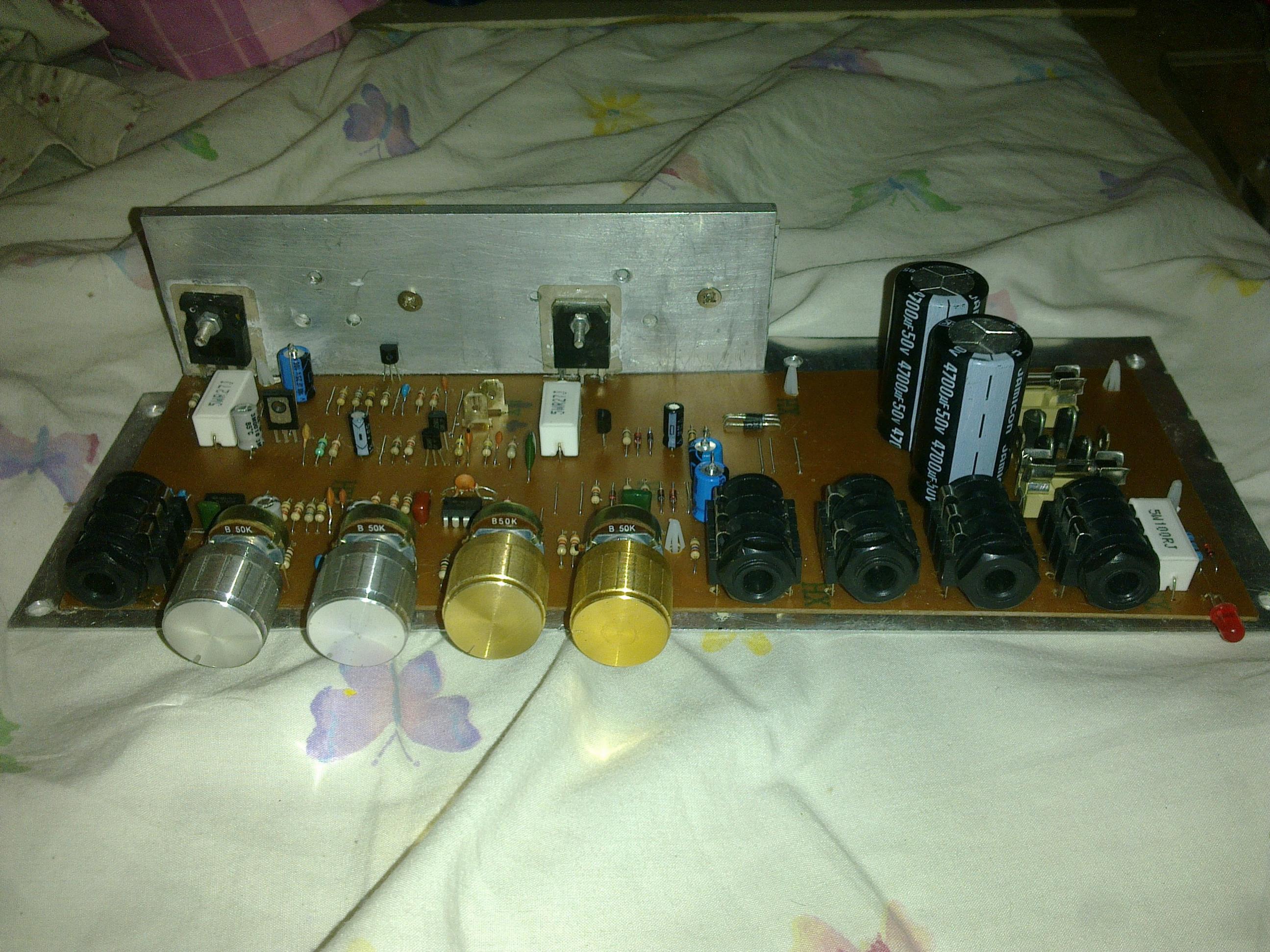

APEX 100W Guitar Amp. Almost Done...
Sir Mile any replacement for 2n5638" other than J309 / J310 ..
THANK YOU SO MUCH AND MORE POWER.



[olafk]

Weekend Project Part 2

Part 1 is AX-6 as you can find here.
ML3 should be the preamp. Project is a amplifier to use for the kids for karaoke and just for fun.
I made a new PCB to use components from the shelf.

regards Olaf



[desertstorm]

Is anybody interesting about 100w guitar amp?

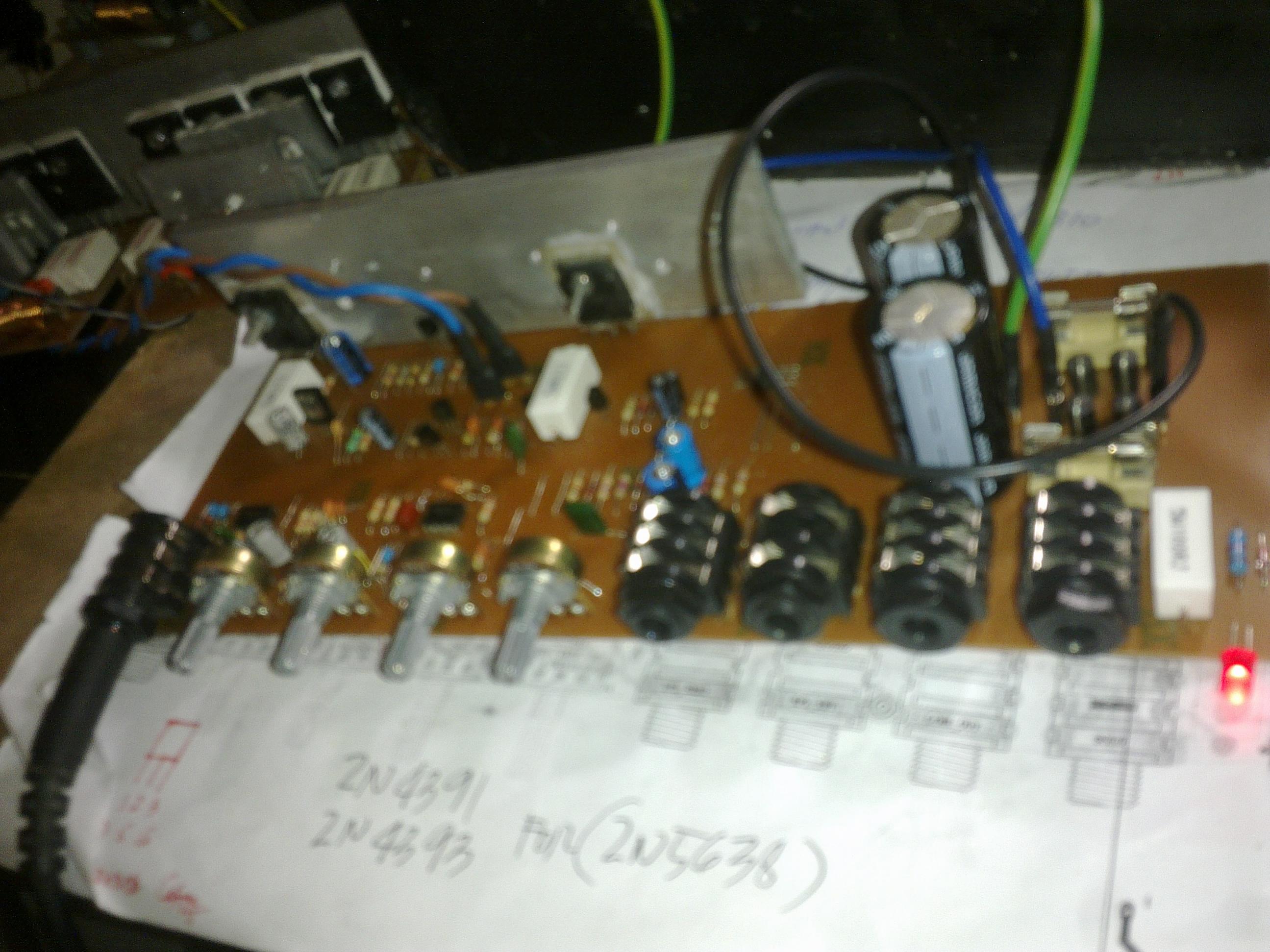

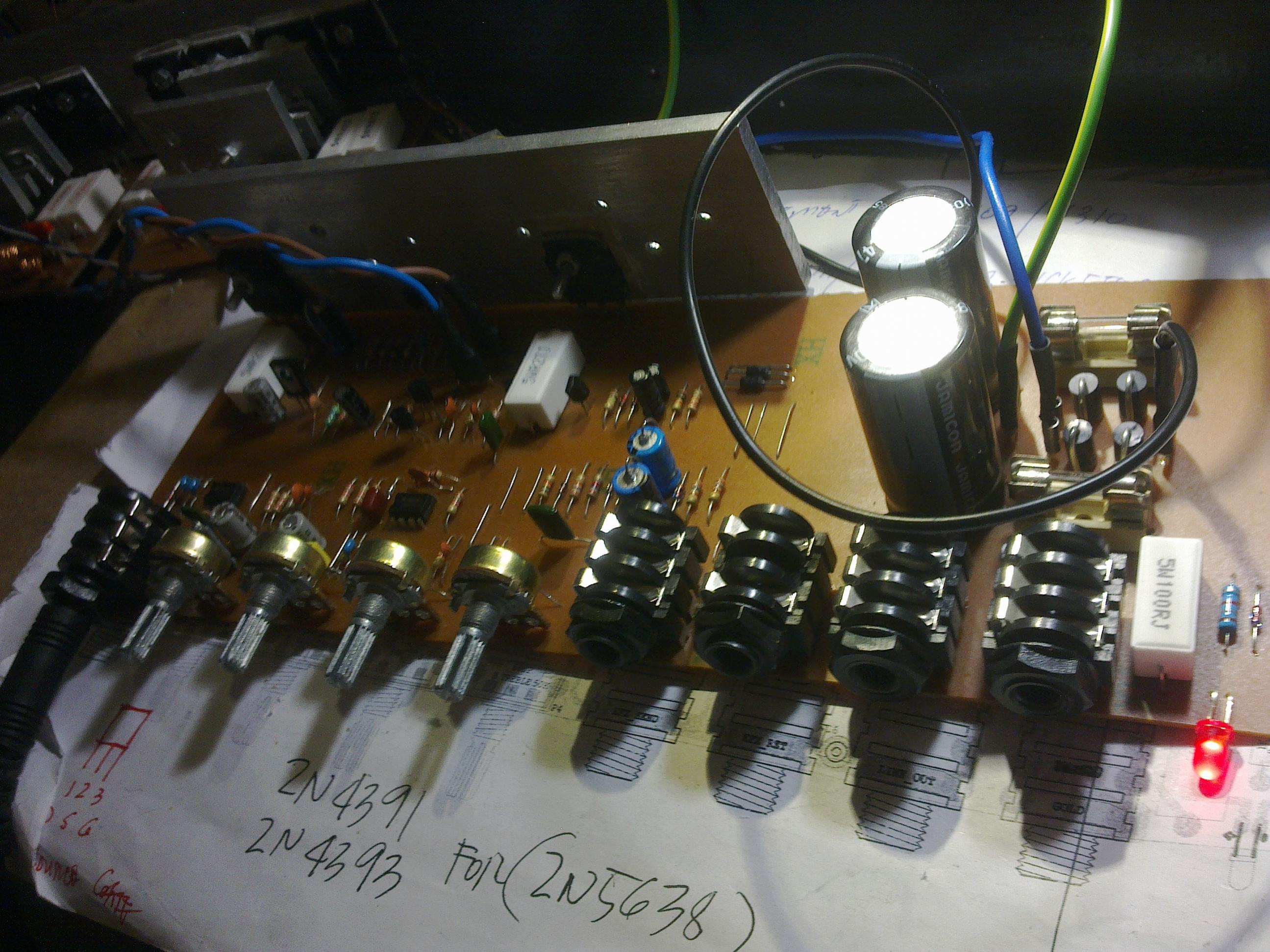

My 100W guitar amp. working very good...thanks sir Mile..



[desertstorm]

Is anybody interesting about 100w guitar amp?

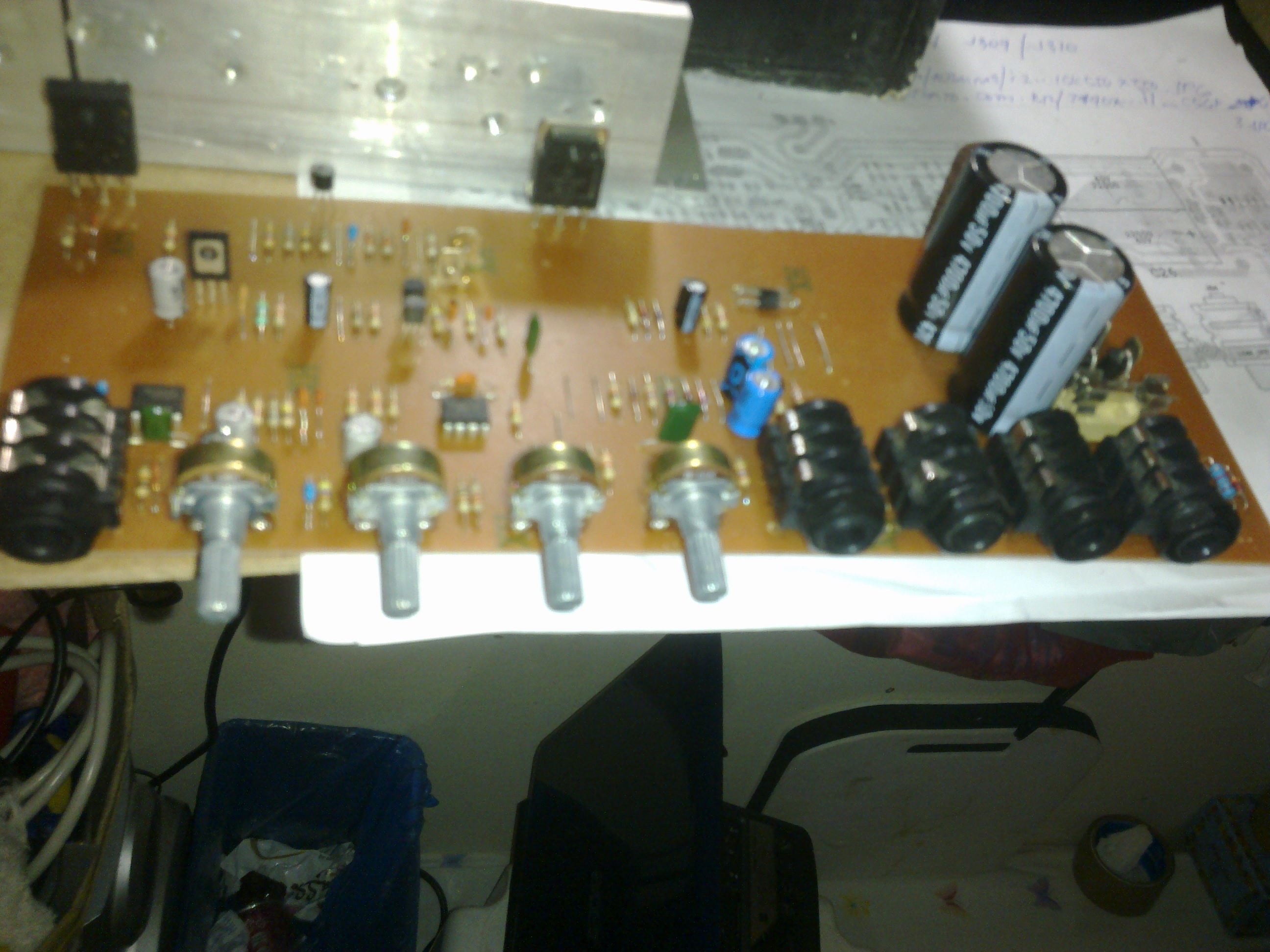

My 100W guitar amp. Project..



[sasek]

Bass selector frequency and boost circuit

Hi all.
I want to build tone control to boost low bass frequency.
So my circuit must have two pot control.
Fisrt pot to select bass frequency example 20hz to 160hz
2nd pot to boost selected frequency.

Need help reference circuit and if can calculation for each part.
Thanks all.



[ullaabdee]

Mr mile, i have built ml3 but i get a little noise and hum. How to reduce the gain? Can i replace 100k resistor with 47k or 56k? Thanks before...



[rohin]

hi apex sir,i am making 4 channel mixer.i want special crossover circuit for high (satelite speaker or top).please give me if you have.thanks sir.
