Old 8th November 2017, 06:38 PM   #121
Tektor is offline Tektor
diyAudio Member

Join Date: Aug 2017
IMG_20171108_193211.jpg - Google Drive
hope that photo is good enough ;d
  Reply With Quote
Old 9th November 2017, 03:14 PM   #122
doctormord is offline doctormord  Germany
diyAudio Member

doctormord's Avatar

Join Date: Oct 2007
Yes, will be back shortly.
  Reply With Quote
Old 13th November 2017, 12:44 PM   #123
doctormord is offline doctormord  Germany
diyAudio Member

doctormord's Avatar

Join Date: Oct 2007

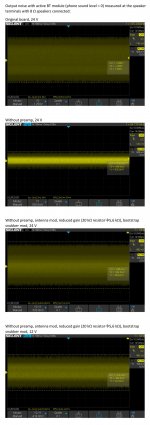

How to fix/remove/bypass the (unneeded) Diff2SE stage:

SANWU TPA3116 + CSR8635 Bluetooth 4.0 - Noise Fix-unknown_brand_v3-1_tpa3116_sediff_fix_360customs-jpg

Keep wires (per channel) close together. Every component with an X needs to get removed.
Attached Images
File Type: jpg Unknown_brand_V3.1_TPA3116_SEDIFF_FIX_360customs.jpg (435.7 KB, 522 views)
  Reply With Quote
Old 13th November 2017, 05:17 PM   #124
millstonemike is offline millstonemike  United States
diyAudio Member

Join Date: Oct 2014
Location: NY Tri-state Area
Quote:
Originally Posted by doctormord View Post
How to fix/remove/bypass the (unneeded) Diff2SE stage:

Keep wires (per channel) close together. Every component with an X needs to get removed.
Do you think it would be beneficial to use twisted pairs on each channel (e.x., salvaged from the data lines in a USB or a Cat5 cable)?
  Reply With Quote
Old 22nd November 2017, 02:35 PM   #125
doctormord is offline doctormord  Germany
diyAudio Member

doctormord's Avatar

Join Date: Oct 2007
Yes.
  Reply With Quote
Old 5th December 2017, 11:38 PM   #126
larzman is offline larzman  United States
diyAudio Member

Join Date: Aug 2006
Location: Chicago, IL
Quote:
Originally Posted by millstonemike View Post
Do you think it would be beneficial to use twisted pairs on each channel (e.x., salvaged from the data lines in a USB or a Cat5 cable)?
Mike, cat6 network cable has tighter twists and the pairs are bonded together, probably ideal for this
  Reply With Quote
Old 12th December 2017, 02:38 AM   #127
orto is offline orto  United States
diyAudio Member

orto's Avatar

Join Date: Nov 2006
Location: Minnesota
Does anybody know of a good way to add a potentiometer to these tpa3116 boards? Ideally the volume knob would control the gain for the line input and bluetooth input. Would it be as simple as removing the resistor that set the initial gain and adding a 10k pot?

Also its been forever, but thanks to your help doctormord I am now able to program the bluetooth chips on these boards. I am amazed at the capability of them. Thanks again!
  Reply With Quote
Old 12th December 2017, 07:09 AM   #128
Shaun is offline Shaun  South Africa
diyAudio Member

Shaun's Avatar

Join Date: Aug 2001
Location: Cape Town, South Africa
SANWU TPA3116 + CSR8635 Bluetooth 4.0 - Noise Fix
Quote:
Originally Posted by orto View Post
Also its been forever, but thanks to your help doctormord I am now able to program the bluetooth chips on these boards. I am amazed at the capability of them.
I am curious to know what it is you are doing with these (programming?).
__________________
Shaun Onverwacht
|||||||||| DON'T PANIC ||||||||||
  Reply With Quote
Old 12th December 2017, 08:45 PM   #129
orto is offline orto  United States
diyAudio Member

orto's Avatar

Join Date: Nov 2006
Location: Minnesota
So far I have only changed the name of the Bluetooth device and used the 5 band eq to apply some baffle step compensation. But there are many many things you can change.
  Reply With Quote
Old 14th December 2017, 08:46 AM   #130
protos is offline protos  Greece
diyAudio Member

protos's Avatar

Join Date: Mar 2002
Location: Athens+Ljubljana
I would be interested too in any links/posts on how to program the bluetooth chips.

By the way, I got some sanwu 7294 modules that have very little noise compared to the first ones- but they look absolutely exactly the same! This means there is a way to fix the problem by the factory. On the other hand the nobsound 3116 2.1 channel "audiophile" module has a lot of bluetooth static but there is no way to mod it since the preamp section is different. I tried the doctormord mod on the noisy 7294 boards but despite my 15 year diy audio soldering experience I ended up either lifting the solder pads or some other damage to the board. Just know these pads cannot take more than 1 or 2 interventions.
__________________
``The author always assumes that when power is applied , the amplifier will explode or ,at the very least, catch fire.
Morgan Jones, Building Valve Amplifiers.

Last edited by protos; 14th December 2017 at 09:00 AM.
  Reply With Quote
