ZeroZone Tu1-EMP-V2

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
Guys,

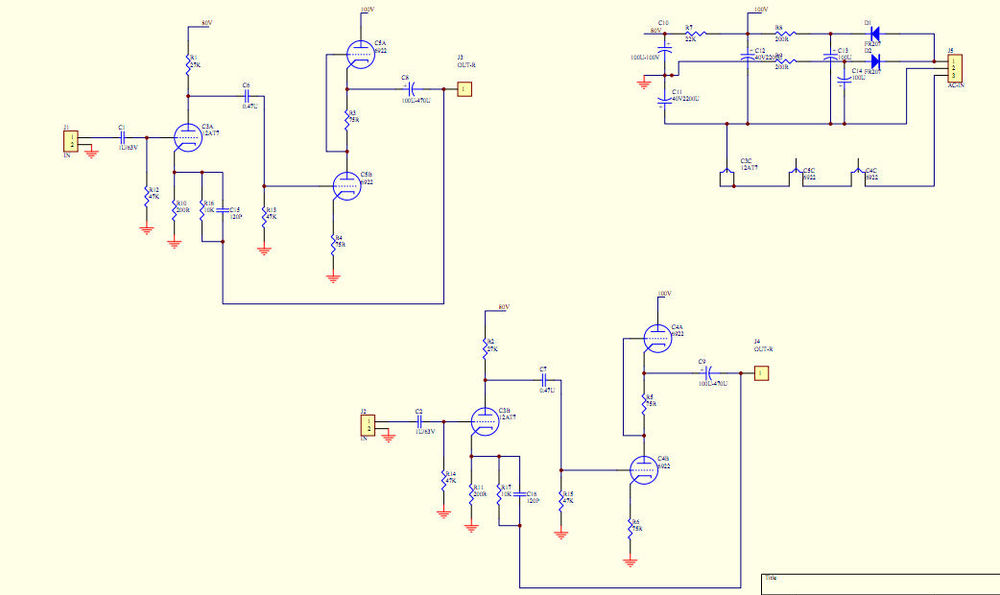

Could you help to understand the attached schematic.

This is a chinese tube amp kit, according to the description the schematic based on Earmax. But I'm afraid, it's definitely not.
TU1-EMP V2 6922+12AT7 Tube headphone amplifier DIY Kit (Note no tubes) | eBay
According to the ebay item description the power supply is 18-0-18V AC, but the schematic shows 80V and 100V anode voltage.
Could you explain the working of the power supply part of the schematic?

Thanks


Attachments

  • HTB11usQKFXXXXbNXXXXq6xXFXXX4.jpg
    59.9 KB · Views: 204
