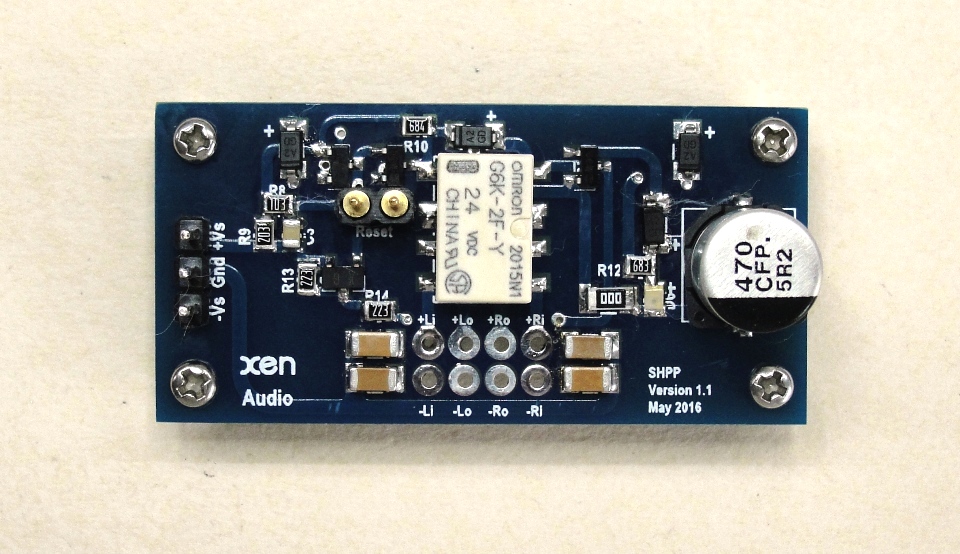

With dynamic headphone now getting more and more expensive,
and the many high bias class A amplifiers around, including two from us,
it is perhaps a good idea to have a protection circuit for headphones.
The difference to a loudspeaker protection is of course the lower trigger voltage level (e.g. +/-80mV DC).
This requires a different treatment for the DC sensing stage.
Here is our solutions.
Works first time as intended. 😉
http://xen-audio.com/documents/SHPP/XEN SHPP V1.pdf
Patrick
.
and the many high bias class A amplifiers around, including two from us,
it is perhaps a good idea to have a protection circuit for headphones.
The difference to a loudspeaker protection is of course the lower trigger voltage level (e.g. +/-80mV DC).
This requires a different treatment for the DC sensing stage.
Here is our solutions.
Works first time as intended. 😉
http://xen-audio.com/documents/SHPP/XEN SHPP V1.pdf
Patrick
.

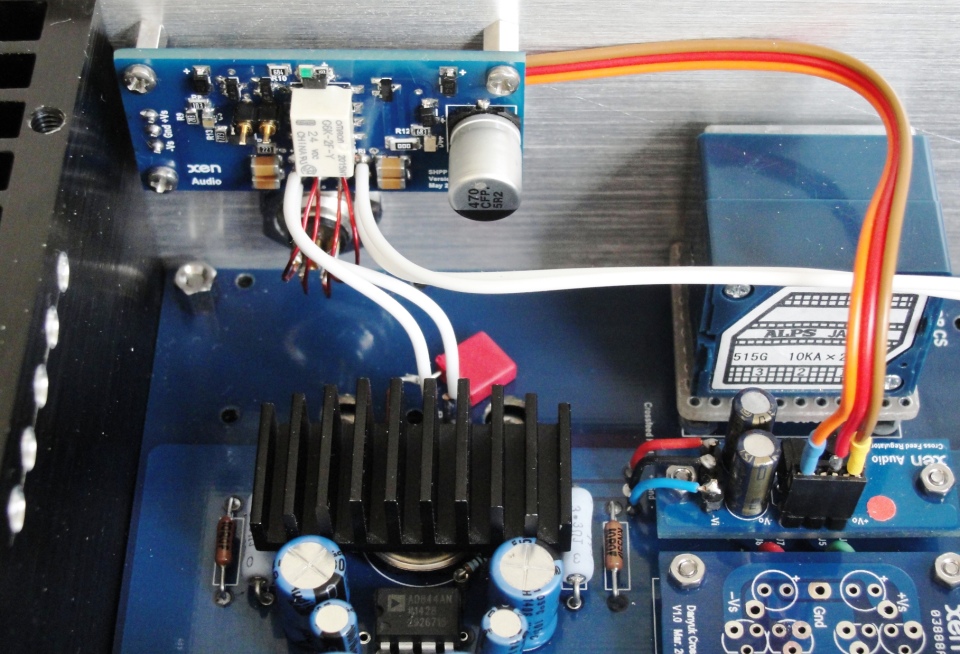

Attachments
Nice compact board.
One question though: what's the trigger delay when there's a real problem like the output going to rail voltages ?
One question though: what's the trigger delay when there's a real problem like the output going to rail voltages ?
3s, as already mentioned in the article.
Also mentioned in the article is how it can be changed to suit individual needs.
Patrick
Also mentioned in the article is how it can be changed to suit individual needs.
Patrick
I agree - nice!.
I notice that when the output of the opamp is at the negative rail, the base-emitter of Q1 is reverse biased to almost the -ve rail voltage. Those intending to modify this design for use with higher rail voltages should keep this in mind, as the reverse breakdown voltage of the base-emitter junction is not very high.
I notice that when the output of the opamp is at the negative rail, the base-emitter of Q1 is reverse biased to almost the -ve rail voltage. Those intending to modify this design for use with higher rail voltages should keep this in mind, as the reverse breakdown voltage of the base-emitter junction is not very high.
Well spotted.
Can add a diode before R5 and another after the emiiter of Q2.
And then increase the gain by 2.
Patrick
Can add a diode before R5 and another after the emiiter of Q2.
And then increase the gain by 2.
Patrick
According to
Integrated Analog-To-Digital and Digital-To-Analog Converters
Rudy J. van de Plassche
Section 9.2.1
The Veb junction can be used a Zener diode when reversed bias current is limited to <1mA.
So we can actually simply change R5, R6 to 10k intead of 1.5k.
Patrick
Integrated Analog-To-Digital and Digital-To-Analog Converters
Rudy J. van de Plassche
Section 9.2.1
The Veb junction can be used a Zener diode when reversed bias current is limited to <1mA.
So we can actually simply change R5, R6 to 10k intead of 1.5k.
Patrick
Yes it can but is very noisy. Some equipment uses reverse-biased e-b as a noise source...
BTW regards from Jacco, I just met him in Turnhout. ;-)
Jan
Great, let me know as soon as you have an answer. I would be interested in to-92 sinks at the same time also if possible.
Heat sinks out of stock.
We shall only restock when we have other GBs to serve.
Too much work and margin too low.
Sorry.
Thank you for your interest in any case,
Patrick
We shall only restock when we have other GBs to serve.
Too much work and margin too low.
Sorry.
Thank you for your interest in any case,
Patrick
