I use ChongX for prototyping because they are cheap enough to throw away if the design doesn't work...
Generally though, they are cheap 1000H parts that fail like yours.

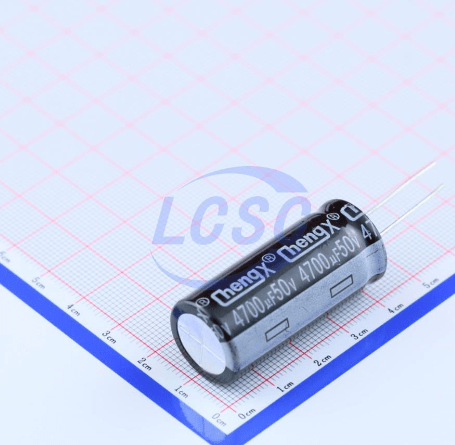

Generally, the price of Rubycon at Mouser is insane - LCSC sells the exact part for 60+% less money - but you pay shipping...
Actually - The ChongX caps were all in stuff I needed to repair - I buy ChengX for prototyping, not ChongX...
Google-ing tells me the ChongX is trying to be a knock off of ChengX... Nothing nice to say about ChongX but nothing that bad about ChengX...

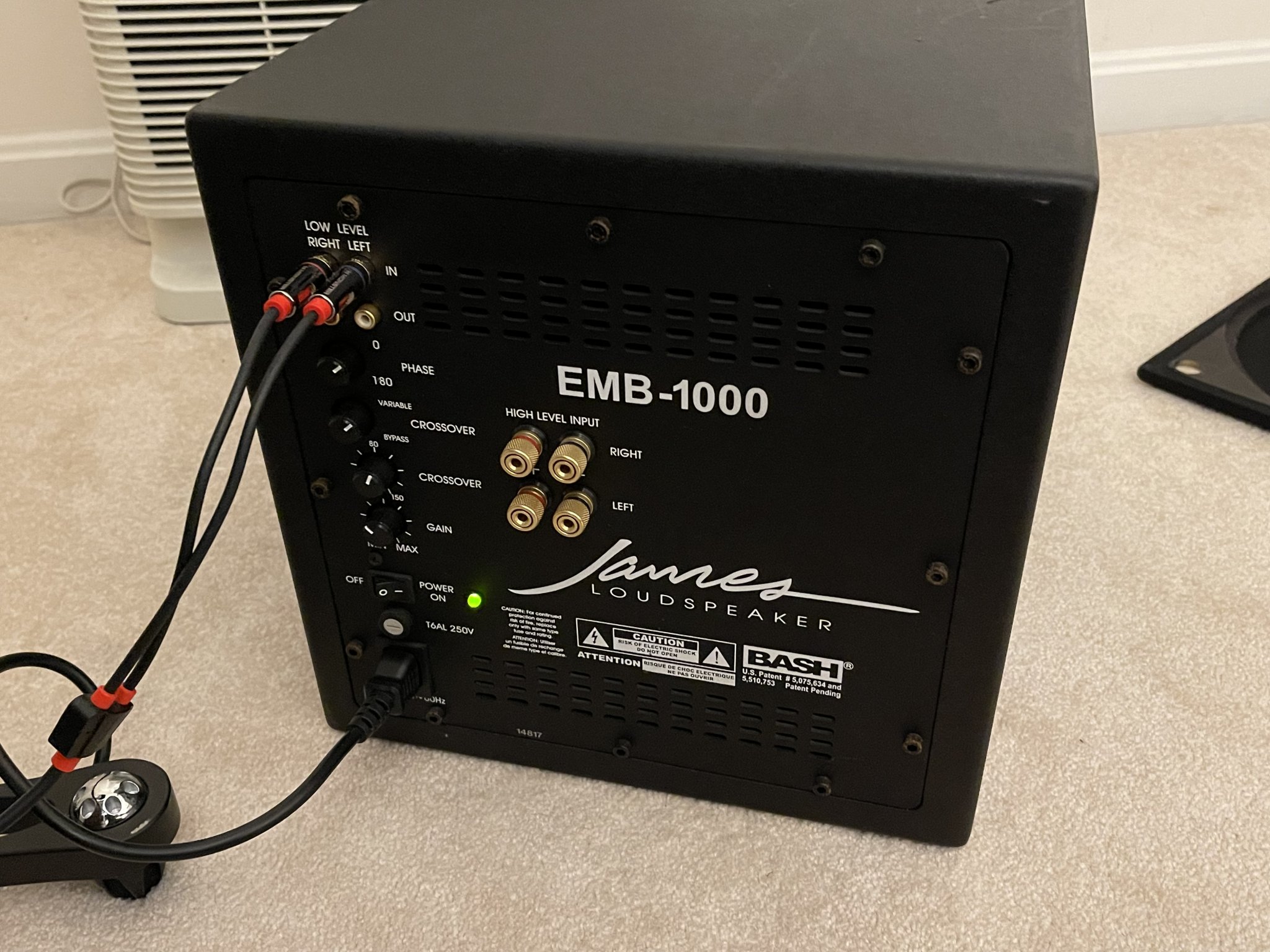

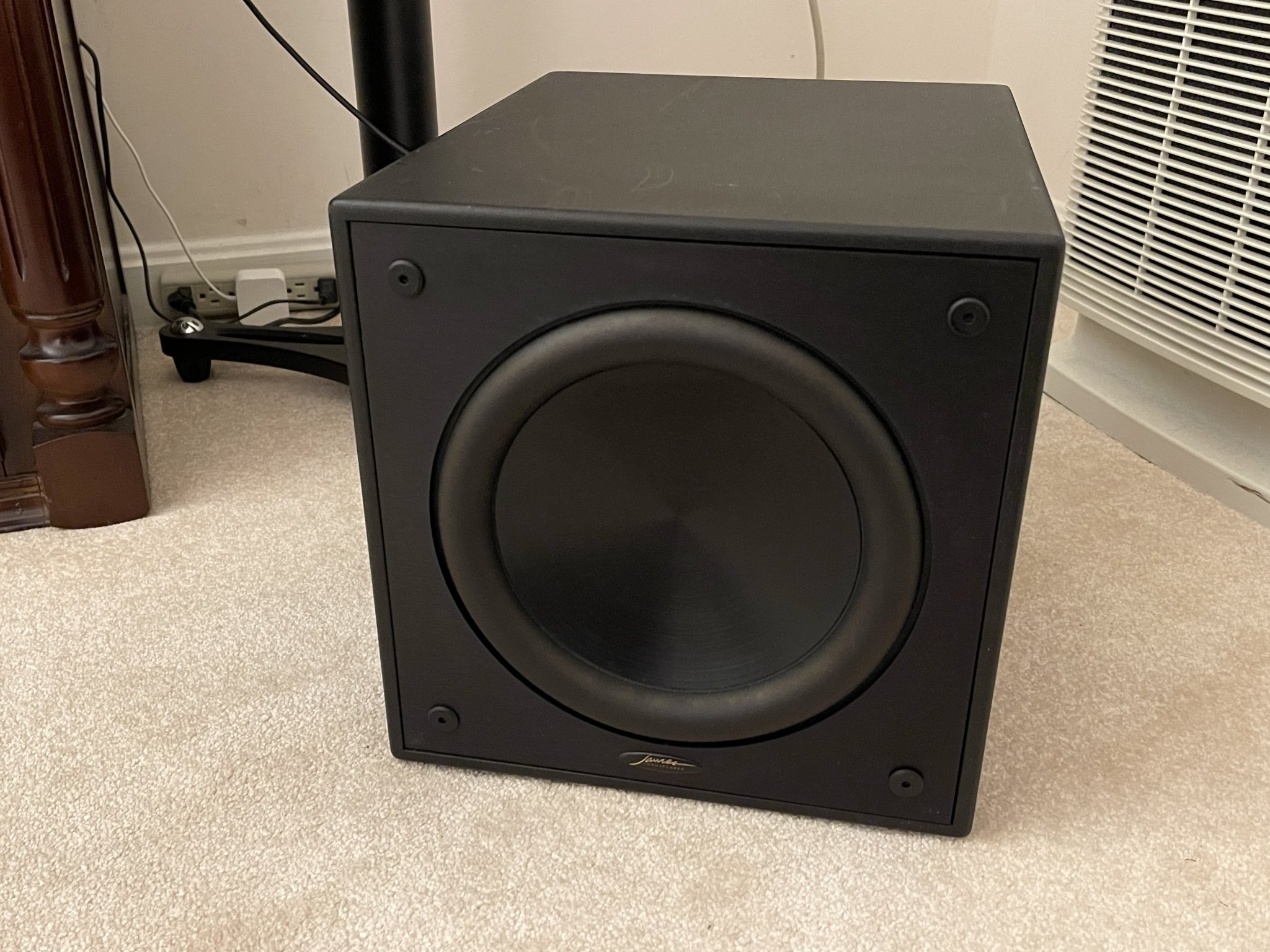

On the bench last night was a James EMB-1000 subwoofer given to me by a buddy at work who is just starting to get into diy by scooping up great deals on Craigslist. He got the trove of the century with 5 various powered subs, and a B&W DM604 (one cabinet has a chip but otherwise works well) for $100 from a guy who wanted to get out of his audiophile gear. Not kidding. The EMB-1000 was one of the nicer subs and I really lucked out. It’s built very nicely and you can tell it exudes quality. Very heavy and stiff cabinet. Unique alignment I have not seen before: sealed sub with a bandpass tuned passive radiator. The sound is very smooth and tight. Not the usual flappy but deep HT sub sound. Great for music. 1000wrms and 20Hz to 150Hz (-2dB) with variable -24dB/Oct low pass crossover.

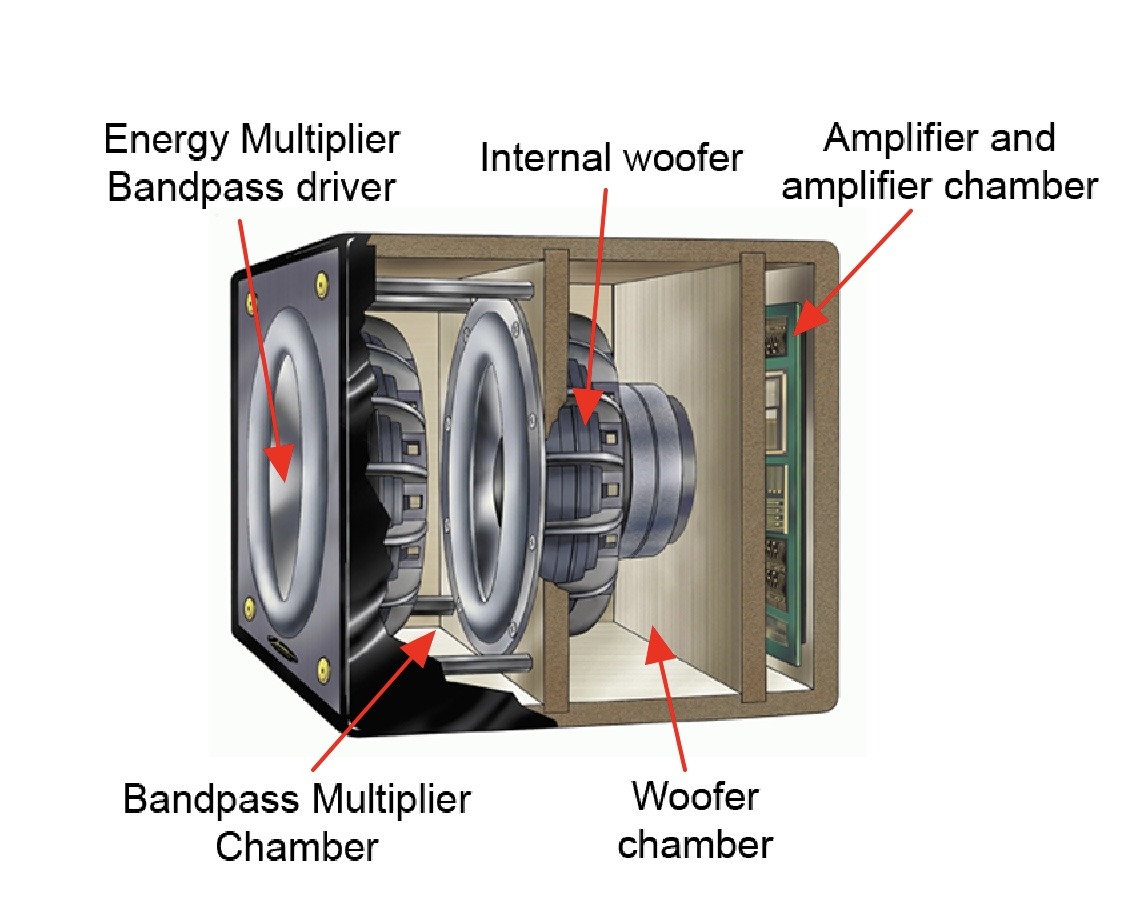

Insides look like this:

The controls all work nicely and the aluminum cone is very solid and stiff. Need to wait for the house to clear before I crank it up. It’s paired with the Vanguards in the bedroom at the moment.

Maker of Acon & ChongX shall be put in jail
Those were what inside my Panasonic A10 Integrated AMP and AMP died within 3 yrs perfectly after 2yrs warranty
Of course Panasonic must be put inside life time imprisonment , why use weird junk when u make excellent capacitor?

  • Like
Reactions: aditya
I am recapping a DBX 5X. I lost count of the caps but over 100 for sure. Being that there are many caps that look nearly identical, it is easy make a mistake if you just don't do them pretty much one at a time. Even better, the circuit board at first seemingly gives you a heads up for polarity, but no, that is something else entirely on the backside of the board. This will cure my wanting to solder for awhile.

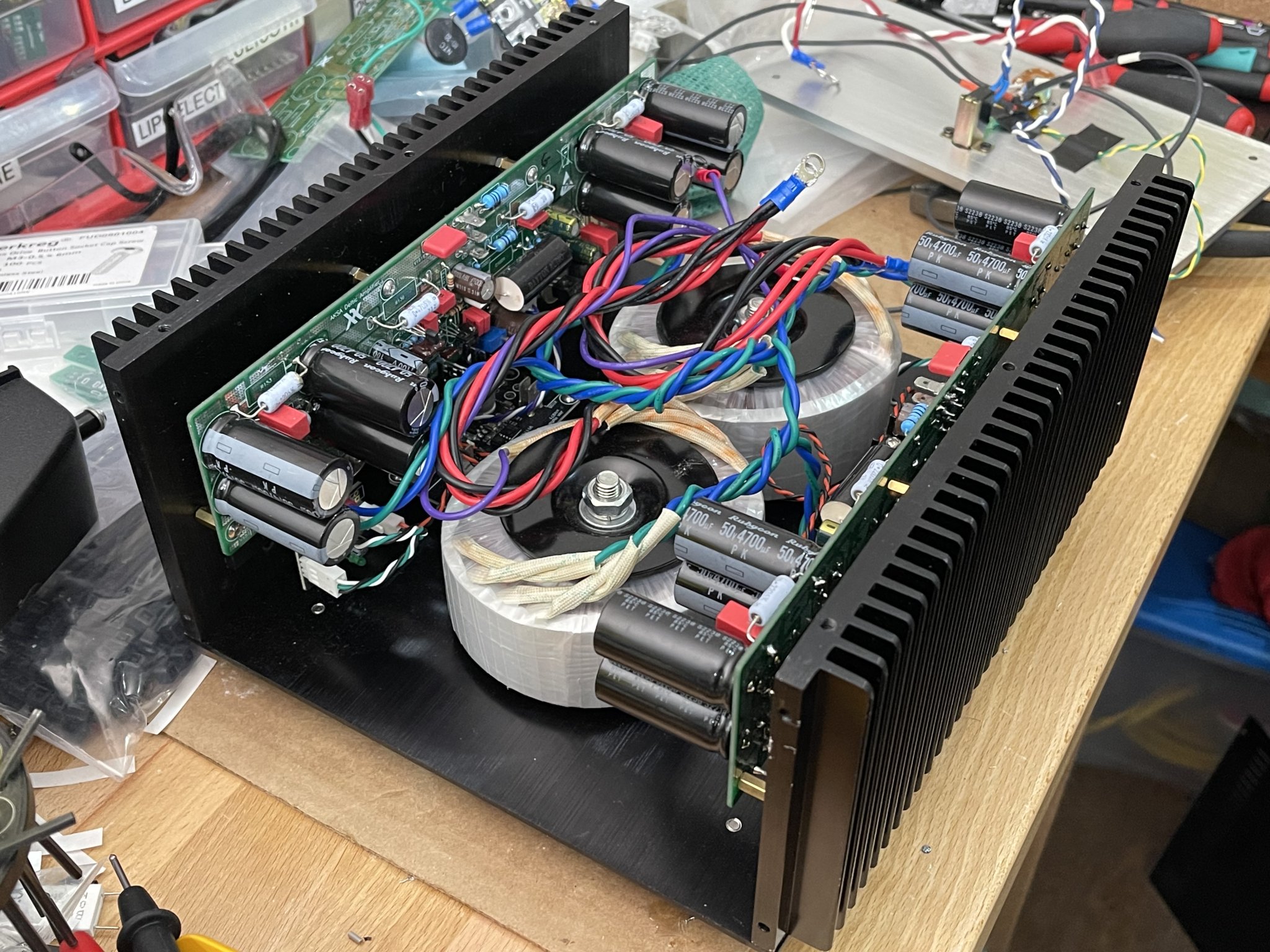

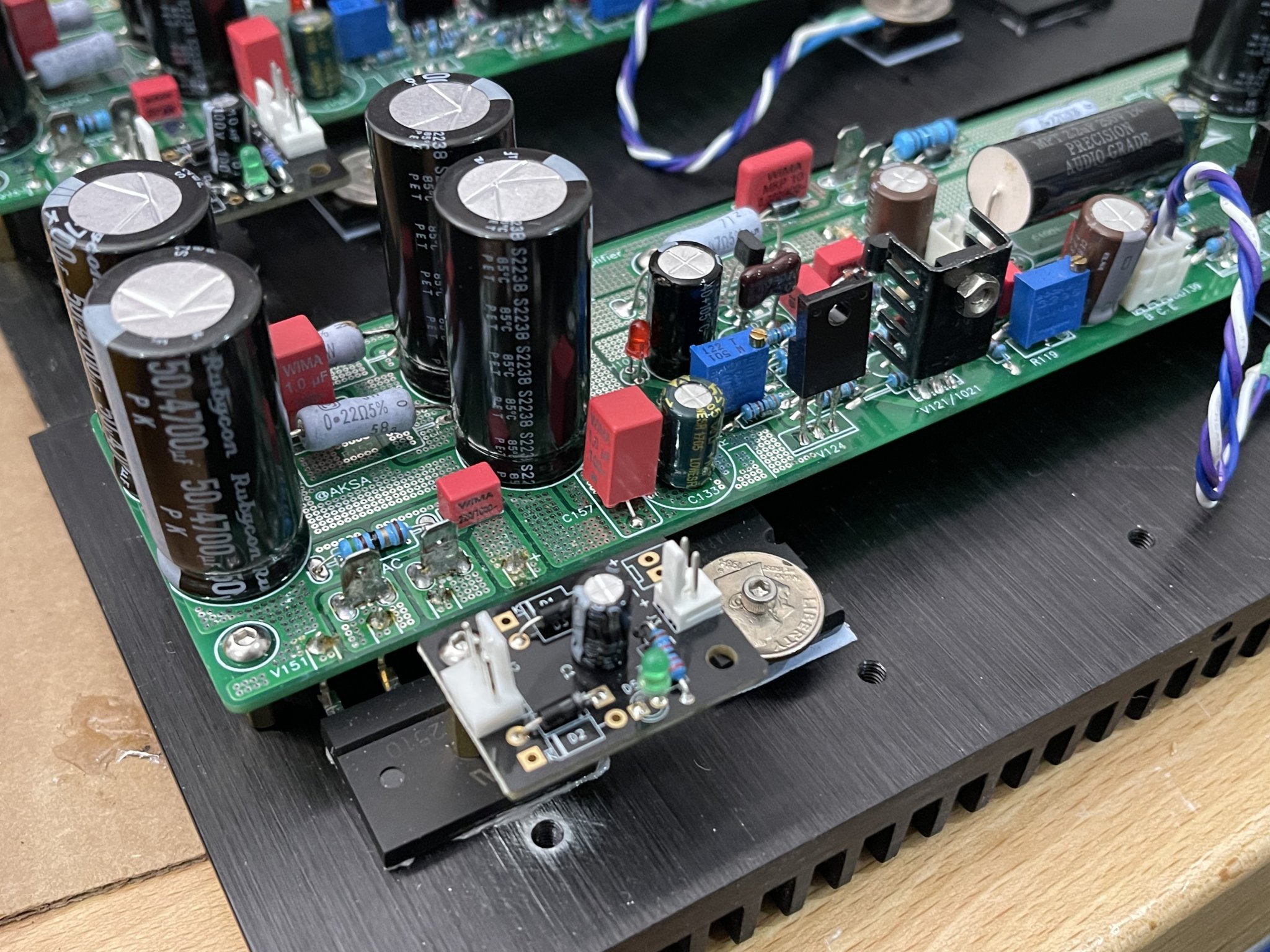

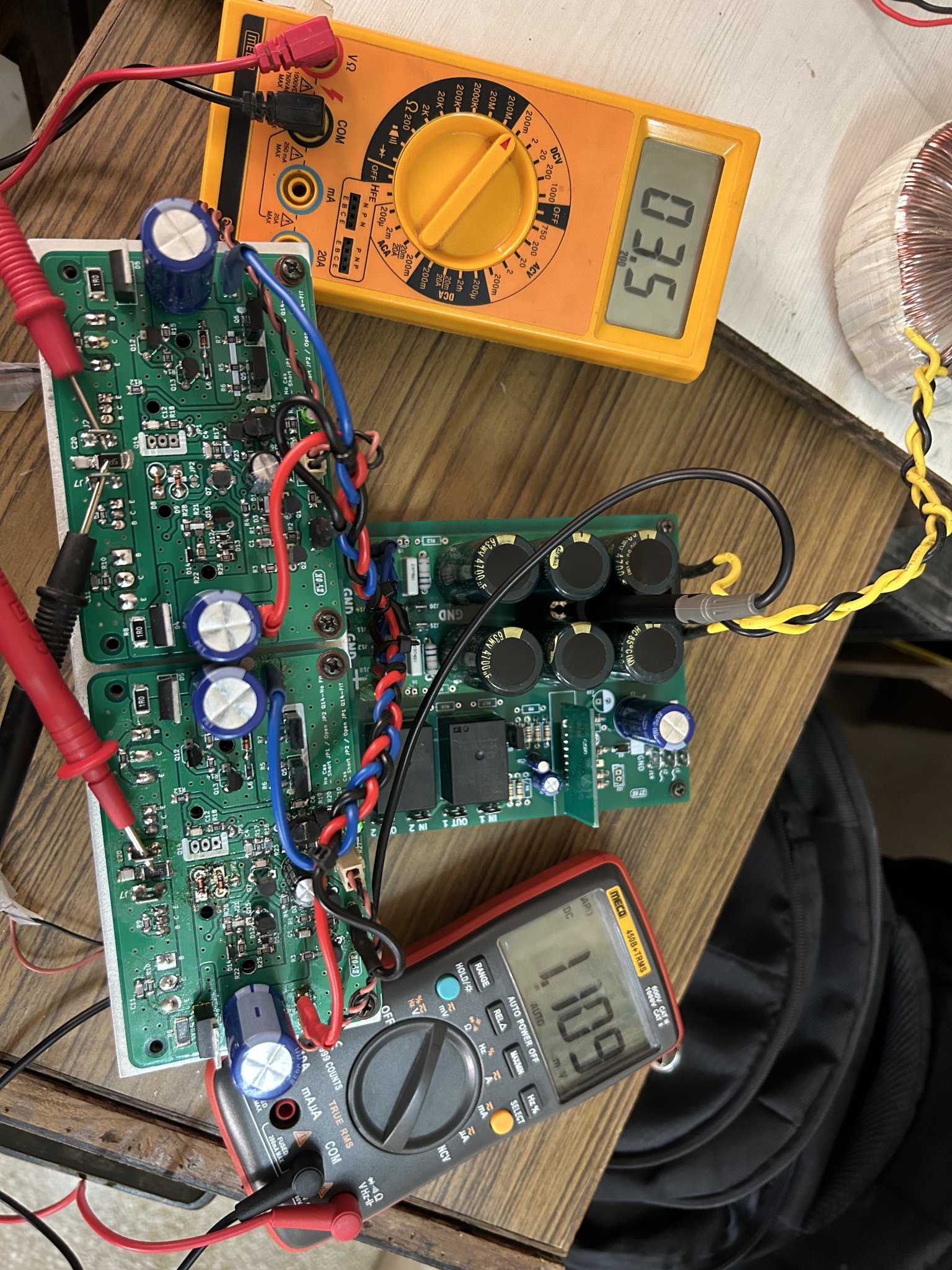

Listening to the newly assembled circlophone.
Those meters are showing offset with input short.
Sweet little warm amp.

Ps: old pic, all clean now. But still some more testing to be done. Running on a pair of TIP3055.
May it’s me but I liked 3055 vs 5200.


Attachments

  • ED1D8916-0B06-4B41-91F4-476CF508E60D.jpeg
    603 KB · Views: 86
  • Like
Reactions: xrk971

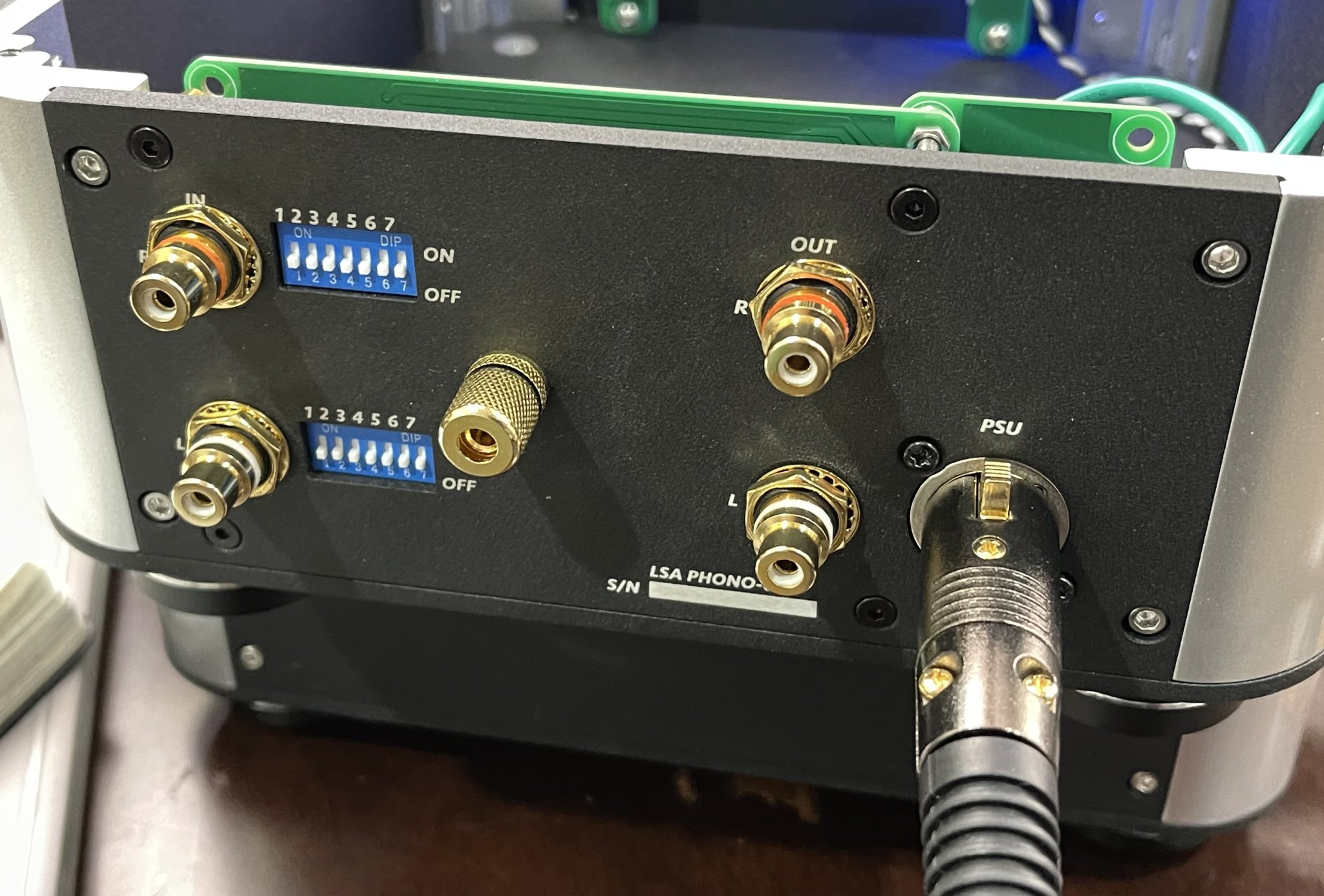

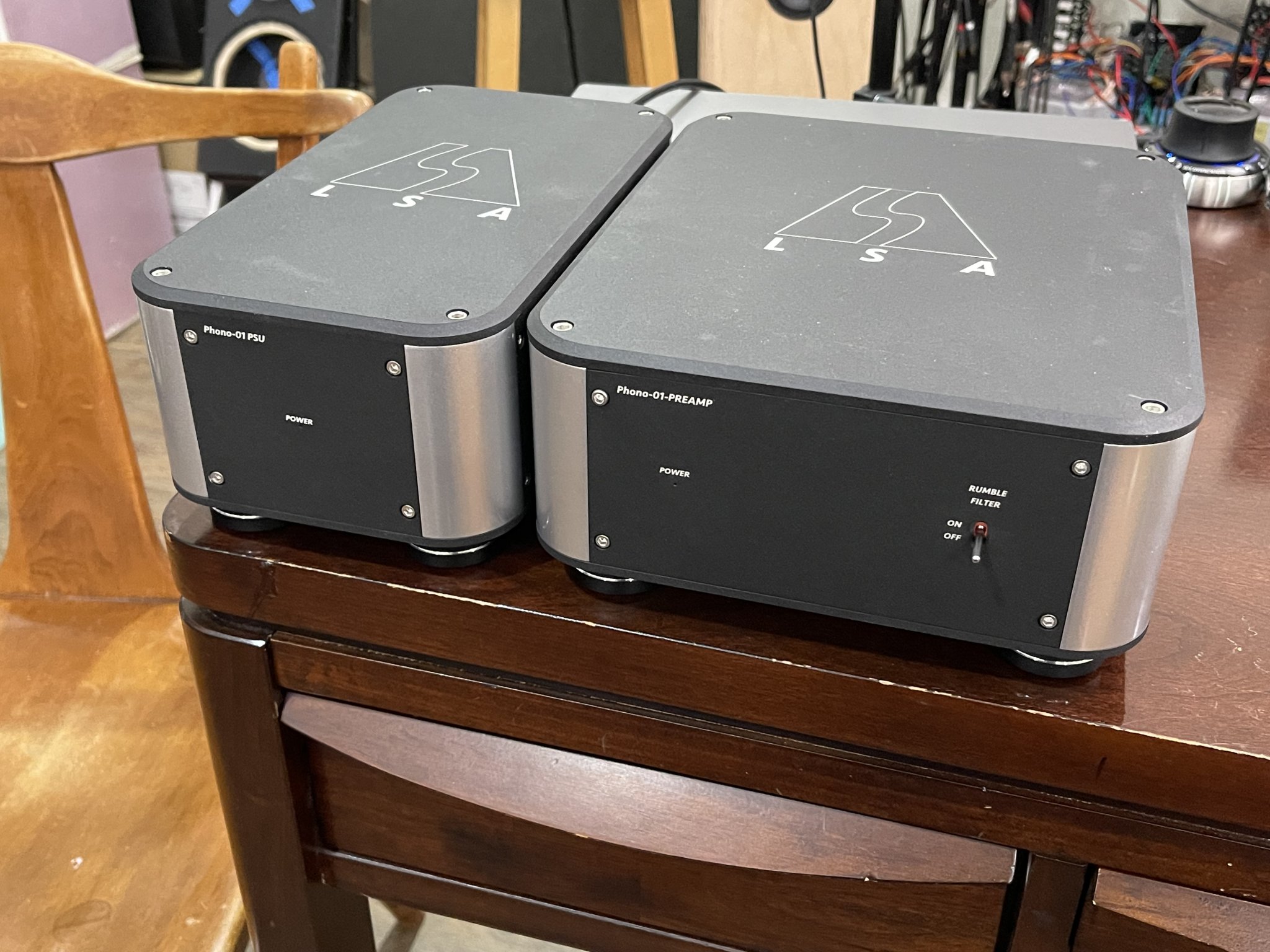

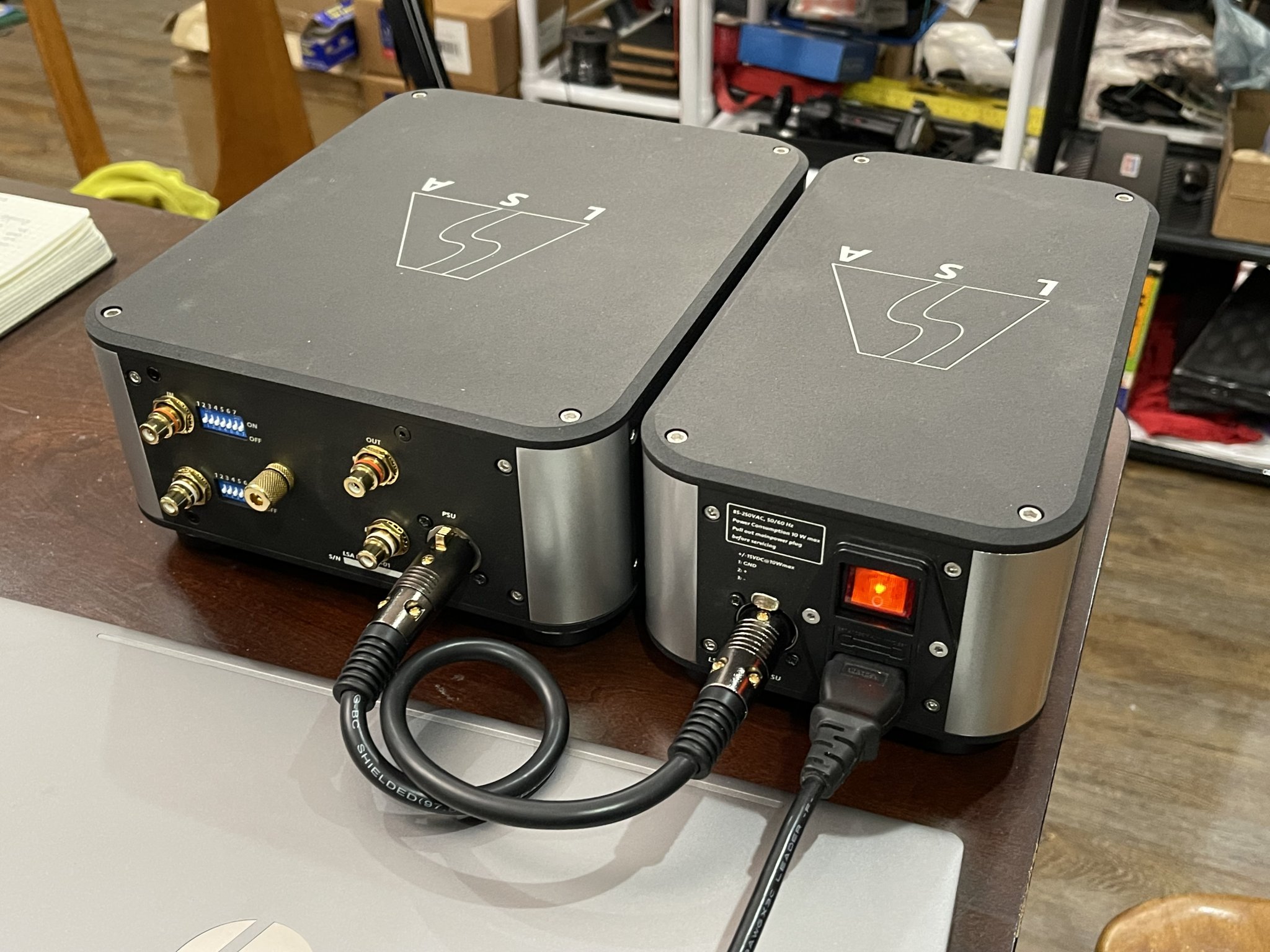

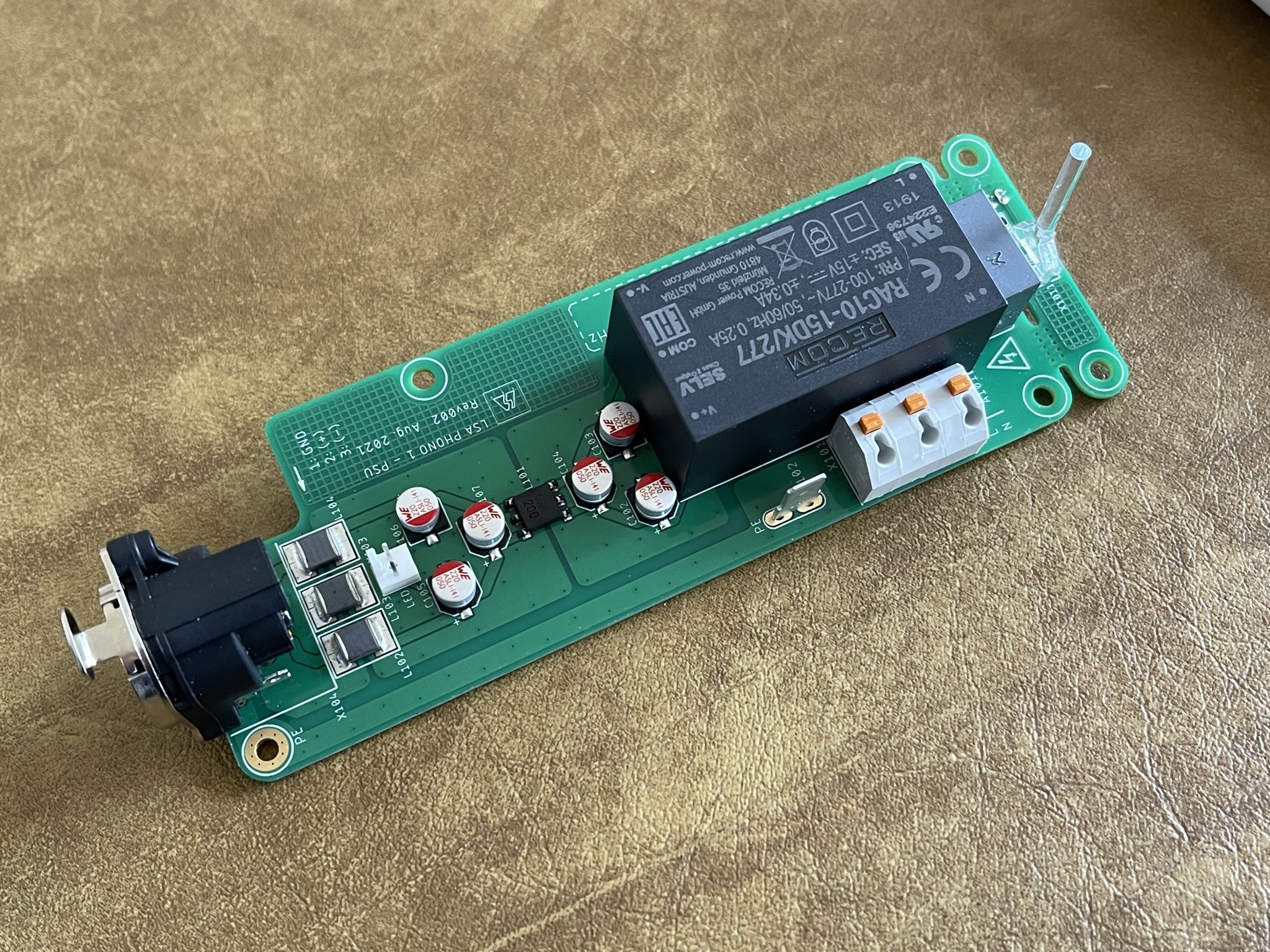

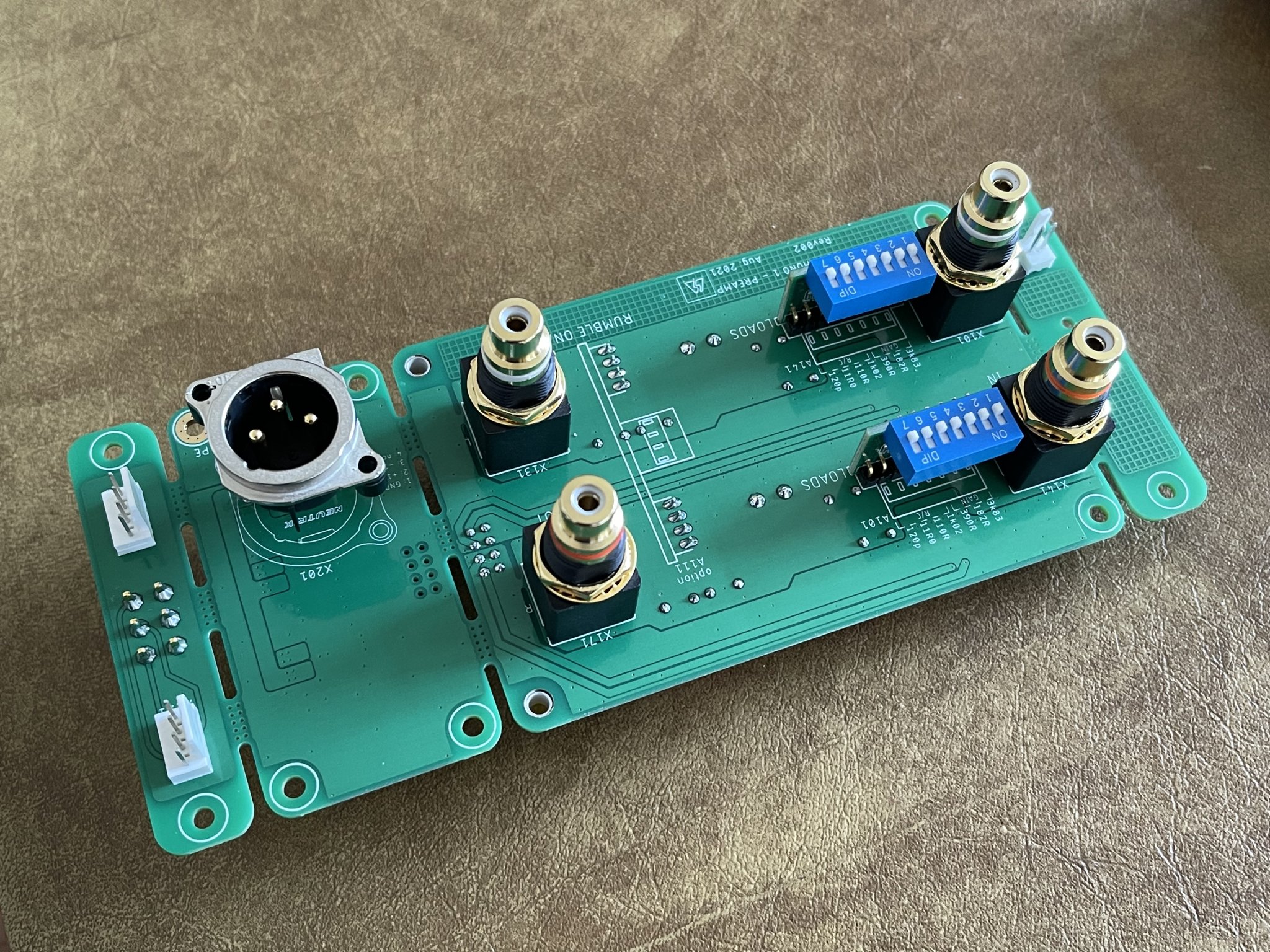

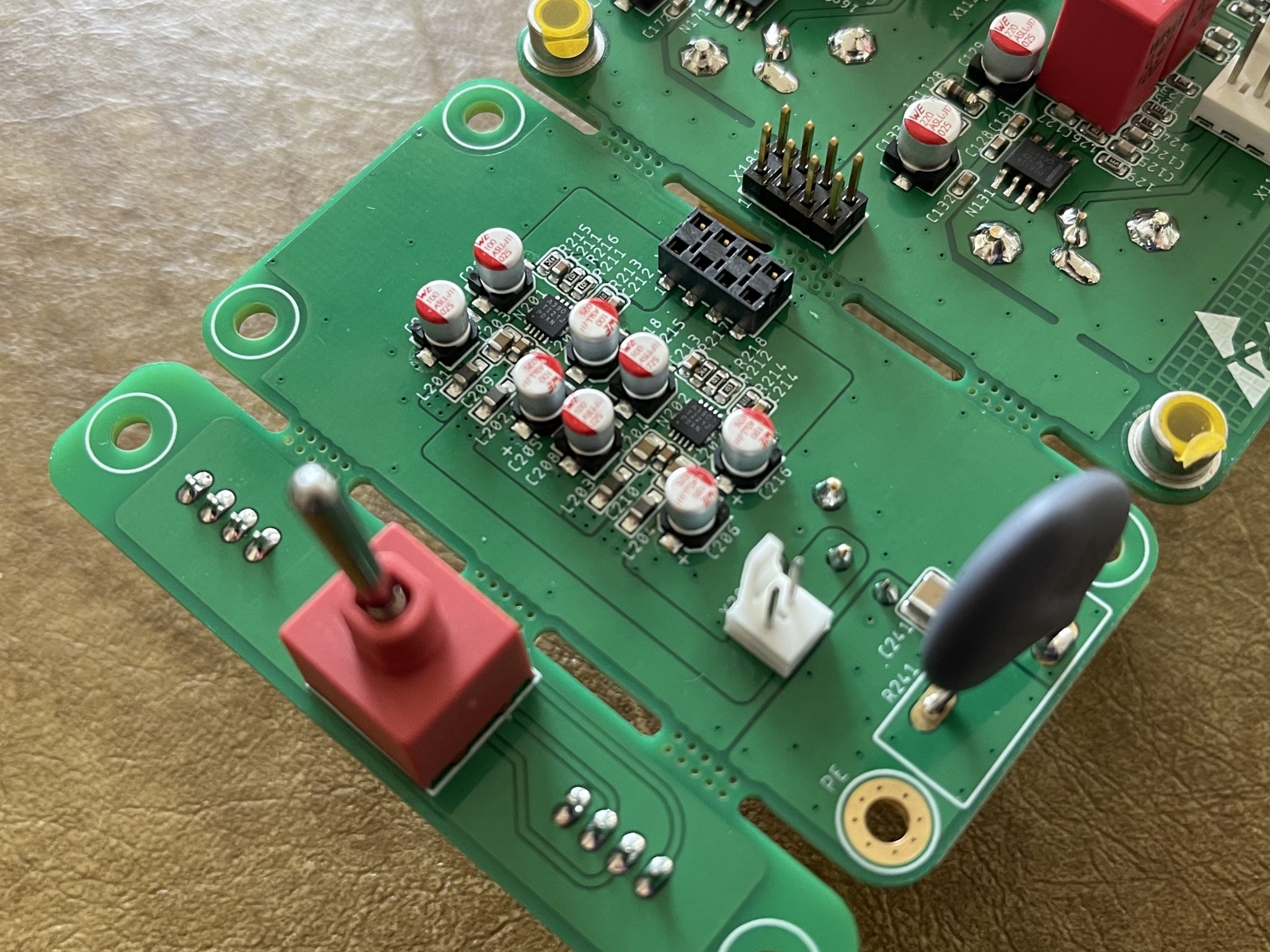

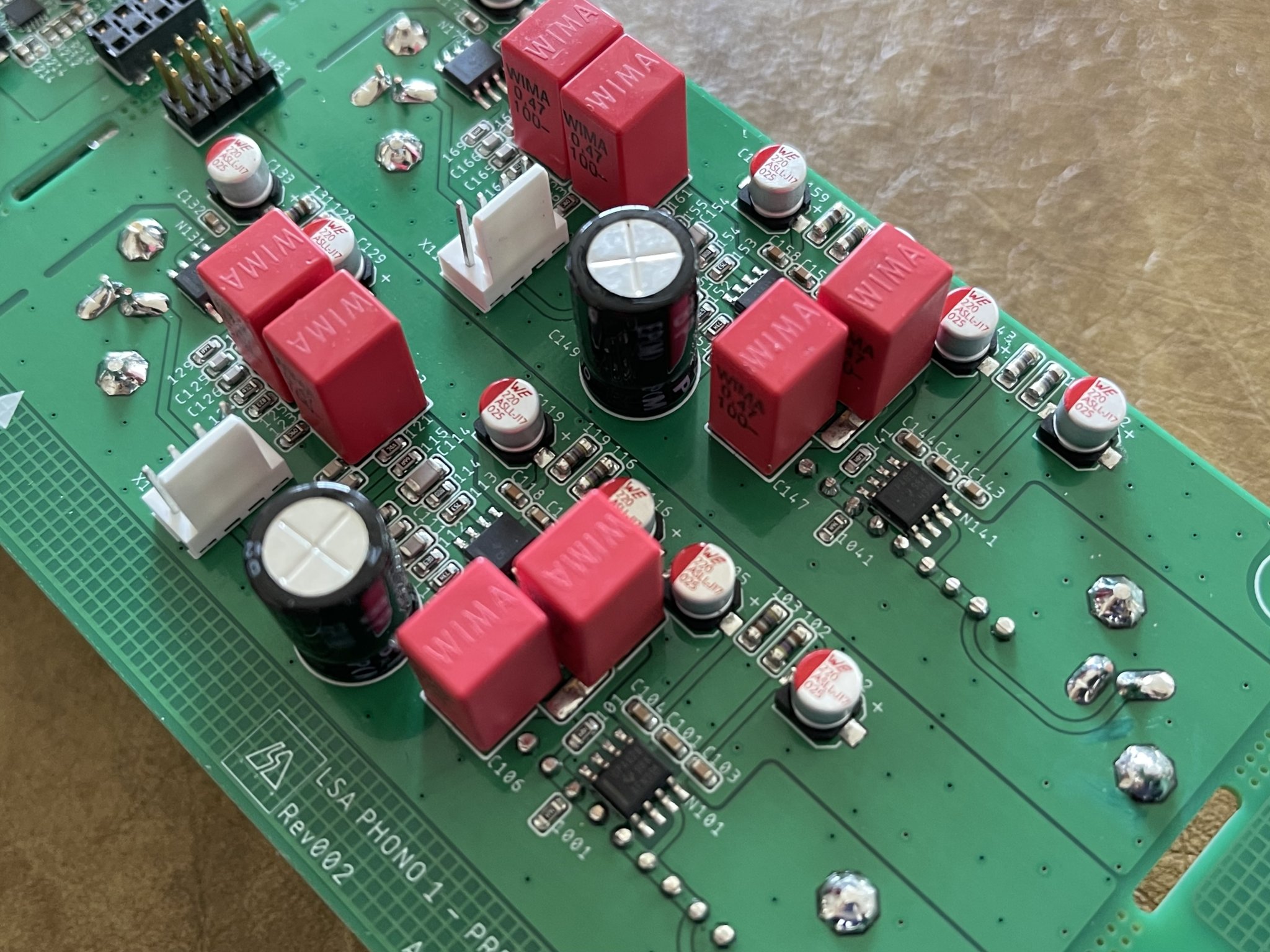

Made great progress on the phono preamp.

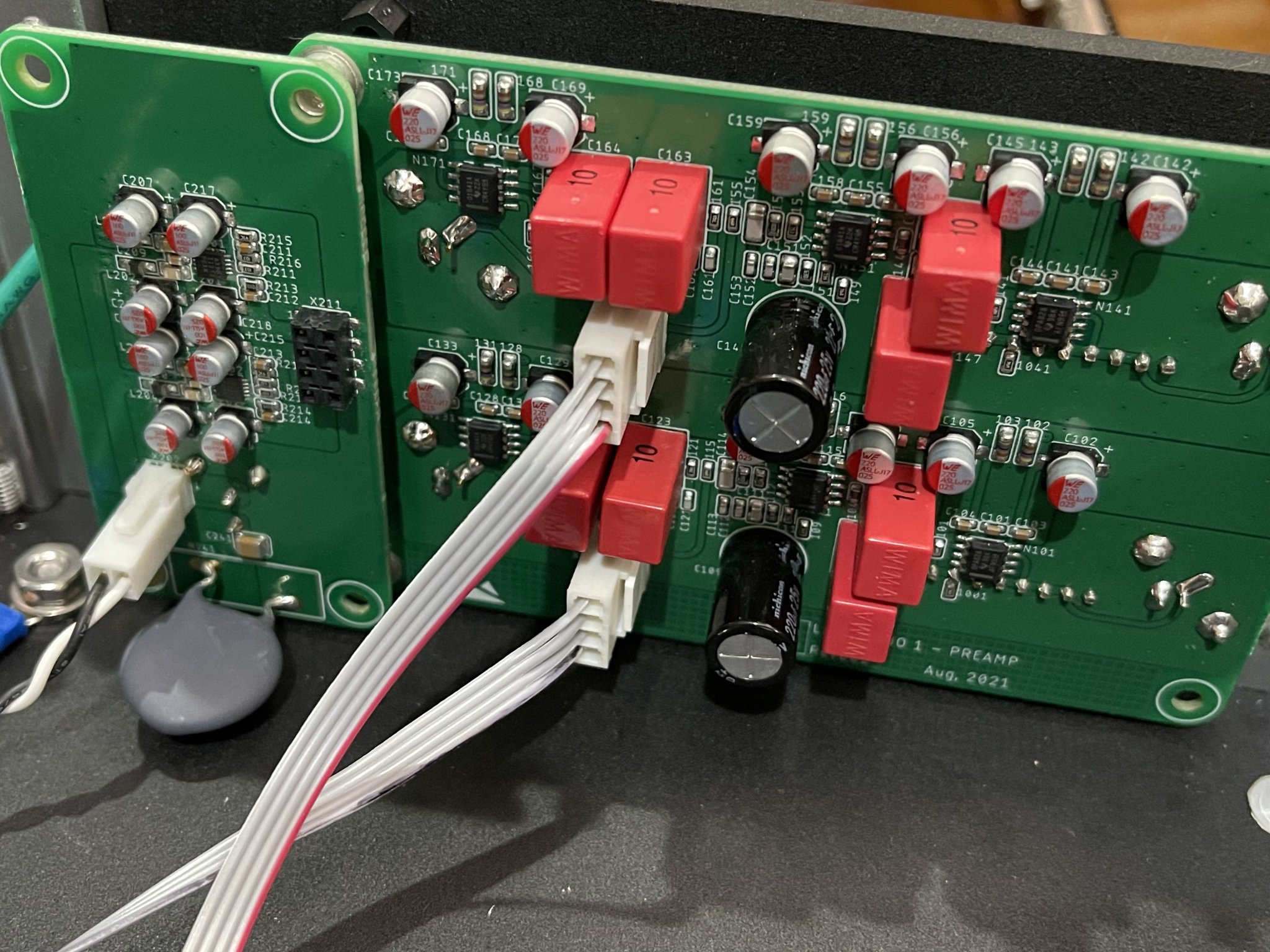

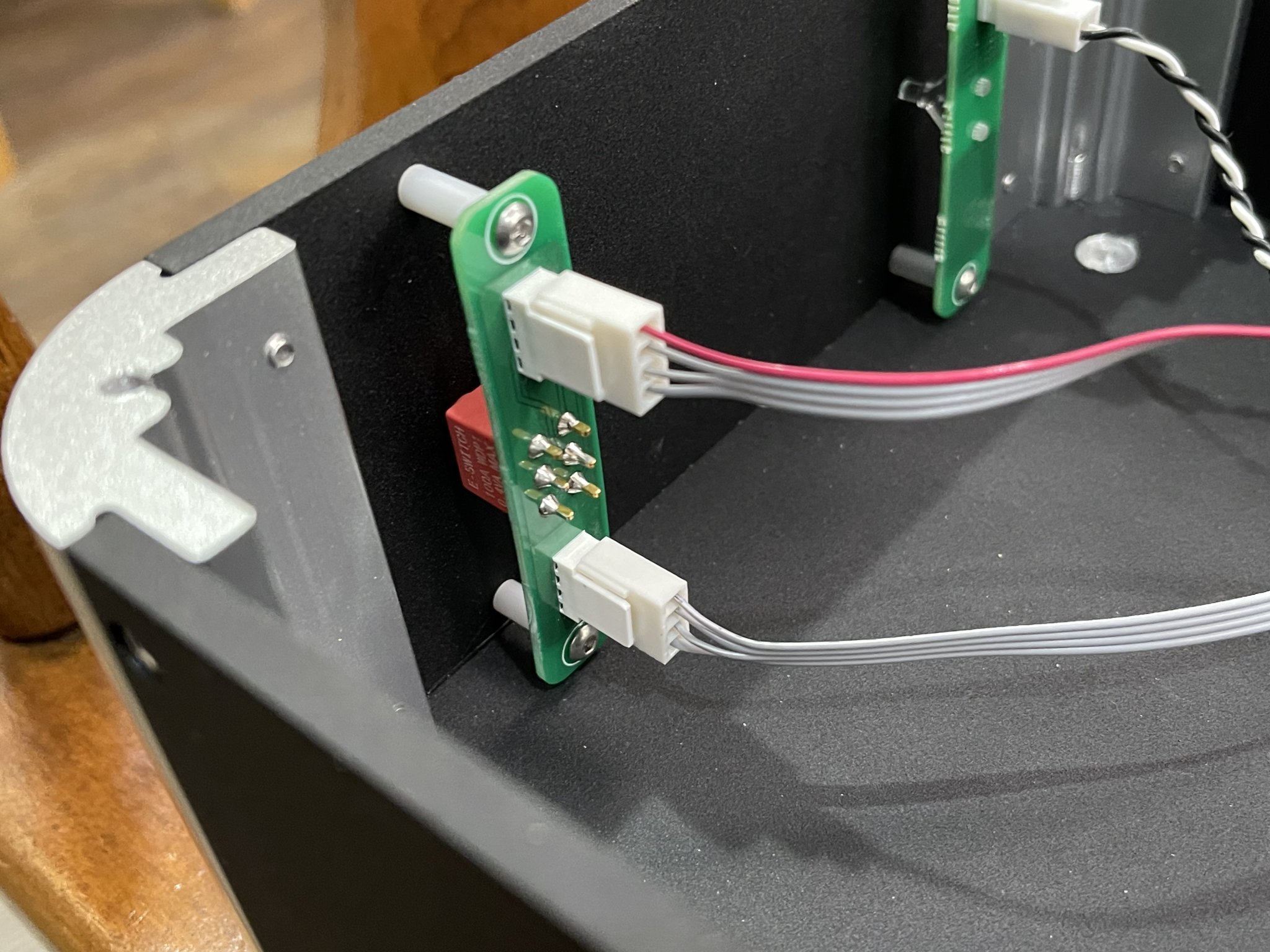

Almost got it working. Need to extend some header pins to be longer for a mezzanine board.

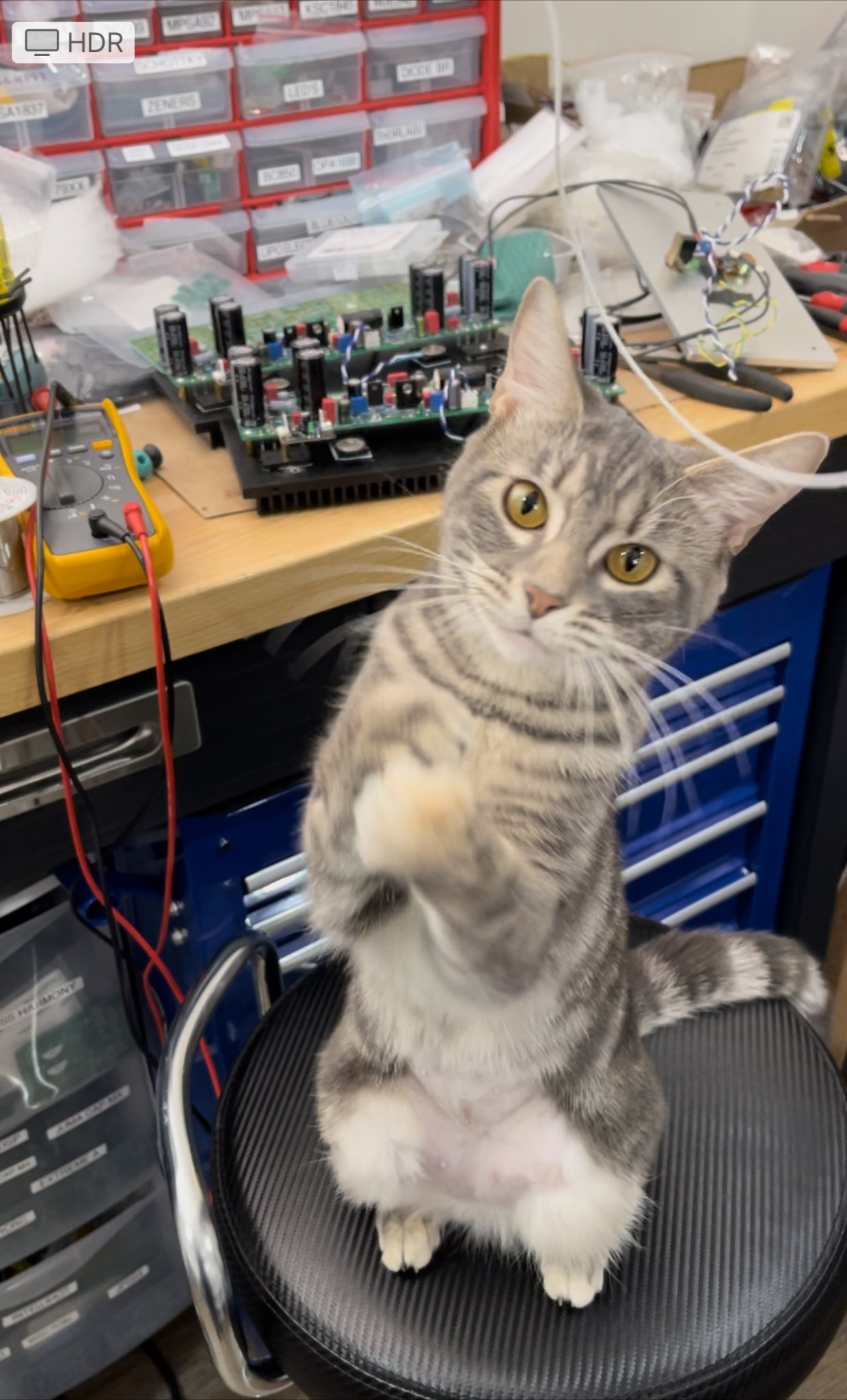

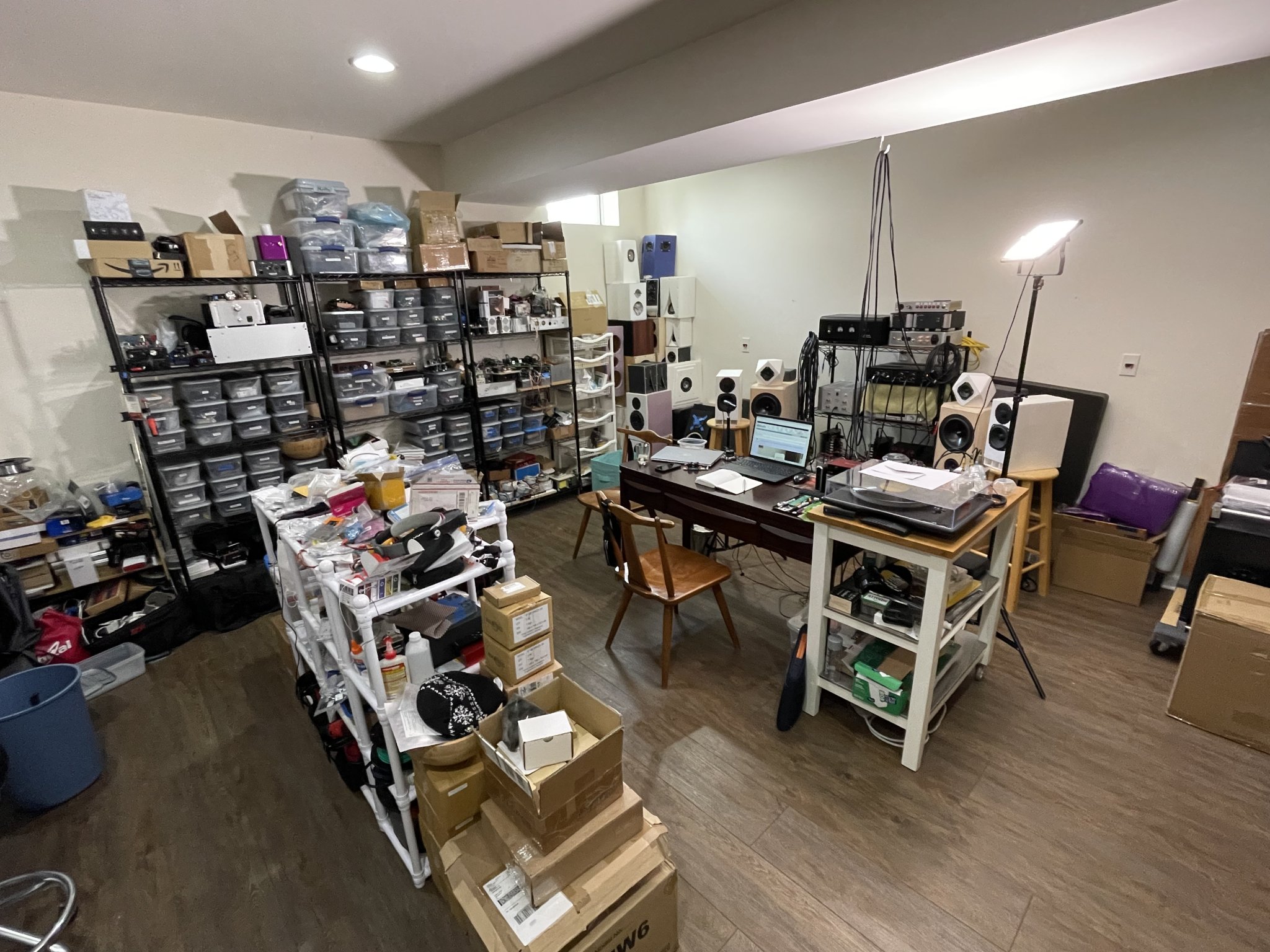

It was nice to work in a clean lab tonight. I spent several hours last night cleaning up because I could not find anything anymore.
