First Bruns Guitar Amp without tubes - Burns "Orbit Three" schema power amp

With Newmarket germaniums as well - still have some of those in the bottom of a drawer ....



[tiefbassuebertr]

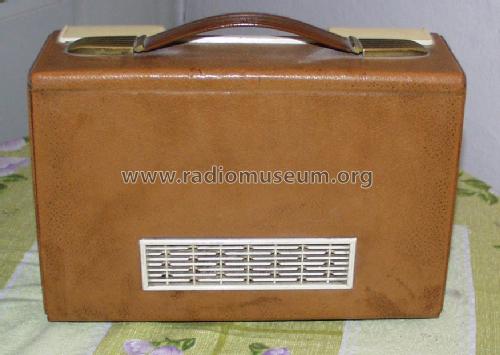

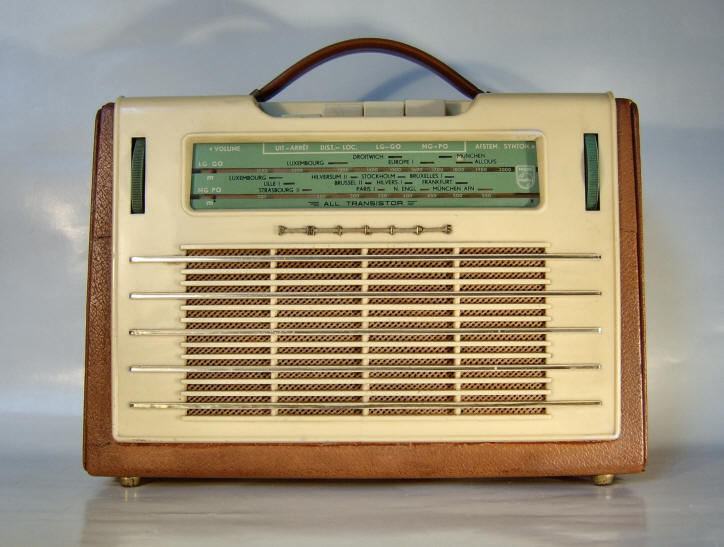

Philips L3X71T - portable All-Transistor Radio from 1957

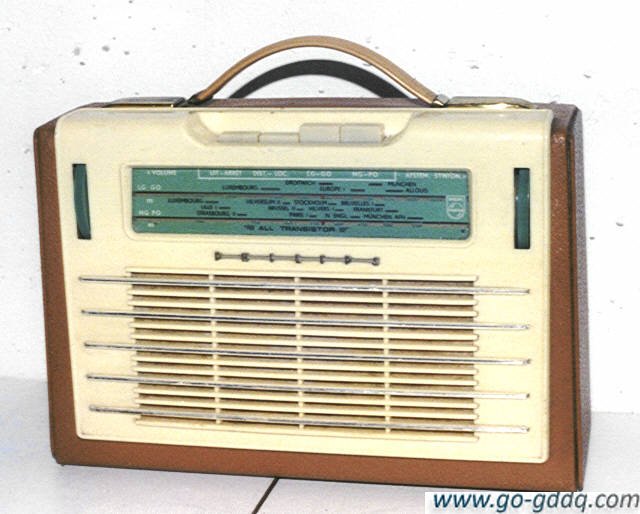

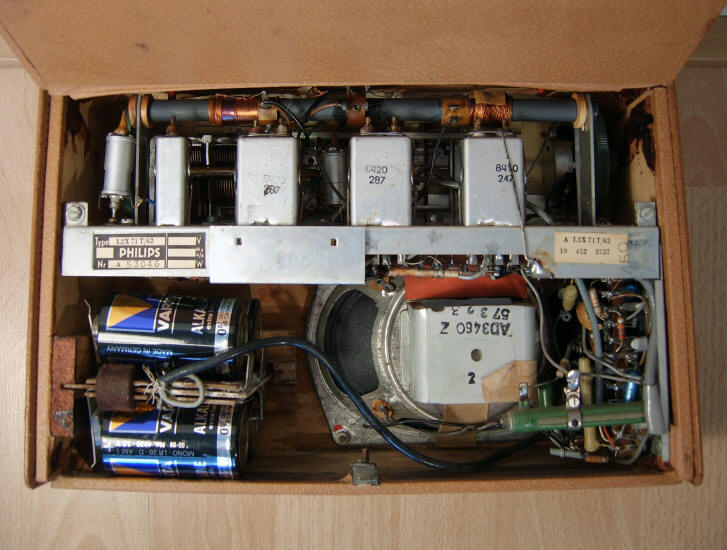

First solid state portable from Philips in this output power aera: "L3X 71 T 42" Not OTL power output stage equipped with 2 x OC72 from Mullard/Valvo.



[tiefbassuebertr]

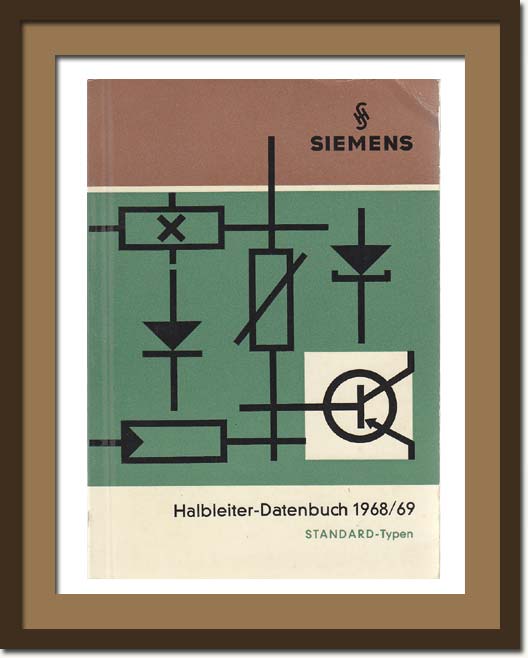

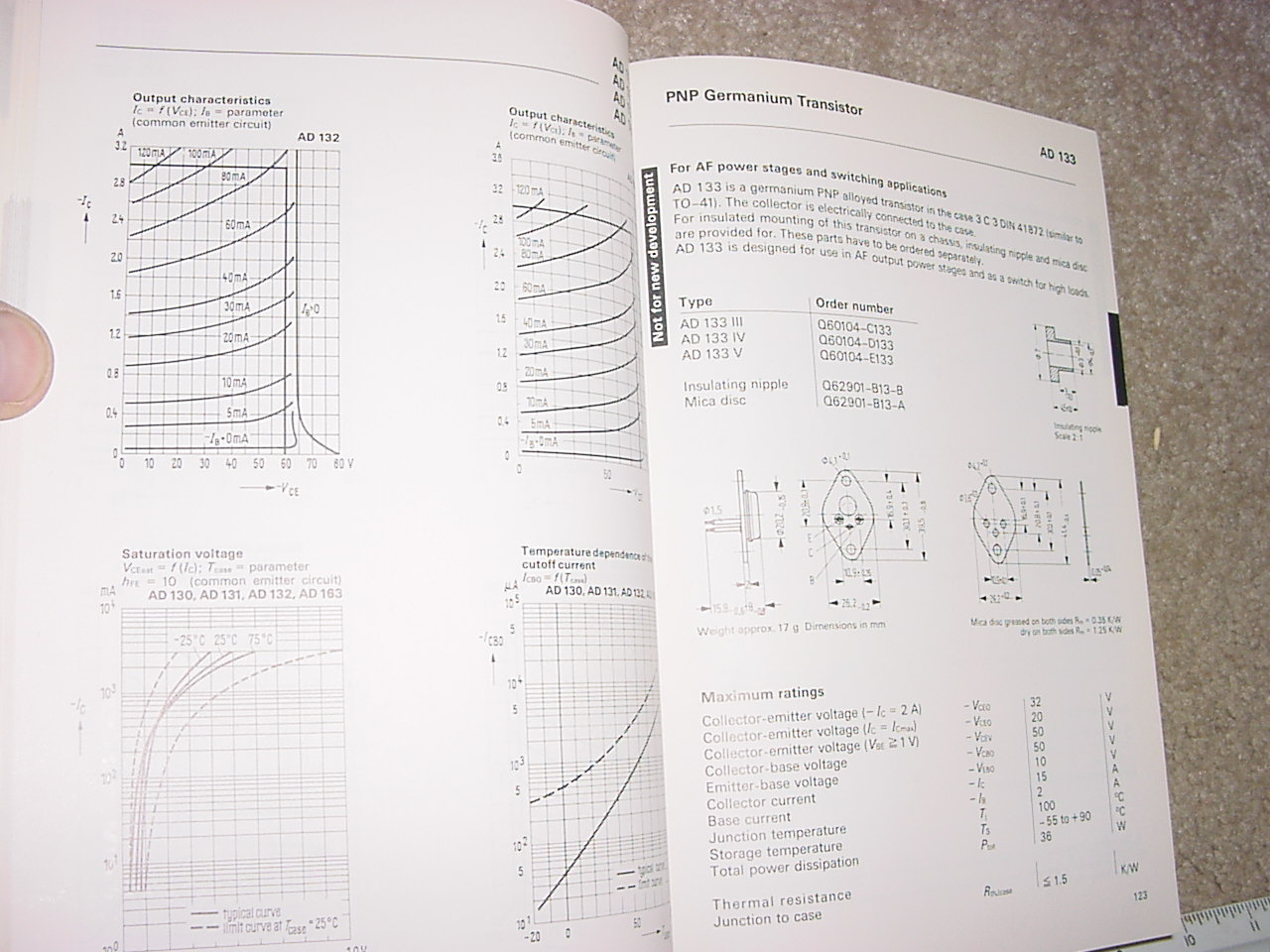

Cover Photos about additional vintage Transistor/Semiconductor Data books

Here more databook covers



[tiefbassuebertr]

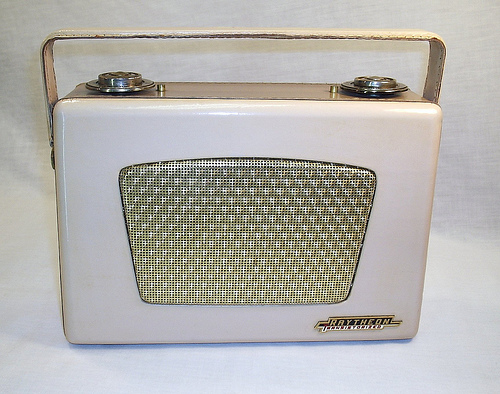

8TP-3 (8TP3), World's second and Raytheon's first transistor AM radio

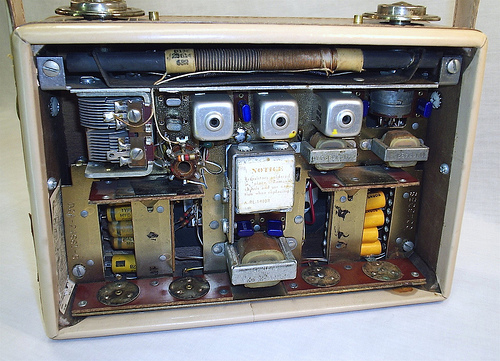

Here's an inside view of the 8TP-3, Raytheon's first transistor AM radio and the world's second. The chassis shares much with tube radio construction: metal chassis, socketed transistors (similar to how tubes were plugged into sockets), large tuning capacitor and large paper/wax capacitors.

Schematics and more informations there:
ray8tp
Transistor Radio 8TP-1 (8TP1) Ch= 8RT1 (8-RT-1) Radio Raythe



[tiefbassuebertr]

I think about to start a thread with vintage analoge integrated circuits (IC's 1957 until 1975) so as a collection of cover pics from the appropriate data books. Where I filed this thread at best?



[ide2003]

wooww...a lot of vintage transistor data, thanks tiefbass. just curious and try to learn and I'm kind of old stuff lover.

regards
TeguhPS



[tiefbassuebertr]

who can post more cover pictures of japanese transistor databooks like the few examples about post #37?
http://auctions.yahoo.co.jp/
is therefore the best source (keyword "Databook", "Data Book" so as this term in japan language).
I am looking in the moment to the databook from Sanken where as the "ST610" and the "ST-615" is inside (databook about Sanken's first silicon power devices). The importantest information for me is the exactly title calling so as the date of first release.



[tiefbassuebertr]

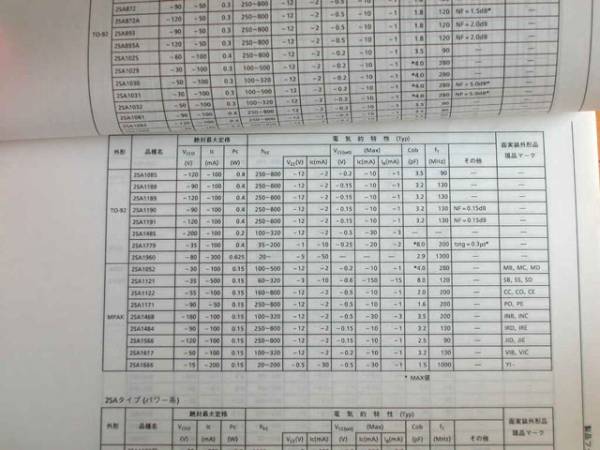

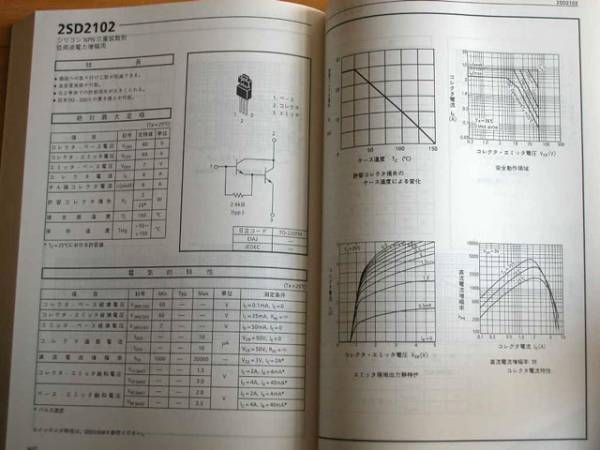

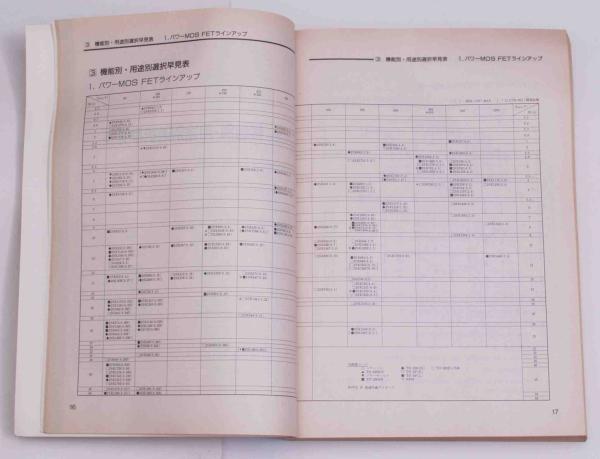

Hard to find vintage databooks from Japan about semiconductors:

Im still looking to such data book cover photos. Who can post more of them?



[latala]

I have a Bryan transistor amplifier that is fitted with most unusual plastic power transistors the metal tabs have a hole at the top and also 1 at the bottom
the base comes out the left side at the side and the emitter at the right side not at the bottom but at the middle side in each case
These are RCA devices but I can read no more on the package ?
Have you come across this package before
regards Trev



[tiefbassuebertr]

Bryan Transistor Amplifier

"bryan transistor amplifier" ??
I don't find any information about google with this term.
What is the year of manufacturing?
is it a amplifier for stage/public address, home-hifi or guitar/instrumental?



[latala]

Bryan were made from about 1964 to about 1972 and were of the same quality as leak ,Rogers etc very high quality domestic amplifiers
Manufactured in Hale Manchester here in the UK
2 main models were produced the 900 and the 9000 as well as a few others
They started out as Germanium amplifiers but ended with our old friend the Silicon 2n3055 as the output devices
They are a varient of the Toby Dinsdale amplifier but with lots of detail variation !
I have posted on the UK Vintage Radio Discussion Forums forum if you use the search function with bryan you will find further information as well as pictures
you will see also a picture of the strange output transistors and I look forward to your comments
regards Trev



[stoN_Cold]

Just one:

An externally hosted image should be here but it was not working when we last tested it.

An externally hosted image should be here but it was not working when we last tested it.

Regards zeoN_Rider



[tiefbassuebertr]

Bryan were made from about 1964 to about 1972 and were of the same quality as leak ,Rogers etc very high quality domestic amplifiers
Manufactured in Hale Manchester here in the UK
2 main models were produced the 900 and the 9000 as well as a few others
They started out as Germanium amplifiers but ended with our old friend the Silicon 2n3055 as the output devices
They are a varient of the Toby Dinsdale amplifier but with lots of detail variation !
I have posted on the UK Vintage Radio Discussion Forums forum if you use the search function with bryan you will find further information as well as pictures
you will see also a picture of the strange output transistors and I look forward to your comments
regards Trev

thanks for this advice. URL don't goes open. here the right URL:
Bryan Amplifier - UK Vintage Radio Repair and Restoration Discussion Forum
can you post the pics from post #4 also here on this forum?

Just one:
Regards zeoN_Rider

can you post this pictures about the follow topic ?? - thank you
http://www.diyaudio.com/forums/soli...to3-like-yamaha-2sk77-nec-2d363-overview.html
BTW - brand logo on the oversized power device is from this company:
http://www.shindengen.co.jp/top_e/index.html
data sheet you will find there:
http://www.datasheetarchive.com/pdf-datasheets/Databooks-1/Book205-153.html



[Sorento]

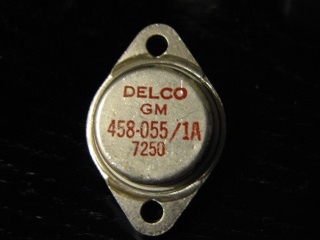

Delco 458-055

Any idea where to get a data-sheet or specs for this fellow ?



[tiefbassuebertr]

Any idea where to get a data-sheet or specs for this fellow ?

about post #26 I ask the same concerning Bendix transistors. About post #28 and #29 there are more photos from Delco power devices. If we have at least exact title of the data book respective appropriate folders, the name of publisher so as the date of first release, we can go to the interlibrary loan service of the local library for order copies.
This informations here are absolutely necessary.
Cover pics of this data books and datasheets are very helpful in this case.
Older employees in the concerned department of GM in Detroit have here perhaps a chance to find anything.



[geraldfryjr]

Here is the cover of the 1981 RCA Power Devices book that I have ,The number on the bottom of the binding is SSD-220C.
As I had stated in the other thread I have the 1967 RCA Transistor manual but but the cover is missing however I did find the other half of the book but there are a few pages missing.
hopfully I wil be able to find those too one day.

jer



[tiefbassuebertr]

Clarion's CA-202, the first Solid State Stereo Set for car audio hifi from 1963 (developement) and 1964 (first release)
http://www.clarion.ee/clarionprofile-e2.pdf (timeline last page)
Clarion Japan | History
More informations wanted (schematic, used transistors and photos from inside).

no informations?



[tiefbassuebertr]

Pics of Vintage RCA Databooks about Semiconductors-III

supplement to post #33 and #34:
in the attachment more so called "hard to find" databooks from RCA.

BTW - I am looking for the first advertisements concerning RCA's 2N3055, first launched between 1961 and 1964 - go also to
http://www.diyaudio.com/forums/soli...-models-quasi-complementary-power-output.html



[GopherT]

Nice, new Motorola 2N176 - with Mexico marking near bottom flange on left transistor. 7339 code claims to be week 39 of 1973 production year (from current ebay listing)



[zakman35]

I have recently found 5 x NEC 2sb248 transistors, new unused, but i cant find any datasheet about them.

Do you have any idea if they worth the trouble to build an amp with them?
Can you point me any suitable circuit?

Thanks in advance
