Vertex Amp By apexaudio

[LIEM POO]

Apex Vertex

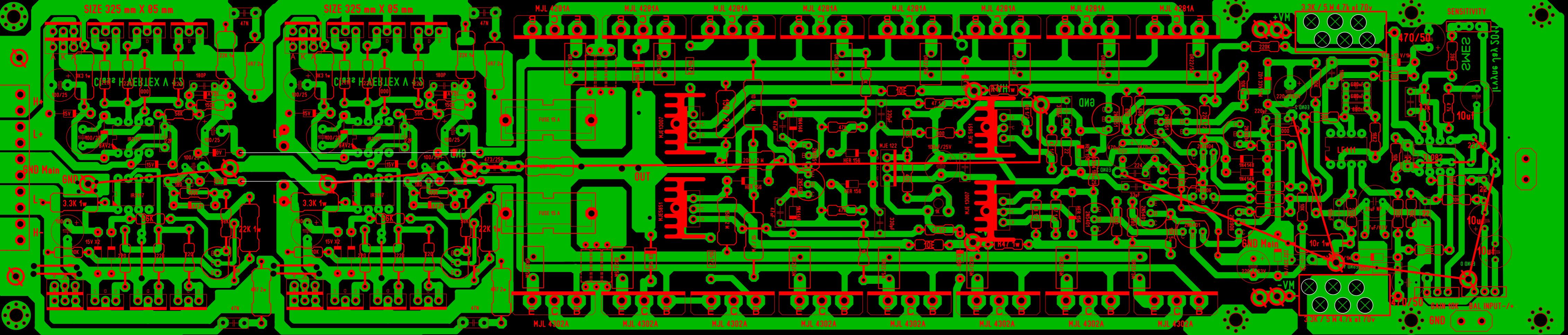

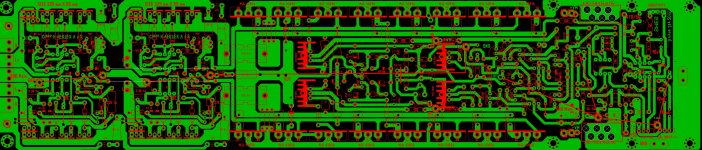

Apex Vertex by Sprint Lay Out 6 no password

* Partlist from file: VERTEX 2.lay6" / 1/26/2015 9:58:43 AM
*
* No Comment Name Value
*
1 FUSE
2 FUSE
3 HEAT SINK
4 HEAT SINK
5 HEAT SINK
6 RESISTOR 0R22 / 5 W
7 RESISTOR 0R22 / 5 W
8 RESISTOR 0R22 / 5 W
9 RESISTOR 0R22 / 5 W
10 RESISTOR 0R22 / 5 W
11 RESISTOR 0R22 / 5 W
12 RESISTOR 0R22 / 5 W
13 RESISTOR 0R22 / 5 W
14 RESISTOR 0R22 / 5 W
15 RESISTOR 0R22 / 5 W
16 RESISTOR 0R22 / 5 W
17 RESISTOR 0R22 / 5 W
18 RESISTOR 0R22 / 5 W
19 RESISTOR 0R22 / 5 W
20 RESISTOR 0R22 / 5 W
21 RESISTOR 0R22 / 5 W
22 TANTALUM 100nF 63V
23 TANTALUM 100nF 63V
24 TANTALUM 100nF 63V
25 TANTALUM 100nF 63V
26 TANTALUM 100nF 63V
27 ELCO 100uF/25V
28 ELCO 100uF/25V
29 ELCO 100uF/25V
30 ELCO 100uF/25V
31 ELCO 100uF/25V
32 ELCO 100uF/50V
33 RESISTOR 10K
34 RESISTOR 10K
35 RESISTOR 10K
36 RESISTOR 10K
37 RESISTOR 10K
38 RESISTOR 10K
39 RESISTOR 10K
40 RESISTOR 10K
41 RESISTOR 10K / 5 W
42 RESISTOR 10K / 5 W
43 RESISTOR 10R/ 1W
44 RESISTOR 10R/0,5 W
45 RESISTOR 10R/0,5 W
46 RESISTOR 10R/0,5 W
47 RESISTOR 10R/0,5 W
48 RESISTOR 10R/2 W
49 RESISTOR 10R/2 W
50 ELCO 10uF/50V
51 ELCO 10uF/50V
52 ELCO 10uF/50V
53 RESISTOR 150K
54 RESISTOR 150K
55 RESISTOR 150R/ 2 W
56 RESISTOR 150R/ 2 W
57 RESISTOR 16K2
58 TANTALUM 180pF 63 V
59 TRIMPOT 1K
60 RESISTOR 1K
61 RESISTOR 1K
62 RESISTOR 1K5
63 RESISTOR 1K /0,5 W
64 RESISTOR 1K /0,5 W
65 DIODA 1N 4148
66 DIODA 1N 4148
67 DIODA 1N 4148
68 DIODA 1N 4148
69 TANTALUM 1uF 63V
70 RESISTOR 200R/2 W
71 RESISTOR 220K
72 RESISTOR 220K
73 TANTALUM 220nF 63V
74 TANTALUM 220pF 63V
75 RESISTOR 220R
76 RESISTOR 220R
77 RESISTOR 220R
78 RESISTOR 220R
79 RESISTOR 220R
80 RESISTOR 220R
81 ELCO 220uF/63V
82 ELCO 220uF/63V
83 RESISTOR 22K/ 1W
84 RESISTOR 22K/ 1W
85 RESISTOR 22K/0,5 W
86 TANTALUM 22nF 63V
87 TANTALUM 22nF 63V
88 TANTALUM 22nF 63V
89 TANTALUM 22p 63V
90 TANTALUM 22p 63V
91 RESISTOR 22R
92 RESISTOR 2K7
93 TRANSISTOR 2N3904
94 TRANSISTOR 2N3904
95 TRANSISTOR 2N3906
96 TRANSISTOR 2N3906
97 TRANSISTOR 2N5401
98 TRANSISTOR 2N5401
99 TRANSISTOR 2N5401
100 TRANSISTOR 2N5551
101 TRANSISTOR 2N5551
102 TRANSISTOR 2N5551
103 TRANSISTOR 2N5551
104 TRANSISTOR 2N5551
105 RESISTOR 30K
106 TANTALUM 330p 63V
107 TANTALUM 330pF 63V
108 RESISTOR 33K
109 TANTALUM 33pF 63V
110 ELCO NP 33uF/25V NP
111 RESISTOR 39K
112 RESISTOR 3K3/ 1W
113 RESISTOR 3K3/ 1W
114 TANTALUM 4.7 uF 63V
115 TANTALUM 47 nF 250V
116 RESISTOR 470R
117 ELCO 470uF/25V
118 ELCO 470uF/25V
119 ELCO 470uF/50V
120 ELCO 470uF/50V
121 RESISTOR 47K
122 RESISTOR 47K
123 RESISTOR 47K
124 TANTALUM 47nF 63V
125 TANTALUM 47nF 63V
126 TANTALUM 47nF 63V
127 TANTALUM 47nF 63V
128 TANTALUM 47nF 63V
129 RESISTOR 47R
130 RESISTOR 47R
131 RESISTOR 47R
132 RESISTOR 47R
133 RESISTOR 47R/ 1W
134 RESISTOR 47R/ 1W
135 RESISTOR 47R/0,5 W
136 RESISTOR 47R/0,5 W
137 RESISTOR 47R/0,5 W
138 RESISTOR 47R/0,5 W
139 RESISTOR 4K7 / 5 W
140 RESISTOR 4K7 / 5 W
141 RESISTOR 4R7 / 5 W
142 RESISTOR 4R7/2 W
143 RESISTOR 4R7/2 W
144 RESISTOR 56K
145 RESISTOR 56K
146 RESISTOR 56K
147 TANTALUM 680nF 63V
148 TANTALUM 680nF 63V
149 TANTALUM 680nF 63V
150 RESISTOR 680R
151 RESISTOR 680R
152 RESISTOR 680R
153 RESISTOR 680R
154 RESISTOR 68K/0,5 W
155 RESISTOR 68R/0,5 W
156 RESISTOR 68R/0,5 W
157 INPUT BAL INPUT - / +
158 ZENER BAV21
159 ZENER BAV21
160 ZENER BAV21
161 TRANSISTOR BF241
162 POTENSIO GAIN 10K
163 DIODA HER156
164 DIODA HER156
165 DIODA HER156
166 DIODA HER156
167 DIODA HER156
168 DIODA HER156
169 DIODA HER156
170 DIODA HER156
171 DIODA HER156
172 IC IR2117
173 IC IR2117
174 MOSFET IRF3710
175 MOSFET IRF3710
176 MOSFET IRF3710
177 MOSFET IRF3710
178 MOSFET IRF3710
179 MOSFET IRF3710
180 IC LF411
181 MOSFET MJE122
182 MOSFET MJE5051
183 MOSFET MJE5851
184 MOSFET MJE13007
185 MOSFET MJE13007
186 MOSFET MJL 4281A
187 MOSFET MJL 4281A
188 MOSFET MJL 4281A
189 MOSFET MJL 4281A
190 MOSFET MJL 4281A
191 MOSFET MJL 4281A
192 MOSFET MJL 4281A
193 MOSFET MJL 4281A
194 MOSFET MJL 4281A
195 MOSFET MJL 4302A
196 MOSFET MJL 4302A
197 MOSFET MJL 4302A
198 MOSFET MJL 4302A
199 MOSFET MJL 4302A
200 MOSFET MJL 4302A
201 MOSFET MJL 4302A
202 MOSFET MJL 4302A
203 MOSFET MJL 4302A
204 DIODA MUR2020CT
205 DIODA MUR2020CT
206 DIODA MUR2020CT
207 DIODA MUR2020CT
208 SENSITIFITY SENSITIVITY
209 IC TL082
210 ZENER ZF15
211 ZENER ZF15
212 ZENER ZF15
213 ZENER ZF15
214 ZENER ZF15
215 ZENER ZF15
216 ZENER ZF15
217 ZENER ZF18
218 ZENER ZF33
219 ZENER ZF33



[wattaniya]

hi liem poo.
thanks for the lay file.
is it 100% working layout?



[LIEM POO]

yessss, verry good

hi liem poo.
thanks for the lay file.
is it 100% working layout?



[wattaniya]

thank u liem poo for the reply.
can u upload a image of the amp u made.
how many watts into 4 ohm?
and what are the high rail voltage and low rail voltage supply?



[joh]

sprint layout 6 , vertex by apex

LIEM POO, PASSWORD PLEASE betotora@gmail.com



[LIEM POO]

vertex correl draw x6

version correl draw x6



[LIEM POO]

correl draw low version

low version

version correl draw x6



[wattaniya]

can u upload a image of vertex amp u made?



[princenk007]

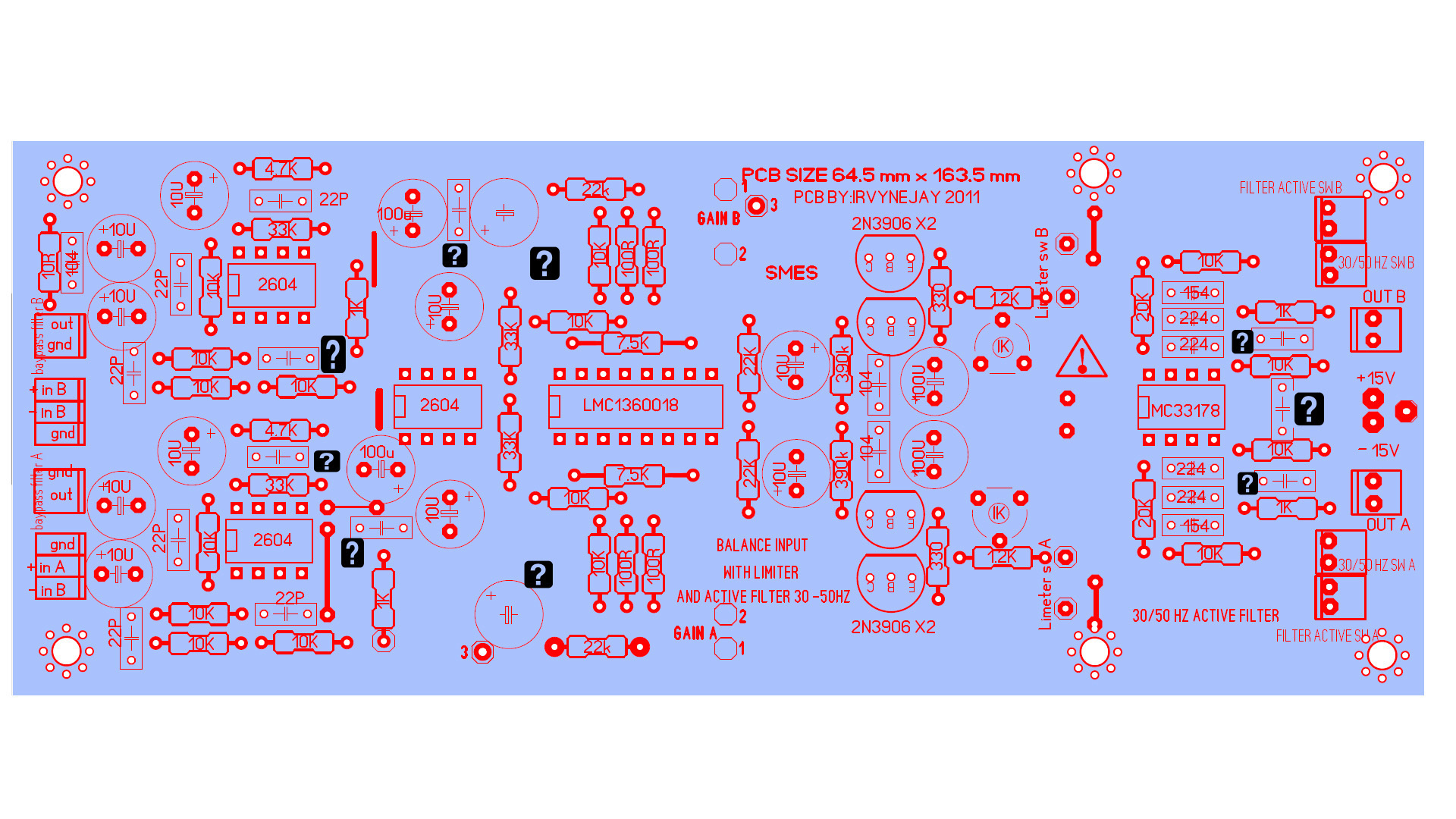

A few component values are missing on the pcb silkscreen layer. plz help with these values from below image.
And what value potentiometer to use for gain control?

Thank you.

PLZ Can Anyone help with the missing component values?



[jangkrik]

Can anyone share the schematic of this amp please....

Thanks...

hi wiljj78 please shared pdf....thnk

Regards



[jangkrik]

version correl draw x6

hi LIEM POO please shared pdf h900 tef with 9fair tr

sorry bad my english...
Regards



[Ryan15]

ilang amperes po nf transformer supply?



[Mooly]

ilang amperes po nf transformer supply?

Huh



[princenk007]

missing component values

I have asked earlier about this but got no reply.

pLease can some body tell me what are the missing component values in this image marked with "?"


Thank you...

Also I cant seem to find MN33178 at my place. So what is the substitute for this chip? I was wondering if I could use TL072?

Please reply asap. Thank you!



[Valenca]

For me too !!! Lien Poo, please, send us the project in PDF format...

Thanks !!!



[sandeep kayarkar]

Is this design correct
3 step vertex?



[stewin]

any updates??



[thimios]

hi LIEM POO please shared pdf h900 tef with 9fair tr

sorry bad my english...
Regards

Is this what you try to find?
I don't know if it is a tested version.



[guns]

how to download sprint layout 6,,, is there any link guyz...thank you in advance



[audiobrad]

2 step 75/140 -/+ with MJL 4281/4302 or MJL21196/95 but mile can clarify it for sure

Good day irvynejay.

What is the rms power output of your vertex module ? If beening used off a 2000va transformer with 4 x 0- 62vac (secondary)?

regards

Audiobrad.
