V-FET / SIT data sheets

I know several V-FET / SIT data sheets have been posted over the years across many different threads, but I thought it'd be nice to have them all in one place.

Here's one fresh off the scanner - more to come when I have time to spare. Meanwhile, feel free to attach or link to whatever you have.

(Note to Mods: I hope posting these doesn't violate rule #9 - please delete the thread if you think otherwise. Thanks!)

Edit: I realize my file naming convention is not immediately obvious ==> the attached PDF contains 2SJ18, 2SK60, 2SK63 and 2SK79.


Attachments

  • J18_&_K60-3-79.pdf
    559.6 KB · Views: 341
Last edited:
  • Like
Reactions: 1 user
You are welcome! ;)

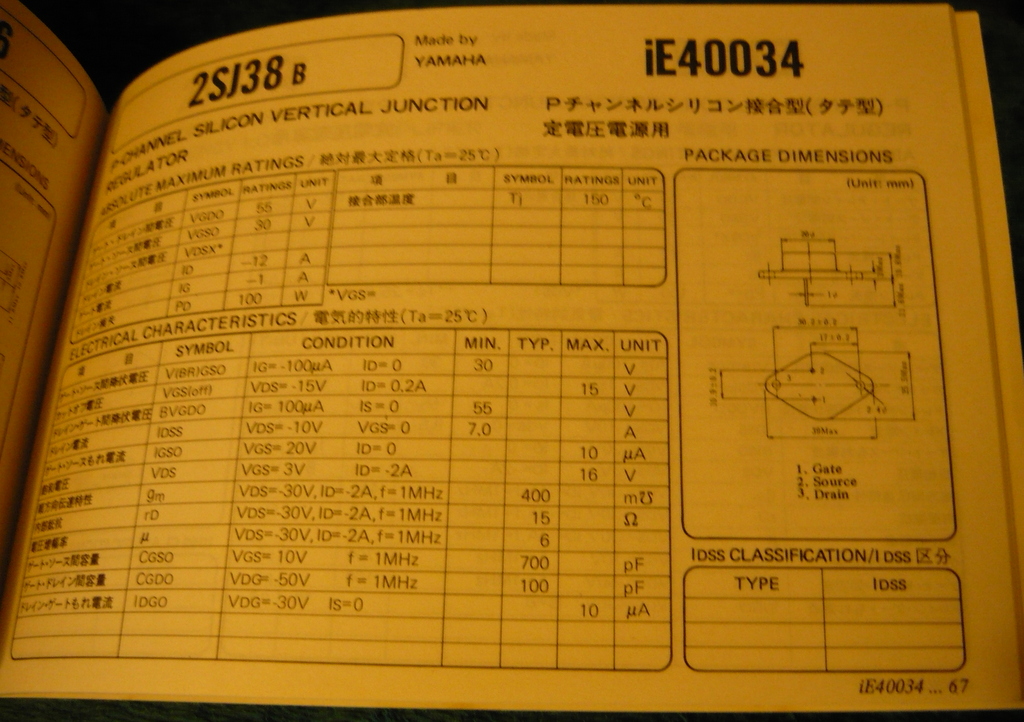

And here's the Yamaha stuff - "borrowed" :eek: from audiodiyers.hu (I am still trying to get my hands on that particular data book).


Attachments

  • J38B.jpg
    400.5 KB · Views: 168

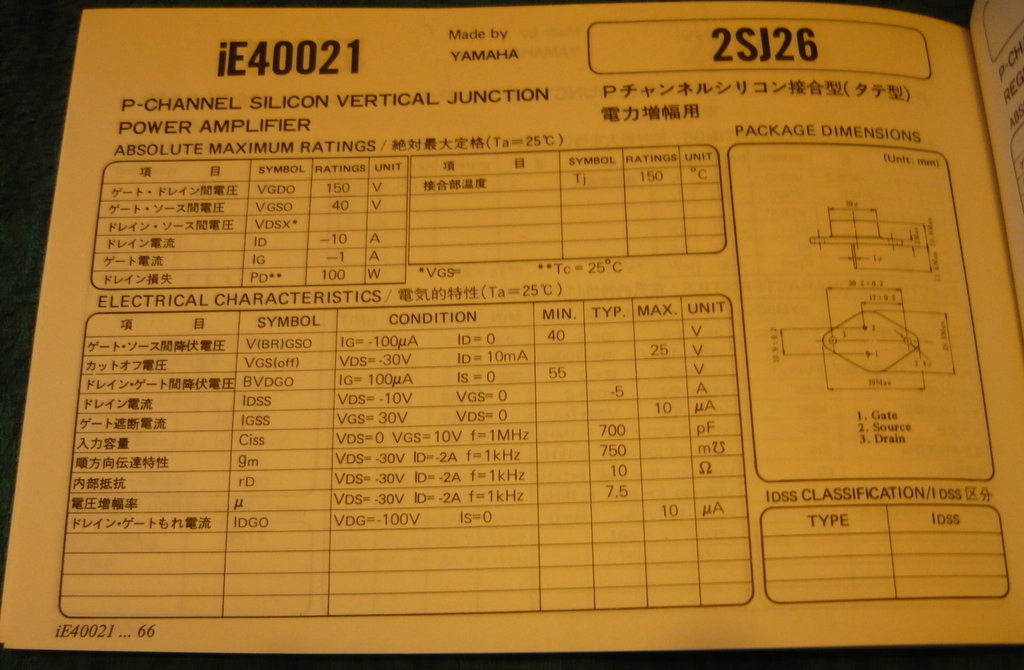

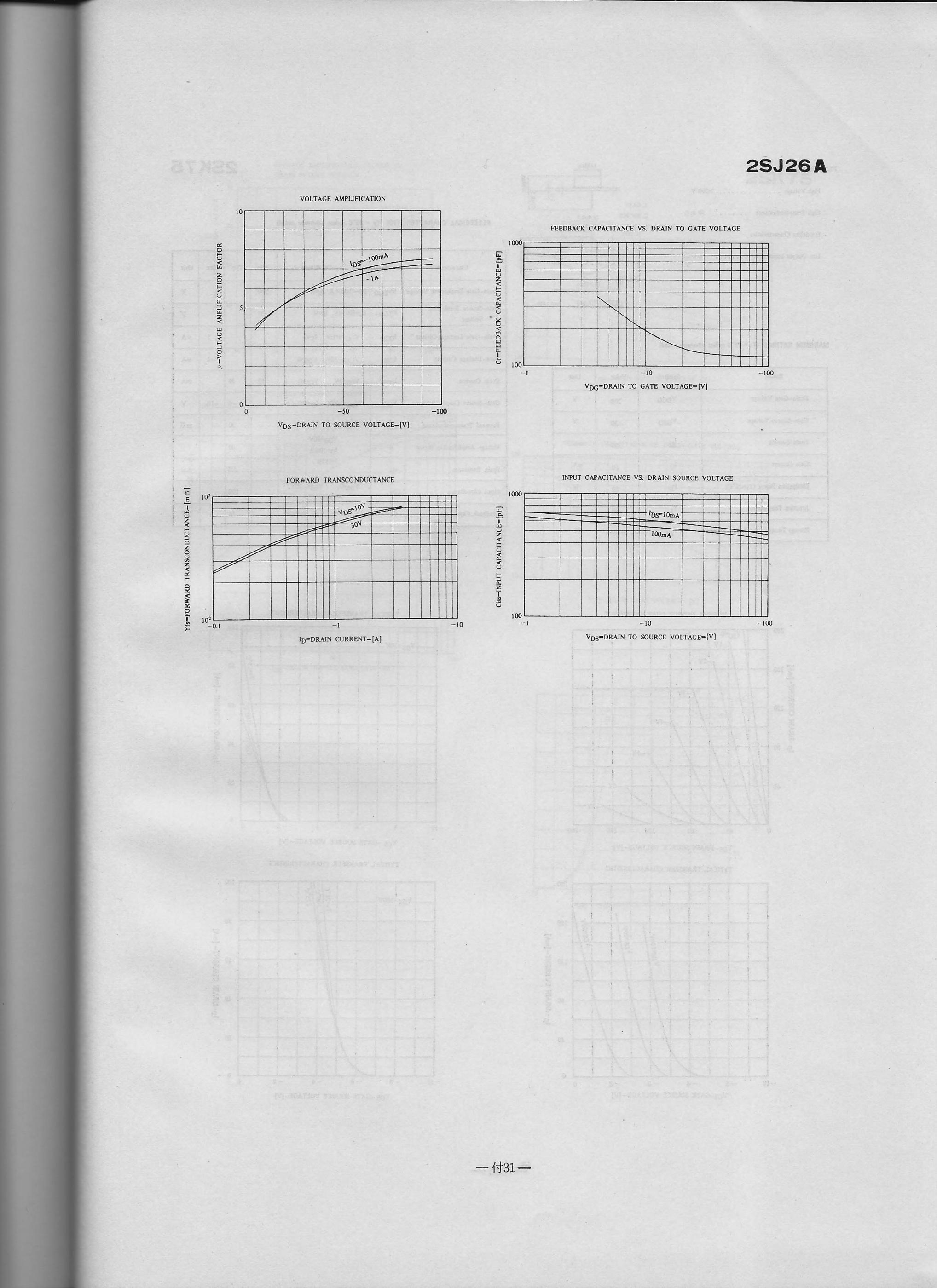

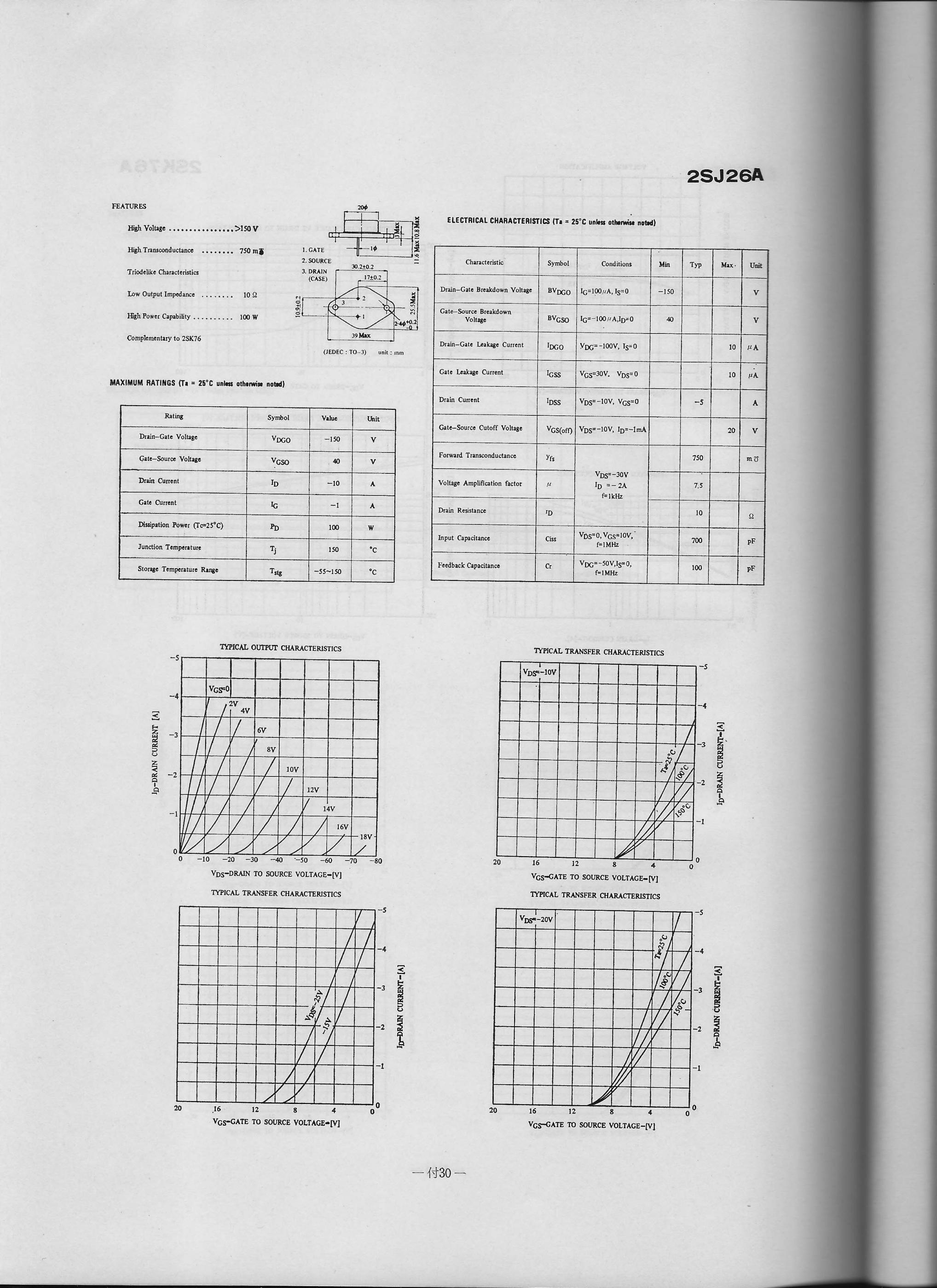

  • J26.jpg
    376.1 KB · Views: 165

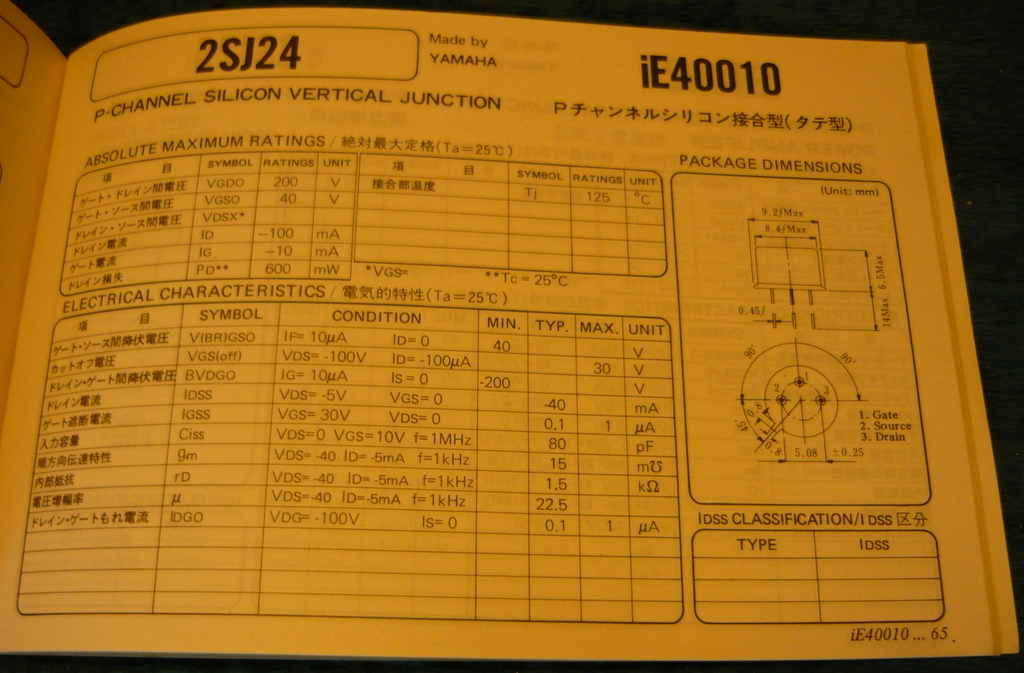

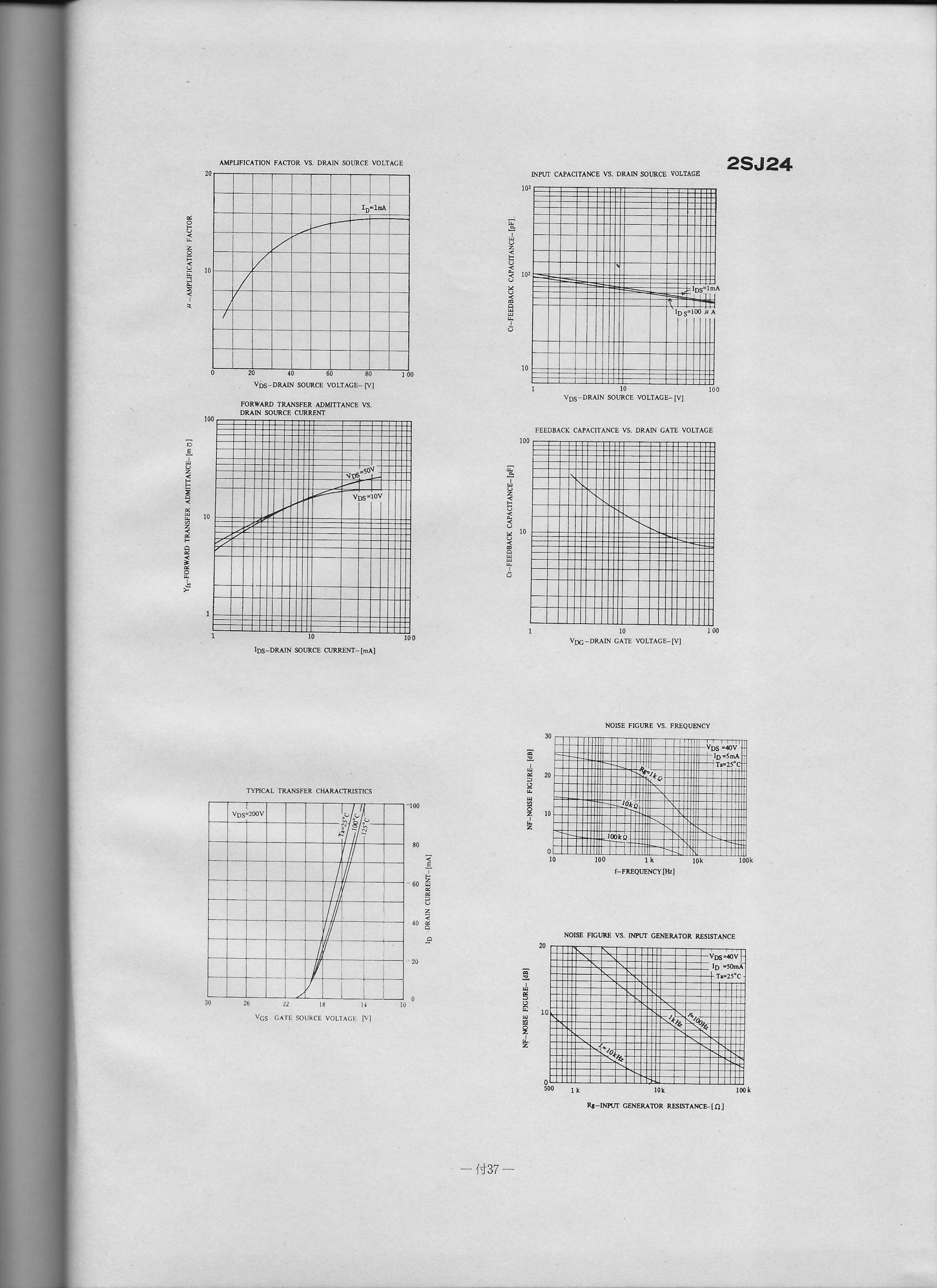

  • J24.jpg
    390.3 KB · Views: 167

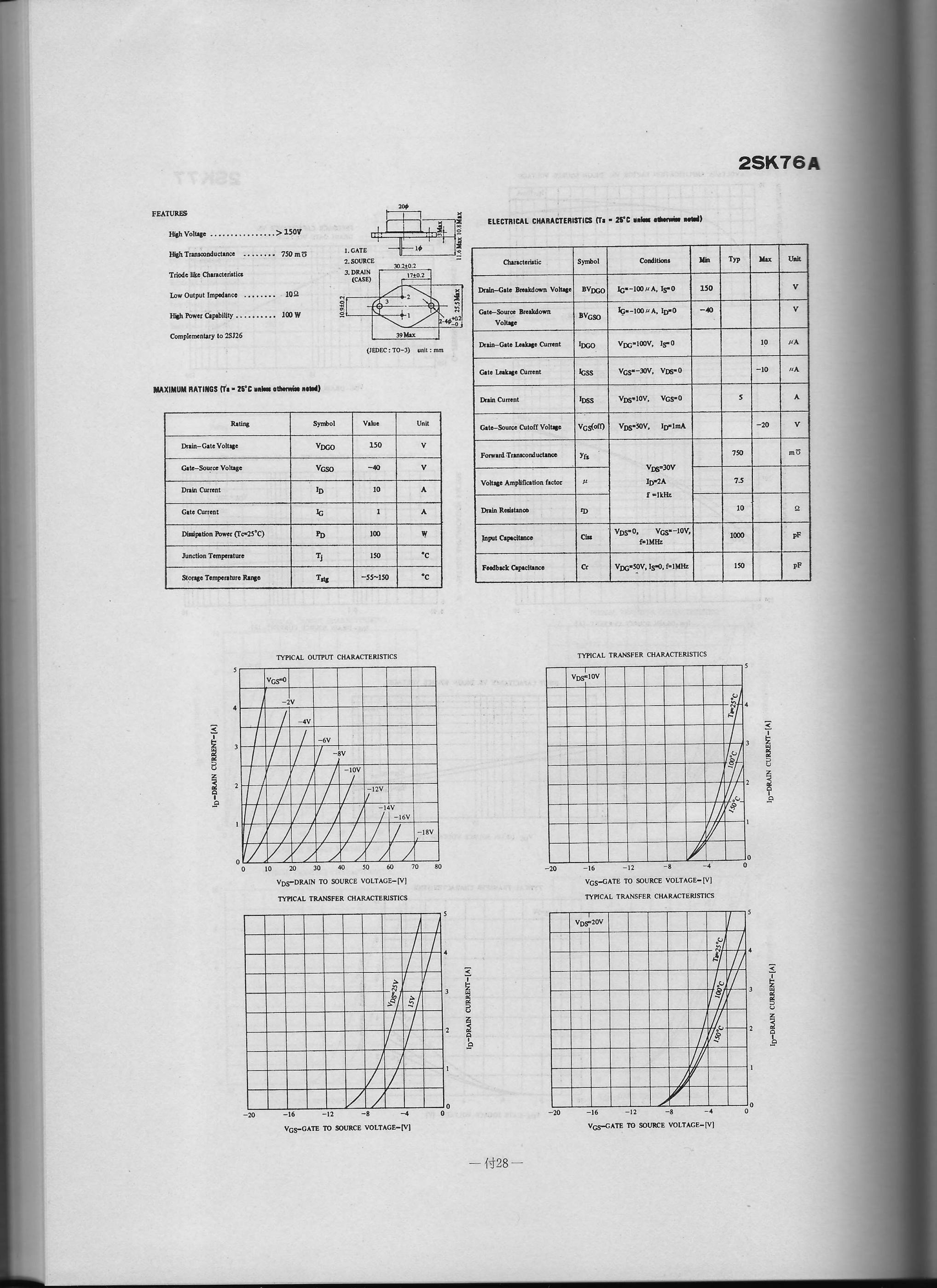

  • K98A.jpg
    403.6 KB · Views: 803

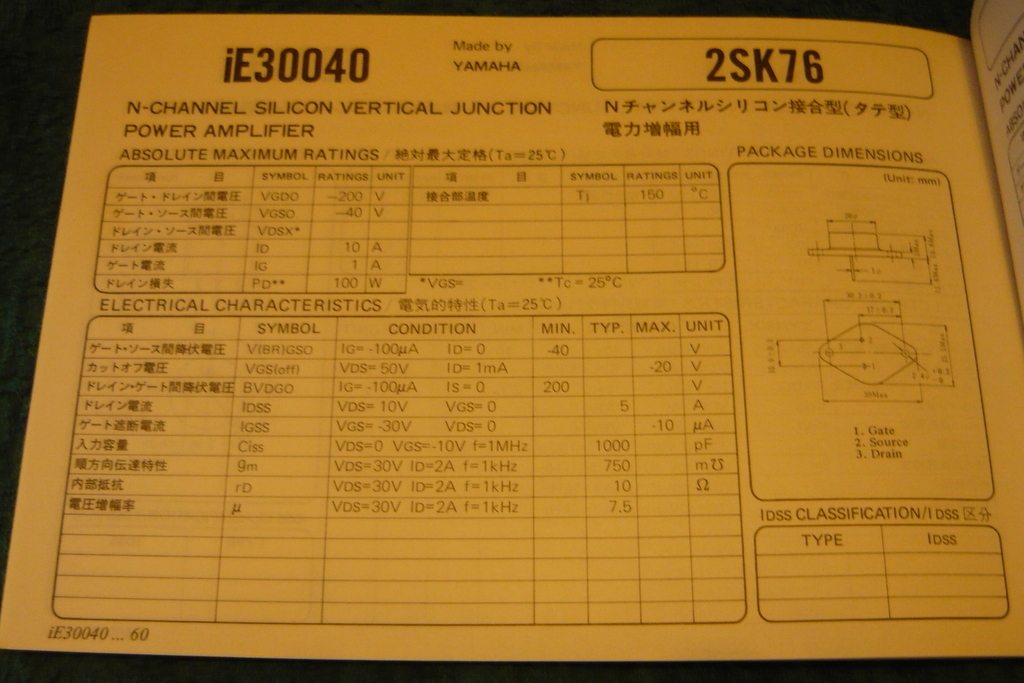

  • K76.jpg
    347.1 KB · Views: 829

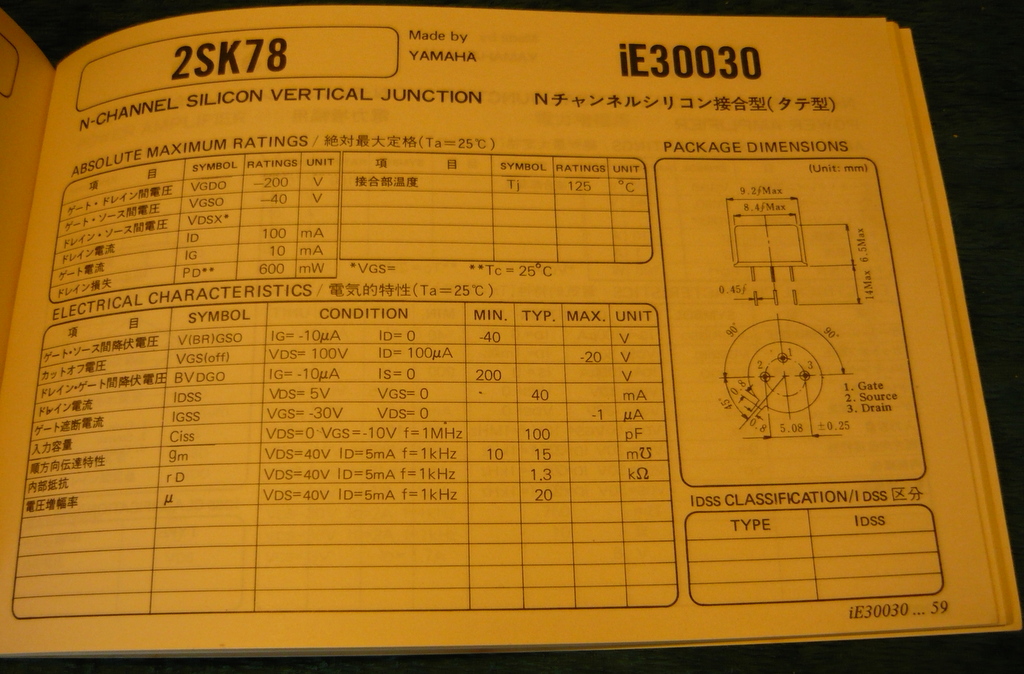

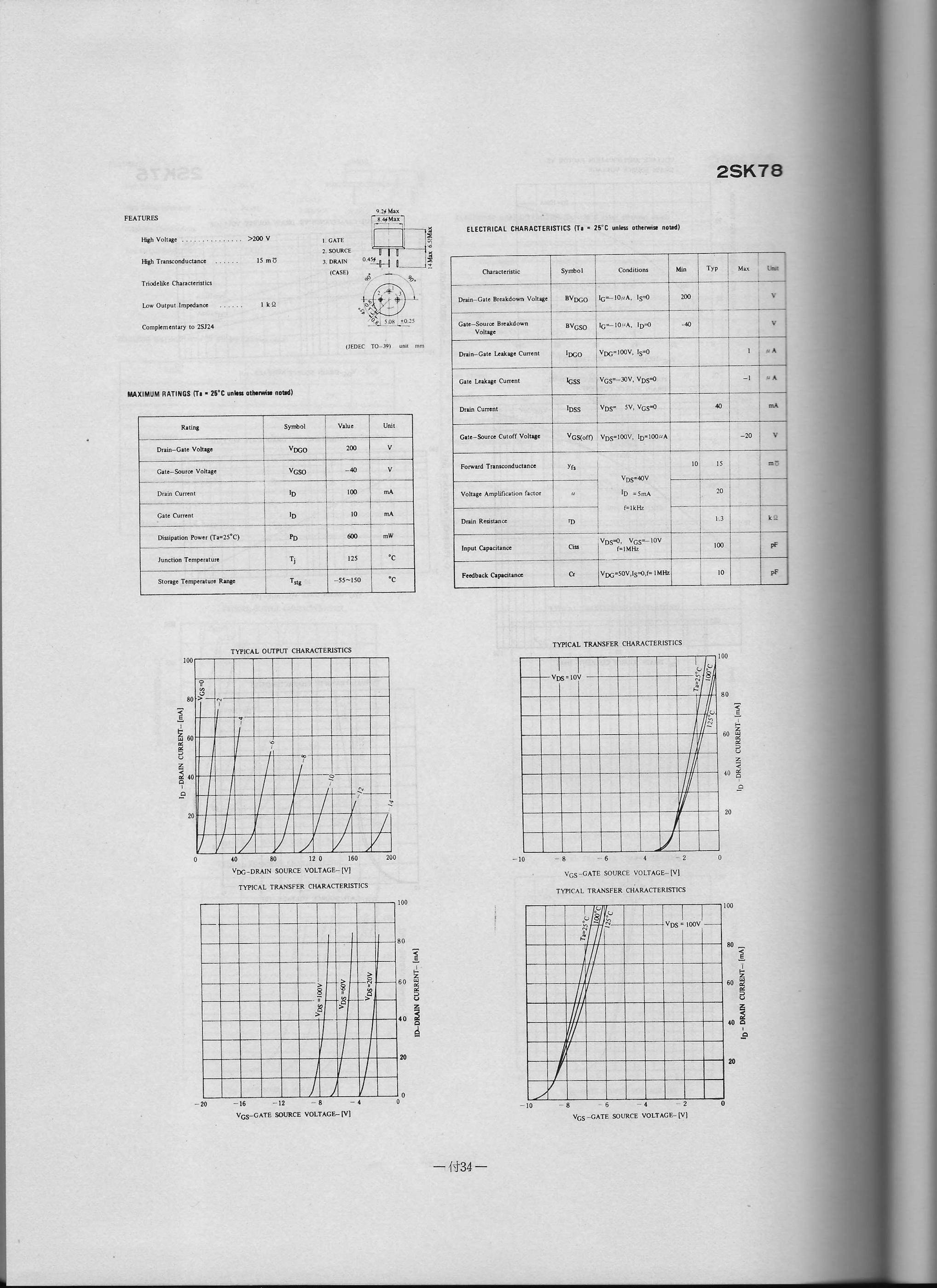

  • K78.jpg
    345.1 KB · Views: 827

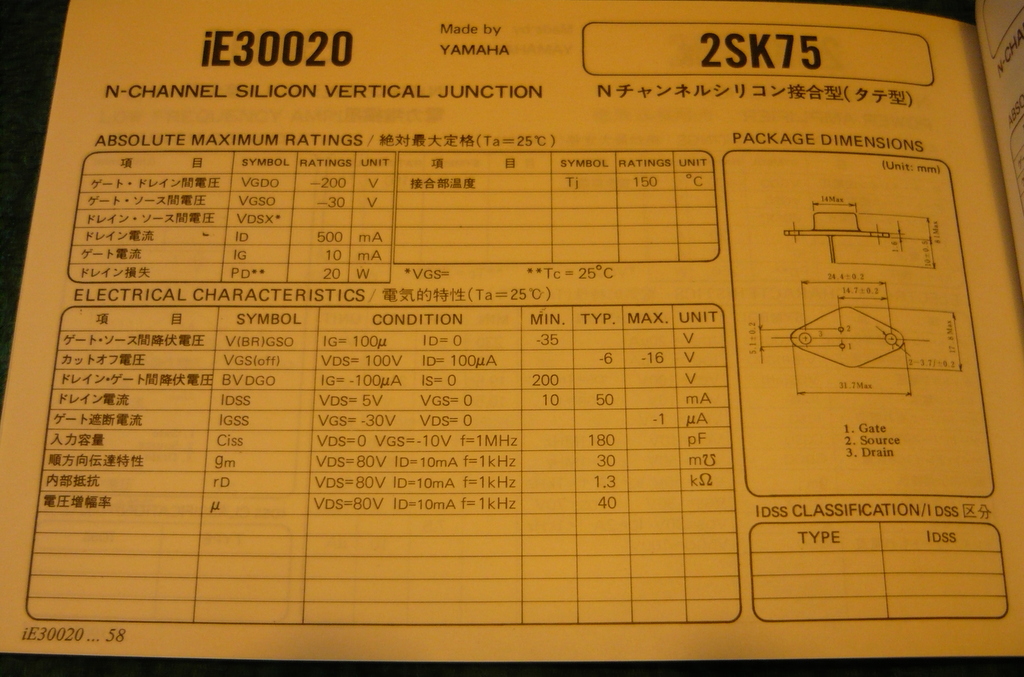

  • K75.jpg
    388.6 KB · Views: 834

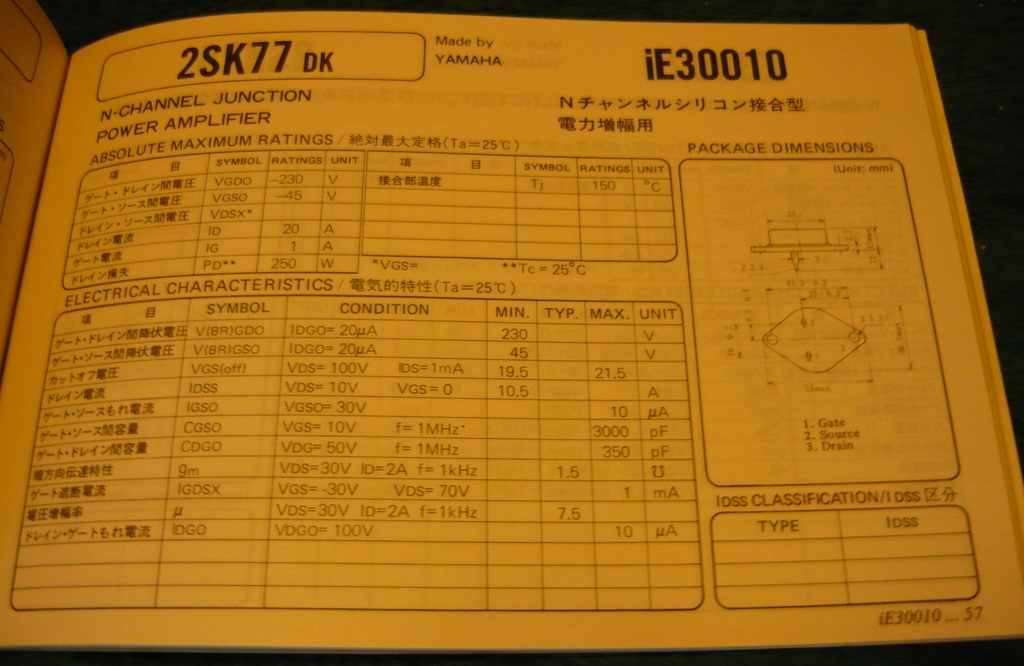

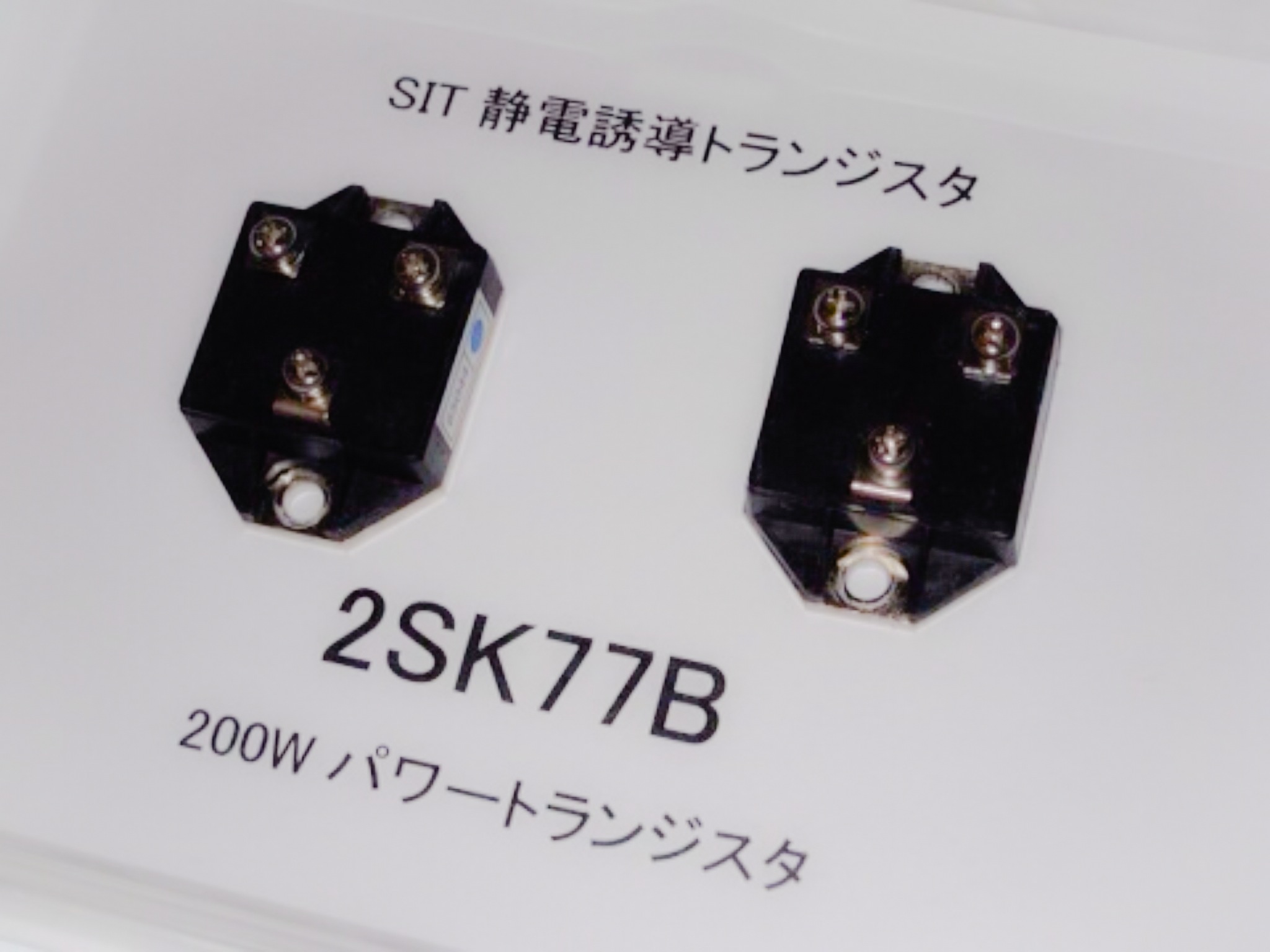

  • K77DK.jpg
    371 KB · Views: 840
Last edited:
@ Petoluk

Thanks for datasheets :cheerful: Good idea

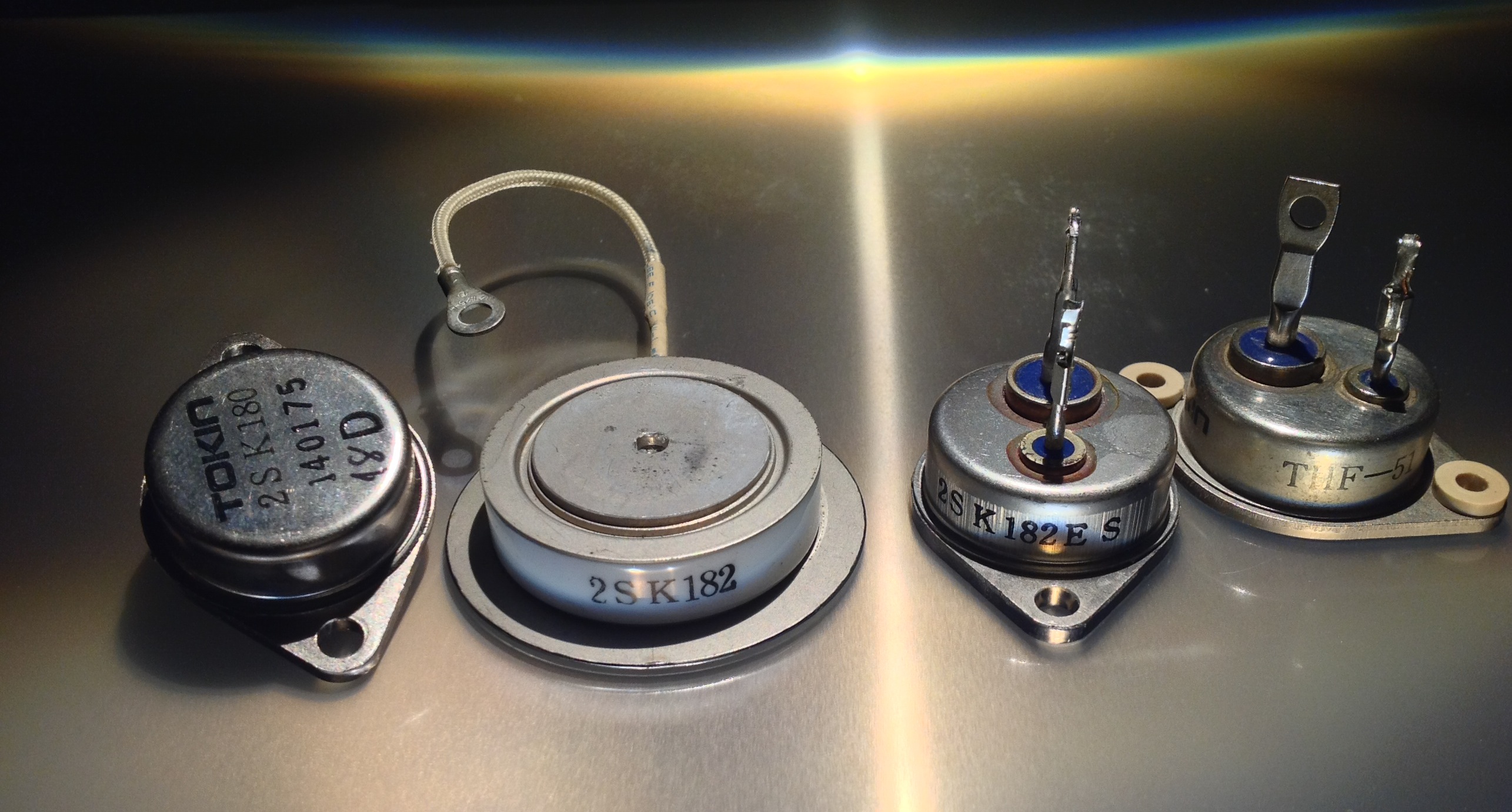

+ received this one from Sibatech Co. distributor of Maxonic and FAL products.

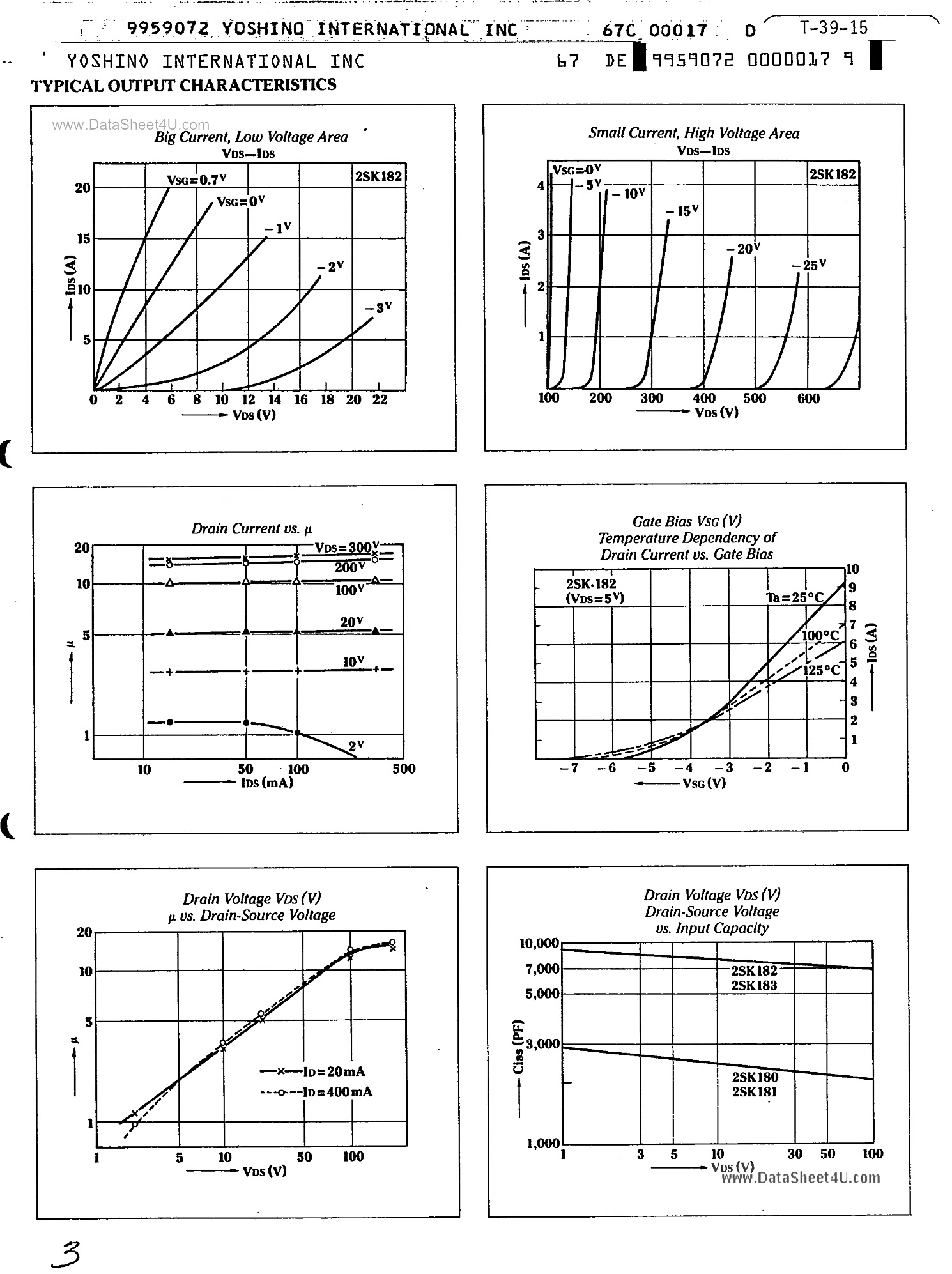

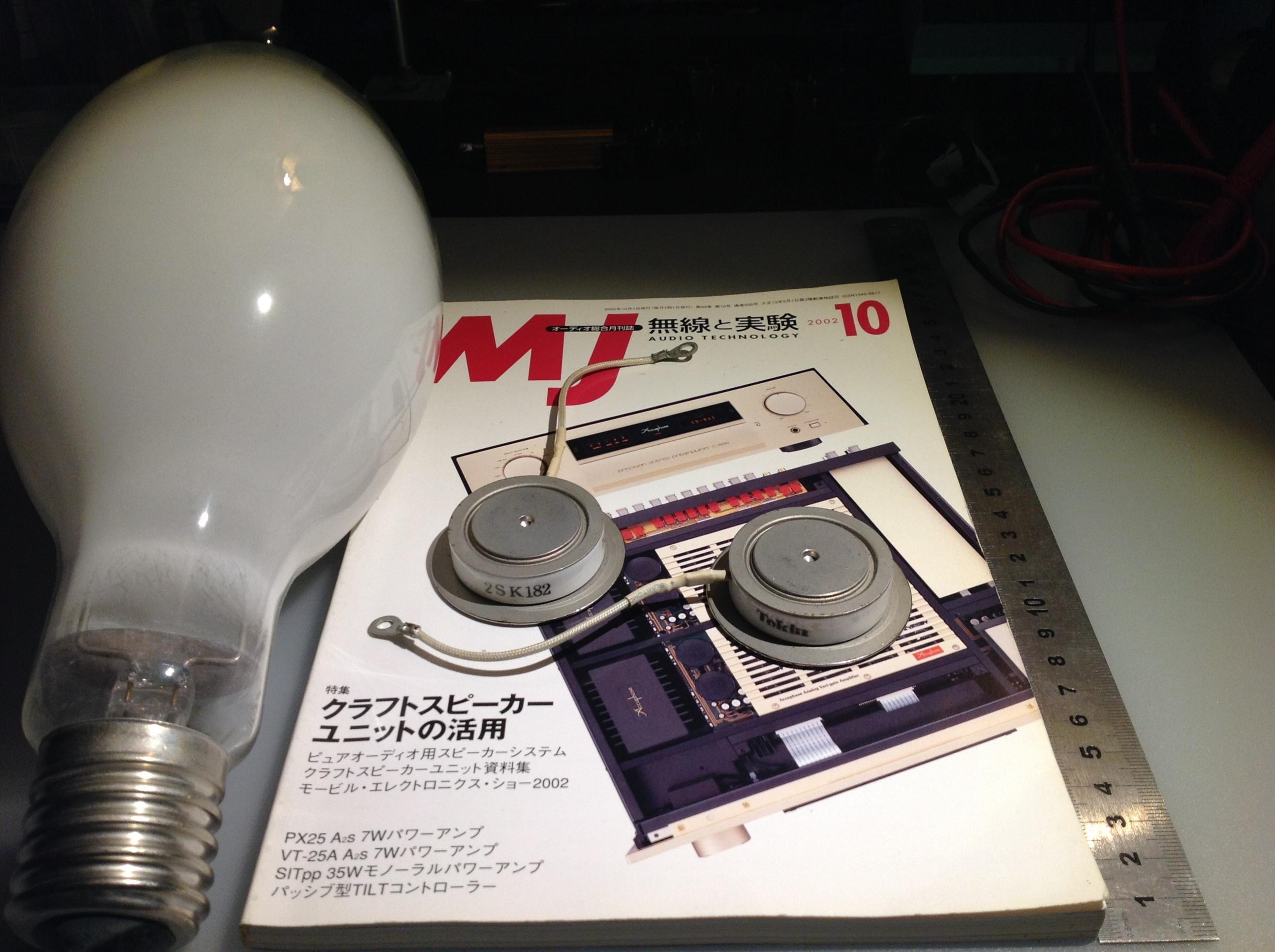

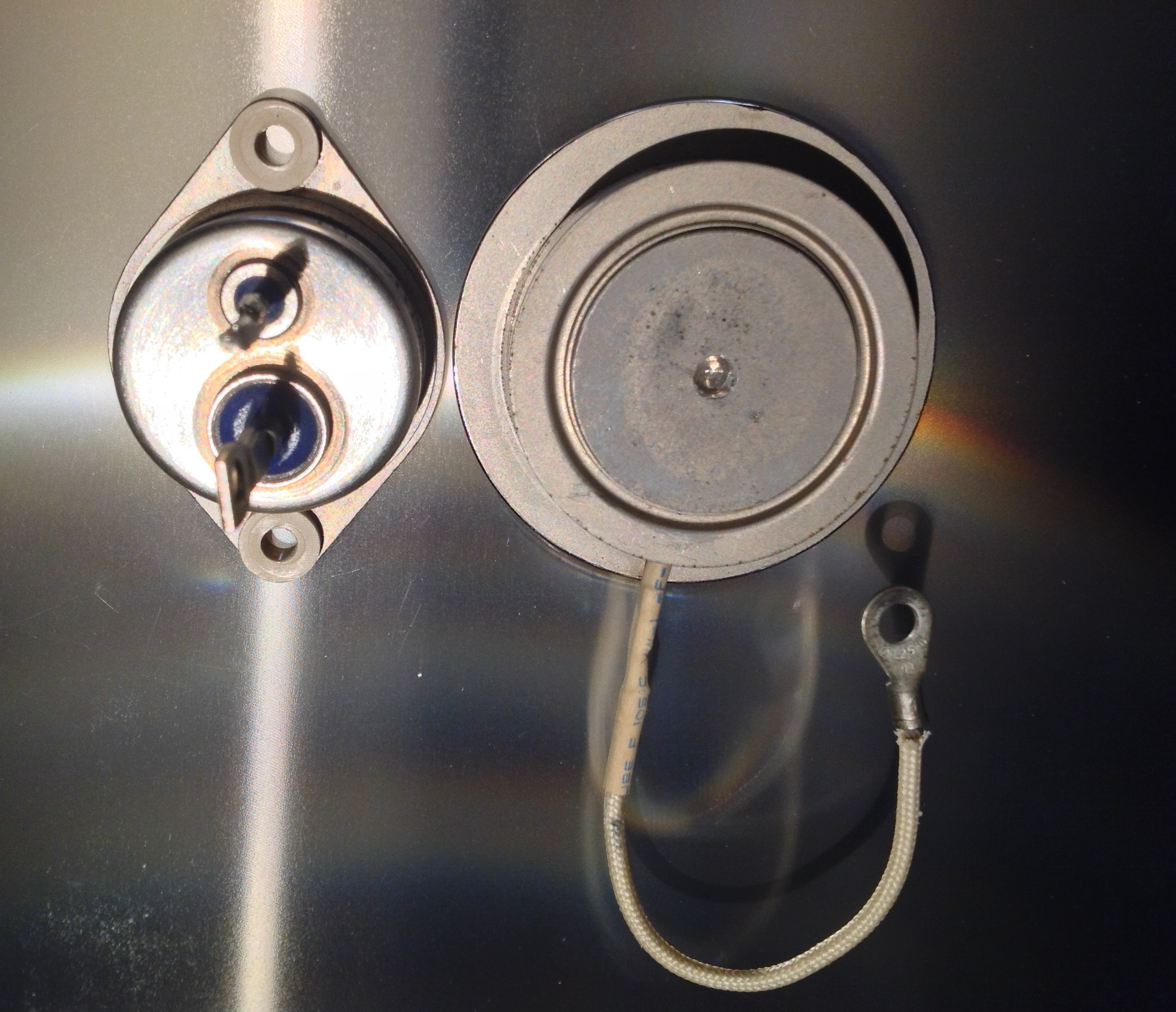

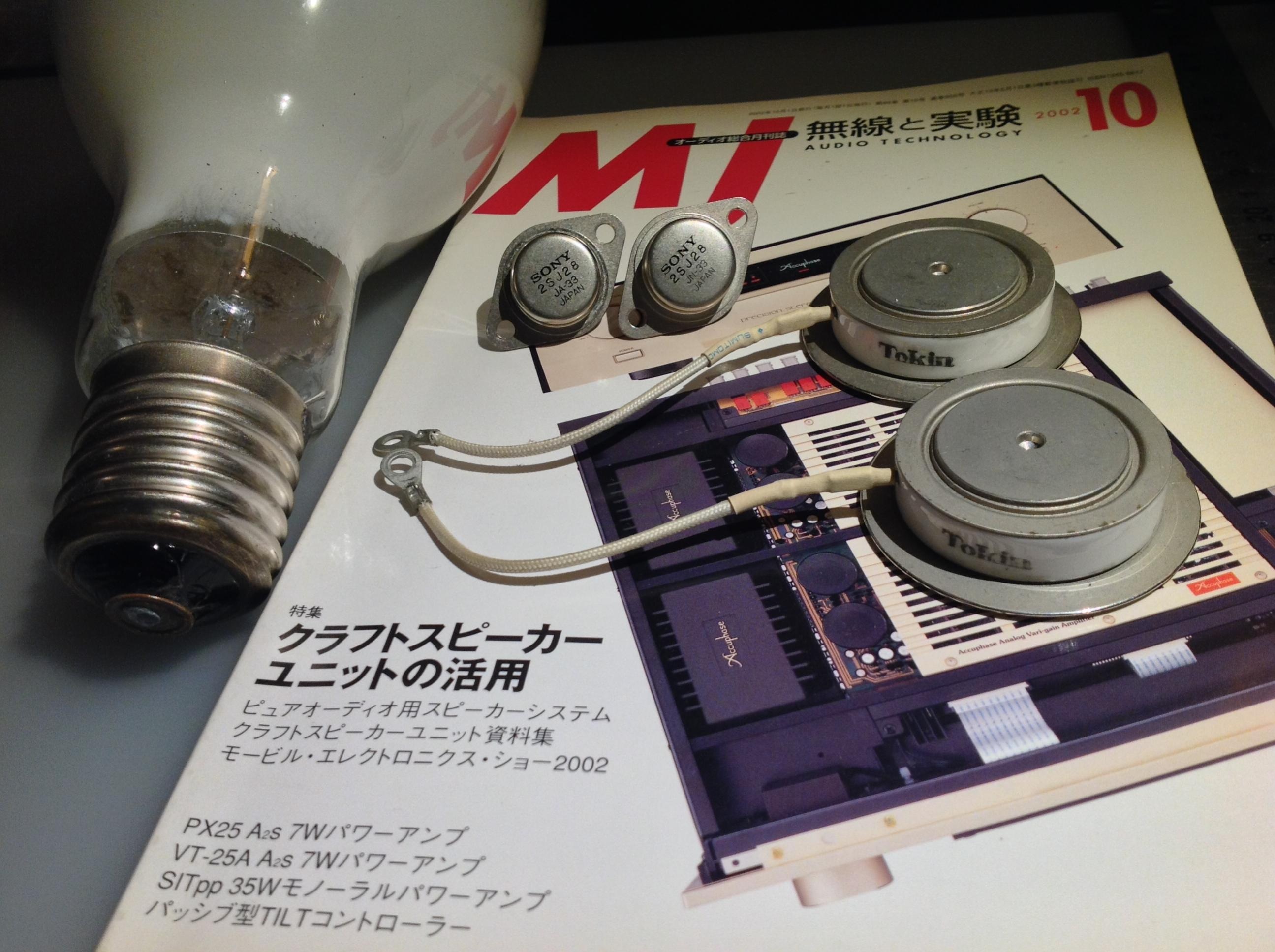

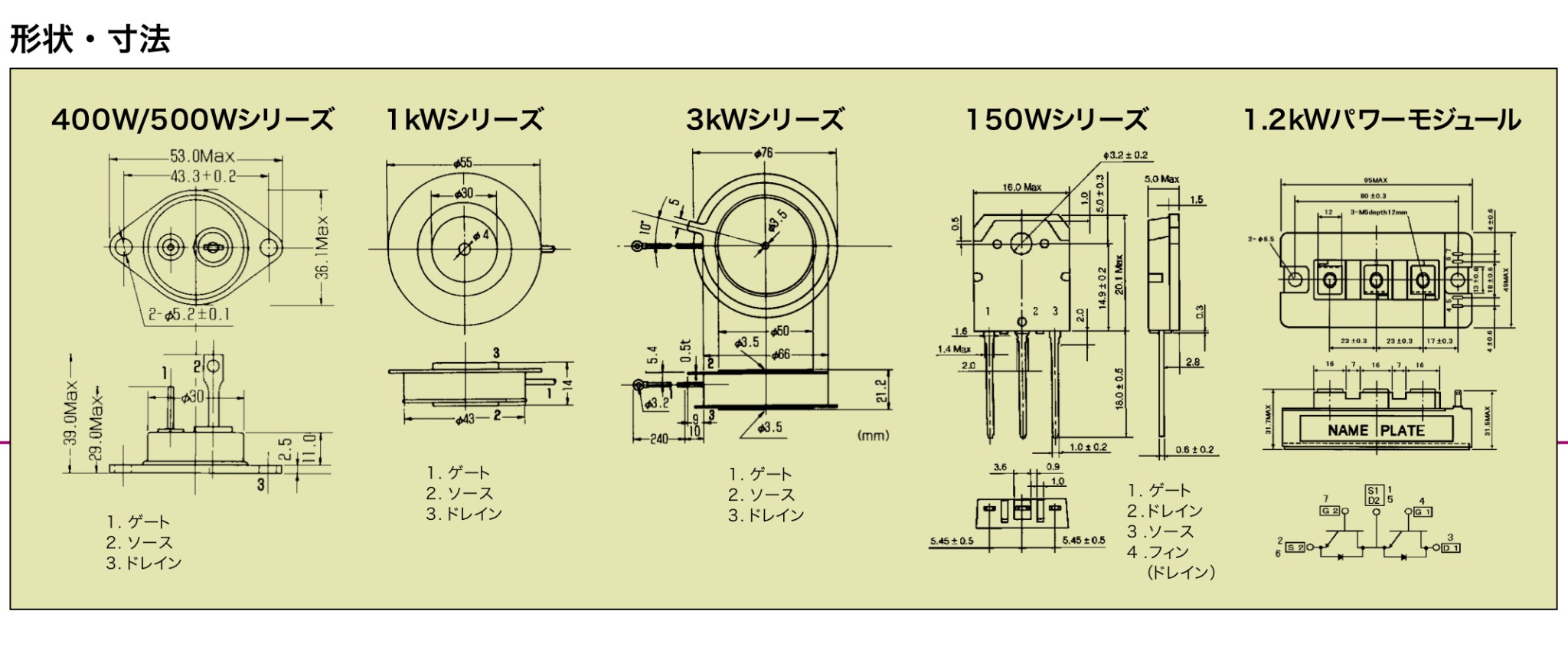

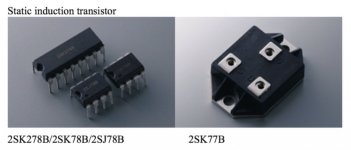

Tokin 2SK180, 2SK182, 2SK182ES, THF-51S


Attachments

  • 0AEA2F54-A292-43D7-BBED-CD8E56951B19.JPG
    739.9 KB · Views: 351
  • 0628A207-2513-4F88-B484-55ADAAFA07F1.JPG
    441.3 KB · Views: 312
  • D55BA1DC-AE6F-4A6E-9697-86F6C0A51491.JPG
    948.4 KB · Views: 280
  • 82DE6125-C4C7-4C8D-97EC-2FDF19F000B6.JPG
    279.5 KB · Views: 231
  • 1370599F-C987-44F4-8883-85D2B3C4EDCA.JPG
    738.8 KB · Views: 370

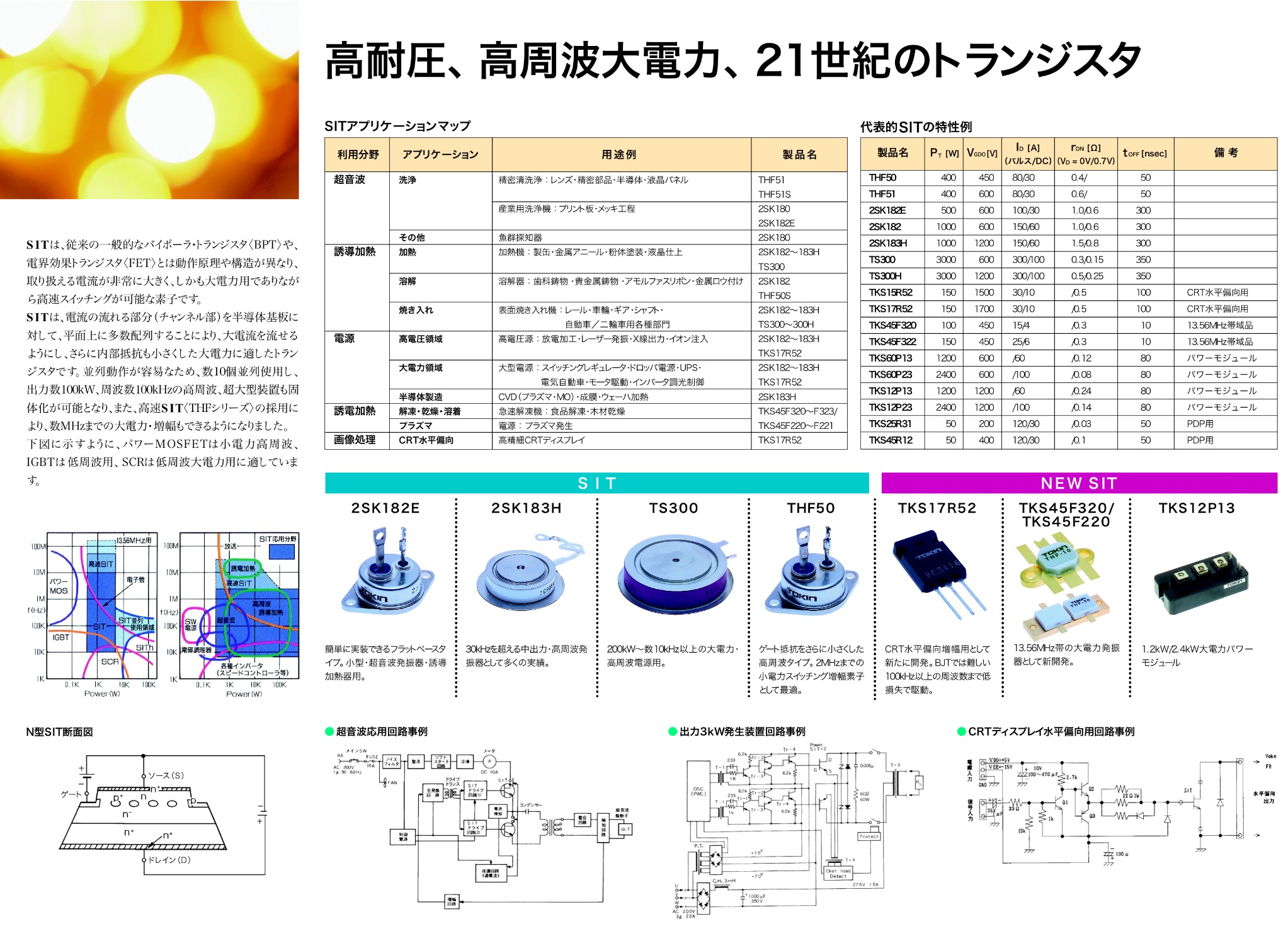

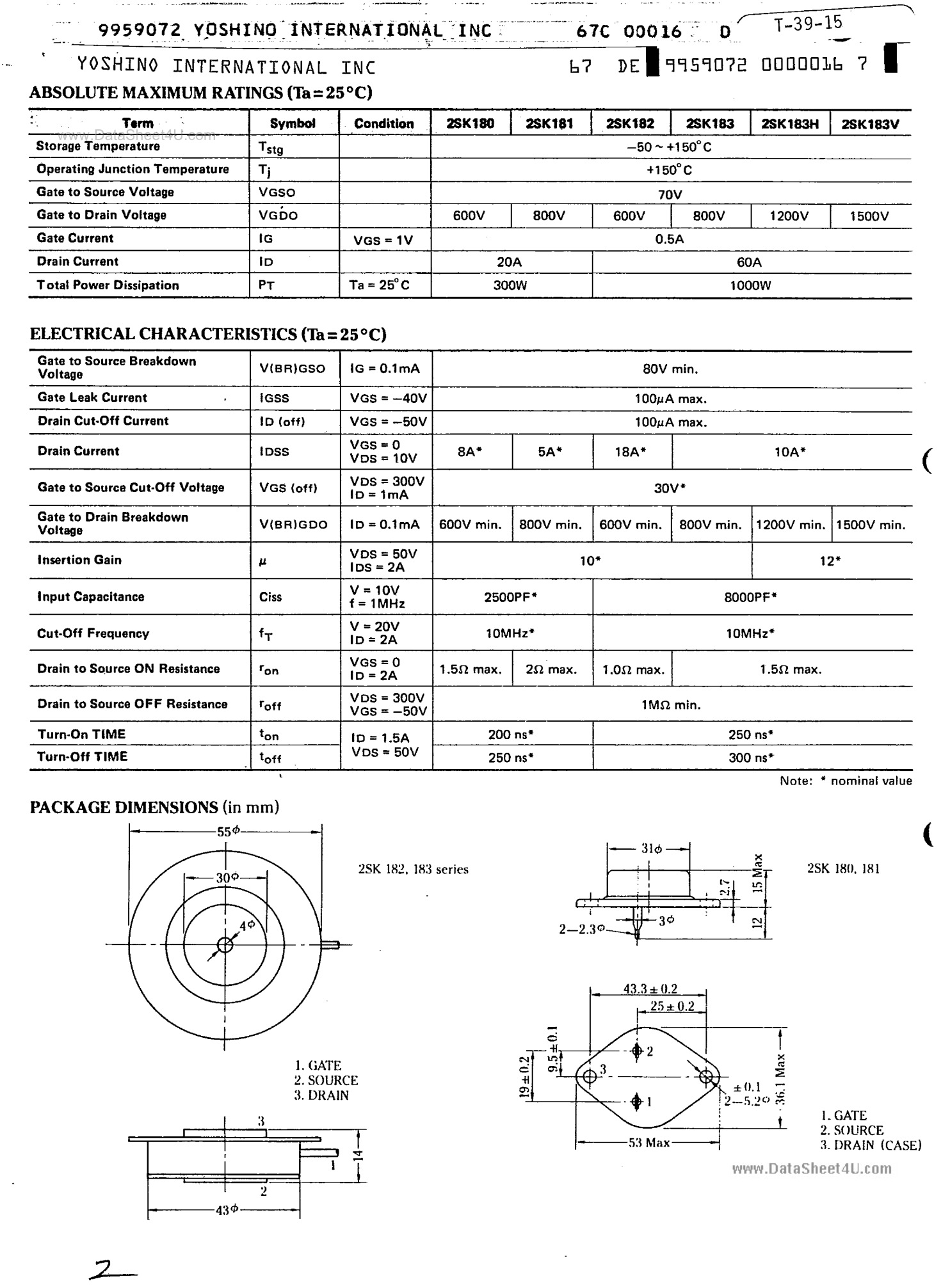

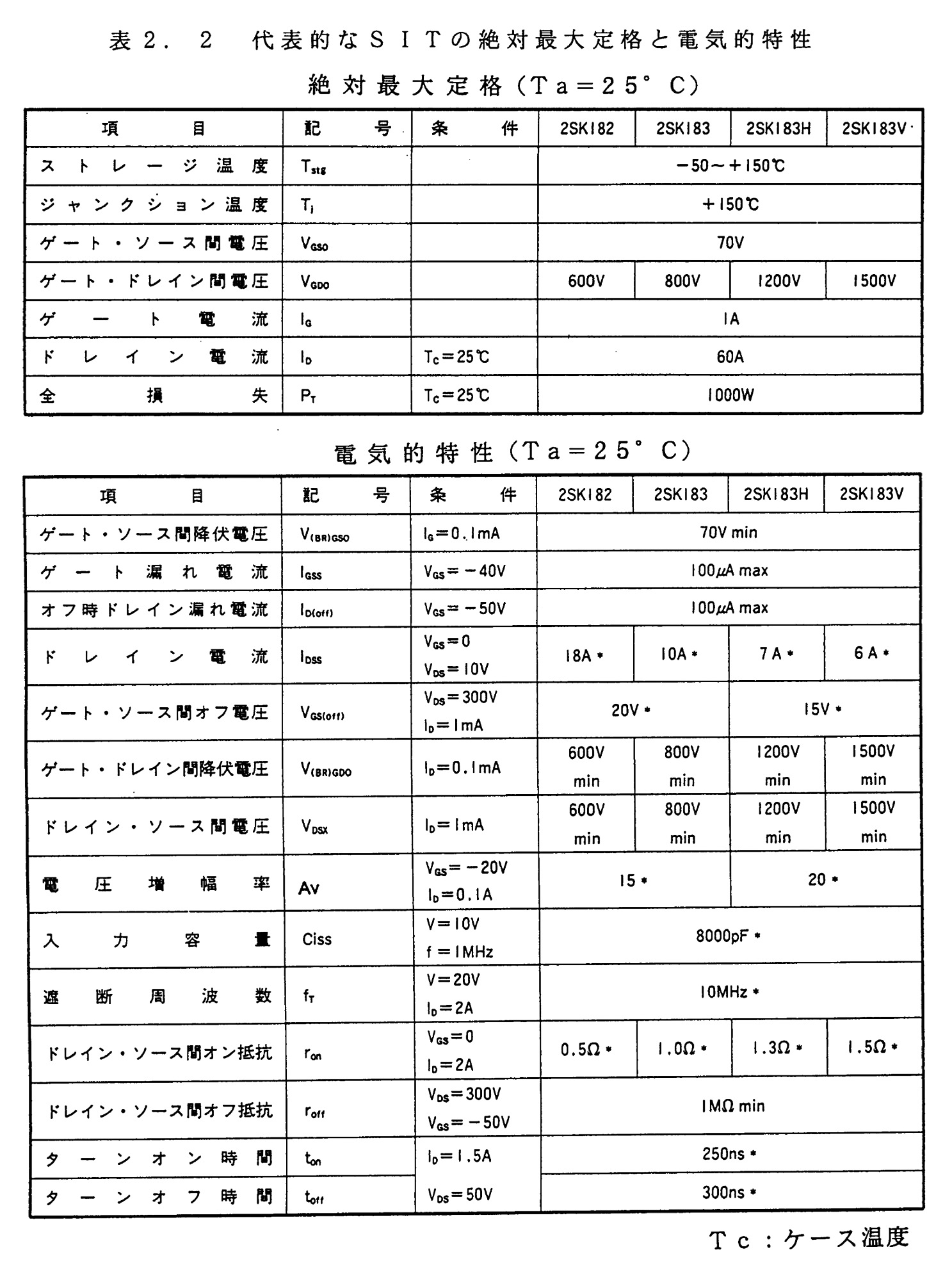

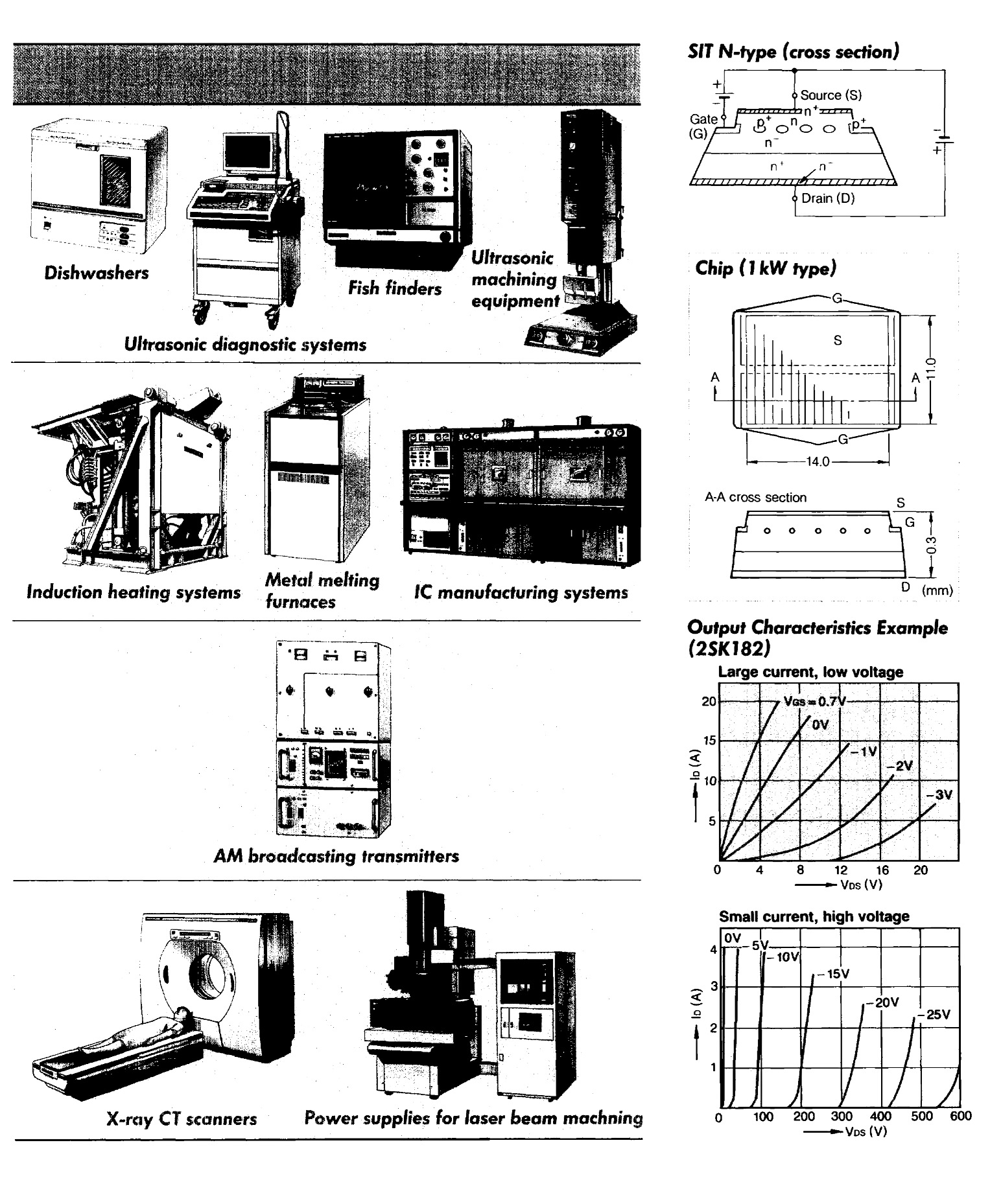

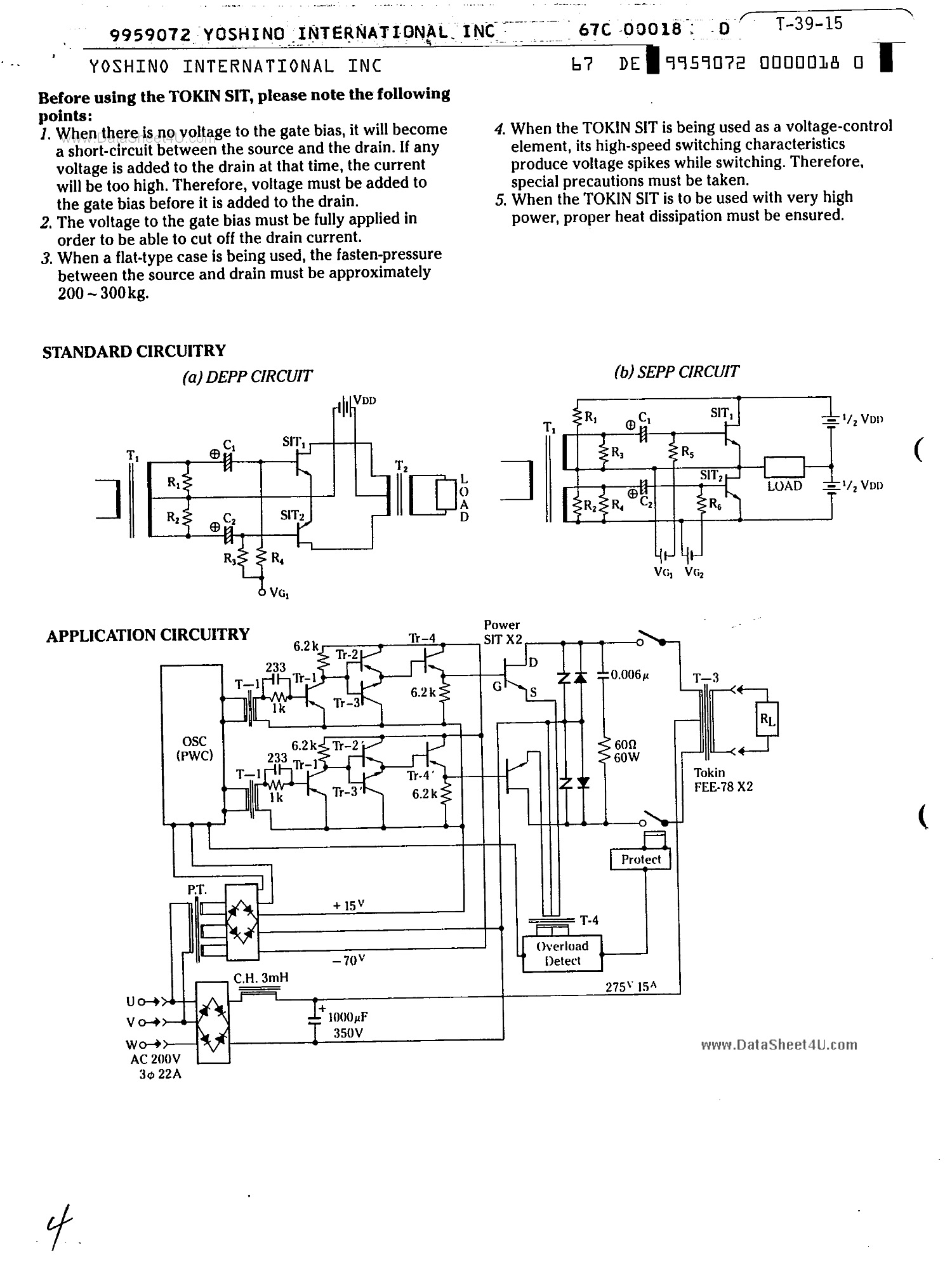

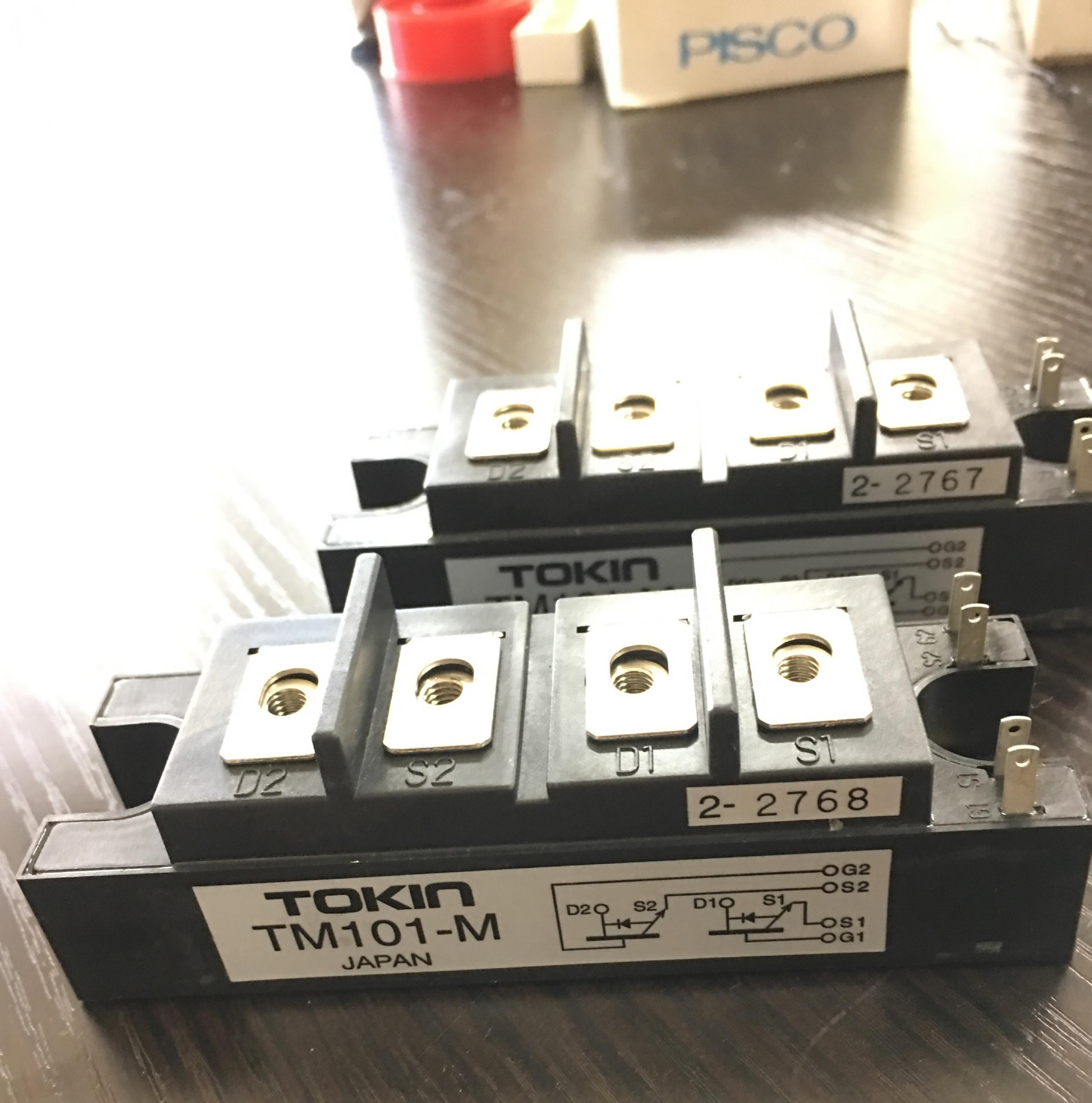

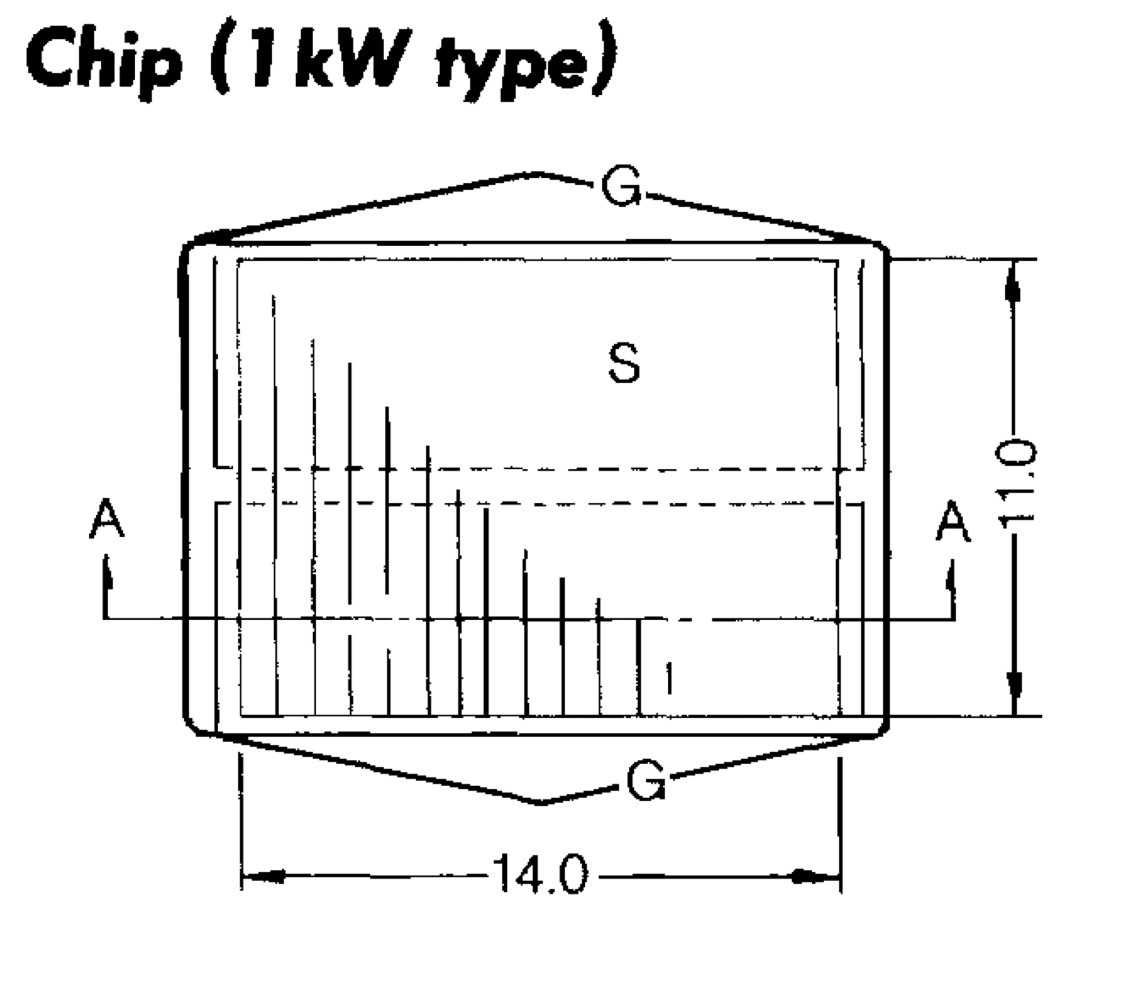

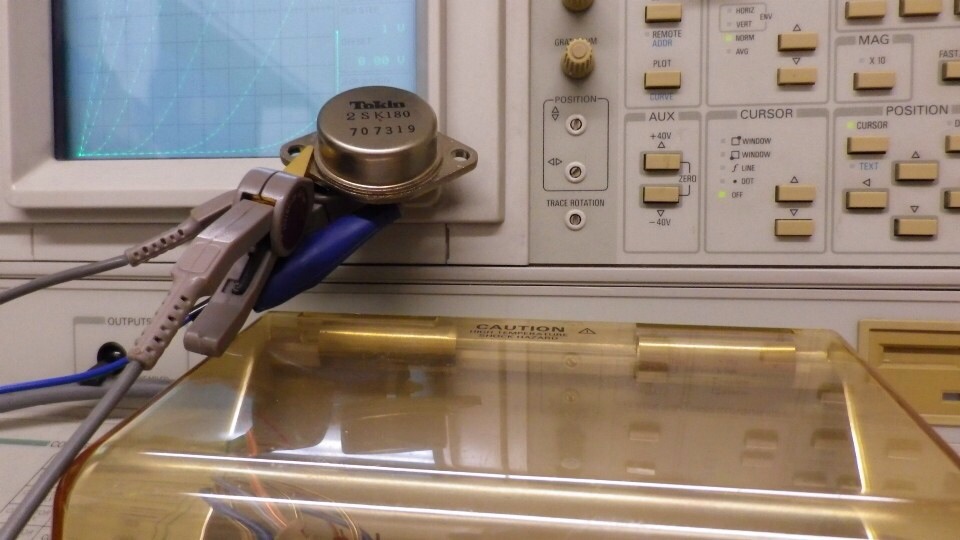

Tokin datasheet :superman: credit to Mr. Michael Rothacher


Attachments

  • 717C722A-A127-4F1B-8AAC-36E08FBE88FF.JPG
    547.2 KB · Views: 532
  • 3BB5A273-8063-4EF3-BFC7-37EB3070EC1C.JPG
    584.7 KB · Views: 526
  • 89E423E3-5599-4B68-B157-87AFF24724A5.JPG
    532.7 KB · Views: 512
  • CAD3FE0C-247E-46E4-AF56-F5395837EF81.JPG
    507.4 KB · Views: 499
  • 37C4BB42-9FE9-4F73-8F4E-9AEEA31B7BC9.JPG
    728.7 KB · Views: 479
  • F1B7CDCA-5715-4C09-AD7E-A2EDDC56BB70.JPG
    121.8 KB · Views: 186

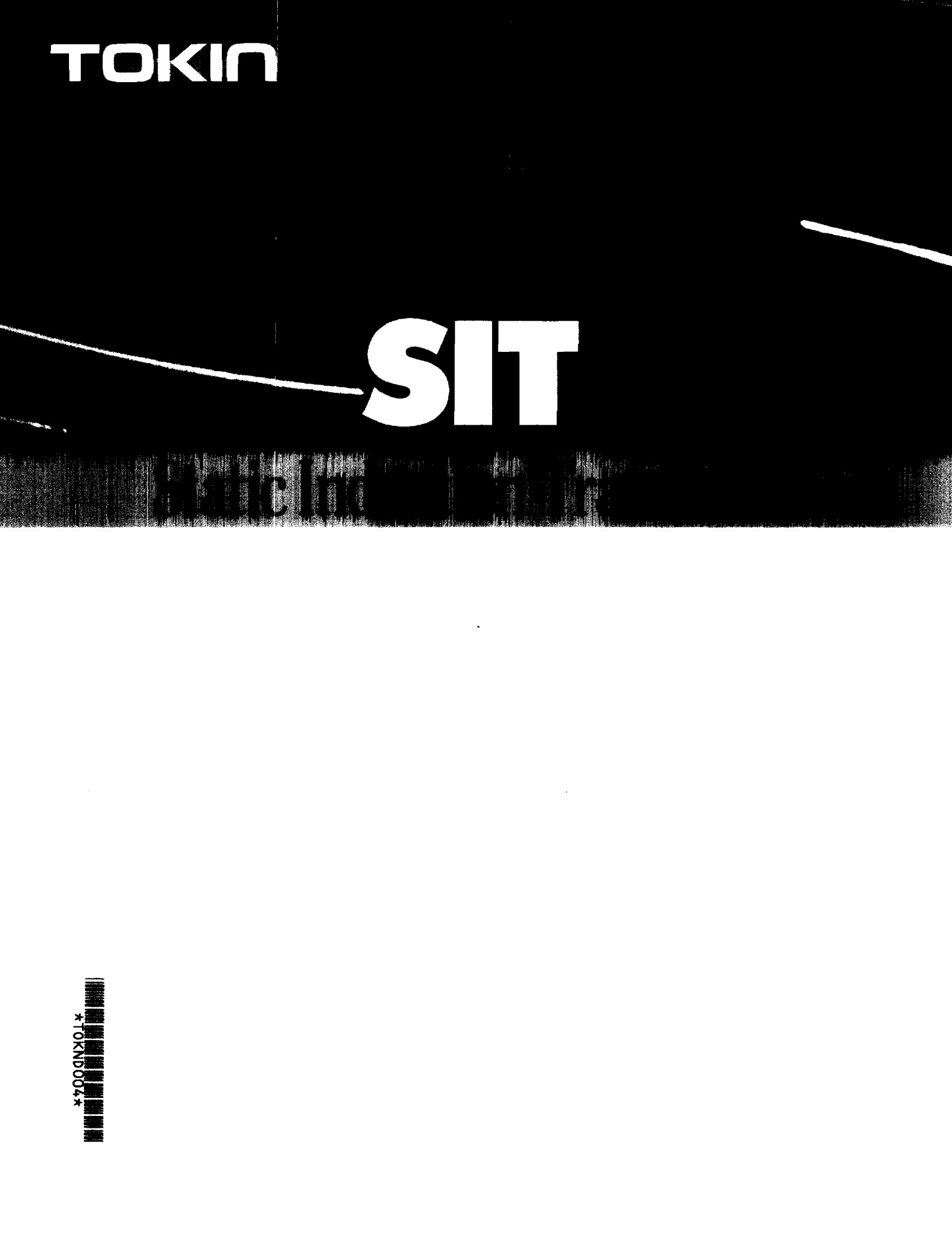

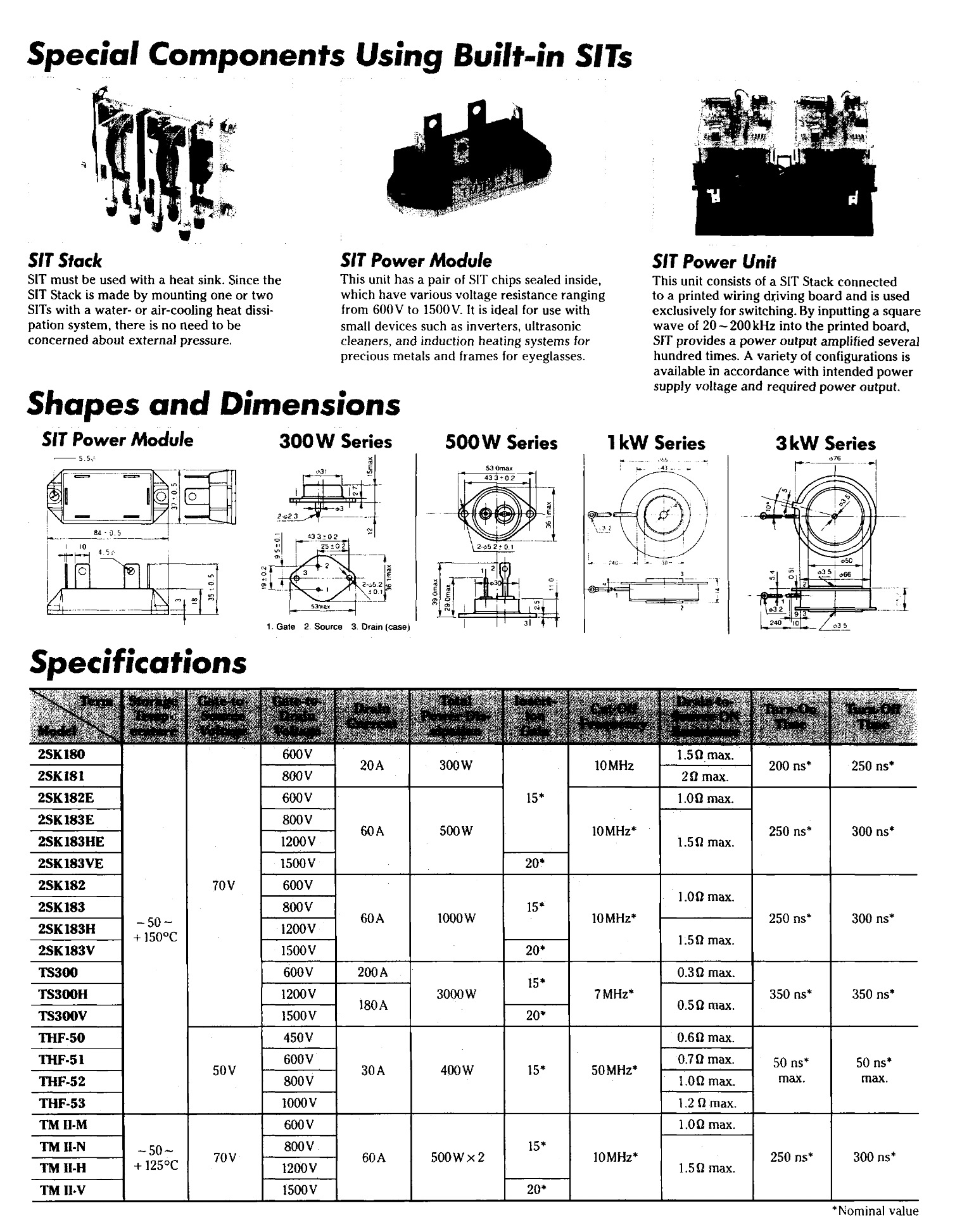

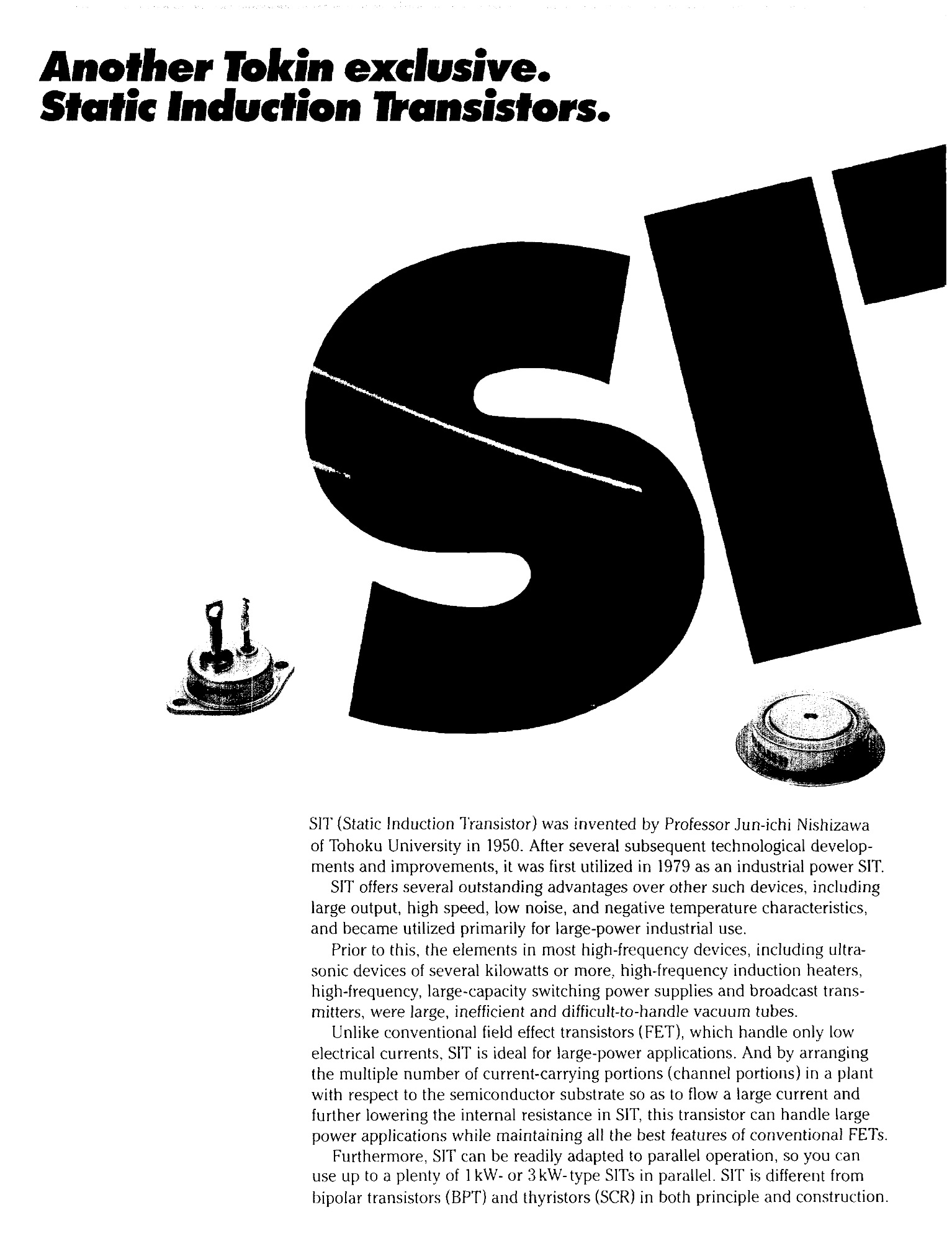

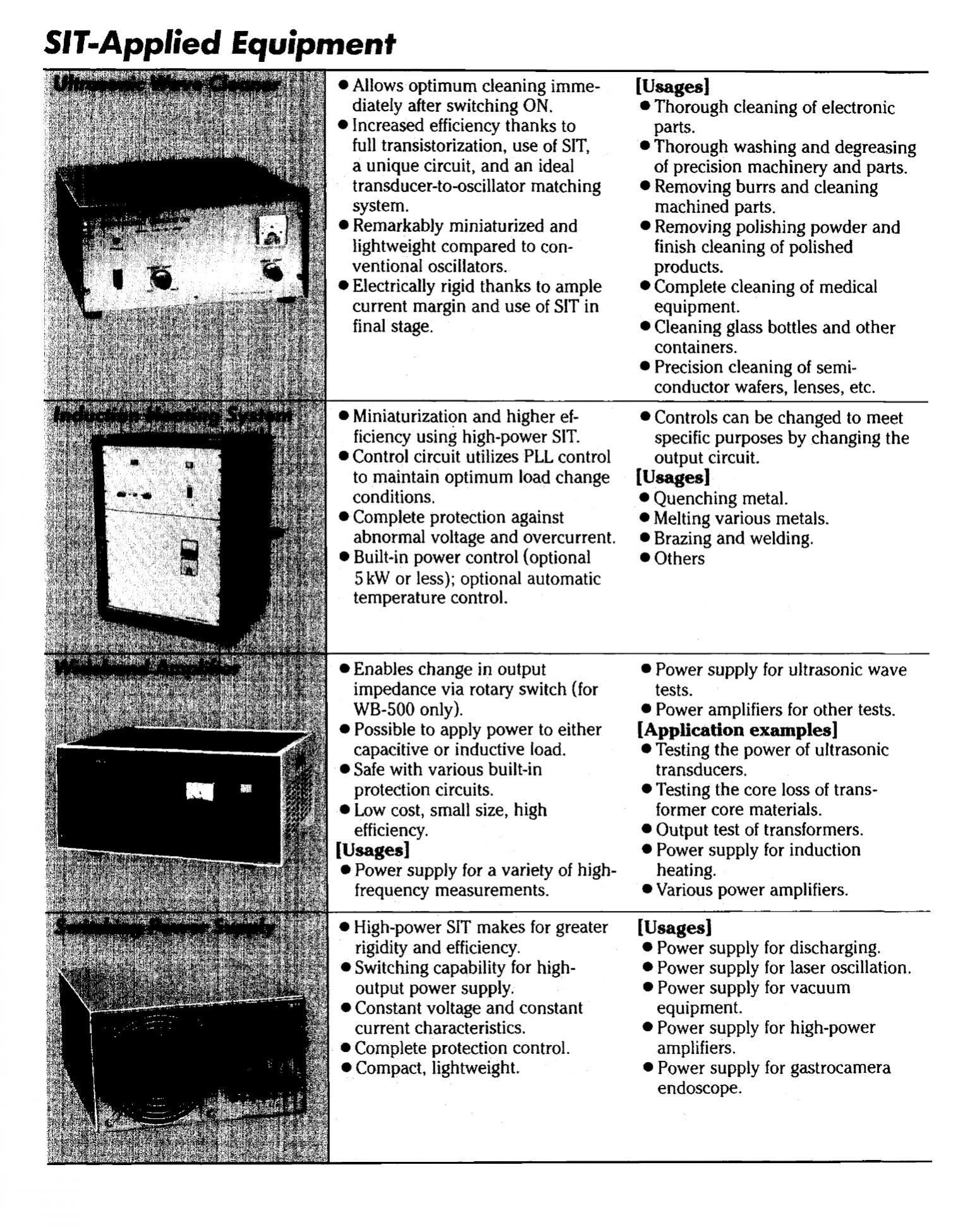

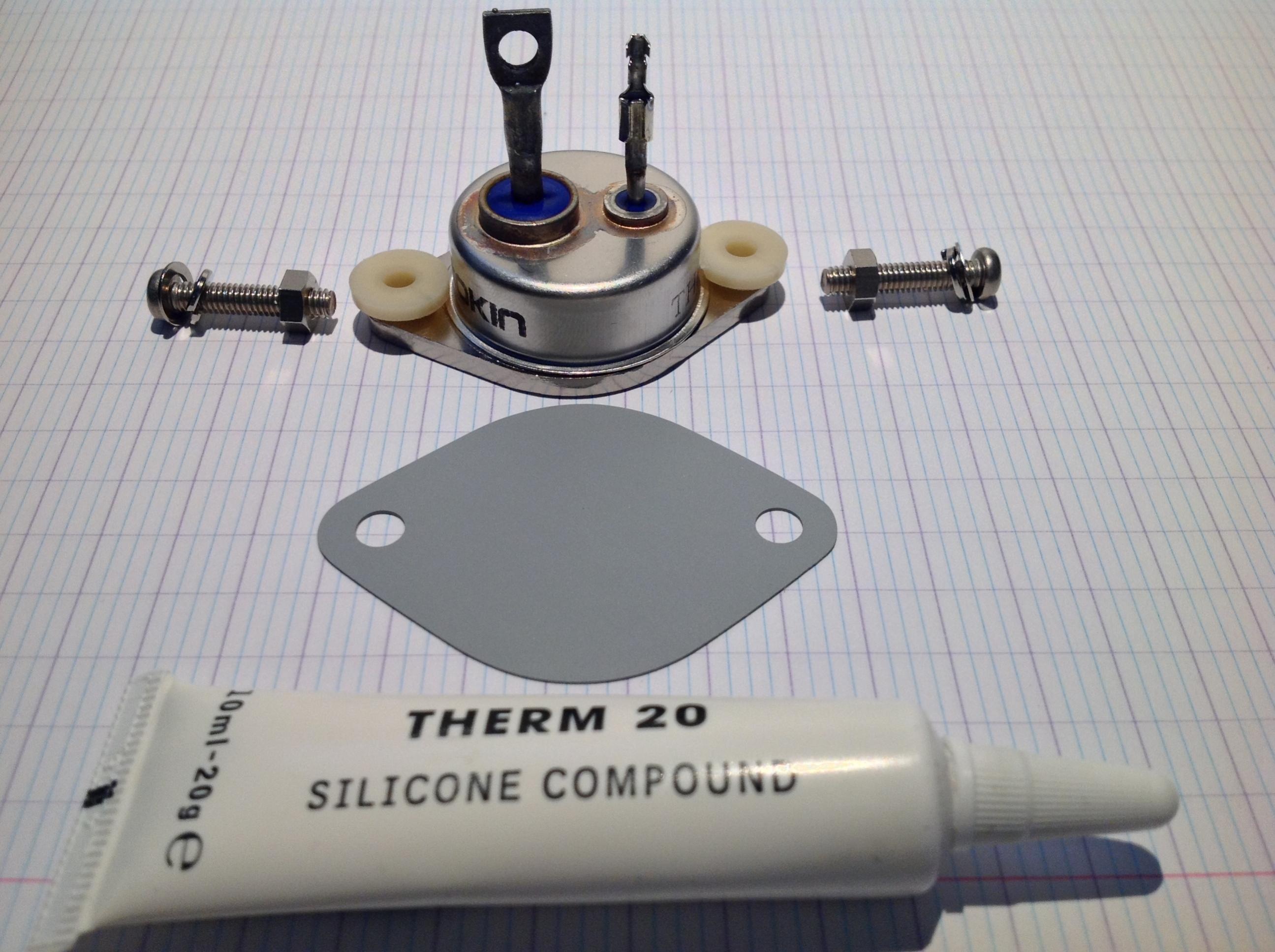

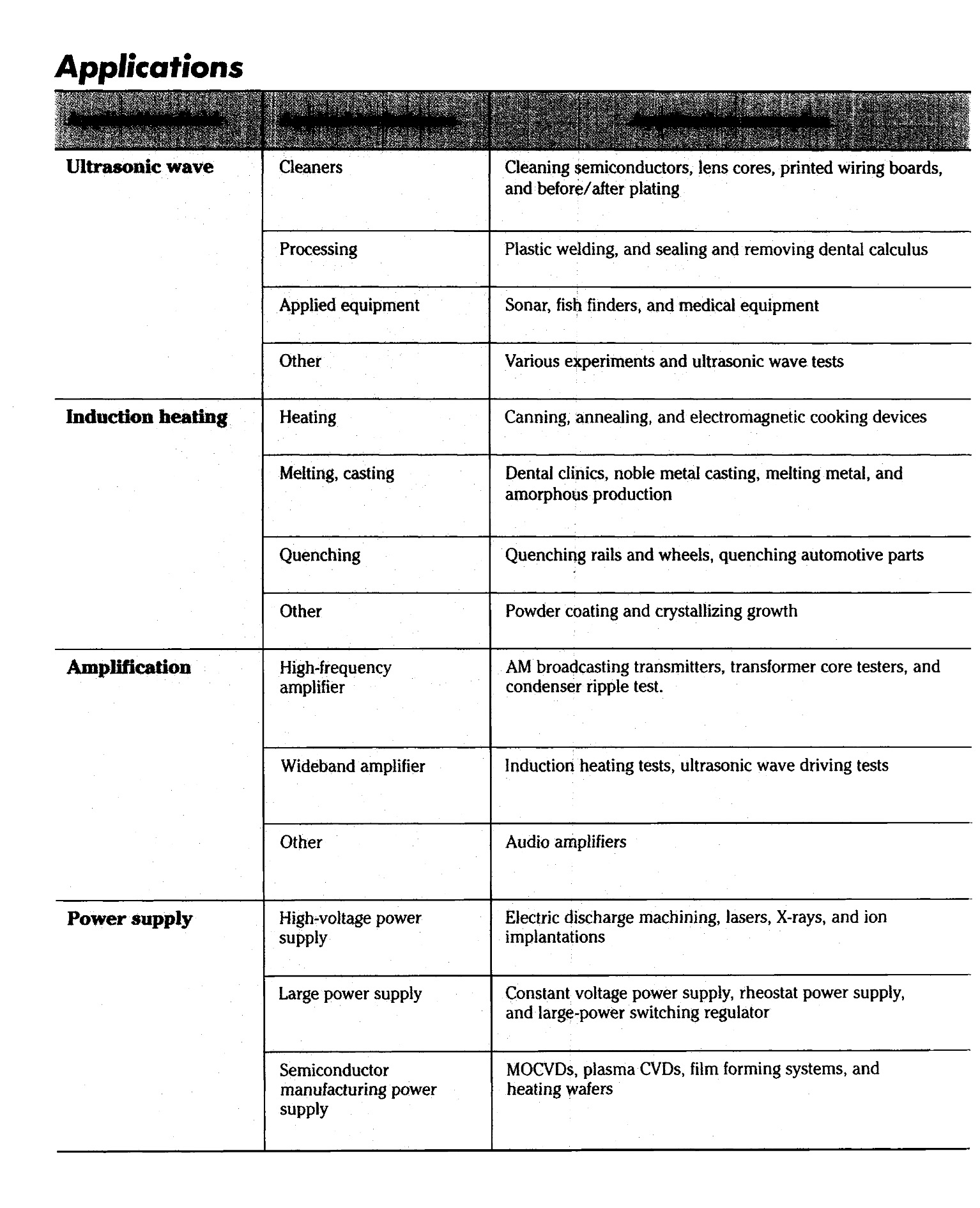

+Classic


Attachments

  • 205B0503-4222-495F-B87D-2529EF8891DE.JPG
    159.8 KB · Views: 166
  • A3B1B93A-079A-4266-B445-698BFAF4A93E.JPG
    471 KB · Views: 100
  • 25266D16-5EED-4A2F-8281-254B32C42A1E.JPG
    714.9 KB · Views: 136
  • 743DFA7D-C3B8-49F1-B8AD-B142B2F7769B.jpg
    584.2 KB · Views: 138
  • D5C94416-1CEC-4055-A069-8EC972E0D6B3.JPG
    558.2 KB · Views: 139
  • DBC26FAF-7161-4C6E-B473-C5DC3650EBEF.JPG
    690.7 KB · Views: 181
  • 9B91AAA0-3585-4A1D-88EB-89BB3E27E7F8.JPG
    407.6 KB · Views: 165
  • B5DF2776-84DB-43EF-9C37-4500489B8264.JPG
    765.1 KB · Views: 167
  • 98674303-8342-4E74-84E2-7ACD6886D955.JPG
    487.6 KB · Views: 143
  • 55E6BE79-D8AB-4120-94FF-FFADC33361FE.JPG
    734.9 KB · Views: 222

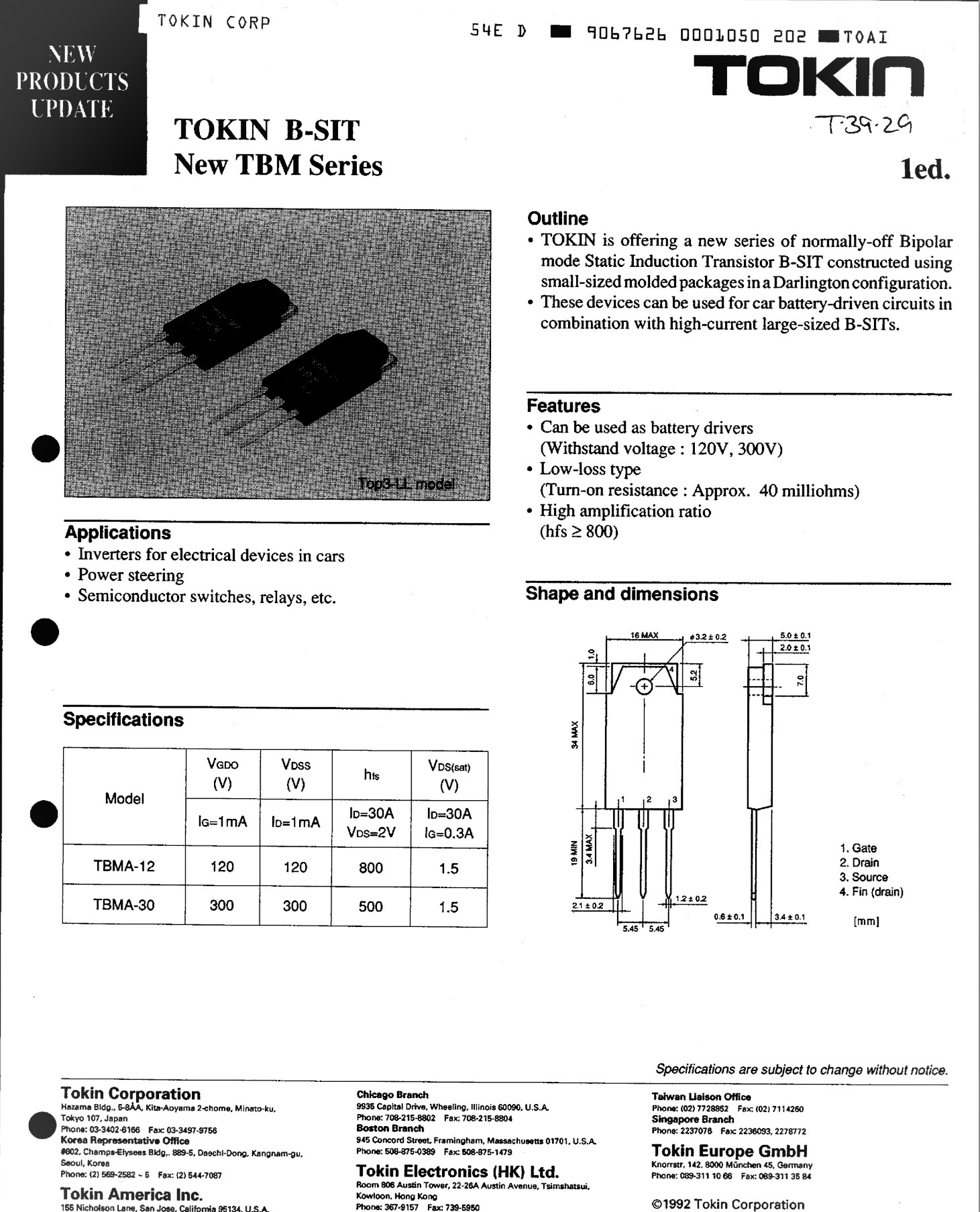

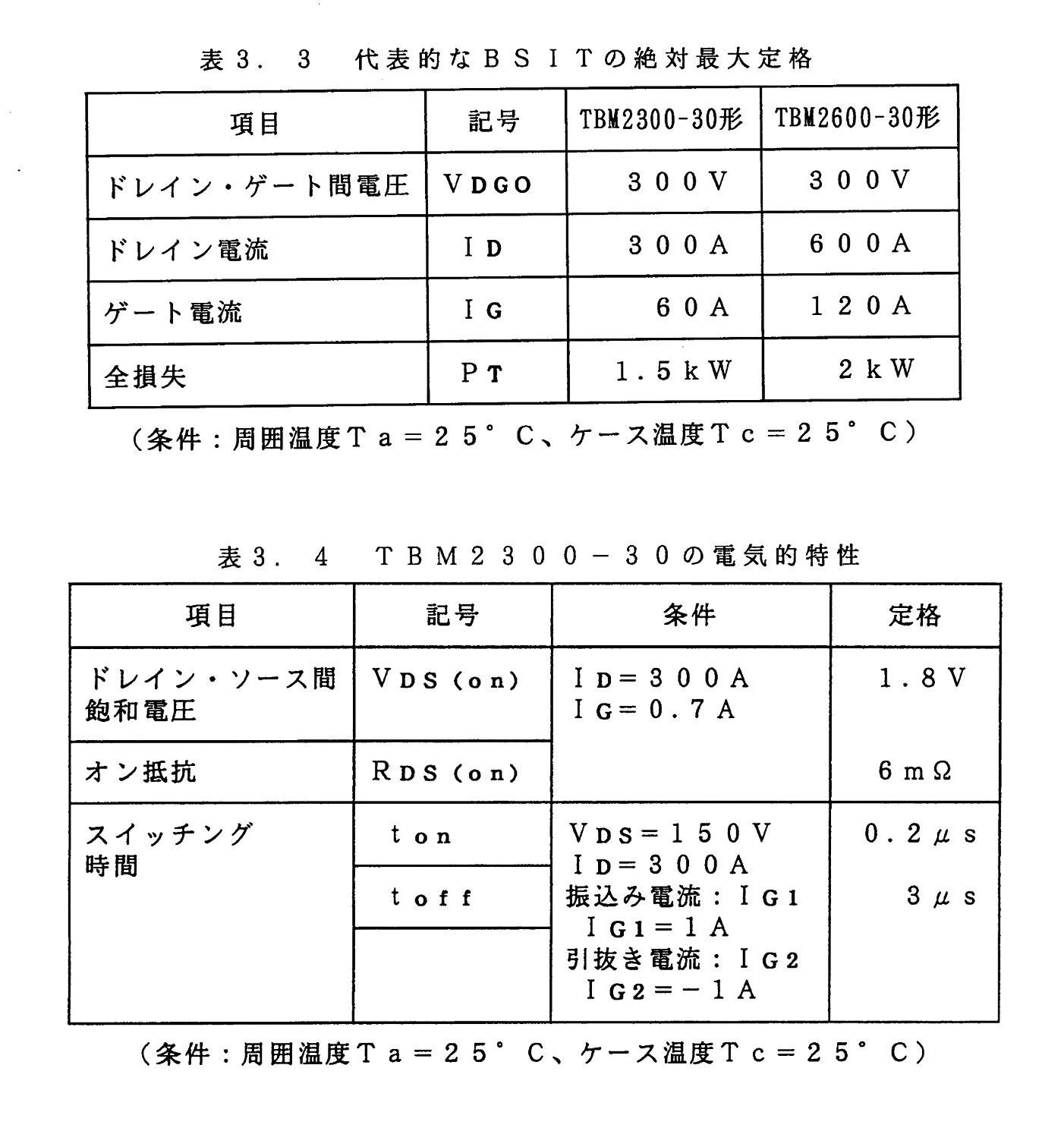

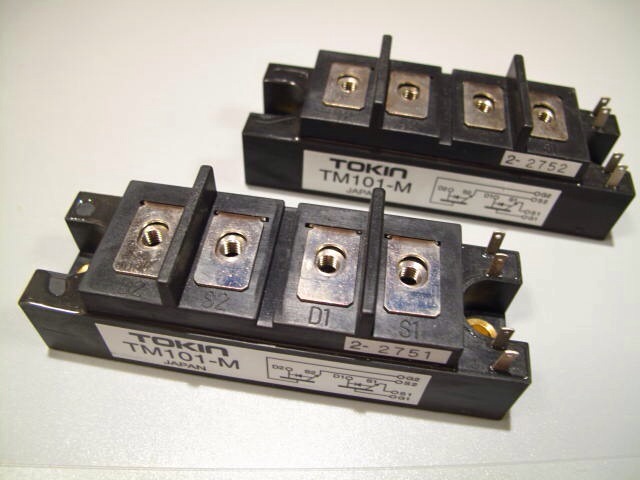

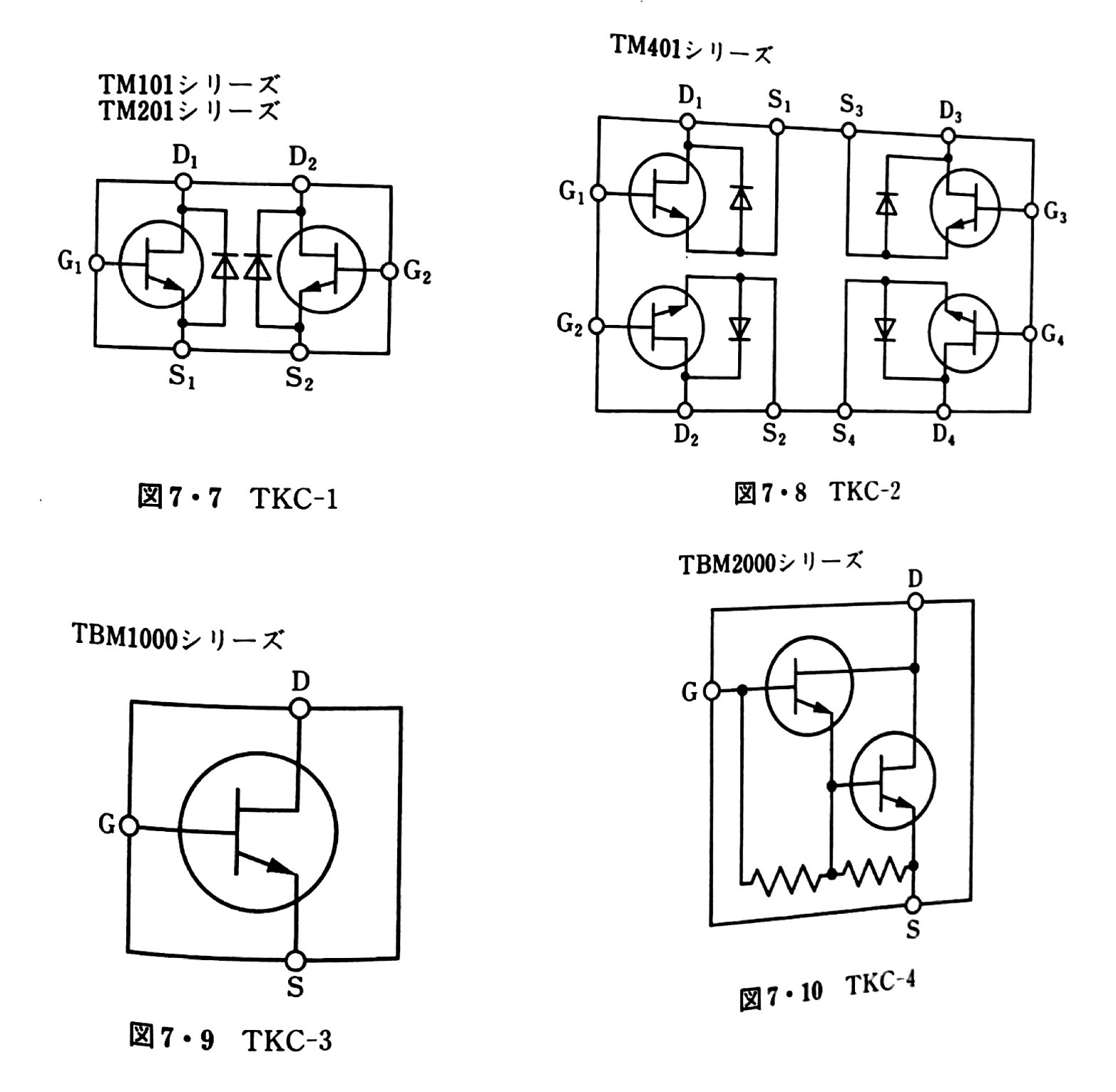

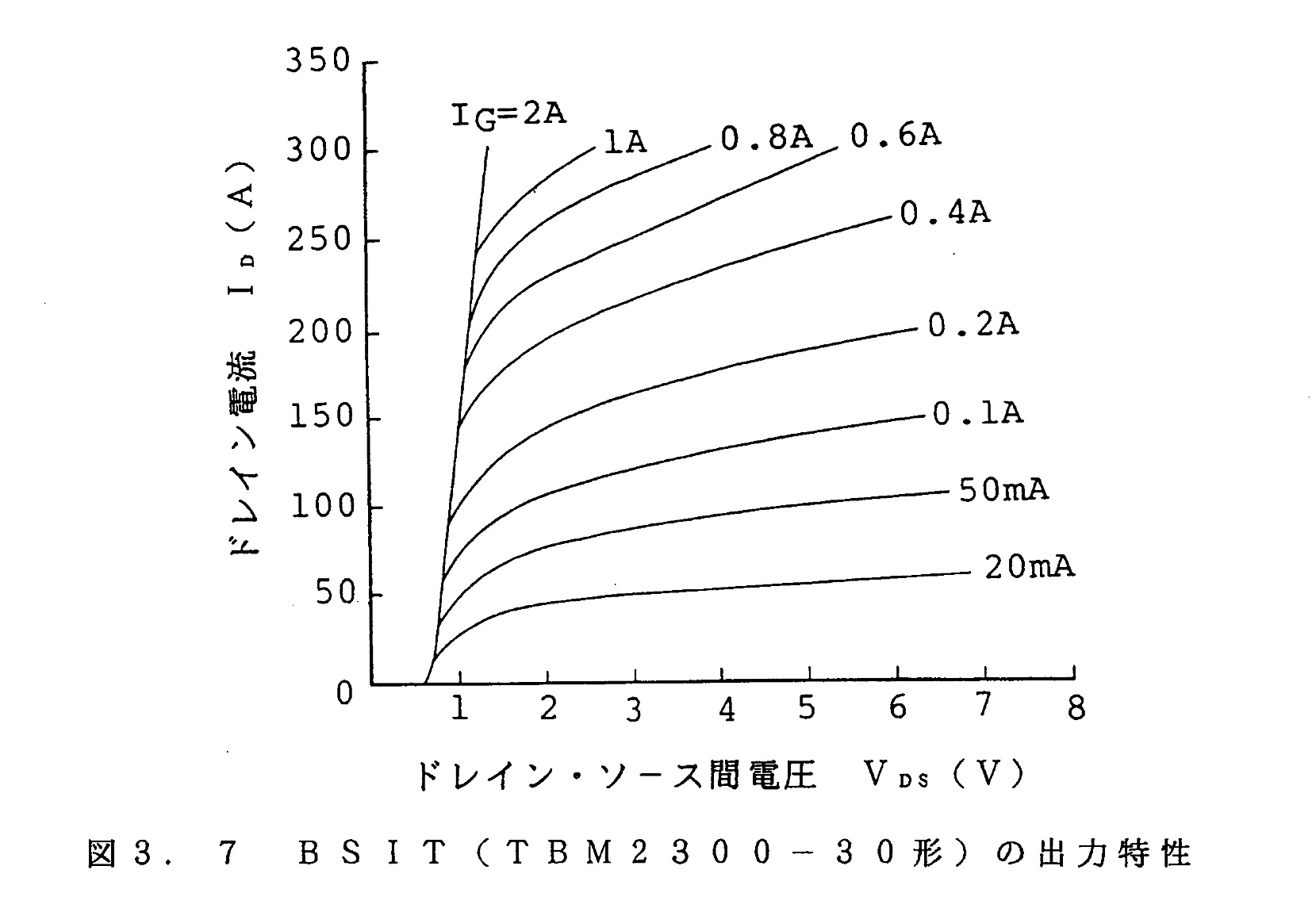

Probably TM series are triodes but TBM are pentodes.

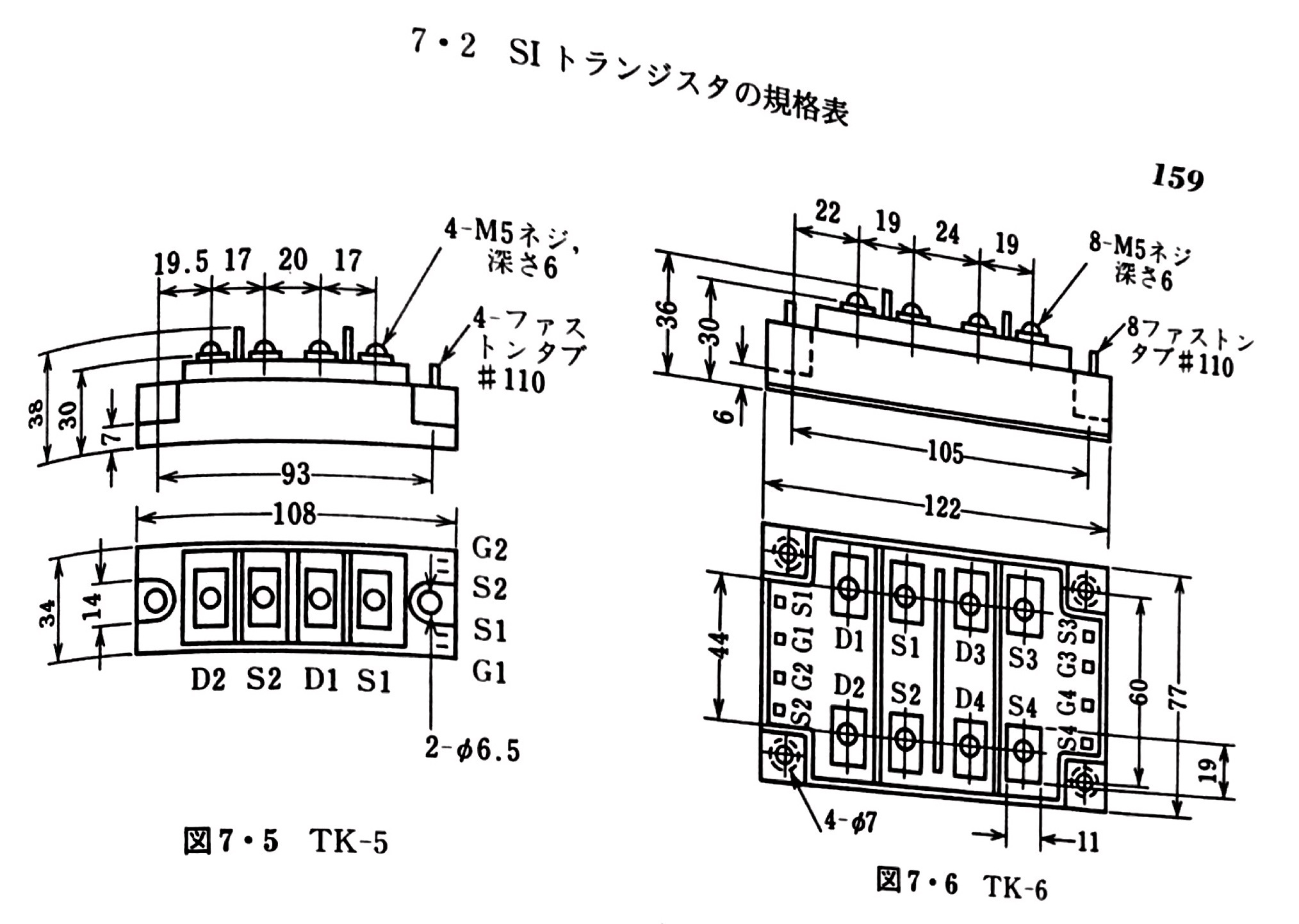

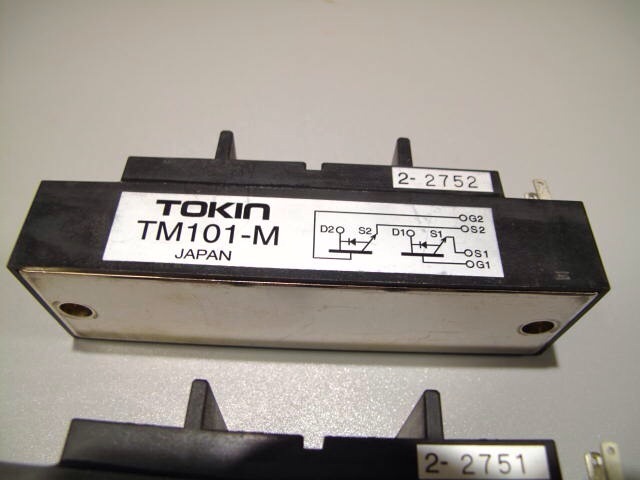

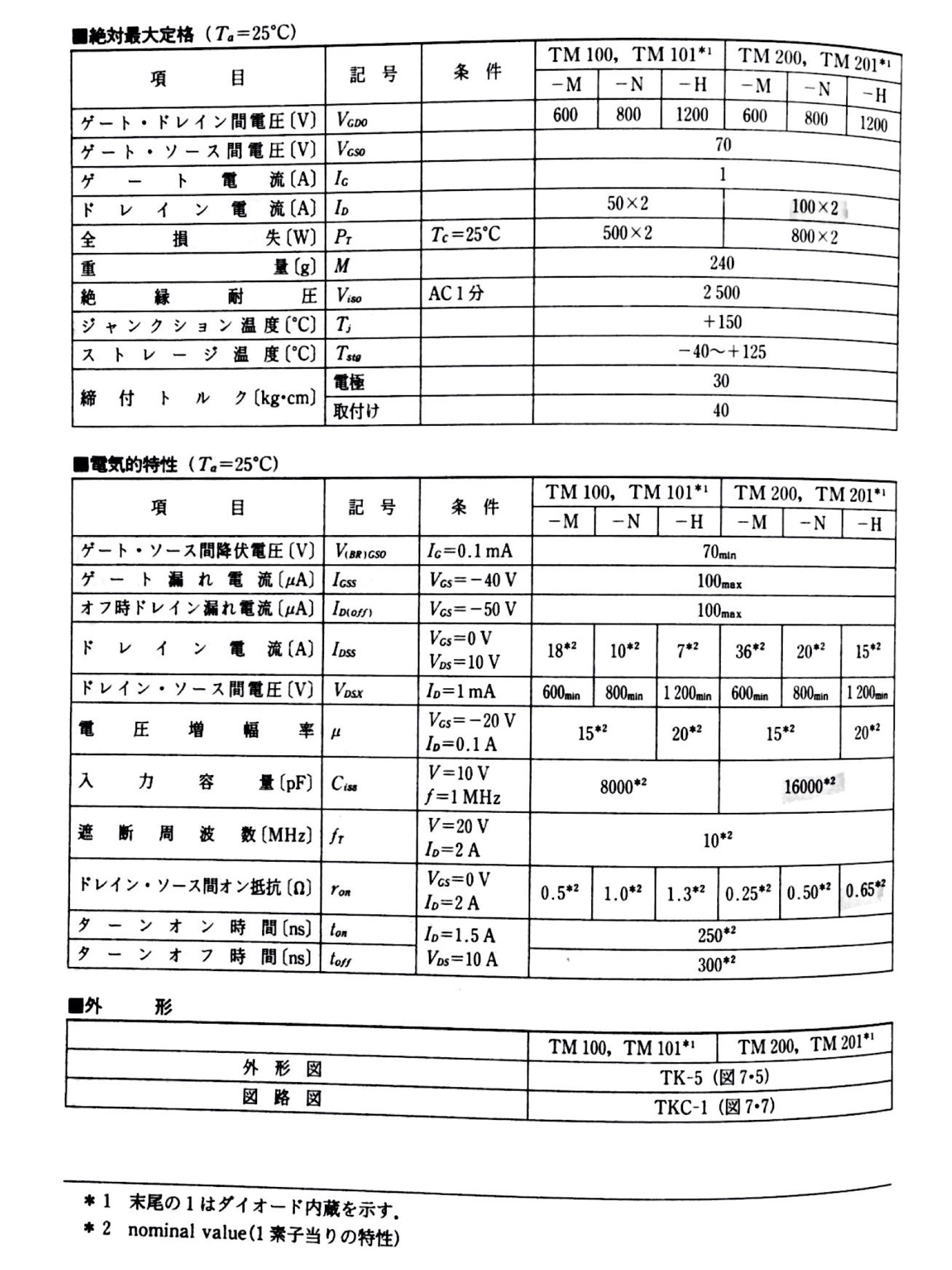

Transistors pair or quad in one case


Attachments

  • F1EEDDF8-A1A4-46E5-8025-B9F2DFC73994.JPG
    59.5 KB · Views: 91
  • 432623ED-ED47-4ED5-805E-8B03F0319D3E.JPG
    77.3 KB · Views: 97
  • 8A6D25CA-7711-4D5F-8FB4-2370C6F73E79.JPG
    570.7 KB · Views: 79
  • 340F061F-6347-44F1-994E-4A5D6EFE61E0.JPG
    400.7 KB · Views: 80
  • 6B0F4B24-C8AC-485B-80FF-498CE7AEA5D7.JPG
    242.5 KB · Views: 117
  • A0DFA258-437D-4175-9EFA-56F3840DB4A2.JPG
    561.1 KB · Views: 154

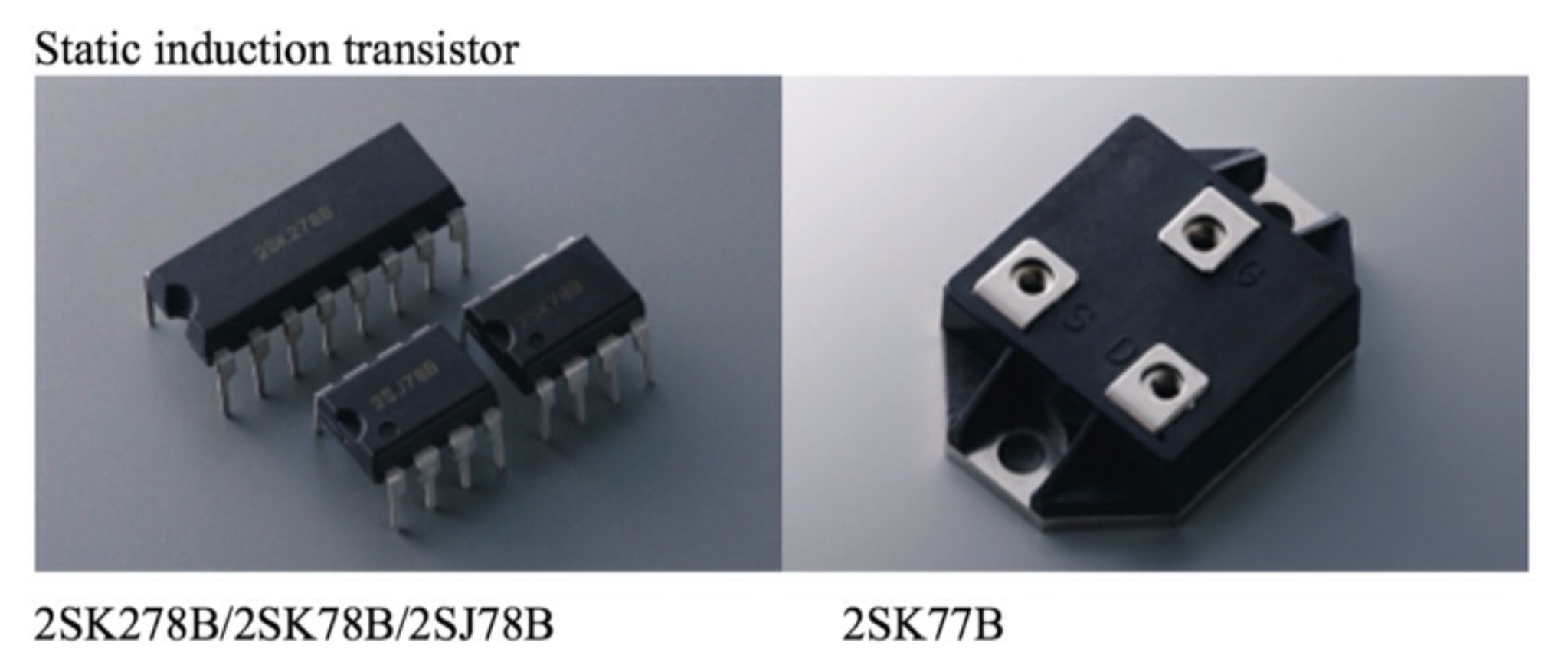

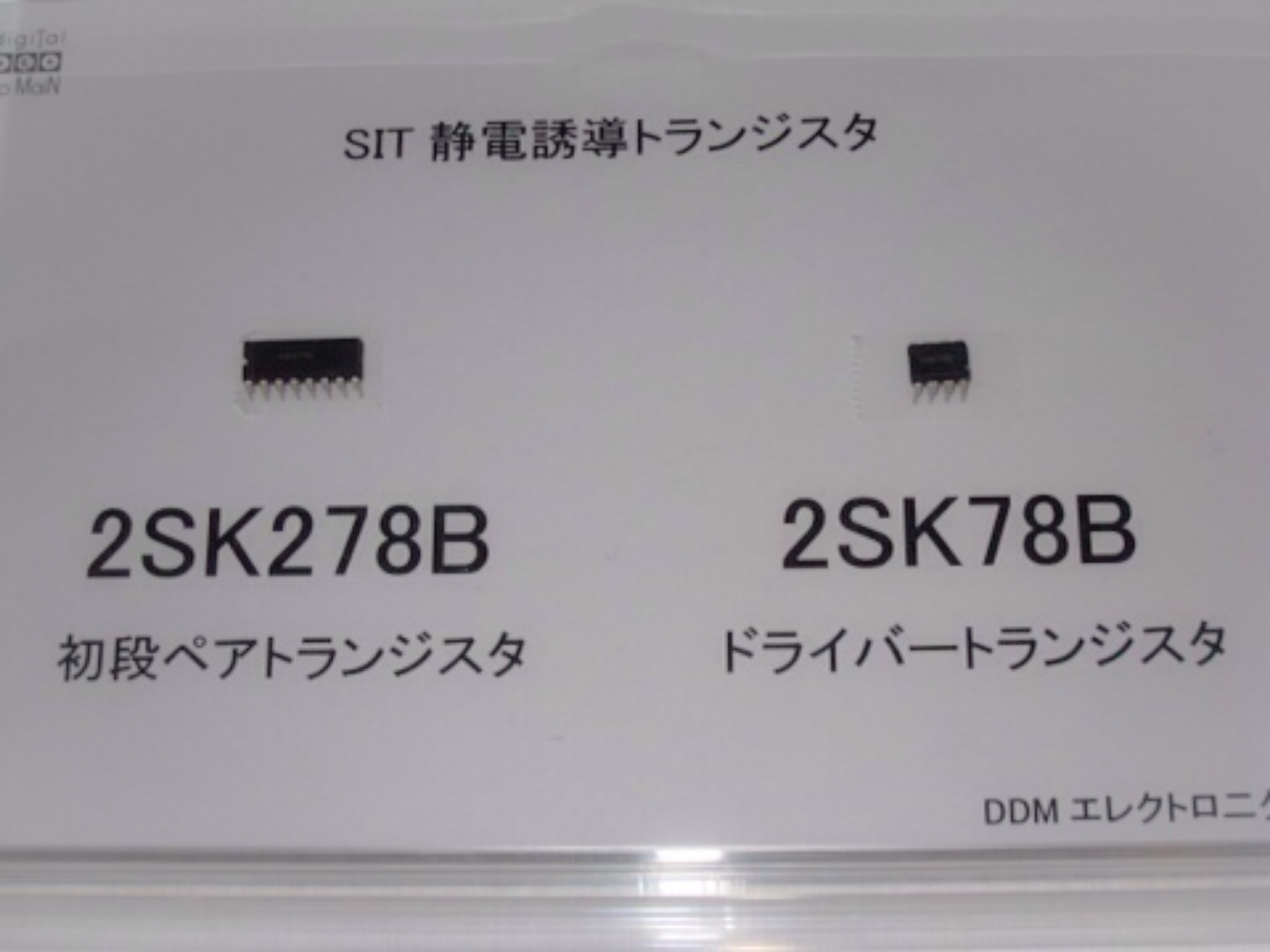

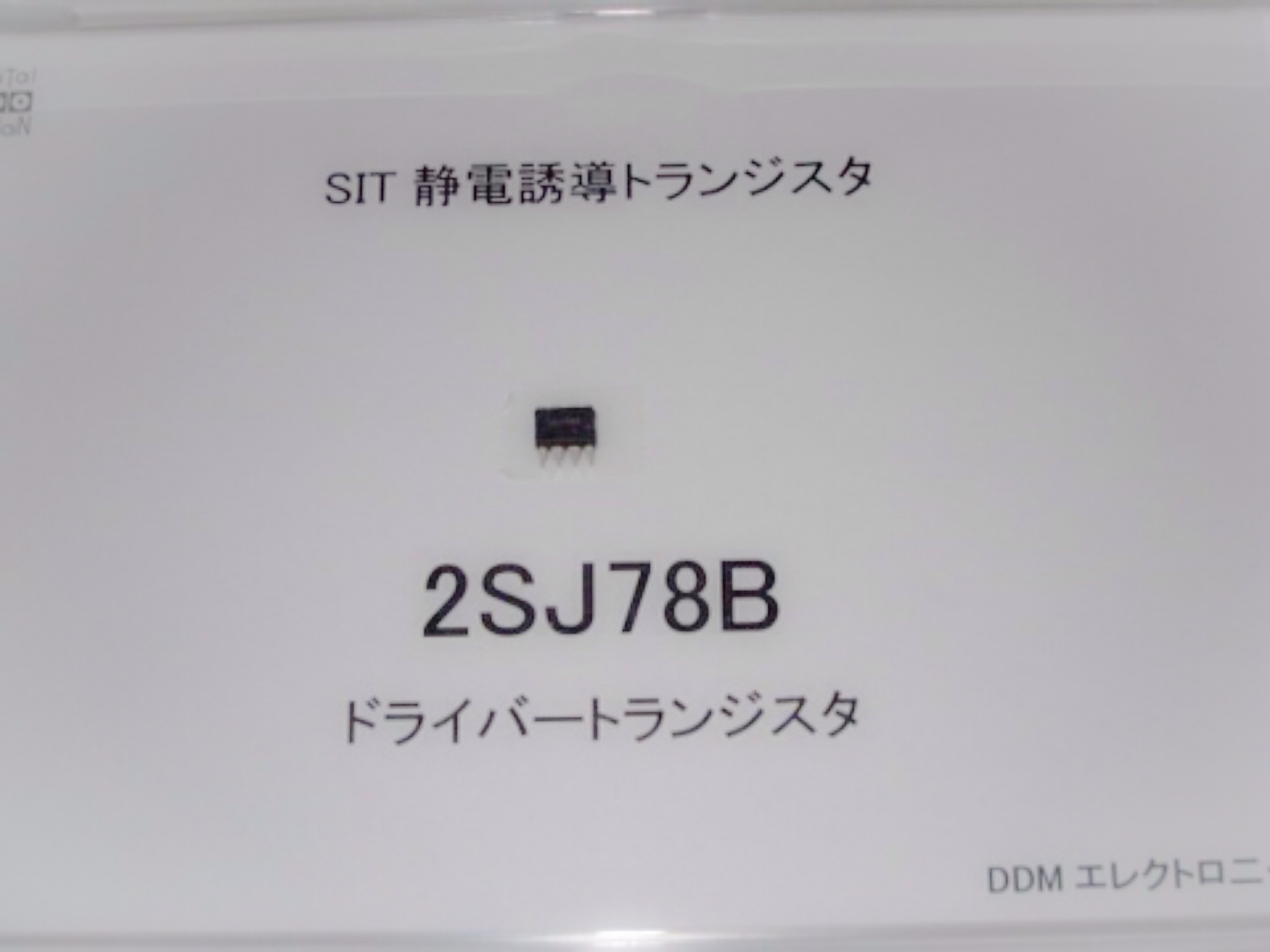

Attachments

  • 86E70735-7EE5-4610-9BB9-557DF8003CBD.JPG
    237.2 KB · Views: 115
  • 280EEA14-6ED7-4831-9FB7-34264D0F3E14.JPG
    435.9 KB · Views: 130
  • CA4658CB-80AC-44E6-9C46-78E548D9640E.JPG
    266.8 KB · Views: 140
  • BDA5D80F-E37E-4DC9-93A5-21DACD6F1F8D.JPG
    173.8 KB · Views: 82
  • FF33CD28-F835-4E13-8E10-2C787A337CBB.JPG
    207.6 KB · Views: 80

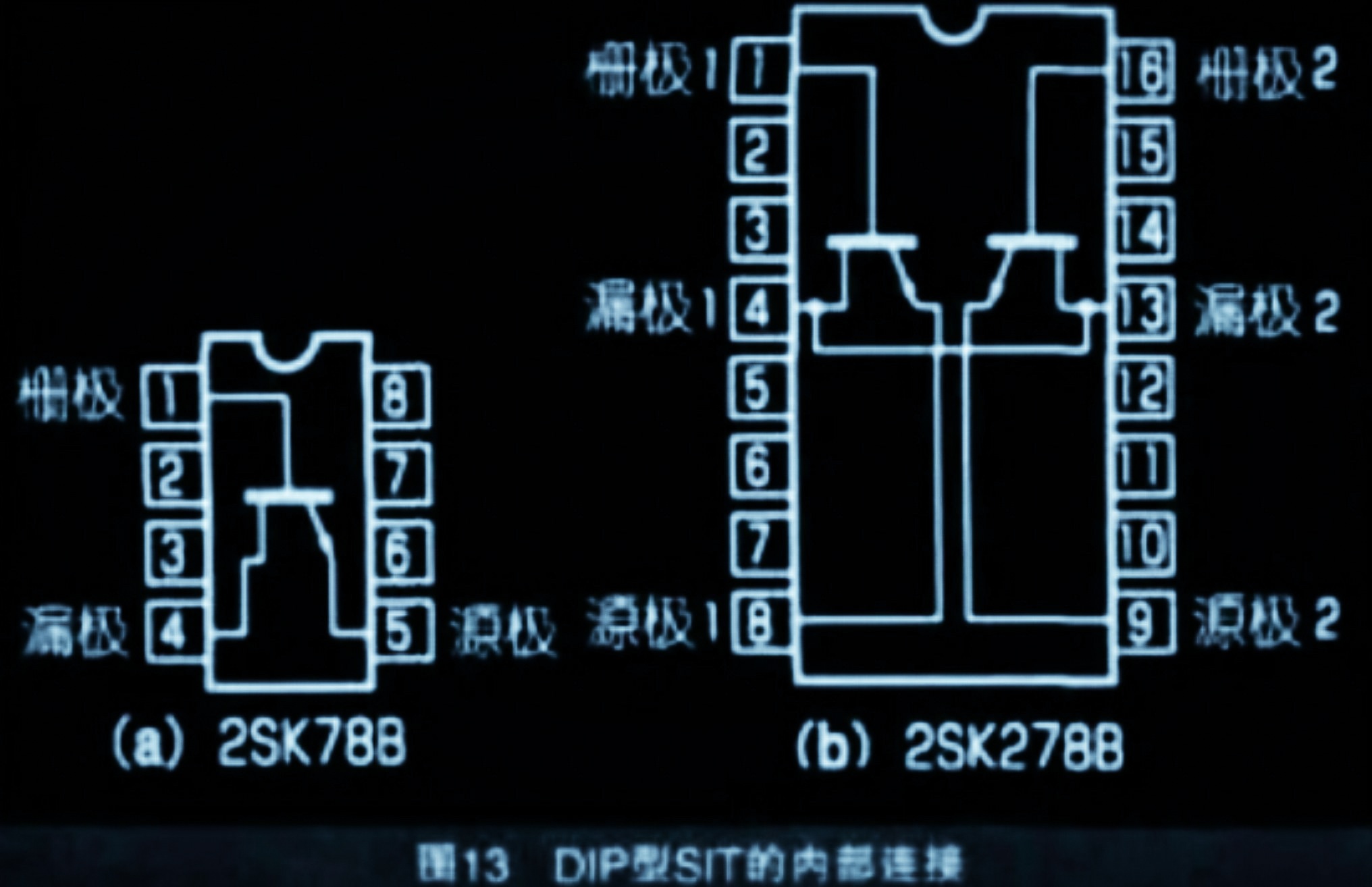

  • 4DA69E1C-7CED-47BB-8749-2889D46326AC.JPG
    289.8 KB · Views: 88
  • E79195F4-B22D-4769-8B12-513671445EE9.JPG
    240.4 KB · Views: 120

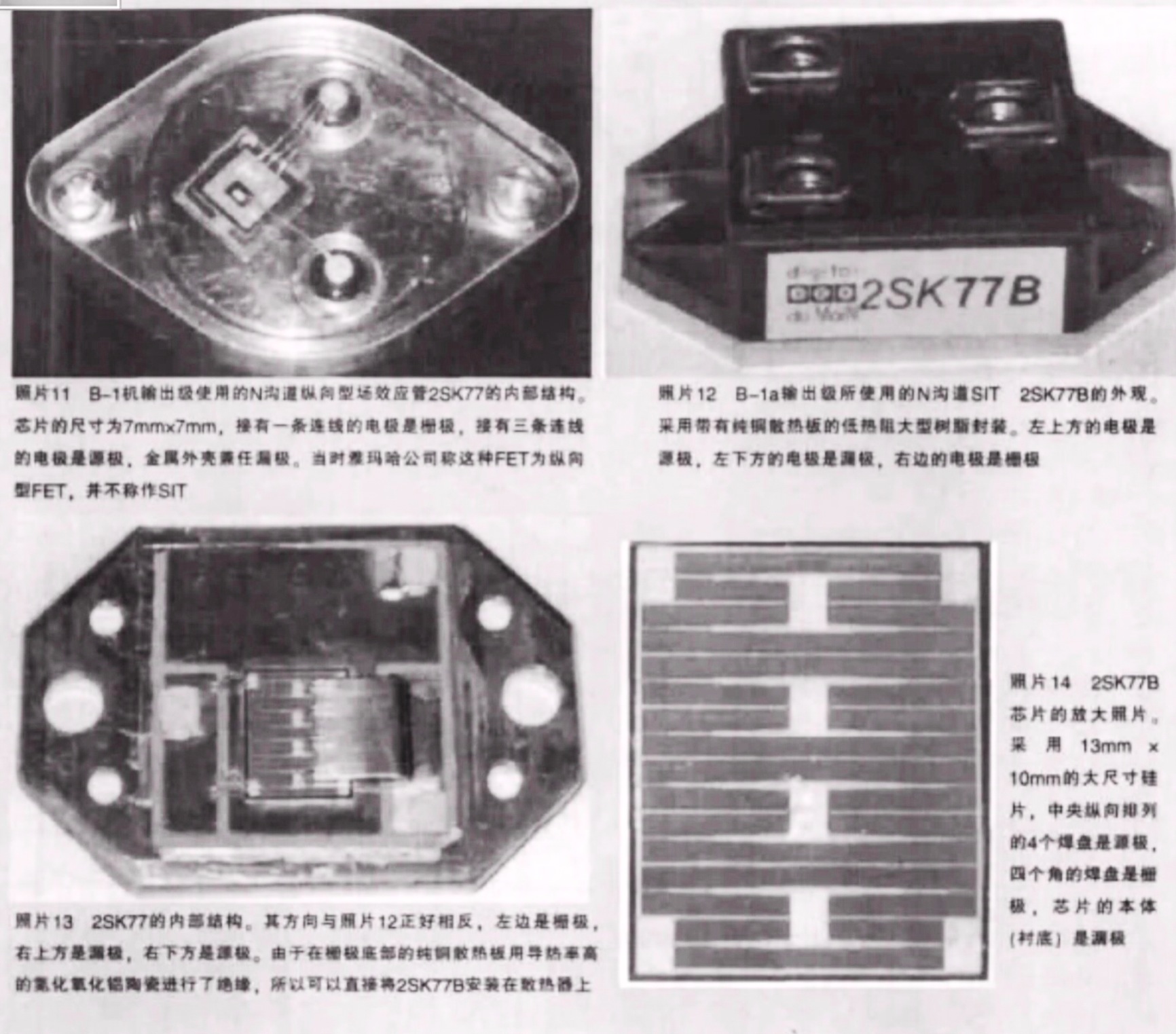

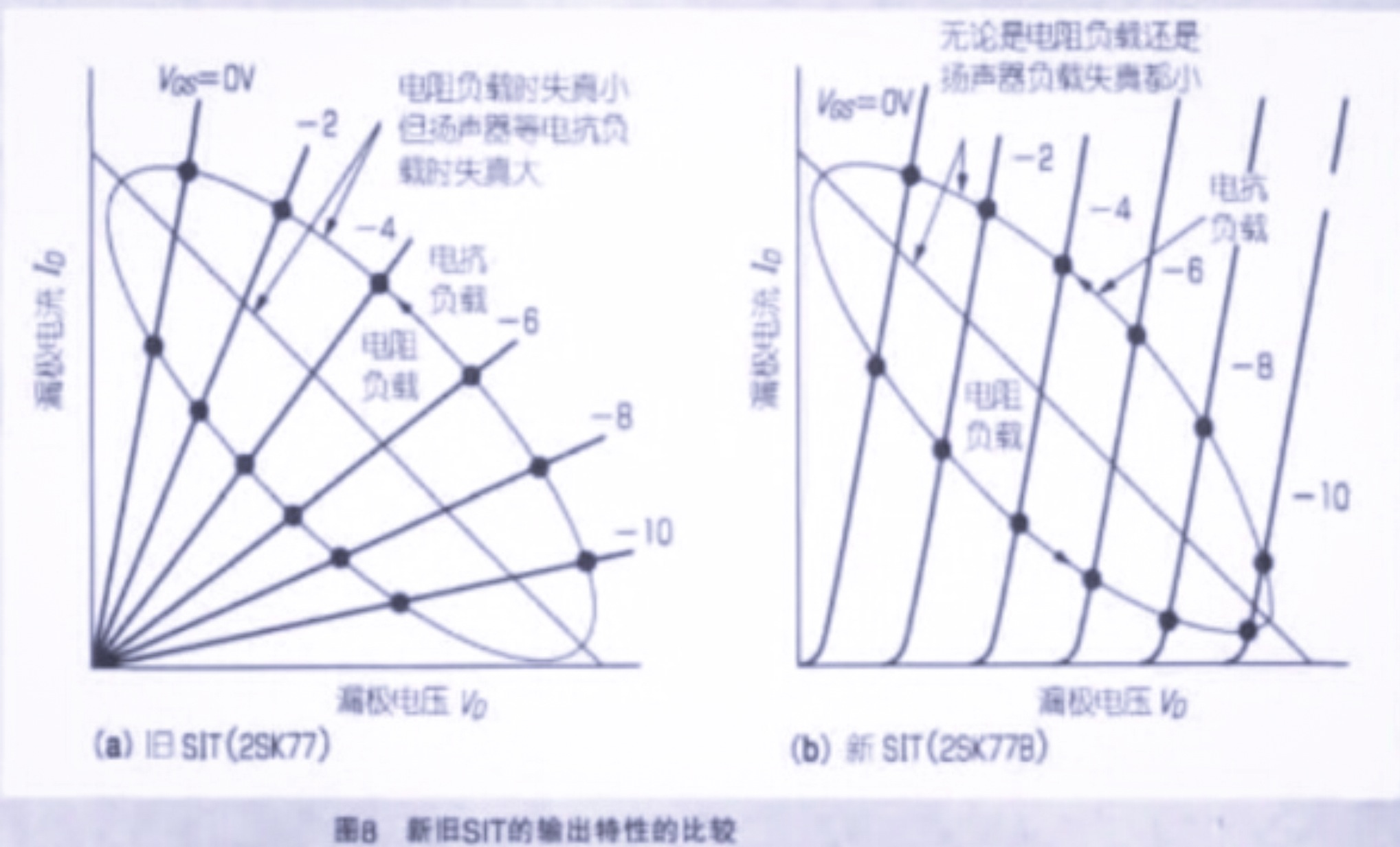

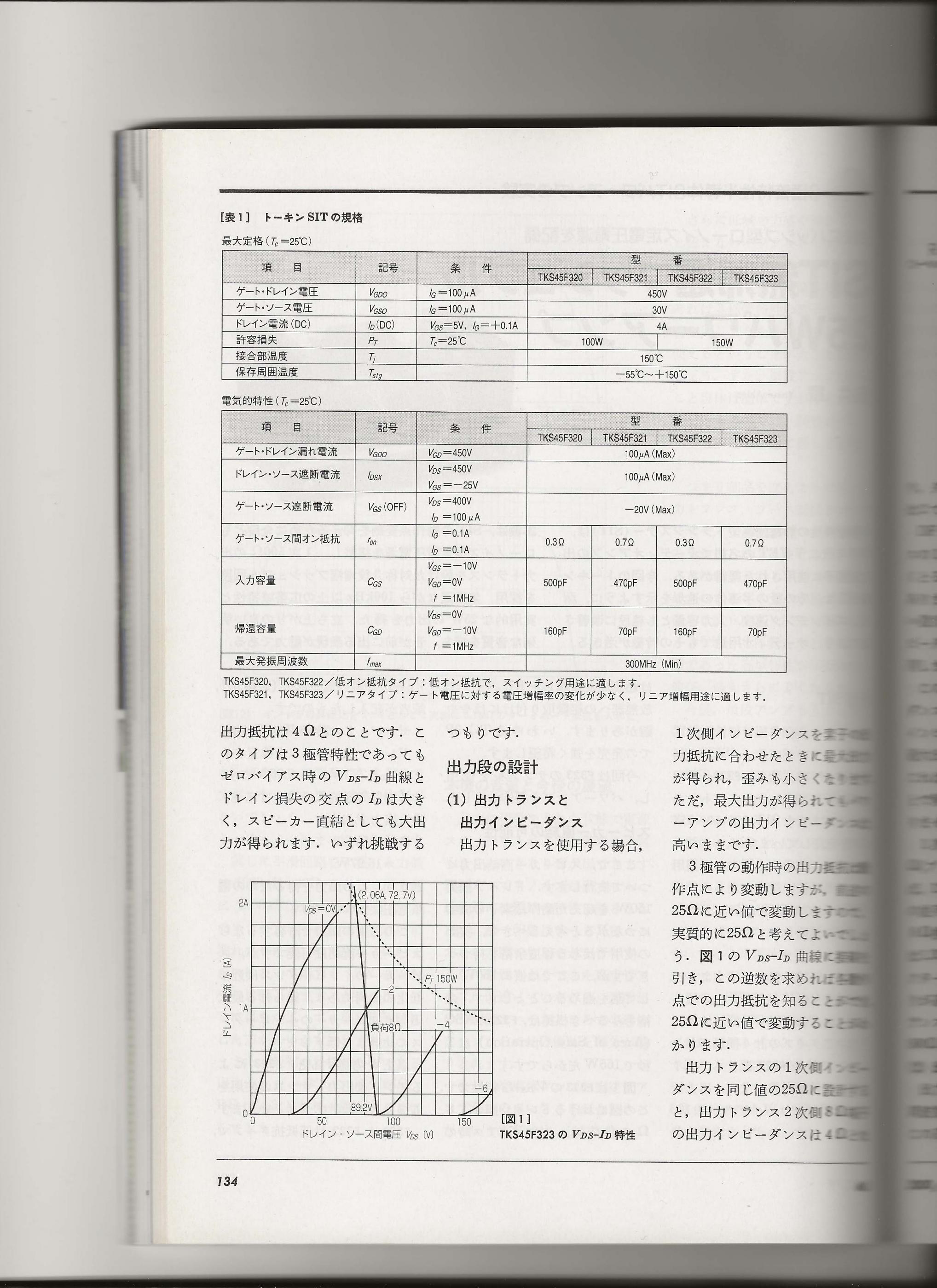

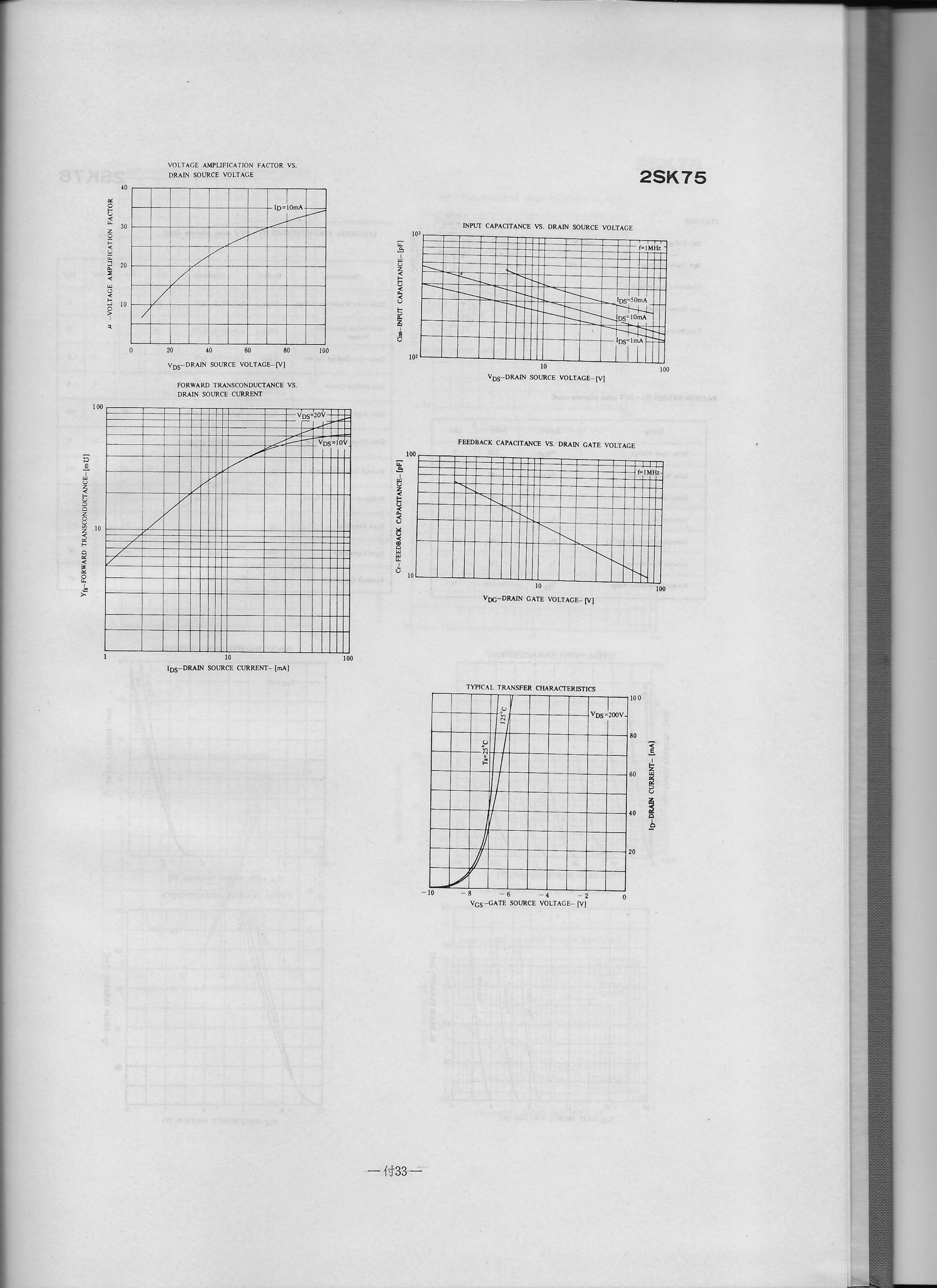

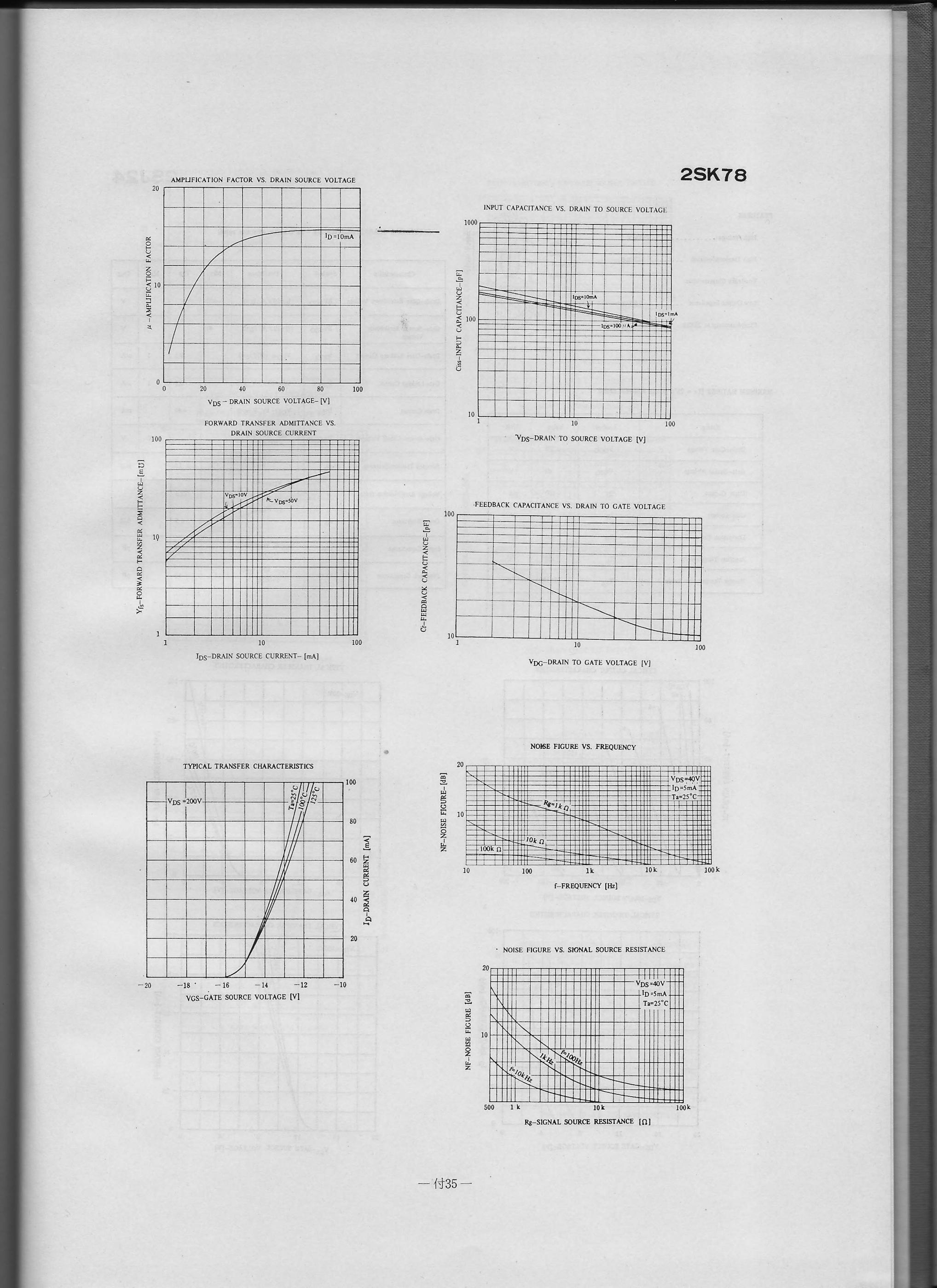

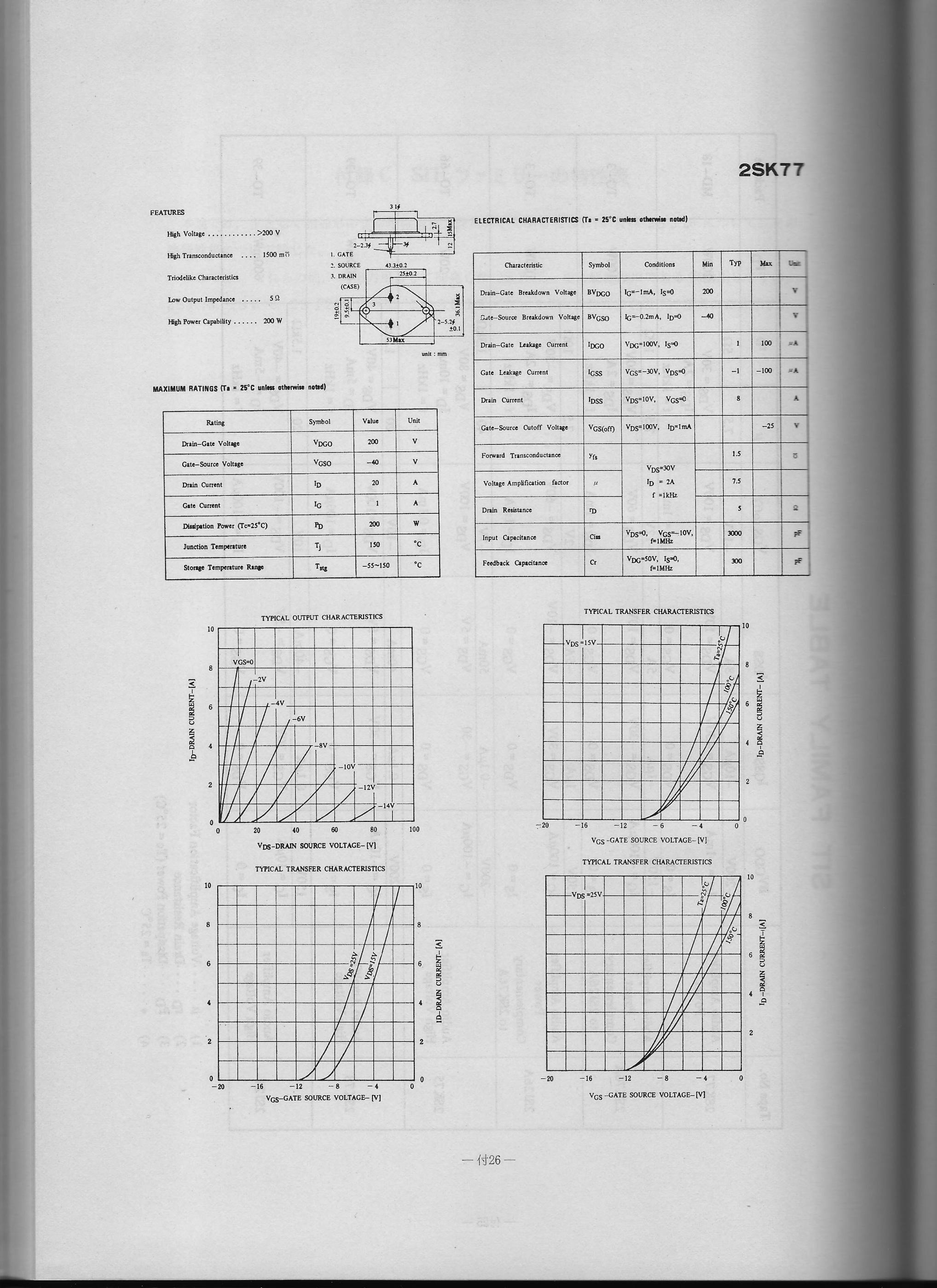

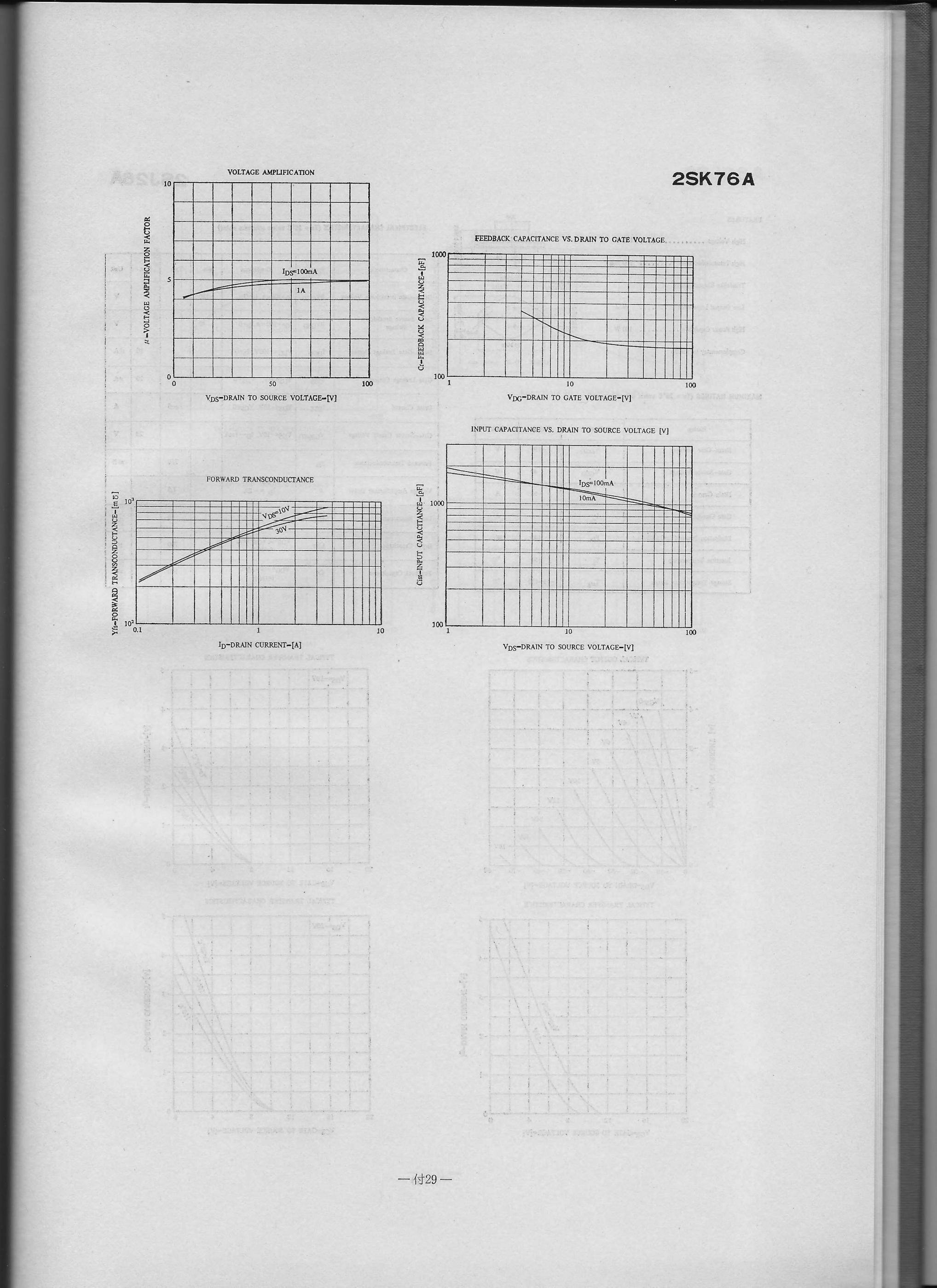

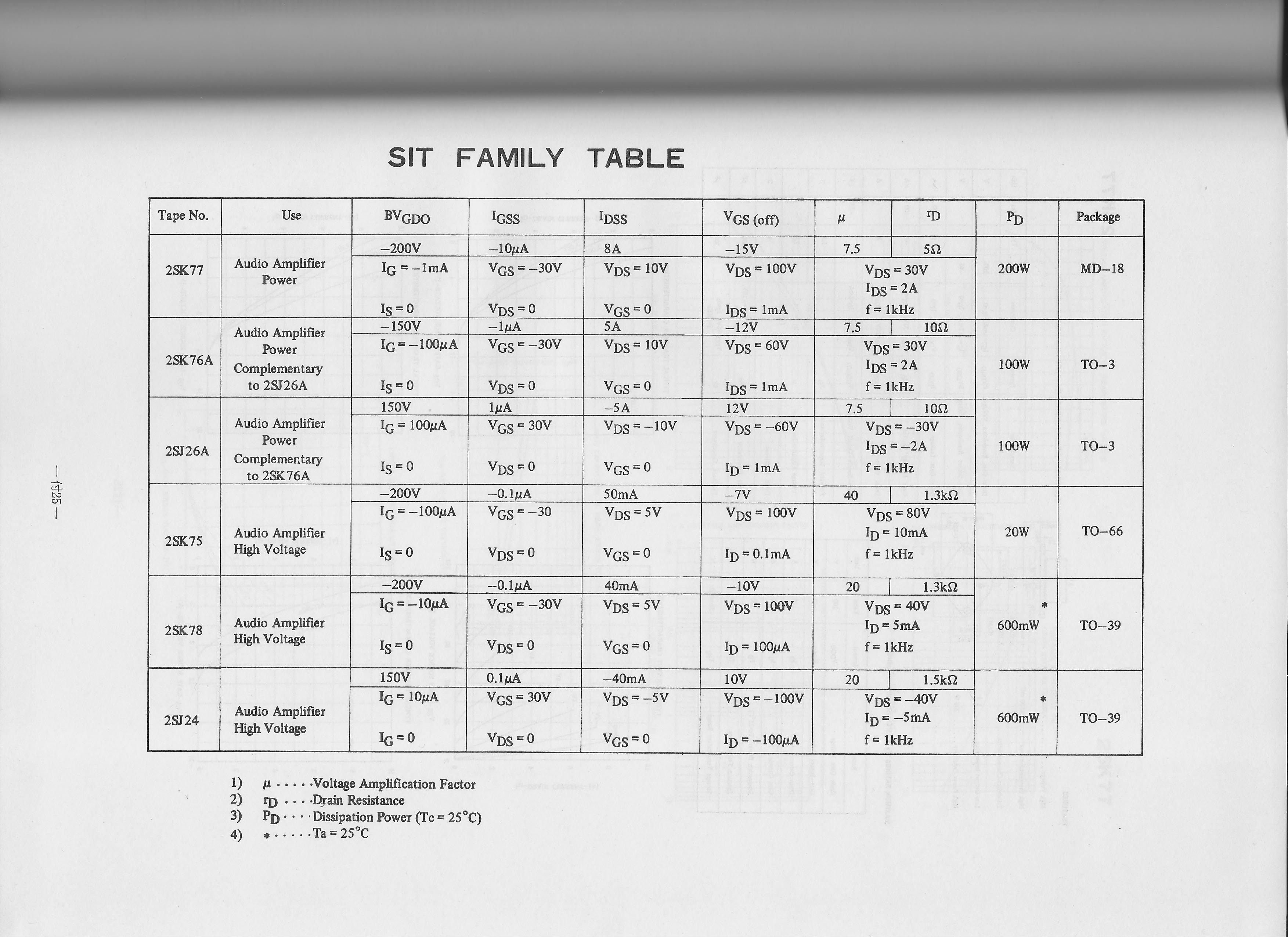

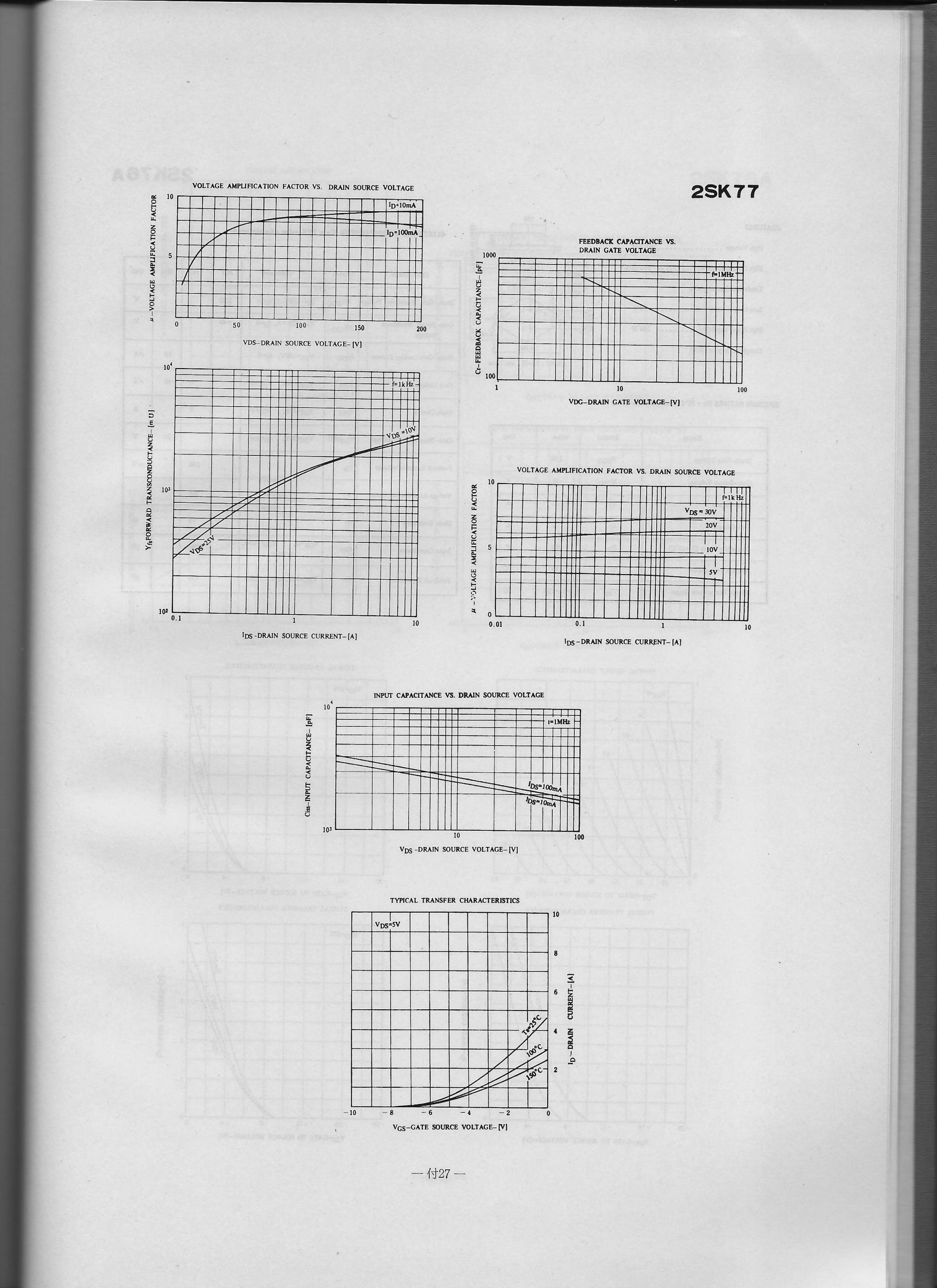

YAMAHA SIT/VFET Family

Quoted from a dissertation by the designer of YAMAHA.
Mochida, Yasunori. Research on Static Induction Transistors for audio amplifiers, 1982?
This data cost more than SIT device :D


Attachments

  • Yamaha_SIT_07.jpg
    437.4 KB · Views: 150
  • Yamaha_SIT_06.jpg
    538.8 KB · Views: 149
  • Yamaha_SIT_05.jpg
    492.4 KB · Views: 142
  • Yamaha_SIT_04.jpg
    577.1 KB · Views: 160
  • Yamaha_SIT_03.jpg
    548 KB · Views: 198
  • Yamaha_SIT_02.jpg
    577.6 KB · Views: 250
  • Yamaha_SIT_01.jpg
    775.5 KB · Views: 248
WOW, that's awesome! Thank you very much!! :)

The SONY book was pretty pricey too - it broke my heart a little when I had to rip it apart to be able to do proper scans (the book is VERY thick, with text / graphics very close to the inner edge, so trying to scan it as is was futile - that inner part [~1/3] of each page was completely deformed / blurred).
